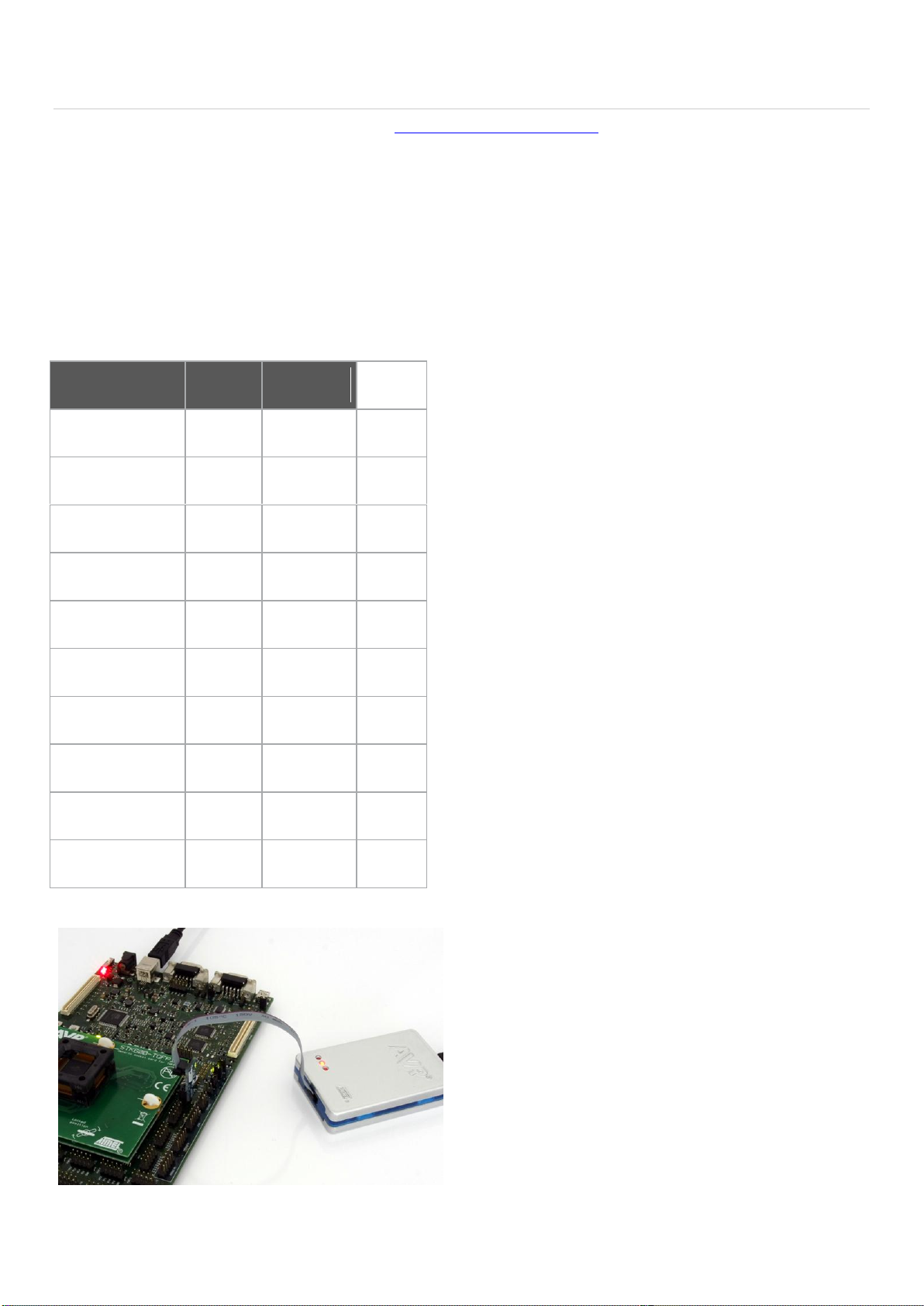

Introduction to the Atmel JTAGICE3
The Atmel JTAGICE3 is a powerful development tool for debugging and programming ARM® Cortex®-M based Atmel®
SAM and Atmel AVR® microcrontrollers with On-Chip Debug capability.
It supports:
Programming and on-chip debugging of all Atmel AVR UC3 microcontrollers on both JTAG and aWire interfaces.
Programming and on-chip debugging of all AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces.
Programming (JTAG and SPI) and debugging of all AVR 8-bit microcontrollers with OCD support on both JTAG or
debugWIRE interfaces.
Programming and debugging of all Atmel SAM ARM® Cortex®-M based microcontrollers on both SWD and JTAG
interfaces. (Firmware version 3.0 and later)
Atmel JTAGICE3 Features
Fully compatible with Atmel Studio
Supports programming and debugging of all Atmel AVR UC3 32-bit microcontrollers
Supports programming and debugging of all 8-bit AVR XMEGA devices
Supports programming and debugging of all 8-bit Atmel megaAVR and tinyAVR devices with OCD
Supports programming and debugging of all SAM ARM Cortex-M based microcontrollers.
Target operating voltage range of 1.65V to 5.5V
Draws less than 3mA from target VTref during operation
Supports JTAG clock frequencies from 32kHz to 15MHz
Supports PDI clock frequencies from 32kHz to 10MHz
Supports debugWIRE baud rates from 4 kbit/s to 0.5 Mbit/s
Supports aWire baud rates from 7.5 kbit/s to 7.5 Mbit/s
Supports SPI clock frequencies from 8 kHz to 1.875 MHz
Supports SWD clock frequencies from 32 kHz to 2 MHz
USB 2.0 high-speed host interface
ITM serial trace capture at up to 1MB/s
Supports 10-pin 50-mil JTAG connector, as well as 10-pin 100mil JTAG, 6-pin 50-mil SPI and 6-pin 100-mil SPI
interfaces using adapters.
System Requirements
The Atmel JTAGICE3 unit requires that a front-end debugging environment Atmel Studio or AVR Studio 5.0 or later is
installed on your computer.
The JTAGICE3 should be connected to the host computer using the USB cable provided.
