ato form Liftolet User manual

User manual
Toilet seat lift
Liftolet
Bath & WC
edition 07/21

Page 3/32 (07/21)
Dear Customer!
We would like to thank you for your trust
extended to us and for purchasing our
product.
The toilet seat lift Liftolet distinguishes itself
by its quality, security, easy operation and
modern design.
For optimal use of this aid, we ask you and
possible other users to carefully read this
operating manual.
Please read through these instructions
carefully before first use and handle
equipment appropriately!
Foreword

Page 4/32 (07/21)
2 Table of contents
Table of contents
Topic Page
1 Foreword ……………………………………… 3
2 Table of contents ……………………………… 4
3 Safety instructions …………………………… 6
4 Warranty and product liability ……………… 8
5 Position of CE label …………………………… 9
6 Indications and prophylaxis ………………… 10
7 Purpose of use ………………………………… 10
8 Product overview ……………………………… 11
8.1 Basic model ……………………………… 11
8.2 Accessories / Options …………………… 12
9 Initial operation ……………………………… 13
10 Assembly and adjustment …………………… 14
10.1 Basic model ……………………………… 14
10.2 Accessories / Options …………………… 20
11 Types of models and Accessories …………… 21
11.1 Basic model ……………………………… 21
11.2 Accessories / Options …………………… 21
12 Technical details ……………………………… 22
13 Cleaning and disinfection …………………… 24
14 Maintenance and overhaul …………………… 25
15 Operating life and Re-use …………………… 25
16 Faults, Repairs, Spare parts…………………… 26
17 Storage ………………………………………… 26
18 Declaration of conformity …………………… 30

Page 5/32 (07/21)
3 Safety instructions
Safety instructions
The toilet seat lift Liftolet is CE-marked
and fulfils the requirements of the directive
93/42/EWG. It was developed in line with
most recent findings. Production is subject
to an on-going quality control.
Please read this user manual carefully before
operating the toilet seat lift.
The user manual is an integral part of
the Rehab aid. In case of loss, request a
new copy or download directly from our
download area on our homepage
www.ato-form.com.
Please keep the user manual in a safe place,
accessible to care and maintenance staff.
The user manual does not replace the
experience of supervisory staff with the
experience and knowledge of operators,
which they gained from (for example)
training courses.
In the event of specific or difficult
applications, the user manual represents a
guide to the most important handling.
Ensure all users or supervisor of this aid
understand its handling and the meaning of
the symbols attached to the device.
Accidents can be prevented when technical
instructions according to the EWG
guidelines are followed.
Protective coverings, labels and warning
notices may not be removed.
The maximum load-bearing capacity of the
Liftolet standard model is 150 kg.
Regular monitoring at your specialist
dealer (at least once a year) lengthens
the life time of the toilet seat lift and
gives you security.
Please also see section: Maintenance
and overhaul.

Page 6/32 (07/21)
• Before mounting or using the toilet seat
lift Liftolet carefully read all instructions
of this user manual, as these have
been drawn up for your safety and
as a guideline for the correct use and
maintenance of this product. This
operating manual is an indispensable
component of the delivery and should be
stored carefully for further use.
• The operating manual is intended for
retailers and users of the toilet seat lift
Liftolet, (or their carers). It contains the
required information to secure the correct
use of the product, it cannot, however
replace the necessary experience of the
user or assistant in handling the device.
• The reseller has the duty to deliver the
device ready for operation and to explain
precisely the functions and technical
data of the device, as well as provide the
necessary support and briefing needed for
a correct and efficient use of the device.
• The given instructions of the operating
manual, refers to the point in time of
the device being placed on the market.
The manufacturer reserves the right to
introduce any modifications which prove
necessary to the device and associated
operating manual, without being bound
to change previous devices and associated
operating manuals.
• The toilet seat lift Litolet may only
be operated by persons who have
familiarized themselves with the standards
and rules of the present operating
manual.
• Any potential assistant must be familiar
with the clinical picture of the user.
• The Liftolet may only be used by persons
of a suitable stature and physical aptitude.
• Never place a patient in an aid, which
is not coordinated with his or hers body
height and weight.
• Adjust settings only in the unloaded
condition.
• Do not place any hot beverages or objects
onto the aid you have purchased, as this
would seriously damage the aid.
• Do not load any heavy objects onto the
aid, as this would impair the structure, the
centre of gravity and consequently impair
the balance.
• Move all objects out of the way, which
could be hit or fall whilst operating the
aid.
• Check all adjustable parts are locked,
before every use of the aid.
• Please note the individual and overall
safety relevant information when using
several rehabilitation aids simultaneously.
• All aspects of spatial influences (uneven,
wet and smooth floors, steps or similar)
must be taken into consideration by the
carer or user.
• Check regularly if all screws and handles
etc. are firmly tightened. Worn and
defect parts are to be repaired or replaced
immediately. This is especially important
to ensure a safe use of the rehab aid!
Carefully check the clamping jigs and the
like are securely fixed.
Safety instructions
3 Safety instructions

Page 7/32 (07/21)
Safety instructions
• Do not use the aid, if parts of it are
damaged or missing. Missing parts are
only to be replaced with original spare
parts.
• Do not carry out any interferences or
measurements if you are unsure of their
effects; for your own safety contact the
nearest service centre or contact the
dealer directly.
• In case of accidents or malfunctions,
contact the dealer or manufacturer from
whom you purchased the device.
• The Liftolet is connected via a power plug
to a standard household wall socket. The
common safety regulations according to
the German VDE (Verband Deutscher
Elektrotechniker) standards for electricity
grids in damp rooms are to be observed
(electrical safety areas in damp rooms,
socket type, protective conductor).
• Regularly inspect the connector or
cable connections and the socket for
damage. In the case of damage contact
immediately contact the manufacturer or
an electrician.
• A connection with an extension cable or
multiple sockets is not permitted.
• Battery operated model: when in use
never allow the battery to discharge
completely (observe charging indicator)!
When the load limit has been reached an
acoustic warning signal sounds.
• Battery operated model :the battery must
be charged for at least 24 hours before
the first use of the Liftolet.
• The batteries are only to be charged in
dry conditions.
• The manufacturer is not liable for damage
to persons, objects or animals resulting
from false usage of the equipment by the
user or third parties, through incorrect
mounting of parts and accessories, by
neglect or poor maintenance, neglect,
through unauthorized alterations and
modifications, usage of non-original
spare parts or accessories, through
unpredictable and exceptional events
resulting from non-compliance of the
regulations in the presented operating
manual.
• Clean the toilet seat lift Liftolet in
accordance with the instructions given in
the chapter „cleaning”.

Page 8/32 (07/21)
ATO FORM grants the required by law
warranty of your country against defects in
workmanship and materials.
The warranty would be adversely affected
if the customer’s responsibility of servicing
and/or daily maintenance is not carried out
according to the guidelines and intervals
prescribed by the supplier and/ or stated in
the manual.
For further information, we refer to the
ATO FORM homepage/download www.
ato-form.com.
The warranty can only be sustained if the
ATO FORM product is in use in the same
country where it was purchased and if
the product can be identified by the serial
number. The warranty does not cover
accidental damage, including damage
caused by misuse or neglect.
The warranty does not extend to non-
durable parts, which are subject to
normal wear and tear and need periodic
replacement.
The warranty is null and void if non-original
ATO FORM parts/accessories are used, or if
the product is repaired or altered by anyone
other than an authorized ATO FORM
representative or by trained personnel
officially recognized by ATO FORM for
repair and maintenance of ATO FORM
products.
ATO FORM reserves the right to inspect the
product being claimed for and the relevant
documentation before agreeing to the
warranty claim and to decide upon whether
to replace or repair the defective product. It
is the customer’s responsibility to return the
item being claimed for under warranty to
the address of purchase.
The warranty is given by ATO FORM or,
subsequently, an ATO FORM dealer.
Warranty and product liability
4 Warranty and product liability

Page 9/32 (07/21)
The CE-label, which in-
cludes the article number,
serial number and man-
ufacturer information is
located on the back of the
right column.
Position of CE-sign
5 Position of CE-sign

Page 10/32 (07/21)
The device must be prescribed by a medical
specialist, who has tested beforehand and
determined if the Liftolet is suitable for the
individual therapeutic goal of the patient.
Furthermore, the medical specialist has
determined the aid to be suitable according
to measurements, weight and willingness of
the patient to use the aid.
The aid is delivered via an authorised tech-
nician in compliance with the requirements
of the country where it is being used and in
strict accordance with the information and
instructions in this manual for adjustments
of the aid according to the measurements of
the user. Only compliance of the regulations
and instructions can lead to positive ergo-
nomically effects.
We wish you every success when using the
toilet seat lift Liftolet.
• Muscular dystrophy
• Neurological diseases
• Multiple sclerosis
• Gout patients
• Polio
and other muscle disorders
Indications and prophylaxis
Purpose of use
6 Indications and prophylaxis
7 Purpose of use
We constantly develop new aids and
improve existing products. We are happy
to receive your suggestions of every
description.

Page 11/32 (07/21)
1
2
3
4
5
7
88
6

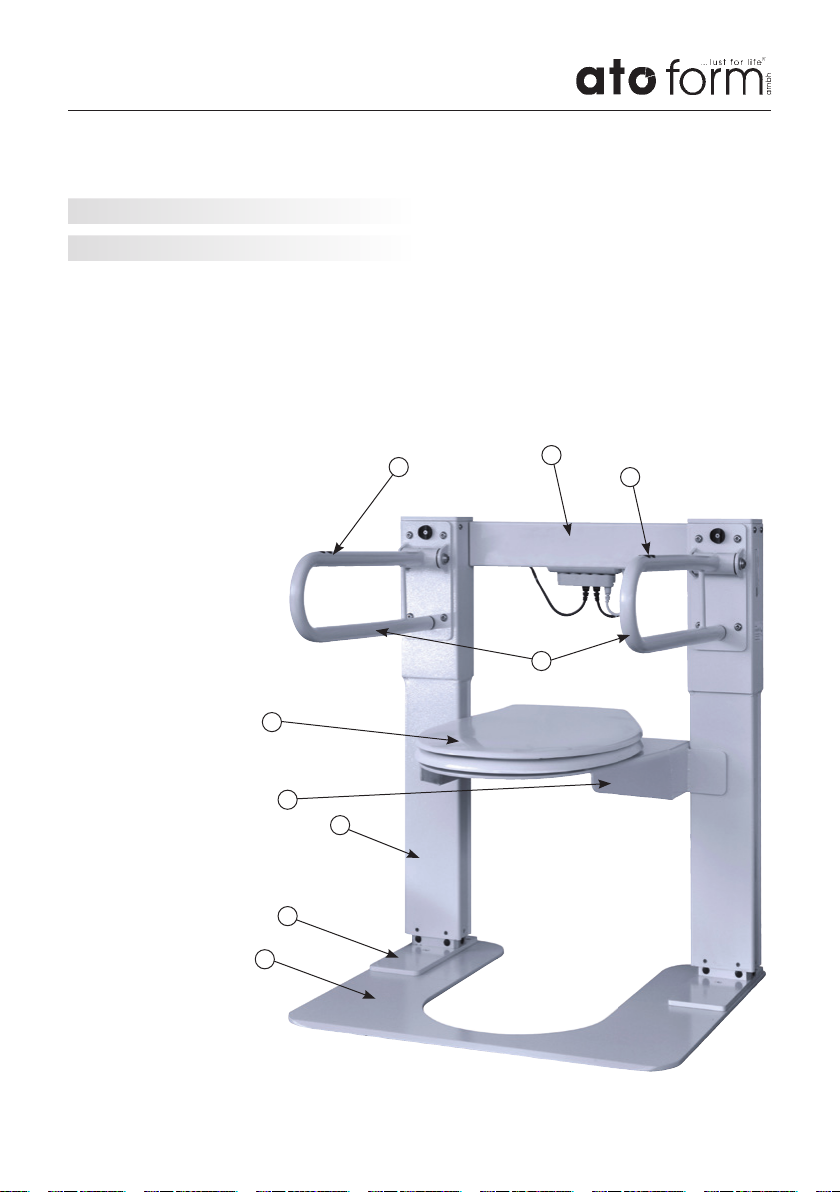

Product overview
8 Product overview
8.1 Basic model
1. Lifting columns
2. Mounting flange
3. Base plate (option)
4. Carrier plate for the WC seat
5. WC-seat with lid
6. Cable channel
7. Upward folding support handles
8. Push button
Image shown model “Smal”

Page 12/32 (07/21)
Product overview
8.2 Accessories / Options
2
1
Image shown model with Pressalit®support handles.
1. Base plate
2. Upward folding support handles Pressalit®
You will find the most current overview of
our extensive offer of Liftolet accessories
and much more useful information on our
homepage www.ato-form-com.
Please contact us for special requirements of
accessories or for specific problems, which
are not illustrated or described here.
We may already have the right solution for
you.

Page 13/32 (07/21)
Initial operation
9 Initial operation
The reseller is to unpack the unit, ensure
that the components and accessories listed
in the scope of delivery are all present and
undamaged, and give the buyer the initial
instructions on use of the aid. Above all the
reseller should read through the complete
present user manual carefully, in order to
then explain it to the customer in detail.
This way, with help of the reseller, the user
as well as the attendant must become famil-
iar with the correct operation of the aid.
Once the demonstration has been complet-
ed, the reseller must ensure the user and/or
the assistant have fully understood the basic
functions of the equipment. This is the only
way to prevent the user from dangerous
situations.
The above mentioned requirements must be
observed for first use and also for reuse.
The seller must give instruction for use, as
well as explain the basic functions of the
device according to MPG (medical products
law) to qualified staff.

Page 14/32 (07/21)
Assembly and adjustment
10 Assembly and adjustment
10.1 Basic model
One-man assembly:
• Liftolet can be mounted by one person.

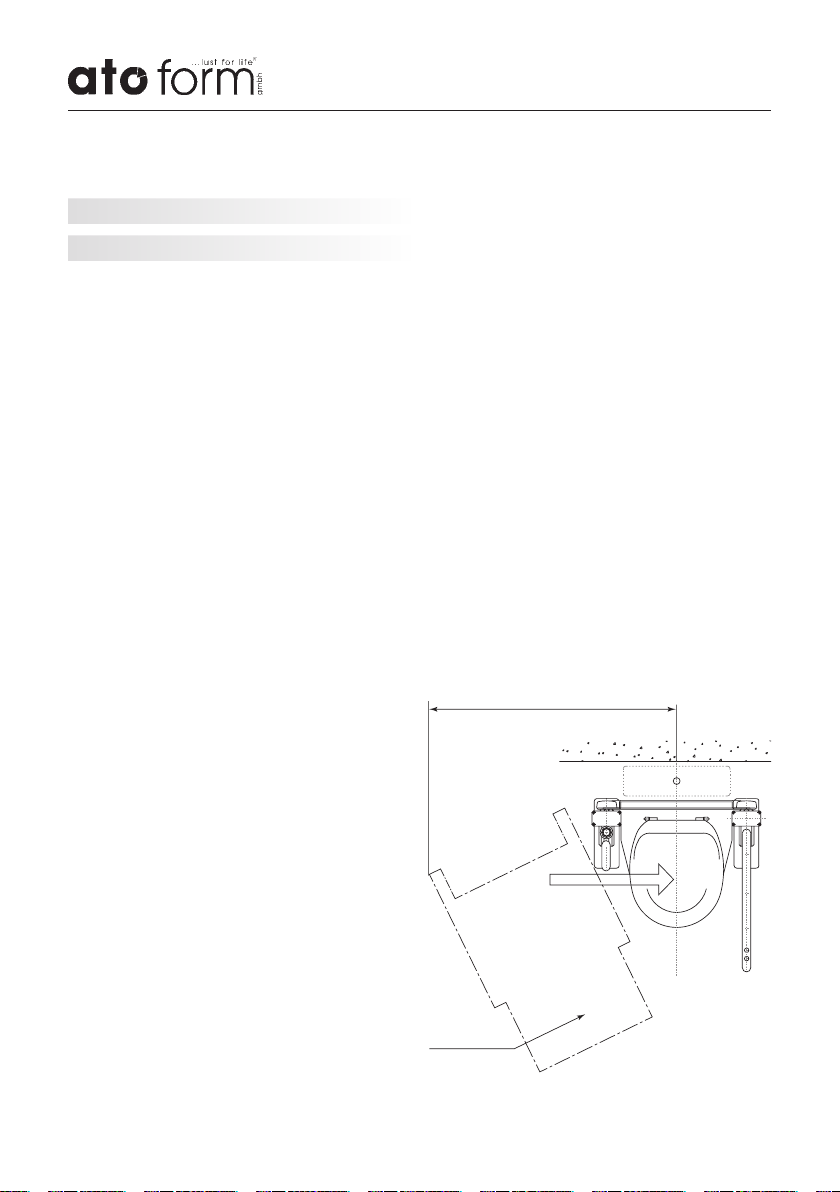

Space requirement:
• If the Liftolet is used by a wheel chair
user, then the entry side is according to
the space available. The minimal distance
from WC seat is approx. 1m.
Preparing for self-assembly:
• Unpack the product and remove the
packing materials.
• Ensure that all supplied components are
present and undamaged.
• Have the required tools, components and
mounting elements ready to hand before
beginning the assembly.
• The floor area on which the Liftolet is to
be installed should be level. If the floor
surface is uneven, measures should be
taken on-site to produce a surface that is
even or suitably leveled out.
• Ensure that the floor area on which the
Liftolet is to be installed is dry and clean.
• When installing the Liftolet without the
base plate, 6 stainless steel (at least V2A/
AISI304) flat-head screws are to be used
for the secure anchoring of the device.
The specialist responsible for the installa-
tion must ensure that the strength of the
floor is sufficient for both the load and
the selected mounting type of the Liftolet.
• The specialist is also responsible for the
correct selection of a mounting system
(dowel, anchor etc.) appropriate to the
existing conditions at the site. The person
carrying out the works must observe
the structural requirements for dowel
anchoring.
min 1000 mm
Wheelchair

Page 15/32 (07/21)
Assembly and adjustment
Mounting without use of the base plate:
• After the conditions are given for
mounting, place the Liftolet over the WC
and position correctly.
Attention:
When positioning the Liftolet, do not
take hold of the cable channel (6),
carrier plate (4) or support handles (7),
however only hold on to the lifting
columns.
• Lower the carrier plate of the WC onto
the WC bowl by loosening the 3 screws
located underneath the toilet seat on
either side.
• Fasten the 3 screws on either side again
once the carrier plate rests on the WC.
Attention:
Hold the carrier plate when loosening
the screws to prevent it from falling
onto the WC.
• It is recommended to raise the Liftolet
once before marking the bore holes onto
the floor to ensure the Liftolet does not
brush against anything, also when the lid
is open.
Attention:
Ensure the Liftolet does not fall over
whilst rising.
• Only after this test mark the holes on the
floor for the mounting flanges and carry
out the base fixing. When tightening the
floor mounting screws, ensure the Liftolet
is not braced by eventual floor uneven-
ness. In such a case the mounting flanges
should be adequately supported.
• Please note that the structural rules are
to be observed. It must be ensured that
the floor condition can withstand the load
and no cables in the ground are dam-
aged.

Page 16/32 (07/21)
Assembly and adjustment
Non-liability
The person carrying out the works is soley
responsible for proper and professional
mounting of the Liftolet. The manufacturer
accepts no liability for the carried out works
or any damages resulting from this.
Silicone joint
Sanitary silicone must be properly attached
around the mounting flange or when using
a base plate use silicone joint with sanitary
silicone around the base plate.

Page 17/32 (07/21)
Assembly and adjustment
Initial Operation
On first use of the system and in case of
error it is necessary to restart the system by
following the steps given below.
First installation / initialization of the drive
system:
• If there is an audible signal (simple BEEP)
when the function buttons UP or DOWN
are pressed, the system is ready for use
but the position of the actuators is either
unknown or more than 5mm apart.
• Press and hold the DOWN button (rear
button on the right or left armrest) until
the actuators begin to move.
• Now press and hold the button again
until the actuators have reached the lower
end position.
• Next press and hold the UP button (front
button on the right or left armrest) until
the lifting columns have moved approxi-
mately 5cm upwards.
• Then press and hold the DOWN but-
ton again until the lifting columns have
reached the lower end position again and
the control system has switched off both
drives.
• The drive sensors are now aligned.
• The system is now initialized and can be
put into operation.
“Position Lost” during operation:
• If the system is overloaded or there is a
height difference between the actuators
of 5mm or more, the system stops.
• When the function buttons UP or DOWN
are pressed, a BEEP is heard.
• The system must be initialized. Follow
the instructions given in the section “First
installation / initialization of the drive
system”.
Failure to operate / control error / Fatal
Error Reset:
• In the event that the system fails to func-
tion and it is also not possible to reinitial-
ize the actuators, there could be a control
software error.
• In this case, the control system software
can be reset to its former state prior to
the occurrence of the error through a so-
called “Fatal Error Reset”.
• To carry out the Fatal Error Reset, press
and hold both function buttons (UP and
DOWN) for approximately 20 seconds.
• During the reset a double-BEEP will be
heard. After this sound has subsided the
reset is successfully completed.
Attention!
If the system is unable to be operated
after both initialization and a Fatal Er-
ror Reset, please contact our customer
service.
For further queries please contact
our technical customer service at
0049 6093 944-0.

Page 18/32 (07/21)
Functionality:
Push buttons are embedded in all offered
support arms for raising and lowering the
WC seat lift together with the support arms.

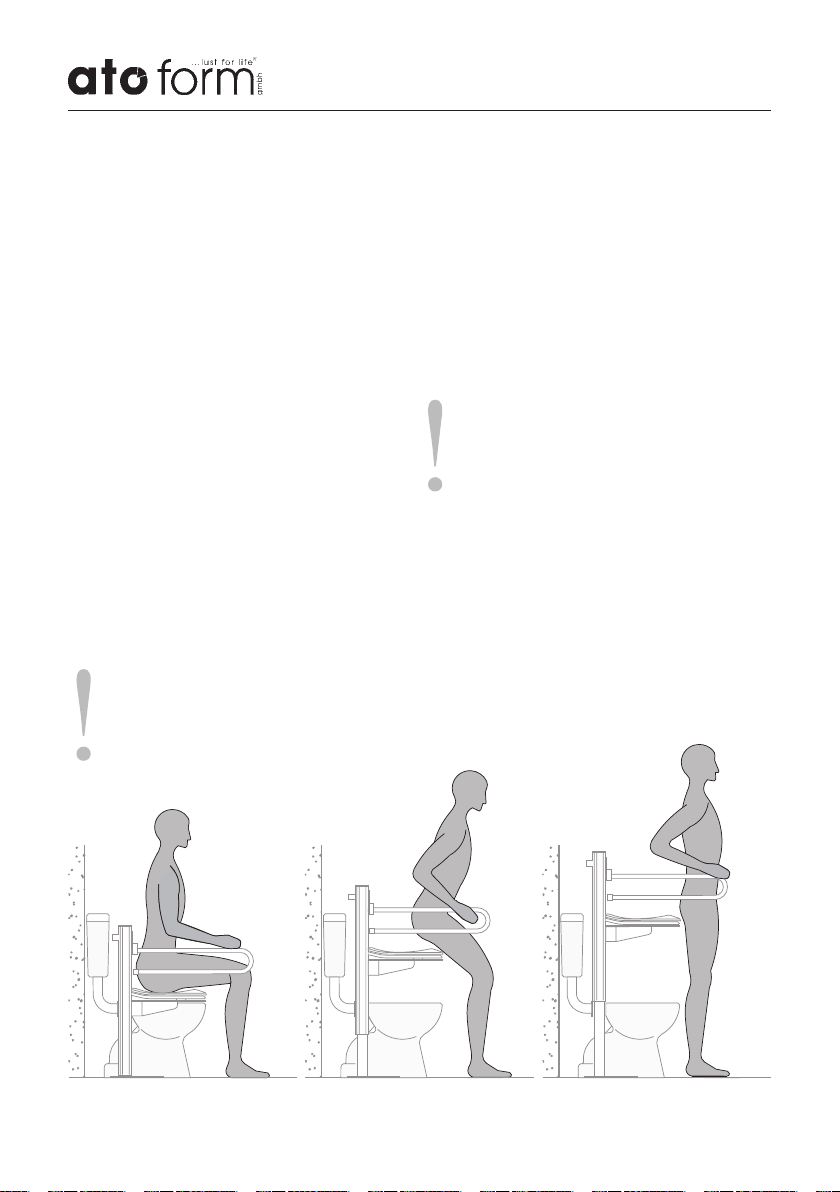

Sit down:
To sit down, firstly raise the toilet seat
until one can comfortably sit down from a
standing position onto the edge of the toilet
seat. At the touch of a button, the seat and
armrests are then simultaneously lowered to
the standard toilet seat height. Thereby the
user is lowered to his/hers normal seating
position.
Stand up:
It is just as comfortable to stand up as it is
to sit down. At the touch of a button, the
seat and support arms are lifted upwards
until the user is straightened up again.
Attention:
In doing so, ensure the feet always stay
firmly on the ground. Max user weight
150 kg.
Intimate care:
The Liftolet is optionally available with an
opening at the front of the seat, which
facilitates intimate washing. For this the seat
should be slightly raised.
Support arms:
The support arms can be folded upwards.
Attention:
To prevent unintended operation for
example by children, the support arms
should be folded upwardly when not
in use.
Assembly and adjustment

Page 19/32 (07/21)
Assembly and adjustment
For battery operated model
(rechargeable battery)
to charge the battery:
The battery needs to be charged at least
24 hour before first use of the WC seat lift
in order to ensure proper function and to
prolong the lifetime of the batteries. The
battery charger is designed for operation on
230 V alternating current. Other versions
are available upon request.
To charge plug the recharger cable (included
in delivery) into the relevant socket (A) of
the control unit. Now, plug the power plug
into the socket.
The two LED indicators (green and yellow)
will lid up, after the control unit has been
connected with the power plug to the main
power supply. The yellow LED indicator
goes out as soon as full capacity has been
reached.
When in use never allow the battery to
discharge completely (observe charg-
ing indicator)! Ensure the battery is
recharged (overnight) when in use on a
daily basis. The battery cannot be over-
charged as the battery charger switches
automatically as soon as the battery is
fully charged.
The battery is only to be charged in dry
conditions.
LED
A

Page 20/32 (07/21)
10.2Accessories / Options
Mounting with use of base plate
• If the Liftolet cannot be mounted to the
ground due to the reasons mentioned on
point 10.1 then the base plate offered as
an accessory should be used. To prevent
the base plate from moving, it should be
slightly fastened to the ground for exam-
ple by use of silicon glue.
Attention:
The plug must be accessible at all
times.
You will find the most current overview of
our extensive offer of Liftolet accessories
and much more useful information on our
homepage www.ato-form-com.
Assembly and adjustment
