Atosa JT22 User manual

Model: JT22/JT32
Please read this instruction manual carefully before operating this equipment

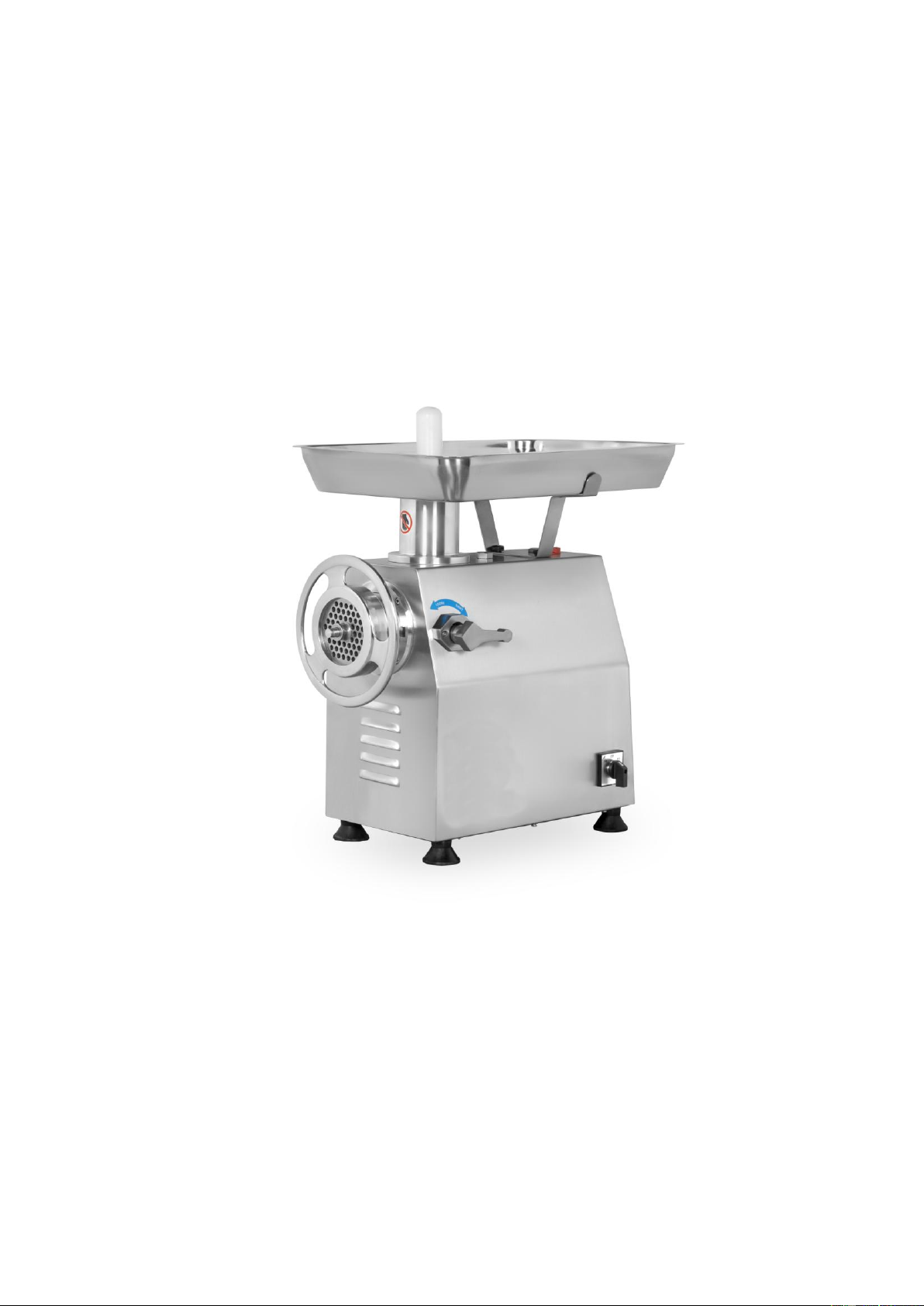

Meat Grinder
Instruction Manual

1
Safety Tips
INTRODUCTION
This instruction manual gives the customer all the necessary information about the
appliance and the manufacturing standards applied, as well as all instructions for use
and maintenance so that the appliance can be used correctly maintaining its efficiency in
time.
This instruction manual is for the end user and for service personnel
Read this instruction manual before using and keep them
available at all times!

2
1 INFORMATION ABOUT THE APPLIANCE
1.1 GENERAL WARNINGS
The appliance must only be used by personnel who has carefully studied this manual and
understood all the safety standards described herein.
If there should be a turnover in personnel, it is necessary that this manual is carefully studied
before using the appliance.
Although safety devices are installed on the appliance, avoid touching the moving parts with your
hands and avoid touching the appliance with wet hands.
Before cleaning or servicing the appliance, disconnect the electricity power supply.
When cleaning or servicing the machine(safety protections removed) take into consideration all
possible hazards-Residual Risks.
When cleaning or servicing the appliance always concentrate on what you are doing and avoid
any possible distractions.
WARNING - The machine should be repaired by manufacturer or agent if the machine faults.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Check the electricity power cable on a regular basis (to avoid electrical hazards and twists in the
cable always completely unwind it);a worn or damaged cable causes a dangerous electrical
hazard;avoid pressing the cable with weights or leaving it on hearted or sharp cutting Surfaces and
avoid pulling the cable to remove the plug from the socket.
If the machine has a presumed malfunction or does not work correctly, do not use it or repair it.
Contact the “Service Centre”.
This appliance is designed for only mincing meat in the mincer.Do not use this appliance for
frozen food or non-food products and do not insert any metallic objects into the mincer .
Do not mince without using the pestle
The manufacturer cannot be held responsible for the following situations:
If the appliance or safety devices are tampered with by unauthorized personnel;
If non-original spare parts are used;
If the instructions given in this manual are not carefully followed or respected;
If unsuitable cleaning products (inflammable, corrosive or toxic) are used to clean the appliance.
1.2 SAFETY FEATURES INSTALLED
The machine is fitted out with:
Relay in the command circuit for restarting the appliance if there if there is a power cut;
The machine is fitted out with electrical and mechanical safety protections that conform to the
standards in force .These protections are for when the appliance is working and when it is being
cleaned or serviced .However ,there are RESIDUAL RISKS that cannot be completely eliminated and
are indicated by the wording CAUTION in this manual. These risks refer to the risk of being cut or
injured when handling the blade on the machine while cleaning.

3
1.3 APPLIANCE DESCRIPTION
1.3.1 GENERAL DESCRIPTION
We have designed and manufactured the machine guaranteeing;
The maximum of safety when using, cleaning and servicing;
The maximum of hygiene thanks to a meticulous selection of the materials that come in contact
with the food product, and thanks to the elimination of any sharp and rough edges that comes in
contact with the product, cleaning is easy and thorough;
The appliance can be easily stripped
Robust and stable components and structure
Maximum reduced noise level thanks to the geared transmission and oil bath
Easy to handle
2 TECHNICAL DATA
FIG-2 TECHNICAL CHARACTERISTICS
Model
JT22
Voltage
240V/50Hz
Power
1.1 KW
Holes in disk
6mm/8mm
Production: Max.
250kg/h
Weight
29kg
Measurement
440×280×440mm
Model
JT32
Voltage
240V/50Hz
Power
1.5 KW
Holes in disk
6mm/8mm
Production: Max.
320kg/h
Weight
49kg
Measurement
530×270×500mm

4
3 CONSIGNING THE APPLIANCE
3.1 CHECKING PACKAGING UPON CONSIGNMENT
When the goods are received proceed with opening the packaging if there are no signs of damage. if
when the goods are delivered there are signs of damage to the packaging, such as agent or courier,
and within three days from the date indicated on the documents draw up a detailed list and report of all
damage to the goods. Do not turn the packed goods upside down! When transporting the package
make sure its four main points are firmly secured (maintain the goods parallel to the ground).
3.2 DISPOSING OF PACKAGING
The various items used for packaging (cardboard, pallets, plastic straps, polyurethane foam) are
normal urban waste products and can be disposed of without difficulty.
If the appliance is destined to countries where are specific standards regarding waste, dispose of
packaging respecting the standards and laws in force.
4 OPERATION AND NOTES
4.1 Before use, check that the power supply corresponds to that required by the machine,
and that the external earthing wire is reliable connected.
4.2 Remove the cutting group and wash them with clean water, then reassemble them as
directed in figure and screw the latch.
4.3 When the machine start at the first time, should check the machine running is it correct.
Rate the mincing.
4.4 Before start the machine, must be checked the screw is it tight enough. The front screw
too tight will waste too much power, and cause the parts damage fast. If the front screw too
tight or too loose, it will cause singularity noise, and will let the machine can not work.
4.5 Remove skin and bone from the meat to be minced, cut them into pieces, suit the
feed-size.
4.6 Feed the pieces into mincing chamber with the feed stick supplied, don＇t use other
material.
4.7 When finished, please stop the power first, then take out the front screw-discharge
plate-knife-pusher, and clean it by wet clothes. Then if use next time, just install the parts by
reverse gradation.
Attention: must be stopped the machine before cleaning.

5
5 CIRCUIT DIAGRAM

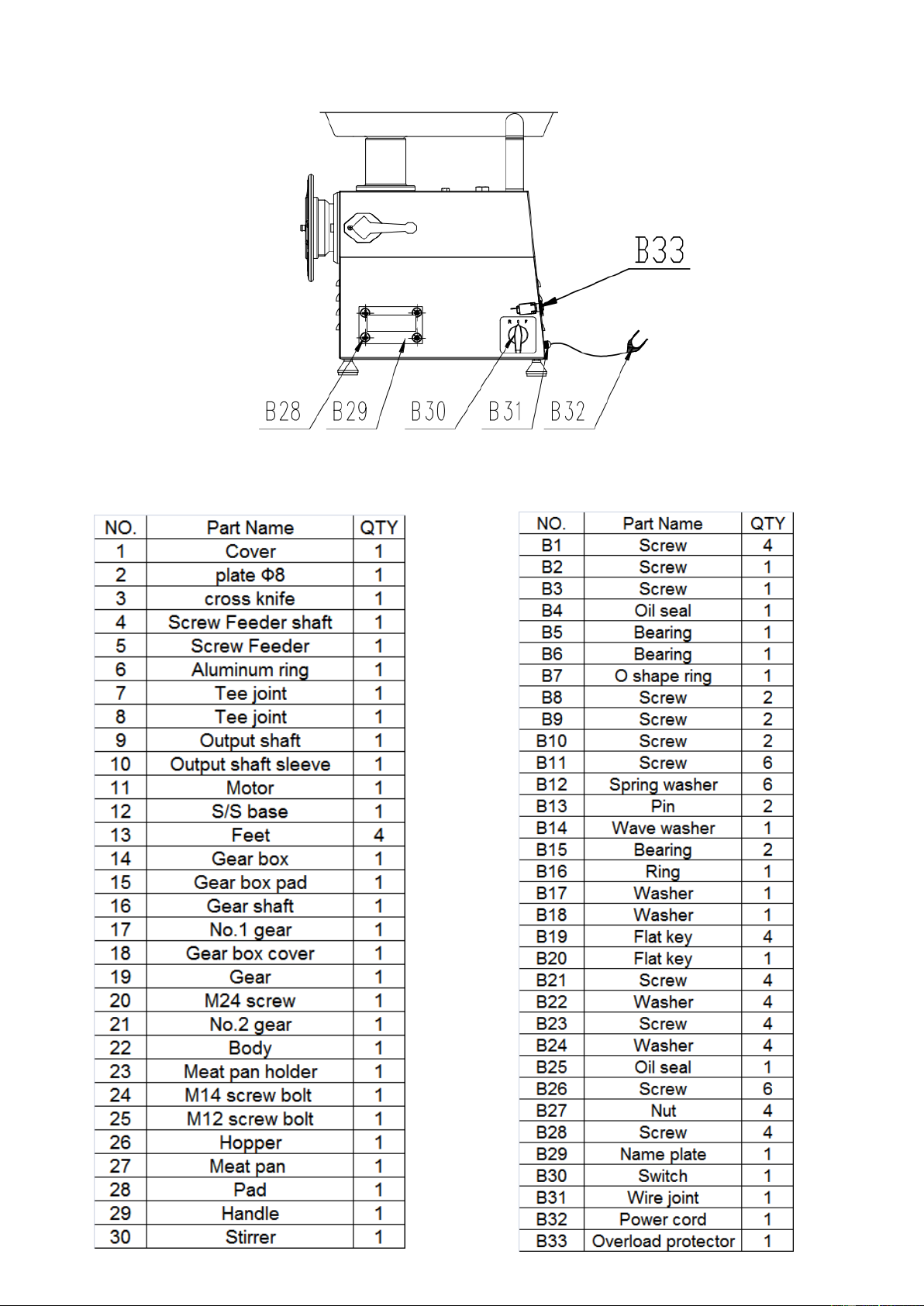

6 EXPLODED VIEW
240V/50Hz

6
Part List

7
7 MAINTENANCE
7.1After the job, clean carefully the machine, it is enough to dry by a cloth.
7.2The meat cutter should be carefully to handle, it is necessary to replace it, if
not sharp enough.
7.3Don＇t repeatedly starting the machine and cannot be continuous running
more than 5 minute.
Warning: It cannot be cleaned by water directly.
8 Waste disposal
Discarding old devices
At the end of its service life the discarded device has to be disposed in accordance with the
national regulations. It is advisable to contact a company which is specialized in waste
disposal, or just contact the local disposal service in your community.
WARNING!
To exclude any abuse and the dangers involved make the waste device unfit for use before
disposal. For that purpose disconnect device from mains supply and remove mains
connection cable from the device.
CAUTION!
For the disposal of the device please consider and act according to the national and local
rules and regulations.
