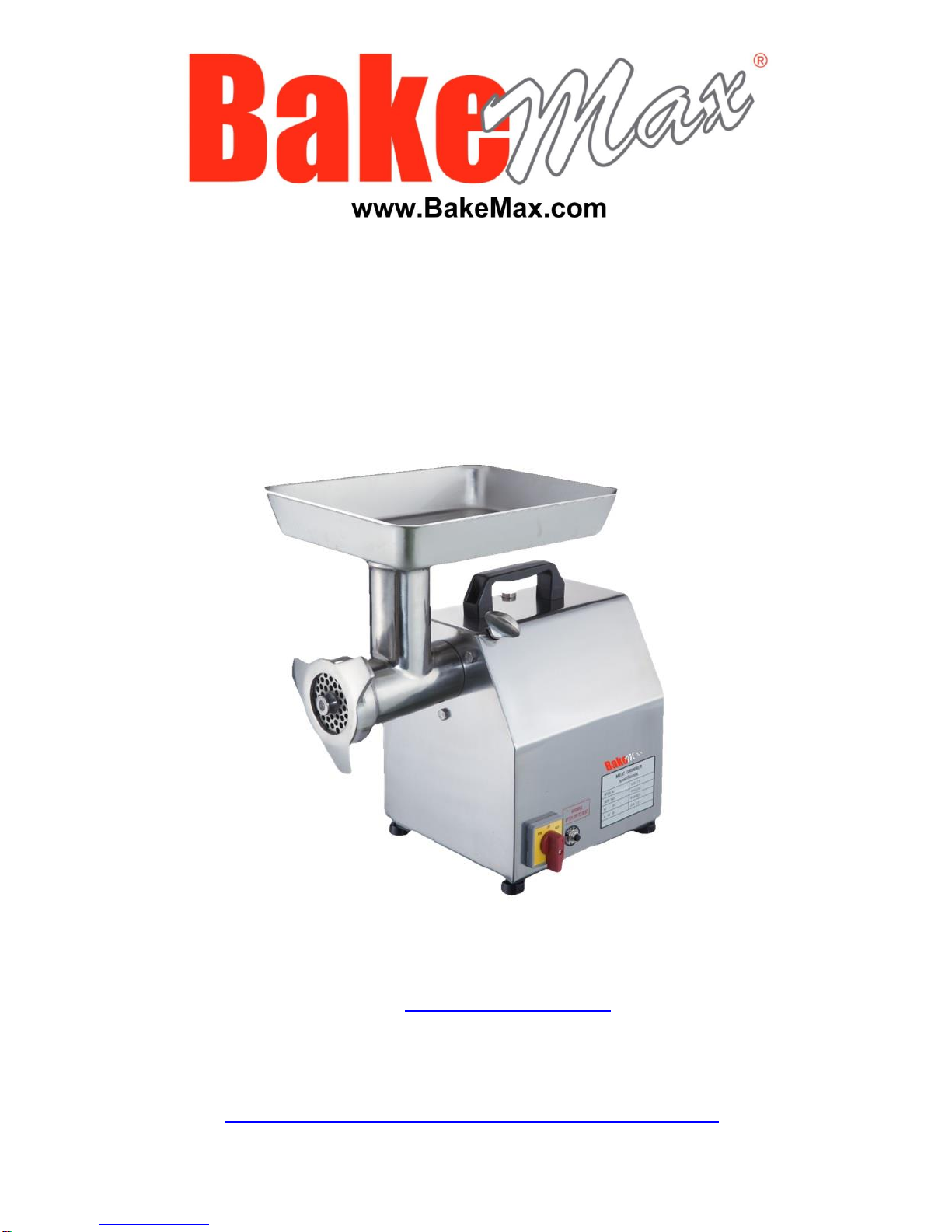

Bake Max BMMG001 User manual

BMMG001/BMMG002
MEAT GRINDER
Operations Manual
Questions? Contact Us:
Toll Free: 1-800-565-2253
Email: [e-mail]
www.BakeMax.com
Warranty Registration
www.BakeMax.com/Warranty-Registration

Warning & Safety
PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT
INJURY OR DAMAGE TO THE PRODUCT
BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is
not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone
over the age of 18, of sound mind, and not under the influence of any drugs or
alcohol, who has been trained in the correct operation of this machine, and is
wearing authorized, proper safety clothing. This machine is intended for
commercial use only. Any modification or miss use to the machine voids any
warranty and may cause harm to individuals using the machine or in the area of
the machine while in operation.
•When using the machine, please ensure that you have read all of the instructions within
this manual.
•Be aware of your surroundings when using this machine, ensure there are no children
or any other persons who are near the machine before operating.
•Do not put hand near moving parts.
•Remove all obstacles, which may interfere with machine functions.
•Keep work area clean and clear of clutter.
•Do not sit or stand on machine.
•Do not wear loose clothing or jewellery when operating machine as it may get caught in
moving parts and cause injury.
•Stop using the machine and have it checked by an authorized service personal if it is not
working properly.
•Disconnect from power source before performing and maintenance or cleaning on the
machine.
•When the machine is not in use, please clean and store properly,
•Do not place any electrical parts or plug / cord in water or liquid.
•If the supply cord is damaged it must be replaced by an authorized service agent in order
to avoid any electrical hazards.
•Keep power cord away from heat.
•Always ensure to follow local laws when operating your machine.

Cleaning
•This unit has been coated for shipping purposes, please clean before use.
•Do not use any liquid pressurized cleaning equipment on this machine.
•Disconnect power supply before cleaning.
•Only use food grade non abrasive cleaning agents.
•Follow any additional cleaning / maintenance listed below.
BMMG001 Features
The BakeMax BMMG001 Meat Grinder is intended for heavy duty work in commercial food processing
applications. It is reliable under the most demanding conditions. Capable of grinding up to 485 lb of meat per
hour with its powerful 1 HP motor. This unit is great for Restaurants, Delis, and Meat Shops.
•1 HP motor capable of grinding up to 485 lb / Hr
•#12 hub
•2 plates included (6mm & 8mm)
•Constructed of stainless steel for durability and ease of cleaning
•Design for easy maintenance & conforms to all safety standards
•Energy-efficient motor and precision gear drive.
•Forward and reverse switch
•120v / 8amps / 880W / 60HZ / 1 Phase
•External Dimensions (WDH): 18” x 8” x 16”
•Nema 5-15P
•Net Weight: 66 lb
•1 year limited warranty
Shipping Specification:
•Packaged Dimensions (WDH): 22” x 11” x 19”
BMMG002 Features
The BakeMax BMMG002 Meat Grinder is intended for heavy duty work in commercial food processing
applications. It is reliable under the most demanding conditions. Capable of grinding up to 880 lb of meat per
hour with its powerful 1.5 HP motor. This unit is great for Restaurants, Delis, and Meat Shops.
•1.5 HP motor capable of grinding up to 880 lb / Hr
•#22 hub
•2 plates included (6mm & 8mm)
•Constructed of stainless steel for durability and ease of cleaning
•Design for easy maintenance & conforms to all safety standards
•Energy-efficient motor and precision gear drive.
•Forward and reverse switch
•120v / 10amps / 1120W / 60HZ / 1 Phase
•External Dimensions (WDH): 20” x 10” x 20”
•Nema 5-15P
•Net Weight: 110 lb
•1 year limited warranty
Shipping Specification:
•Packaged Dimensions (WDH): 24” x 13” x 23”
•Packaged Weight: 115 lb
** Due to continuous product improvement, specifications are subject to change without notice.

OPERATION
IMPORTANT:
Before connecting your unit to your power supply, be sure your machine's electrical
specifications, printed on the unit's nameplate, match those of your local power.
1. For first-time use, remove the grinder head and wash parts thoroughly. Reassemble according to the
diagram included in these instructions.
2. Before grinding, tighten the thumbscrew counter-clockwise until secure. Do not use a tool or over-tighten.
3. Prepare meat for grinding by removes all skin and bones. Then cut the meat into appropriately sized pieces
for grinding.
4. Feed meat into the grinding chamber with the special meat pusher that was included with your machine.
Never use finger, hands, or any other objects.
5. After use, disconnect the unit form the power supply and disassemble the head. Wash thoroughly to
prevent contamination.
NOTE:
During grinding, meat should be discharged from the grinder smoothly. If the discharge isn’t
smooth, or if it is in the form of a paste, the following causes and remedies should be
considerds:
POSSIBLE CAUSE
Thumb screw too tight.
Discharge Plate is blocked
Blade edges have dulled.
Overloading and motor stop
REMEDY
=> Loosen and hand-tighten only until sung. Don't over-
tighten.
=> Switch reverse in second
=> Sharpen or replace.
=> Switch off and reset again

BMMG001 PARTS LIST
ILLUS. NO. 1
BMMG001
DESCRIPTION OR NAME
PARTS NO.
1
FEEDER PAN
712-001
2
MEAT PUSHER
712002
3
BALL BEARINGS 1915
BR-1915
4
GRINDING CHAMBER
712-004
5
COUPLING COVER
712-005A
6
PRESSURE PLATE
712-006
7
REAMER
712-007
8
HOLDER
712-008
9
SPIRAL PROPELLER
712-009
10
PLUNGER
712-010A
11
GEAR BOX
712-011A
11
HOUSING
712-011B
12
ATTACHMENT HUB
712-012
13
HUB SHAFT
712-013
14
WORM SHAFT
712-014
15
WORM GEAR
712-015
16
WORM
712-016
17
SPACER
712-017
18
MOTOR
712-018
22
PLATE
712-022
23
CAPACITOR
712-023
24
CABLE TIE
712-024
25
POWER CORD & PLUG
712-025(NOPN)
26
SPECIFICATION PLATE
722-026A

BMMG01 Parts List Continued
27
THUB SCREW
712-027
28
CENTRIFUGAL GOVERNOR PLATE
712-028
29
CENTRIFUGAL GOVERNOR
712-029
30
SWITCH
712-030
31
BALL BEARING#6205
BR-6205
32
RESET
712-032
33
BALL BEARING#6203
BR-6203
34
OIL SEALTC20*40*8
OS-TC20*40*08
35
OIL SEALTC30*45*8
OS-TC30*45*08
36
C-TYPE SNAP RING S17
CR-S17
37
MEAT FUNNEL
712-037
38
SPRING PIN 8*30
SPP-8*30
39
KEY 6*6*15
KRR-6*6*15
40
KEY 1/8*1/8*25
KRR-l/8*l/8*25
41
NUT 1/2*20NF
NUT-1/2*20NF
42
CAPSCREW5/16*l-l/4
S-C-5/16*l-l/4
43
OIL BAFFLE
11012-04-008
44
BOLT 5/16*3/8
S-5/16*3/8
45
RUBBER FOOT WITH SCREW
712-045
46
MACH SCREW 3/16*3/8
S+R3/16*3/8
47
MACH SCREW 3/16*3/8
S+R3/16*3/8
48
ELECTRIC WIRE
712-048
49
HANDLE
712-049
50
OIL COCK
712-050
51
WRENCH
712-051
52
CAP SCREW5/16*l/2
S-C-5/16*l/2
53
SPACER
712-053

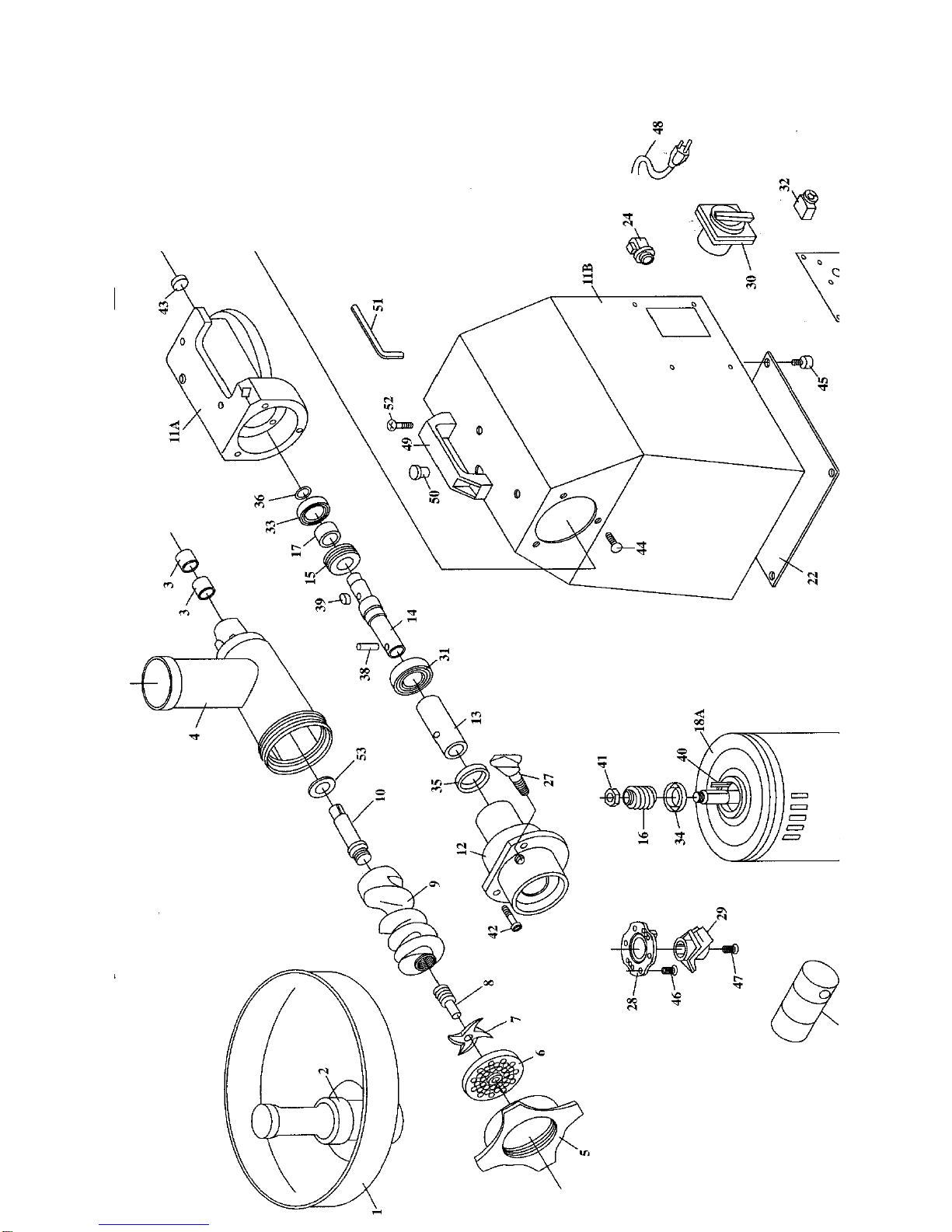

Image 1 BMMG001

BMMG002 PARTS LIST
ILLUS. NO. 2
BMMG002
DESCRIPTION OR NAME
PARTS NO.
1
FEEDER PAN
722-001
2
MEAT PUSHER
712-002
3
BALL BEARING#1915
BR-1915
4
GRINDING CHAMBER
722-004
5
COUPLING COVER
722-005
6
PRESSURE PLATE-4,/6/8/10/12mm
722-006A-4/6/8/10/12mm
7
REAMER
722-007
8
HOLDER
722-008
9
SPRIAL PROPELLER
722-009
10
PLUNGER
722-010
11
GEARBOX
722-011A
11
HOUSING
J 722-01 IB
12
ATTACHMENT HUB
722-012
13
HUB SHAFT
722-013
14
WORM SHAFT
- 722-014
15
WORM GEAR
722-015
16
WORM
722-016
17
SPACER
722-017
18
MOTOR
722-018A
22
PLATE
712-022
23
CAPACITOR
722-023
24
CABLE TIE
712-024
25
POWER CORD & PLUG
722-025(NO PN)
26
SPECIFICATION PLATE
722-026A
27
THUB SCREW
722-027
28
CENTRIFUGAL GOVERNOR PLATE
722-028
29
CENTRIFUGAL GOVERNOR
722-029
30
SWITCH
722-030
31
BALL BEARING#6205
BR-6205
32
RESET
712-032
33
BALL BEARING#6203
BR-6203
34
OIL SEAL TC20*40*8
OS-TC20*40*08
35
OIL SEAL TC30*45*8
OS-TC30*45*08
36
C-TYPE SNAP RING SI7
CR-S17
37
MEAT FUNNEL
722-037
38
SPRING PIN 8*30
SPP-8*30
39
KEY6*6*15
KRR-6*6*15
40
KEY1/8* 1/8*25
KRR-1/8*1/8*15
41
NUT 1/2*20NF
NUT-1/2*20NF

BMMG002 Parts List Continued
42
CAP SREW 5/16*1-1/4
S-C-5/16*l-l/4
43
OIL BAFFLE
11012-04-008
44
BOLT 5/16*3/8
S-5/16*3/8
45
RUBBER FOOT WITH SCREW
712-045
48
ELECTRIC WIRE
712-048
49
HANDLE
712-049
50
OIL COCK
712-050
51
WRENCH
712-051
52
CAP SCREW 5/16*1/2
S-C-5/16*l/2
53
SPACER
722-053

Image 2
BMMG002
