BOIA 32-5 User manual

INSTRUCTIONS MANUAL
MEAT GRINDER
BOIA 32-5
CORPORACIÓN BOIA DOMENICO C.A.

CORPORACIÓN BOIA DOMENICO C.A.
Index
1.Introduction ........................................................................................2
1.1. Safety ..........................................................................................2
1.2. Main Components .......................................................................3
1.3. Technical Characteristics .............................................................4
2.Installation and Pre-Operation ............................................................4
2.1. Installation ...................................................................................4
2.2. Pre-Operation .............................................................................4
3.Operation ...........................................................................................5
3.1. Functioning and Operation Process .............................................5
3.2. Cleaning ......................................................................................5
3.3. Stainless Steel Treatment .............................................................5
4.General Safety Rules ...........................................................................6
4.1. Operation Fundamentals Practices ...............................................6
4.2. Cares and Observations before to Turn on the Meat Grinder ........6
4.3. Routine Inspection .......................................................................6
4.4. Operation.....................................................................................6
4.5. Post Operation ............................................................................7
4.6. Maintenance ................................................................................7
4.7. Warnings .....................................................................................7
5. Problems Analysis and Solutions .......................................................7
5.1. General Problems and Solutions ..................................................7
5.2. Components Adjustment .............................................................8

CORPORACIÓN BOIA DOMENICO C.A.
1.Introduction
1.1. Safety
2
The Meat Grinder BOIA 32-5 was designed to grind boneless and unfreeze meat. The equipment
is dangerous when used incorrectly. It is necessary to perform the required maintenance and cleaning
correctly by authorized personnel as long as the equipment is disconnected from the power source. In
order to operate the meat grinder, it is necessary to read the instructions manual and to know all of its
parts.
- Disconnect the equipment from the power supply before any maintenance.
- Do NOT wear loose clothes with wide sleeves when using the meat grinder.
- KEEP hands away from moving parts.
-Do NOT use grinder plates and grinder knives of other diameters.
-NEVER Operate the Meat Grinder empty: A grinder plate and a grinder knife used without
the product inside of the head could reach almost 982 degrees Celsius in less than three
minutes. Always turn on the meat grinder with the product inside of the head and in the tray.
- Replace the Front Auger Part: If the front auger part is consumed, an irregular rotation
of the grinder knife on the grinder plate will be caused. The grinder knife will be also in contact
with the pin that aligns the head of the meat grinder. Consequently, the grinder plate and the
grinder knife will break. Replace the pin as well since it could cause similar problems.
-NEVER tighten the lock nut too much: it will cause friction and the break of the grinder plate
and the break of the grinder knife.
- Clean constantly and carefully the meat grinder.
- DO NOT use a water jet to clean the meat grinder.
The meat grinder is highly dangerous if it is used incorrectly. During maintenance and cleaning, the
machine must be disconnected from the power supply.

1.2. Main Components
CORPORACIÓN BOIA DOMENICO C.A.
3
3 - Handle to
Loosen the
Head
(MO229007)
4 - Grinder Head
(MO324002)
8 - Grinder Knife
(MO329601)
11 - Meat Stomper
(MO325003)
2 - Head Guide
Screw
(MO329507)
1- Tray
(MO329006)
7 - Grinder Plate
32-4,5 mm
(MO329604)
9 -Front Auger
Part
(MO329009)
6 - Lock Nut
(MO324001)
5- Pin
1
2
3
4
5 6
7
8
9
10
11
10 - Auger
(RM324003)

CORPORACIÓN BOIA DOMENICO C.A.
1.3. Technical Characteristics
Table 1: Main Characteristics
2.Installation and Pre-Operation
2.1. Installation
2.2. Pre-Operation
4
Characteristic
VOLTAGE
POWER
FREQUENCY
WIDHT
HEIGHT
LENGHT
NET WEIGHT
GROSS WEIGHT
PRODUCTION
Unit.
VOLT
HP
HZ
cm.
cm.
cm.
kg.
kg.
kg. /min.
Quantity
220
5
60
50
55
1.12
120
125
16-20
- Immediately after receiving a meat grinder BOIA 32-5, the machine must be inspected before
unpackaging it to see if there are any damages from shipping. After inspection, the machine can
be placed in a safe area in order to be operated.
- The meat grinder must be installed in a place with a flat surface in order to obtain the best
stability and performance during the operation.
- Before switching on the meat grinder, it must be connected to a power supply.
- Clean all the parts of the meat grinder that are in contact with the product before turning it on
with water and neutral soap.
- Do not tighten abruptly the lock nut of the meat grinder.
- Make sure that the motor and the power source have the same voltage, cycle, phase, and current.
For your best convenience contact your electrical technician.
- Do not turn on the meat grinder empty without the product in the head and in the tray.

3.Operation
3.1. Functioning and Operation Process
3.2. Cleaning
3.3. Stainless Steel Treatment
CORPORACIÓN BOIA DOMENICO C.A.
5
!
We strongly recommend that you spend some time with the machine so you get to know it better.
After reading the instructions manual carefully, the operator will be able to obtain the best results and
performance of the meat grinder. All the required grinding meat will be obtained effectively by using the
grinder in a proper and safe manner.
Follow the next steps before starting the operation process:
- Ensure that no knife or kitchen appliance is in the tray.
- Connect the meat grinder to the power source.
- Put the product in the tray and push it to the head of the grinder.
- Under any circumstances push the product in the grinder head with your hands or any
other tool. Use the meat stomper in order to do this operation.
- Disconnect the meat grinder from the power supply after finishing the meat grinding.
IMPORTANT: It is necessary to disconnect the meat grinder from the power supply
before performing any maintenance or cleaning on the machine.
The meat grinder must be clean and sanitized at all times. Before, during, and after the
meat grinding.
Follow the next steps in order to clean the meat grinder:
- Remove the lock nut, the grinder plate, and the auger.
- Loosen the handle and immediately remove the grinder head.
- CLEAN ALL the components after using the meat grinder.
- Clean all the components with hot water and neutral soap.
- Ensure to dry all the components after cleaning them in order to avoid humidity.
- Install the components back after they are dry in the proper manner. See section 5.2.
- Do not leave any product rests in the grinder head at all times.
The meat grinder is made of stainless steel. It is important to maintain a good treatment of this
material in order to avoid any damage. Clean the meat grinder all the time after using it. Use only water
and soap. Immediately after cleaning it, dry it to avoid humidity in the material.

4.General Safety Rules
4.1. Operation Fundamentals Practices
4.2. Cares and Observations before to Turn on the Meat Grinder
4.3. Routine Inspection
4.4. Operation
CORPORACIÓN BOIA DOMENICO C.A.
6
!
!
DANGER: Do not touch any electrical component of the meat grinder with wet hands or
wet clothes. It can cause several damages including death.
WARNING: Do not perform any maintenance when the meat grinder is connected to its
power source. Ensure that the work space is safe to avoid drops and accidents. Maintain the
work floor dry. If the work will be performed in a group, communicate with signs and have a
work plan before to start.
NOTICE: To lubricate parts, use lubricating oils or special greases. Avoid that water, dust,
or any other factors enter into the mechanical components. Do not modify mechanically the
meat grinder. Read carefully all the emergency stickers and security labels on the meat grinder.
If a sticker is erased or lost, please order a new one immediately with your dealer.
IMPORTANT: Read carefully the instructions manual. If there are questions please contact
your dealer.
DANGER: Check that cables and electric components are in good conditions before use.
NOTICE: Understand the instructions manual and understand the buttons functions before
using the meat grinder.
- Check the meat grinder motor.
- Tighten moderately the lock nut of the meat grinder.
- Pay attention to any sound and noise that is not normal.
- Make sure that there are not products rests in the grinder head.
- The machine can only be operated by qualified personnel to do this job.
- The operator must know all the safety instruments required for this job.
- Do not use the grinder with loose hair or long and wide sleeves that could create problems.

CORPORACIÓN BOIA DOMENICO C.A.
4.5. Post-Operation
4.6. Maintenance
.
4.7. Warnings
5. Problems Analysis and Solutions
5.1. General Problems and Solutions
7
- Turn off the meat grinder and disconnect it from the power source.
- Clean the meat grinder after using it.
- Adjust the components after cleaning the meat grinder.
DANGER: Any Maintenance activity must be performed with the meat grinder
disconnected from the power source.
- The meat grinder must be operated by a qualified worker.
- It must be operated in a safe working place.
- Turning on the meat grinder: It might be possible that it is not connected to the power source or
that there is no electric energy in the work place. Connect the meat grinder to the power source or
call your dealer if the case is worst.
- Burnt Odor or Smoke: The machine could have a problem with the electric circuit inside or
outside. In this case, contact your dealer.
- Slow Auger Rotation: There might be a problem with the motor, the gears of the grinder, or with
the power source. Please contact your dealer or an electric technician.
- Abnormal Noise: There might be a problem with the motor or the gears of the grinder. Please
contact your dealer to assist you.
- Abnormal meat grinding: It is probable that the main components of the meat grinder are not
assembled in the proper sequence. It is necessary to re-install the main components. It might be
also possible that one of the components is damaged. In this case, contact the dealer if a new
component is needed. See also section 5.2.

CORPORACIÓN BOIA DOMENICO C.A.

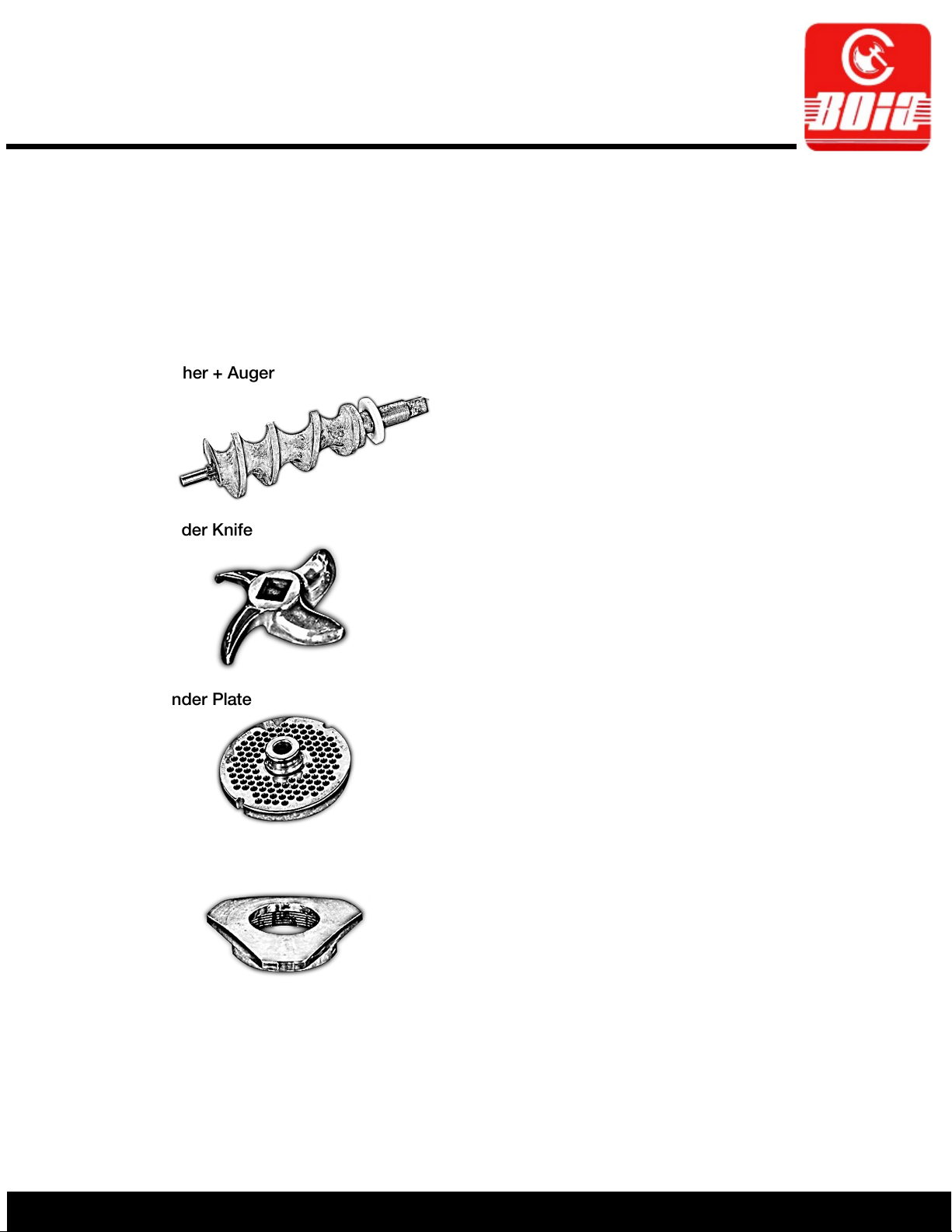

5.2. Components Adjustment
1. Washer + Auger
2. Grinder Knife
3. Grinder Plate
4. Luck Nut
8
-Replacement of the grinder knife: When the grinder knife is replaced, it is necessary to clean
and to rectify the grinder plate.
- Sequence of the main components of the meat grinder: Check before and after the grinding
operation that the following sequence is always maintained:
