Atrix VACBP36V User manual

BATTERY POWERED
BACKPACK VACUUM
Operation Instructions
Read all instructions before using this appliance

IMPORTANT SAFETY INSTRUCTIONS
When using your Vacuum, basic safety precautions should always be observed,
Including the following:
Vacuum Safety
Read Owner’s Manual before using this product.
Failure to do so can result in serious injury or death.
1. Use only as described in this manual. Use only the recommended attachments,
battery, charger, and replacement parts.
2. DO NOT use the vacuum outdoors or on wet surfaces. DO NOT expose to rain or water.
3. DO NOT use or store vacuum in wet or moist conditions.
4. DO NOT try to recover any liquid with this vacuum. This vacuum is for DRY RECOVERY
only
5. DO NOT USE A DAMAGED VACUUM. If the unit is not working as it should, or if it has
been damaged, left outdoors, or exposed to water, take it to an Authorized Repair
Center for inspection and repair.
6. DO NOT allow the vacuum to be used as a toy. Pay close attention when using the
vacuum near children.
7. DO NOT handle the switch or battery pack with wet hands.
8. DO NOT put any objects into openings. Do not use with any opening blocked, keep free
of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
10. Use with extra care when cleaning on stairs.
11. DO NOT vacuum flammable or combustible materials or anything that is burning or
smoking, such as cigarettes, matches, or hot ashes.
12. Sparks inside the motor can ignite flammable vapors, to reduce the risk of fire or
explosion, do not use near combustible liquids, gases, or dusts, such as gasoline or
other fuels, lighter fluid, cleaners, oil-based paints, or natural gas.
13. To reduce the risk of inhaling toxic vapors or dust, DO NOT vacuum or use near toxic
or hazardous materials.
14. DO NOT use without filter in place.
15. Disconnect battery pack before servicing vacuum.

GETTING TO KNOW YOUR BATTERY POWERED BACK PACK VACUUM

1. Main Unit 14. Dusting Brush
2. Exhaust Grill Port 15. Crevice Tool
3. On/Off Power Switch 16. Pet Hair Remover
4. Canister Lid Tabs 17. Exhaust Grill
5. Waist Band 18. Blower Port
6. Shoulder Straps 19. Combination floor tool
7. Back Board Panel 20. HEPA Dust bag
8. Carry Handle 21. Waist Band Back Support Panel
9. Hose Inlet 22. Waist Band Tool Carrier
10. Canister Lid 23. Cloth Shakeout Bag
11. Blower Attachment 24. HEPA Pre-Motor Filter

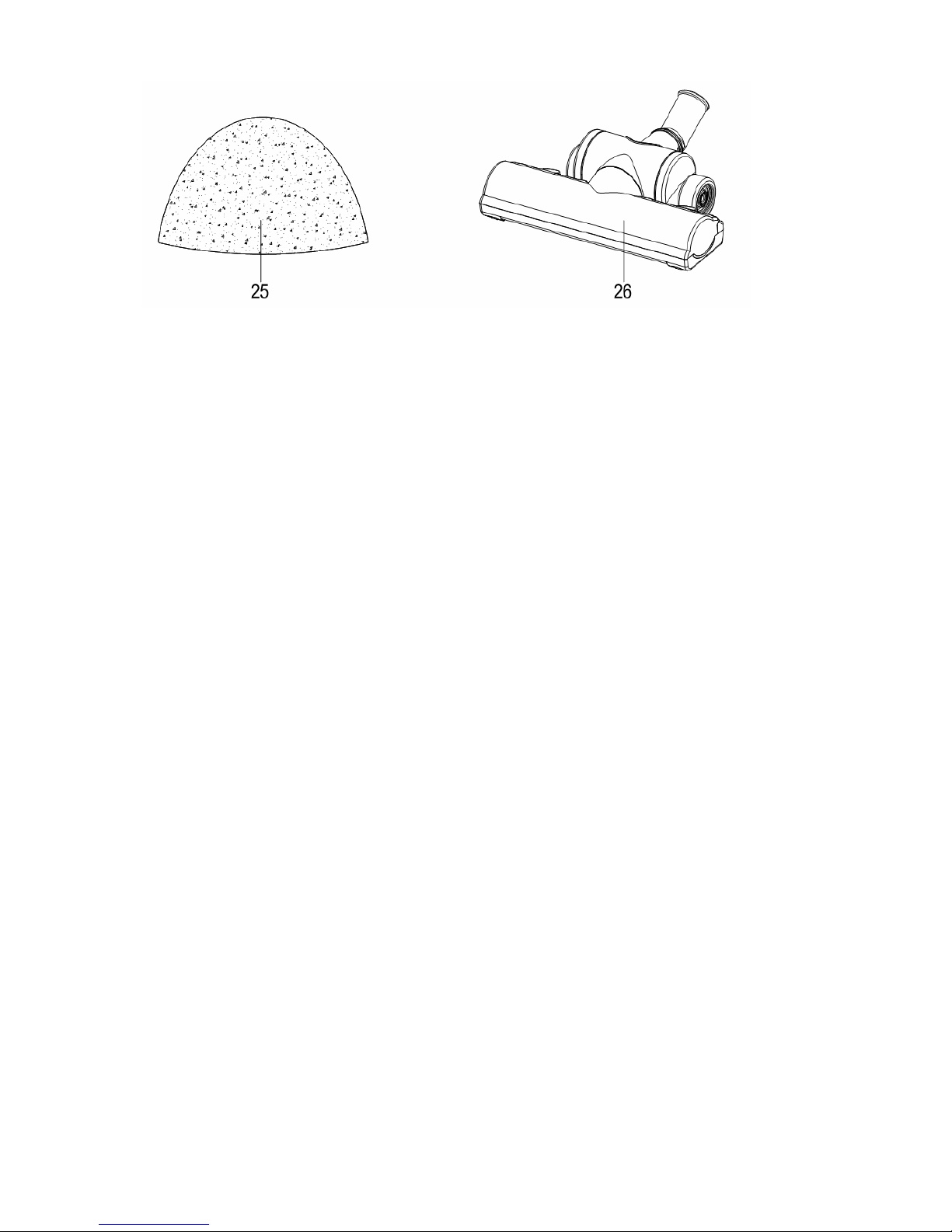

12. Flexible Hose 25. Exhaust Filter
13. Plastic Tube 26. Turbo Floor brush

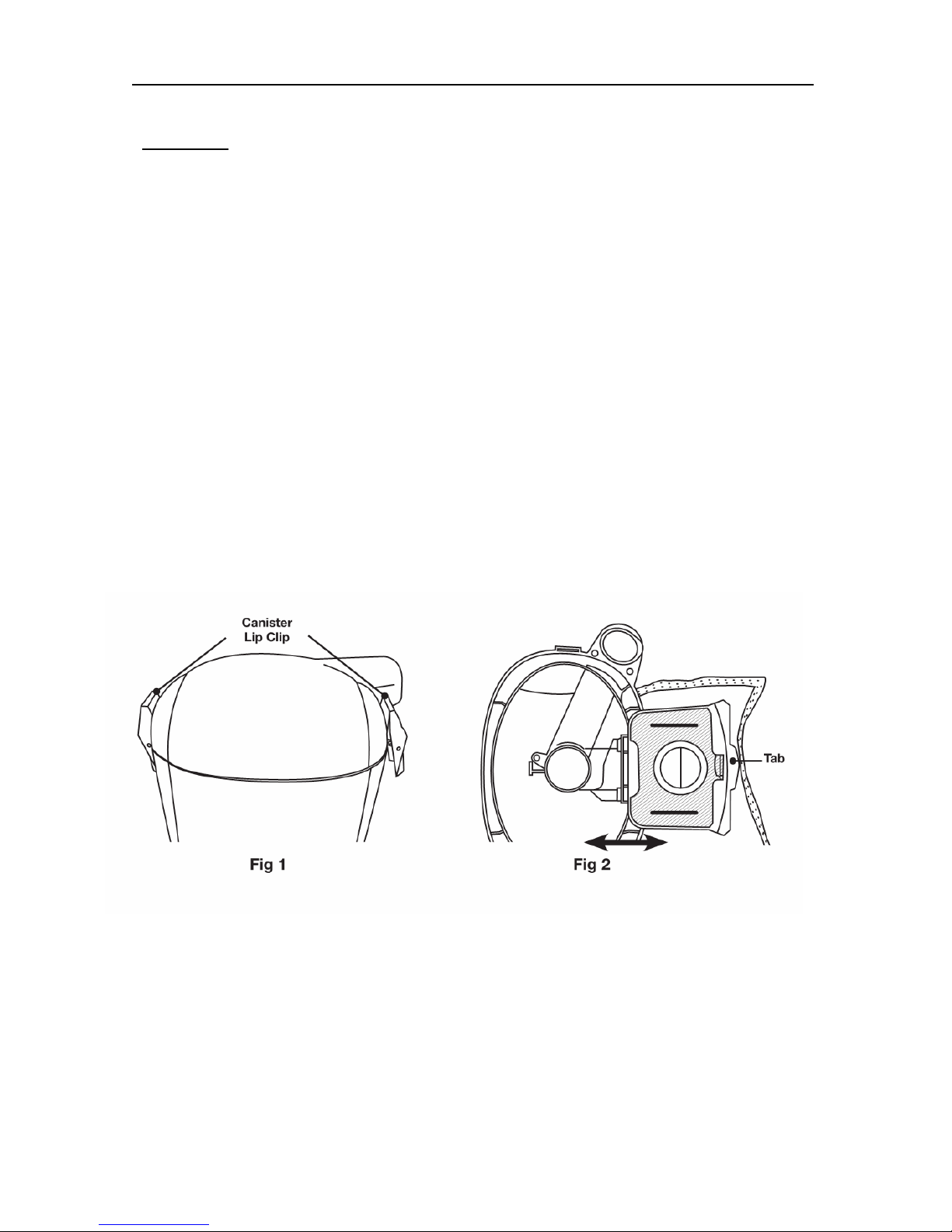

Important: Do not use the vacuum without all filters, shake-out bag and with
HEPA dust bag in place. To replace HEPA filter bag:
1. Turn off power and remove the flexible hose.
2. Open canister lid by lifting canister lid tabs on each side of the unit (Fig.1).
3. Pull the tab on the HEPA dust bag holder out slightly and flip upwards (Fig. 2).
4. Holding the HEPA dust bag in your hand, slide it firmly between the slots in the bag
holder (Fig. 2).
5. The cardboard face of the new bag should rest securely in the dust bag cover guide
(Fig. 3).
6. Ensure that the shake-out bag is in place (Fig. 4).
7. Flip the HEPA bag holder over, pressing the tab on the bag holder until it clicks.
8. The canister lid can be replaced on the unit with the hose opening on the right or left,
as per your preference (Fig. 5).
Operat ng Instruct ons

Attaching the Flexible hose to The vacuum
The flexible hose should be connected to the vacuum before strapping the unit on.
1. To connect the flexible hose into the hose inlet, insert the threaded end of the flexible
hose into the hose inlet and turn clockwise until it locks into place (Fig. 6).
2. Turn on the switch to operate the vacuum.
3. The hose and telescopic extension wand are press fit, along with all the accessories.
4. Step on the floor to carpet selector to adjust the height of the brushes. There are two
different heights- floor or carpet.

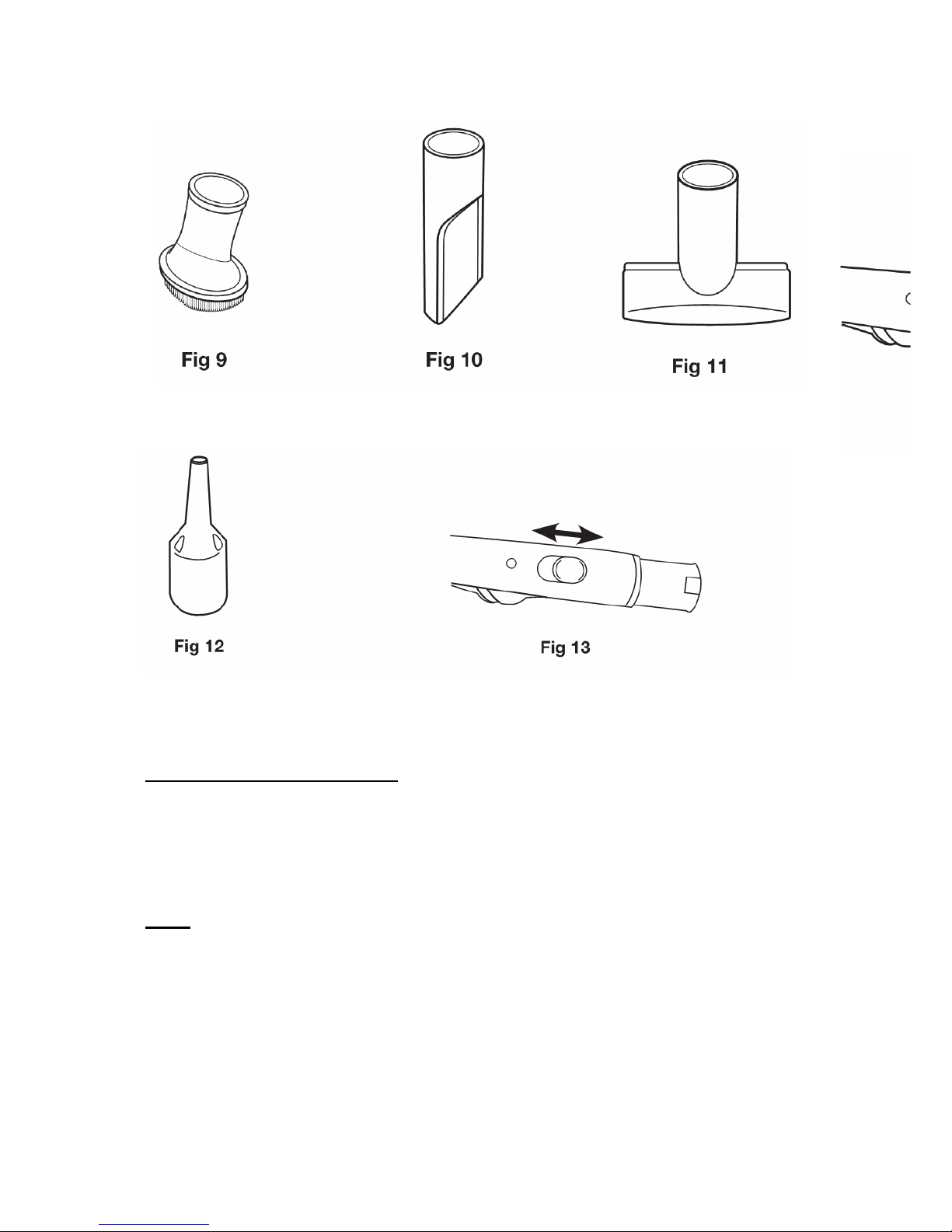

USING THE ATTACHMENTS
Dusting Brush
The dusting brush is used for furniture (Fig. 9).
Crevice Tool
Use for radiators, crevices, corners, baseboards and between cushions (Fig. 10).
Pet Hair Removal Brush
The pet hair removal brush is used on upholstery. The unique surface makes it an
excellent tool for removing unwanted pet hair (Fig. 11).
Note: This tool is not a grooming tool and should not be used on animals.
Caution: Do not use Pet Hair Removal Brush on delicate or woven fabrics that may
snag. Do not use Pet Hair Removal Brush on wooden floors as this accessory might
cause mild scratching.
Blower Attachments
The blower attachments can be used with the vacuum to pick up very fine dirt particles in
tight crevices or spots, or to Inflate inflatable items or air mattresses (Fig. 12).
Manual Suction Control
Your vacuum cleaner includes a manual variable suction control on the flexible hose
handle. The suction power can be adjusted by moving the suction regulator to the
desired position between open and Closed (Fig. 13).
Air Drive Turbo Brush
The efficiency of your air driven turbo brush depends on the bristle brush rotating at high
speed. Strong air suction is needed to accomplish this. In order to ensure that maximum
air suction is maintained, please read the following instructions:
1. Change the HEPA dust bag or empty the shake-out bag frequently.
2. Replace the pre-motor and exhaust filters as needed.
3. Ensure that the rotating brush is kept free of hair and string which may accumulate
and decrease brush performance.
4. To attach the air driven turbo brush, insert the telescopic tube into the air drive turbo
brush.

Using the Blower Attachments
The blower attachments are extremely useful for vacuuming in hard to reach crevices
and small compartments such as in cars.
Important Note: When blocking the air holes, grasp the blower attachment firmly so that
they do not blow off.
Note: Do not use blower function to clear dust off of fragile or delicate objects unless
they are secured or held firmly in place as the blower action is quite strong and could
cause damage. The blower attachments have air bleed holes. These air bleed holes
help relieve some air pressure so that the attachment does not blow off. However should
an increase in air pressure be desired simply cover one or more of the air bleed holes.

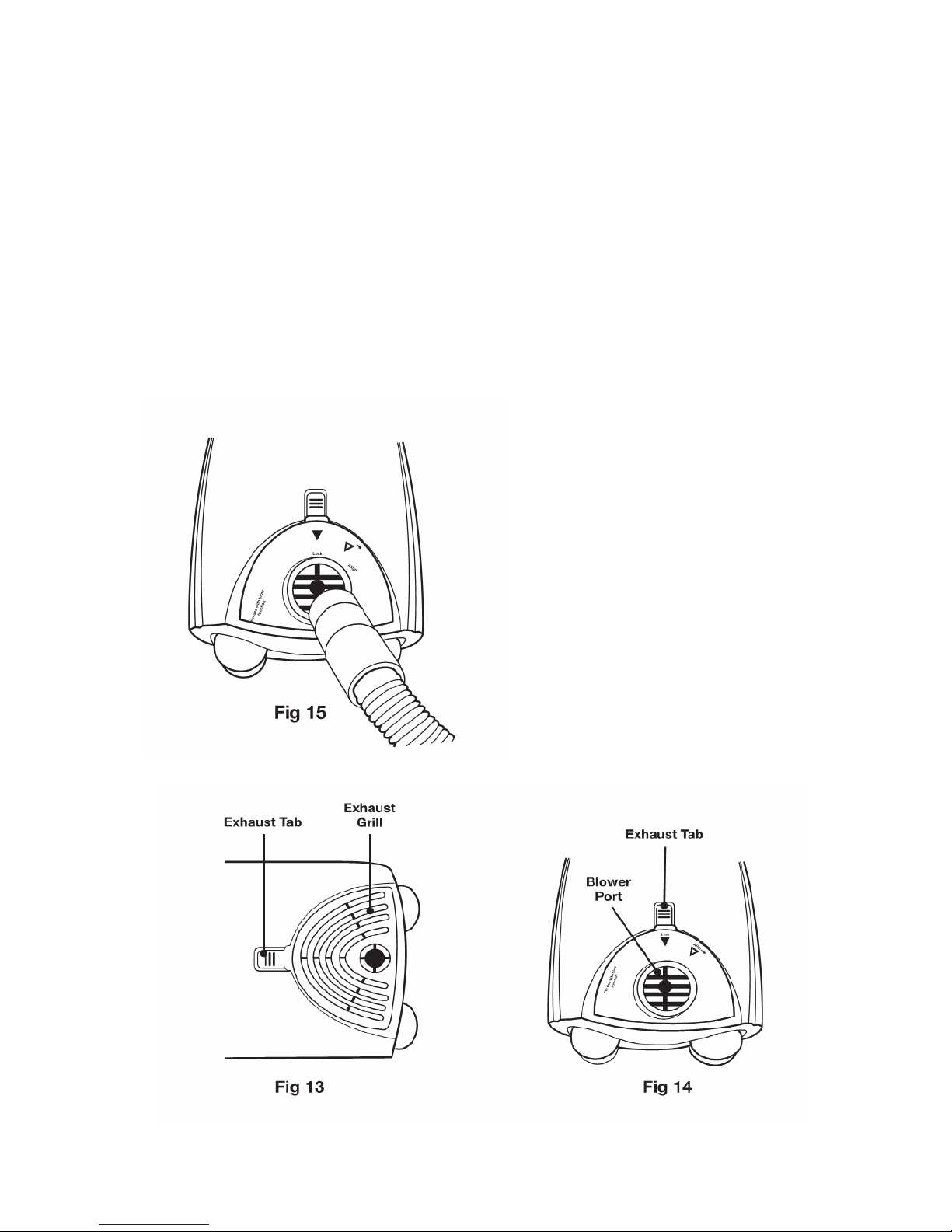

1．Pull up and hold the exhaust tab and with your free hand pull out the exhaust grill
(Fig.13).
2．Remove the exhaust filter.

3．To place the blower port into the exhaust outlet; align the lower tabs on the blower port
with the slots on the exhaust. Pull up on the exhaust tab and push the top of the blower
port until it snaps into place (Fig.14).
4. To attach the hose to the blower port, align the flexible hose and turn clockwise until it
stops. The hose is now securely in place (Fig.15).
5. To blow up inflatable items, select the appropriate size blower attachment that will fit
into the air valve (Fig.16).
6. Turn the unit on and hold the blower attachment and air valve while the vacuum
exhaust is pumping air into the inflatable.
7. To detach the flexible hose turn counter clockwise and pull out from blower port

Using Your Vacuum
1. Ensure the battery pack is assembled and locked in the vacuum
2. Connect hose and telescopic tube.
3. Correctly place shoulder straps on each shoulder and secure the waist band with hook
and loop strips (Fig.16).
Caution: If the waist band and both shoulder straps are not properly and securely in
place the unit could fall off your back causing damage or injury.
4. Turn the unit on by pressing the switch.
Warning: Never over-fill the HEPA dust bag – replace when bag is full and clean the
shake-out bag and filter each time the HEPA dust bag is replaced.

Cleaning & Replacing the Shake-Out Bag
Note: Clean the shake-out bag out-doors when changing the HEPA dust bag.
Cleaning the Shake-Out Bag Used with the HEPA Dust Bag:
1. Remove the shake-out bag and hold the handle at the bottom of the bag shaking
vigorously over a garbage receptacle and preferably outdoors.
2. Inspect shake-out bag regularly for tears or damage. Replace shake out bag if
Damaged or torn.
Cleaning the HEPA Pre-Motor Filter
Important, Please Note: The HEPA pre-motor filter will stop most of the tiniest dust
particles and airborne allergens from re-entering the air you breathe. In fact it stops
99.97% of all particles as small as 0.3 microns- many times smaller than a human hair!
Because of this incredible filtration performance, the HEPA pre-motor filter will accumulate
many fine dust particles that are difficult to see. Be assured that the HEPA pre-motor filter
is doing the job. Clean the HEPA pre-motor filter after each use as described in this section
1. Remove the shake-out bag from the canister. The HEPA pre-motor filter bag is located
underneath the shake-out bag. To remove the HEPApre- contents into a motor filter, lift the
form the sides of the HEPA filter.
2. Vigorously”TapClean” the HEPA pre-motor filter on a hard surface to remove any
residual dust that might still be on the HEPA pre-motor filter.
3. You can wash the HEPA pre-motor filter by running it under the tap and allowing the
water to run on the dirty side at least once a month or when suction appears to be
decreased.
HOW TO CHARGE THE BATTERY PACK
When using the charger, basic precautions should always be followed, including the
following:

Battery and Charging Safety
To reduce the risk of electric shock, fire, battery explosion, or injury:
1. Basic information and warning for ATRIX Battery and Charger are contained
below. For detailed usage and warning information, read the HOW TO CHARGE THE
BATTERY PACK carefully before using this unit.
2. Use only the ATRIX Charger and ATRIX Battery Pack.
3. DO NOT expose battery pack to temperatures above 122°F (50°C). Never leave
battery packs in automobiles on hot days, where temperatures can be much higher
than the outside temperature.
4. DO NOT use or store vacuum or batteries in wet or moist conditions, or with flammable
or combustible materials.
5. DO NOT charge batteries or store batteries for extended periods, 1 month or more, in
temperatures above 90°F (32°C) or below 40°F (5°C).
6. When charging, make sure that the charger has at least 6 inches of clearance on all
sides. Adequate airflow is required to cool the charger when in use.
7. DO NOT use a damaged cord or plug for charging.
8. DO NOT pull on charger’s cord to unplug. Grasp and pull the plug, not the cord.
9. DO NOT handle the charger’s cord plug with wet hands when inserting into electrical
outlet.
10. Keep sparks and flames away from batteries. Do not smoke near batteries or charger.
11. DO NOT charge the unit outdoors.
12. DO NOT attempt to repair, service, or modify the battery system or charger. Contact
Atrix with any issues.
13. DO NOT short-circuit the battery or charger terminals with conductive items such as
paper clips. This can deliver high current, resulting in heat and fire.
14. DO NOT crush, drop, incinerate or damage the battery pack. DO NOT use a battery
pack that has been damaged in any way. DO NOT incinerate the battery even if it is
severely damaged or non-working. The battery can explode in a fire.

SPECIFICATIONS AND PARTS
Charger Specification:
Charger input: 100-240V 50/60Hz AC
Charger output: 42V 4A
Battery Specification:
Lithium Polymer chemistry 37V
Approximate charge time: 3 hours
Approximate run time: 55 minutes
1. Battery pack BPBAT
2. Charger BPCHG
3. Cord US, EURO, UK

OPERATION
Charge in a well ventilated area. DO NOT block charger
vents. Keep them clear to allow proper ventilation.
CHARGING LITHIUM POLYMER BATTERY PACKS
It is not necessary to drain the battery pack completely before recharging.
If the charger’s light is not lit at any point during the charging process, remove the battery
pack from the charger to avoid damaging the product. DO NOT insert another battery.
Contact Atrix with any issues.
BATTERY PROTECTION FEATURE
The 36-volt Lithium Polymer batteries are designed with features that protect the Lithium
Polymer cells and maximize battery life. When the battery has reached its minimum
voltage level the electronics will shut off the battery. Once the battery shuts off, it must be
recharged.
PREPARING BATTERY PACK FOR CHARGING
1. Plug the charger’s power cord into the charger (Fig. 21).
2. Turn off the power switch.
3. Unlock the battery pack by turning knob counter clockwise and take the battery pack out
from the vacuum (Fig. 22).
4. Plug the round connector on the charger’s cord into the battery pack (Fig. 23).
5. Plug the charger’s power cord into wall outlet (Fig. 24).
6. The indicator light will turn red when charging and turn Green when full charged. The
Battery pack may require approximately 3 hours to full charge.
Note: Battery pack and charger may get warm while charging.

Fig 21
Fig 22 Fig 23
Fig 24

Atrix 36V Backpack Vacuum WARRANTY INFORMATION
Warranty/Service Information, please contactAtrix International, Inc.
Atrix 36V Backpack Vacuum, Part no. VACBP36V Limited Warranty: To the original user purchasing the Atrix
36V Backpack Vacuum, Atrix warrants that the vacuum will be free of defects in material and manufacture for a
period of one (1) year from the date of purchase. Should any failure to conform to this warranty appear within
this period, Atrix will, at its option, repair or replace the defective product. It is the user’s responsibility to
return the product, freight **GROUND ONLY**prepaid, **DO NOT SHIP AIRFREIGHT** to Atrix
International. These remedies are the user’s exclusive remedies for breach of this warranty.
Caution: Lithium ion batteries require special handling when
shipping via air freight. Consult IATA regulations or a certified
hazmat specialist prior to shipping.
Exclusions to warranty coverage: The above warranty will not apply to any special configurations or to any
units that have been modified, or damaged by negligence, misuse, accident or failure to follow Atrix’s Instruction
Manual. Consumable supplies, such as filters, accessories, and motor brushes are not covered by this warranty.
Disclaimer of Warranty: EXCEPT FOR THE IMPLIED WARRANTIES OF TITLE AND AGAINST PATENT
INFRINGEMENT, ATRIX MAKES NO OTHER WARRANTIES WITH RESPECT TO THE ATRIX 36V
BACKPACK VACUUM CLEANER, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Limitation of Liability: ATRIX WILL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR ANY
COINCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES OR ECONOMICAL LOSS, BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT LIABILITY IN
TORT OR ANY OTHER LEGAL THEORY, EVEN IF ATRIX HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE,
EQUIPMENT USE, DATA OR INFORMATION OF ANY KIND. THE LIABILITY OF ATRIX SHALL NOT
UNDER ANY CIRCUMSTANCE, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE
OF THE ATRIX 36V BACKPACK VACUUM.
To Register your Warranty
Visit: www.atrix.com
