ATTO Celerity Fibre Channel Host Adapters
Installation and Operation Manual
Celerity FC-84EN
8-Gb FC quad channel PCIe 2.0 host adapter
Celerity FC-82EN
8-Gb FC dual channel PCIe 2.0 host adapter
Celerity FC-81EN
8-Gb FC single channel PCIe 2.0 host adapter
Celerity FC-44ES
4-Gb FC quad channel PCIe host adapter
Celerity FC-42ES
4-Gb FC dual channel PCIe host adapter
Celerity FC-41ES
4-Gb FC single channel PCIe host adapter
Celerity FC-41EL
4-Gb FC single channel PCIe host adapter
Celerity FC-42XS
4-Gb FC dual channel PCI-X host adapter
Celerity FC-41XS
4-Gb FC single channel PCI-X host adapter

ATTO Technology, Inc.
155 CrossPoint Parkway
Amherst, New York 14068 USA
www.attotech.com
Tel [phone]
Fax [phone]
Sales support: [email protected]
Technical support: Monday -- Friday, 8am-8pm EST
[email protected]
© 2008 ATTO Technology, Inc. All rights reserved. All brand or product names are trademarks of their respective
holders. No part of this manual may be reproduced in any form or by any means without the express written
permission of ATTO Technology, Inc.
8/2008
.......................................................................................................,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,. PRMA-0344--000

Contents
1 ATTO Provides Fibre Channel Solutions .........................................................1
Getting started
Celerity FC-84EN Adapter
Celerity FC-82EN Adapter
Celerity FC-81EN Adapter
Celerity FC-44ES Adapter
Celerity FC-42ES Adapter
Celerity FC-41ES Adapter
Celerity FC-41EL Adapter
Celerity FC-42XS Adapter
Celerity FC-41XS Adapter
2 Install Drivers .....................................................................................................13
Windows
OS X
Linux
Specialized configurations
3 Hardware Installation .........................................................................................17
Bracket details
Adapter board details
4 Updating Hardware Flash, Drivers ...................................................................25
5 Troubleshooting .................................................................................................27
General suggestions
Mac OS X
Windows Server 2008, 2003, 2000; Vista, XP
Linux
Appendix A Glossary ............................................................................................i
Appendix B Accessories ......................................................................................iv
Appendix C ATTO Adapter Selection Guides ....................................................v
Appendix D Standards, Compliances: 8Gb adapters ........................................viii
FCC standards: radio and television interference
Canadian standards
European standards
Appendix E Standards, Compliances: 4Gb adapters ........................................ix
Appendix F Safety, Warranty ...............................................................................x
Safety
ATTO Technology, Inc. limited warranty

1 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
1 ATTO Provides Fibre Channel Solutions
The ATTO Celerity Fibre Channel family of storage products provides connectivity, intelligence and scalability.
Celerity FC host adapters simplify advanced storage
networking needs such as switching, backup and data
management. Specifically designed to enhance the
functionality of third party fabric hardware and
software, Celerity FC products are the industry-
leading platform for storage connectivity.
Fibre Channel is a serial communications technology
designed to transfer large amounts of data among a
variety of hardware systems over long distances. It is
a key technology for applications that require shared,
high bandwidth access to storage.
Fibre Channel provides a logical, point-to-point, serial
channel for the transfer of data between a buffer at a
source device and a buffer at a destination device. It
moves buffer contents from one port to another,
without regard to the format or meaning of the data so
different upper level protocols are able to run over
Fibre Channel hardware.
The Fibre Channel architecture is structured as a
hierarchical set of protocol layers. Defined within these
layers are rules for signal interfaces, serial encoding
and decoding, error control, frame format and
communications protocols.
Getting started
In general, to install the ATTO Celerity FC host
adapter, you must:
1 Ensure you have the equipment and software
you need for the installation:
• Celerity FC adapter
• ATTO Celerity CD including drivers, user
manuals and utilities (Installation CD)
• A computer with an available expansion slot
• Storage, cables and connectors
2 Install drivers from the Installation CD for your
operating system. Refer to Install Drivers on
page 13.
3 Install the configuration software, the ATTO
Configuration Tool, found on the Installation
CD.
4 Install the Celerity adapter. Refer to Hardware
Installation on page 17.
5 Attach storage.
6 If required, configure your storage and adapter
using the ATTO Configuration Tool.
Note
Default settings are appropriate for most
systems but you may change settings using
the ATTO Configuration Tool.

2

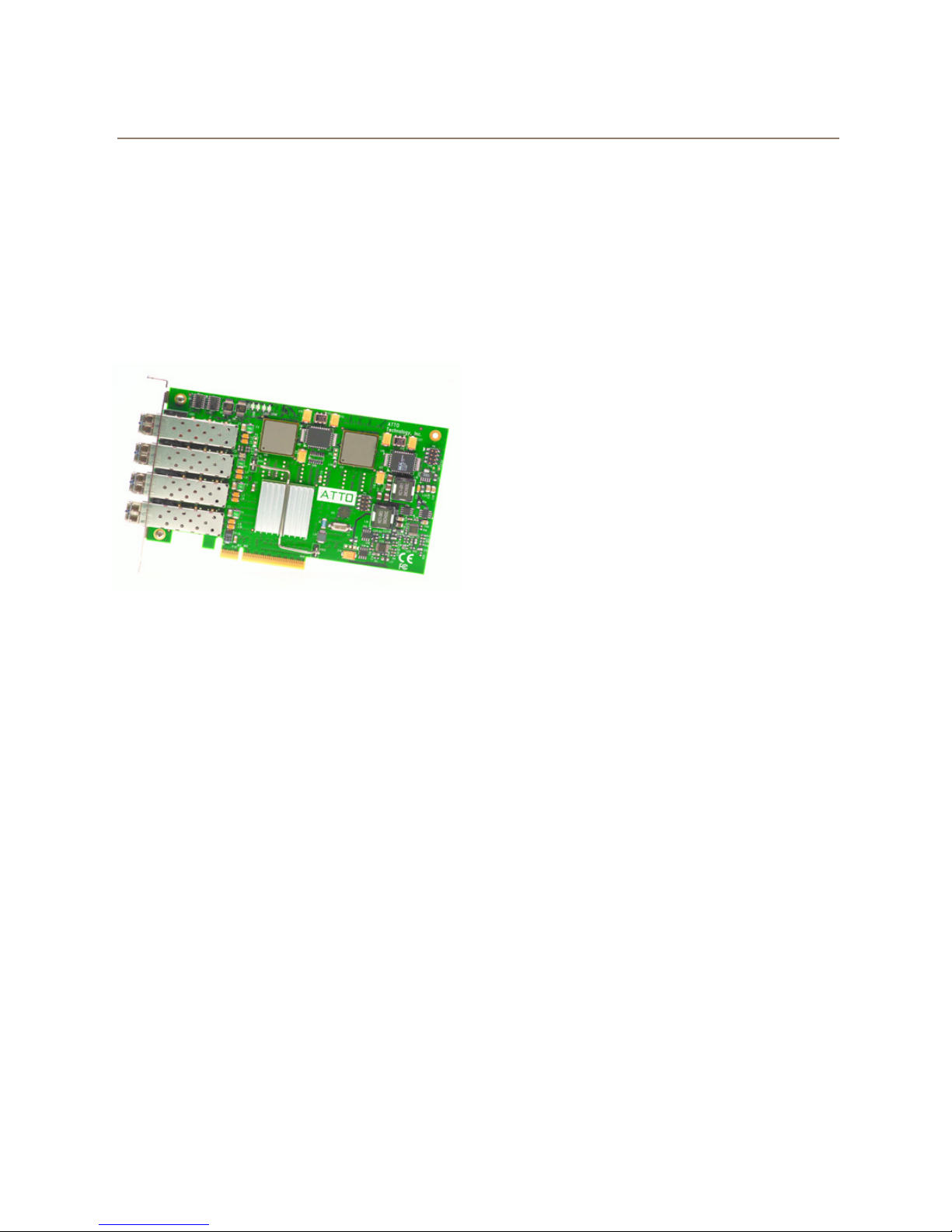

Celerity FC-84EN Adapter
The ATTO Celerity FC-84EN leverages two next-
generation storage technologies: PCIe 2.0
interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per
channel, the Celerity FC-84EN supports the most
demanding application requirements, including high-
definition video, rich content databases and other
high-bandwidth environments.
ATTO Celerity host adapters are an integrated family
of advanced storage connectivity solutions that are
designed to provide reliable connectivity, intelligence
and scalability.
Technical specifications
• 4 independent Fibre Channel ports
• 8-Gigabit data transfer rates
• 1600 MB/sec. maximum full-duplex throughput
per channel
• Supports all FC topologies: fabric, arbitrated
loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• ATTO Advanced Data Streaming (ADS™)
Technology
Advanced FC capabilities
• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre
Channel
• Supports target and initiator modes
• Supports Windows® FDMI and WMI
Host bus specifications
• x8 mechanical and x8 electrical PCI Express
interconnect
• Conforms to PCI Express Base Spec 2.0
• Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0
Environmental & physical specifications
• Length: 6.6 inches
• Height: 3.987 inches
• Operating temperature: 0-40 ºC (32-113 ºF)
• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)
• Relative humidity: 10 to 90% non-condensing
• 7.8 W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy to install full height connection bracket
• External LEDs for on-line and speed status for
each channel
• Four pluggable 8-Gb optical LC SFP+ modules
included
Software specifications
• Windows Server 2008, 2003; Vista, XP
• Mac® OS X (10.4.x, 10.5.x)
• Red Hat Linux® (2.6 kernel)
• SUSE Linux (2.6 kernel)
• Fedora Linux (7 & 8)

3 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

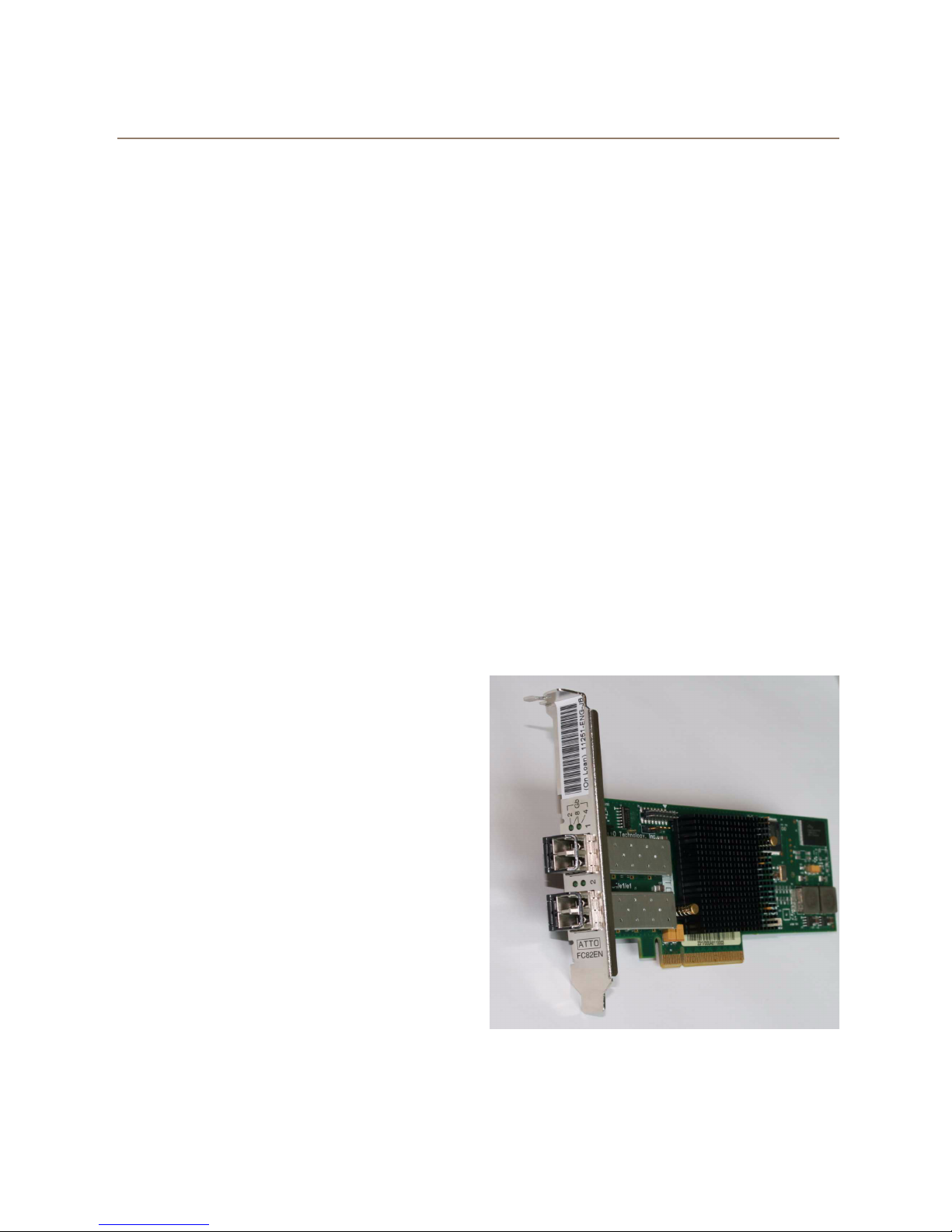

Celerity FC-82EN Adapter
The ATTO Celerity FC-82EN leverages two next-
generation storage technologies: PCIe 2.0
interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per
channel, the Celerity FC-82EN supports the most
demanding application requirements, including high-
definition video, rich content databases and other
high-bandwidth environments.
ATTO Celerity host adapters are an integrated family
of advanced storage connectivity solutions that are
designed to provide reliable connectivity, intelligence
and scalability.
Technical specifications
• Two independent Fibre Channel ports
• 1600 MB/sec. maximum throughput per channel
in full-duplex mode
• 8 GB/sec. FC data-transfer rate
• Conforms to PCI Express Low Profile form-
factor specifications
• Supports all FC topologies: fabric, arbitrated
loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• Advanced Data Streaming (ADS) Technology
Advanced FC capabilities
• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre
Channel
• Supports target and initiator modes
• Supports Windows® FDMI and WMI
Host bus specifications
• x8 mechanical and x8 electrical PCI Express
interconnect
• Conforms to PCI Express Base Spec 2.0
Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0
Environmental & physical specifications
• Length: 6.6 inches
• Height: 2.731 inches
• Operating temperature: 0-40 ºC (32-113 ºF)
• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)
• Relative humidity: 10 to 90% non-condensing
• 5.9W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy to install full height connection bracket;
low-profile bracket included in finished goods
packaging
• External LEDs for on-line and speed status for
each channel
• Two pluggable 8-Gb optical LC SFP+ modules
included
Software specifications
• Windows Server 2008, 2003; Vista, XP
• Mac OS X (10.4.x, 10.5.x)
• Red Hat Linux (2.6 kernel)
• SUSE Linux (2.6 kernel)
• Fedora Linux (7 & 8)

4
Celerity FC-81EN Adapter
The ATTO Celerity FC-81EN leverages two next-
generation storage technologies: PCIe 2.0
interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per
channel, the Celerity FC-81EN supports the most
demanding application requirements, including high-
definition video, rich content databases and other
high-bandwidth environments.
ATTO Celerity host adapters are an integrated family
of advanced storage connectivity solutions that are
designed to provide reliable connectivity, intelligence
and scalability.
Technical specifications
• One independent Fibre Channel port
• 8-Gigabit FC data transfer rates
• 1600 MB/sec. throughput in full-duplex mode
• Supports all FC topologies: fabric, arbitrated
loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• Advanced Data Streaming (ADS) Technology
Advanced FC capabilities
• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre
Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
Host bus specifications
• x8 mechanical and x8 electrical PCI Express
interconnect
• Conforms to PCI Express Base Spec 2.0
• Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0
Environmental & physical specifications
• Length: 6.6 inches
• Height: 2.731 inches
• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 5.3 W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy to install full height connection bracket;
low-profile bracket included in finished goods
packaging
• External LEDs for on-line and speed status for
each channel
• One pluggable 8-Gb optical LC SFP+ module
included
Software specifications
• Windows Server 2008, 2003; Vista, XP
• Mac OS X (10.4.x, 10.5.x)
• Red Hat Linux (2.6 kernel)
• SUSE Linux (2.6 kernel)
• Fedora Linux (7 & 8)

5 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Celerity FC-44ES Adapter
The Celerity FC-44ES uses PCI Express Interconnect
and 4-Gigabit Fibre Channel to provide 4-Gb FC
speeds of up to 800 MB/sec. per channel. The FC-
44ES supports high-definition video, rich content
databases and other high bandwidth environments.
The FC-44ES uses PCI Express, a serial, high-speed
connection that supports aggregate throughput up to 4
GB/sec. (x8 PCIe) full-duplex. Software compatible
with existing PCI and PCI-X products, the FC-44ES
uses the same device drivers as other Celerity FC
family products, simplifying installation and support.
Hardware specifications
• 4 independent Fibre Channel ports
• 4-Gigabit data transfer rates per channel
• 800 MB/sec. maximum full-duplex throughput
per channel
• Supports all FC topologies: fabric, arbitrated
loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb,
2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
• Supports exclusive ATTO Advanced Data
Streaming (ADS) Technology
Host bus specifications
• x8 mechanical and x8 electrical PCI Express
Interconnect
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
• PCI Express to PCI/PCI-X Bridge spec 1.0
Environmental & physical specifications
• Conforms to PCI standard height, half length
form-factor specifications
• Length: 6.525 inches
• Height: 3.81 inches
• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 12V@ 2.1A (max.)
• 3.3V @ 3.0A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy-to-install full height connection plate
• External LEDs for on-line and speed status for
each channel
• 4 pluggable optical LC SFP transceivers
included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP
• Mac OS X (10.4.x, 10.5.x)
• Red Hat Linux (2.4 and 2.6 kernel)
• SUSE Linux (2.6 kernel)

6
Celerity FC-42ES Adapter
The Celerity FC-42ES is a dual-channel host adapter
providing port density for Enterprise server and
workstation applications. With 4-Gb FC speeds of up
to 800 MB/sec. per channel, the FC-42ES supports
the most demanding application requirements.
Additionally the FC-42ES uses the latest in host
interconnect technology, PCI Express, a serial, high-
speed connection that supports aggregate throughput
up to 4 GB/sec. (x8 PCIe) full-duplex.
The FC-42ES is software compatible with existing PCI
and PCI-X products using the same device drivers as
other Celerity FC family products, simplifying user
installation and support. It is backward compatible with
existing 2-Gb and 1-Gb Fibre Channel infrastructure,
protecting existing technology.
Hardware specifications
• 2 independent Fibre Channel ports
• 4-Gigabit data transfer rates per channel
• 800 MB/sec. maximum full-duplex throughput
per channel
• Supports all FC topologies: direct fabric,
arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb,
2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
• Supports exclusive ATTO Advanced Data
Streaming (ADS) Technology
Host bus specifications
• x4 mechanical and x4 electrical PCI Express
interconnect (RoHS compliant)
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
• PCI Express to PCI/PCI-X Bridge spec 1.0
Environmental & physical specifications
• Operating temperature: 0-45ºC (32º-113ºF)
• Storage temperature: -40º to 70ºC (-40º to
158ºF)
• Relative humidity:10 to 90% non-condensing
• 100 lf/m (minimum) airflow recommended
• Conforms to PCI half height, half length form-
factor specifications
• 12V@ 04A (max.); 3.3V @ 1.5A (max.)
• Length: 5.6 inches
• Height: 2.712 inches
• RoHS compliant
External connectivity
• Easy-to-install full height connection plate
• External LEDs for on-line and speed status for
each channel
• 2 pluggable optical LC SFP transceivers
included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP
• Mac OS X (10.4.x, 10.5.x)
• Red Hat Linux (2.4 and 2.6 kernel)
• SUSE Linux (2.6 kernel)

7 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

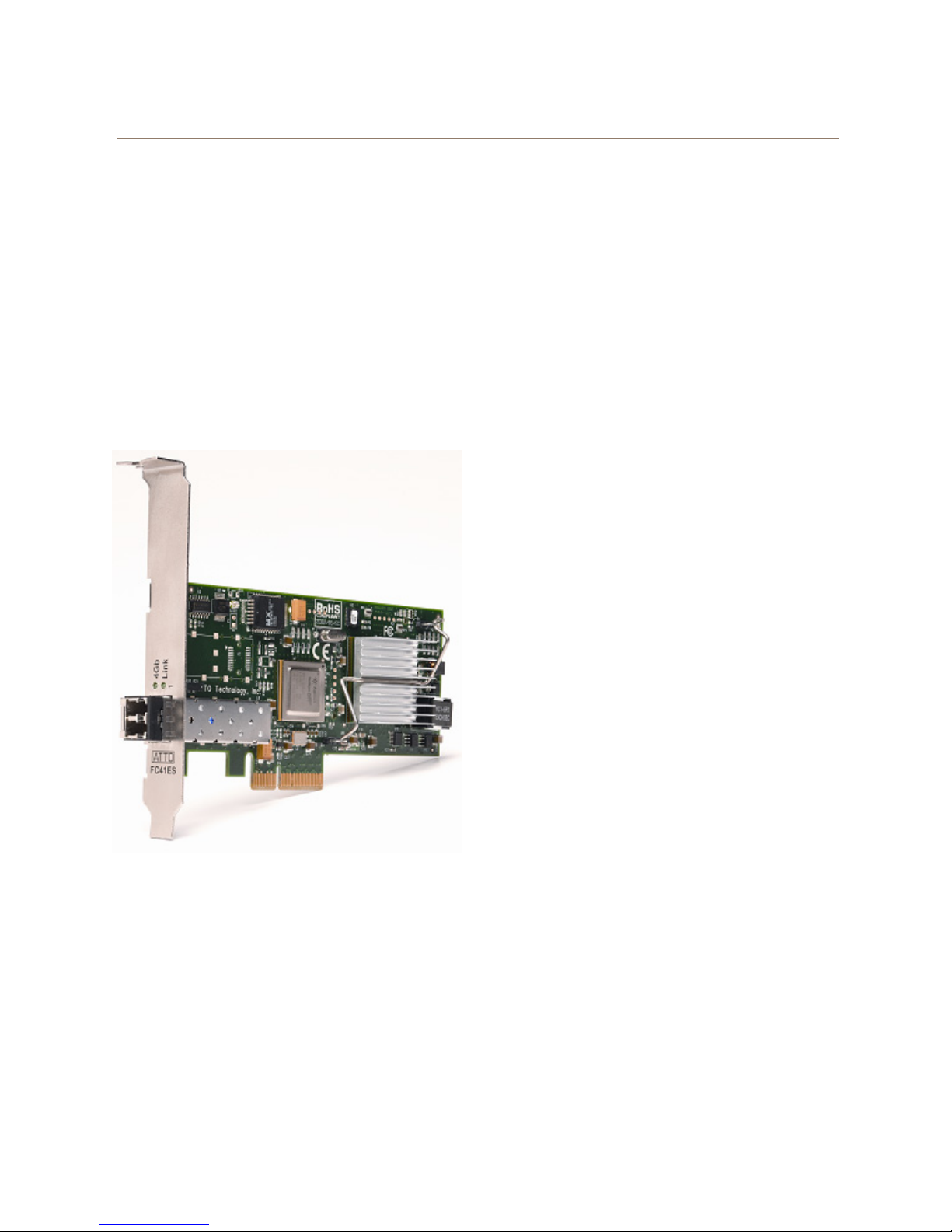

Celerity FC-41ES Adapter
The Celerity FC-41ES is a single-channel host adapter
providing support for the most demanding application
requirements. With 4-Gb FC speeds of up to 800
MB/sec. per channel, the FC-41ES is a cost effective
connectivity solution for environments requiring
maximum throughput.
The FC-41ES uses the latest in host interconnect
technology: PCI Express, a serial, high-speed
connection that supports aggregate throughput up to 2
GB/sec. (x4 PCIe) full-duplex. The FC-41ES is
software compatible with existing PCI and PCI-X
products using the same device drivers as other
Celerity FC products, simplifying user installation and
support. It is backward compatible with existing 2-Gb
and 1-Gb Fibre Channel infrastructure, protecting
existing technology investments.
Hardware specifications
• 1 Fibre Channel port
• 4-Gigabit FC data transfer rates
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: fabric, arbitrated
loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb,
2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
• Features exclusive Advanced Data Streaming
(ADS) Technology
Host bus specifications
• x4 mechanical and x4 electrical PCI Express
interconnect
• Supports PCI Express Base Spec 1.0a and CEM
Spec 1.0a
• Supports PCI Express to PCI/PCI-X bridge spec
1.0
Environmental & physical specifications
• Conforms to PCIe low profile form factor
specifications
• Length: 5.600 inches
• Height: 2.712 inches
• Operating temperature: 0-45ºC (32º-113ºF)
• Storage temperature: -40º to 70ºC (-40º to
158ºF)
• Relative humidity: 10 to 90% non-condensing
• 100 lf/m (minimum) airflow recommended
• Power: 12V@ 0.4A max; [email protected] max.
• RoHS compliant
External connectivity
• Easy-to-install full height connection bracket
• External LEDs for on-line and speed status
• Pluggable optical LC SFP transceiver included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP;
Red Hat Linux (2.4 and 2.6 kernel)
• SUSE Linux (2.6 kernel)
• Mac OS X (10.4.x, 10.5.x)

8
Celerity FC-41EL Adapter
The Celerity FC-41EL is a single-channel host
adapter. With 4-Gb FC speeds of up to 800 MB/sec.,
the FC-41EL supports the most demanding
application requirements.
The FC-41EL uses the latest in host interconnect
technology, PCI Express, a serial, high-speed
connection that supports aggregate throughout up to 2
GB/sec.full-duplex. The FC-41EL is software
compatible with existing PCI and PCI-X products using
the same device drivers as other Celerity FC family
products, simplifying user installation and support. It is
backward compatible with existing 2-Gb and 1-Gb FC
infrastructures, protecting existing technology
investments.
Hardware specifications
• 1 Fibre Channel port
• 4-Gigabit data transfer rate
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: direct fabric,
arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 4
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation between 4-
Gb, 2-Gb and 1-Gb Fibre Channel
• Supports initiator and target modes
• Supports Windows FDMI and WMI
• Supports exclusive ATTO Advanced Data
Streaming (ADS) technology
Host bus specifications
• x4 mechanical and x4 electrical PCIExpress
interconnect
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
Environmental & physical specifications
• Conforms to PCIe low profile form factor
specifications
• Operating temperature: 0 to 45º C (32-113º F)
• Storage temperature: -40 to 70ºC (-40 to 158º F)
• Relative humidity: 10 to 90% non-condensing
• 100 lf/m (minimum) airflow recommended
• Conforms to PCI Express low-profile form-factor
specification
• 12V @ 0.5A (max)
• Length: 5.600 inches
• Height: 2.712 inches
• RoHS compliant
External connectivity
• Easy-to-install full and low-profile connection
plates
• External LEDs for on-line and speed status
• A pluggable optical LC SFP transceiver included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP
• Mac OS X (10.4.x, 10.5.x)
• Linux (2, 4 and 2.6 kernel)

9 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual

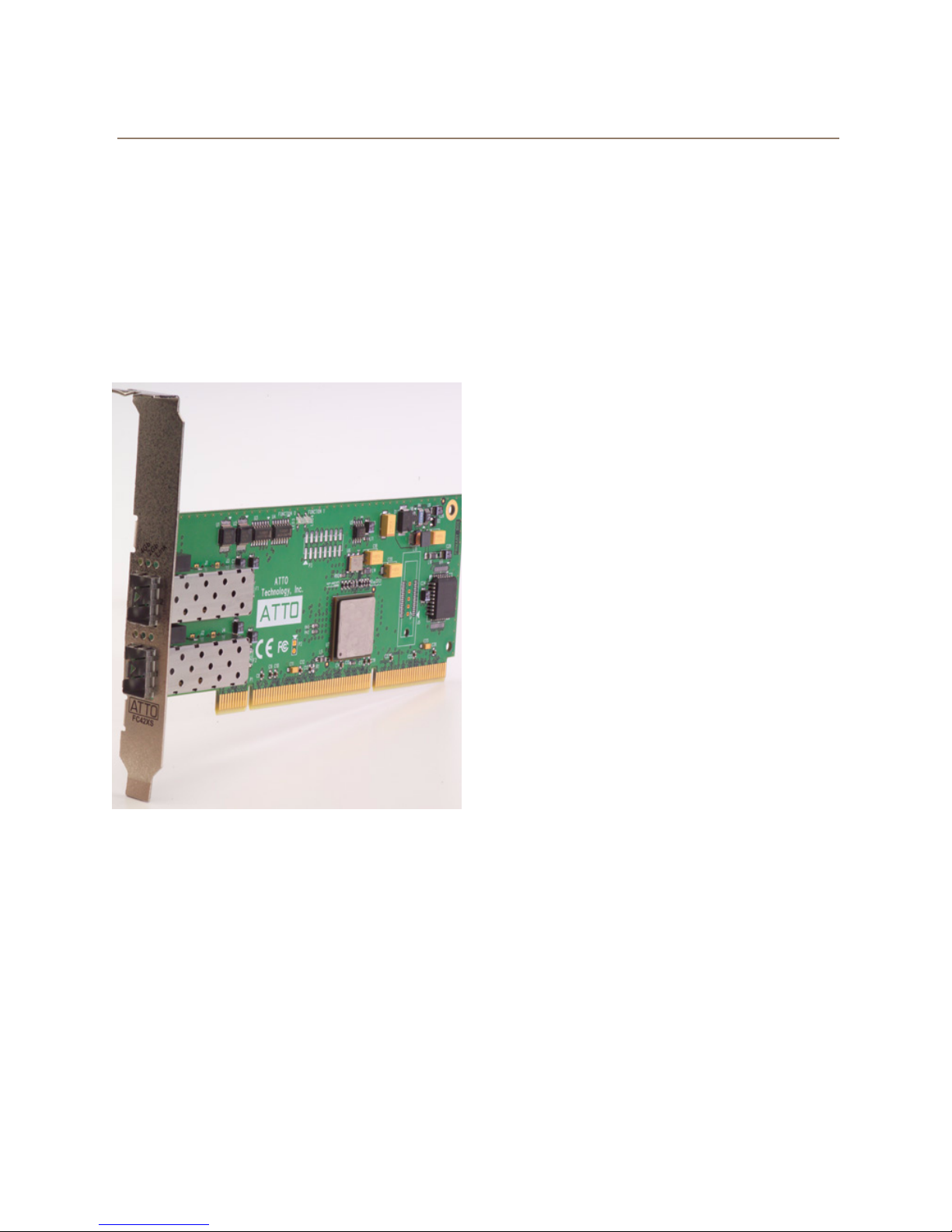

Celerity FC-42XS Adapter
The dual-channel Celerity FC-42XS host adapter
provides the highest available throughput for Fibre
Channel applications while protecting technology
investments via backward compatibility with existing
infrastructure.
With speeds of up to 800 MB/sec. per channel, the FC-
42XS is capable of supporting the most intensive data
applications.
To ensure a smooth transition path, the FC-42XS
leverages the existing Celerity FC software hardware
architecture, allowing ATTO to deliver industry-leading
quality and stable software architecture.
Hardware specifications
• 2 independent Fibre Channel ports
• 4-Gigabit data transfer rates per channel
• 800 MB/sec. maximum full-duplex throughput
per channel
• Supports all FC topologies: direct fabric,
arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 bytes; 8 @ 2 Kilobytes
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb,
2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
• Includes exclusive ATTO Advanced Data
Streaming (ADS) Technology
PCI bus specifications
• 64-bit, 133 MHz PCI-X
• PCI-X 1.0a compliant
• PCI 2.2 compliant
• 3.3V PCI signaling only
Environmental & physical specifications
• Conforms to PCI low profile form factor
standards
• Length: 6.600 inches
• Height: 2.536 inches
• Operating temperature: 0-45ºC (32º-113ºF)
• Storage temperature: -40º to 70ºC (-40º to
158ºF)
• Relative humidity: 10 to 90% non-condensing
• 3.3V@ 1.5A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy-to-install full height connection plate
• External LEDs for on-line and speed status for
each channel
• 2 optical LC SFP transceivers included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP;
Red Hat Linux (2.4 and 2.6 kernel)
• SUSE Linux (2.6 kernel)
• Mac OS X (10.4.x, 10.5.x)

10
Celerity FC-41XS Adapter
The single-channel Celerity FC-41XS provides
speeds of up to 800 MB/sec. using full 4-Gigabit Fibre
Channel performance while being fully backward-
compatible with existing 2-Gb and 1-Gb Fibre Channel
infrastructure, protecting existing technology
investments. It is capable of supporting the most data-
intense applications.
Hardware specifications
• 1 Fibre Channel port
• 4-Gigabit data transfer rates
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: direct fabric,
arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC-
AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 bytes; 8 @ 2 Kilobytes
Advanced FC capabilities
• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb,
2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows FDMI and WMI
• Includes exclusive ATTO Advanced Data
Streaming (ADS) Technology
PCI bus specifications
• 64-bit, 133 MHz PCI-X
• PCI-X 1.0a compliant
• PCI 2.2 compliant
• 3.3V PCI signaling only
Environmental & physical specifications
• Conforms to PCI low profile form factor
standards
• Length: 6.600 inches
• Height: 2.536 inches
• Operating temperature: 0-45ºC (32º-113ºF)
• Storage temperature: -40º to 70ºC (-40º to
158ºF)
• Relative humidity: 10 to 90% non-condensing
• 3.3V@ 1.5A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant
External connectivity
• Easy-to-install full height connection plate
• External LEDs for on-line and speed status
• Optical LC SFP transceiver included
Software specifications
• Windows Server 2008, 2003, 2000; Vista, XP;
Red Hat Linux (2.4 and 2.6 kernel)
• SUSE Linux (2.6 kernel)
• Mac OS X (10.4.x, 10.5.x)

11 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Selection guide: Celerity 8-Gb adapters
Product Features FC-84EN FC-82EN FC-81EN
Fibre Channel Ports 421
FC protocol 8-Gb 8-Gb 8-Gb
Maximum Transfer Rate (half duplex) 3.2 GB/sec 1.6 GB/sec 800 MB/sec.
Maximum Transfer Rate (full duplex) 6.4 GB/sec 3.2 GB/sec 1.6 GB/sec.
Bus type PCIe 2.0 PCIe 2.0 PCIe 2.0
Bus characteristics 8 lane 8 lane 4 lane
Optical interface SFP+LC SFP+LC SFP+ LC
Maximum cable length 300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
Low profile form factor 99
Advanced Data Streaming (ADS™) Technology 999
Software RAID support1999
Developer's kit (Target Mode & API) 999
Windows support 999
Linux (Red Hat, SUSE) driver support 999
Macintosh OS X driver support 999
1 ATTO ExpressStripe for OS X available; Express Power Center and other software RAID supported for Windows
Selection guide: Celerity 4-Gb adapters
Product Features FC-44ES FC-42ES FC-41ES/EL FC-42XS FC-41XS
Fibre Channel Ports 42121
FC protocol 4-Gb 4-Gb 4-Gb 4-Gb 4-Gb
Maximum Transfer Rate (half duplex) 1.6 GB/sec 800 MB/sec 400 MB/sec. 800 MB/sec 400 MB/sec
Maximum Transfer Rate (full duplex) 2 GB/sec 1 GB/sec 800 MB/sec. 1 GB/sec1800 MB/sec
Bus type PCIe PCIe PCIe PCI-X PCI-X
Bus characteristics 8 lane 4 lane 4 lane 64-bit
133 MHz2
64-bit
133 MHz2
Optical interface SFP LC SFP LC SFP LC SFP LC SFP LC
Maximum cable length 300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
300m@2-Gb
150m@4-Gb
Low profile form factor 9999
Advanced Data Streaming (ADS™) Technology 99999
Software RAID support 99999
Developer's kit (Target Mode & API) 99 ES only 99
Windows support 99999
Linux (Red Hat, SUSE) driver support 99999
Macintosh OS X driver support 99999
Novell Netware 99 ES only 99
Solaris 99 ES only 99
Free BSD 99 ES only 99
1 Performance ceiling is Performance constrained by bus transfer speed. Backward compatible to 32-bit and 33 MHz PCI
2 ATTO ExpressStripe for OS X available; Express Power Center and other software RAID supported for Windows

12

13 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
2 Install Drivers
Before installing your Celerity adapter, you must configure your system to recognize and use it by installing drivers
for your operating system.
Configure your system to recognize and use your
Celerity adapter by installing drivers for your operating
system.
Note
If you already have one or more Celerity
adapters installed and you are installing
additional adapter(s), you do not need to
perform any of these procedures unless you
are updating a previously installed driver.
ATTO Celerity adapters ship with the latest firmware
installed. The Celerity FC Installation CD shipped with
your adapter also contains the latest driver.
The Installation CD automatically starts when inserted
in the system CD-ROM drive. Navigate the easy-to-
use HTML-based menu to find the driver for your
adapter and operating system.
The Celerity FC Installation CD referred to in these
instructions can be the Installation CD shipped with
your adapter, a folder containing the latest
downloaded and expanded driver, or a Celerity FC
installation floppy disk.
Windows
The Celerity FC adapter supports Windows Server
2008, 2003, 2000; Vista and XP operating systems.
Five procedures are described below. Review each
thoroughly to ensure that you are using the one that
best fits your needs.
Note
Windows NT is only supported with Celerity
driver version 1.31 or earlier. If you are using
Windows NT, contact your service
representative.
1 Power on your system.
2 Insert the Installation CD. The installation guide
appears. If the guide does not appear, navigate
to the batch file Autorun on the Installation CD
and click on it.
3 Click on Windows Drivers.
4 Click on Windows x86 Drivers for 32-bit
systems or Windows x64 Drivers for 64-bit
systems. If you do not know which version to
select, contact your system administrator or
refer to your operating system manual.
5 Click on the menu item containing the words
Install Driver for the version of Windows you
are using.
6 Follow the on-screen instructions to complete
the driver installation.
Windows Vista and Server 2008
1 Log on to Windows as the system
administrator.
2 Insert the Installation CD, open the folder
containing the latest driver that was
downloaded and expanded, or click on an
ExpressSAS installation floppy disk (refer to
Creating an installation floppy or Creating a
floppy disk from a download on page 14).
3 If you have User Account Control enabled,
you are prompted to grant the installer
permission to continue.
If you do not have administrator privileges, you
must enter an administrator user name and
password.
4 Click the Continue button.
5 The driver installer launches. Click Install.
6 A Windows security panel asks you to confirm
that you want to install the driver. Click Install.
Note
If you also select Always trust software
from ATTO Technology Inc.,
you will not
receive this prompt again.

14
Creating a boot disk
Note
The procedure described below does not
apply to Windows Server 2003 for Itanium
systems because the Celerity FC driver does
not support boot functionality on Itanium
systems.
1 Start Windows text mode setup as found in the
instructions provided with Windows.
2 Press F6 when Windows Setup, displays. The
setup program displays a prompt in the status
window on the bottom left of the monitor. Setup
continues to load files after you press F6.
3 A new window displays instructions to specify
additional mass storage devices. Press Sto
install the ATTO Celerity as a storage device.
4 Insert the Celerity FC installation diskette in
drive Aand press Enter.
5 A screen displays a list of Celerity FC adapters.
Select your adapter and press Enter.
6 Windows Setup loads the files from the floppy
and then displays the screen described in Step
2. The ATTO Celerity FC device should now be
listed as detected.
7 Repeat steps 2to 6for any other vendor-
supplied driver installation disks.
8 After all other drivers have been processed,
press Enter and proceed with the rest of the
Windows installation procedure.
Note
When Windows begins copying files to your
hard disk, a display prompts you to insert the
Celerity FC installation disk and any other
vendor-supplied disks you used during
custom installation. This is normal. The first
time you inserted the disks, Windows loads
the drivers into memory; the second time you
insert the disk(s), Windows copies the driver
to your hard disk.
Creating an installation floppy
Note
You must have a floppy disk with the Celerity
FC driver software to install a fresh copy of
the Windows OS onto a disk attached to a
Celerity FC adapter.
1 Insert the Installation CD into a CD-ROM. The
installation starts automatically.
If the Celerity FC installation does not start,
navigate to the root of the CD and run
autorun.bat.
2SelectWindows Drivers from the items on the
left side of the screen.
3 Select the appropriate CPU-based operating
system from operating system choices.
4SelectCreate Miniport Driver Diskette or
Create StorPort Driver Diskette for the
desired operating system.
5 Follow the instructions for creating the floppy
disk.
Creating a floppy disk from a download
1 Download the latest driver software from the
ATTO website, www.attotech.com.
2 The download is a self-extracting executable
that expands the driver software package. Run
the self-extracting executable and select a
folder to place the expanded software package.
3 Navigate to the folder with the desired Celerity
FC driver.
Note
The expanded software package contains a
Miniport driver and may contain a StorPort
driver. The Celerity FC Windows Miniport
driver is in the base directory of the
expanded software package. The Celerity
FC Windows StorPort driver is in the
StorPort subdirectory.
4Runmakedisk.bat and follow the instructions
for creating the floppy disk.
OS X
1 Power on your system.
2 Insert the Installation CD.
3 After it mounts, open the Celerity volume.
4 Select the Drivers folder.
5 Launch the installer.
6 Follow the on-screen instructions.

15 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Linux
Note
You must have kernel header files for the
appropriate kernel installed.
You must be logged in as
root .
1 At the command prompt type rmmod
celerityfc.
2 Download the appropriate version of the device
driver from the ATTO website.
3 At the command prompt, extract the file using
the command tar -xfz <filename.tgz>.
4 Enter the directory created in the above step
and type make install to overwrite any
previously-installed driver.
5 Start the driver by typing modprobe celerityfc.
Specialized configurations
Some specialized applications may benefit from
modification of adapter settings. The ATTO Utilities
Installation and Operation Manual provides detailed
information on using ATTO Technology configuration
utilities found on the ATTO Utilities CD or downloaded
from the ATTO website.
Verify the version of your adapter and drivers based
on your operating system:
Windows: Use the ATTO Configuration Tool from the
ATTO Utilities CD, view the adapter boot string during
system boot or look in the
Device Manager .
Mac OS X : Use the ATTO Configuration Tool on the
ATTO Utilities CD or the Apple System Profiler.
Linux : Use the ATTO Configuration Tool on the ATTO
Utilities CD or, to find the driver version, examine
/proc/scsi/celerityfc/X where X is the adapter’s host
number.

16

17 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
3 Hardware Installation
You need a basic understanding of Fibre Channel before installing the Celerity FC host adapter. Please refer to
Appendix A for a list of related websites.
CAUTIONCAUTION
Back up your system data before
changing or installing any hardware.
System requirements
The Celerity FC host adapter package contains the
host adapter, the ATTO Utilities CD and a warranty
and registration card. If any of these items are missing,
contact your ATTO authorized sales representative.
To install and use the Celerity Fibre Channel host
adapter you need:
• A computer with an available PCI, PCI-X or PCI
Express expansion slot
• The complete Celerity FC host adapter package
Fibre Channel address
Celerity FC adapters are configured with a unique
address designated by the Institute of Electrical and
Electronic Engineers. The WorldWide Port Name
(WWN) and Node Name are the two components of
the address assigned to Fibre Channel products. This
address, stored in flash memory, allows the system to
recognize the Celerity host adapter as a unique part of
your configuration. The address is clearly marked on
the back of the board for easy identification. Please
keep a reference copy of the number in a safe place or
write in the space provided on this page.
Celerity FC host adapter WWNs are assigned for each
channel. The WWN listed on your host adapter is
assigned to the first channel (0). Sequential WWNs
apply for additional channels.
Installation
CAUTIONCAUTION
Celerity FC host adapters contain
components that are sensitive to
electrostatic discharge (ESD). ESD can
cause damage to the Celerity FC host
adapter. Please follow standard methods
to avoid ESD.
1 Install the latest drivers. Refer to Install Drivers
on page 13.
2 Power down the computer and unplug the
computer from all power sources.
3 Open the case.
4Install the Celerity FC host adapter in any open
PCI, PCI-X or PCI Express expansion slot. If
you have questions about how to install an
expansion card in your system, consult your
computer’s documentation.
Drawings of Celerity brackets begin on page 18
and drawings of boards begin on page 20.
Note
The Celerity FC-41XS, and FC-42XS host
adapters only fit in 3.3V slots.
The Celerity FC-42ES, FC-41ES and FC-
41EL fit into x4, x8, or x16 mechanical PCI
Express slots.
If you have trouble seating your adapter in a
32-bit PCI bus computer, check to make sure
the connector can accommodate 64-bit host
adapters.
5 Connect Fibre Channel devices by inserting a
Fibre Channel cable from the devices to the
connectors on the Celerity FC host adapter until
you hear a click.
6 Close the case on the computer and power it
up.
WWN 0 all adapters
WWN 1: 44ES, 42ES, 42XS, 82EN, 84EN
WWN 2 44ES, 84EN
WWN 3 44ES, 84EN
