ATV DR-6232H User manual

Hybrid
Network
Video
Recorder
Operation Manual

2
Before reading this manual
This operation manual contains basic instructions on installing and using Hybrid Network Video Recorder.
Users who are using this product for the rst time, as well as users with experience using comparable products, must
read this operation manual carefully before use and heed to the warnings and precautions contained herein while
using the product. Safety warnings and precautions contained in this operation manual are intended to promote
proper use of the product and thereby prevent accidents and property damage and must be followed at all times.
Once you have read this operation manual, keep it at an easily accessible location for future reference.
•The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and
accessories or from the user's failure to comply with the instructions contained in this operation manual.
•It is recommended that rst-time users of Network Video Recorder and individuals who are not familiar with its use seek
technical assistance from their retailer regarding product installation and use.
•If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and
seek professional assistance.
•Both retailers and users should be aware that this product has been certied as being electromagnetically compatible for
commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sucient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Symbol Publication Description
IEC60417, No.5032 Alternating current

Before reading this manual
3
1. Read Instructions
All the safety and operating instructions should be read before the appliance
is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use
liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of the
manufacturer as such additions may result in the risk of re, electric shock or
other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Ventilation
Place this equipment only in an upright position. This equipment has an
open-frame Switching Mode Power Supply (SMPS), which can cause a re or
electric shock if anything is inserted through the ventilation holes on the side
of the equipment.
7. Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and serious
damage to the equipment. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit approved by the
manufacturer.
This equipment and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the equipment and cart
combination to overturn.
8. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power, please
consult your equipment dealer or local power company. You may want to
install a UPS (Uninterruptible Power Supply) system for safe operation in order
to prevent damage caused by an unexpected power stoppage. Any questions
concerning UPS, consult your UPS retailer. This equipment should be remain
readily operable.
9. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
10. Lightning
For added protection for this equipment during a lightning storm, or when it
is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage
to the equipment due to lightning and power-line surges.
11. Overloading
Do not overload wall outlets and extension cords as this can result in the risk
of re or electric shock.
12. Objects and Liquids
Never push objects of any kind through openings of this equipment as they
may touch dangerous voltage points or short out parts that could result in a
re or electric shock. Never spill liquid of any kind on the equipment.
13. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to
qualied service personnel.
14. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualied
service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualied technician to
restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance ─this
indicates a need for service.
15. Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specied by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in
re, electric shock or other hazards.
16. Safety Check
Upon completion of any service or repairs to this equipment, ask the service
technician to perform safety checks to determine that the equipment is in
proper operating condition.
17. Field Installation
This installation should be made by a qualied service person and should
conform to all local codes.
18. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type. This
equipment should be remain readily operable. Dispose of used batteries
according to the instructions. The battery shall not be exposed to excessive
heat such as sunshine, re or the like.
19. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specied so that the customer and installer may
determine a suitable maximum operating environment for the equipment.
20. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).
21. Reduced Air Flow
Installation of the equipment in the rack should be such that the amount of
airow required for safe operation of the equipment is not compromised.
22. Mechani cal Loading
Mounting of the equipment in the rack should be such that a hazardous
condition is not caused by uneven mechanical loading.
23. Circuit Overloading
Consideration should be given to connection of the equipment to supply
circuit and the eect that overloading of circuits might have on over current
protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
24. Reliable Grounding
Reliable grounding of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g., use of power strips).

Before reading this manual
4
Important Safeguards
In-Text
Symbol Type Description
Caution Important information concerning a specic function.
Note Useful information concerning a specic function.
User’s Caution Statement
Caution: Any changes or modications to the equipment not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
FCC Compliance Statement
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART
15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE
WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE
RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT
REGULATIONS.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.

Before reading this manual
5
The information in this manual is believed to be accurate as of the date of publication even though explanations of some
functions may not be included. We are not responsible for any problems resulting from the use thereof. The information
contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate
such changes.
The software included in this product contains some Open Sources. You may obtain the complete corresponding source code
from us. See the Open Source Guide on the software CD (OpenSourceGuide\OpenSourceGuide.pdf) or as a printed document
included along with the User's Manual.

6
Table of Contents
1
2
Part 1 – Introduction.........................................9
Product Features ................................................................9
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Overview ......................................................................11
Front Panel...............................................................................11
Rear Panel ...............................................................................14

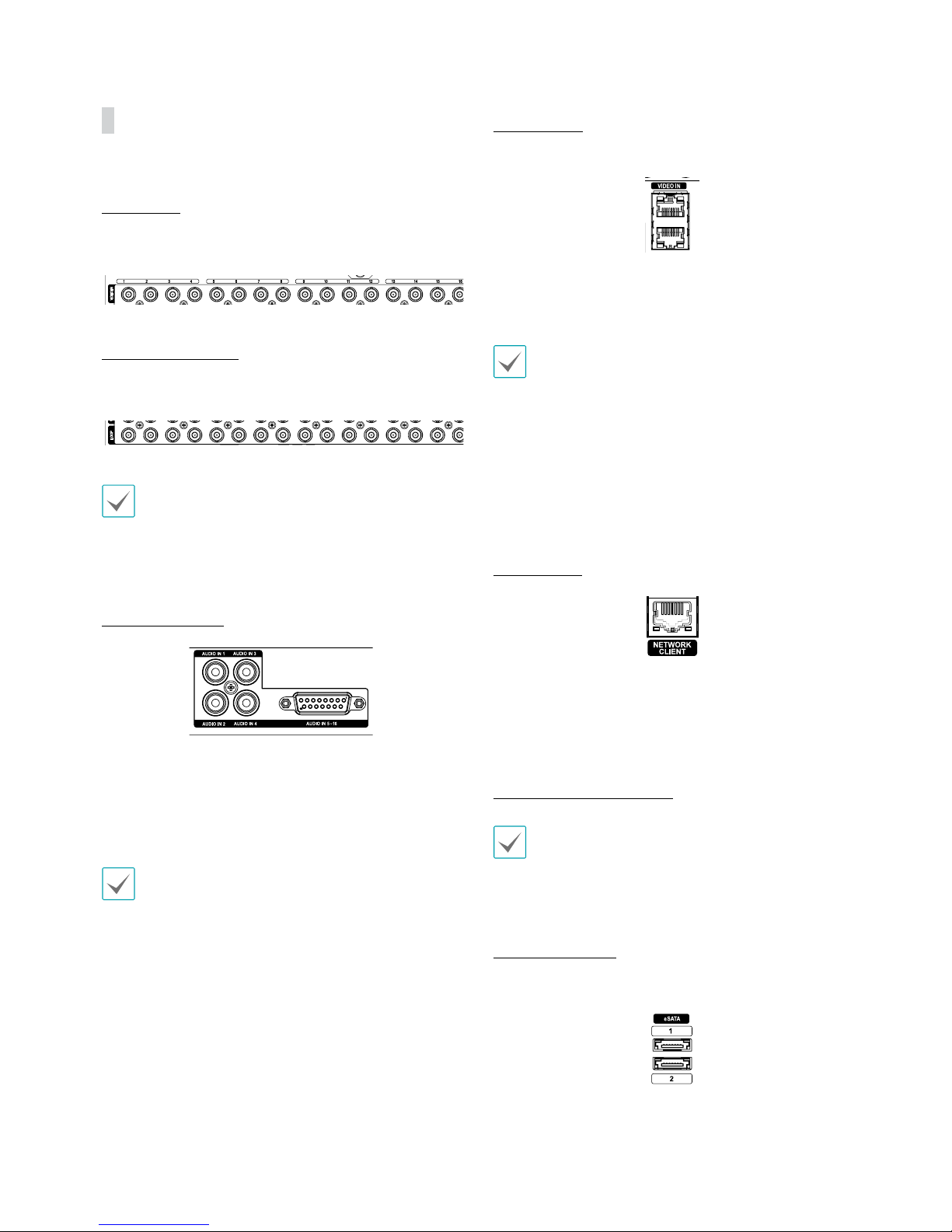

Rear Panel Connections .................................................................15

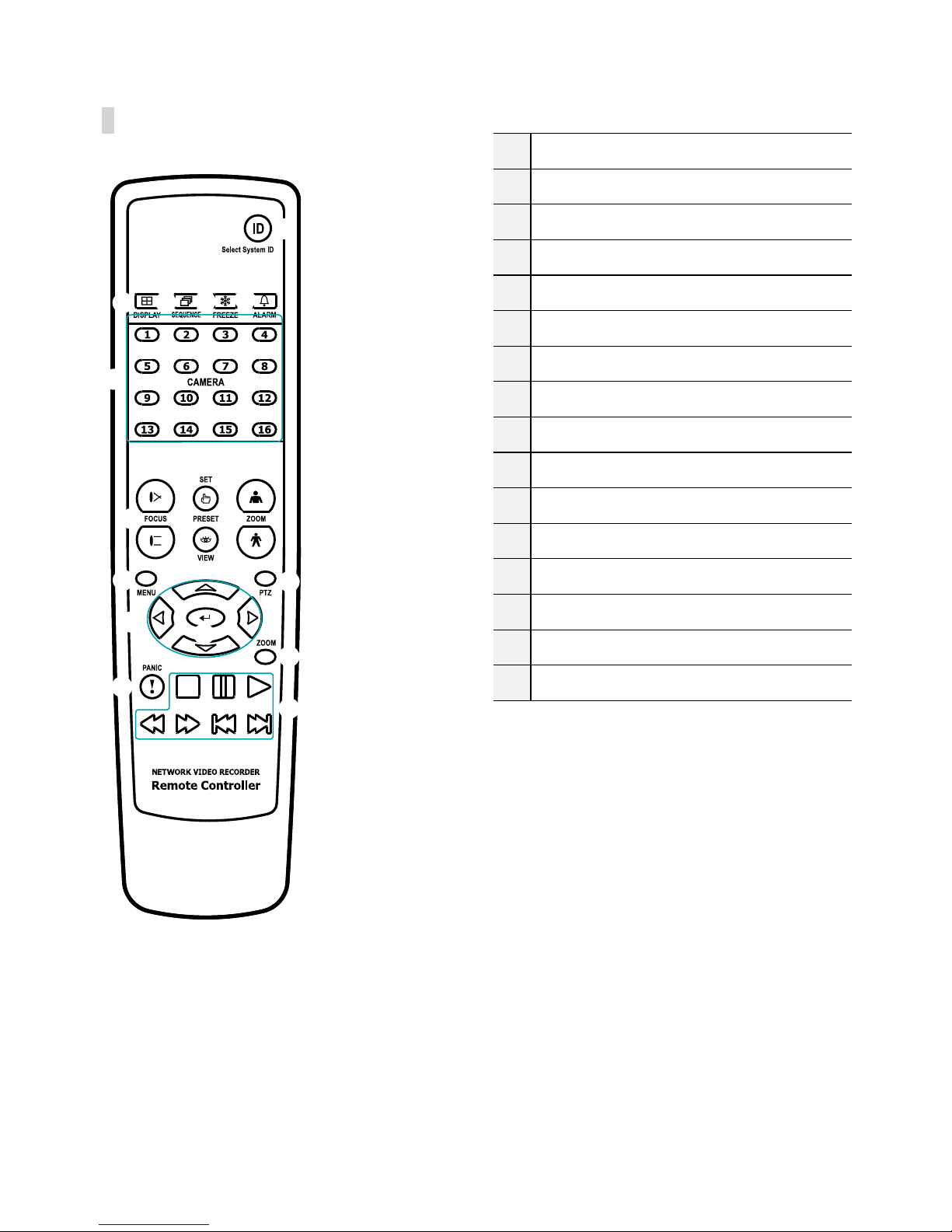

Remote Control ..........................................................................19
Part 2 - Getting Started .....................................22
Setup Wizard ...................................................................22
Camera Registration ............................................................25
Device Scan..............................................................................25
Advanced Setup: Video In IP Setup........................................................26
Camera Registration Mode......................................................27
Login ..........................................................................27
Live Mode......................................................................28
Live Menu ...............................................................................28
Zoom ....................................................................................31
PTZ Control ..............................................................................32
Event Monitoring ........................................................................33
Covert Camera ...........................................................................33
Context Menu Access ....................................................................34
Edit Group ...............................................................................34
Video Recording................................................................34
Panic Recording..........................................................................34
Audio Recording ...............................................................35
Video Recording Playback ......................................................35
All Channel Playback .....................................................................35
Remote Control Buttons during Playback .................................................35
Context Menu............................................................................35

Table of Contents
7
Part 3 - Conguration .......................................36
Menu Use ......................................................................36
Text Input via Virtual Keyboard ...........................................................36
Batch Assignment........................................................................36
Mouse ...................................................................................37
System Setup ..................................................................37
General ..................................................................................37
Date/Time ...............................................................................38
User .....................................................................................39
Storage ..................................................................................41
Monitoring...............................................................................42
Record Setup...................................................................44
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Schedule.................................................................................45
Pre-Event ................................................................................46
Event Setup ....................................................................47
Video-Analytics .........................................................................47
Alarm-In .................................................................................50
Video Loss ...............................................................................51
Audio Detection .........................................................................51
Recording Fail............................................................................52
Camera System ..........................................................................53
General ..................................................................................54
WAN .....................................................................................55
FEN ......................................................................................56
Device Setup ...................................................................57
Alarm-Out ...............................................................................57
Remote Control ..........................................................................57
Display Setup ..................................................................57
OSD .....................................................................................57
Schedule.................................................................................59
Callback .................................................................................59
Mail......................................................................................59
SNS ......................................................................................60
Camera Setup ..................................................................61
Registration..............................................................................61
General ..................................................................................62
Advanced Setup .........................................................................63
3

Table of Contents
8
Stream...................................................................................68
Audio....................................................................................69
Upgrade .................................................................................69
Part 4 - Search..............................................70
Time-Lapse Search .............................................................70
Search Menu.............................................................................71
Time-Lapse Search Menu ................................................................72
Context Menu............................................................................75
Print .....................................................................................75
Event Log Search ...............................................................76
Overlapped Recording Search ..................................................77
Part 5 - WebGuard ..........................................78
Web Monitoring Mode .........................................................79
Web Search Mode ..............................................................81
Part 6 - Appendix ...........................................83
System Log Types ..............................................................83
Error Code Types ...............................................................84
Troubleshooting ...............................................................86
Specications ..................................................................87
Index ..........................................................................89
4
5
6

9
Product Features
This is a video recorder that supports surveillance, recording, and playback of video from network IP and analog
cameras. This NVR (Hybrid Network Video Recorder) unit oers the following features:
•Real-time recording of analog and/or network IP cameras, up to 32 cameras total. User determines exact
combination with a maximum of 16 analog inputs.
•Network camera zero conguration
•Conguration-free network camera access
•Supports up to Full HD 960ips video recording
•HDMI out (1) and VGA out (1) ports
•Fast and easy search feature (Time-Lapse, Event log, Motion, Text-In)
•Simultaneously survey, record, play back, and transmit data in real-time
•Graphic User Interface(GUI) and multilingual
•Multiple recording modes (Schedule, Event, Pre-Event, and Panic)
•2 x USB 2.0 (for connecting peripherals, upgrading software, and saving recording data)
•6 internal SATA2 HDD bays and 2 eSATA ports
•Two-way audio communication
•32-channel camera audio recording and 1-channel audio playback
•16 alarm in and 4 alarm out
•IR remote control-enabled
•Automated system event alerts (industry standard S.M.A.R.T. protocol for HDD status alerts)

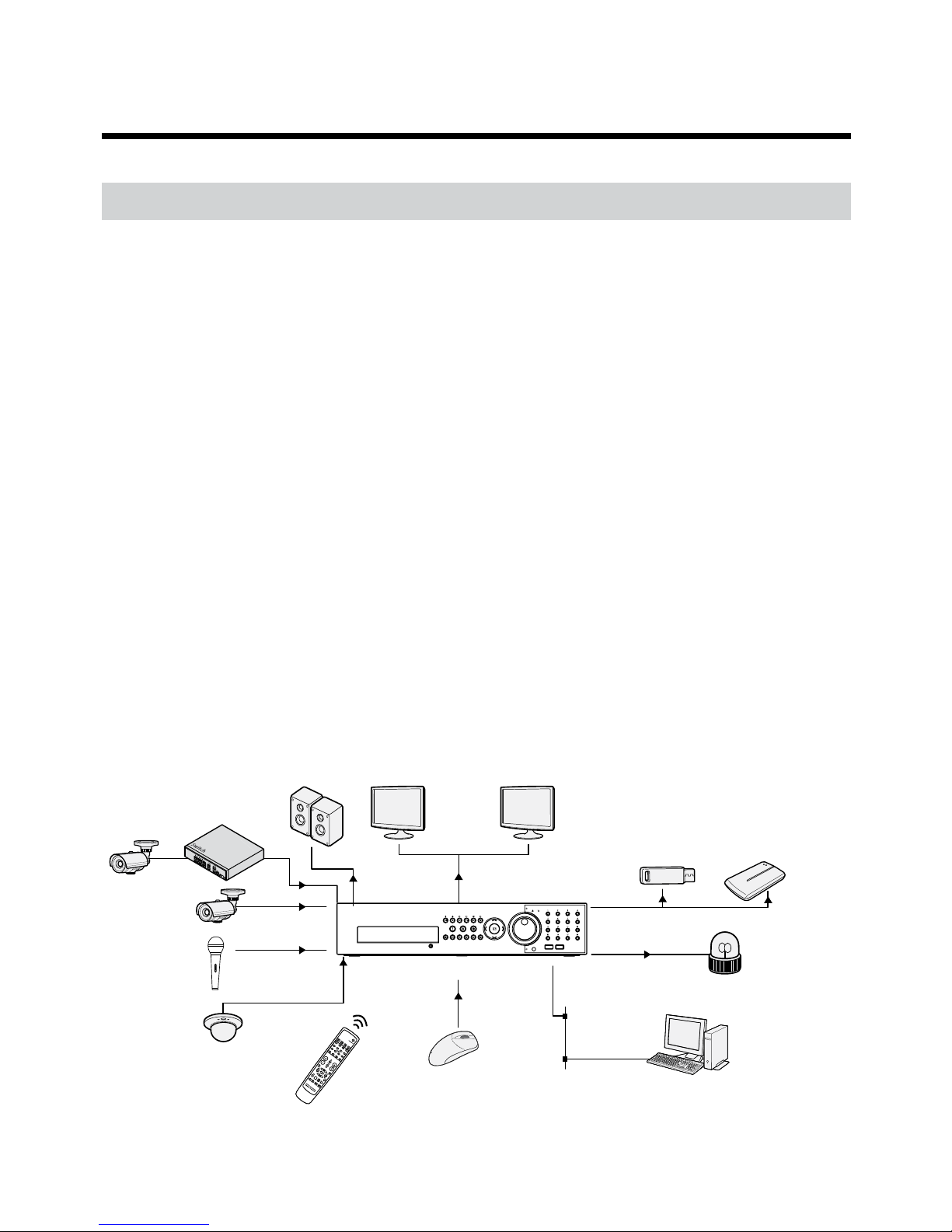

Part 1 – Introduction
Gigabit
PoE Switch
Audio Out HDMI Monitor VGA Monitor
Alarm
Alarm Out
USB HDD
Analog
Camera
Network
Camera
Sensor (1-4)
IR Remote
Control
Mouse Network Connection
Network Video Recorder
Flash Memory
Audio In (1-16)

Part 1 – Introduction
10
Accessories
Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included.
AUDIO5 A UDIO 6 AUDIO 7 AUDIO8 AUDIO9
AUDIO13 AUDIO14 AUDIO 15 AUDIO 16
Network Video Recorder Power Cable Quick Guide Multi audio cable
Operation Manual and
Remote Program CD Optical USB Mouse IR Remote Control SATA2 cables
Rack-mount Kit
Assembly Screws for Adding
Hard
Disk Drives

Part 1 – Introduction
11
Overview
Front Panel
12
3
4
5
6
7
89
0!@#$%^
1Camera Buttons 2LEDs 3Jog Dial, Shuttle Ring 4Enter Button
5Arrow Buttons 6Playback
Buttons 7PTZ Button 8Alarm Button
9Panic Recording
Button 0Freeze Button !Bookmark Button @Zoom Button
#Status Button $Display Button %Menu Button ^USB Port
•Some buttons have more than one function.
•Remote control sensor is located on just left of USB ports. Ensure that the sensor remains unobstructed at all times. If
obstructed, the sensor might not be able to receive remote control signals.
•Placing a Wi-Fi, Bluetooth, or any other wireless communication device near the NVR may interfere with remote control
signal transmission.
•Access various windows and menus using a USB mouse as you would on a personal computer.
•For easier system conguration, a USB mouse is recommended.

Part 1 – Introduction
12
1Camera Button
Pressing the Camera button while in Live or Playback
mode displays images from the selected camera in
full screen. Pressing the button 1 displays the camera
number 1 and pressing the button 1 again displays
the camera number 17. Buttons are also used to
enter passwords.
2LEDs
•Power LED: Lights up while the main unit is in
operation.
•Network LED: Flashes when the main unit is linked
to an ethernet.
•eSATA LED: Lights up when the main unit is
connected to an eSATA device.
•HDD LED: Flashes when data is being written on
the HDD or a video search is in progress.
3 jog Dial, Shuttle Ring
Jog Dial
When in the playback mode, you can
play video forward image-by-image
by turning the Jog Dial clockwise and
backward image-by-image by turning
the Jog Dial counterclockwise. When
in the PIP mode, you can make the
PIP screen smaller by turning the Jog
Dial clockwise and larger by turning
the Jog Dial counterclockwise. When
in the Setup mode, you can change
number values by highlighting the
item in the menu and turning Jog
Dial clockwise or counterclockwise to
increase or decrease the number.
Shuttle Ring
The Shuttle Ring only functions in
the Playback mode. The Shuttle
Ring is spring loaded and returns to
the center position when released.
Turning the ring clockwise plays
video forward. Turning the ring
counterclockwise plays video
backward. Playback speed varies with
the amount the ring is turned. The
playback speeds are , , ,
, , and . When you release
the ring, it snaps back to the center
position and the video pauses.
4Enter Button
Pressing the Enter button selects options or to
register data entries.
5Arrow Buttons
These buttons are used to select menus and options.
Setup Menu
Up/Down/Left/Right Buttons:
Moves the focus up, down, left,
or right.
Up/Down Buttons: Increases or
decreases values.
6Playback Buttons
These buttons are used to select menus and options.
Play/Pause
(") Buttons
Plays the video in normal speed
and displays ron the screen.
Press again during playback to
pause the video and display on
the screen.
Playback
Mode
From paused state:
%Button: To the previous screen
&Button: To the next screen
Button: Scans backward
through the video at a fast rate.
(Press to cycle through , ,
and the speed)
!Button: Scans forward through
the video at a fast rate.(Press to
cycle through , , and the
speed)
Pressing the button initiates
Search mode, which will allow
you to search for and play back
video recordings. Pressing the
button while in Search mode
returns the screen to Live mode.

Part 1 – Introduction
13
7PTZ Button
Pressing the PTZ button initiates PTZ mode, allowing
you to control PTZ cameras.
In PTZ mode, use the arrow buttons to move the
camera up, down, left, and right.
Zoom-Out
Zoom-In
Focus Near
Focus Far
Preset View
Preset SET
8Alarm Button
Pressing the ALARM button while the alarm has
been activated resets all NVR outputs, including the
built-in buzzer. Pressing the button while the alarm is
o displays the event log on the screen.
9Panic Recording Button
Pressing the PANIC button displays the icon and
commences recording irrespective of the current
schedule.
Press the button again to deactivate Panic Recording
mode.
0Freeze Button
Used to pause Live screen..
!Bookmark Button
Add the current playback point to the bookmark list
or move to the registered bookmark point.
@Zoom Button
Used to zoom in on a specic part of the screen. Once
zoomed in, use the arrow buttons to pan around..
#Status Button
Press the Status button to display the status screen.
$Display Button
Press the DISPLAY button to toggle screen formats.
%Menu Button
Pressing and holding the MENU button for 3 seconds
while in Live mode displays the Live menu.
Pressing the MENU button while in Search mode
displays the Search menu.
Press the button once more to close the menu.
Pressing and holding the MENU button for 3 seconds
while in Playback mode activates One-Touch mode
and displays the clip copy window.
^ USB Ports
•Storage Device Connection
Connect an external USB hard drive or a USB ash
memory device to one of the USB ports for use with
the Clip Copy feature. The external storage device
should be placed as close to the NVR as possible.
It is recommended that you use a connection
cable that is no longer than 180cm in length. Use
the connection cable included with your external
storage device to connect the device to one of NVR's
USB ports. For more information Clip Copy, refer to
the 5 Clip-Copy on page 73.
•Peripheral Device Connection
Use the USB ports to connect peripherals such as a
USB mouse to the NVR. You can also use a USB-to-
serial converter and connect multiple text-in devices
to the NVR at the same time.
For USB ash memory devices, the NVR supports
the FAT32 le format only.

Part 1 – Introduction
14

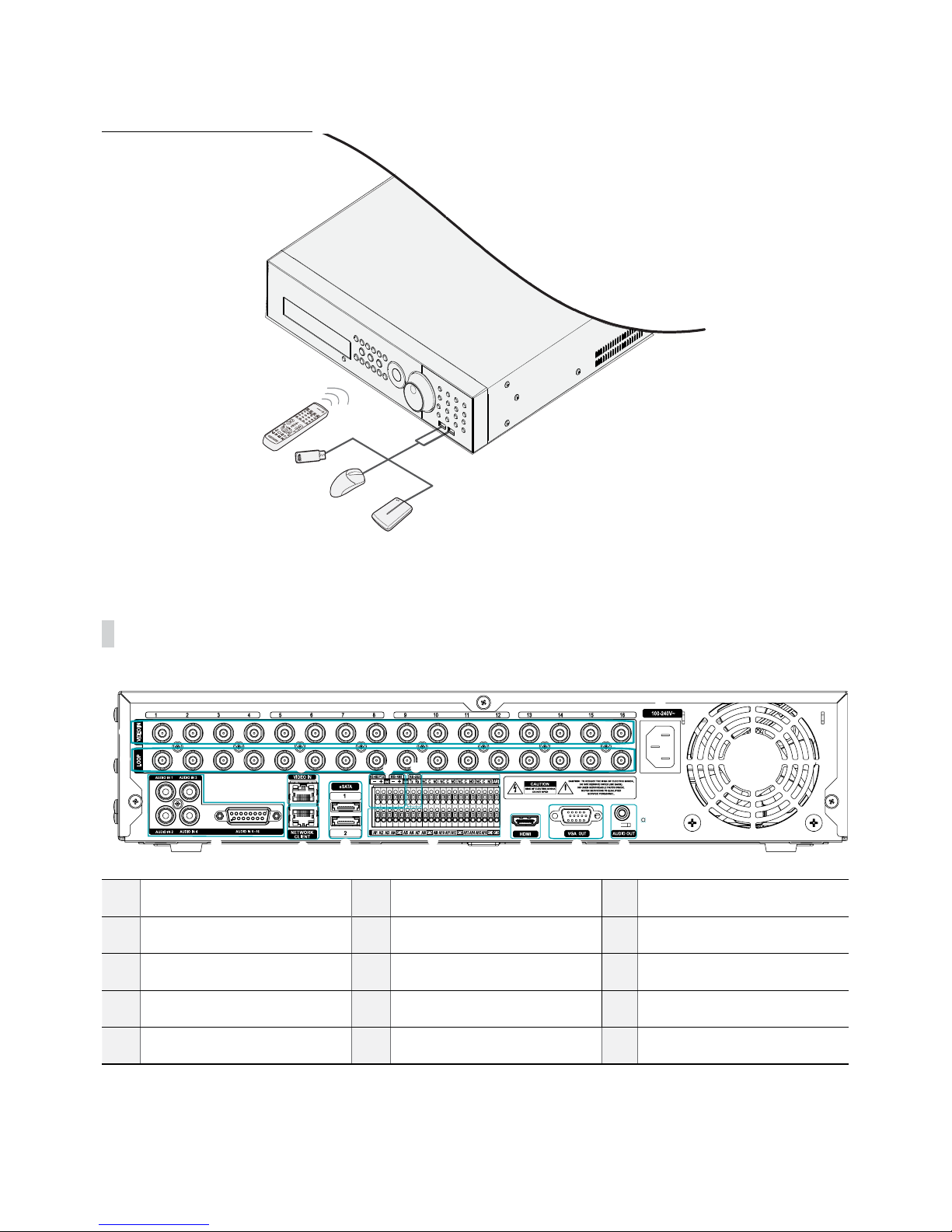

Connections on the Front Panel
◀
◀
USB HDD
Flash Memory
Mouse
Rear Panel
1
2
3
4
56
7 8
9 0!@
#
1Video Input 2Video Loop Through 3Audio In
4Video In Port 5Network Port 6eSATA Port
7RS-485 Port 8RS-232 Port 9Alarm Connection Ports
0HDMI Port !VGA Out Port @Audio Out
#Power In Port

Part 1 – Introduction
15
Rear Panel Connections
Video Input
Connect the coaxial cables from the video sources to the
BNC Video In connectors.
Video Loop Through
Connect the coaxial cables from the video sources to the
BNC Video In connectors.
The Loop BNC connectors are auto terminated. Do
NOT connect a cable to the Loop BNC unless it is
connected to a terminated device because it will cause
poor quality video.
Audio Connection
Connect the audio device to AUDIO IN 1 to AUDIO IN
16 as needed using RCA jacks. Connect AUDIO OUT
to speakers with a built-in amplier. Use the provided
audio extension cable to connect the audio sources to
AUDIO IN 5 to 16.
•This NVR does not feature a built-in audio amplier
unit and therefore requires the user to purchase a
speaker system with a built-in amplier separately.
It's possible to connect an amplied audio source to
the NVR, but microphones that do not have a built-in
amplier will not function properly if connected
to the NVR directly. If this is the case, connect the
microphone to the NVR via a pre-amp.
•Check your local laws and regulations on making
audio recordings.
Video In Port
•Video In Port
This port does not support PoE. It's possible to establish
a network with network cameras and external hubs
using a Cat6 cable.
•Green LED on the right will turn on if connected to
a 1000 BASE-T network. Orange LED on the left will
then ash once a link has been established.
•When using a Cat5e cable, the data transfer speed
may decrease depending on how to establish a
network.
•If more than 16 cameras from video encoders are
registered on the NVR, video may not be displayed
smoothly in a remote program.
Network Port
The NVR can be networked using the 10Mb/100Mb/1Gb
Ethernet connector. Connect a Cat5e cable with an
RJ-45 jack to the NVR connector. The NVR can be
networked with a computer for remote monitoring,
searching, conguration and software upgrades. For
more information on ethernet connection setup, refer to
Network Setup on page 54.
Connector directions may vary depending on the NVR
model.
eSATA Connection
Connect external hard drives to these ports.

Part 1 – Introduction
16
Do not connect or disconnect an eSATA device while
the NVR is powered on. To connect an eSATA device,
rst turn o the NVR and unplug the power cable.
Connect the eSATA device and then power the eSATA
device rst and then NVR back on. To disconnect an
eSATA device, rst turn o the NVR and unplug the
power cable. Turn o the eSATA device and then
disconnect the eSATA connection cable.
RS-485 Connection
This NVR supports the RS-485 half-duplex serial
communication protocol for connecting to external
devices such as POS units. The RS-485 connector can
also be used to control PTZ (pan, tilt, zoom) cameras.
Connect RX+/TX+ and RX–/TX– of the control system to
the + and – (respectively) of the NVR.
●● Connector Pin Outs
Master Unit Slave Unit
RX →To →TXD
TX →To →RXD
GND →To →GND
RS-232 Connection
Connect an external device such as a POS unit to this
port.
•Connector Pin Outs
Master Unit Slave Unit
RX →To →TXD
TX →To →RXD
GND →To →GND
Refer to the following for pin-out details for the 9-pin
connector of the slave unit.
Male Female
Pin 2 RXD (Receive Data)
Pin 3 TXD (Transmit Data)
Pin 5 GND (Ground)
Alarm Connection
Connect alarm connectors to these ports.
Press down on the button and insert the cable into
the opening. Release the button and then pull on the
cable slightly to ensure it is held securely in place. To
disconnect the cable, press down on the button again
and pull the cable out.

Part 1 – Introduction
17
•Alarm In 1 through 16
This NVR is capable of responding to event signals
from external alarm in devices. Connect mechanical
or electrical switches to AI 1 through 16 and the GND
(ground) connector. In order to be recognized by the
NVR, the signal from an alarm in device must be less
than 0.3V and maintained for at least 0.5 seconds. The
alarm in voltage range is 0V to 5V. For more information
on alarm in setup, refer to the Alarm-In on page 50.
•GND (Ground)
Connect alarm in or out's ground cable to the GND
connector.
All connectors marked "GND" are common connectors.
•NC/NO (Relay Alarm Outputs)
This NVR is capable of activating/deactivating buzzers,
lights, and other external devices. Connect a mechanical
or electrical switch to C and NO connectors. NC/NO is
a relay output which sinks 2A@125VAC and 1A@30VDC.
For more information on alarm out setup, refer to the
Alarm-Out on page 57.
ARI (Alarm Reset In)
An external signal to the Alarm Reset In can be used to
reset both the Alarm Out signal and the DVR’s internal
buzzer. Mechanical or electrical switches can be wired to
the ARI (Alarm Reset In) and GND (Ground) connectors.
The threshold voltage is below 0.3V and should be
stable at least 0.5 seconds to be detected. Connect the
wires to the ARI and GND connectors.
•Connector Arrangement
ALARM IN
1 through 16 Alarm In 1 through 16
GND Ground
NC Relay Alarm Out (Normally
Closed)
CRelay Common
NO Normally Open Relay Alarm
Out
ARI Alarm Reset In

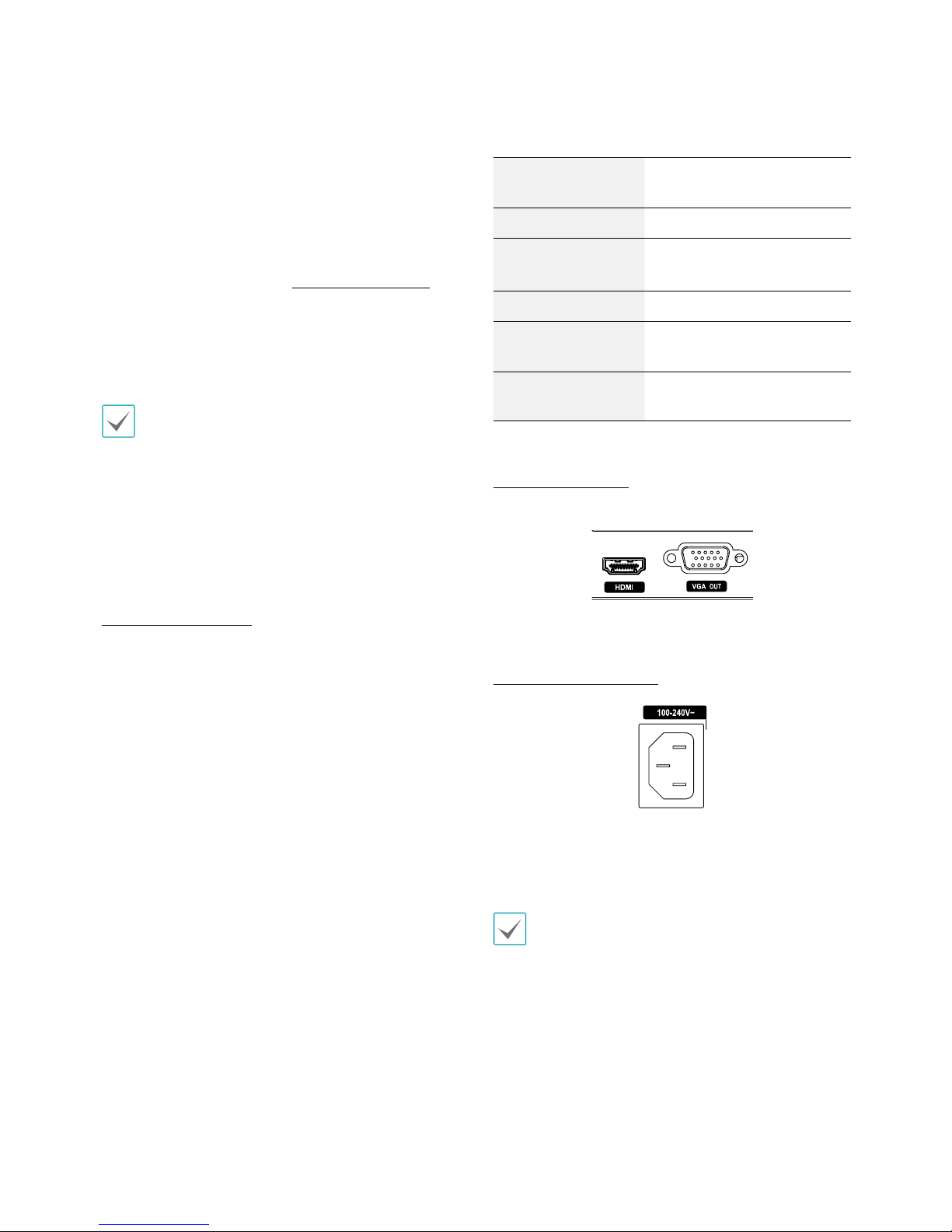

Monitor Connection
Connect to the VGA OUT or HDMI port.
Power Cable Connection
Connect the power cable to this port. This NVR does not
feature a separate power on/o button and will turn on
the moment power is supplied.
•Organize the power cable so that it will not cause
people to trip over or become damaged from chairs,
cabinets, desks, and other objects in the vicinity. Do
not run the power cable underneath a rug or carpet.
•The power cable is grounded. Do not modify the
power plug even if your power outlet does not have
a ground contact.
•Do not connect multiple devices to a single power
outlet.

Part 1 – Introduction
18
Factory Reset
Located next to the Audio Out port on the rear of the
NVR is a switch that, once activated, will reset the NVR to
all its initial factory settings.
A factory reset will clear all NVR settings congured by
the user.
You will need a straightened paper clip to access the
factory reset button.
1 Turn o the NVR.
2 Insert a straightened paper clip into the factory reset
switch hole and press the switch. Turn on the NVR
while holding the switch.
3 Press and hold until you hear 2 beeps from the NVR's
internal buzzer.
4 All NVR settings will be returned to their factory
values once you remove the paper clip.
Connections on the Rear Panel
Speaker
VGA Monitor
HDMI Monitor
Network
Camera
Remote
Monitoring Keyboard
Sensor
Alarm
Power
POS
eSATA
Storage Device
Network
Analog
Camera
Microphone

Part 1 – Introduction
19
Remote Control
1
2345
6
78
0
9
!
@#
$
%
^
1ID Button
2DISPLAY Button
3SEQUENCE Button
4FREEZE Button
5ALARM Button
6Camera Buttons
7FOCUS NEAR/FAR Button
8PRESET SET/VIEW Button
9ZOOM IN/OUT Button
0MENU Button
!PTZ Button
@Arrow Buttons
#Enter Button
$ZOOM Button
%PANIC Button
^Playback Buttons

Part 1 – Introduction
20
1ID Button
Used to assign remote control ID values.
No additional remote control assignment is
necessary if the system's ID is 0. If the system's ID is
a number between 1 and 9, however, you will need
to press the ID button and then press the system ID
number (1 through 99) on the remote control. The
(remote control) icon will appear on the upper
right corner of the NVR screen (status indication
area) to indicate successful system-to-remote control
pairing. If using multiple systems, it's possible to
control all the units with a single remote control as
long as all the system IDs are 0. For more information
on system IDs, refer to the System Setup on page
37.
2DISPLAY Button
2x2 > 1p5 > 1p7 > 3x3 > 4x4 > 5x5 > 6x6
3SEQUENCE Button
Pressing the SEQUENCE button while in Live mode
initiates Live Sequential mode (displays channels in
sequence).
4FREEZE Button
Used to pause Live screen.
5ALARM Button
