Atwood Round-O-Matic R-900C Series Use and care manual

MASTER
THE ATWOOD
ROUND - O - MATIC
MODEL: R900
INCLUDES: R-900C, R-900T SERIES MACHINES
OPERATIONS AND SAFETY MANUAL
INCLUDING PARTS CATALOG
AND MAINTENANCE INSTRUCTIONS
MODEL No.
SERIAL No.
!CAUTION:
DO NOT OPERATE, CLEAN OR SERVICE THIS MACHINE BEFORE YOU READ THIS
MANUAL, AND ARE FAMILIAR WITH THE SAFETY INSTRUCTIONS IN THIS MANUAL
AND THOSE ON THE LABELS ON THE MACHINE. KEEP THIS MANUAL AND OTHER
MATERIALS DELIVERED WITH THE MACHINE, ACCESSIBLE TO THE OPERATORS FOR
EASY REFERENCE DURING USE.
MANUFACTURING COMPANY
DIVISION OF THE ATWOOD CORPORATION
14151 IRVING AVENUE DOLTON, ILLINOIS 60419
FAX: [phone] [phone]
[phone] http://www.ammfg.com
© COPYRIGHT 2007
IF YOU SHOULD HAVE ANY (?) QUESTIONS
ABOUT GUARDS OR PLACEMENT CALL
[phone].
THE ENTIRE CONTENTS OF THIS PUBLICATION
ARE COPYWRITTEN AND ALL RIGHTS ARE
RESERVED. REPRODUCTION IN WHOLE OR IN
PART IS PROHIBITED WITHOUT WRITTEN
PERMISSION OF A.M. MFG. INC.
UPDATED CATALOGS ARE AVAILABLE DIRECTLY
FROM A.M. MFG. INC.

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
© 2001
R900_I I 12/07
OWNERS RESPONSIBILITY
NOTE:
THE PARTS AND EQUIPMENT DESCRIBED IN THIS MANUAL MAY BE COVERED BY ONE OR MORE U.S.
AND FOREIGN PENDING PATENTS.
TO MAINTAIN MACHINE AND USER SAFETY, THE RESPONSIBILITY OF THE
OWNER IS TO READ AND FOLLOW THESE INSTRUCTIONS AND TO ENSURE
THAT ALL OPERATORS UNDERSTAND AND FOLLOW THESE AND OTHER
SAFETY INSTRUCTIONS IN THIS MANUAL.
•FOLLOW ALL INSTALLATION INSTRUCTIONS.
•MAKE SURE INSTALLATION CONFORMS TO ALL APPLICABLE LOCAL, STATE,
AND FEDERAL CODES, RULES AND REGULATIONS SUCH AS STATE AND
FEDERAL OSHA REGULATIONS AND ELECTRICAL CODES.
•CAREFULLY CHECK THE UNIT FOR CORRECT INITIAL FUNCTION.
•READ AND FOLLOW THE SAFETY INSTRUCTIONS. KEEP THEM READILY
AVAILABLE FOR MACHINE OPERATORS.
•MAKE CERTAIN ALL OPERATORS ARE PROPERLY TRAINED, KNOW HOW TO
SAFELY AND CORRECTLY OPERATE THE UNIT AND ARE PROPERLY
SUPERVISED.
•ALLOW UNIT OPERATION ONLY WITH ALL PARTS INCLUDING SAFETY
EQUIPMENT, IN PLACE AND OPERATING SAFELY.
•CAREFULLY INSPECT THE UNIT ON A REGULAR BASIS AND PERFORM ALL
MAINTENANCE AS REQUIRED.
•SERVICE AND MAINTAIN THE UNIT ONLY WITH AUTHORIZED OR APPROVED
REPLACEMENT PARTS.
•KEEP ALL INSTRUCTIONS PERMANENTLY WITH THE UNIT ALONG WITH ALL
DECALS AND WARNING LABELS ON THE UNIT CLEAN AND VISIBLE.
!

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
© 2001
R900_TOC TOC 12/07
TABLE OF CONTENTS
PAGE
OWNERS RESPONSIBILITIES INSIDE
COVER
INTRODUCTION & SPECIFICATIONS & INSTALLATION 2
SAFETY SIGNAL WORDS 3
LOCATION OF WARNING LABELS & LOCATIONS 4
GENERAL SAFETY INFORMATION 5
OPERATING & CLEANING INSTRUCTIONS 6

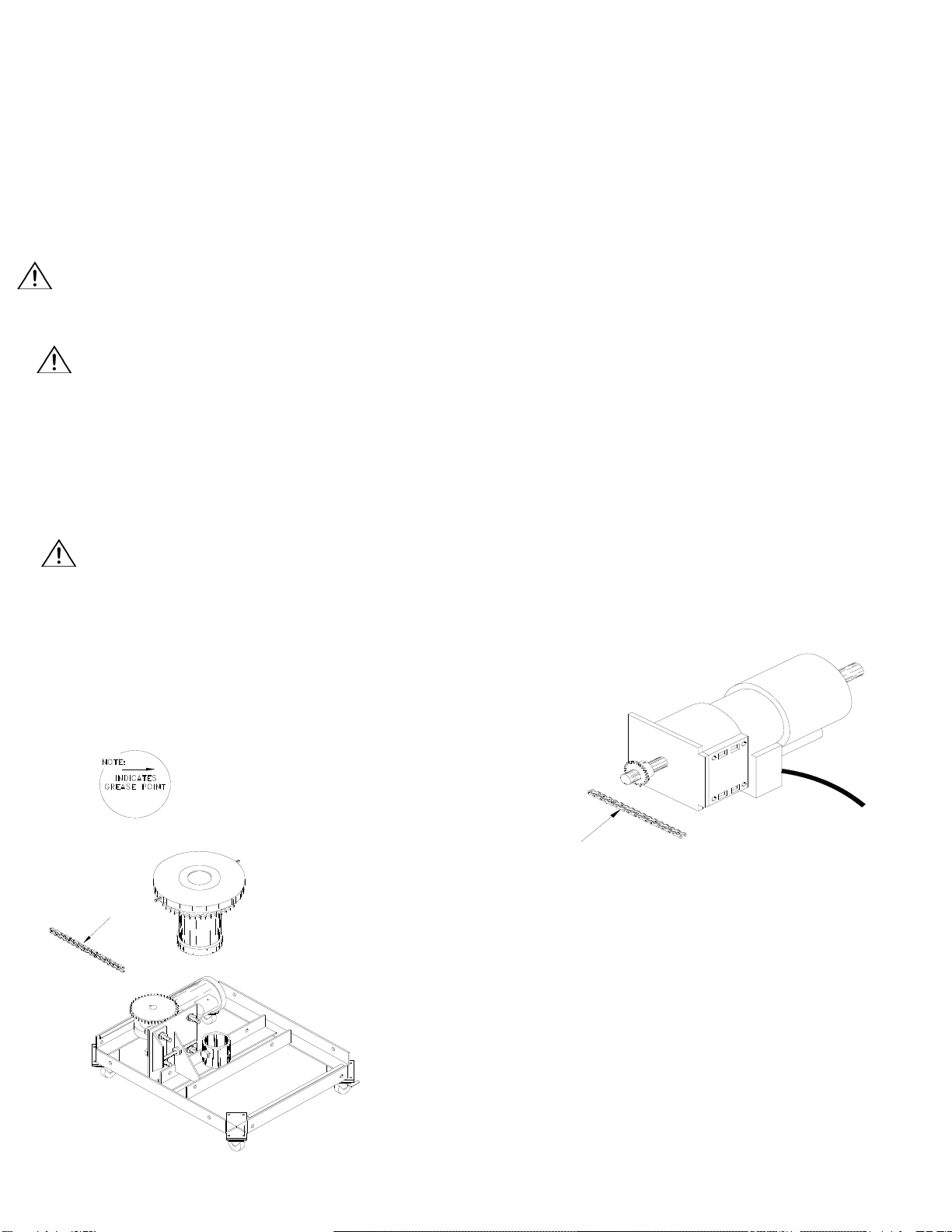

GUIDE TO MAINTENANCE 7-8
CABINET ASSEMBLY 9-10

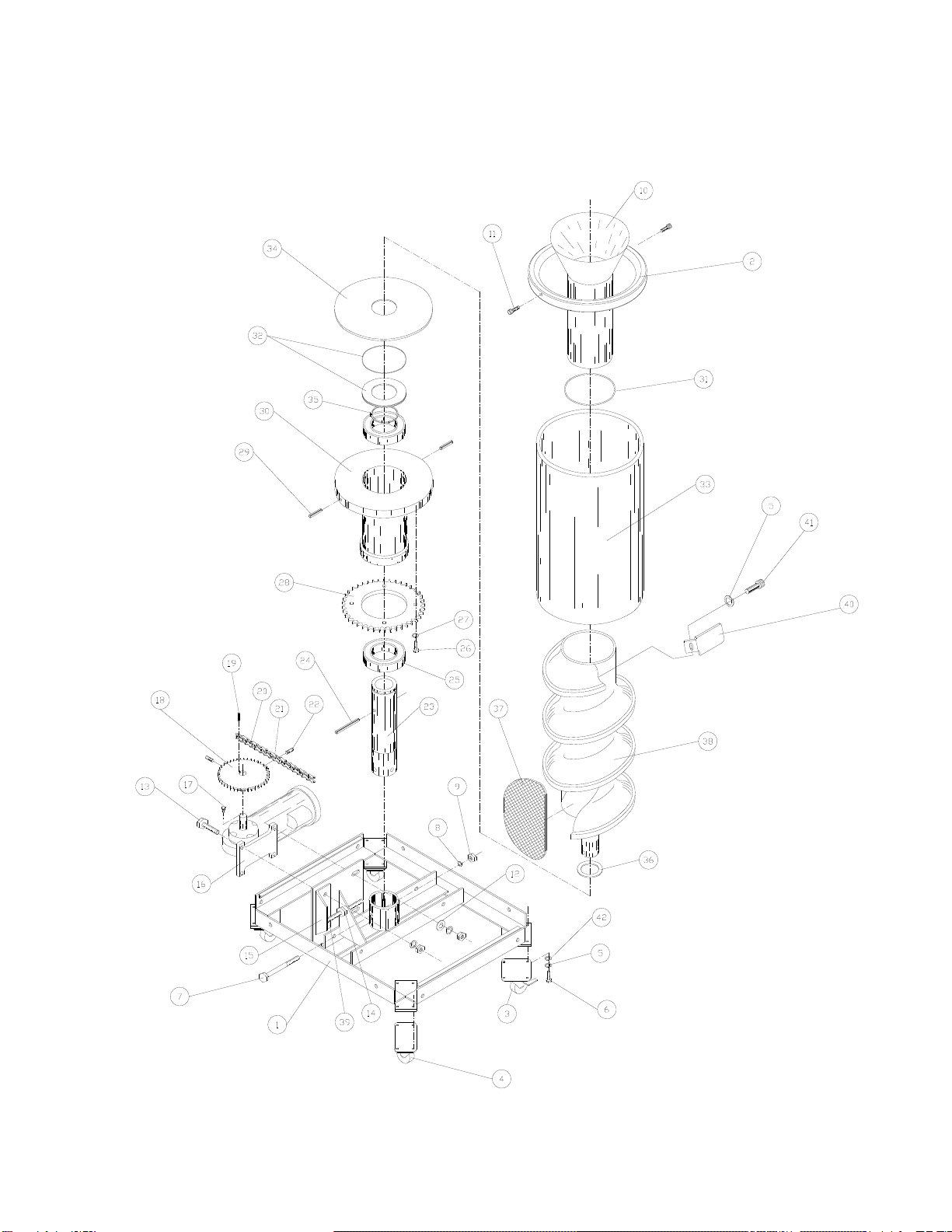

ROUNDER ASSEMBLY 11-12
CONVEYOR ASSEMBLY (STANDARD) 13-14
CONVEYOR ASSEMBLY (LONG)
TABLE ASSEMBLY 15-16 17-18
ELECTRICAL COMPONENTS (SINGLE PHASE) 19-20
ELECTRICAL COMPONENTS (3 PHASE) 21-22
ELETRICAL SCHEMATIC (SINGLE PHASE / 3-PHASE) 23-27
ORDERING REPLACEMENT PARTS 28
NOTES 29
IMPORTANT:
A.M. MANUFACTURING Co. RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN,
SPECIFICATIONS OR MANUFACTURING TO IMPROVE THEIR PRODUCTS WITHOUT NOTICE AND
WITHOUT OBLIGATION TO CHANGE OR IMPROVE PREVIOUSLY BUILT PRODUCTS INCLUDING
MANUALS AND CATALOGS.
ONLY USE FACTORY SUPPLIED REPLACEMENT PARTS TO MAINTAIN MACHINE SAFETY,
PERFORMANCE AND SANITARY CONDITIONS. USE OF NON-APPROVED PARTS MAY VOID
MANUFACTURERS WARRANTY.
KNOW YOUR UNIT. COMPARE DIAGRAMS IN THIS MANUAL WITH THE UNIT BEFORE STARTING
SERVICE, TO OBTAIN MAXIMUM SAFETY AND PERFORMANCE.
TO ORDER REPLACEMENT PARTS:
TURN TO PAGE 28 OF THIS MANUAL.
WARNING:
THIS MANUAL CONTAINS CRITICAL SAFETY INSTRUCTIONS. READ AND FOLLOW THEM
CAREFULLY. FAILURE TO FOLLOW WARNING AND INSTRUCTIONS MAY LEAD TO SERIOUS
PERSONAL INJURY. THE OWNER IS RESPONSIBLE FOR MAINTAINING THE UNIT, ITS
INSTRUCTIONS AND DECALS FOR OPERATION REFERENCE. FOR ADDITIONAL COPIES
CONTACT A.M. MANUFACTURING: [phone]

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_IT I 1/01
OPERATIONS AND SAFETY MANUAL
INCLUDING PARTS CATALOG
READ AND FAMILIARIZE YOURSELF WITH THIS MANUAL BEFORE OPERATING THIS MACHINE
FOLLOW INSTRUCTIONS DURING USE
INTRODUCTION
YOUR R900 ROUND - O - MATIC DOUGH ROUNDER HAS BEEN BUILT WITH THE BUSY BAKER IN MIND.
IT’S VERSATILITY AND SIMPLICITY ARE UNMATCHED IN THE INDUSTRY. PRODUCTION DEPENDS ON
THE DESIRED DOUGH BALL SIZE AND HOW FAST THE DIVIDED DOUGH PIECES ARE DROPPED INTO
THE FUNNEL. SMALL PIECES CAN BE FED APPROXIMATELY TWO PER SECOND, WHEREAS LARGER
DOUGH PIECES (UP TO 2 lbs.) MUST BE FED AT A LESSER RATE. GETTING THE FEEL OF THE MACHINE
WILL BEST DETERMINE JUST WHAT THE FEED RATE SHOULD BE FOR ANY CERTAIN DOUGH BALL
SIZE. NO ADJUSTMENTS ARE NECESSARY WHEN CHANGING THE SIZE OF YOUR DOUGH PIECE, IT
WILL AUTOMATICALLY BE ROUNDED INTO A TIGHT, SMOOTH BALL, WITH NO MORE EFFORT THAN IT
TAKES TO DROP THEM INTO THE FUNNEL.
CAUTION:
ALL OPERATORS MUST BE FULLY TRAINED AND INSTRUCTED IN SAFETY PROCEDURES
BEFORE BEGINNING PRODUCTION.
SPECIFICATIONS
INSTALLATION INSTRUCTIONS
LOCATION:
SELECT LOCATION CAREFULLY. THE AREA SHOULD PROVIDE THE OPERATOR WITH ENOUGH SPACE
TO USE THE EQUIPMENT IN A SAFE MANNER. THE FLOOR AREA SELECTED SHOULD BE A FLAT
SURFACE AND EASY TO CLEAN AND SHOULD BE FREE OF OIL, GREASE, ECT. AVOID AREAS WHERE
BYSTANDERS AND CUSTOMERS MAY BE PRESENT.
CAUTION
PROPER UNIT INSTALLATION IS NECESSARY FOR SAFE AND EFFICIENT OPERATION. PROPER
INSTALLATION ALSO HELPS PROTECT THE UNIT FROM DAMAGE AND MAKES SERVICE EASIER.
R900-C
CONVEYOR LENGTH 18 1/2” FROM FRONT OF MACHINE.
(23” OVERALL LENGTH)
CONVEYOR BELT 2 PLY PVC
OVERALL HEIGHT 42 1/2”
MACHINE WIDTH 24”
HEIGHT UNDER CONVEYOR 32 3/4”
VOLTAGE (STANDARD) 115 VOLT SINGLE PHASE
VOLTAGE (OPTIONAL) 208/220 (3) PHASE
AMPERAGE 15 AMPS.
PRODUCTION RANGE 1 oz. TO 2 1/2 lbs.
PRODUCTION RATE UP TO 7200 PIECES PER HOUR
SHIPPING WEIGHT 350 lbs.
R900-T
TABLE DIAMETER 35 1/2”
MACHINE WIDTH 24”
OVERALL HEIGHT 42 1/2”
HEIGHT UNDER TABLE 36 1/4”
VOLTAGE (STANDARD) 115 VOLT SINGLE PHASE
VOLTAGE (OPTIONAL) 208/220 (3) PHASE
AMPERAGE 15 AMPS.
PRODUCTION RANGE 1 oz. TO 2 1/2 lbs.
PRODUCTION RATE UP TO 7200 PIECES PER HOUR
SHIPPING WEIGHT 350 lbs.

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_3 3 12/07
SAFETY
THIS MACHINE IS DESIGNED TO PROVIDE FOR SAFE OPERATION IF NORMAL OPERATING
PROCEDURES AND SAFETY MESSAGES LOCATED ON THE MACHINE AND IN THIS MANUAL ARE
FOLLOWED.
THIS IS A SAFETY ALERT SYMBOL. YOU WILL FIND IT ON VARIOUS
SAFETY LABELS ON THE MACHINE AND IT WILL ALSO APPEAR IN THIS
MANUAL WHEREVER SAFETY MESSAGES ARE GIVEN.
GET FAMILIAR WITH SIGNAL WORDS:
CAUTION, WARNING & DANGER
CAUTION:
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, MAY RESULT IN
MINOR OR MODERATE INJURY. IT MAY ALSO BE USED TO ALERT AGAINST UNSAFE PRACTICES.
WARNING:
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN
DEATH OR SERIOUS INJURY.
DANGER:
INDICATES AN IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN
DEATH OR SERIOUS INJURY. THIS SIGNAL WORD IS TO BE LIMITED TO THE MOST EXTREME
SITUATIONS.
NOTE:
A NOTE PROVIDES KEY INFORMATION TO MAKE PROCEDURES EASIER AND CLEARER.

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_3 3 12/07

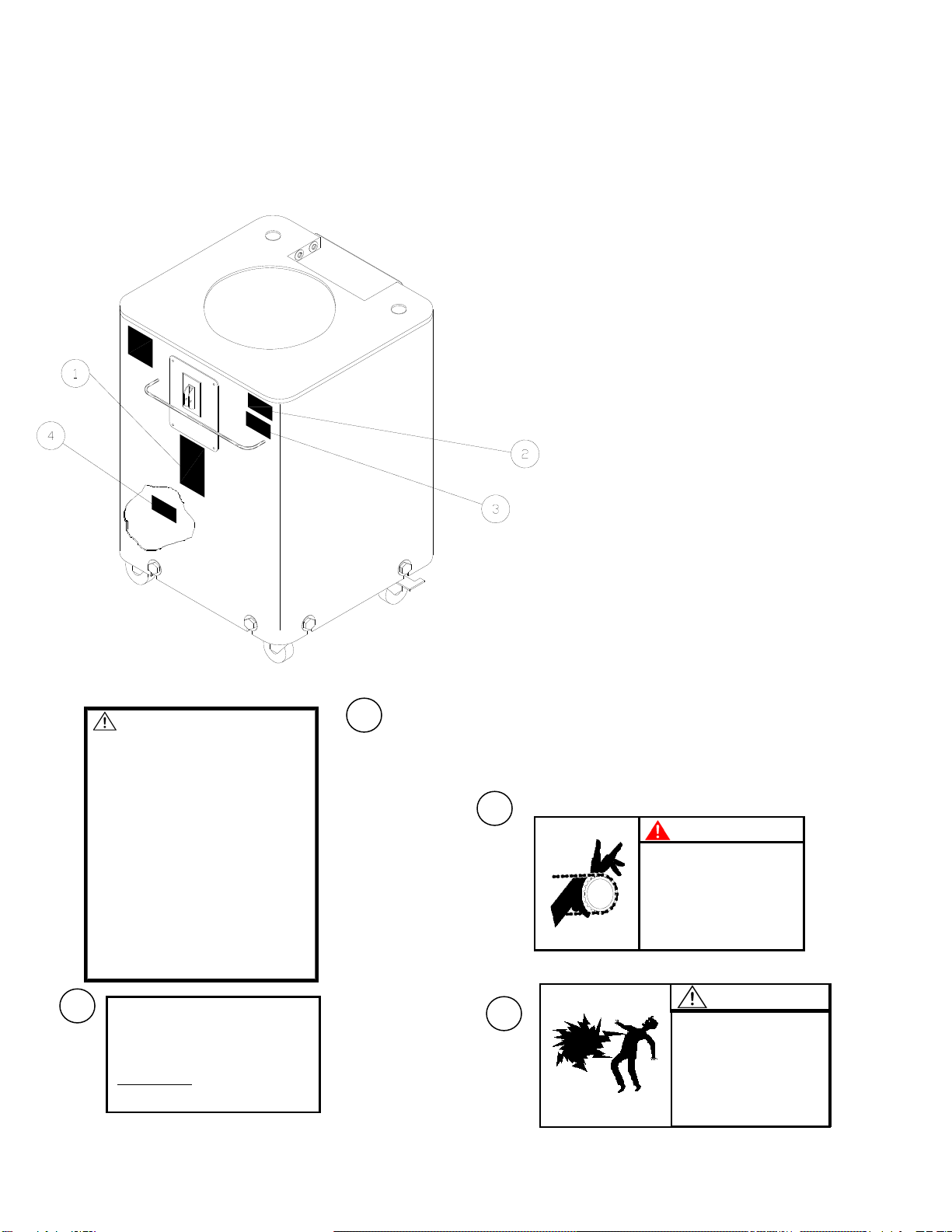

WARNING LABELS
TYPICAL CONTENT AND LOCATION ON ROUND - O – MATIC
IMPORTANT
SAFETY INFORMATION
• DO NOT OPERATE THIS MACHINE BEFORE YOU HAVE READ AND
UNDERSTAND THE OPERATIONS AND SAFETY MANUAL.
• NEVER LEAVE THIS MACHINE RUNNING UNATTENDED.
• NEVER OPERATE THIS MACHINE IF SAFETY GUARDS ARE NOT IN
PLACE.
• NEVER REMOVE ANY SAFETY GUARDS AND NEVER MAKE ANY
OTHER SAFETY EQUIPMENT INOPERATIVE.
• NEVER OPERATE THIS MACHINE IF YOU HAVE NOT BEEN TRAINED.
• NEVER OPERATE THIS MACHINE IF YOU ARE TIRED, ILL, OR IF YOU
ARE ON MEDICATION THAT MAKES YOU TIRED, OR IF YOU ARE
UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.
• WEAR TIGHT FITTING CLOTHES AND MAKE SURE THAT LONG HAIR
AND JEWERLY OR OTHER LOOSE PERSONAL ITEMS DO NOT GET
CAUGHT IN THE MACHINE.
• MAKE SURE YOU CAN EASILY REACH THE CONTROLS.
• ALWAYS DISCONNECT THE MAIN ELECTRICAL POWER SOURCE
BEFORE YOU CLEAN, MAINTAIN, OR SERVICE THIS MACHINE.
• IFYOU HAVEANYQUESTIONSABOUTSAFETY, TALK TO YOUR
SUPERVISIOR OR CALL
A.M. MANUFACTURING
TOLL FREE 1-(800)-342-6744
© 1992 A.M. MFG. # 21
DANGER
HAZARDOUS VOLTAGE,
WILL SHOCK, BURN,
OR CAUSE DEATH
DISCONNECT ALL ELECTRICAL POWER
BEFORE REMOVING PROTECTIVE SHIELDS
OR TOUCHING ELETRICAL EQUIPMENT
WHILE SERVICING OR CLEANING THIS
MACHINE...
©1992 AM MFG. #10
WARNING
EXPOSED CHAIN AND
GEARS. CAN CAUSE SERIOUS
INJURIES.
STAY AWAY WHEN CHAIN IS
MOVING.
©1993 AM MFG. #24
BEFORE OPERATING.
IMPORTANT
THIS MACHINE
MUST BE
PROPERLY GROUNDED
A
M MFG. #5
34
FRONT PANEL BELOW
ELECTRICAL SWITCH
PLATE
FRONT PANEL UPPER
RIGHT CORNER
CABINET CASE.
FRONT PANEL LOWER
M
FRONT PANEL LOWER MI
D
FRONT PANEL UPPER
RIGHT CORNER
NOTE:
MACHINE DESIGN AND SPECIFICATIONS MAY
VARY. ACTUAL LABEL DESIGN AND PLACEMENT
SUBJECT TO CHANGE WITHOUT NOTICE AND
MAY VARY FROM THIS ILLSUTRATION.
2
CAUTION:
IF ANY SAFETY LABELS ARE
MISSING, THEY MUST BE
REPLACED! CONTACT YOUR
DEALER OR AM MFG. FOR
REPLACEMENT.
1

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_3 3 12/07
SAFETY RULES
IMPORTANT:
READ AND FOLLOW THESE SAFETY RULES. THEY ARE FOR YOUR PROTECTION AND THE
PROTECTION OF THOSE WORKING WITH YOU.
•DO NOT OPERATE THIS MACHINE BEFORE YOU HAVE READ AND UNDERSTOOD THE OPERATIONS
AND SAFETY MANUAL.
•FOLLOW ALL INSTRUCTIONS DURING USE OF THIS MACHINE.
•LEAVE ALL GUARDS IN PLACE. INSTALL ALL GUARDS IF THEY WERE REMOVED FOR CLEANING,
MAINTENANCE, REPAIR OR OTHER REASONS.
•NEVER OPERATE THE MACHINE IF YOU HAVE NOT BEEN TRAINED TO OPERATE THE MACHINE
PROPERLY.
•NEVER OPERATE THE MACHINE IF YOU ARE TIRED, ILL, ON MEDICATION, OR UNDER THE INFLUENCE
OF ALCOHOL OR DRUGS.
•WEAR TIGHT FITTING CLOTHES. MAKE SURE THAT LONG HAIR, JEWELRY, OR LOOSE PERSONAL
ITEMS ARE SECURED SO THEY CANNOT GET CAUGHT IN THE MACHINE. THIS CAN LEAD TO SERIOUS
INJURIES.
•MAKE SURE YOU CAN EASILY REACH ALL CONTROLS. IF NOT, A STABLE AND SAFE ELEVATED
PLATFORM OR OTHER WORK-AID MUST BE PROVIDED.
•ALWAYS DISCONNECT THE MAIN ELECTRICAL POWER SOURCE AND TURN MACHINE SWITCH TO THE
OFF POSITION BEFORE CLEANING, IF MAINTENANCE OR SERVICE IS PERFORMED, OR IF THE
MACHINE IS OUT OF SERVICE.
•NEVER LEAVE THIS MACHINE RUNNING UNATTENDED.
IMPORTANT:
IF YOU HAVE ANY QUESTIONS ABOUT THESE SAFETY RULES, SEE YOUR SUPERVISOR OR CALL A.M.
MANUFACTURING Co. TOLL FREE: [phone]

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_6 6 12/07
OPERATING INSTRUCTIONS
WARNING:
UNIT MUST BE PROPERLY OPERATED AND MAINTAINED TO PREVENT MACHINE DAMAGE OR PERSONAL INJURY. REVIEW
INSTRUCTIONS WITH ALL EMPLOYEES BEFORE USE.
I. PRELIMINARY START - UP PROCEDURE
A. BE SURE DRUM, TABLE AND CONVEYOR ARE CLEAR OF PACKING, PACKING SLIPS, DOCUMENTS AND OTHER
OBSTRUCTIONS.
B. MAKE SURE THE MACHINE SWITCH IS IN THE IS IN THE OFF POSITION.
C. LOWER DISCHARGE CONVEYOR (FOR R900C MODELS ONLY) TO OPERATIONG POSITION.
D. PLUG POWER CORD INTO PROPER RECEPTACLE.
E. SWITCH MACHINE TO THE “ON” POSITION.
F. THE ROUNDING DRUM SHOULD BE TURNING IN A COUNTER CLOCK-WISE ROTATION.
G. THE ROUNDER TABLE SHOULD BE TURNING IN A COUNTER CLOCK-WISE ROTATION, / THE DISCHARGE CONVEYOR
SHOULD BE RUNNING FORWARD OUT FROM MACHINE. ALL THIS DEPENDING ON THE MODEL OF ROUND - O - MATIC
YOU HAVE PURCHASED. (NOTE) NEVER OPERATE THE MACHINE WITH THE DISCHARGE CONVEYOR IN THE UPRIGHT
POSITION.
NOTE:
IF THE MACHINE YOU HAVE PURCHASED IS A (3) PHASE MACHINE AND THE ROTATION OF THE ROUNDING DRUM IS NOT
CORRECT, CONSULT A PROPERLY TRAINED ELECTRICIAN.
II. OPERATING THE ROUND - O - MATIC
A. THE R-900 TABLE OR CONVEYOR MODEL IS READY TO ROUND AFTER:
B. POSITION ROUND - O - MATIC IN THE DESIRED LOCATION AND SET THE TWO (2) LOCKING CASTERS.
C. PLUG THE POWER CORD INTO PROPER RECEPTACLE.
D. CHECK FOR PROPER ROTATION OF ROUNDING DRUM, REFER TO PRELIMINARY START - UP PROCEDURE.
E. TO ROUND SIMPLY DROP DOUGH PIECES (1oz. TO 2 lbs.) INTO FUNNEL. THE DOUGH WILL AUTOMATICALLY BE
ROUNDED AND THEN DEPOSITED ONTO THE TABLE OR CONVEYOR FOR PANNING.
CAUTION:
DO NOT ATTEMPT TO OPERATE THIS MACHINE WITHOUT READING THE MANUAL. ALWAYS HAVE THE TABLE OR TOP COVER IN
PLACE!
CLEANING INSTRUCTIONS
ALL A.M. MANUFACTURING MACHINES ARE TESTED WITH DOUGH DURING THE IN - HOUSE, RUN - IN AND QUALITY AUDIT PROCEDURE.
ALTHOUGH THE MACHINE HAS BEEN CLEANED, SOME EVIDENCE OF DOUGH ON AND IN THE MACHINE MAY BE DETECTED, THIS IS
NORMAL.
ALL PARTS IN CONTACT WITH DOUGH SHOULD BE WASHED THOROUGHLY AFTER USE, USING A MILD SOAP AND WATER SOLUTION.
DISASSEMBLY OF THIS MACHINE FOR CLEANING IS OUTLINED AND ILLUSTRATED FOR YOUR CONVENIENCE.
INSTRUCTIONS IN THIS MANUAL INDICATES THE NEED FOR REGULAR INSPECTION AND CLEANING TO PREVENT INFESTATION.
A. CAUTION: SHUT OFF ALL ELECTRICAL POWER, AND
UNPLUG POWER CORD.
B. REMOVE ROUNDER TABLE (PART NO. R211TA) BY LIFTING
STRAIGHT UP (IF APPLICABLE).
C. REMOVE FUNNEL. (PART NO. R116RA).
D. REMOVE ROUNDER SCREW, USING TWO PEOPLE TO LIFT
ROUNDER SCREW (PART NO. R122RA).
E. REMOVE DRUM (PART NO. R117RA).
F. REMOVE PLASTIC SEAL RING (PART NO. R141RA).
G. REMOVE EXCESS DOUGH FROM ROUNDER BASE.
H. REASSEMBLE IS IN REVERSE OS DISASSEMBLE OF STEP 1
THRU 8.
I. MAKE SURE TO REPLACE PLASTIC SEAL RING.
J. SLIP THE DRUM OVER THE ROUNDER BASE SO THAT THE
DRIVE SLOTS ARE LOCKED OVER THE DRIVE PINS IN THE
ROUNDER BASE.
K. CARE SHOULD BE TAKEN TO SEE THAT THE EXIT RAMP
ON THE SCREW IS APPROXIMATELY OPPOSITE THE ON /
OFF SWITCH AFTER THE SCREW HAS DROPPED INTO
PLACE.
L. ON TABLE MODELS, BE SURE THAT THE RING GEAR
(MOUNTED ON THE UNDER SIDE OF THE TABLE) IS
ENGAGED OVER ALL FOUR (4) BEARINGS AND MESHED
WITH THE DRIVE GEAR. WHEN PROPERLY ENGAGED, THE
TABLE WILL SIT FIRM AND LEVEL AROUND THE DRUM.
KEEP FINGERS AWAY FROM UNDERNEATH ROTATING
TABLE DURING OPERATION.
NOTE:
PARTS SUCH AS THE ROUNDER SCREW AND DRUM SHOULD
BE HANDLED WITH EXTREME CARE;
WHEN CLEANING THE ROUNDER DRUM THE WATER
TEMPERATURE MUST NOT EXCEED 190º.
IF UNABLE TO REMOVE ROUNDER SCREW: NEVER PUT HANDS
OR ARMS INTO ROUNDER SCREW.
A. PLUG MACHINE IN. TURN MACHINE ON.
B. ADD A SMALL AMOUNT OF WARM WATER TO CONTACT
AREA BETWEEN SCREW AND DRUM.
C. AFTER DOUGH SOFTENS, TURN OFF ROUNDER.
D. UNPLUG MACHINE.
E. REMOVE ROUNDER SCREW. USING TWO PEOPLE TO LIFT
ROUNDER SCREW.
PRACTICE SAFETY FIRST
A
LWAYS DISCONNECT ELECTRICAL SERVICE AND TURN MACHINE SWITCH TO THE OFF POSITION
BEFORE CLEANING OR MAINTAINING THIS MACHINE, THUS AVOIDING CHANCE OF SERIOUS
INJURIES. MACHINES ARE NOT DANGEROUS IF COMMON SENSE IS APPLIED AND THE
INSTRUCTIONS ARE FOLLOWED. THINK AND PRACTICE SAFETY FIRST.

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_7 7 12/07
GUIDE TO GENERAL MAINTENANCE
READ AND FOLLOW MAINTENANCE INSTRUCTIONS BELOW TO HELP KEEP THE UNIT IN GOOD OPERATING
CONDITION. REFER TO OTHER MATERIALS RECEIVED WITH THE UNIT AND TO SERVICE BULLETINS FROM THE MANUFACTURER
FOR ADDITIONAL INSTRUCTIONS FOR PROPER MAINTENANCE AND SERVICE. REGULAR INSPECTIONS AND PROPER
MAINTENANCE ARE ESSENTIAL TO HELP PREVENT ACCIDENTS AND INJURIES.
PRACTICE SAFETY FIRST:
ALWAYS DISCONNECT ELECTRICAL SERVICE AND TURN MACHINE SWITCH TO THE OFF POSITION BEFORE CLEANING OR
MAINTAINING THIS MACHINE, THUS AVOIDING CHANCE OF SERIOUS INJURIES. MACHINES ARE NOT DANGEROUS IF COMMON
SENSE IS APPLIED AND THE INSTRUCTIONS ARE CAREFULLY FOLLOWED. THINK AND PRACTICE SAFETY FIRST...
CAUTION:
REPLACE ANY DAMAGED OR MISSING SAFETY LABELS. THEY ARE
AVAILABLE FROM THE MANUFACTURER.
MAINTENANCE FOR THE ROUND - O - MATIC ALWAYS BEGINS WITH
KEEPING THE MACHINE CLEAN. PROPER CLEANING PROCEDURES
CAN BE FOUND ON PAGE (6) OF THIS MANUAL. STANDARD LONG
TERM MAINTENANCE CONSISTS OF LUBRICATING MAIN WEAR
POINTS.
ALL RECOMMENDATIONS FOR MAINTENANCE ARE BASED ON A 7 DAY,
8 HOUR PER DAY WORK SCHEDULE.
WARNING:
BEFORE MAKING ANY INSPECTION, ADJUSTMENT OR REPAIR, BE CERTAIN POWER SOURCE IS DISCONNECTED AND THE
MACHINE SWITCH IS IN THE OFF POSITION WITH ALL MOVING PARTS BEING BLOCKED OUT TO PREVENT INJURY. WEAR
PROTECTIVE CLOTHING.
A. THE TABLE TOP AND OTHER WORKING SURFACES SHOULD BE CLEANED REGULARLY.
B. MAKE SURE THAT ALL FASTENERS ARE TIGHTENED SECURELY.
C. MAKE CERTAIN THAT ALL GUARDS AND COVERS ARE IN PLACE.
D. CHECK FOR WORN, DAMAGED OR MISSING PARTS INCLUDING BELTS, SAFETY GUARDS AND PROTECTIVE
COVERS.
E. ON A DAILY BASIS, INSPECT THE UNIT AND CHECK TO BE CERTAIN THAT ALL SYSTEMS ARE OPERATING
NORMALLY. DETAILED INSPECTION AND TESTING PROCEDURES ARE SPECIFIED FOR VARIOUS COMPONENTS AT
REGULAR INTERVALS. SET UP A CHART AND ASSIGN RESPONSIBILITY FOR THESE ITEMS.
THE R-900 CONVEYOR MODEL HAS A MOTOR AND
DRIVE CHAIN (PART NO. 113CA) LOCATED BELOW THE
CONVEYOR. THIS PART MUST BE OILED REGULARLY
WITH A LIGHT WEIGHT MACHINE OIL TO PROLONG
LIFE OF THE SPROCKETS, AS WELL AS THE CHAIN.
CHAIN CONDTION AND TENSION SHOULD BE
CHECKED EVERY 60 DAYS OR MORE FEQUENTLY IF
EXCESS NOISE OR VIBRATION IS NOTED.
THE R-900 ROUND - O - MATIC HAS A SINGLE DRIVE CHAIN (PART NO.
R105RA). THIS PART MUST BE OILED REGULARLY WITH A LIGHT
MACHINE OIL TO PROLONG LIFE OF THE SPROCKETS, AS WELL AS THE
CHAIN.
AGAIN, CHAIN CONDITION AND TENSION SHOULD BE CHECKED EVERY 60
DAYS OR MORE FREQUENTLY IF EXCESS NOISE OR VIBRATION IS
NOTED.

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_7 7 12/07
GUIDE TO GENERAL MAINTENANCE
DANGER:
ALWAYS DISCONNECT ELECTRICAL POWER SOURCE AND
TURN MACHINE SWITCH TO THE OFF POSITION BEFORE
CLEANING, MAINTAINING OR REPAIRING THIS MACHINE...
LOCATE THE RING GEAR (PART NO. R213TA)
(TABLE MODEL ONLY). ADD A SMALL
AMOUNT OF GREASE ONTO THE RING
GEAR.
SHOULD IT BECOME NECESSARY TO
REPLACE ANY OF THE TABLE SUPPORT
BEARINGS, (PART NO. R214TA - R216TA),
CARE SHOULD BE TAKEN NOT TO LOOSEN
THE NUTS SECURING THE TABLE SUPPORT
POSTS, AS TABLE DRUM ALIGNMENT WILL BE
LOST.
SIMPLY PULL ASIDE THE CLIP HOLDING THE
BEARINGS DOWN, AND LIFT THE BEARINGS
STRAIGHT UP.
NOTE: THESE INSTRUCTIONS WILL HELP YOU SERVICE THE UNIT. INSTRUCTIONS ARE FOR A PERSON WITH SOME
MECHANICAL ABILITY AND TRAINING. NO ATTEMPT HAS BEEN MADE TO DESCRIBE ALL BASIC STEPS, FOR EXAMPLE, HOW TO
LOOSEN OR TIGHTEN FASTENERS. ALSO, BASIC PROCEDURES LIKE HOW TO CYCLE SYSTEMS AND CHECK OPERATION OF THE
EQUIPMENT ARE NOT DESCRIBED SINCE THEY ARE KNOWN TO ANYONE WHO DOES MECHANICAL AND SERVICE WORK. DO
NOT ATTEMPT TO PERFORM WORK BEYOND YOUR ABILITY OR AT WHICH YOU HAVE NO EXPERIENCE. IF YOU NEED
ASSISTANCE, CALL AN AUTHORIZED SERVICE CENTER OR CONTACT A.M. MANUFACTURING AT [phone]...

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_9 9 12/07
CABINET ASSEMBLY

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_10 10 12/07
CABINET ASSEMBLY
ITEM PART NO. DESCRIPTION NO. REQ’D
1 R416CA CABINET 1
2 R411CA TOP COVER 1
3 R418CA COVER PLATE (R-900T ONLY) 1
4 650CA MOTOR MOUNTING PLATE (R-900C ONLY) 1
5 R422CA SWITCH PLATE 1
6 F0404SH SOCKET / CAP HEAD BOLT 4
7 F0403HH BOLT 8
8 F0400HFW FLAT WASHER 8
9 F9702TH
F0402TH BOLT (R-900T ONLY) BOLT (R-900C ONLY) 6 4
10 F9700NC NUT 4
11 F0400FW FLAT WASHER 2
12 F0408CB BOLT 2
13 F0400LN NUT 2
CAUTION:
KNOW YOUR UNIT. COMPARE DIAGRAMS IN THIS MANUAL WITH THE UNIT BEFORE
STARTING SERVICE TO OBTAIN MAXIMUM SAFETY AND PERFORMANCE.

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_11 11 12/07
ROUNDER ASSEMBLY

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_12 12 12/07
ROUNDER ASSEMBLY
NOTE:
THE ROUNDER SCREW AND DRUM ARE SUBJECT TO ABUSE. CARE MUST BE TAKEN IN HANDLING, WHEN NOT IN USE WITH
MACHINE, LAY ROUNDER SCREW DOWN FLAT ON GROUND AND PLACE ROUNDER DRUM ON GROUND STANDING VERTICAL
TO PREVENT WARPING.
ITEM PART NO. DESCRIPTION NO.REQ’D
1 R130RA FRAME WELDMENT 1
2 R115RA RING 1
3 621CA1 LOCKING SWIVEL CASTER 2
4 621CA2 SWIVEL CASTER 2
5 F0400LW LOCK WASHER 16
6 F0403HH BOLT 16
7 F0818HH BOLT 1
8 F0800LW LOCK WASHER (UN-PLATED) 1
9 F0800NC NUT 1
10 R116RA FUNNEL 1
11 F0404FH SCREW 2
12 F0600FW FLAT WASHER 4
13 F0606HH BOLT 4
14 F0800NC NUT 2
15 R144RA MOTOR ADJUSTING BRACKET 1
16 SEE ELEC.
ASSY. P. 20-23 GEAR MOTOR 3/4 H.P. (NEED VOLTAGE & PHASE OF MACHINE) 1
17 R133RA BREATHER 1
18 R103RA
SPROCKET 27T (INCLUDES F0525SS)1
19 F0404KY KEY 1/4” 1
20 R105RA
DRIVE TRAIN #50 UN-PLATED (31 LINKS) (INCLUDES 106RA)1
21 106RA CONNECTING LINK #50 UN-PLATED 1
22 F0525SS SET SCREW 5/16-18 X 3/8 LG. (CUP TYPE) 2
23 R108RA-S SPINDLE(Includes: F0612RP, R145RA) 1
24 F0612RP 3/8” X 3” ROLL PIN 1
25 R135RA BALL BEARING 2
26 F0504HH BOLT 4
27 F0500LW LOCK WASHER 4
28 R109RA SPROCKET 45T 1
29 F0606RP DRIVE PIN 3/8” DIA. 2
30 R108RA-B ROUNDER BASE 1
31 R143RA “O” RING 1
32 R134RA PLASTIC INSERT W/ “O” RING 1
33 R117RA DRUM 1
34 R141RA PLASTIC SEAL RING 1
35 R145RA SNAP RING 1
36 R142RA RUBBER WASHER 1
37 R124RA-F FACING (GUIDE PLATE) 1
38 R122RA ROUNDER SCREW 1
39 F0824SD STUD 1
40 R121RA EXIT RAMP 1
41 F0402SH SCREW 1
42 F0400FW FLAT WASHER 1

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_13 13 12/07
CONVEYOR ASSEMBLY (STANDARD)

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_14 14 12/07
CONVEYOR ASSEMBLY
ITEM PART NO. DESCRIPTION NO. REQ’D
1 F0800NW NYLON WASHER 2
2 119CA ½” LOCKING COLLAR 4
3 118CA COVEYOR FRAME 1
4 101CA DRIVE ROLLER 1
5 115CA DRIVE ROLLER SHAFT 1
6 11959 SIDE CONVEYOR MOUNTING BRACKET (RIGHT) 1
7 109CA IDLER ROLLER 1
8 F0400LN ¼-20 LOCK NUT 4
9 104CA CONVEYOR BELT 1
10 102CA SELF-ALIGNING BRONZE FLANGE BEARING 2
11 105CA CONVEYOR ELEVATOR 1
12 F0400FW ¼-20 FLAT WASHER 2
13 F0402HH ¼-20 X ½ HEX HEAD 2
14 114CA NO. 35 CONNECTING LINK UNIT 1
15 113CA CHAIN NO. 35 AT 16 LINKS 1
16 112CA MOTOR SPROCKET 1
17 106CAL CONVEYOR GUIDE (LEFT) 1
18 106CAR CONVEYOR GUIDE (RIGHT) 1
19 600SC ROLLER SUPPORT 2
20 F9702RH 8-32 ROUND HEAD SCREW 4
21 116CA ROLLER SPROCKET 1
22 603SCA BALL BEARING 2
23 108CA IDLER ROLLER SHAFT 1
24 SS252 CONVEYOR MOTOR 1
25 F0504SD SOCKET HEAD STUD 4
26
27
28
11960
11958
F0406SFH
SIDE CONVEYOR MOUNTING BRACKET (LEFT)
CONVEYOR ELEVATOR SHAFT
¼-20 X 1.5 SOCKET FLAT HEAD
1
1
4
29 F0400LW ¼” LOCK WASHER 4
30 F0400NC ¼-20 COURSE NUT 4
31 F0402FSH ¼-20 X ½ FLAT SOCKET HEAD 4
32 F0401SS SET SCREW 4
33 F0600NW NYLON WASHER 2
34 F0500LN 5/16 LOCK NUT 2
35 F0500FW 5/16 FLAT WASHER 8
36 F0500LW 5/16 LOCK WASHER 4
37 F0500NC 5/16 COURSE NUT 4

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_15 15 12/07
LONG TAKE-OFF CONVEYOR ASSEMBLY

A.M. MFG. CO. MASTER MODEL:
DIV. OF ATWOOD CORP. R-900
©2001
R900_16 16 12/07
LONG TAKE-OFF CONVEYOR
ITEM PART NO. DESCRIPTION NO. REQ’D
1 F0800NW NYLON WASHER 2
2 119CA ½” LOCKING COLLAR 4
3 118CAL COVEYOR FRAME 1
4 101CA DRIVE ROLLER 1
5 115CA DRIVE ROLLER SHAFT 1
6 11959 SIDE CONVEYOR MOUNTING BRACKET (RIGHT) 1
7 109CA IDLER ROLLER 1
8 161CA 3/8” I.D. SHAFT COLLAR 2
9 F0400NC ¼-20 COURSE NUT 8
10 104CAL CONVEYOR BELT 1
11 102CA SELF-ALIGNING BRONZE FLANGE BEARING 2
12 105CA CONVEYOR ELEVATOR 2
13 F0406SFH ¼-20 X 1.5 SOCKET FLAT HEAD BOLT 8
14 158CAL CONVEYOR SUPPORT ROD 2
15 F0400LW ¼-20 LOCK WASHER 3
16 114CA No. 35 CONNECTING LINK UNIT 1
17 113CA No. 35 CHAIN (16 LINKS) 1
18 112CA MOTOR SPROCKET
(INCLUDES F0401SS)1
19 106CALL CONVEYOR GUIDE (LEFT) 1
20 106CARL CONVEYOR GUIDE (RIGHT) 1
21 A600SC ROLLER SUPPORT
(INCLUDES 1- F0600NC and 1-
F0402SS) 4
22 F0600NC 3/8” COURSE NUT 2
23 116CA ROLLER SPROCKET 1
24 603SCA BALL BEARING 2
25 108CA IDLER ROLLER SHAFT 1
26
27
28
SS252
F0504SD
F0500FW
COVERYOR MOTOR
5/16” X 1” SOCKET HEAD STUD
5/16” FLAT WASHER
1
4
8
29 F0500LW 5/16” LOCK WASHER 4
30 F0500NC 5/16” COURSE NUT 4
31 F0402SS ¼” - 20 X ½” SET SCREW 4
32 F0401SS ¼” - 20 X ¼” SET SCREW 6
33 F0600NW 3/8” NYLON WASHER 2
34 F0304KY KEY 2
35 F1500NW 1-1/8” NYLON WASHER 1
36 F0400FW ¼” – 20 FLAT WASHER 1
37 F0600FW 3/8” FLAT WASHER 4
38 F9702PH 8-32 X 3/8” PAN HEAD SCREW 4
39 11960 SIDE CONVEYOR MOUNTING BRACKET (LEFT) 1
40 11958 CONVEYOR ELEVATOR SHAFT 1
41 F0402HH ¼”-20 X ½ HEX HEAD 2
42 F0400FW ¼-20 FLAT WASHER 2

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_14 14 12/07
TABLE ASSEMBLY

A.M. MFG. CO. MODEL:
DIV. OF ATWOOD CORP. R-900
©2007
R900_14 14 12/07
TABLE ASSEMBLY
ITEM PART NO. DESCRIPTION NO. REQ’D.
1 SEE ELEC.
ASSY. P. 18-21 1/15 H.P. GEAR MOTOR 1
2 F0400FW FLAT WASHER 3
3 F0400LW LOCK WASHER 3
4 F0402HH HEX HEAD BOLT 3
5 F0304KY 3/16” KEY 1
6 R206TA 32T DRIVE GEAR (INCLUDES F0304KY AND F0401SS) 1
7 F0401SS SET SCREW 1
8 R208TA RING CONNECTOR 1
9 R209TA RING 1
10 R210TA RING CLIPS 3
11 F9704TH TRUSS HEAD BOLT 6
12 R211TA TABLE 1
13 R213TA RING GEAR 1
14 R214TA PLASTIC BEARING 4
15 R215TA THRUST BEARING 4
16 R216TA BRONZE BEARING 4
17 R217TA TABLE SUPPORT POST 4
18 R218TA BEARING RETAINER 4
19 F0500FW FLAT WASHER 8
20 F0500LW LOCK WASHER 4
21 F0500NC HEX NUT 4
22 F9902TH TRUSS HEAD BOLT 3
23 11942 TABLE ROLLER GUIDE BRACKET 4
24 11943 TABLE GUIDE ROLLER 4
25 F0605SHB 38” X 1 ¼” SHOULDER BOLT 3
