ATX QFOT1L User manual

QFOT1L 1310nm DFB Fiber Optic Transmitter
Installation & Operation Manual
Q-SERIES
®
Optical

Although every effort has been taken to ensure the accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
Specications subject to change without notice.
SignalOn®Series, MAXNET®, HFC Enhance®, PCI Filters®, Q-Series®& FiberLinx®are registered trademarks of ATX in the United States and/or other countries. SMACSM is a
service mark of ATX in the United States and/or other countries. Products or features contained herein may be covered by one or more U.S. or foreign patents. Other non-ATX
product and company names in this manual are the property of their respective companies.

TABLE OF CONTENTS
Page
1. PREFACE .................................................................................................................................................. 1-1
2. OVERVIEW ................................................................................................................................................ 2-1
3. FEATURES ................................................................................................................................................ 3-1
4. FUNCTIONAL DIAGRAM.......................................................................................................................... 4-1
5. SPECIFICATIONS ..................................................................................................................................... 5-1
5.1. Link Test Condition ............................................................................................................................ 5-1
5.2. Specications Table........................................................................................................................... 5-1
5.3. Optical Link C/N Table ....................................................................................................................... 5-2
6. FUNCTION GUIDE .................................................................................................................................... 6-1
6.1. Front Panel Guide ............................................................................................................................. 6-1
6.2. Rear Panel Guide.............................................................................................................................. 6-1
7. INSTALLATION & ADJUSTMENT ............................................................................................................ 7-1
7.1. Opening the Cover ............................................................................................................................ 7-1
7.2. Supplies & Tools ................................................................................................................................ 7-1
7.3. Installation ......................................................................................................................................... 7-1
8. CLEANING & MAINTENANCE ................................................................................................................. 8-1
9. AFTER-SALE CUSTOMER SERVICE ...................................................................................................... 9-1
10. TROUBLESHOOTING............................................................................................................................. 10-1
11. SERVICE & SUPPORT............................................................................................................................ 11-1
11.1. Contact ATX Networks..................................................................................................................... 11-1
11.2. Warranty Information ....................................................................................................................... 11-1
Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual i

ii Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
This page left intentionally blank.

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 1-1
PREFACE
1. Preface
This manual is designed for QFOT1L series 1310nm optical transmitter along with description of product feature, specication,
installation, adjustment and troubleshooting. To install this transmitter successfully and use it safely, users should read this
manual carefully before installation, and perform the installation and adjustment according to this manual. Please contact
ATX Networks if any question.
Important User Information
• Caution: Invisible laser radiation is emitted from the ber output ports, which may cause permanent injury to skin or
eyes.
• Ground rst before turning on the power (Grounding resistance should be less than 4 Ohm), so as to prevent laser
and user from static damaging.
• UPS power supply and air conditioned environment are highly recommended for the stable and long-time transmitter
operation.

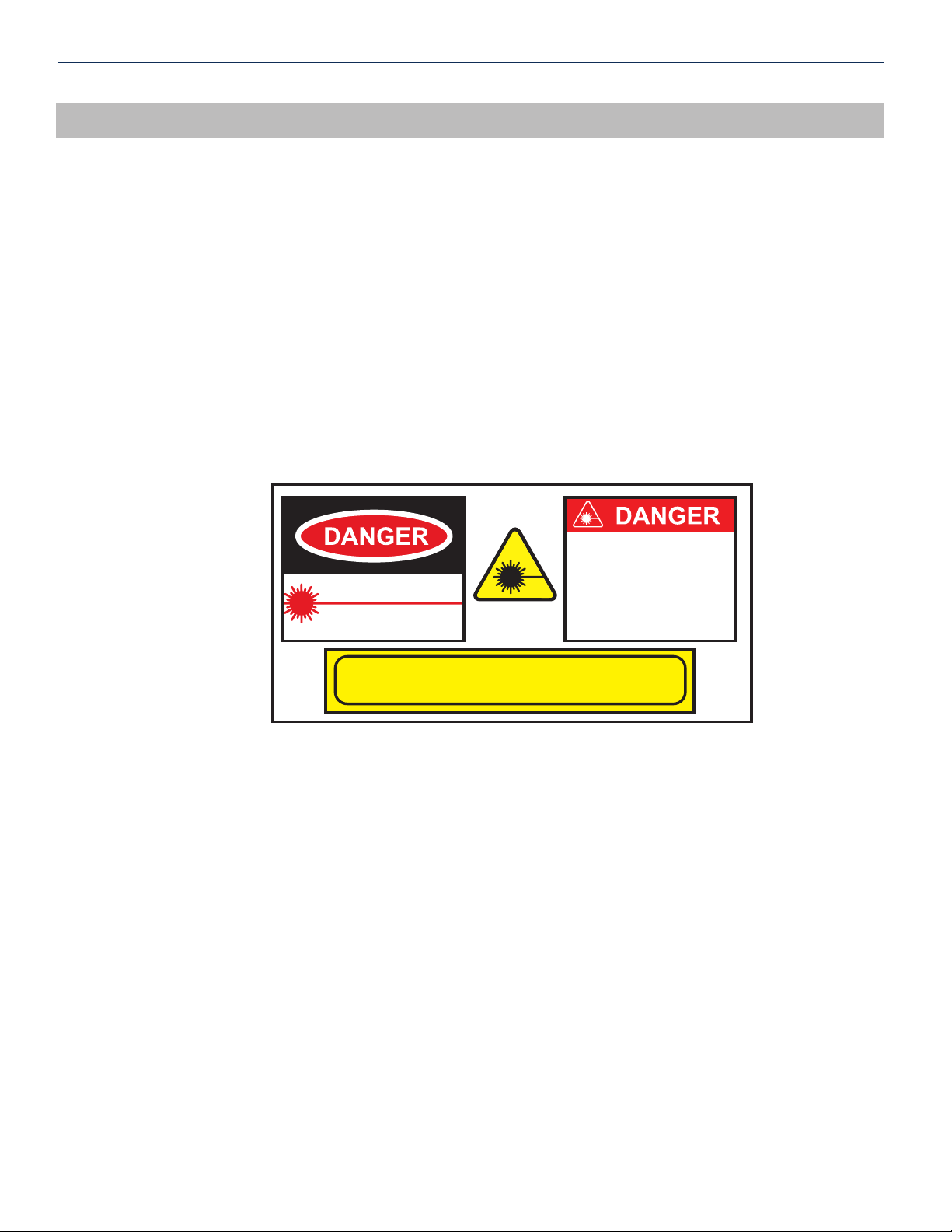

INVISIBLE LASER RADIATION
INVISIBLE LASER RADIATION
IS EMITTED FROM THE END
OF FIBER OR CONNECTORS
INVISIBLE LASER RADIATION EMITTED FROM END OF FIBER OR CONNECTOR
Avoid exposure to beam
Class 3B Laser Product IEC 60825M 1993 Max Output: 30mW Wavelength: 1.5 µm
Avoid direct exposure to beam
Do not view beam directly with
optical instruments
AVOID DIRECT EXPOSURE TO BEAM
Wavelength: 1.5 µm
Max. Output: 30 mW
Class 1 Laser Product
CHAPTER 1: PREFACE

1-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 1: PREFACE
This page left intentionally blank.

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 2-1
OVERVIEW
2. Overview
QFOT1L is 1310nm DFB laser transmitter delivering TV signal, digital TV signal, telephone voice signals and data signals
over long distance ber cable for CATV networks. The product utilizes a high performance cooled DFB laser, RF gain manual
control along with RF pre-distortion circuit.
CHAPTER 2: OVERVIEWCHAPTER 1: PREFACE

2-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 2: OVERVIEW
This page left intentionally blank.

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 3-1
CHAPTER 2: OVERVIEW
FEATURES
3. Features
• High performance DFB laser with narrow spectrum and good linearity.
• Excellent pre-distortion technology leading to improved CTB, CSO and C/N.
• RF gain manual control
• GaAs Technology
CHAPTER 3: FEATURES

3-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 3: FEATURES
This page left intentionally blank.

Q-Series® Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 4-1
CHAPTER 3: FEATURES
FUNCTIONAL DIAGRAM

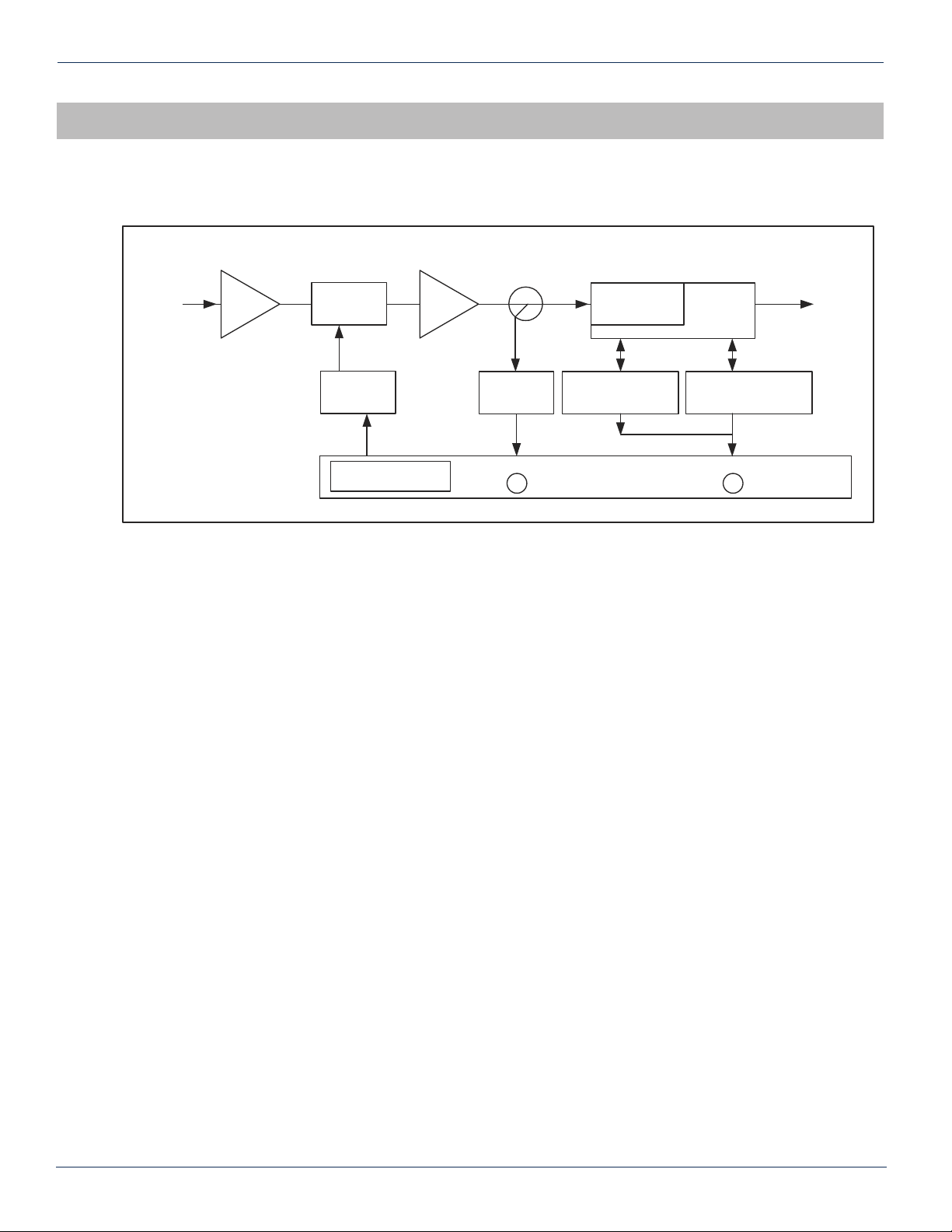

4. Functional Diagram
CHAPTER 4: FUNCTIONAL DIAGRAM
OPTICAL
OUTPUT
RF INPUT PRE-DISTORTION
CIRCUIT COOLED
DFB LASER
-20 dB TEST
RF TEST POINT OPTICAL POWER TEST POINT
AUTO TEMP CONTROL
(ATC) AUTOMATIC
CONTROL CIRCUIT
AUTO POWER CONTROL
(APC) AUTOMATIC
CONTROL CIRCUIT
FRONT PANEL
MGC
5 DIGIT DIP-SWITCH
DIGITAL
ATTENUATOR
PRE-
AMPLIFIER
POWER
AMPLIFIER

4-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 4: FUNCTIONAL DIAGRAM
This page left intentionally blank.

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 5-1
CHAPTER 4: FUNCTIONAL DIAGRAM CHAPTER 5: SPECIFICATIONS
SPECIFICATIONS
5. Specications
5.1. Link Test Condition
Test Condition:
Test link consists of the QFOT1L transmitter, 10 Km standard ber, attenuator and standard optical receiver. Input RF
channels are 59 PAL-D channels (equivalent to 77 NTSC channels). The optical receiver input power is -1 dBm.
5.2. SpecicationsTable

5-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 5: SPECIFICATIONS
5.3. Optical Link C/N Table
OPTICAL LOSS (dB) 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
QFOT1L-04 53.8 52.8 51.8 51.0 50.1 49.2 48.2
QFOT1L-06 53.0 52.0 51.0 50.1 49.1 48.1
QFOT1L-08 52.8 51.9 51.0 50.1 49.1 48.2
QFOT1L-10 52.9 51.9 51.0 50.1 49.1 48.2
QFOT1L-12 52.7 51.8 50.8 49.9 49.0 48.0
QFOT1L-14 52.4 51.5 50.5 49.5 48.6 47.8
QFOT1L-16 52.0 51.0 50.1 49.1 48.1
QFOT1L-18 52.5 51.6 50.6 49.7 48.7 47.9
QFOT1L-20 51.9 51.0 50.0 49.0 48.0
QFOT1L-22 52.2 51.4 50.4 49.4 48.6 47.8
OPTICAL LINK PATH C/N SPECIFICATIONS

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 6-1
CHAPTER 5: SPECIFICATIONS
FUNCTION GUIDE
6. Function Guide

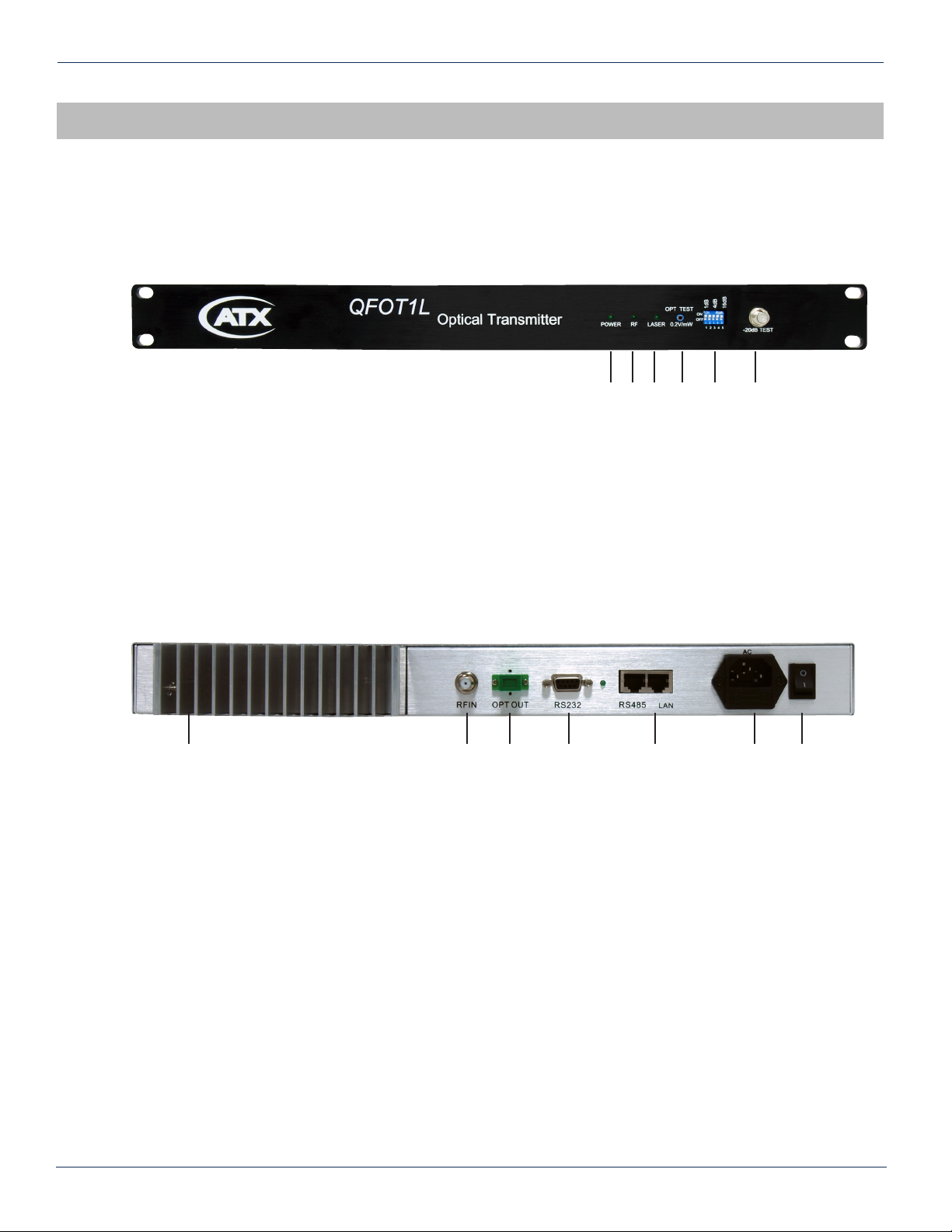

6.1. Front Panel Guide
1 Power LED: When AC power is ON, the Power LED is green.
2 RF LED: When input RF level is higher than 10 dBmV, RF LED is green.
3 Laser LED: When there is a laser output, the Laser LED is green.
4 Laser Power Test Port: When Laser LED is green, user can test the optical output power at this port via digital meter.
Each 0.2V DC voltage represents 1mW optical output power.
5 Manual Gain Control Dip Switch: Controls digital attenuator to increase or decrease RF level into laser.
6 RF Input Test Port: Standard 75 Ohm style F-style test port for RF signal on-line test. Level tested from this port is 20
dB lower than the actual RF drive level to the laser.
6.2. Rear Panel Guide
7 Case Grounding Nut: Provided for optionally connecting the transmitter to ground.
8 RF Input Port: Standard 75 Ohm American style F port, used for connecting RF signal and the equipment. Level in this
input port must be at the range of 15 to 25 dBmV. Too high level may damage laser.
9 Optical Signal Output: Optical signal output port, SC/APC, or optional FC/APC connector. There are invisible laser
emissions from Fiber output when laser is active!
10 Reserved RS-232 standard network management port (not used in this version)
11 Reserved RS-485 and LAN standard network management port (not used in this version)
*It would be dangerous to point this port toward the human body especially eyes when equipment is
energized!
12 AC Power with Fuse: AC power connection.
13 AC Power Switch: Turn ON or turn OFF the AC power.
CHAPTER 6: FUNCTION GUIDE
Front View
12 3 45 6
789 10 11 12 13
Rear View

6-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 6: FUNCTION GUIDE
This page left intentionally blank.

Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 7-1
CHAPTER 6: FUNCTION GUIDE CHAPTER 7: INSTALLATION & ADJUSTMENT
INSTALLATION & ADJUSTMENT
7. Installation & Adjustment
7.1. Opening the Cover
7.1.1. Inspect the package. If the packaging has been damaged, or shows signs of water damage, please contact the freight
company or contact ATX.
7.1.2. After unpacking, check the equipment and accessories according to packing list. If there is any question, please
contact ATX.
7.1.3. If you think equipment has been damaged, please don’t turn on the power and avoid worse damage. Please contact ATX.
7.2. Supplies & Tools
An optical power meter
A digital multimeter
A Cable TV RF meter or spectrum analyzer
A standard ber test jumper (FC/APC or SC/APC)
Denatured or 99% pure isopropyl alcohol and lint-free ber optic cleaning wipes
7.3. Installation
a) Mount the transmitter in the rack and ground the case.
b) Check input voltage using a digital multimeter in accordance with power requirement. Then turn on power.
c) Connect standard ber test cable to the transmitter’s optical signal output. Measure the output optical power and
conrm that the output optical power is the close to the value tested from Optical Power Test Port in the front panel.
(When measuring the optical power, make sure that optical power meter is set at 1310nm wavelength and that ber
test jumper is clean.)
d) Measure the input RF signal level with a Cable TV meter or a spectrum analyzer, making sure that input RF signal
is in the range of 15 to 25 dBmV.
The recommended RF Input Level vs NTSC channel number.
Channel Number 10 20 30 40 50 60 70 80 90 100 110
Input RF (dbmV) 24 23 22 22 21 21 20 20 19 18 17
At this time, you can connect the RF signal to the RF input port of this transmitter. The front panel RF LED turns to
green.
On the front panel, there is a 5-digit manual controller which controls the built-in digital RF attenuator. The
attenuation value is:
Digit 1 2 3 45
ON 0 0 0 0 0
OFF 1 dB 2 dB 4 dB 8 dB 16 dB
The total attenuation number is the sum of all 5 digits.
For example, “10101” represents MGC value of “0+2 dB+0+8 dB+0=10 dB”.
Since the effective MGC range is 15 dB, it is recommended that 5th digit should be kept in the “ON” position while
the rst 4 digit combinations give the value from 0 dB to 15 dB.

7-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 7: INSTALLATION & ADJUSTMENT
When MGC increases, the RF level to the DFB laser decreases; when MGC decreases, the RF level to the
DFB laser increases. Therefore the user can decrease or increase the optical modulation index (OMI) of this
transmitter. When changing the MGC value, it is suggested to observe the RF performance at the front panel -20
dB test port or the RF port of an optical receiver linked with this transmitter.
The recommended MGC value of the transmitter is attached on the side of the transmitter along with the
transmitter serial number.
e) Re-measure optical output power, make sure that optical output power being normal, remove standard ber test
jumper and optical power meter, connect the equipment to network and end the installation.

Q-Series® Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual 8-1
CHAPTER 7: INSTALLATION & ADJUSTMENT CHAPTER 8: CLEANING & MAINTENANCE
CLEANING & MAINTENANCE
8. Cleaning & Maintenance
Each ber connector can become contaminated by dust or dirt in the operation process, which can result in increased optical
link loss, or a degraded carrier-to-noise ratio. If you nd that the optical receive power or RF output level of the optical receiver
has declined, you should clean and maintain the ber optic connector. The clean methods are recommended below:
a) For safety reasons, the AC power to the transmitter should be turned off rst.
b) Carefully unplug or unscrew the active ber connector from the adapter, while being careful to avoid aiming the ber
connector at any human body or eye.
c) Use a lint-free ber optic wipe saturated with alcohol to clean the connector carefully. Once nished, still wait 1 to 2
minutes until active connector surface is dry in the air.
d) When the cleaned optical active connector is reconnected to the adapter, please do not over-tighten or force the
connector, to avoid damage to the ceramic ferrule.
e) The ber connector should be cleaned on both ends. If optical power is still low after clean, cleaning the other end
of the ber is recommended. If the optical power is still low after cleaning both ends, it is recommended that you
clean the inner adaptor.
f) Use compressed air or a lint-free wipe to wash the adapter carefully. When using compressed air, aim the nozzle at
the ceramic ferrule of the adaptor, cleaning the ferrule with compressed air.
NOTES:
1. Avoid aiming the optical output or ber connector at the human body or eyes.
2. Assemble the ber adaptor gently and carefully to prevent damage to the ceramic ferrule inside the adapter.
Optical Transmitter Inside
Fiber Active Connector Fiber Active Connector
Adapter
China Tube

8-2 Q-Series®Optical – QFOT1L Series Optical Transmitter – Installation & Operation Manual
CHAPTER 8: CLEANING & MAINTENANCE
This page left intentionally blank.
