AUDAC BMP40 User manual

BMP40
User Manual
www.audac.eu

2
ADDITIONAL INFORMATION
This manual is put together with much care, and is as complete as could be on the
publication date. However, updates on the specifications, functionality or software
may have occurred since publication. To obtain the latest version of both manual and
software, please visit the Audac website @ www.audac.eu.

3
Index
Introduction 5
Precautions 6
Safety requirements 6
Caution servicing 7
EC Declaration of Conformity 7
Waste of Electrical and Electronic Equipment (WEEE) 7
Chapter 1: Connections and connectors 8
Connection standards 8
Chapter 2: Overview BMP40 9
Chapter 3: Using the BMP40 10
Module screen 10
Player mode 11
Settings screen 12
Chapter 4: Installing the BMP40 14
Chapter 5: Additional information 16
Technical specifications 16
Notes 17

4
Introduction
SourceCon™ Bluetooth receiver module
The BMP40 is a professional Bluetooth receiver module featuring SourceCon™ modular
technology. This unique technology guarantees true plug & play implementation to any
compatible device. When inserted to a supporting slot, the module is instantly installed,
discovered and ready for operation without requiring any additional internal wiring or
complex configuration.
The BMP40 receiver offers wireless connection possibilities for audio playback from
any Bluetooth compatible portable device including laptops, smartphones, tablets or
any other. A long range transmission distance (up to 30 meters) is possible depending
on the installed environment. Device discovery and pairing protection with a storage up
to 8 authorized devices shall prevent playback from unauthorized users in public area’s.
All media information such as track and artist information can be retrieved from the
BMP40 (if supported by the connected device, more info on P15: technical specifications),
while playback control is possible from the connected device or remote control.
The antenna input is implemented by an SMA-type (50 Ω) connector on its panel,
allowing connection of the included (2 dBi) antenna while extension is possible in
situations where its installed in a closed / shielded cabinet. The balanced stereo line
output is connected through two 3-pin terminal block connections.

5
POWER SUPPLY AND POWER CORD REQUIREMENTS
Power supply class I grounding requirements:
For protection from fault currents, the equipment shall be connected to
a grounding terminal. Plug the system power cord into an AC outlet that
provides a ground connection. Substitute cords may not provide adequate
fault protection. Only use the power cord supplied with this product or
an authorized/equivalent replacement
Safety notices:
Denmark:
Apparatets stikprop skal tilsluttes en stikkontakt med jord, som
giver forbindelse til stikproppens jord.
Finland:
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.
Norway:
Apparatet må tilkoples jordet stikkontakt.
Sweden:
Apparaten skall anslutas till jordat uttag.
ATTENTION
The fuse (T500mAL/250V) provides a safeguard function to the device.
When replacing the fuse, make sure that the value of the replacement
matches the value of the original fuse. Identification of a suitable
replacement component or substitute shall be done by qualified
technicians.

6
Precautions
READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY
• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER
THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• AVOID ELECTROSTATIC DISCHARGE BY TOUCHING GROUNDED POINT BEFORE
REMOVING THE MODULES FROM THEIR PROTECTIVE BAG
• AVOID TOUCHING OF THE COMPONENTS ON THE CIRCUIT BOARD DIRECTLY
• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR
SPLASHING LIQUID. NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP
OF THIS DEVICE
• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS
OR OTHER APPARATUS THAT PRODUCE HEAT
• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST,
HEAT, MOISTURE OR VIBRATION
• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
• UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED
FOR LONG PERIODS OF TIME
• CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.
IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF,
INFORM YOUR VENDOR IMMEDIATELY.
• ONLY CONNECT THIS UNIT TO A MAINS SOCKET OUTLET WITH PROTECTIVE
EARTHING CONNECTION
• THE INSTALLATION, CONNECTION AND CONFIGURATION OF THE DEVICE
SHOULD BE DONE BY QUALIFIED TECHNICIANS

7
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all servicing
to qualified service personnel. Do not perform any servicing
(unless you are qualified to do so.)
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and further
relevant specifications described in following directives: 2014/30/
EU (EMC) and 2014/35/EU (LVD)
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The WEEE marking indicates that this product should not be
disposed with regular household waste at the end of its product
life. This regulation is created to protect both the environment
and human health.
This product is developed and manufactured with high quality
materials and components which can be recycled and/or reused.
Please dispose of this product at your local collection point or
recycling centre for electrical and electronic waste. Do this to
make sure that the product is recycled in an environmental friendly
way, and help to protect the environment in which we all live.
CAUTION
The symbols shown are internationally recognized symbols that warn about potentional
hazards of electrical products. The lightning flash with arrowpoint in an equilateral
triangle means that the unit contains dangerous voltages. The exclamation point in
an equilateral triangle indicates that it is necessary for the user to refer to the users
manual.
These symbols warn that there are no user serviceable parts inside the unit. Do not
open the unit. Do not attempt to service the unit yourself. Refer all servicing to qualified
personnel. Opening the chassis for any reason will void the manufacturer’s warranty.
Do not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take
it to a dealer for service. Disconnect the unit during storms to prevent damage.

8
Chapter 1
Connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed
corresponding to international wiring standards for professional audio equipment.
3-Pin terminal block:
For balanced in & output connections
Left: Signal - (XLR Pin 3)
Center: Signal + (XLR Pin 2)
Right: Ground (XLR Pin 1)
For balanced line output connections:
For unbalanced line output connections:

9
Chapter 2
Overview BMP40
The BMP40 is a SourceCon™ compatible module featuring an (internal) board-edge
connector which carries all signals for getting it connected to any supporting main unit.
All external in & output connections shall be made using the available connectors on
the panel.
1) Balanced stereo line output:
The balanced stereo line output is implemented using two 3-pin terminal block
connectors. The audio output available on this connector allows it to be fed to any
amplifier or pre-amplifier.
2) SMA-type antenna connection:
The antenna (input) connection is implemented using an SMA-type (male) connector
whereto the supplied antenna should get connected. Depending of the installation
conditions (e.g. when installed in a closed / shielded cabinet), it can be extended using
optional available accessories for optimal reception conditions.

10
Discoverable for 60s
Bluetooth receiver
Chapter 3
Using the BMP40
Since the BMP40 is a SourceCon™ module, it can be combined with a variation of
supporting main units. The operation and configuration interface might be different of
the unit where installed, however the offered functionality is identical. Some devices
will support control and configuration through a front panel graphical control interface
on a display, while others are also supporting web-control.
This manual describes the control configuration possibilities using front panel control. For
applications where more control possibilities are offered, check the instruction manual
of the used main device for more instructions.
Module screen
Connecting:
The main module screen of the BMP40 indicates
the connection status of the receiver. To avoid
audio playback by unauthorized users in public
installations, transmitter and receiver pairing
is required when connecting for the first time.
When transmitter and receiver haven’t been
paired before, the receiver won’t be discoverable from the transmitting device. For
making it discoverable, press the button. Subsequently, the receiver is discoverable
and allows connection for about 60 seconds from any transmitting device.
Once connected, the main module screen displays the name of the connected device
and it will become undiscoverable for other devices.
Once both transmitter and receiver have been
paired, the receiver will remain connectable
for that particular transmitter, even when the
connection button hasn’t been pressed.
The BMP40 memory stores up to 8 authorized
device ID’s.
Connected to ‘DeviceName’
Bluetooth receiver

11
Bluetooth receiver
Track name
Track info
0:30 1:59
Player:
The (player) button gets you to the player mode screen where track information is
displayed (if supported by the connected transmitter) and previous or next audio track
selection can be done.
Home:
The (home) button gets you back to the main screen of the device where the BMP40
is installed to.
Settings:
The (settings) button is selected through pressing the rotary selection dial. This button
gets you to the settings menu of the BMP40 where all configurations can be made.
Player mode
In this screen, all available media information
about the currently playing files is shown
including track, artist or any other information,
while previous and next audio track selection
can be done.
Note that the displayed information in this
screen depends on the supported functions of
the connected transmitter.
Track selection:
The playing track can be selected by pressing the (previous track) and (next track)
buttons. When selected, the first next supported track will be selected and start playing.
Play / pause:
Toggling between play and pause is done by pressing the play/pause button with
(play) or (pause) symbols. Depending on the current mode, the displayed symbol on
the icon will toggle.
Return:
The (return) button gets you back to the main module screen of the BMP40.

12
Output gain
0dB
Connected
Paired
Info
Factory reset
BMP40 SETTINGS

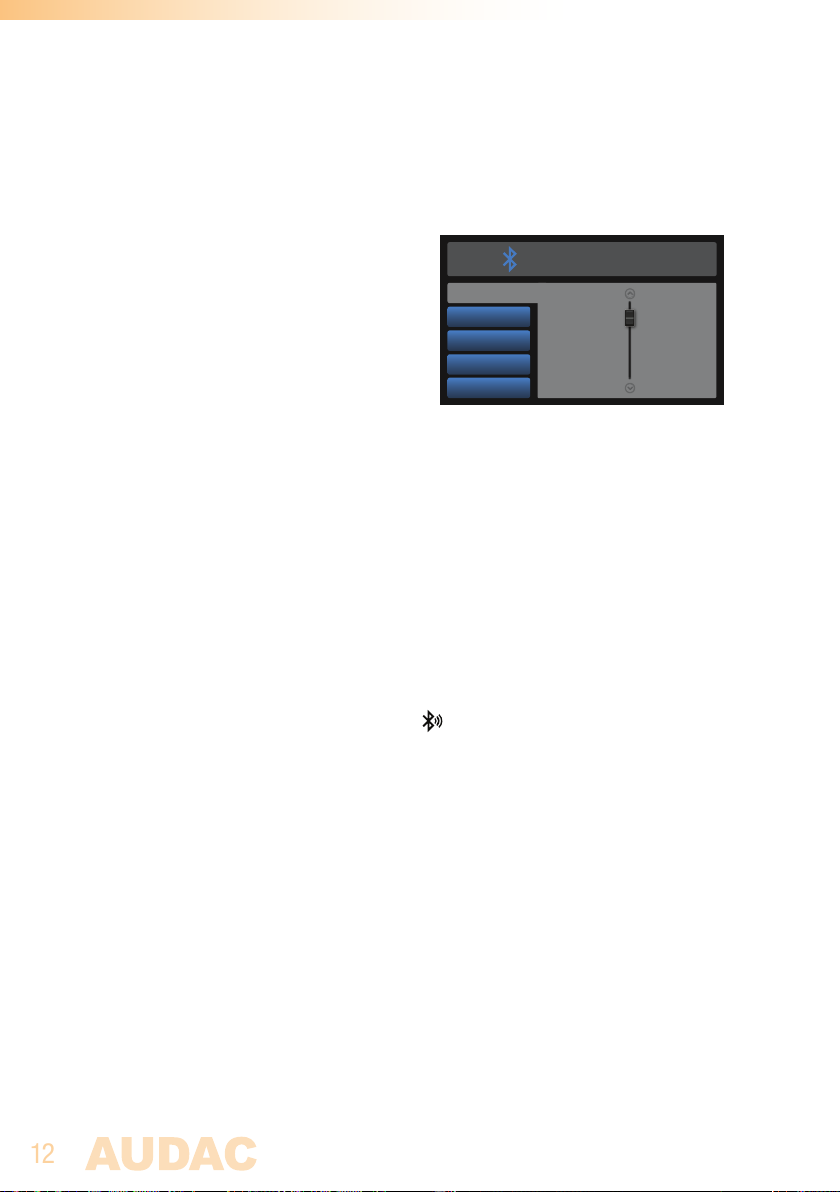

Settings screen
The settings menu for BMP40 can be loaded by pressing the rotary selection dial.
Output gain:
The gain can be adjusted within a range of +8
dB and -82 dB, allowing optimization of the
output level according to the input sensitivity of
the connected amplifier or pre-amplifier. For
adjusting the output gain, rotate the function
dial until ‘Gain’ is highlighted and press it for
proceeding to the gain settings. The level can
be adjusted by rotating clockwise (tuning up)
or counter-clockwise (tuning down). Press the
rotary dial for confirming the currently set output
level.
Connected:
Information about the connected transmitting device is shown when highlighted
‘Connected’. This menu includes the device name and Mac address. Press the rotary
selection dial twice for disconnecting the currently connected device.
Paired:
8 device ID’s of recently paired transmitters are stored as authorized devices and shown
in this list. These authorized devices are allowed for direct pairing with the BMP40 without
making it discoverable. (without pressing the button in the main module screen)
Devices can be removed from this list by pressing the rotary dial when highlighted
‘Paired’, allowing browsing through the list. Select the device and press the rotary dial
again to remove it from the pairing list. (Select OK to remove, or cancel to keep it)
Info:
Gives an overview of the BMP40 Mac address and running software versions.
Factory reset:
Factory reset will recall all settings to factory defaults and all previously made settings
and configurations will be lost. After selecting factory reset, a confirmation will be asked
whether all settings definitely need to be reset to factory defaults. When confirmed, all
settings will be lost.
Back:
Returning to the player mode screen is done by selecting ‘Back’.

13
Chapter 4
Installing the BMP40
CAUTION
Before installing the BMP40 to any SourceCon™ compatible device,
make sure the power is switched off. Malfunctions or electrical shocks
may occur otherwise.
Step 1:
Make sure that the slot whereto the module should be installed is open and ready for
installation. Depending of the main unit, some module slots will be covered by blind
panels when delivered. The corresponding blind panels should be removed by releasing
the screws on both ends.
Step 2:
Before removing the modules from their protective bag, we recommend touching a
grounded metal chassis (or any other grounded point) to prevent electrostatic discharges
affecting the sensitive electronic components. It is recommended to always hold the
module card by the metal connection panel and avoid touching of the components on
the circuit board directly.
Step 3:
Align both edges of the module with the guide rails inside the slot and carefully insert
the module into the slot. It should slide into the slot without any considerable resistance
when well positioned into the guide rail.

14
Step 4:
Some resistance might occur when the module’s board edge connector reaches the
connection counterpart on the main board. Gently push the module all the way into the
slot to ensure that the contacts are correctly inserted. The module is well inserted when
its connection panel touches the metal chassis of the main device where inserted to.
Step 5:
Fasten the module into the slot using the included screws. Be aware that damage or
malfunctions may occur if the module is not correctly fastened.
Step 6:
Once the module correctly installed, the system can be powered-on and the module
functionality will be automatically discovered.

15
Chapter 5
Technical specifications
Connection SourceCon™ interface card slot
Input SMA-type male antenna connection (50 Ω)
Output Balanced stereo line output
(2 x 3-pin Euro Terminal Block ~ 3.81 mm)
Output level +8 dB ~ -82 dB
(Software configurable)
Bluetooth receiver Bluetooth spec V4.1
Class 2 output power
Power consumption 0.5 Watt
Dimensions (W x H x D) 87 x 34.5 x 114 mm
Weight 0.075 Kg
Packaging Carton box
Shipping weight & Volume 1.08 Kg - 0.028 Cbm
Accessoried included 2.4Ghz antenna (2 dBi)
Compatible devices XMP44 Modular audio system
Optional Accessories BAE100 Antenna extender kit
NOTE
The BMP40 supports media information retrieval (track, artist, album, ... information)
from the transmitter. This function is only supported with AVRCP V1.3 (or higher)
compatible transmitters.

16
Notes
