Audeze LCD-XC User manual

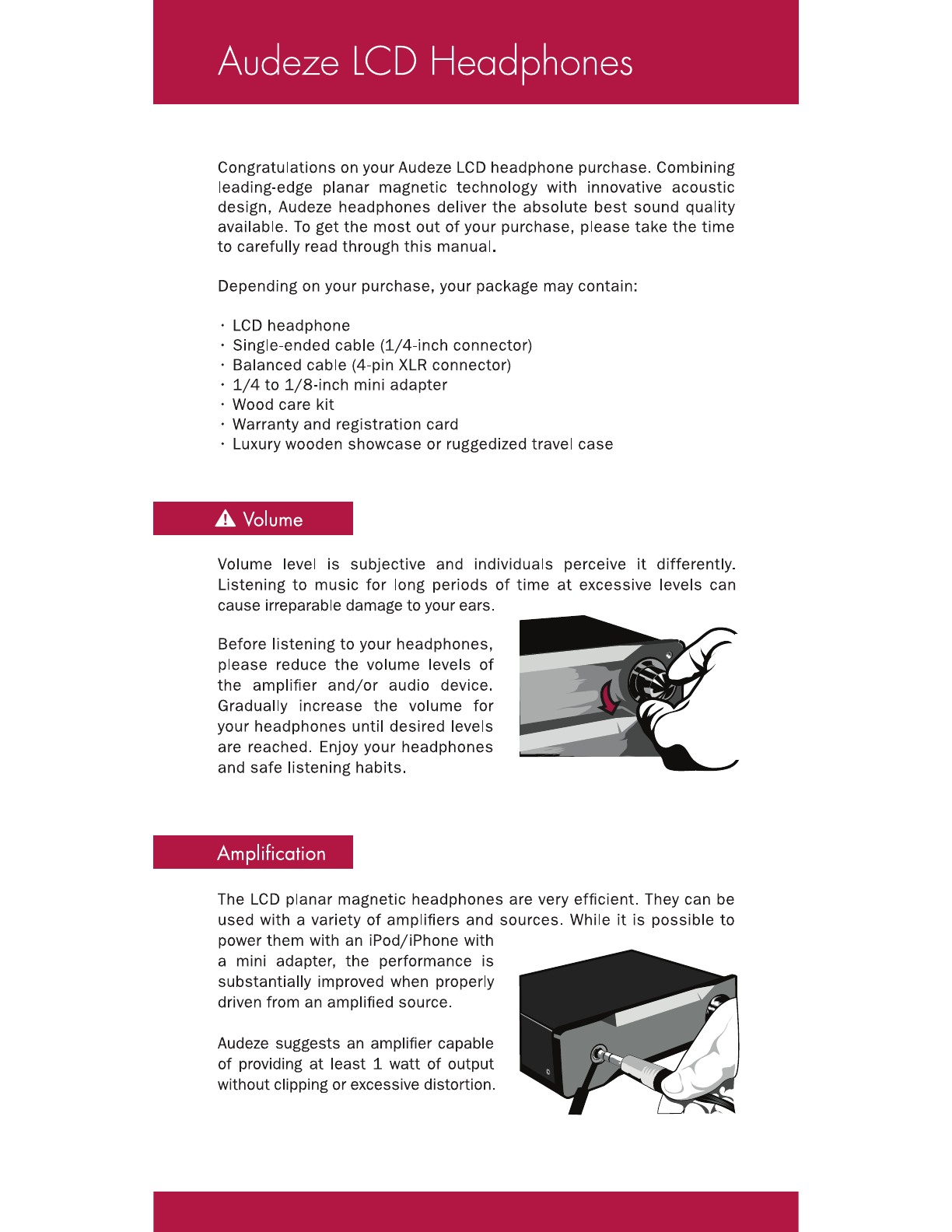

Congratulations on yourAudeze LCD headphone purchase. Combining
leading-edge planar magnetic technology with innovative acoustic
design, Audeze headphones deliver the absolute best sound quality
available.
To get the most out ofyour purchase, please take the time
to carefully read through this manual.
Depending
on your purchase, your package may contain:
•
LCD headphone
• Single-ended cable (1/4-inch connector)
• Balanced cable (4-pin
XLR connector)
•
1/4 to 1/8-inch mini adapter
• Wood care kit
• Warranty and registration card
• Luxurywooden showcase or ruggedized travel case
A Volume
Volume level is subjective and individuals perceive it differently.
Listening
to music for long periods of time at excessive levels can
cause irreparable damage toyour ears.
Before listening
to your headphones,
please reduce the volume levels
of
the amplifier and/or audio device.
Gradually increase the volume
for
your headphones until desired levels
are reached. Enjoy your headphones
and safe listening habits.
Amplification
The LCD planar magnetic headphones are very efficient. They can be
used with a variety
of amplifiers and sources. While it is possible to
power them with an iPod/iPhone with
a mini adapter, the performance is
substantially improved when properly
driven from
an amplified source.
Audeze suggests an amplifier capable
of providing
at least 1 watt of output
without clipping or excessive distortion.

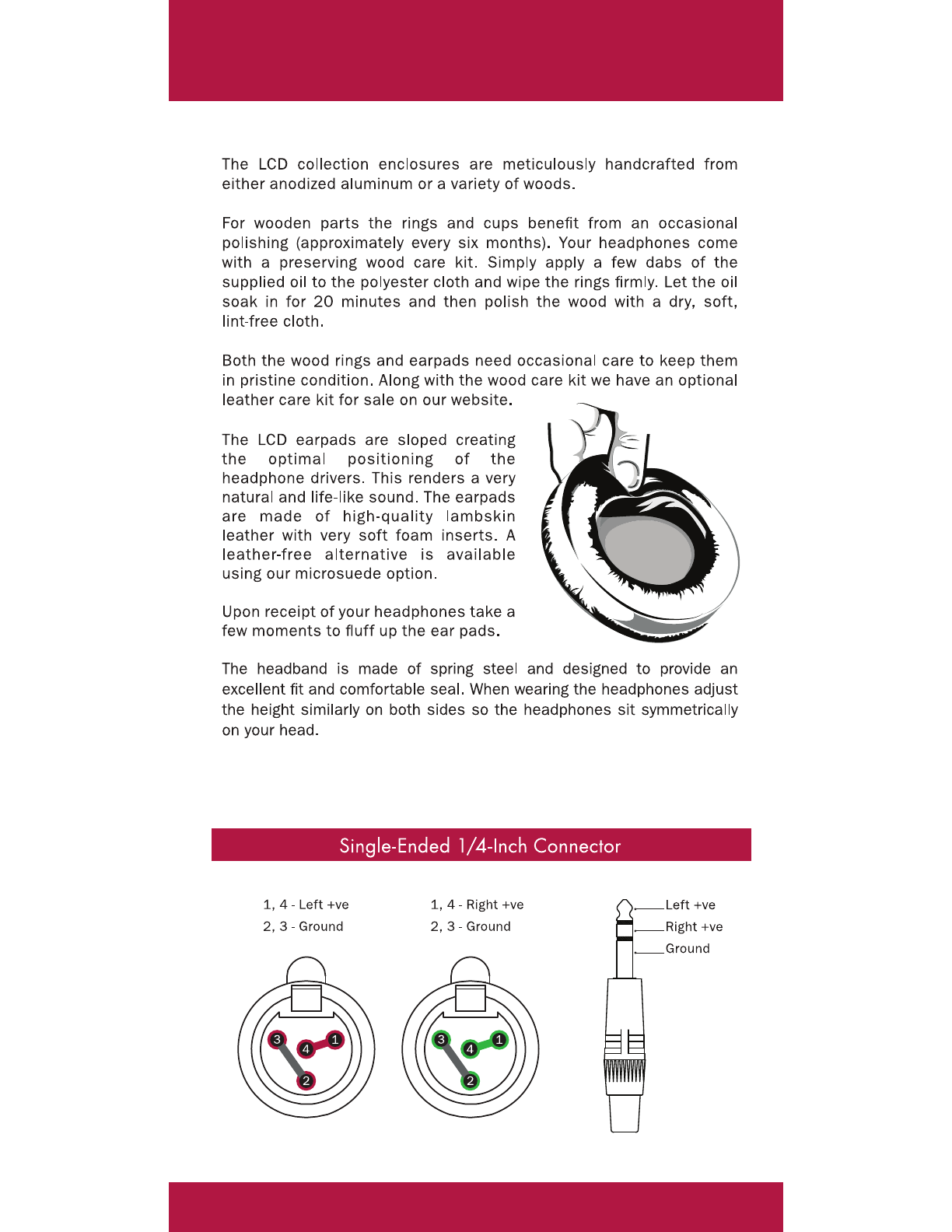

The LCD collection enclosures are meticulously handcrafted from
either anodized aluminum or a variety
of woods.
For wooden parts the rings and cups benefit from an occasional
polishing (approximately every six months). Your headphones come
with a preserving wood care kit. Simply apply a few dabs
of the
supplied oil to the polyester cloth and wipe the rings firmly. Let the oil
soak in for
20 minutes and then polish the wood with a dry, soft,
lint-free cloth.
Both
the wood rings and earpads need occasional care to keep them
in pristine condition. Along with the wood care kitwe have an optional
leather care
kit for sale on ourwebsite.
The LCD earpads are sloped creating
the optimal positioning of the
headphone drivers. This renders a very
natural and life-like sound. The earpads
are made
of high-quality lambskin
leather with very
soft foam inserts. A
leather-free
alternative is available
using our microsuede option.
Upon receipt
of your headphones take a
few moments
to fluff up the ear pads.
The headband is made of spring steel and designed to provide an
excellent fit and comfortable seal. When wearing the headphones adjust
the height similarly on both sides so the headphones
sit symmetrically
on your head.
Single-Ended 1/4-lnch Connector
1, 4 - Lett +ve
2, 3- Ground 1, 4 - Right +ve 2, 3- Ground
~-Right+ve

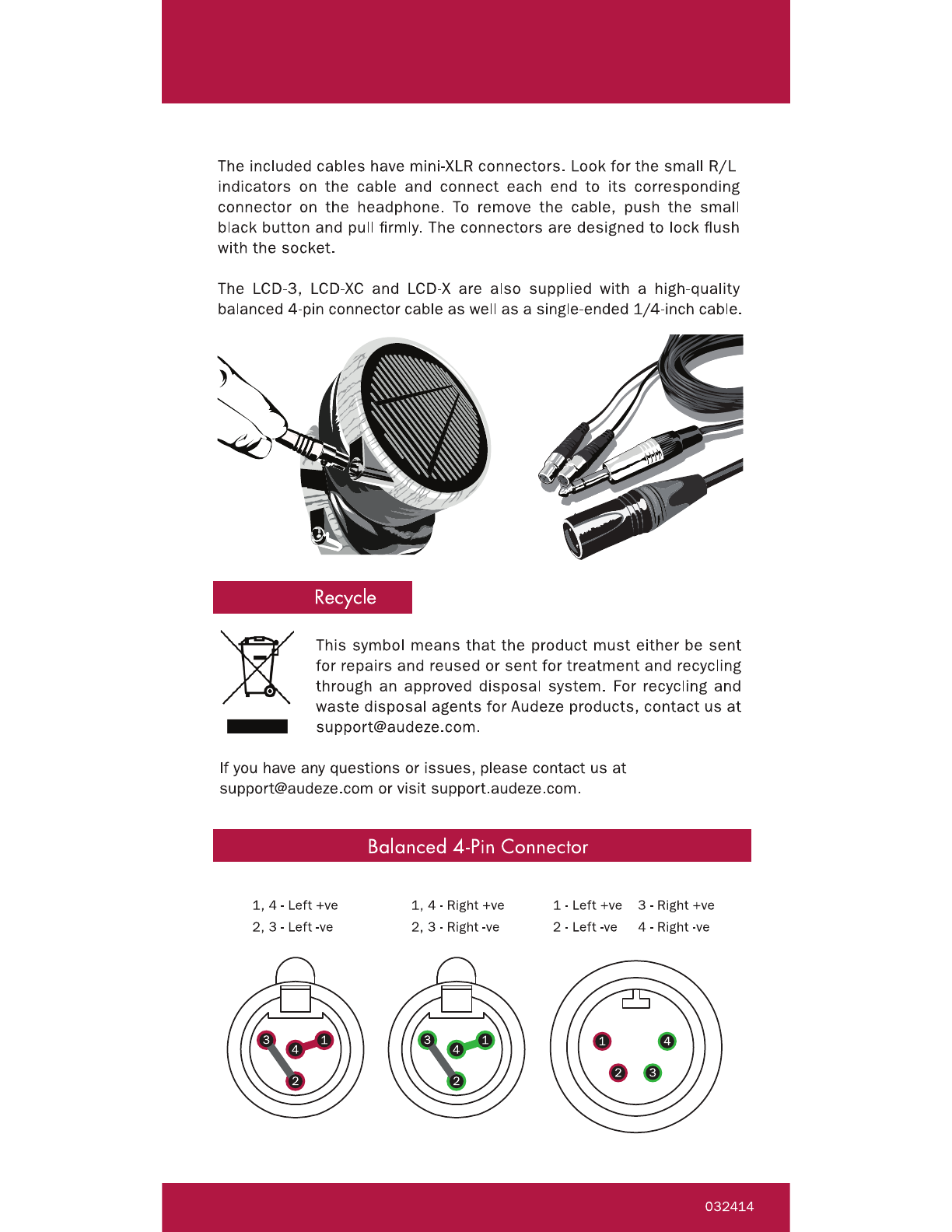

The included cables have mini-XLR connectors. Look for the small R/L
indicators on the cable and connect each end to its corresponding
connector on
the headphone. To remove the cable, push the small
black button and pull firmly.
The connectors are designed to lockflush
with the socket.
The LCD-3,
LCD-XC and LCD-X are also supplied with a high-quality
balanced 4-pinconnector cable as well asa single-ended 1/4-inch cable.
Recycle
This symbol means that the product must either be sent
for repairs and reused or sent for treatmentand recycling
through an approved disposal system. For recycling and
waste disposal agents
for Audeze products, contact us at
[email protected].
If you have any questions or issues, please contact us at
[email protected] or visit support.audeze.com.
Balanced 4-Pin Connector
1, 4- Left+ve
2, 3- Left -ve
1, 4 - Right+ve
2, 3- Right -ve
1- Left+ve 3- Right +ve
2 - Left
-ve 4 - Right-ve
032414

PRODUCT GUIDE

Winner
POTY
Stereophile
Magazine
2014
Best
Headphone
Hi-Fi
World
2014
2014
Winner
POTY
TAS
Magazine
2014
Winner
Writers Choice
Headphone
Guru
Best
Headphone
What
Hi-Fi
2014
LCD COLLECTION
The award-winning LCD Collection, acknowledged by many as the best in the world,
GH´QHG$XGH]HDVDSUHVWLJLRXVPDQXIDFWXUHURIXOWUDSHUIRUPDQFHKHDGSKRQHV1R
FRPSHWLWRUFDQPDWFKRXUSRZHUIXOEDVVDQGµDWUHVSRQVHGRZQWRDQDPD]LQJ+]
Each LCD is individually tested and measured and, upon product registration, users
may request their frequency response chart.

Style Closed-back circumaural
Transducer type Planar magnetic
Magnetic structure Proprietary push-pull design
Magnet type Neodymium
Transducer active diaphragm area 39.8 cm2(6.17 in2)
0D[LPXPSRZHUKDQGOLQJ :IRUPV
Sound pressure level >130dB with 15W
)UHTXHQF\UHVSRQVH +]¨N+]H[WHQGHGRXWWRN+]
Total harmonic distortion <1% through entire frequency range
Impedance 20 ohms
(I´FLHQF\ GB/1mW
Optimal power requirement 1 – 4W
SPECIFICATIONS
• 2.5m 1/4in to dual 4-pin mini-XLR cable
• 2.5m 4-pin XLR to dual 4-pin mini-XLR cable
• 3.5mm to 1/4in stereo adapter
• Professional travel case
PACKAGE INCLUDES
• Fazor elements
 /DUJHXOWUDWKLQ´OPGLDSKUDJPV
• Unique magnetic structure
AUDEZE TECHNOLOGY
• Lambskin or leather-free
headband and earpads
OPTIONS
7KHFORVHGEDFN/&';&ZDVFUHDWHGEDVHGRQRXUFRUHFXVWRPHUVIHHGEDFN,WGHOLYHUVDOOWKHEHQH´WVRIWKH/&';
ZKLOHLVRODWLQJWKHOLVWHQHUDQGUHGXFLQJDPELHQWQRLVHIRUDSULYDWHOLVWHQLQJH[SHULHQFHDVLJQL´FDQWDFKLHYHPHQWGXH
WRWKHLQKHUHQWFKDOOHQJHVRIHQFORVLQJRXUSODQDUWUDQVGXFHUV7KH/&';&LVWKH´QHVWFORVHGEDFNSODQDUDYDLODEOH
VHQVLWLYH HQRXJK WR EH GULYHQ GLUHFWO\ E\ SRUWDEOH SOD\HUV DQG PRELOH GHYLFHV EXW DQ H[WHUQDO DPSOL´HU SURGXFHV
better sonic results.

© 2015 Audeze LLC. All rights reserved.
www.audeze.com

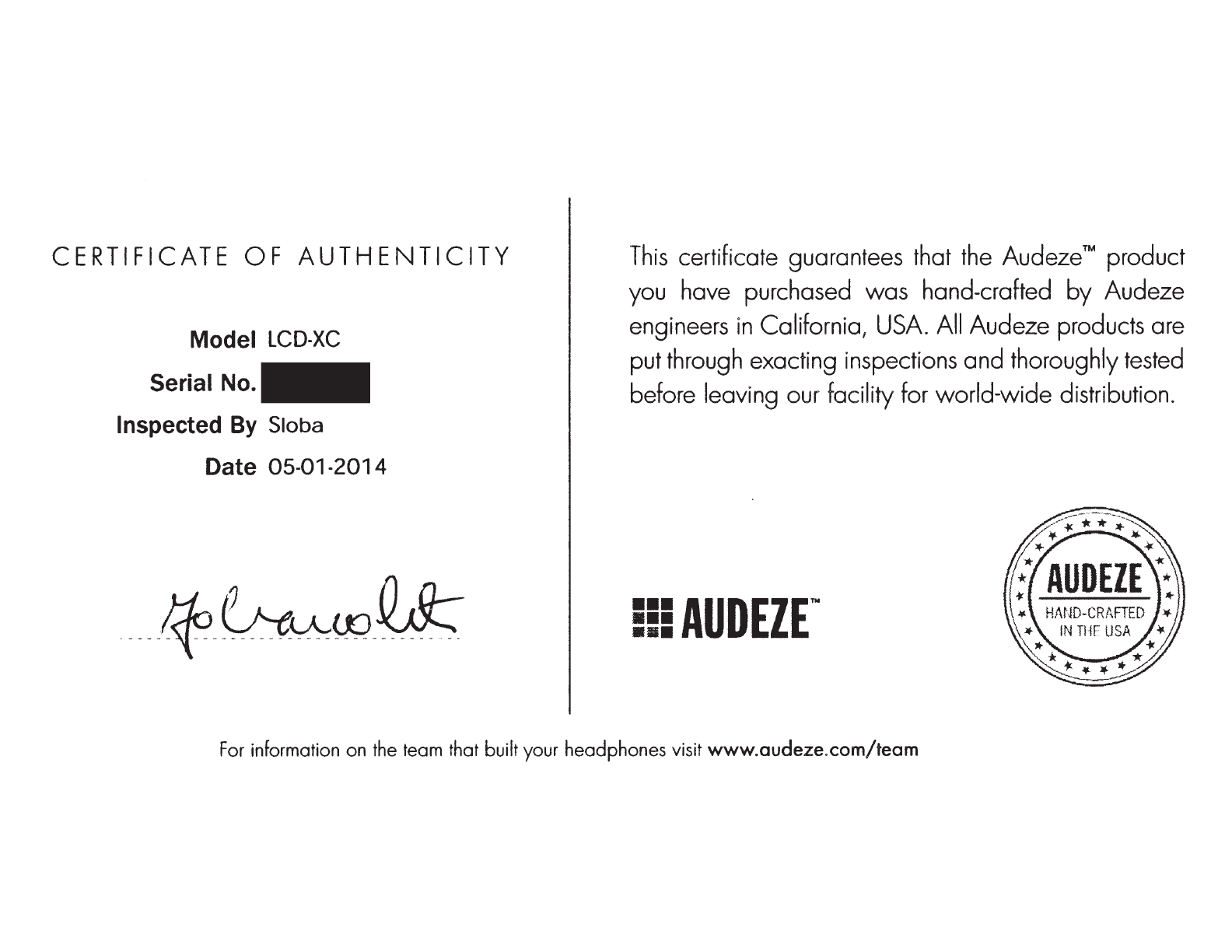

CERTIFICATE OF AUTHENTICITY
Model LCD-XC
Serial No.
Inspected
By Sloba
Date 05-01-2014
JJn~Qk
. --- -'-\{ ~---------- ----- ----- --- - - -
This certificate guarantees that the Audeze™ product
you have purchased was hand-crafted by Audeze
engineers
in California, USA. All Audeze products are
put through exacting inspections and thoroughly tested
before leaving our facility for world-wide distribution.
!!I AUDEZEN
For information on the team that built your headphones visit www.audeze"com/team

Warranty Registration
*This form
may
also
be
completed online
at
http:/
jwww.adueze.comjwarranty
Name:
Address:
Email:
Telephone:
Date of Purchase:
Purchased from (Dealer 1 Third Party):
Serial Number:
Please mail
this
form to:
Audeze
LLC
10725
Ellis
Ave
Unit E
Fountain
Valley,
CA
92708

Audeze
LCD
Collection

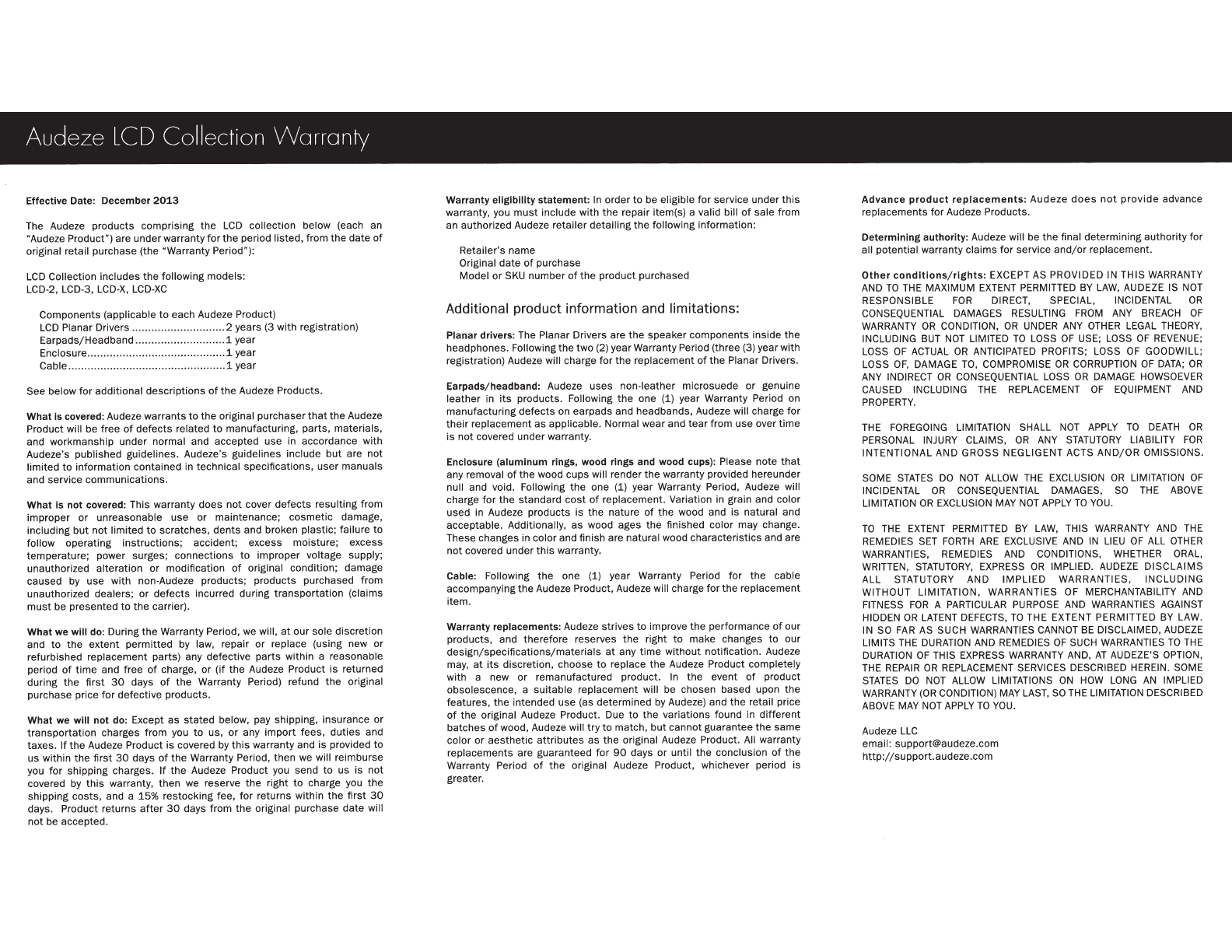

Wa
