Audiocenter TS Series User manual

TS/TS-SW Series
User’s Manual
TS08,TS10,TS12,TS12P,TS15,
TS-112SW,TS-118SW,TS-212SW
A1-2014-05

Page 1
TS-SW Series Operation Instruction
Installation guidance for TS and TS-SW series
Presets for TS series and TS-SW series 06
07
TS series back panel control and function
09
TS-SW series back panel control and functions
11
TS Series Operation Instruction
12
13
Product Application Samples of TS/ TS-SW series
15
Dimension of TS and TS-SW serie
17
Product Introduction
Warranty
TS / TS-SW Technical Features
TS series specification
TS-SW series specification
Trouble Shooting
02
03
05
18
19
20
Contents
02
Safety precautions
TS/TS-SW

When you set up,install and use the TS/TS-SW,please follow the following safety
measures strictly:
There can be danger in any step during hanging installation. Everyone should pay
attention to personal safety. All purchasers of Audiocenter should be professional people
qualified to conduct the work related to such equipments.
We strongly suggest the users pay full attention to local rules, regulations and laws.
Installers have the responsibility to make sure the speaker installations are subject to
local rules, regulations, and laws.
If any danger or defect is detected, measures should be taken immediately to correct it.
In touring application, please choose the installation hardware and occasion that can
sustain the weight of the equipments.
Please do not try to hang speakers over the design standard.
When connecting the cables of the products, please use cable tie to fix the cables, to
avoid actors, workers, and audience falling on the wire or brackets and affecting the
speaker system.
Please do not place the speakers near equipments sensitive to magnet fields, such as
CRT displayer, TV or data saving materials.
Please do not place the power cable near heating source. Do not over bend or damage
the power cables. Do not place heavy things on it. Please do not place the cables that
may be pressed or cause stumbling.
Only the specified rated voltage should be used for this product. Please refer to the back
panel of the product for the specified voltage.
Only the supplied power cable or plug should be used. (lf you need to use the product in a
place different from the purchase place, please consult your local Audiocenter distributor..)
Please check the power cable or plug regularly.
Please make sure to connect to proper power socket with protection grounding
connection. Wrong grounding may cause short circuits.
The product inside does not include any component that can be repaired by users. In
case of abnormal operation, please stop using immediately, and contact qualified
Audiocenter maintenance worker to repair.
Please do not use the product in the rain, or near water, or in humid environment, to
avoid liquid spilling to any opening.
Thank you for purchasing TS full range active speaker system and TS-SW series active
subwoofer from Audiocenter. They have integrated technologies of
, big power digital amplifier and DSP control, as well as speakers made of new
materials. It is the result of years of R&D effort. We hope that you can use with pleasure,
just as how we designed it.
Please finish reading the manual before usage, to make sure the best performance of
TS/TS-SW series. Please keep the manual for future reference.
switch mode power
supply
Safety precautions
Page 2
Product Introduction
TS/TS-SW

Page 3
out the power plug from the socket, and ask qualified Audiocenter maintenance worker
to repair.
-- Wear or damage of the power cable or plug.
-- Abnormal smell or smoking
--Some substance falls into the product
--Sound stops suddenly when using the product .
If the product falls or damages, please turn off the power switch immediately. Pull out the
power plug from the socket, and ask qualified Audiocenter maintenance worker to repair.
When pulling out the power plug from the power socket or the product, please make sure
to grab the plug instead of the power cable. Pulling the power cable directly may cause
damage.
If the product is not used for long time, or there is thunder storm, please pull out the plug
from the socket.
Please do not place the product in any uneven position. Otherwise, it may cause falling
off suddenly.
If the product is not fixed safely, please do not place it in a position that may cause easy
falling.
Please do not block the air hole. The product has air hole at the back to avoid internal
temperature too high. Bad ventilation may cause damage to the product or even fire.
Please do not hang or install any other component to the handle of the speaker. It may
cause damage or injure.
Please do not press the back panel of the product to the wall. Otherwise the plug may
touch the wall and separate from the cable, and cause short circuits, malfunction, or
even fire.
Before connecting the product to other equipment, please turn off the power switch of all
equipments. Before turning on or off the power switch of all equipments, please turn
down the volume to the minimum.
Please do not use the product in a very high or uncomfortable volume. Otherwise, it may
cause permanent damage to your ear.
In case of sound distortion, please do not use the product. To Continue using the product
in such status may cause fire.
Using mobile phones near the speaker may cause noise. In case of noise, please use
themobile phone far from the speaker.
If you need service, please contact Audiocenter service center, agent, or distributor in
your area.
When any of the following situations occurs, please cut the power immediately, and pull
In order to avoid to cause you or others body injury and loss on equipment or
property, please make sure to follow above basic items.
Warranty
We ensure all the Audiocenter products are high-quality and professional goods, no
matter for the performance or for the craftwork. Before delivery, each single piece of
products is checked by us for outlook and also automatically tested by equipment for
TS/TS-SW

Page 4
high standard sound quality, then QC passed.
From the date you buy our goods, you will own the service in free of charge for 6 years.
Product warranty items and Guarantee (China Mainland only)
Products warranty period is 6years (starting from the date buying the products). During
warranty period, if any damage or fault in our goods, after Audiocenter technician verified
the issue was not caused by wrong operation and usage or unexpected damage during
the transportation, Audiocenter will repair the products and exchange the spare parts in
free of charge.
Because of long distance for oversea transportation and other changeable factors,
warranty 6years is for China mainland only.
If under below conditions, Audiocenter distributor and dealers will reserve the right to
reject any repair.
a) Products were not buy from Audiocenter dealers or distributors, or it is fakery.
b) Factory serial number is invalid, damaged already, obliterated, removed or no any
sale record.
Under below-mentioned conditions, information in warranty card or website will be invalid.
1) The issue was caused by the intentionally wrong operation.
2) Problem or fault caused by wrong handling,incorrect operation,unexpected damage
3) The issue caused by inefficient outer conditions,such as oversize input voltage and
huge humidity.
4) The damage caused by the accident or natural hazard.
5) Products were repaired by other people, not by Audiocenter technicians.
6) Installation of the products in the wrong way.
Warranty and maintenance of the goods are only for Audiocenter service center or
appointed distributors.
If products damaged directly or indirectly due to the equipment defective, Audiocenter
won't take any responsibility.
If Audiocenter products are out of warranty period, reasonable fee will be charged for
repair.
Audiocenter reserve the right for explaining of above items. If any change, we will keep
you informed.
If any query, please contact us by phone: [e-mail] or visit our website:
www.ac-pro.net.
Users fill one warranty card in duplicate, (Packed with user manual inside the bag,
content is as below drawing.). Then send one of the parts to Audiocenter distributors
within 30days.
User also can login into Audiocenter official website to register the effective
warranty serial number. (Route: Home/product center/ product warranty register).
If need to repair the goods, you are required to show out the Invoice and warranty card.
Related information of goods in official website will be the support for the service.
www.ac-pro.net
Product Warranty Registration.
1、
2、
3、
4、
5、
6、
7、
8、
TS/TS-SW

TS / TS-SW Technical Features
Page 5
TS08 TS10 TS12 TS12P TS15
TS Series:
Features:
TS-SW Series:
TS-SW112 TS-SW118 TS-SW212
Package accessories:
Power cable
User’s manual
Warranty card and quality certificate
Rubber feet ( for TS12/15，TS-12P only)
Please check above items carefully. If any questions, please advise Audiocenter
representative, dealers, distributors, or contact by email box: . [e-mail]
Optional accessories:
U horizontal bracket
U vertical bracket
Joint bracket
Flight case
Cover bag
Stand
Coupling bar
1、Integrated with big power Class D amplifier technology, switch mode power supply
technology and DSP control technology.
2、With built-in DSP control technology, all functions like EQ adjustment, phase correction,
delay, limiter, etc, can be realized easily.
3、High efficiency Class D amplifier technology, light weight and more compact.
TS/TS-SW

Page 6
Presets for TS series and TS-SW series
There are 5 presets in TS series speakers for users to recall for usage in different
applications.
st
1 preset- AC
nd
2 preset-Linear
rd
3 preset-Boost
th
4 preset-Vocal
th
5 preset-W/Sub
Presets for TS series are set up by factory before shipment. Users can only recall the
presets for usage in different applications, but can't change or delete the presets.
st
1 preset- AC
This is the default preset in TS when users operate TS for the first time or reset the
preset. AC preset is with Audiocenter sound taste for smooth and natural sound.
nd
2 preset-Linear
With this preset, the frequency response of the TS between 80Hz-18KHz is special
linear response. The HF and LF are in a balance. It is the balance between high
frequency and low frequency. With Equalizer or external DSP, users can simply adjust
the frequency response of the speakers to satisfy some special application demand,
such as defective architectural space acoustics, strange sound source or personal taste
sound.
rd
3 preset-Boost
With this preset, more LF energy will be created when the gain of LF is pushed more. In
contrary, the energy of MF mid will be decreased accordingly. At the same time, the
energy of super HF will be more.
th
4 preset-Vocal
This preset can improve the clarity of human voice. Vocal preset is mainly used on the
applications of company activities, fair, and public speech.
th
5 preset-W/Sub
This preset is made to match TS with subwoofer. To work together with subwoofers, TS
can have much better sound dynamic.
get the right sound performance.
Efficient protection system
Advanced 2 channel DSP board
Advanced AD/DA converter. 96KHz signal sampling frequency and 56- bit precision
device to ensure the most clear sound
LCD at the back panel for easy display, and for users to touch and play different
functions.
Input A and Input B can either input signal individually, or input.
With 5 presets of TS Series, users can recall different presets for different applications to
5、
6、
7、
8、
9、
TS/TS-SW
4、

1
The polarity of TS-SW：
Polarity, also called as phase sometimes, means that the input voltage is positive or
negative in specific time. In most cases, the positive will drive thediaphragm of the
speaker to move forward,and the negative will drive it backward. When a specific
frequency signal or similar signal repeats, the polarity must be the same, so that the
input efficiency will be the highest. For subwoofer system, this is very important. Wrong
connection or usage will change the polarity, and lower the system's efficiency.
TS-SW series polarity can be changed according to different using conditions.
When full range speakers system and subwoofer speaker system are combined,
please change the phase according to their distance to get the best sound performance.
6
1
1
MIX O UT A
OUT PUT A
1
1
2
11
6
45
123
7
9
8
13
16
10 12
17
14
15
AC IN PUT
(23 0V/50-60 )Hz
Page 7
TS series back panel control and function
Audiocenter subwoofers or subwoofers of other brands are recommended to work with
TS.
To match with Audiocenter TS series or third party 2-way speaker systems, TS-SW
series are designed with 3 different kinds of presets:80Hz,100Hz and 120Hz. .
power indicator
When speaker connected to power, the LED is on.
Channel A signal indicator
When decting Line A/MIC channel has input signal, the LED is on.
Channel B signal indicator
When decting Line B/AUX channel has input signal, the LED is on.
Limiter indicator
When output limiter is activated, the LED is on. If the output voltage of the amplifier is
over the maximum value, the output limiter will operate to damp the output signal of
amplifier.
Protect Indicator
When the protection system is activated, the LED is on. The protection system will
operate in the following situations:
2
3
TS/TS-SW
4
5

the amplifier over heated
DC output
overload currency
power activation voltage too high or too low
the amplifier in stand-by mode
Then the Speaker output is mute, and power supply is cut off, LCD display will be off.
When the power is turned on:
The LED is on for 3 seconds with power supply. After normal power supply, the LED is
off.
When the power is turned off:
When the power is switched off, or the power is cut accidently, the protection system will
turn off the equipment to avoid noise.
If the protection system operates when detecting problem, please wait to turn it on after
the amplifier cool down or the power is off, then the speaker will be normal again. If the
equipment can not work normal, please consult your distributor.
Menu navigation key
This is to shift among different functions and change the parameters of each different
function. Whenever there is an underline on either of the functions, users can press the
key to shift to another function. Whenever there is flash on either of the functions, users
can press the key to change the parameters of this function.
Enter key
This key is to select and confirm the functions. When the function item is underlined,
press this key, then the function item flashes, you can modify the parameters. When you
press this key again, the changed parameters are confirmed and you will exit.
LCD Display
Show the setting status of the speaker: volume/preset/LINEA B link/ stand-by.
Line/Mic Switch
According to the electric level of the input signal, set Line/Mic Switch to Mic or Line
position. For low electric level signal(such as Microphone) set the switch to Mic position.
For high electric level signal (such as electric musical instrument and audio equipment),
please set the switch position to Line position.
According to on site application,set Mix out A/Output A to Mix out A or Output A.Set the
switch to MIX OUT A position,OUTPUT Singnal of INPUT A & INPUT B offer mixing.Set
the switch to OUTPUT A position,OUTPUTS socket (12) and Inputs socket (11) in
parallel,and input signal will be by pass,without influence.
Input Socket(Line A/Mic)
Balanced XLR and phone type multi-function input socket.
Output socket(MIX OUT A/OUTPUT A)
This is balanced XLR output socket. Select “MIX OUT A”, balanced output mixed signal.
Select “OUTPUT A”, output socket in parallel with input socket (LINE A/MIC ).
MIX OUT A/OUTPUT A Switch
Page 8
6
7
8
9
10
TS/TS-SW
11
12

This is balanced XLR output socket. Parallel to INPUT socket (Line B), input signal can
be bypass, without influence.
Power switch
Turn on or off power. Slide the switch up to (1) position to turn on the power.Slide the
switch down to (0) position to turn off the power.
AC input socket
Connect the power cable here.First connect on end of the power cable to the product and
then connect the other end of the power cable to AC socket.
Inputs socket (LINE B)
Balanced XLR and phone type multi-function input socket.
OUTPUTS Socket（LINE B）
INPUTS Socket（AUX）
Unbalanced RCA input socket.
11
AC INP UT
(230 V/50 -60 )Hz
1
1
7
PRO TEC T
LIMIT ER
SIGN AL A
POW ER
SIGN AL B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLIN K/ STANDBY
PRE SETPHA SE
ENT ER
11
1
13
13
10
12
6
4
5
2
2
3
79
8
14
14
TS-SW series back panel control and functions
Page 9
13
14
15
16
17
Power LED
When connected to power, the LED is on.
Signal A LED
When there is audio input signal in Line A/Mic channel, the LED is on.
Signal B LED
When there is audio input signal in LineB/AUX, the LED is on.
Limiter LED
When output limiter is used, the LED is on. If the output voltage of the amplifier is over
the maximum value, the output limiter will operate, damping the output signal of the
amplifer.
Protect LED
When system protection is activated,the LED is on.The Protection System will be
activated in following situations:
the amplifier over heated
DC output
1
2
3
4
TS/TS-SW
5

overload currency
power activation voltage too high or too low
the amplifier in stand-by mode
Then the Speaker output is mute,and power supply is cut off,LCD display will be off.
When the power is turned on:
The LED is on for 3 second. with power supply.After normal power supply,The LED is off.
When the power is turned off:
When the power is switched off,or the power is cut accidently,the protection system will
turn off the equipment to avoid noise.
If the protection system operates when detecting problem, please wait to turn it on after
the amplifier cool down or the power is off, then the speaker will be normal again. If the
equipment can not work normal, please consult your distributor.
LCD Display
Setting status of speaker: valume/phase/preset/LineA B linkage/standby”, etc...
INPUTS connector (Line A)
Balance XLR input connector
OUTPUTS connector (Line A)
Balance XLR output connector. Due to parallel connection to INPUTS connector(Line A),
the input signal can bypass, without influence.
INPUTS connector (Line B)
Balance XLR input connector.
OUTPUTS connector(Line B)
Balance XLR output connector. Due to parallel connection to INPUTS connector(Line B),
the input signal can bypass, without influence.
Menu navigation key
This is to shift among different functions and change the parameters of each different
function. Whenever there is an underline on either of the functions, users can press the
key to shift to another function. Whenever there is flash on either of the functions, users
can press the key to change the parameters of this function.
Enter key
This key is to select and confirm the functions. When the function item is underlined,
press this key, then the function item flashes, you can modify the parameters. When you
press this key again, the changed parameters are confirmed and you will exit.
Power switch
Turn on or off power. Slide the switch up to (1) position to turn on the power.Slide the
switch down to (0) position to turn off the power.
AC input socket
Connect the power cable here. First connect on end of the power cable to the product
and then connect the other end of the power cable to AC socket.
Page 10
6
7
8
9
10
11
12
13
TS/TS-SW
14

45 3
VOL A
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can change its
volume by navigation key. The change is in time. Finally, you can exit by pressin Enter
key.
PRESET
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can select the
preset by navigation key. When you chose the preset, press Enter key, a small window
will pop up to ask you if you need to download this preset,You can select No/Yes to
check,if you select Yes and press Enter key it means you choose this perset;If you select
No,it means you give up this preset.
VOL B
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can change its
volume by navigation key. The change is in time. Finally, you can exit by pressing Enter
key.
A/B LINK
When selecting from menu navigation key, there is an underline below the content.
Chooseit by pressing the Enter key, and the content will flash. Now you can select the
linkage status by navigation key. If YES, A.B channel will input volume gain will be
adjusted at the same time. If NO, A B channel will input volume gain will be adjusted
individually. Finally, you can exit by pressing Enter key.
MIX OUT A
OUTPUT A
Page 11
TS Series Operation Instruction
2
2
2
1
Full range speaker:
1
2
3
4
TS/TS-SW
Standby
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can select the
5

1
PROTECT
LIM ITER
SIG NAL A
POWER
SIG NAL B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLINK/ STANDBY
PRESETPHASE
ENTER
1
PROTECT
LIM ITER
SIG NAL A
POWER
SIG NAL B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLINK/ STANDBY
PRESETPHASE
ENTER
TS-SW Series Operation Instruction
Page 12
4
2
2
2
13
56
Subwoofer:
VOL A
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then change the volume
by navigation key. The change is in time. Finally, you can exit by pressing Enter key
again.
PHASE
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then change the phase
content by navigation key. NORM is in phase, NIVT is out of phase. The change is in
time. Finally, you can exit by pressing Enter key again.
PRESET
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then select the preset by
navigation key. When you chose the preset, press Enter key, a small window will pop up
to ask you if you need to download this preset, You can select No/Yes to check,if you
select Yes and press Enter key it means you choose this perset;If you select No,it means
you give up this preset.
VOL B
When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can change its
volume by navigation key. The change is in time. Finally, you can exit by pressing Enter
key.
1
2
3
4
TS/TS-SW
standby time by navigation key. For example, 5' means standby after 5 minutes. Off
means no standby. Finally, you can exit by pressing Enter key.

-1 -2
-3 -4
MIX OUT A
OUTPUT A
7
MIX OUT A
OUTPUT A
1
PROT ECT
LIMITER
SIGNA L A
POWER
SIGNA L B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLINK/ STANDB Y
PRESE TPHAS E
ENTER
Page 13

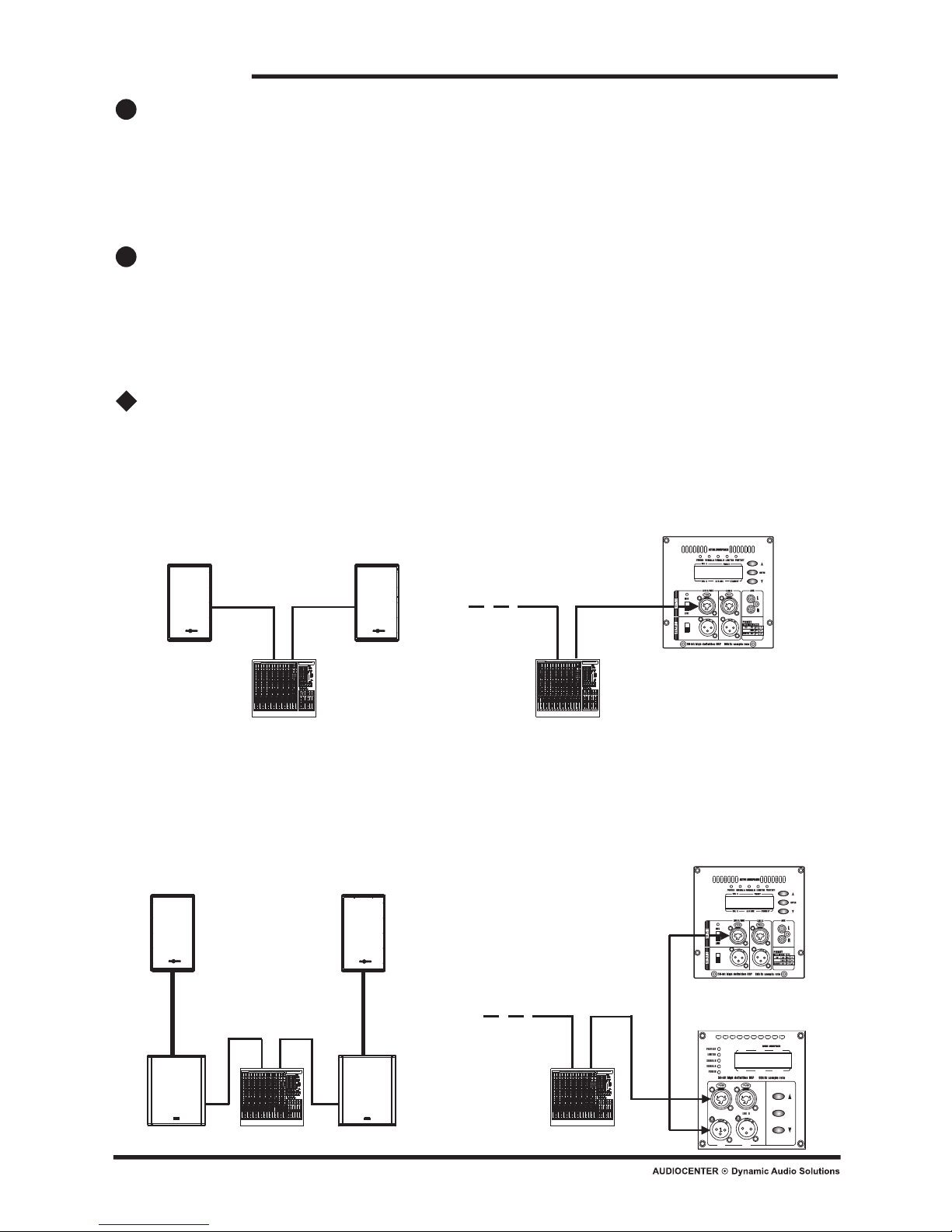

Product Application Samples of TS/ TS-SW series
Below is the basic system application with 2pcs of TS series full range speakers. This
system is ideal for small size touring performance restaurant and rehearsal etc.. 。
Basic system with subwoofer:
A/B LINK
When selecting from menu navigation key there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then select the linkage
status by navigation key If YES, input gain of Channel A and B can be adjusted at the
same time. If NO, input gain of Channel A and B can be adjusted individually Finally you
can exit by pressing Enter key again..
Standby
When selecting from menu navigation key there is an underline below the content
Choose it by pressing the Enter key and the content will flash. Then select the standby
time by navigation key For example, 5' means standby after minutes Off means no
standby Finally you can exit by pressing Enter key again..

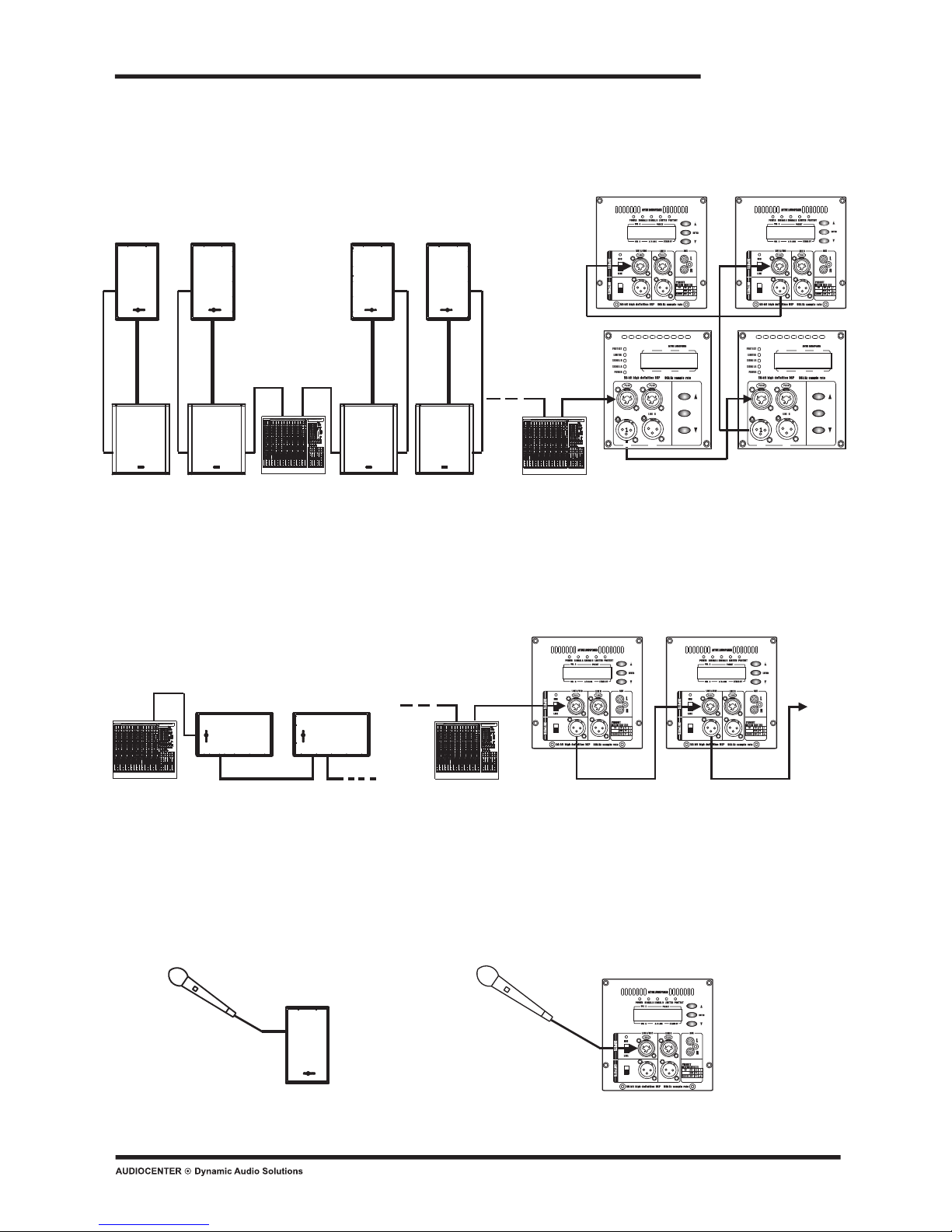

Basic system application
Below is the basic system with 2pcs of TS series full range speakers and 2pcs of
subwoofers with coupling bars. This system is ideal for small size touring performance
church and small stadium,etc..
5
6
TS/TS-SW
1.
2.

-5 -6
-7 -8
-9 -10
MIX OUT A
OUTPUT A
MIX OUT A
OUTPUT A
MIX OUT A
OUTPUT A
1
PROT ECT
LIMITER
SIGNA L A
POWER
SIGNA L B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLINK/ STANDB Y
PRESE TPHAS E
ENTER
MIX OUT A
OUTPUT A
1
PROT ECT
LIMITER
SIGNA L A
POWER
SIGNA L B
LINE B
LINE A LINE B
LINE A
VOL A
VOL B
A BLINK/ STANDB Y
PRESE TPHAS E
ENTER
MIX OUT A
OUTPUT A
Page 14
Below is the application of TS12/TS15 or TS12 P as stage monitor.
next
5、Microphone： System with
System for medium scale application:
Below is the system for medium scale application with pcs of TS series full range speakers
and pcs of subwoofers,This system is ideal for medium size touring performance, church,
etc.
4、Monitor System：
Below is the application of TS Series speakers with one microphone. In this situation,
please recall the “Vocal” preset, and set the switch at “MIX” position. This system is ideal
for seminar, product launch, etc.
TS/TS-SW
3.

326mm 326mm
633mm
626mm
295mm 325mm
292mm 322mm
517mm
545mm
Dimension of TS and TS-SW series
Page 15
358mm 326mm 326mm
355mm
633mm
626mm
295mm 292mm 322mm
517mm
545mm
TS08 TS10
TS12 TS12P
TS/TS-SW

TS15 TS-SW112
TS-SW118 TS-SW212
386mm
693mm
430mm
500mm
586mm
372mm
510mm
625mm
694mm
586mm
810mm
372mm
Page 16
TS/TS-SW

Accessories inside package: rubber feet (only for TS12, TS15, TS12P)
0 degree -10 degree adjustable according to different applications.
Installation guidance for TS and TS-SW series
Page 17
TS/TS-SW

Global applcation support team, EASE GLL files available
55Hz-20KHz 45Hz-20KHz 45Hz-20KHz 40Hz-20KHz
123dB
126dB
129dB
125dB
128dB
131dB
125dB
128dB
131dB
127dB
130dB
133dB
Anerage H2 Distortion
(200Hz-10KHz)
Consistency
Anerage H3 Distortion
(200Hz-10KHz)
＜2% at 1W
＜0.5% at 1W
±1.5dB(150Hz-10KHz)
Intermodulation Distortion
By DSP
295 x292mmx517
14.9kg
325 x322mmx545
15.9kg
358 x326mmx633
18.3kg
355 x326mmx626
23.5kg
430 x386mmx693
26.9kg
CNC made cabinet(once shaping PP enclosure for TS12P)
2 base holes Φ35mm at the bottom
Single point mounting bracket,"U"Bracke,Coupling bar,Flight case, Durable cover bag
Specifications
Frequency Response
（-6dB anechoic chamber)
Driver
HF
LF
Directivity（-6dB)（H° xV° )
60Hz-20KHz
Customized Beyma HF driver，ferrtie,1"exit，1.7"voice coil
90° x60°
Maximum
Calculated
SPL/1M
Continuous
Program
Peak
121dB
124dB
127dB
DSP
Processor
Amplifier
Amplifier Circuitry
Rated Power
Freque ncy Resp onse(1W 8 2ch)
Cooling System
Protection
DC protection
Short circuit Protection
Overtheat Protection
Output overload protection
Soft startup Protection
Overvoltage protection
Undervoltage protection
96KHz signal sampling frequency，56-bit precision
Low pass
High Pass
Crossover
Dimensions（WxHxD）
Net Weight
Cabinet
Base Mount
Optional Accessories
Technical Support and After-sales Service
TS08 TS10 TS12 TS12P TS15
HF：Class AB LF：Class D
1200W
20Hz-20KHz(±1dB)
＜0.1%
Heatsink air-flow
±5V
√
Reduced output by half at 60℃ and shut off AMP at 80℃
Around 1s
Overvoltage protection activated when over 10% of AC rated voltage
Undervoltage protection activated when less than of AC rated voltage 10%
By DSP
Page 18
TS series specification
TS08 TS10 TS12 TS12P TS15
Customized Beyma
LF driver，ferrtie,
2"voice coil
Customized Faital
LF driver，ferrtie,
2"voice coil
Customized Beyma LF driver，ferrtie,3"voice coil
AUDIOCENTER Reserves the rights to change specifications without prior notice in case
TS/TS-SW

42Hz-500Hz 35Hz-500Hz
130dB
133dB
136dB
128dB
131dB
134dB
Customized LF driver, ferrite,3.5" voice coilAudiocenter
＜2% at 1W
＜0.5% at 1W
±1.5dB(40Hz-150Hz)
372 x586mmx500
32.0kg
372 x586x810 mm
46.7kg
510 x694x625 mm
51.0kg
45Hz-500Hz
124dB
127dB
130dB
DSP
Amplifiter
Technical Support and After-sales Service
TS- SW112 TS- SW212 TS- SW118
Class D
1800W
20Hz-6KHz(±1dB)
＜0.1%
±5V
√
/
Page 19
TS-SW series specification
TS-SW112 TS-SW118 TS-SW212
Specifications
Frequency Response
（-6dB anechoic chamber)
Driver LF Tvansducer
Directivity（-6dB)（H° xV° )
Maximum
Calculated
SPL/1M
Continuous
Program
Peak
Anerage H2 Distortion
(200Hz-10KHz)
Anerage H3 Distortion
(200Hz-10KHz)
Consistency
Processor
Short circuit Protection
Output overload protection
Soft startup Protection
Overvoltage protection
Undervoltage protection
Intermodulation Distortion
Amplifier Circuitry
Rated Power
Freque ncy Resp onse(1W 8 2ch)
Cooling System
Protection
DC protection
Overtheat Protection
Low pass
High Pass
Crossover
Dimensions（WxHxD）
Net Weight
Cabinet
Base Mount
Optional Accessories
96KHz signal sampling frequency，56-bit precision
Heatsink air-flow
Reduced output by half at 60℃ and shut off AMP at 80℃
Around 1s
By DSP
By DSP
AUDIOCENTER Reserves the rights to change specifications without prior notice in case
TS/TS-SW
Overvoltage protection activated when over 10% of AC rated voltage
Undervoltage protection activated when less than of AC rated voltage 10%
Customized LF
driver, ferrite,4" voice coil
Audiocenter
1200W1200W
Global applcation support team, EASE GLL files for free
CNC made cabinet(once shaping PP enclosure for TS12P)
1 base holes Φ35mm on the top
Coupling bar,Flight case, waterproof cover bag
