JBL escXcite User manual

ENGLISH
Simple
setup guide
Thank you for choosing JBL. For over 55 years, JBL has
been involved in every aspect of music and film recording and
reproduction, from live performances to monitoring the recordings you
play in your home, car or office.
We’re confident that the JBL system you have chosen will provide every
note of en oyment that you expected – and that when you think about
purchasing additional audio equipment for your home, car or office,
you will once again choose JBL.
JBL Consumer Products
All manuals and user guides at all-guides.com
all-guides.com

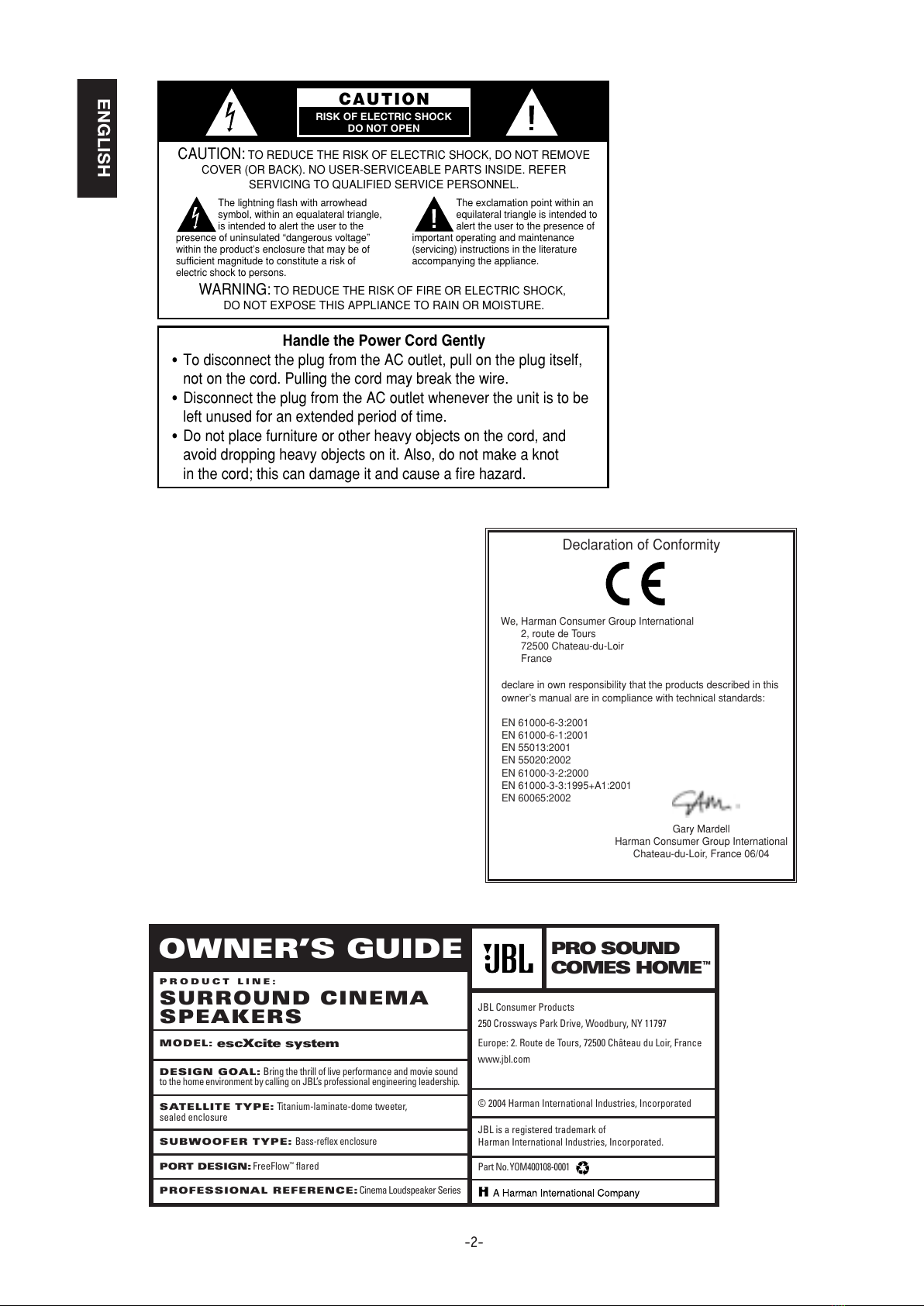

ENGLISH
-2-
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Handle the Power Cord Gently
•To disconnect the plug from the AC outlet, pull on the plug itself,
not on the cord. Pulling the cord may break the wire.
•Disconnect the plug from the AC outlet whenever the unit is to be
left unused for an extended period of time.
•Do not place furniture or other heavy objects on the cord, and
avoid dropping heavy objects on it. Also, do not make a knot
in the cord; this can damage it and cause a fire hazard.
The lightning flash with arrowhead
symbol, within an equalateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
72500 Chateau-du-Loir
France
declare in own responsibility that the products described in this
owner’s manual are in compliance with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
EN 55013:2001
EN 55020:2002
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:2001
EN 60065:2002
Gary Mardell
Harman Consumer Group International
Chateau-du-Loir, France 06/04
DESIGN GOAL: Bring the thrill of live performance and movie sound
to
the home environment by calling on JBL’s professional engineering leadership.
SATELLITE TYPE: Titanium-laminate-dome tweeter,
sealed enclosure
SUBWOOFER TYPE: Bass-reflex enclosure
PORT DESIGN: FreeFlow™flared
PROFESSIONAL REFERENCE:Cinema Loudspeaker Series
OWNER’S GUIDE
PRODUCT LINE:
MODEL:
escXcite system
SURROUND CINEMA
SPEAKERS
© 2004 Harman International Industries, Incorporated
JBL is a registered trademark of
Harman International Industries, Incorporated.
Part No.
YOM400108-0001
PRO SOUND
COMES HOME™
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
Europe: 2. Route de Tours, 72500 Château du Loir, France
www.jbl.com
All manuals and user guides at all-guides.com

ENGLISH
-3-
The escXcite offers two unique
user-convenience features:
Automatic Turn-On/Shut-Down
and Automatic Digital-Input
Selection.
The Automatic Turn-On feature
will turn the escXcite on as soon
as a source connected to its dig-
ital inputs (such as DVD, CD
player with digital output, or
any other device featuring a
coaxial or optical digital output)
is switched on, or as soon as the
unit connected to its last-used
analog input starts outputting
sound.
When using digital inputs, the
Automatic Turn-On can be acti-
vated by turning on either one
of the connected digital sources
such as a DVD player or a CD
player with digital output. When
using analog inputs (TV or
AUX), Automatic Turn-On is
available only for the device
that was last listened to before
the escXcite shut down. In order
to listen to the other device,
the escXcite input needs to be
manually selected by using the
Input button on the product
and on the remote, which, in
turn, disables the Automatic
Digital-Input Selector until the
escXcite is shut down.
The Automatic Turn-Off shuts
the unit down five minutes after
all sources connected to its dig-
ital inputs are powered down
and the device connected to its
selected analog input stops
playing.
The Automatic Digital-Input
Selector automatically selects
the source connected to its digi-
tal inputs when that source is
powered on. Upon power down
of this digital unit, if no other
source is on, the escXcite will
switch itself off after five min-
utes. If the analog source that
was selected prior to the digital
source turning on is still play-
ing, the escXcite will switch
back to that other source. Once
a digital source is powered on
and selected as an input, turn-
ing on a device connected to
the other digital input will not
switch the input until the
selected digital device is first
powered off.
These two features can only be
used if the customer does not
manually turn the escXcite on or
off, and does not manually
select an input source. Once
either of these selections is
made manually, the automatic
features are disabled as
follows:
1. If the escXcite is turned off
manually, it will not turn back
on automatically for at least
five minutes. During these five
minutes, it can be turned on
either from the front panel or
via the remote control.
2. Once an input source is
selected manually, the Auto-
matic Source-Selection feature
will remain disabled until the
escXcite shuts down.
3. Once any one of the two
devices connected to the
escXcite digital inputs is pow-
ered on and its input is selected
by the escXcite, the device
connected to the other digital
input of the escXcite cannot be
automatically selected until the
already selected digital device is
powered down.
Important Note
Automatic On/Off and Automatic Digital-Input Selection
All manuals and user guides at all-guides.com

ENGLISH
-4-
• Complete, self-powered DTS,
Dolby* Digital surround
processor with four satellite
speakers, a center channel
loudspeaker, subwoofer,
remote control, and all ampli-
fication built-in.
(Just Add TV!)
• Dolby Digital, DTS, Dolby Pro
Logic*, including Phantom
and 3-Stereo, and Stereo
listening modes.
• Automatic Turn-On and Turn-
Off.
• Automatic Source Switching
for the digital inputs.
• Two digital (one optical and
one coaxial) inputs and two
analog inputs.
• 2-Way video-shielded micro-
satellites with titanium-lami-
nate tweeters and common
voicing for all five channels,
and a 6.5", long-throw, floor-
firing subwoofer.
• Late Night compression for
nighttime listening without
unexpected and ob ectionably
loud passages.
• All amplification and controls
are mounted in the sub-
woofer, eliminating the need
for a separate control unit.
• Remote controllable via out-
board remote eye that can be
mounted with the center
channel or separately, so that
the subwoofer can be hidden
away.
Features
4 satellites and a center channel
loudspeaker.
Wall-mount brackets.
“Smart” powered
subwoofer/controller.
Included
JBL ” error-free“ speaker cables.
Foot for horizontal placement of
center speaker. Versatile remote
sensor and double-sided tape
provided.
Remote control.
Bass
Treble
Delay Level
0 dB Test
Adjustment
Late Night
Power
Mute
Surround
Mode
Input
–+
–+
–+
Volume
Digital coax input cable and
analog RCA input cable.
All manuals and user guides at all-guides.com

ENGLISH
-5-

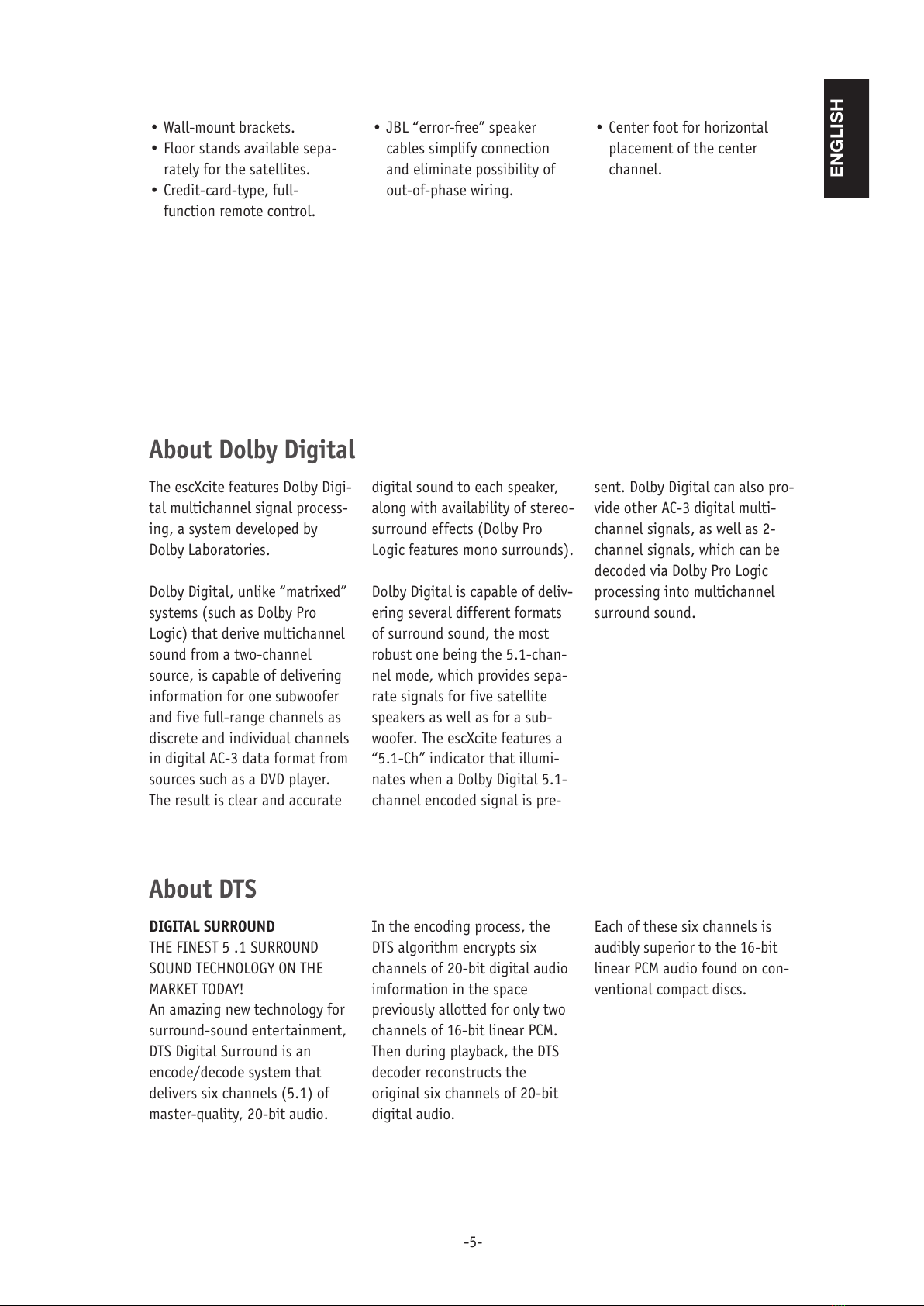

About Dolby Digital
The escXcite features Dolby Digi-
tal multichannel signal process-
ing, a system developed by
Dolby Laboratories.
Dolby Digital, unlike “matrixed”
systems (such as Dolby Pro
Logic) that derive multichannel
sound from a two-channel
source, is capable of delivering
information for one subwoofer
and five full-range channels as
discrete and individual channels
in digital AC-3 data format from
sources such as a DVD player.
The result is clear and accurate
digital sound to each speaker,
along with availability of stereo-
surround effects (Dolby Pro
Logic features mono surrounds).
Dolby Digital is capable of deliv-
ering several different formats
of surround sound, the most
robust one being the 5.1-chan-
nel mode, which provides sepa-
rate signals for five satellite
speakers as well as for a sub-
woofer. The escXcite features a
“5.1-Ch” indicator that illumi-
nates when a Dolby Digital 5.1-
channel encoded signal is pre-
sent. Dolby Digital can also pro-
vide other AC-3 digital multi-
channel signals, as well as 2-
channel signals, which can be
decoded via Dolby Pro Logic
processing into multichannel
surround sound.
About DTS
DI ITAL SURROUND
THE FINEST 5 .1 SURROUND
SOUND TECHNOLOGY ON THE
MARKET TODAY!
An amazing new technology for
surround-sound entertainment,
DTS Digital Surround is an
encode/decode system that
delivers six channels (5.1) of
master-quality, 20-bit audio.
In the encoding process, the
DTS algorithm encrypts six
channels of 20-bit digital audio
imformation in the space
previously allotted for only two
channels of 16-bit linear PCM.
Then during playback, the DTS
decoder reconstructs the
original six channels of 20-bit
digital audio.
Each of these six channels is
audibly superior to the 16-bit
linear PCM audio found on con-
ventional compact discs.
• Wall-mount brackets.
• Floor stands available sepa-
rately for the satellites.
• Credit-card-type, full-
function remote control.
• JBL “error-free” speaker
cables simplify connection
and eliminate possibility of
out-of-phase wiring.
• Center foot for horizontal
placement of the center
channel.
All manuals and user guides at all-guides.com

ENGLISH
-6-
On shelves. On the wall.
Mounting Options
On optional Stand (FS1000)
Subwoofer
Surround Speakers
5 – 6 ft.
Front and Surrounds Speakers
one. Speaker Placement
Satellites
0-2 ft.
Mounting Remote Sensor to Center Speaker.
Place remote sensor at bottom
of center speaker.
Insert support leg through
remote sensor and into
speaker.
Center speaker.
The remote sensor may be placed anywhere using the supplied double-sided tape.
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
-7-

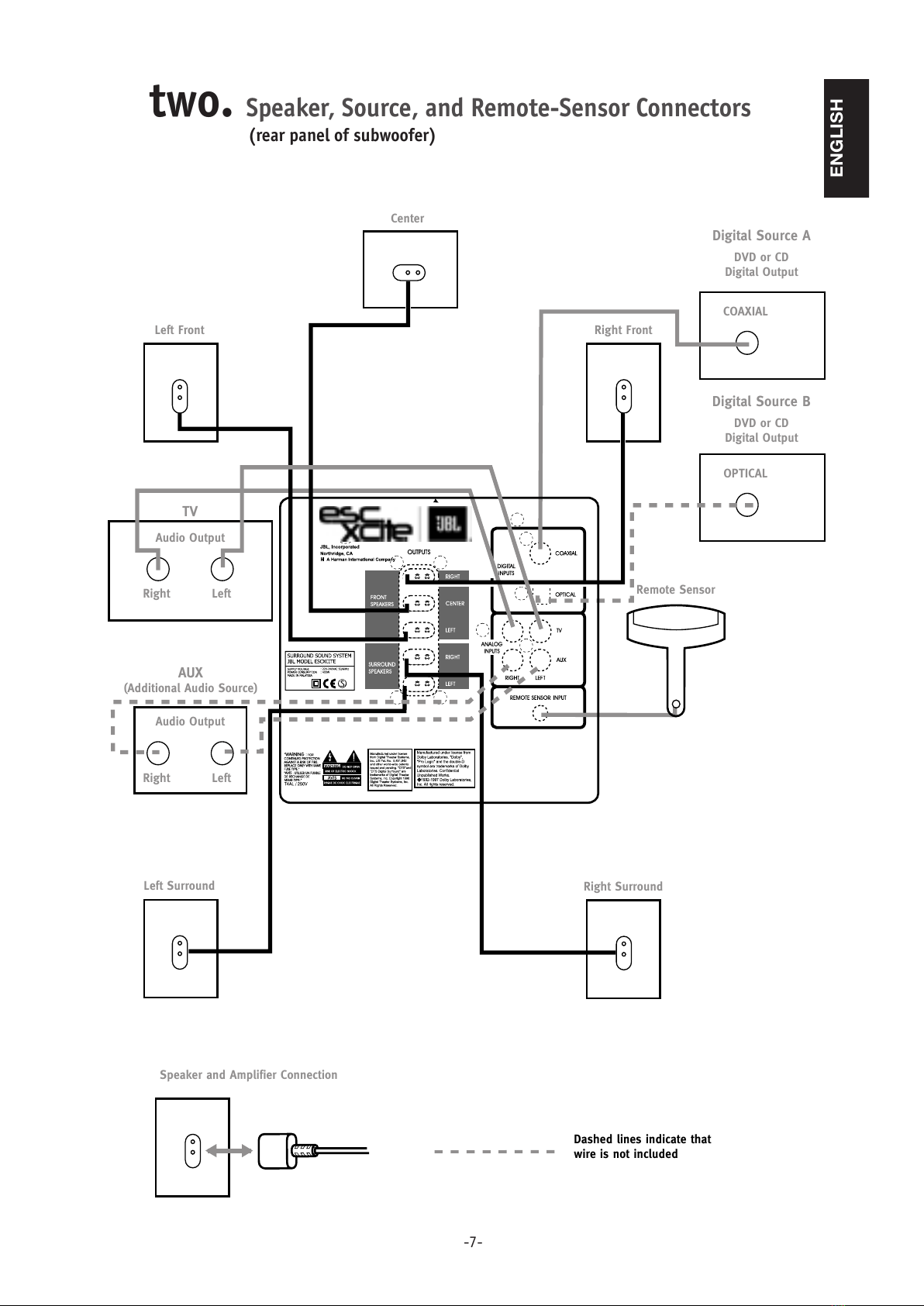

two. Speaker, Source, and Remote-Sensor Connectors
(rear panel of subwoofer)
Speaker and Amplifier Connection
Dashed lines indicate that
wire is not included
Left ront
TV
Audio Output
OPTICAL
Right Left
Center
Right ront
Remote Sensor
COAXIAL
Right Surround
Left Surround
AUX
(Additional Audio Source)
Audio Output
Right Left
Digital Source A
DVD or CD
Digital Output
Digital Source B
DVD or CD
Digital Output
All manuals and user guides at all-guides.com

ENGLISH
-8-
three. Operation
Master On/Off Switch
To operate unit, place this switch
in the On/Standby position. The
system will go into standby when
no signal has been received and
when no unit connected to any of
its two digital inputs has been on
for approximately five minutes.
Rear-Panel Control
Remote-Control-Battery Installation.
+
+
+
Push small tab towards
battery slot and pull battery
drawer out.
Remove old battery. Insert new battery with “+”
side up, and slide battery
drawer back into remote.
All manuals and user guides at all-guides.com

ENGLISH
-9-
Bass
Treble
Delay Level
0 dB Test
Adjustment
Late Night
Power
Mute
Surround
Mode
Input
–+
–+
–+
Volume
8
10
11
12
13
5
4
9
7
3
2
1
6
Volume
Surround Mode
Input Mute
STANDBY
ON
SUB
LVL
DLY
RSRFCLFLS
AUX
PCM
3 - St Late NightPhantom
Digital ProLogic
Surround
DIG. OPT DIG. COAX TV
31
32
33
2
6
5
4
18
16
15
14
22
23 24 25
19 21 26 17
27
28 29 30
20
Remote and Front-Panel Controls and Indicators
Front Panel
Remote Control
1. Power
This button, located only on the
remote control, allows the user
to manually turn on or off the
escXcite. Please note that the
escXcite features Automatic
Turn-On/Off, and the power
switch is not normally used
unless it is necessary to override
this automatic feature, or in
case the analog input to be used
is not the last one that was used
and so Automatic Turn-On is not
available for that input. Please
read the details regarding Auto-
matic Turn-On/Off on page 3 of
this manual, and keep in mind
that the escXcite automatic
turn-on feature will be disabled
for five minutes if the escXcite is
shut down manually.
The escXcite can also be powered
on by using the Input button (4)
on the front panel of the sub-
woofer or on the remote control.
Please note that if input selec-
tion is done by pressing the
Input button, the Automatic
Digital Input Selection of the
escXcite will be disabled until
the escXcite shuts down.
When the escXcite is plugged
into a working electrical outlet
and its master switch on the
back panel is set to On/Standby,
the Standby (32) indicator will
illuminate. The ON (31) indicator
will light as soon as the escXcite
is turned on either automatically
or via the pressing of the Power
or Input buttons.
2. Mute
From either the front panel or
the remote control, press (Mute)
to lower the volume completely.
The mute symbol indicator (33)
will illuminate. When you press
either of the mute buttons
again, the volume will return to
its previous setting.
Note: The mute function can
also be turned off by pressing
either of the volume buttons on
the front panel or the remote
control.
3. Late Night
This feature is available for
Dolby Digital only. It compresses
the inherently dynamic digital
sound so that the quiet and loud
passages are not quite as differ-
ent in sound levels as they ordi-
narily are. This feature allows
the user to watch movies and
listen to dialogue at toned-down
levels so as not to disturb others
by the loud sound effects that
may be present. The Late Night
indicator (26) illuminates when
this feature is active.
All manuals and user guides at all-guides.com

ENGLISH
-10-
4. Input
This control is available on both
the front panel and the remote
control. It allows manual selec-
tion when the user repeatedly
presses and releases the button
for any of the
escXcite’s four inputs. The
escXcite features an Automatic
Digital Input Selection feature
that automatically switches the
escXcite to the source con-
nected to one of its two
digital inputs as soon as that
device is powered on. Please
read the section on page 3 to
thoroughly familiarize yourself
with the conveniences and con-
ditions of using the Automatic
Digital Input Selection feature.
The Input switch is also used
when the source connected to
the escXcite’s analog input is
not the analog source that was
listened to the last time the
escXcite was on (and hence the
Automatic Turn-On feature is
not available). The Input switch
also turns on the escXcite when
pressed (see item 1 earlier in
this section). Whenever a spe-
cific input is selected either
manually or automatically, its
indicator (14, 15, 16 or 17) on
the escXcite unit’s front panel
will be illuminated.
5. Surround Mode
Pressing and releasing this but-
ton allows the selection of dif-
ferent listening modes. Sur-
round (18), Phantom (19),
3-Stereo (20) and stereo are
available listening options for
Dolby Pro Logic. Stereo (21)
bypasses the surround process-
ing and outputs sound through
the right-front and left-front
speakers only.
In Surround mode, all five satel-
lites and the subwoofer will
play. In Phantom mode, all
speakers except the center
channel will play. In 3-Stereo,
all speakers except for the two
surround speakers will be active.
6. Volume
Press (∧) on the remote control
or the front panel to raise the
system’s volume. Press (∨) on
the remote control or the front
panel to lower the system’s vol-
ume. The volume setting is
indicated on the status-bar
indicator (27).
7. 0 dB
Press this button to reset the
Center, Surround, Balance, Tre-
ble and Bass controls to their
default positions.
8. Test
Press this button to activate the
Test Tone mode (see Test Tone
section).
9. Delay
The relative timing of sounds
coming from the center and/or
surround speakers compared to
the front-left and front-right
speakers can be ad usted. The
first press of the Delay button
allows ad ustments of the sur-
round speakers; indicators LS
(28) and RS (28) and DLY (30)
will be on. The delay can be
ad usted from zero (all status
bars off) to 15 ms (all status
bars on) in DTS and Dolby Digi-
tal and from 15 ms (all status
bars off) to 30 ms (all status
bars on) in Dolby Pro Logic
(there is an inherent and fixed
15 ms of delay added in the
“matrixed” Dolby Pro Logic to
re-create the proper surround
effect).
The second press of this button
allows ad ustment of the center
channel, all the way from the
default setting of 0 ms (milli-
seconds), which means no delay
(all status bars off), to a maxi-
mum of 5 ms (5 status bars on).
The indicators
C (28) and DLY (30) will be on.
The center and surround ad ust-
ments can be done in either
DTS, Dolby Digital or Dolby Pro
Logic “matrixed” modes. There
are no separate delay ad ust-
ments for the individual modes
of operation. During ad ust-
ments, the audio mutes momen-
tarily every time the Ad ustment
+/– button (11) is pressed.
Please note that the status-bar
indicator (27) will not display
unless Ad ustment +/– buttons
are pressed. Also, while the
status-bar indicator (27) is on,
channel indicators (28) and DLY
(30) will not be displayed. And,
if ad ustments are done in a
mode where a certain channel is
not available, the ad ustment
step for that channel is skipped.
For example, in Phantom mode,
the center-channel delay cannot
be ad usted since Phantom does
not have a center channel. In
Stereo, neither the center nor
the surround delay can be
ad usted since Stereo does not
feature surround speakers or a
center speaker. A third press of
the Delay button will exit the
escXcite from its delay-ad ust-
ment mode.
10. Level
The relative level of sounds
coming from each of the
escXcite’s speakers can be
ad usted while listening to pro-
gram material on the escXcite.
Repeated pressing and releasing
of the Level button allows
access to each channel. The dis-
play will indicate LVL (29), and
the channel indicators (28) LF
(Left Front),
C (Center), RF (Right Front),
RS (Right Surround), LS (Left
Surround) and SUB (subwoofer)
will illuminate to indicate the
All manuals and user guides at all-guides.com

ENGLISH
-11-
active speaker. The level for the
selected channel can then be
changed using the Ad ustment
+/– buttons (11). Levels set in
one mode will stay valid for all
other modes and are not inde-
pendent. Please note that the
status-bar indicator (27) will
not display unless Ad ustment
+/– buttons are pressed. And,
while the status-bar indicator
(27) is on, channel indicators
(28) and LVL (29) will not be
displayed. Also, if ad ustments
are done in a mode where a cer-
tain channel is not available,
the ad ustment step for that
channel is skipped. For examp-
le, in Phantom mode the center-
channel level cannot be ad-
usted since Phantom does not
have a center channel. In
stereo, neither the center nor
the surround levels can be
ad usted since Stereo does not
feature surround speakers or a
center speaker.
A seventh press of the Level
button will exit the escXcite
from its level-ad ustment mode.
11. Adjustment
These buttons are used in con-
unction with Test (8), Delay
(9), and Level (10) to increase
or decrease a setting.
12. Bass
Press (+) to increase the level of
low-frequency information.
Press (–) to decrease the level
of low-frequency information.
13. Treble
Press (+) to increase the level of
high-frequency information.
Press (–) to decrease the level
of high-frequency information.
14–17. Input
One of these four indicators will
illuminate, depending on which
input is selected.
18–21. Surround
One of these will illuminate,
depending on which surround
mode is chosen.
22. Dolby Digital
Indicates the presence of a
Dolby Digital-encoded digital
signal.
23. DTS
Indicates the presence of DTS
encoded digital signal.
24. Dolby Pro Logic
Illuminates when Dolby Pro
Logic decoding of a 2-channel
signal is taking place. This indi-
cator may be on by itself (when
analog inputs are used), in con-
unction with Dolby Digital
(when using a digital input
where the Dolby Digital format
signal contains two channels
and needs to be decoded into
multichannel) or together with
PCM (when using a digital input
where 2-channel PCM-format
data is being decoded into mul-
tichannel).
25. PCM
Illuminates when the signal
supplied through the selected
digital input is in PCM format.
26. Late Night
Illuminates when the Late Night
compression is selected.
27. Status-Bar Indicator
These LEDS show the relative
setting of volume, bass, treble,
speaker level and speaker delay.
28. Speaker Indicator
Identifies the speaker that’s
being ad usted. LS is Left Sur-
round, LF is Left Front, C is Cen-
ter, RF is Right Front, RS is
Right Surround, and SUB is Sub-
woofer.
29. Level
Illuminates when the escXcite is
in speaker-level ad ustment
mode.
30. Delay
Illuminates when the escXcite is
in speaker-delay ad ustment
mode.
31. On
Indicates that the escXcite is
fully powered up.
32. Standby
Indicates that the escXcite is
plugged into an active wall out-
let and the master switch on the
back panel is in On/Standby
position, but the unit is not
powered on.
33. Mute
Illuminates when the mute
function is activated (the
escXcite will be on but will not
produce any sound).
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
-12-
LED Bar Indicators illuminate in
response to ad ustments in
volume, delay, level, bass and
treble controls.
Status-Bar Indicators
Increase Decrease
Volume, Level, Delay
0dB
0dB
Increase Decrease
Bass, Treble
All manuals and user guides at all-guides.com

ENGLISH
-13-
Surround
Use this mode for films recorded
using DTS, Dolby Digital or
Dolby Pro Logic Surround.
Phantom
This mode creates surround
sound from stereo recordings.
The center channel is not used
and the surround channels have
a 20-ms delay.
3-Stereo Mode
Use this mode to play back Pro
Logic-encoded films when you
do not want the surround chan-
nels to play.
Stereo
This mode plays a recording in
traditional two-channel stereo.
Surround Modes
The Test Tone is used to
calibrate the volume settings of
each of the speakers in the
escXcite. It is dependent on the
room where the system is set up
and the relative distances and
positions of each speaker to the
listening position. In all modes,
a static-like noise will be heard
cycling, in order: left front, cen-
ter, right front, right surround,
left surround, subwoofer. In
modes other than DTS or Dolby
Digital, the sound from the two
surrounds will be coming at the
same time, since the surrounds
in all available modes, except
DTS and Dolby Digital, are in
mono. When the Test Tone is
heard coming from a specific
channel, pressing the Ad ust-
ment +/– (11) buttons will
increase or decrease the level of
sound coming from that chan-
nel. The display status-bar indi-
cator (27) provides visual indi-
cation of the ad ustment as the
ad ustment is being made. The
default ad ustment level of 0 dB
is indicated by five status-bar
indicators illuminated.
If ad ustments are done in a
mode where a certain channel is
not available, the ad ustment
step for that channel is skipped.
For example, in Phantom mode,
the center-channel level cannot
be ad usted since Phantom does
not have a center channel. In
stereo, neither the center nor
the surround levels can be
ad usted since Stereo does not
feature surround speakers or a
center speaker.
Using the remote control,
ad ust each channel’s levels
until the volume of all the
speakers is the same during the
test. To make sure all channels
are properly ad usted, do the
test twice, once in Dolby Digital
or DTS (Dolby Digital or DTS is
automatically selected when the
escXcite is connected to a DVD
player playing Dolby Digital-
encoded or DTS-encoded mater-
ial) and once again in Dolby Pro
Logic.
Note: The Test Tone is used to
calibrate the system to repro-
duce all program materials at
the correct relative levels, as
was determined by the re-
cording engineers. When listen-
ing to actual surround-encoded
program material, the volume
level of the surround channels
is generally lower than that of
the front channels. In fact, vir-
tually all of the dialogue and a
substantial number of the
effects in a movie are re-
produced through the center
channel.
Test Tone
All manuals and user guides at all-guides.com

ENGLISH
-14-
If there is no sound from any
of the speakers:
• Make sure the subwoofer is
plugged into an active AC wall
outlet.
• Make sure the Master Power
Switch, located on the rear of
the subwoofer, is in the
On/Standby position.
• Make sure there is a source –
for example, a DVD Player, CD
Player, VCR or television –
hooked up to one of the four
input acks.
• Make sure that the program
material is playing.
• Recheck the hookup
connections, referring to the
Speaker Connections section.
If there is no sound from the
surround speakers or
sound is very low:
• Check all connections
between processor/amplifier
and each of the speakers.
• Raise the surround volume
from the remote control (see
Operation section).
• Make sure the TV show or
movie you are watching is
recorded in surround, try the
Phantom or Simulated Sur-
round mode.
• Increase the surround- speak-
ers’ level, using the level-
ad ustment instructions found
earlier in this manual.
If there is no sound from the
center speaker:
• Make sure that the processor
is in the Surround or
3-Stereo mode. If it is in
Phantom or Stereo mode, the
center speaker will not play.
• Increase the level of the cen-
ter channel, using the level-
ad ustment instructions earli-
er in this manual.
• Check the connections
between the subwoofer and
the center speaker.
If you have low bass output:
• Experiment with placement of
the subwoofer. Remember,
place the subwoofer in a
corner to get maximum bass
output from the system.
• Increase the subwoofer level,
using the level-ad ustment
instructions found earlier in
this manual.
• Increase the level of bass,
using the remote control.

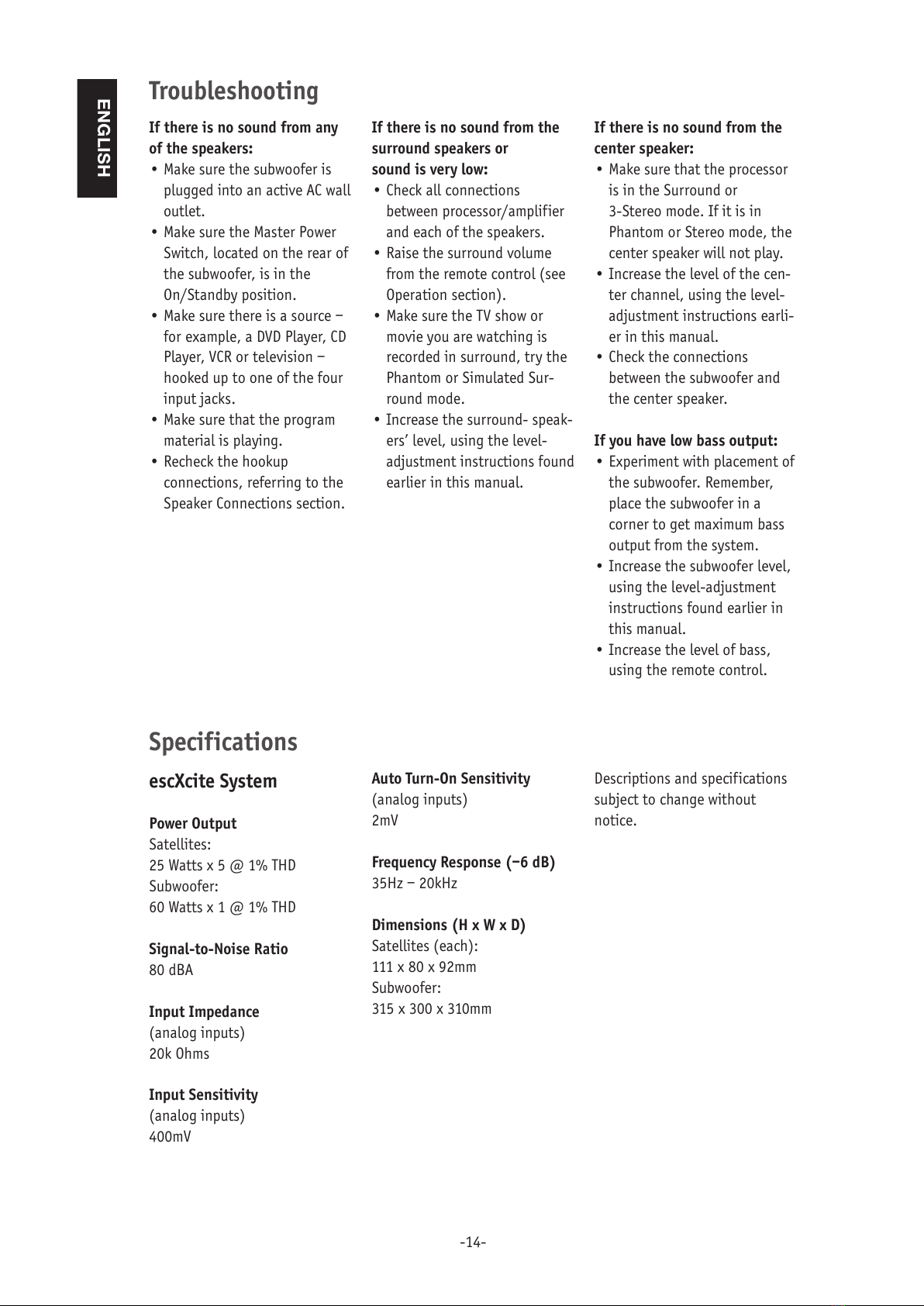

Troubleshooting
Specifications
escXcite System
Power Output
Satellites:
25 Watts x 5 @ 1% THD
Subwoofer:
60 Watts x 1 @ 1% THD
Signal-to-Noise Ratio
80 dBA
Input Impedance
(analog inputs)
20k Ohms
Input Sensitivity
(analog inputs)
400mV
Auto Turn-On Sensitivity
(analog inputs)
2mV
Frequency Response (–6 dB)
35Hz – 20kHz
Dimensions (H x W x D)
Satellites (each):
111 x 80 x 92mm
Subwoofer:
315 x 300 x 310mm
Descriptions and specifications
sub ect to change without
notice.
All manuals and user guides at all-guides.com
