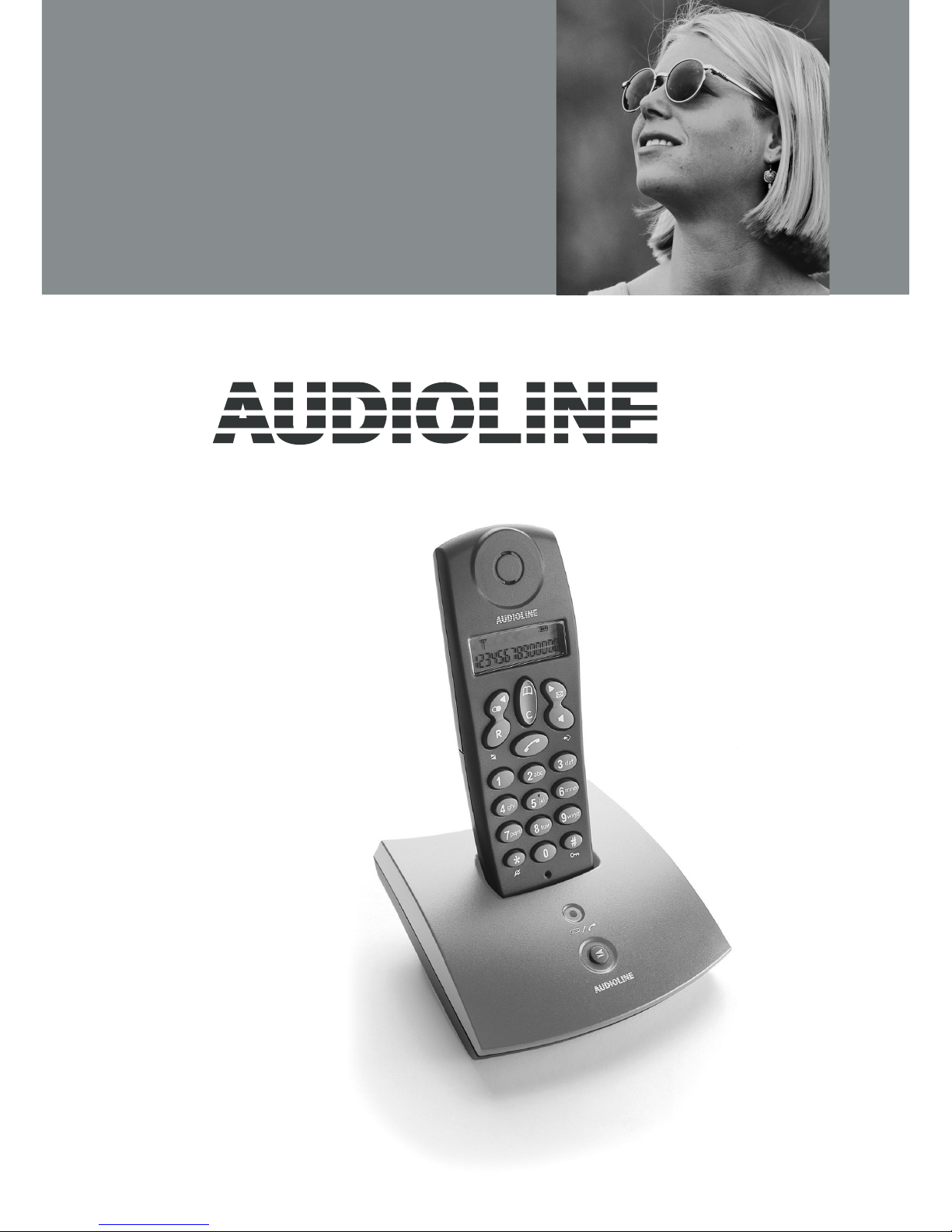

AUDIOLINE 704 User manual

704
Manual

1
Redial/Pause and Scroll button
2
Recall/Intercom button
3
Talk button
4
*
and Ringer on/off button
5
#
and Key Lock button
6
Erase/Mute button
7
Programming/Hands free button
8
Caller ID/Scroll button
9
Phone Book memories
1
4
7
5
2
0
9
6
3
8
*#
 
 
 


9
9
7
8
1
2
3
4
5
6

English
www.doro.com 3
Index
Installation
4
Unpacking
...........................
4
Connection
.........................
4
Belt clip
...............................
5
Battery
................................
5
Battery charge indicator
.....
6
Range
.................................
6
The display
.........................
7
Base unit indicator
..............
7
Operation
8
Making a call
.......................
8
Receiving a call
..................
8
Redial function
....................
8
Key lock
..............................
8
Mute button
.........................
9
Paging
.................................
9
Timer
...................................
9
Hands free function
............
9
Memory
...............................
10
Caller Identi cation
11
Settings
13
Ringer melody
....................
13
Ringer volume
....................
13
Volume control
....................
14
Direct call
............................
14
Recall button timing
............
15
Tone/pulse dialling
..............
15
Reset handset defaults
.......
15
Expanded system
16
General information
............
16
Multiple handsets
................
16
Registering a new handset
.
17
De-registering another
handset
...............................
17
Intercom calls
.....................
18
Transferring calls between
handsets
.............................
18
Conference
.........................
18
Other
19
Troubleshooting
in general
............................
19
Guarantee
...........................
21

English
4
www.doro.com
Installation
Unpacking
The package should include the following items:
- Handset
- Mains adapter
- Base unit
- Line cord
- 2 batteries (Ni-MH AAA 1.2V 600 mAh)
Models with an extra handset (+1) also include an additional handset, batteries, charger
and mains adapter*.
IMPORTANT!
Only use with the supplied power adaptor/s.
Connection
1.
Connect the mains adapter to the
y
socket of the base unit and to an electrical
wall socket.
2.
Carefully remove the handset battery cover. Insert the batteries into the handset
ensuring correct battery polarity is observed, and replace the battery cover.
3.
Place the handset in the base unit, with the keypad facing outwards. Once the
handset is correctly positioned in the base unit, a beep will be heard.
4.
Leave the handset to charge initially for 24 hours before use.
5.
Connect the line cord to the
T
socket on the base unit and a network wall socket.
T socket on the base unit and a network wall socket. T
Only for models with an extra handsets (+1):
6.
Connect the mains adapter to the
y
socket of the base unit and to an electrical
wall socket.
7.
Carefully remove the handset battery cover. Insert the batteries into the handset
ensuring correct battery polarity is observed, and replace the battery cover.
8.
Place the handset in the base unit, with the keypad facing outwards. Once the
handset is correctly positioned in the base unit, a beep will be heard.
9.
Leave the handset to charge initially for 24 hours before use.
Please note!
Under power failure conditions this telephone will not operate. Please ensure that a separate telephone
not dependent on local power is available for emergency use. Do not place the base unit close to other
electrical equipment such as TV sets, computer screens, telecom equipment, fans etc. This will minimize
the risk of interference. Do not place the base unit in areas where it will be exposed to direct sunlight or
other major heat sources.

English
www.doro.com 5
Installation
Belt clip
A belt clip is  tted to the back of the handset, allowing the handset to be attached to a
belt, shirt pocket or similar.
Battery
The telephone is supplied with environmentally friendly nickel metal hydride (NiMH)
batteries – 2 x AAA 1.2V. As with all batteries, performance may degrade over time;
should you notice that the standby time has reduced considerably or there are signs of
leakage, the batteries should be replaced.
Fully-charged batteries will last for approx 100 hours in standby or 10 hours call time
(does not apply when hands free function is used). These operation times apply at
normal room temperature.
Full battery capacity will be achieved once the batteries have been charged 4-5 times,
completely discharged batteries will take about 10 hours to fully recharge.
Please note that the battery indicator in the display will  ash while the handset is
located in the base unit and will not stop when the battery is fully charged.
The base unit has an automatic charging mechanism that prevents the batteries from
being overcharged or damaged by prolonged charging. It is better for handsets to be
recharged every other night, rather than after each call.
Please note!
To ensure and maintain good charging of the handset batteries we recommend that the base and handset
charge contacts are cleaned regularly, ie monthly, with a pencil eraser and/or a soft dry cloth. The
recharging system used in this model may result in the handset and the batteries warming up. This is
normal and will not harm the equipment.
When the telephone is installed for the  rst time, the batteries must be charged for 24 hours before using
the telephone. Use original batteries only. The guarantee does not cover any damage caused by incorrect
use of batteries. Please dispose of any batteries in a responsible and environmentally friendly manner.

English
6
www.doro.com
6 www.doro.com6
Installation
Battery charge indicator
The symbol
]
in the display indicates when it is time to recharge the
batteries, during a call when the battery is running low a warning tone will
be heard. If the handset is not recharged at this time, the phone will cease to
function until it is recharged. The symbol
|
will be displayed when the
battery is fully charged.
Range
The range of the telephone varies depending on different factors in the
surrounding enviroment. Radio waves transmiting the call may be hindered by
obstructions or signal re ections that can reduce the range
Speci ed ranges require unobstructed transmission between the handset and the
base unit. In such ideal conditions the telephones range can be up to 300 metres.
In densely populated areas, houses, apartments, etc. the range will be reduced.
Try to get the best range by relocating the base unit, the ideal location is a high
and unobstructed place.
Out of range warning
If during a call the handset is carried too far from the base unit a warning tone
will be heard. Unless the handset is moved closer to the base unit within a few
seconds the call will be lost.

English
www.doro.com 7
Installation

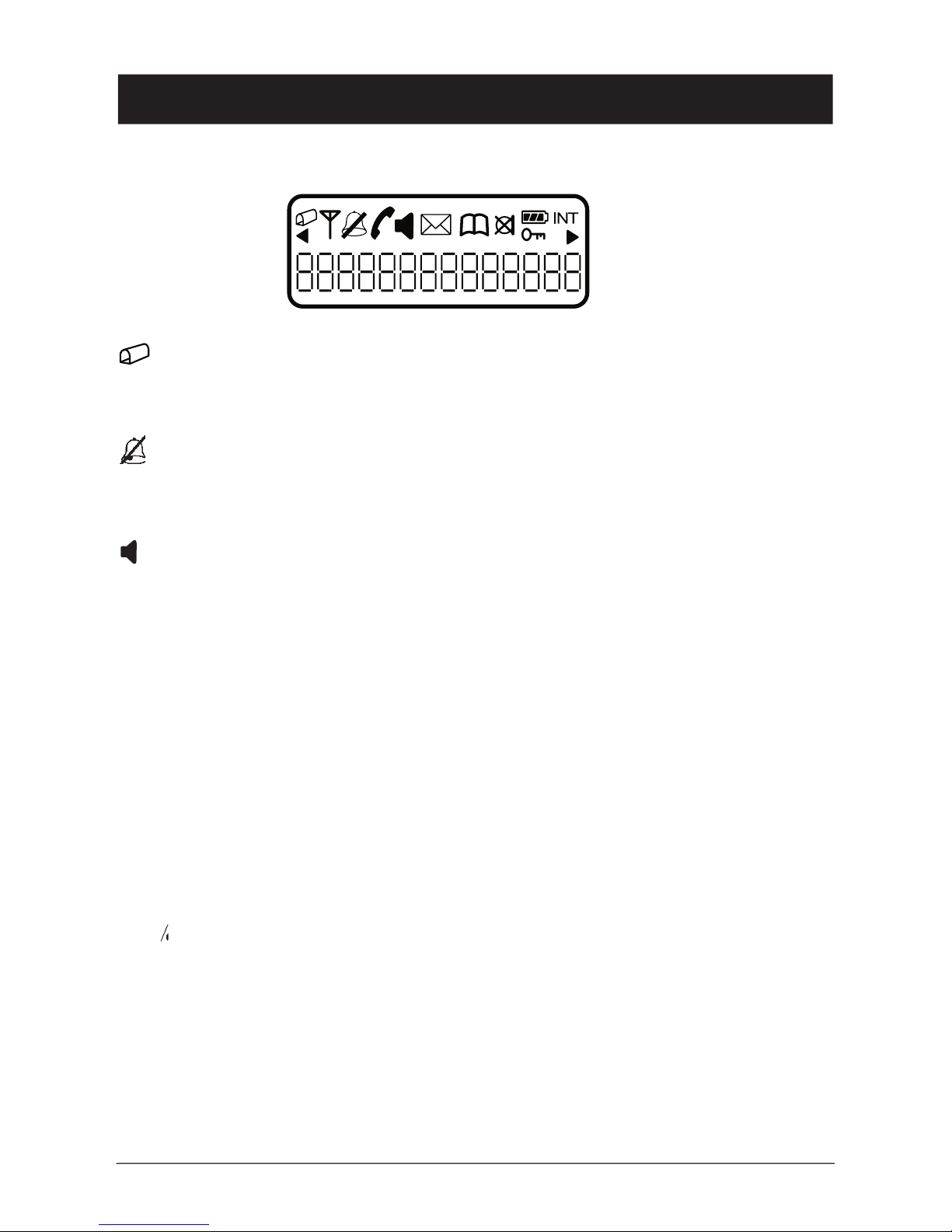

The display
Indicator
Function
Network Message indication.
6
Shown within range of the base unit. Flashes when out of range.
Ringer off.
q
Indicates that a call is connected.
Flashes when the phone rings.
Hands free function.
5
New number(s) in Caller ID log.
b
Phone Book.
z
Mute function.
|
Charging indicator.
N
Key Lock
INT
Internal Call
Base unit indicator
7
/
q
/
q
/
Light illuminated while charging;  ashes during a call/registration.

English
8
www.doro.com
8 www.doro.com8
Operation
Important!
Please note when programming all references to press = to press once and then immediately release
the button.
Making a call
1.
Enter the required telephone number. Mistakes can be erased using
C
.
2.
Press
q
the telephone number will now be dialled.
3.
Press
q
again to terminate the call.
q again to terminate the call. q
Receiving a call
1.
Wait for the handset to ring.
2.
Press
q
to answer the call.
qto answer the call. q
3.
Press
q
to terminate the call.
q to terminate the call. q
Please note!
If the telephone cannot connect to a line, a warning tone will be heard. The problem may be due to
the batteries running low, the handset being too far from the base unit or all of the transmission
channels being engaged.
Redial function
The 10 most recently dialled numbers can easily be redialled using
r
.
1.
Repeatedly press
r
to scroll to the desired telephone number.
2.
Press
q
the displayed number will now be dialled.
q the displayed number will now be dialled. q
Key lock
This function locks the push buttons on the handset to prevent unintentional usage.
1.
Press and hold
N
until the display shows
N
.
2.
To deactivate the key lock press and hold
N
again.
Calls can still be received even if the key lock is active. When the call is  nished the
handset returns to locked mode.

English
www.doro.com 9
Operation
Mute button
The microphone can be muted during a call by pressing
C
. Press
C
again to re-activate
the microphone.
The display will show
z
as long as the function is active
.
Paging
Pressing
J
on the base unit will activate the paging signal on the handset. This
function is used to help locate the handset or to page the person carrying the handset.
The signal will stop automatically after a while or if any
button on the handset is
pressed. The page can also be cancelled by pressing
J
on the base unit again.
Timer
Within approximately 10 seconds after the connection of a call, a timer will be shown on
the display. The timer is a simple way to help you keep track of how long the call lasts.
Hands free function
The hands free button is located on the front of the handset, this allows calls to be
made without having to hold the handset. If you wish you can switch between handset
and hands free during a call.
1.
Enter the required telephone number. Mistakes can be erased using
C
.
2.
Press
q
the telephone number will now be dialled.
3.
When the call is connected press
.
The hands free function will be activated and
the conversation can be heard through the speaker.
4.
Place the handset on an a hard  at surface, e.g. a table.
5.
Speak towards the microphone on the lower front edge of the handset(max 1 metre
away).
6.
The volume can be adjusted during a call - see volume control on page 14.
7.
To switch to normal handset conversation press
.
8.
To switch back to hands free press
again
.
9.
Press
q
to terminate the call.
q to terminate the call. q
Please note!
Please remember that in hands free speaker mode it is only possible for one person at a time to talk.
The switchover between speaker and microphone is automatic and dependent on the sound level of the
incoming call and the microphone respectively. It is therefore essential that there are no loud noises in the
immediate vicinity of the telephone, as this will disrupt the speaker function.
.
To switch to normal handset conversation press
The hands free button is located on the front of the handset, this allows calls to be
again

English
10
www.doro.com
10 www.doro.com10
Operation
Memory
This telephone has 10 speed dial memory locations.
When a number is stored in a memory location, you only need to press two buttons
to make the call. The memory locations are numbered 0-9.
Storing speed dial memory locations
1.
Press and hold
º
until P is displayed.
2.
Press
b
.
3.
Enter the telephone number (up to 24 digits).
Mistakes can be erased using
C
.
4.
Press
b
.
5.
Select a memory location by pressing one of the keypad numbers
0
-
9
.
6.
Press
º
.
Please note!
If you need to insert a pause in the telephone number, press and hold
0
until the display shows P.
If you need to change a number, store the new number in the same location as the old one.
Dialling using speed dial memories
1.
Press
b
.
2.
Enter the required memory location,
0
-
9
.
3.
Press
q
the displayed number will now be dialled.
q the displayed number will now be dialled. q
Erasing all speed dial numbers
1.
Press and hold
º
until P is displayed.
2.
Press
0
.
3.
Press
b
.
4.
Press
º
.

English
www.doro.com 11
Caller Identi cation
Explanation of Caller ID
Caller ID allows you to see who is calling before you answer a call or see who
has called in your absence. The call log will store up to 20 telephone numbers,
when the log is full the oldest number will be deleted automatically as the new
call is logged.
New calls are indicated in standby mode on the handset display by
*
.
Please note!
In order for numbers to be shown, you must subscribe to the Caller ID service provided by
your network operator and a current subscription in place. Contact your operator for more
information.
Retrieving and dialling incoming numbers
1.
Press
*
. The last number received will be displayed.
2.
Press
8
to scroll to the desired telephone number.
3.
Press
9
to show the time and date the call was received.
4.
Press
q
to dial the displayed number, or press
q to dial the displayed number, or press q
C
to return to standby
mode.
Messages
Apart from showing phone numbers, the display can show:
It is an International call or a call from a PBX (no
information received).
The list is empty.
Time/date information not transmitted or received.

English
12
www.doro.com
12 www.doro.com12
Caller Identi cation
Transferring numbers to memory
1.
Press
*
. The last number received will be displayed.
2.
Press
8
to scroll to the desired telephone number.
3.
Press and hold
b
until
b
 ashes in the display.
4.
Enter the required memory location,
0
-
9
.
5
.
Press
b
. The telephone will return to standby mode.
Erasing Numbers
1.
Press
*
. The last number received will be displayed.
2.
Press
8
to scroll to the desired telephone number.
3.
Press and hold
C
until a beep is heard, the number will be deleted
Erasing all numbers
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
0
.
3.
Press
*
. NO CLIP will now be displayed on the handset.
4.
Press
º
.
Network message indication
If new information exists on a network service, eg, a voice mail system, the
display will show
.
Access the information/messages in accordance with
the instructions provided by your network operator. After accessing all of the
new information/messages the indicator
in the display will be turned off
automatically by the network. However if this does not happen, or you do not
subscribe to a network voice mail system, the indication can be cancelled from
the display by pressing and holding
C
for a few seconds while in standby mode.
Please Note!
In order for the network voice mail to operate, you must subscribe to this service and/or have it
activated by your network operator. Contact your operator for more information.

English
www.doro.com 13
Settings
Ringer melody
There are several handset ringer melodies to choose from.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
5
.
3.
The current setting will be displayed (
♫
The current setting will be displayed (♫ The current setting will be displayed (
1=type 1,
♫
2=type 2...
♫
9=type 9).
4.
Select your required setting by either pressing the corresponding digit
1
-
9,
or scrolling using
8
/
9
.
5.
Press
º
to save.
Ringer volume
The handset ringer volume can be adjusted to different levels.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
6
.
3.
The current setting will be displayed (o=min, o o o o o=maximum).
4.
Select your required setting by either pressing the corresponding digit
1
-
5
,
or scrolling using
8
/
9
.
5.
Press
º
to save.
The ringer can be switched on or off while the handset is not in use. To turn
the ringer off press and hold
*
until
is displayed. Press and hold
*
to turn
ringer back on.

English
14
www.doro.com
Settings
Volume control
The speaker and earpiece volume can be adjusted in several steps
during a call
using the volume buttons.
1.
While on a call press and hold
º
until P is displayed on the handset.
2.
Press
4
.
3.
The current setting will be displayed (o=min, o o o o o=maximum).
4.
Select your required setting by either pressing the corresponding digit
1
-
5
,
or scrolling using
8
/
9
.
5.
Press
º
to save.
Direct Call
This function allows a preset number to be dialled regardless of which key is
pressed. When activated the stored number will be shown in the handset display.
The number
must
be stored  rst.
Storing a Number
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
3
.
3.
Enter the required telephone number (up to 24 digits). Use
C
to erase or
make changes.
4.
Press
º
to save.
Turning the function on/off
To switch this function on or off simply repeat the following sequence.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
2
.
3.
Press
º
to save.

English
www.doro.com 15
Settings
Recall button timing
In some advanced PBX systems the recall timing may require adjustment. In
normal domestic use, this setting should not require changing.
The normal setting is 100 ms.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
R
.
3.
The current setting will be displayed
( S=100 ms, L=300 ms/600ms AU/NZ).
4.
Press
R
to select the required setting
.
5.
Press
º
to save.
Tone/pulse dialling (UK only)
You can select either tone or pulse dialling, the standard setting is tone. In
normal domestic use this setting should not require changing.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
7
.
3.
The current setting will be displayed (P=pulse, T=tone).
4.
Press
R
to select the required setting
.
5.
Press
º
to save.
Reset handset defaults
An individual handset can be reset to the original factory default condition.
1.
Press and hold
º
until P is displayed on the handset.
2.
Press
9
.
3.
Enter the units PIN number (0000 for this model).
4.
Press
º
to save
.

English
16
www.doro.com
16 www.doro.com16
Expanded System
General information
DECT (Digital Enhanced Cordless Telephone) is a digital method of
transmission for cordless telephones. You can:
-
Use up to 5 handsets with the same base unit.
-
Make internal calls (intercom) and transfer calls between connected
handsets using the same base unit.
-
Connect (register) up to 4 base units with the same handset.
This model is also GAP (Generic Access Pro le) compatible, which means
that the handset and the base unit can both be used with most other GAP-
compatible units irrespective of manufacturer. However, the GAP protocol does
not guarantee all functions will work.
Multiple handsets
The multiple handset function has numerous practical applications, e.g.
employees in an of ce can have several handsets linked to the same base unit.
They can all answer incoming calls, make outgoing calls, use the handsets
internally as an intercom system, and also transfer external calls between the
handsets. One external call and one internal call can be active simultaneously.
To be able to use extra handsets with a base unit, you must register the handset.
Registration enables the handset to know which base unit it belongs to.
On registration, the handset is allocated a speci c handset number, e.g. 2. This
number is also used for internal calls between handsets. When you purchased
the telephone, the handset was pre-registered with the accompanying base unit.
The handset has the handset number 1, which is shown in the display in standby
mode. Refer to the Registration chapter for more information.
If you wish to use several handsets with one base unit, you should ensure that
the base unit is centrally positioned in order to evenly divide the base units
range among the handsets.

English
www.doro.com 17
Expanded System
Registering a new handset
To enable the use of more than one handset a registration has to be performed.
Every new handset must be registered in order to use the current base unit, each
base unit can handle up to 5 handsets.
On registration the handset is allocated a handset number for use on the new
base unit, the handset numbers are 1-5.
1.
Press and hold
J
on the base unit until
Q
starts  ashing. Registration
Q starts  ashing. Registration Q
mode will remain active for approximately 3 minutes.
2.
Press and hold both
8
and
9
together until you hear a long beep.
3.
Select the base unit you wish to register by pressing the corresponding
number button
1
-
4
.
4.
When PIN is displayed, enter the units PIN number (0000 for this model).
5.
If the registration is successful the handset will return to standby mode in a
few seconds.
De-registering another handset
Any additional handset can easily be de-registered from a base unit.
1.
Simultaneously press and hold
8
and
c
until you hear a beep.
2.
Enter the units PIN number (0000 for this model).
3.
When HS is shown in the display, enter the handset number you wish to
delete.

English
18
www.doro.com
18 www.doro.com18
Expanded System
Intercom
When using more than one handset with the same base unit, calls can be made
internally between the handsets referred to as internal calls, or intercom. Intercom
calls can only be made between handsets connected to the same base unit
1.
Press and hold
I
until HS- is shown in the handset display.
2.
Enter the handset number for the handset that you wish to call,
1
-
5
.
Should an external call be received while an intercom call is in progress, a tone will
be heard. Terminate the intercom call by pressing
q
, press
q
, press
q
q
again to answer the
q
again to answer the
q
incoming call.
Transferring calls between handsets
An external call can be transferred from one handset to another (providing both
handsets are operating on the same base unit).
1
.
While an external call is connected.
2.
Press and hold
I
until HS- is shown in the handset display.
3.
Enter the handset number for the handset that you wish to call,
1
-
5
.
4.
To transfer the external call press
q
on the calling handset.
q on the calling handset. q
If you decide not to transfer the call press and hold
I
until
INT
 ashes in the
calling handsets display, alternatively wait until the person you have intercomed
hangs up.
Conference
A conference call allows two handsets and an external caller to be on line at the
same time.
1.
While an external call is connected.
2.
Press and hold
I
until HS- is shown in the handset display.
3.
Enter the handset number for the handset that you wish to call,
1
-
5
.
4.
To answer press
q
on the called handset.
q on the called handset. q
5.
To connect all three parties in a conference call,
on the original handset
press
and hold
#
until
q
stops  ashing in the handset display.
Press
q
on either handset to terminate the conference call, the other handset can
q on either handset to terminate the conference call, the other handset can q
then continue the conversation with the external party.

English
www.doro.com 19
Other
Troubleshooting
Check that the telephone cord is undamaged and properly plugged in. Disconnect any
additional equipment that may be connected. If the problem is resolved, the fault is
with the other equipment.
Test the equipment on a known working line. If the product works then the fault is
probably with the line. Please inform your local telephone company.
No number shown in display when ringing
-
In order for this feature to function, you must subscribe to the Caller Identi cation
service from your network provider.
-
If - - - - shows in the display, the call may be an international call (no data received),
or from a private or withheld number.
-
It may not be possible to receive Caller ID information if the phone operates in a
PBX system.
Warning tone while talking/cannot connect
-
The batteries may be running low (recharge the handset).
-
The handset may be (nearly) out of range. Move closer to the base unit.
-
There may be a new message on the answering machine.
Telephone does not work
-
Check that charge contacts in handset and base unit are clean.
-
Check the adapter, is it correctly connected to the base unit and to the mains
power?
-
Check that the telephone cord has been correctly connected to the base unit and to
the line socket.
-
Check the charge status of the handset batteries.
-
Check that the charge contacts in the hand and base unit are clean.
-
Try connecting another telephone known to be in working order to the line socket.
If that phone works, then it is likely that the equipment is faulty.
If the telephone still does not work, contact Doro or the place of purchase. Don’t forget
the receipt or copy of the invoice will be required for guarantee purposes.

English
20
www.doro.com
20 www.doro.com20
Other
Speci c Absorption Rate (SAR)
This telephone complies with applicable international safety requirements for exposure
to radio waves.
The SAR value of this telephone is no greater than 0.02 W/kg (measured over 10g of
tissue).
The maximum limit according to WHO is 2W/kg (measured over 10g of tissue).
UK
If you cannot resolve the fault using the fault nder section, technical support is
available on the
Premium Rate Number: 0906 302 0114.
Calls cost
50 pence per minute
(prices correct at the time of going to press),
and is operational between 9AM - 5PM Monday-Friday excluding Bank Holidays.
Alternatively,
E-mail on: [e-mail]
You can contact us in writing: Consumer Support Group, Doro UK Ltd., 22 Walkers
Road, North Moons Moat, Redditch, Worcestershire, B98 9HE, (regarding any Spares
or Technical query), or
Telephoning (Spares only): 01527 584377
Web site: www.doro-uk.com
Guarantee
This product is guaranteed for a period of 12 months from the date of purchase. Proof
of purchase is required for any service or support required during the guarantee period.
This guarantee shall not apply to a fault caused by an accident or a similar incident or
damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any
other circumstances on the purchaser’s part. Furthermore, this guarantee shall not
apply to a fault caused by a thunderstorm or any other voltage  uctuations.
This guarantee does not in any way affect your statutory rights. (As a matter of
precaution, we recommend disconnecting the telephone during a thunderstorm.)
