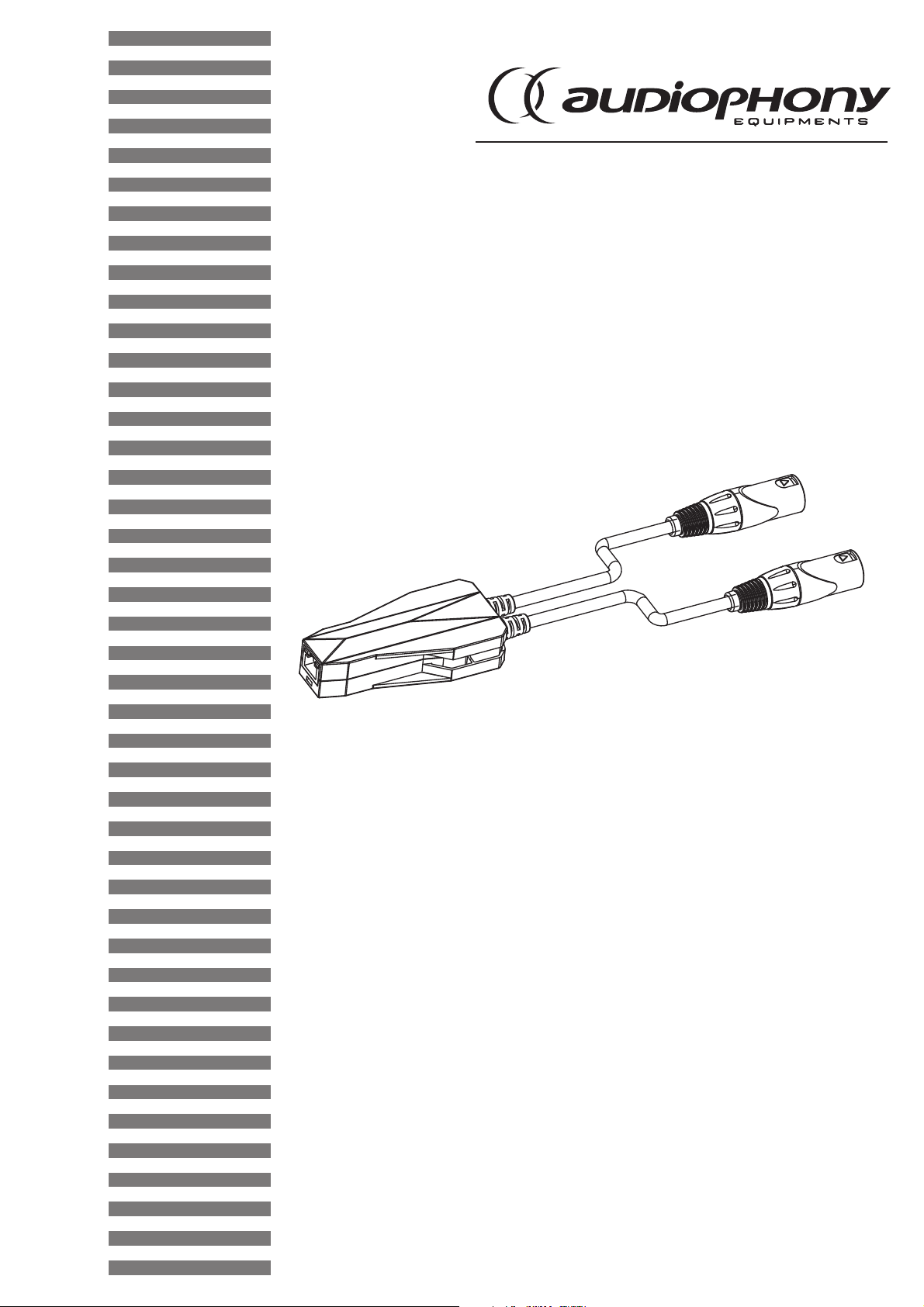

Audiophony PA ConvD2out User manual

USER GUIDE
H11049 - Version 1 / 02-2020
ConvD2out
Dante converter RJ45 - XLR3 Analog Out

Page 2
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out
1 - Please read carefully :
We strongly recommend to read carefully and understand the safety instructions before
attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any physical harm or property
damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other wet locations.
6 - Installation :
We strongly encourage you to only use a fixation system or support recommended
by the manufacturer or supplied with this product. Carefully follow the installation
instructions and use the adequate tools.
Always ensure this unit is firmly fixed to avoid vibration and slipping while operating
as it may result in physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid any overheating risk.
Do not obstruct or cover these vents as it may result in overheating and potential
physical injury or product damage. This product should never been operated in a
closed non-ventilated area such as a flight case or a rack, unless cooling vents are
provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause overheating and product
damages. Please keep this product away from any heat source such as a heaters,
amplifiers, hot plates, etc...
Sound levels
Our audio solutions deliver important sound pressure levels
(SPL) that can be harmful to human health when exposed
during long periods. Please do not stay in close proximity of
operating speakers.
1 - Safety information
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the housing or attempt
any maintenance by yourself. In the unlikely even your unit may require service, please contact your
nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord extension
or connecting system without making sure they are
perfectly isolated and present no defect.
10 - Electric power supply :
This product can only be operated according to a very specific voltage. These
information are specified on the label located at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at
lugs, convenience receptacles and the point where they exit from the fixture.
12 - Cleaning precautions :
Unplug the product before attempting any cleaning operation. This product should be
cleaned only with accessories recommended by the manufacturer. Use a damp cloth
to clean the surface. Do not wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the electronic components
and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by yourself. Refer all servicing
to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C, relative humidity must be less than
85% (when cooling vents are not obstructed).
Do not operate this product in a non-ventilated, very humid or warm place.
Recycling your device
• As HITMUSIC is really involved in the environmental
cause, we only commercialise clean, ROHS compliant
products.
• When this product reaches its end of life, take it to
a collection point designated by local authorities. The
separate collection and recycling of your product at the
time of disposal will help conserve natural resources
and ensure that it is recycled in a manner that protects
human health and the environment.
This symbol signals an important safety precaution.
The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Instructions and recommendations

Page 3
ENGLISH
ConvD2out - Dante converter RJ45 - XLR3 Analog Out
2 - Technical data
Analog audio
Maximum output level
(balanced) +4 dBu @ 0 dBFS
Output Impedance 150 Ohms (balanced) or 75 Ohms
(unbalanced)
Frequency response 20 Hz à 20 KHz (± 5 dB)
Dynamic range > 100 dB
SNR > 100 dB
THD < 0.05% @ +4 dBu
Dante audio
Number of channels 2 output channels
Sample rate 44.1 KHz, 48 KHz
Bit depth 24 bits
Network speed 100 MB
Network transmission Dante audio, AES67 RTP
Electrical data
Power consumption < 2 Watts
Power over ethernet Class 1 802.3af POE PD compliant
Mechanical data
Insertion and withdrawal force 10 N ~ 30 N
Net weight 165g
Connectors
Output connectors 2 x balanced analog XLR (3P)
Dante connector 1 port RJ45
Materials
Housing Black ABS
Cable Black PVC balanced audio cable,
Ø 6mm
Climatic data Operating temperature -5°C ~ +60°C

Page 4
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out
3 - RJ45 LED indicator for network link status
4 - Product overview
LED status LED sketch Comment
Both offNo power
Solid YELLOW (left)
GREEN off(right)
10Mbps link detected
(Note: 10Mbps Ethernet not
supported)
Solid YELLOW (left)
Solid GREEN (right) 100Mbps link detected
Blinking YELLOW( )
Solid GREEN (right) Network activity
2
3
1
470
98
47
1 - Dante input
2 - Analog output 1
3 - Analog output 2

Page 5
ENGLISH
ConvD2out - Dante converter RJ45 - XLR3 Analog Out
5 - Software part
Required Software for Dante Adapter
When using Dante adapter for the first time, Dante Virtual Soundcard and Dante Controller software can
be installed from and installed on the computer, and make sure to keep the latest version of the software.
Licensing of Dante Virtual Soundcard can be purchased from Audinate company.
Dante Virtual Soundcard
Dante Virtual Soundcard turns your computer into a Dante-powered workstation, seamlessly integrating
your PC with Dante audio devices on your network. You can instantly connect to a Dante network to record,
process and playout using any audio application and any combination of Dante-enabled devices.
Dante Controller
Dante Controller is a free software application that enables you to route audio and configure devices on a
Dante network. As well as automatic device discovery, one-click signal routing and user-editable device and
channel labels, Dante Controller makes Dante network configuration far simpler than ever.
1. Device Config/Rename Device
After Dante Controller is opened, all Dante devices on the network will be automatically identified.
Default device names will be simply represented by the last few digits of MAC addresses. To rename
device, double click device name, enter a new name via the Rename Device “ ” tab of “Device Config”,
press “Apply”, select “Yes”.
2. Sample Rate Change
Restart the host after setting Dante Controller.
For operation details of Dante Virtual Soundcard and Dante Controller, please see Audinate website
- SUPPORT - Technical Documentation.

Page 6
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out
6 - Connection to the system
1. Connect Dante adapter to the POE switch already connected to the network.
2. If there is not a PoE switch available, please connect Dante adapter to the POE injector, then connect PoE
injector to a common switch already connected to your Dante network.
POE switch
Common switch
POE injector
Dante adapter
Dante adapter

Page 7
ENGLISH
ConvD2out - Dante converter RJ45 - XLR3 Analog Out
3. Ensure LED is solid on the RJ45 port of Dante adapter (Blinking yellow, solid Green)
4. Connect Dante adapter to audio device and computer
►Connect the XLR MALE of Dante adapter to analog input connector of audio device.
►Connect the computer running Dante Software to the POE switch already connected to the network
via the cable.
5. Open Dante Virtual Soundcard on the computer, select the appropriate Audio Interface, then click "Start". If
Dante Virtual Soundcard is already started, ignore this operation step.
Green (right)
Yellow (left)

Page 8
ENGLISH ConvD2out - Dante converter RJ45 - XLR3 Analog Out
7 - Audio Signal Routing
Open Dante Controller, view the Primary Address via Device Info , the IP Address of Dante adapter is in the
same subnet as the computer.
Configure the routing channel in Dante Controller, after correct configuration, the sound can be played now.

Page 9
ENGLISH
ConvD2out - Dante converter RJ45 - XLR3 Analog Out
7 - FAQS
Can Dante devices be daisy chained?
In most cases the answer is “no”. Dante devices are connected via a network switch, which most often means
a “star” topology.
Can I configure my Dante devices with static IP addresses?
Yes, you can configure static IP addresses for one or both of the Ethernet ports (for supported devices), via the
“Network Config” tab of the “Device” - “Device View” for the device. However, by default, Dante devices obtain
IP addresses automatically - so there should be no need to specify static IP addresses, unless it is a specific
requirement for your network.
Can I install a single licensed copy of Dante Virtual Soundcard on all my computers?
Dante Virtual Soundcard is licensed to one machine per license and thus is "licensed" to the machine upon
which it is registered.
Do I need to start Dante Virtual Soundcard each time I wish to use it?
No. It is not necessary to turn Dante Virtual Soundcard offwhen you power offyour computer. Dante Virtual
Soundcard will show up as a soundcard in your audio settings. Once the application window is closed, Dante
V irtual Soundcard continues to function and be available, even if the computer is restarted.
Can Dante work with Fiber Optic network cable?
Yes. Because Dante works with standards based networking technology, using fiber is simple. Use a switch
that supports fiber connections to send Dante data over a fiber optic cable.
Does the number of devices or channels in use affect latency?
No and no. Adding new devices to a network does not affect the latency of devices already in the network. The
latency of hardware devices does not depend on the number of audio channels routed, and routing additional
audio channels does not change the latency of audio already passing through the network.
What type of Ethernet cable is recommended for Dante?
As most Dante devices support gigabit Ethernet, CAT5E or CAT6 cable is
recommended. For purely 100Mbps networks, CAT5 may be used.

Because AUDIOPHONY®takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY®products on www.audiophony.com
AUDIOPHONY®is a trademark of HITMUSIC S.A.S - Zone Cahors sud - 46230 FONTANES - FRANCE
