Audiopipe TS-PC10 User manual

TS-PC12TS-PC10 TS-PC15
WWW.AUDIOPIPE.COM
All Audiopipe products are designed, manufactured and tested to perform in harsh environments. From our entry level products to our high end series,
Audiopipe is your best choice for competition level performance. We welcome you to Team Audiopipe.
For more information, please visit your authorized Audiopipe dealer or:

8-9
Warranty
Building an Enclosure
1
2
3
4
5
6-7

Audiopipe Limited warranty
Audiopipe warrants this Subwoofer to be free of defects in material and workmanship
for period of 1 year from the original purchase date with original receipt. Products
found to be defective during the warranty period will be repaired or replaced (with a
product deemed to be equivalent) at Audiopipe’s discretion. Warranty replacements
may have some cosmetic scratches and blemishes. This warranty only applies to the
original purchaser of the product purchased from an Audiopipe authorized dealer.
Limit on Implied warranties
Any applicable implied warranties are limited in duration to the period of the express
warranty as provided herein beginning with the date of the original purchase at the
retail, and no warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties, therefore these
exclusions may not apply to you. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
What is not covered
• The cost of shipping
• Damage due to improper installation
• Any cost or expense related to the removal or reinstallation of product
• Product which has the serial number defaced, altered or removed
• Freight damage
• Product not purchased from an unauthorized dealer
• Damage through negligence, misuse, accident or abuse, repeated returns maybe
considered abuse
How to obtain service
All warranty returns should be sent to Audiopipe freight prepaid and must be
accompanied by proof of purchase (a copy of the original receipt) listing the customer
name, dealers name, invoice number and product purchased. Items sent freight collect
or COD will be refused. Call the Audiopipe customer service number 9 am to 5pm
eastern standard time at 1-877-AUDIOPIPE (1-877-283-4674) for a return
authorization number (RMA). Package all defectives items in the original package or
in a package that will prevent shipping damages and return to Audiopipe 1195 NW
97th Ave Miami, Florida 33172. Audiopipe strives to maintain a goal of 24hrs return
following receipt of the goods. Delays may be incurred if lack of replacement
inventory or parts is encountered.
1

Nominal Diameter
TS-PC10 TS-PC12 TS-PC15
Overall Diameter(A)
Mounting Hole Diameter(B)
Bolt Hole Circle(C)
Magnet Diameter(D)
Mounting Depth(E)
Driver Displacement
Net Weight
Ø320mm
12 5/8”
Ø300mm
12”
Ø389mm
15 3/8”
Ø381mm
15”
Ø290mm
11 3/8”
Ø363mm
14 3/8”
Ø306mm
12 1/16”
Ø374mm
14 3/4”
Ø134mm
5 9/32”
Ø145mm
5 23/32”
141mm
5 9/16”
170mm
6 11/16”
Ø267mm
10 1/2”
Ø254mm
10”
Ø238mm
9 3/8”
Ø254mm
10”
Ø134mm
5 9/32”
140mm
5 1/2”
3.1kg
6.83 lb
3.40 L
0.12 cu ft
4.25 L
0.15 cu ft
4.53 L
0.16 cu ft
3.5kg
7.72 lb
4.2kg
9.26 lb
2

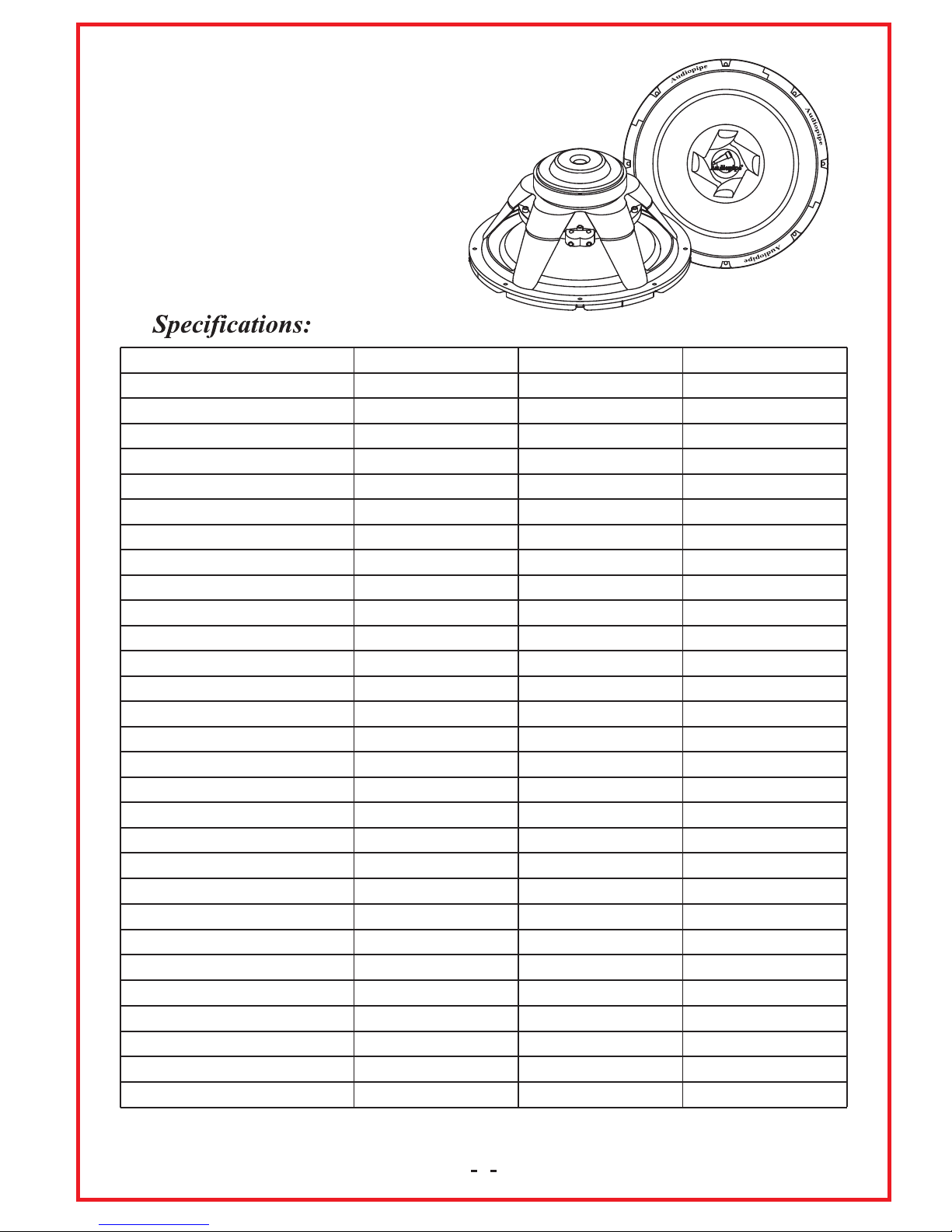

TS-PC12 TS-PC15
0.23 0.45
36 102
0.089 0.10
0.88 0.79
0.55 0.53
1.8 1.7
3.6 3.6
40 34
TS-PC10
0.22
88 8986
12.7 13.611.6
530 850346
5.2 7.47.5
0.85 0.820.81
32.5 3233
0.72 0.720.71
21
172 214106
165 200178
0.12
0.78
2.0 2.1 1.8
0.55
1.6
3.6
44Fs (Hz)
Re (Ohms)
Le (mH)
Qts
Qes
Qms
Cms (m/N)
Vas (L)
Mms (g)
Mmd (g)
No (%)
SPL (dB-1W/1M)
BL (T*M)
Sd (cm2)
Krm (mOhms)
Erm
Kxm (mH)
Exm
30-2000Hz 26-1800Hz30-2000Hz
Frequency Response (Hz)
2”/50.8mm 2.4”/60.5mm2”/50.8mm
Voice Coil Diameter
0.87”/22mm 0.87”/22mm0.87”/22mm
Voice Coil Height
4 44
Voice Coil Layers
0.32”/8mm 0.32”/8mm0.32”/8mm
Magnetic Gap Height
0.28”/7mm 0.28”/7mm0.28”/7mm
Linera Excursion, pk-pk(Xmax)
1.38”/35mm 1.38”/35mm 1.38”/35mm
Maximum Excursion, pk-pk
34 oz./1.0kg 44 oz./1.25kg34 oz./1.0kg
Magnet Weight
3.40 L/0.12 cubic ft. 4.25 L/0.15 cubic ft. 4.53 L/0.16 cubic ft.
Woofer Displacement
7.72 lbs./3.5 kg 9.26 lbs./4.2 kg6.83 lbs./3.1 kg
Net Weight
250/500W 300/600W200/400W
Power Rating
3
Features
• 4-Layer Single Voice Coil Kapton
• Powdered Black Paint Aluminum Basket
• Patent Pipe Multi-Connect Terminal

4
Building an enclosure
When building an enclosure, the walls should be as rigid as possible and not flex.
Flexing of the enclosure can drastically decrease your subwoofers performance.
It is recommended that Enclosures be built using 3/4” MDF, be glued and
secured with nails or screws. Add bracing to each of the larger unsupported
panels. Your enclosures construction has a significant bearing on how well your
subwoofers perform. When designing your enclosure keep in mind and account
for wood thickness, port and woofer displacement.
Calculating volume
Measure the available space for the enclosure and using the formula (H X W X L
divided by 1728) determine the appropriate measurements needed in order to
achieve the desired cubic enclosure. If two facing sides are of uneven lengths add
them together and divide by two.
Wiring subwoofers
When designing your system it is important to achieve a good power match
between your subwoofer amplifier and the subwoofers capability. RMS power
should be considered as a regular method of driving the subwoofer, make use of
the power without drastically overdriving the amplifier. Amplifiers cannot read
how many subwoofers are in the connection, they normally read the final
impedance or otherwise known as ohms. It is important to properly match your
amplifiers normal operating impedance with right subwoofer configuration.

5
The TS-PC series of subwoofers are available with dual 4 Ohms voice coils.
Both coils must be connected to a source of amplification. A dual 4 Ohms woofer
can be configured in parallel to provide a 1 Ohm load. A dual 4 Ohms woofer can
be also configured in series to provide a 8 Ohms load. The terminal with the red
markings is the positive while the black terminals represent the negative.
4Ω
2Ω
4Ω
2Ω
4Ω
2Ω
4 ohm DVC Speaker = 2 ohm Load 2 ohm DVC Speaker = 4 ohm Load
4 ohm DVC Speaker = 1 ohm Load 2 ohm DVC Speaker = 2 ohm Load
4Ω
1Ω
4Ω
4Ω
4Ω
2Ω
2Ω
2Ω
2Ω
2Ω
4 ohm DVC Speaker = 4 ohm Load
4Ω
4Ω
4Ω
4Ω
4Ω
4 ohm DVC Speaker = 2.67 ohm Load
4Ω
2.67Ω
4Ω
4Ω
4Ω
4Ω
4Ω
4 ohm DVC Speaker = 2 ohm Load
4Ω
2Ω
4Ω
4Ω
4Ω
4Ω
4Ω
4Ω
4Ω
2 ohm DVC Speaker = 4 ohm Load
2Ω
4Ω
2Ω
2Ω
2Ω
2Ω
2Ω
2Ω
2Ω

6
Sealed enclosure
This type of enclosure is classic and the simplest to build among most installers.
The box volume will directly impact the performance of the subwoofer, it is
important to make sure the enclosure is properly sealed. Use some type of
sealant on the seams as this will ensure a solid construction and prevent air leaks.
Larger enclosures will provide a flatter response and deeper bass where as a
smaller box will provide a generally higher output for greater SPL. All sealed
enclosure designs should be filled to 50% with loose ply-fill. The use of poly-fill
will slightly decrease efficiency but will deepen and extend the low frequency.
Primary advantages
• Small enclosure
• Good low frequency extension and control
• Simple to build
• Excellent for sound quality
Calculating volume
Measure the available space for the enclosure and using the formula (H X W X L
divided by 1728) determine the appropriate measurements needed in order to
achieve the desired cubic enclosure. If two facing sides are of uneven lengths
add them together and divide by two.
The enclosure recommendations listed are external dimensions using 3/4” thick
wood. If you use 5/8” material subtract 1/4” from each dimension, we strongly
recommend not use material less than 5/8”.
*Note the enclosures listed in the manual account for the driver displacements.

7

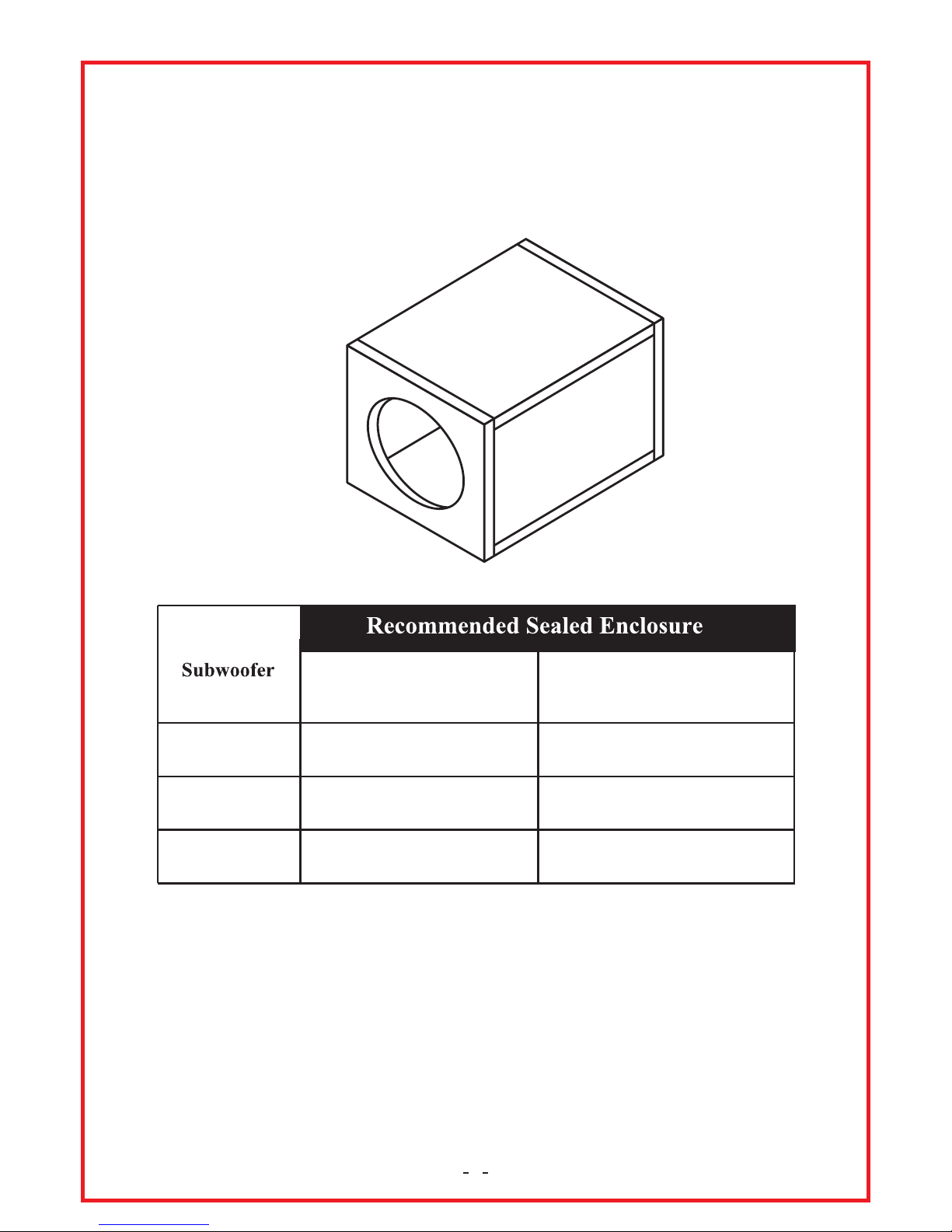

Recommended Sealed Enclosure
TS-PC12
TS-PC10
Everyday Bass Performer
0.9 cu ft. 1.0 cu ft.
1.0 cu ft. 1.2 cu ft.
1.3 cu ft. 1.5 cu ft.
Competition Bass Performer
TS-PC15

8
Vented enclosure
This type of enclosure is the installer’s top choice for high performance SPL levels
and requires a deeper understanding in order to achieve maximum efficiency. The
most notable difference between the sealed and vented enclosure is the port, this
port is used to tune the enclosure. Larger boxes tend to be easy to tune to lower
frequencies while medium and small boxes are easier to tune to higher frequencies.
The vented design is less linear in response than the sealed but with noticeably
more output at the tuning frequency.
Primary advantages
• Low distortion around port
• High output for SPL
• Tuning frequency can easily adjust depending on length of port
Port displacement
All of the cubic ft. provided in this manual includes the speaker displacement. For
vented enclosures the port displacement must be calculated and added to your
internal volume. If using 3/4” MDF wood add the thickness of the wood 1.5” to the
H and the W, next use the outer dimension of the port so
H+1.5 X W+1.5 X L=(result). Use the (result) and divide it by 1728, this new result
is then added to your internal cubic enclosure.

-9-
TS-PC12
TS-PC10 1.2 cu ft. 1.5” x 10” x12” 1.5” x 10.5” x 13”
2.0” x 12.5” x 17”
2.5” x 15.5” x 17”
2” x 12” x 16”
2.5” x 15” x 17”
1.75 cu ft.
1.5 cu ft. 2.0 cu ft.
2.0 cu ft. 2.5 cu ft.
TS-PC15
Everyday Bass Performer

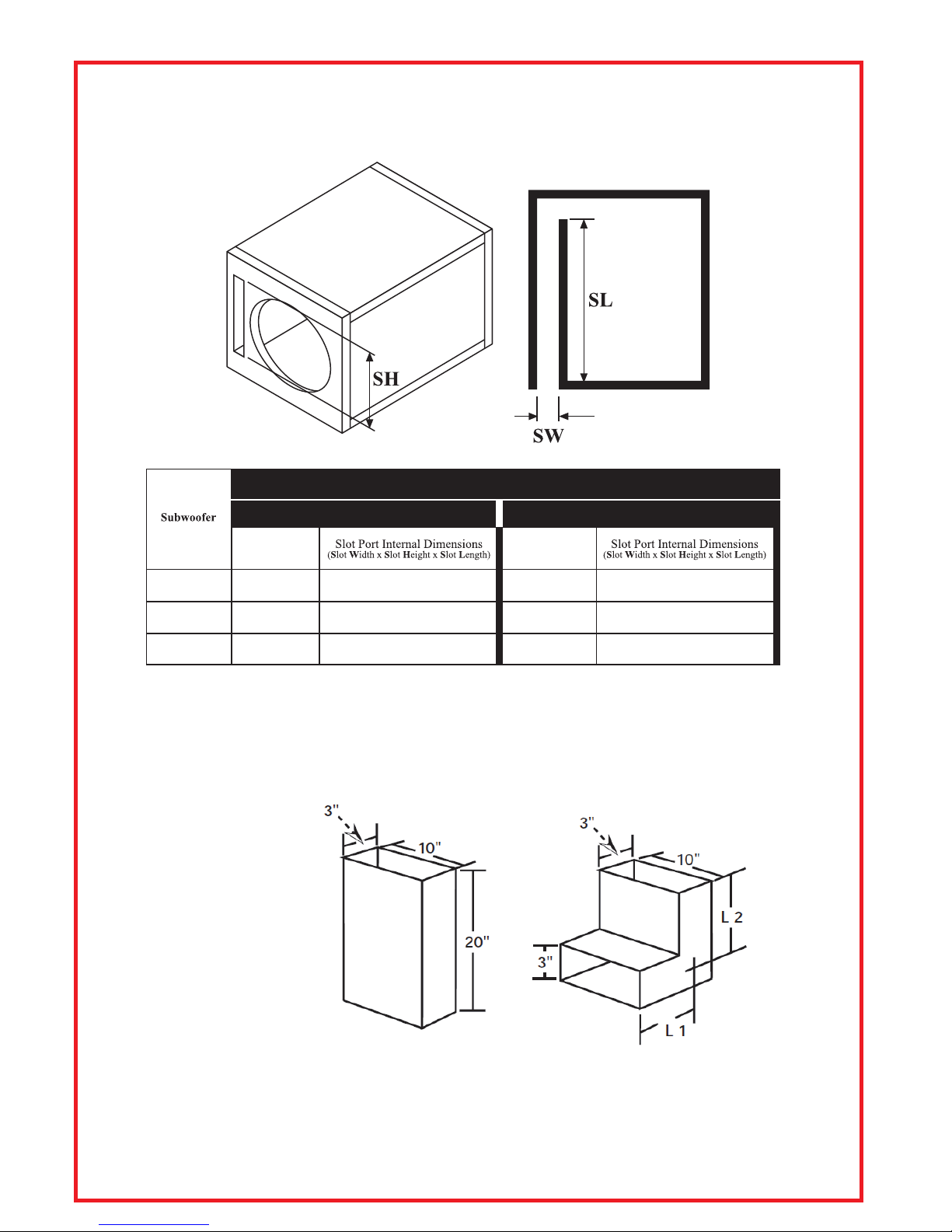

Recommended Ported Enclosure
Recommended Ported Enclosure
Volume Volume
Competition Bass Performer
Remember:
If you are going to bend the port at 90º, you will need to add 1/2 of the ports height
to the length! See below:
Example:
(Fig. 1)
Hport=3”
Wport=10”
Lport=20”
(Fig. 2)
Since Hport is 3” you need to add 1.5”(1/2 of Hport) to Lport. This means that
L1+L2=21.5”.
Always measure L1 and L2 down the center to get an accurate measurement!
Fig. 1 Fig. 2
