Audiopipe TS-VR6 User manual

®

Congratulations on your purchase of an Audiopipe subwoofer incorporating EXT technology.
Your Audiopipe subwoofer has been engineered to produce the highest quality sub-bass
performance in your vehicle. Audiopipe dealers have the knowledge, skills to build high-
quality enclosure that will maximize the performance of your subwoofer. We highly
recommend that you have your enclosure built by an Audiopipe authorized dealer. For more
dealer information in your area do visit .
All Audiopipe products are designed, manufactured and tested to perform in the harsh
environments. From our entry level products to our high end series, Audiopipe is your best
choice for competition level performance.
We welcome you to team Audiopipe.................
Specifications
Dimensions
Sealed Applications
Vented Applications
Wiring Diagrams
Wiring Diagrams
1
2
3
4
5
6

Free Air Response (FS)
Electrical “Q” (Qes)
Mechanical “Q” (Qms)
Total Speaker “Q” (Qts)
One way,
Linear Excursion (Xmax)
Efficiency (1W/1m)
Effective Piston Area (sd)
DC resistance (Re)
Nominal Impedance
Power Handling
Mounting Depth
Mounting Hole Diameter
TS-VR8
-1-
TS-VR10 TS-VR15TS-VR12TS-VR6

TS-VR6
TS-VR8
TS-VR10
TS-VR12
TS-VR15
75mm
3”
105mm
4 1/8”
145mm
5 7/8”
153mm
6 1/16”
180mm
7 1/8”
A B C D E
E
C
B D
A
-2-

Use 3⁄4” or thicker MDF (medium density fiberboard) and seal the joints with silicone.
All the cubic ft measurements in this manual include the displacement of the woofer
and port. All ports have been calculated using rectangular ports it would be impractical
to use round ports for these designs. Do not install ports opening against a solid surface,
such as an internal brace, back panel or seat of your vehicle. The port opening must
remain unobstructed.

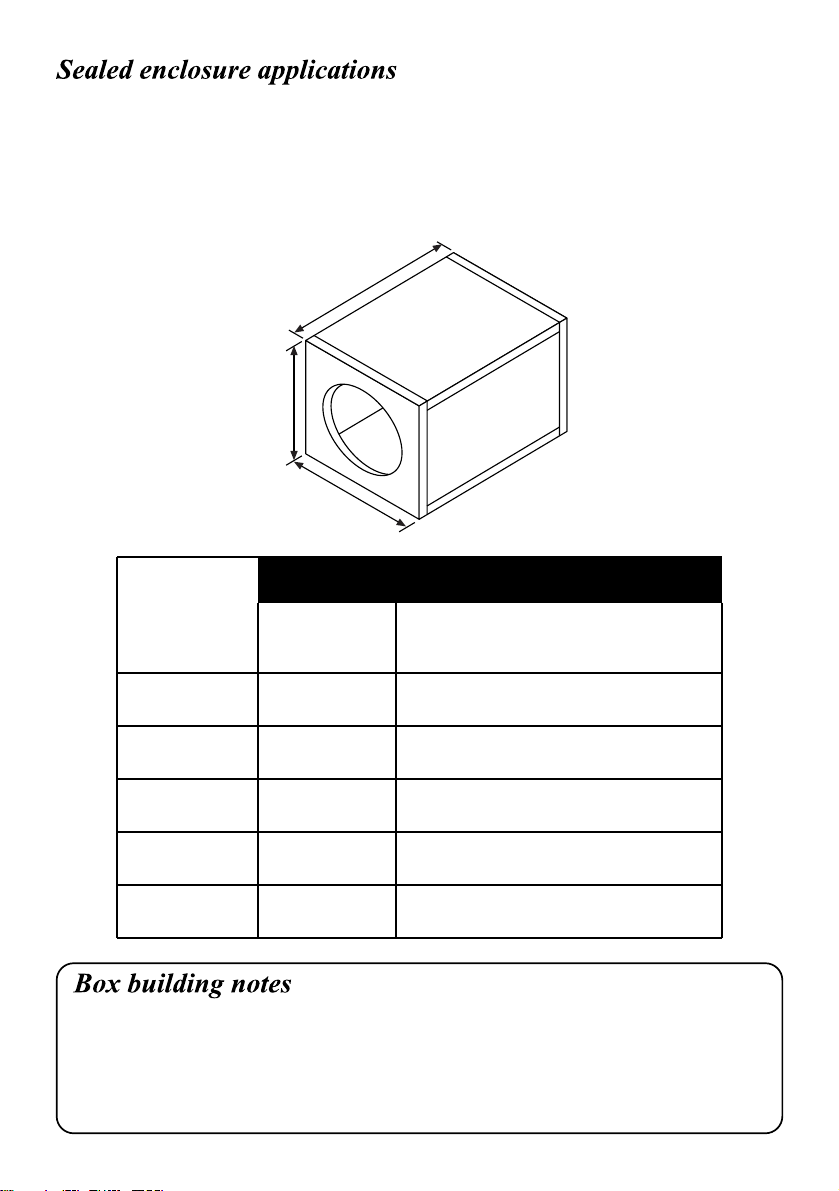

Primary advantages: Small, good low frequency extension and control, simple to build.
This type of enclosures is a classic design and the easiest to build among most installers.
These enclosure recommendations have been calculated with the airspace inside and include
the displacement of the woofer. All sealed enclosure designs should be filled to 50% with
loose poly-fil stuffing. The use of poly-fil will slightly decrease efficiency but will deepen
and extend the low frequency output.
TS-V6
TS-VR8
TS-VR10
TS-VR12
TS-VR15
Subwoofer
0.25 FT3
0.5 FT3
1.0 FT3
1.75 FT3
2.25 FT3
?” x ?” x ?”
10” x 10” x 11”
12” x 12” x 13”
14” x 14” x 16”
16” x 16” x 18”
External Dimensions
(Width x Height x Depth)
Volume
(net int.)
Recommended Sealed Enclosure
D
H
W
-3-

Primary advantage: Efficient, low distortion around port tuning.
TS-VR8
TS-VR10
TS-VR12
TS-VR15
Subwoofer
0.75 FT3
1.25 FT3
2.00 FT3
2.50 FT3
10” x 10” x 15”
13” x 13” x 17.5”
15” x 15” x 17”
17” x 17” x 16”
Enclosure
External Dimensions
(Width x Height x Depth)
Volume
(net int.)
Recommended Ported Enclosure
Slot Port Internal Dimensions
(Slot Width x Slot Height x Slot Length)
1.25” x 4” x 14”
1.25” x 9.5” x 16.5”
1.25” x 11.5” x 16”
1.25” x 14.5” x 15”
D
H
W
SH
SL
SW
-4-
The TS-VR series of subwoofers are available with dual 4 Ohms voice coils. Both
coils must be connected to a source of amplification. A dual 4 Ohms woofer can be
configured in parallel to provide a 1 Ohm load. A dual 4 Ohms woofer can be also
configured in series to provide a 8 Ohms load. The terminal with the red markings
is the positive while the black terminals represent
the negative.
These enclosures are the
installer’s choice for high
performance SPL levels
and require a deeper
understanding in order to
achieve maximum
efficiency. These en-
closure recommendations
have been calculated with
the airspace inside and
include the displacement
of the woofer.

Series/Parallel Wiring for Four Single Voice Coil 4Ω Subs
Parallel Wiring for Four Single Voice Coil 4Ω Subs
Parallel Wiring for Two Single Voice Coil 4Ω Subs
Series/Parallel Wiring for Four Dual Voice Coil 4Ω Subs
Parallel Wiring for Dual Voice Coil 2Ω Sub Series Wiring for Dual Voice Coil 2Ω Sub
Series/Parallel Wiring for Two Dual Voice Coil 2Ω Subs

Series/Parallel Wiring for Three Dual Voice Coil 2Ω Subs
Parallel Wiring for One Dual Voice Coil 4Ω Subs
Series/Parallel Wiring for Four Dual Voice Coil 2Ω Subs
Parallel Wiring for Two Dual Voice Coil 4Ω Subs
Series/Parallel Wiring for Two Dual Voice Coil 4Ω Subs
Series/Parallel Wiring for Three Dual Voice Coil 4Ω Subs
