Audiovox FPE3000 User manual

Before operating the unit, please read this manual thoroughly.
FPE3000
Owner's Manual
LCD TV
128-7081

Contents
Congratulations on your purchase of this LCD TV.
We recommend that you thoroughly read this manual before use to fully enjoy the
many functions and excellent effects of this LCD TV.
Retain this manual in an easily accessible location for future reference.
Note: Screen displays and illustrations in this manual may differ from the actual
ones for better visibility.
2
Contents
Important safety cautions...................5
Identification of controls .......................8
Antenna connection............................ 12
Installation....................................13
Menu introduction......................................19
Turning On/Off / Selecting input signal......21
Operations in TV mode.....................22
Channel Preset ...................................22
Channel Select .....................................23
Picture adjustment................................24
Sound adjustment...................................25
System Setup...........................................26
Timer setting............................................28
CCD setting............................................29
V-chip setting .................................30
Adjustment in YPbPr mode........................32
Adjustment in PC mode ............................33
Troubleshooting .........................35
Specifications........................................41

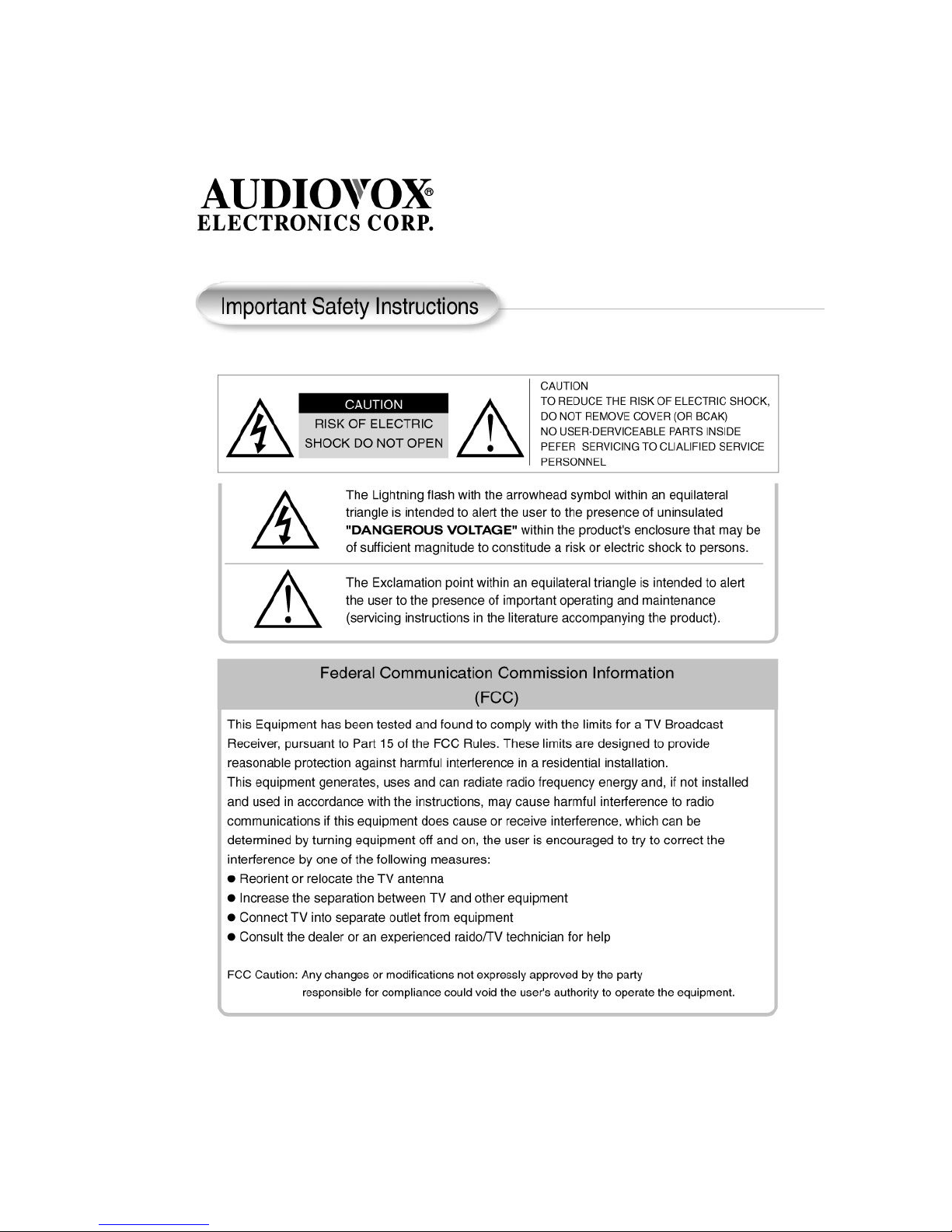

3

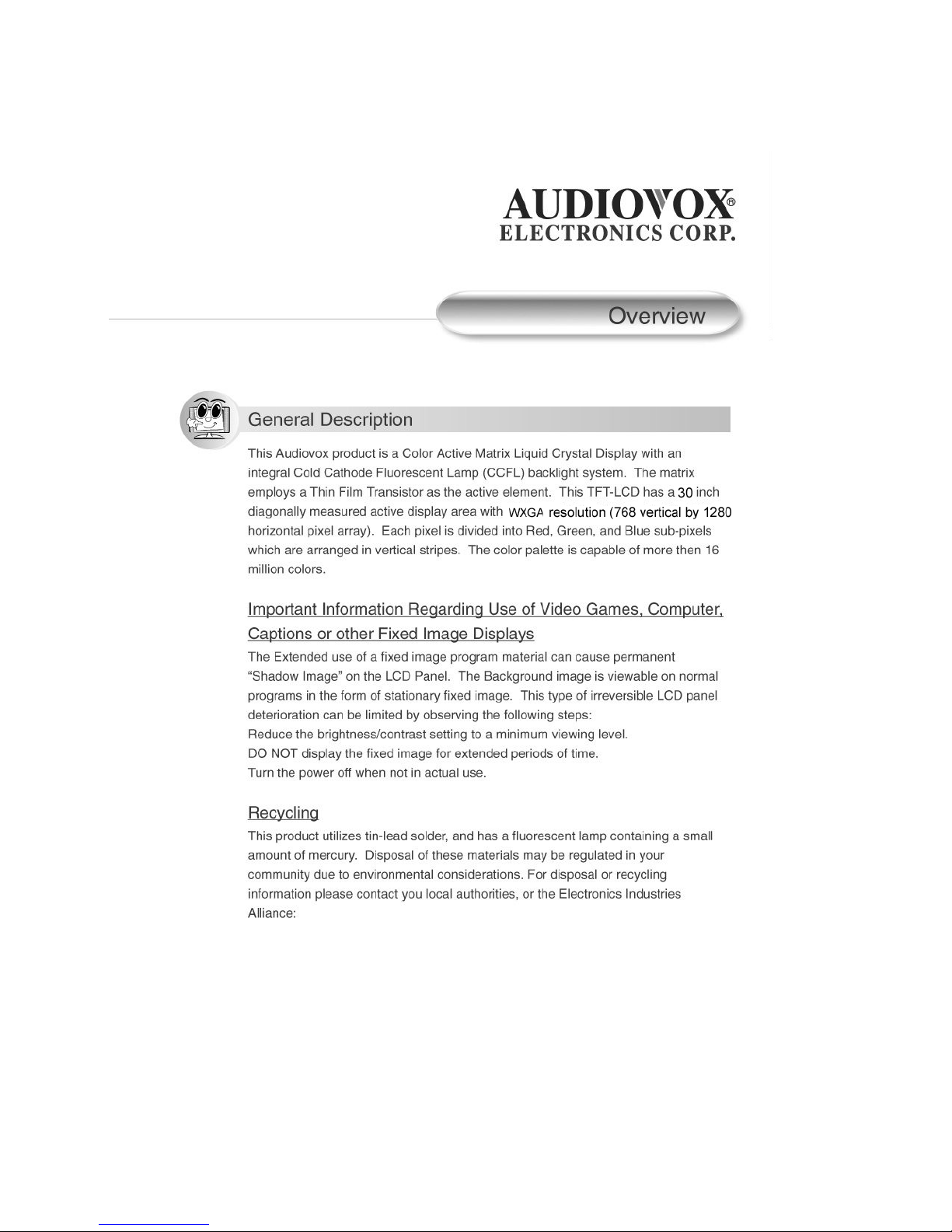

4

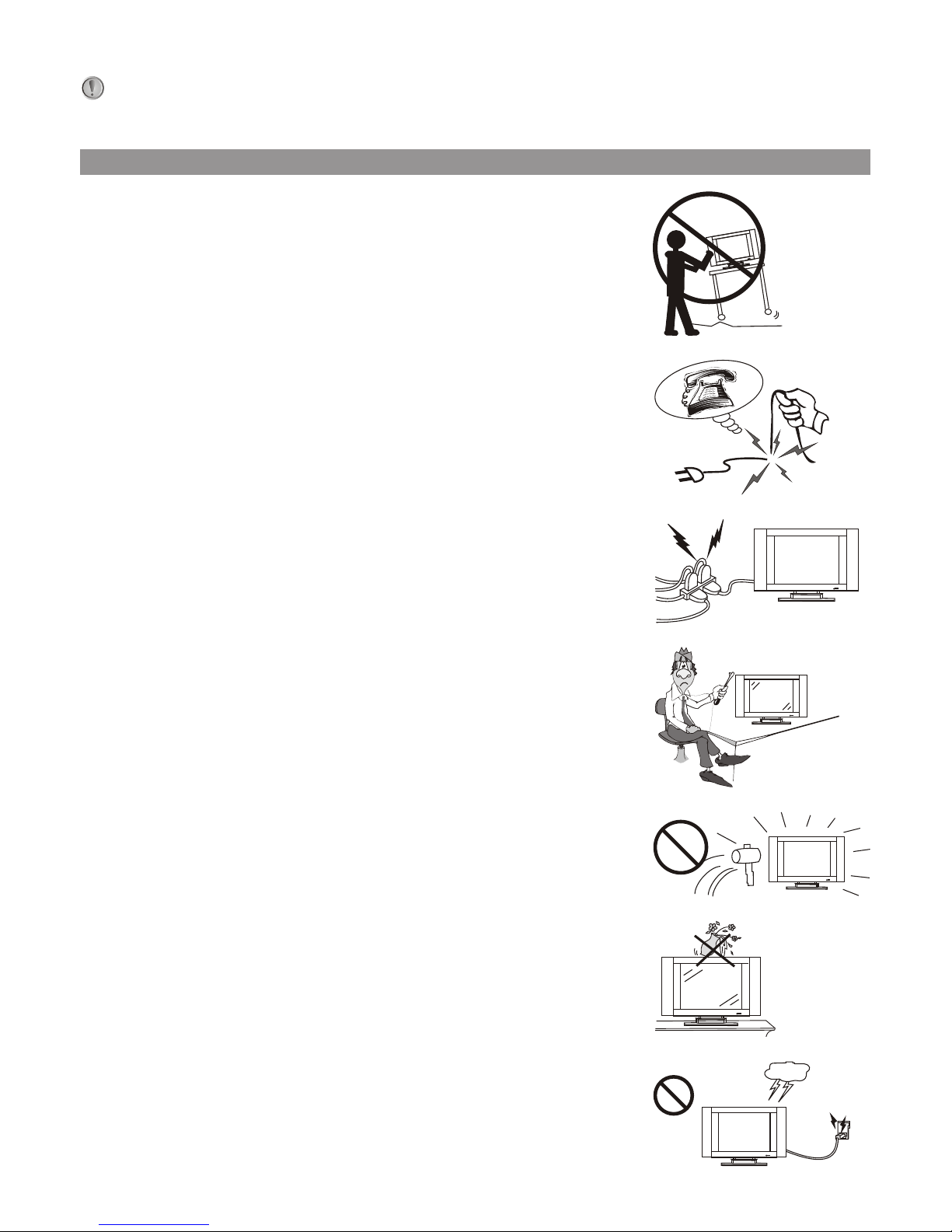

Important Safety Cautions
When any unusual situation occurs, turn off the power supply at once and remove
the plug from the wall outlet. Contact a qualified service department in your local
area.
Do not expose this unit in the rain or spatter by liquid. Do not use this product near
water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, and the like. Do not use immediately after
moving from a low temperature to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other hazards.
Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves
and other heat generating products (including amplifiers).
Requirement of environment temperature:
oo oo
20 C~50 C for storage; 0 C~40 C for working
The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer's instructions are followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Do not place the product on an unstable trolley, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a trolley,
stand, tripod, and bracket or table recommended by the manufacturer or sold with
the product.
5

This TV set operates on power of 120V, 60Hz. You must not use a power supply of any
other type.
When relocating the product placed on a trolley, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surfaces can cause the
product to fall from the trolley.
The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product. Power-
supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at
doors, plugs, receptacles, and the point where they exit from the product.
If the power cord or the plug is damaged contact a qualified service department for
service.
High Voltage exists in this TV set. Do not remove the cover.
In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will prevent damage to the equipment
due to lightning and power-line surges.
The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
Don't try to push anything into the cabinet or place any vessel with water on the TV
set.
Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
6

7

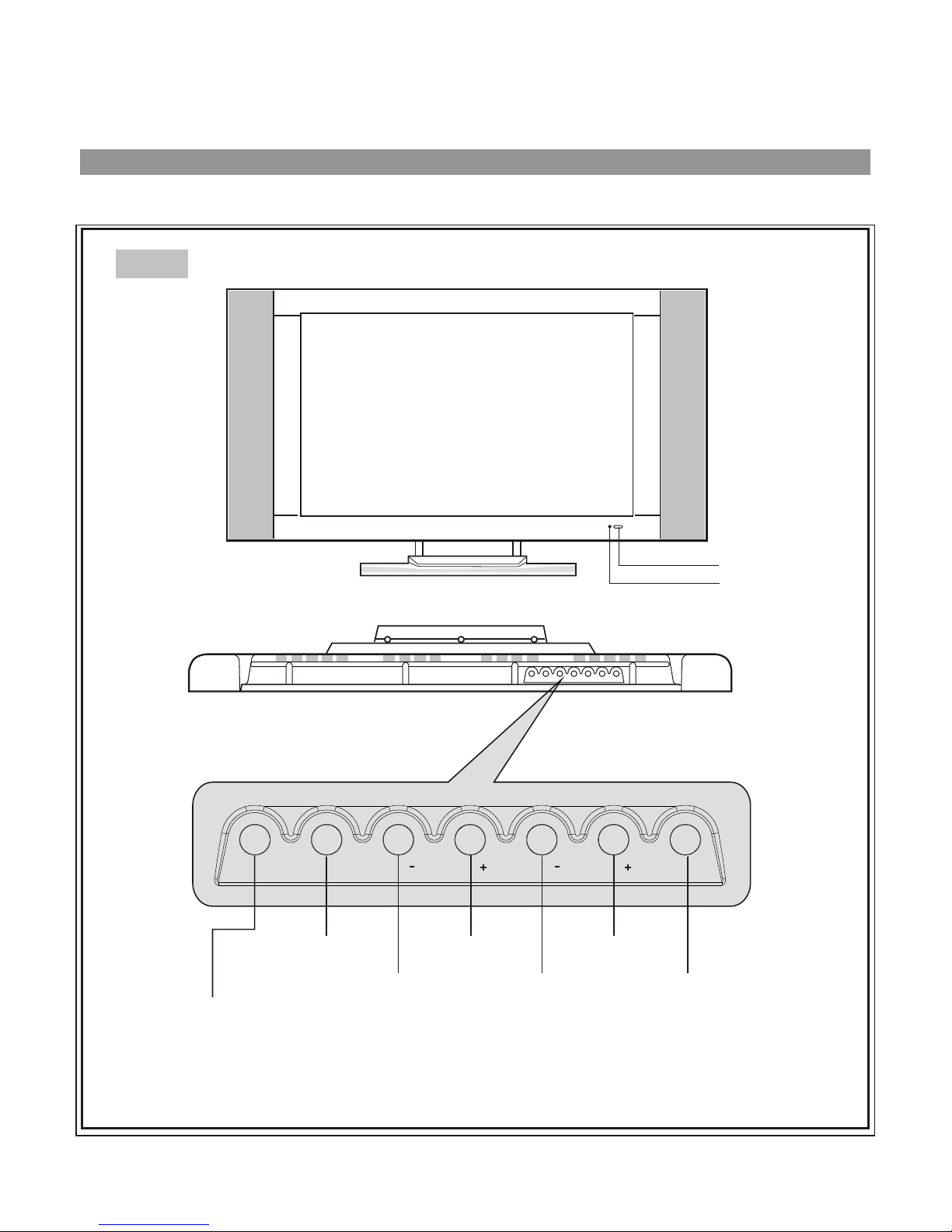

Front
Identification of controls
Remote sensor
On/Standby
Indicator Light
SOURCE MENU CH CH VOL VOL POWER
To enter into MENU
Volume down Power on/ Standby
Volume up
Channel down
Channel up
To select input signal
8

DVD input
(480i)
PC audio
line in
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
LLPHONE
AV
R
HDTV
L
YPb Pr
R
L
VIDEO
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
S-video input
Video
input
DC input
from power
supply
VGA input Antenna input Earphone
jack
Speaker
outputs
HDTV Audio inputs
Audio inputs
HDTV YPbPr
inputs (480p,
720p,1080i)
Back
DC +24V
+12V
+5V
9

Identification of controls(continued)

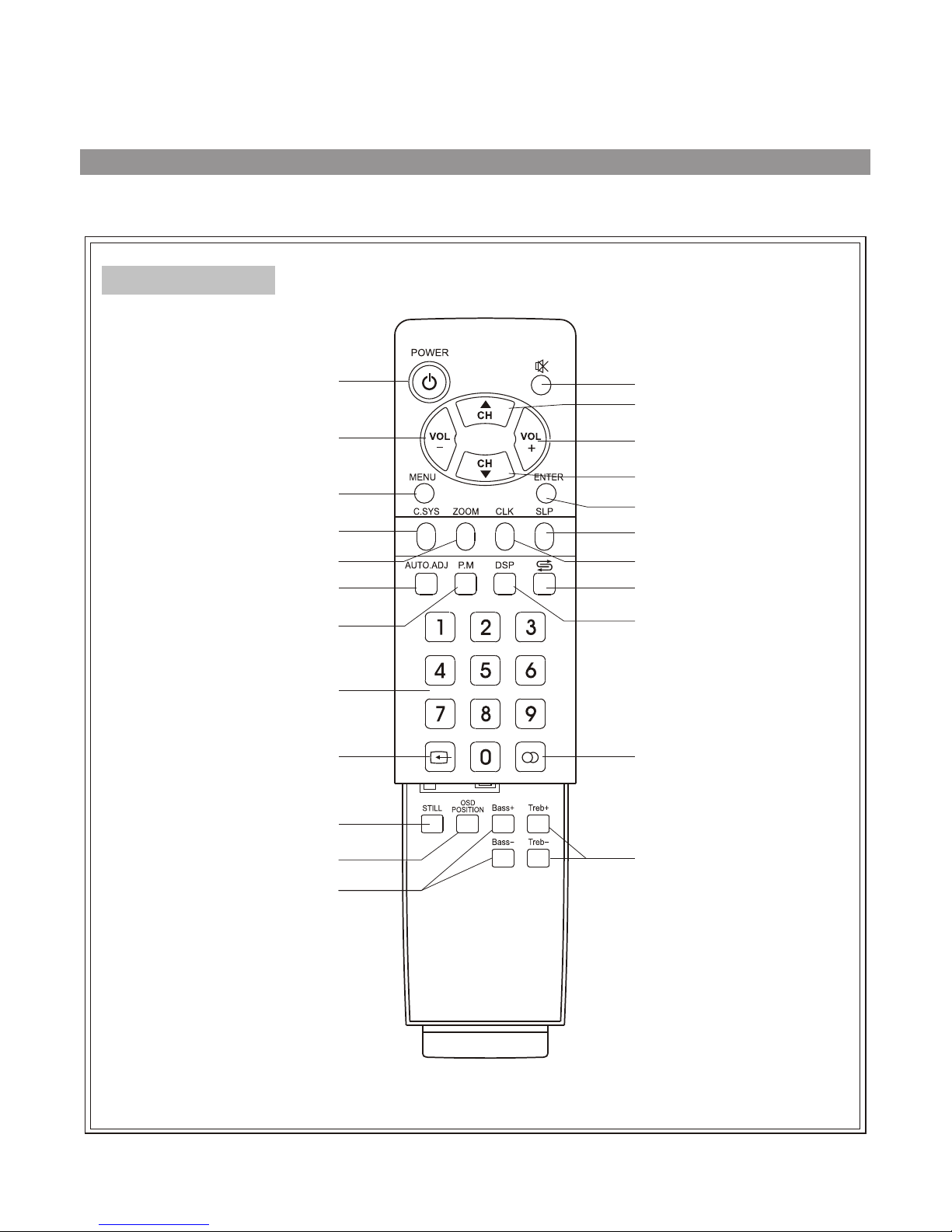

Remote Control
power on/Standby
Volume down
To enter into MENU
Colour/ sound
system select
Zoom mode select
Auto correct picture
Picture mode select
Keypad
Video Input select
Still picture
OSD position select
Adjusting Bass
Adjusting Treble
Sound mute
Volume up
To exit/selectOSD menu
Sleep timer
Clock/Timer setting
Previous channel (recall)
Channel up
Channel down
On-screen display (info)
10
To select MONO/SAP/
STEREO (TV only)

33
11
22
30
30
16FT

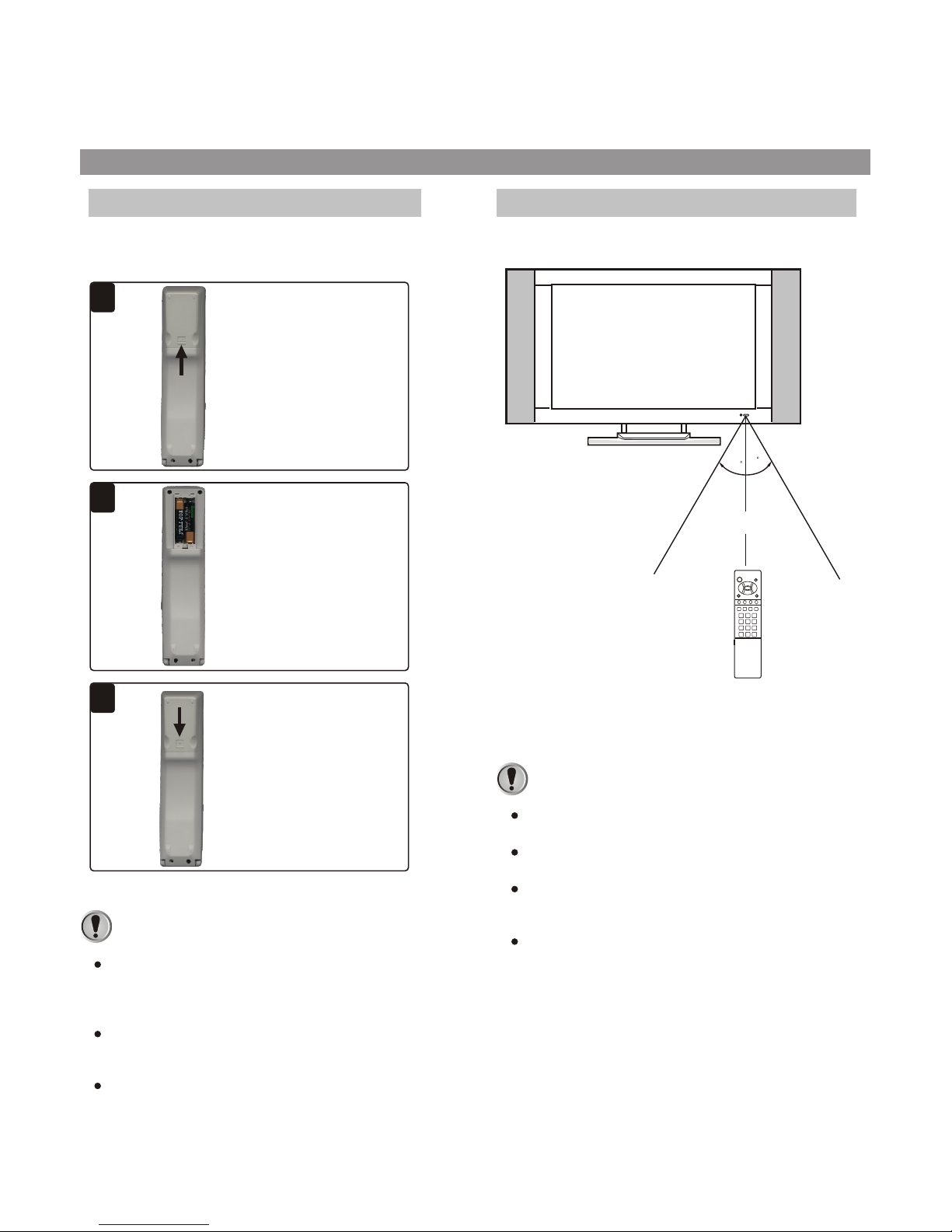

Battery installation Effective remote range
Please install the batteries before using the
remote control unit.
Open the battery cover.
Install two "AAA" batteries
matching the +/- polarities
of the battery to the +/-
marks.
Replace the battery
cover.
Notes:
Notes:
When the remote control will not be used
for a long period of time or when the
batteries are worn out, remove the
batteries.
Do not throw the batteries into a fire.
Dispose of used batteries in the specified
manner.
Do not drop, dampen or disassemble the
remote control.
There should be no obstacle between the TV
and the transmitter.
Use the remote control within the effective
range as the above figure.
If the remote control does not work, please
check whether the batteries are exhausted
or the polarity is wrong.
When direct sunlight, and incandescent
lamp, fluorescent lamp or any other strong
light shines on the REMOTE SENSOR of the
TV, the remote operation may be unstable.
11

Antenna connection
CABLE TV (CATV) CONNECTION
A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial cable to the
set, screw the 75-ohm cable to the ANT. Terminal.
Some cable TV companies offer "premium pay channels". Since the signals of these premium pay channels are scrambled,
a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company.
This converter/descrambler is necessary for normal viewing of the scrambled channels. For more specific instructions on
installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by
your cable TV company is explained below. Please note:An RF switch provided with two inputs (A and B) is required (not
supplied).
Cable TV converter/
descrambler
(not supplied)
Two-set
signal
splitter
(not
supplied)
Cable TV Line
RF switch (not supplied)
OUT IN
"A" position on the RF switch (not supplied) : You can view all unscrambled channels by using theTV's channel keys.
"B" position on the RF switch (not supplied) : You can view the scrambled channels via the converter/descrambler by using
the converter's channel keys.
Note: Consult your Dealer or Service Center for the type of splitter, RF switch or combiner that might be required.
ANTENNAS
The antenna requirements for good color television reception are more important than those for black & white television
reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various antenna systems.
1. A 75-ohm system is generally a round cable with F-type connector that can
easily be attached to a terminal without tools (not supplied).
2. A 300-ohm system is a flat "twin-lead" cable that can be attached to a 75-ohm
terminal through a 300-75-ohm adapter (not supplied).
OUTDOOR ANTENNA CONNECTION
Use one of the following two diagrams if you connect an outdoor
antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antennas.
Connect the outdoor antenna cable lead-in to the ANT. terminal on the
rear of the TV set.
F-type connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
A. Combination VHF/UHF Antenna
B. Separate VHF and/or
UHF Antennas
Antenna cable
75-ohm
coaxial cable
300-ohm
twin-lead
VHF/UHF
antenna
VHF/UHF
antenna
300/75-ohm
adapter
(not supplied)
300-ohm
twin-lead
300-ohm
twin-lead
75-ohm
coaxial cable
OUT IN
VHF
antenna
UHF
antenna
Combiner
(not supplied)
or
or
VGA
YCb Cr
R
L
-
SVIDEO ANTIN LINE IN
LLPHONE
AV
R
HDTV
L
YPb Pr
R
L
VIDEO
12

Before using this equipment, please connect the AC power adapter correctly.
AC power adapter
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
LLPHONE
AV
R
HDTV
L
YPb Pr
R
L
VIDEO
--++
Installation

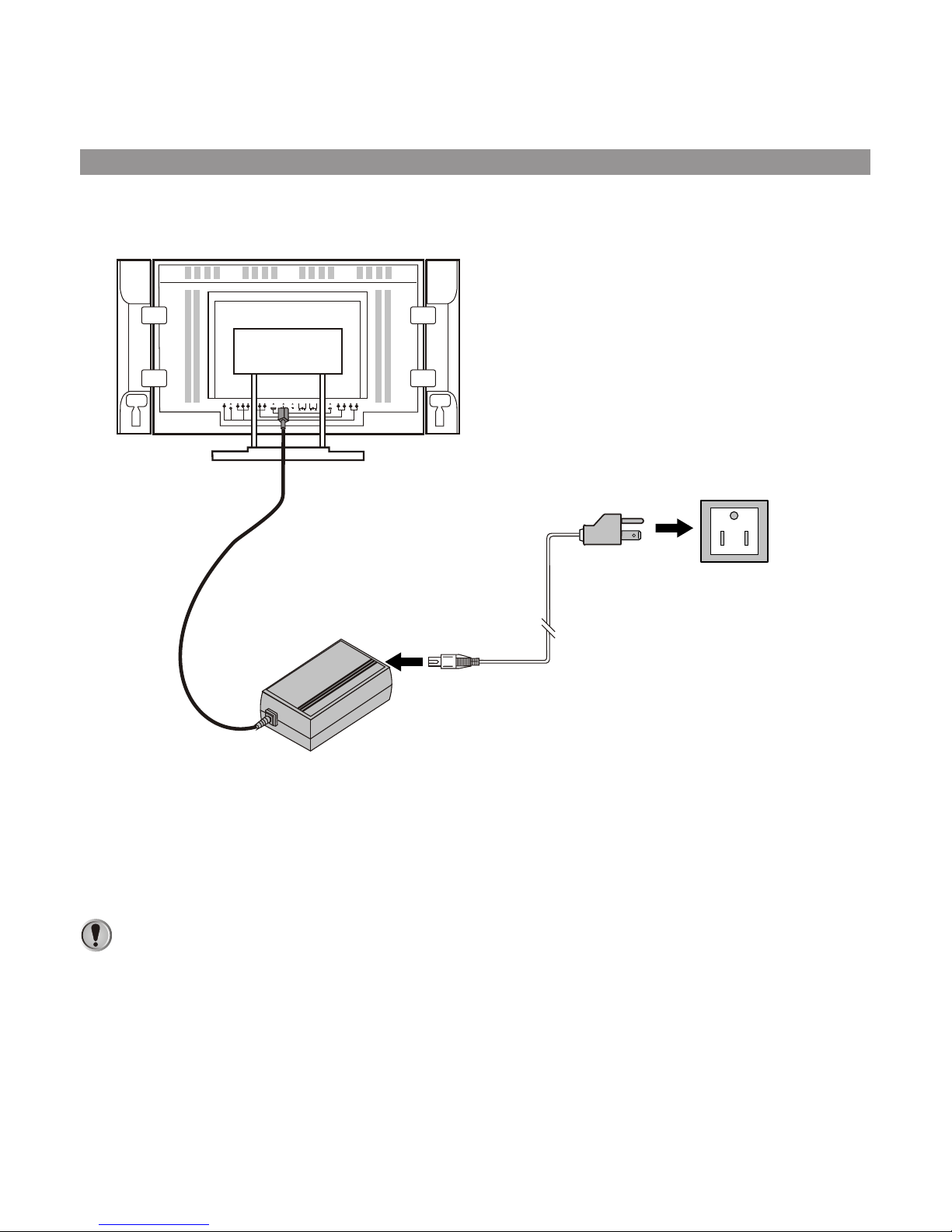

Power connection
Plug into AC outlet.
AC cord
Household
power outlet
1. Connect the female plug to the AC socket onAC adapter.
2. Connect the AC adapter to the DC power input of the set.
3. Connect the male plug to the wall outlet as illustrated.
+This product should be operated only from the type of power source indicated on the marking label.
+Always unplug the AC adapter from the product and power outlet when not using for a long period of
time.
Notes:
13

VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
VHS
VHS
R
R
Y
Y
w
w
W
R
R
w
Connecting video/audio equipment
To ANT input
To S-video
input
To video
input
To audio
inputs
To audio
inputs
To audio
outputs
To video
output
To audio
outputs
Video equipment
with S-video terminal
Video equipment
without S-video terminal
To ANT output
To ANT output
WW
YY
RR
Yellow (video)
white (audio L/MONO)
red (audio R)
DC +24V
+12V
+5V
Installation(continued)
14

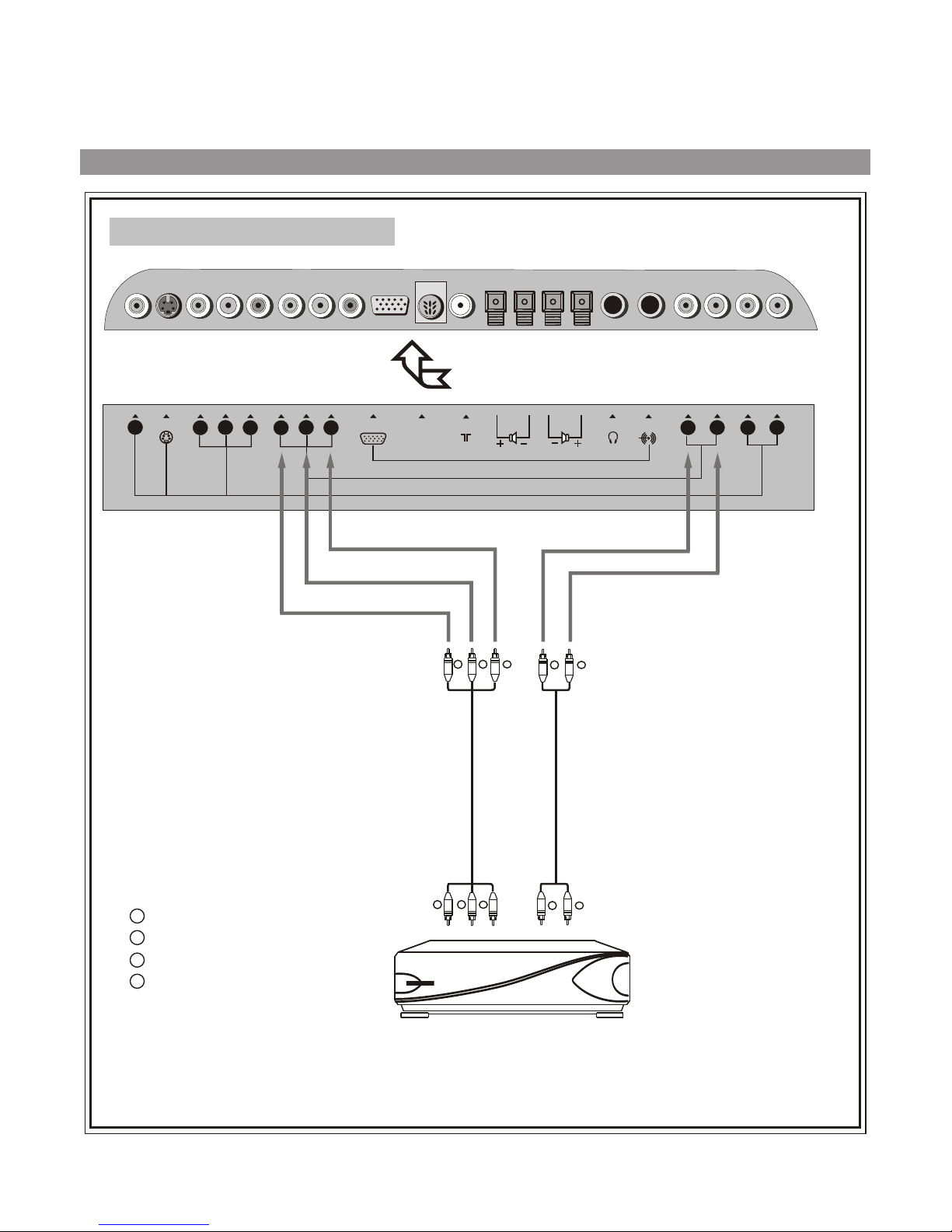

DVD
DVD Player
White (audio L/MONO)
Red (audio R, Cr)
Green (Y)
Blue (Cb)
R
R
w
G
GB
B
R
R
w
WW
RR
GG
BB
VGA
YCb Cr
R
L
-
SVIDEO ANTIN LINE IN
LLPHONE
AV
R
HDTV
L
YPb Pr
R
L
VIDEO
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
Connecting DVD player and speakers
To audio
inputs
To audio
outputs
To YCbCr
outputs
To YCbCr
inputs
Red Red
Black
To speaker
To speaker
Installation(continued)
DC +24V
+12V
+5V
15

White (audio L/MONO)
Red (audio R, Pr)
Green (Y)
Blue (Pb)
WW
RR
GG
BB
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
Connecting YPbPr terminals
To audio
outputs
To audio
inputs
To YPbPr
inputs
To YPbPr
outputs
(480p/720p/
1080i)
SET TOP BOX
(Or other equipment with YPbPr output terminals)
R
R
R
R
w
w
B
B
G
G
DC +24V
+12V
+5V
16
Installation(continued)

To VGA input interface
To VGA output
interface
To LINE out
To LINE in
Equipment with
VGA output interface
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
Connecting VGA interface
Installation(continued)
DC +24V
+12V
+5V
17

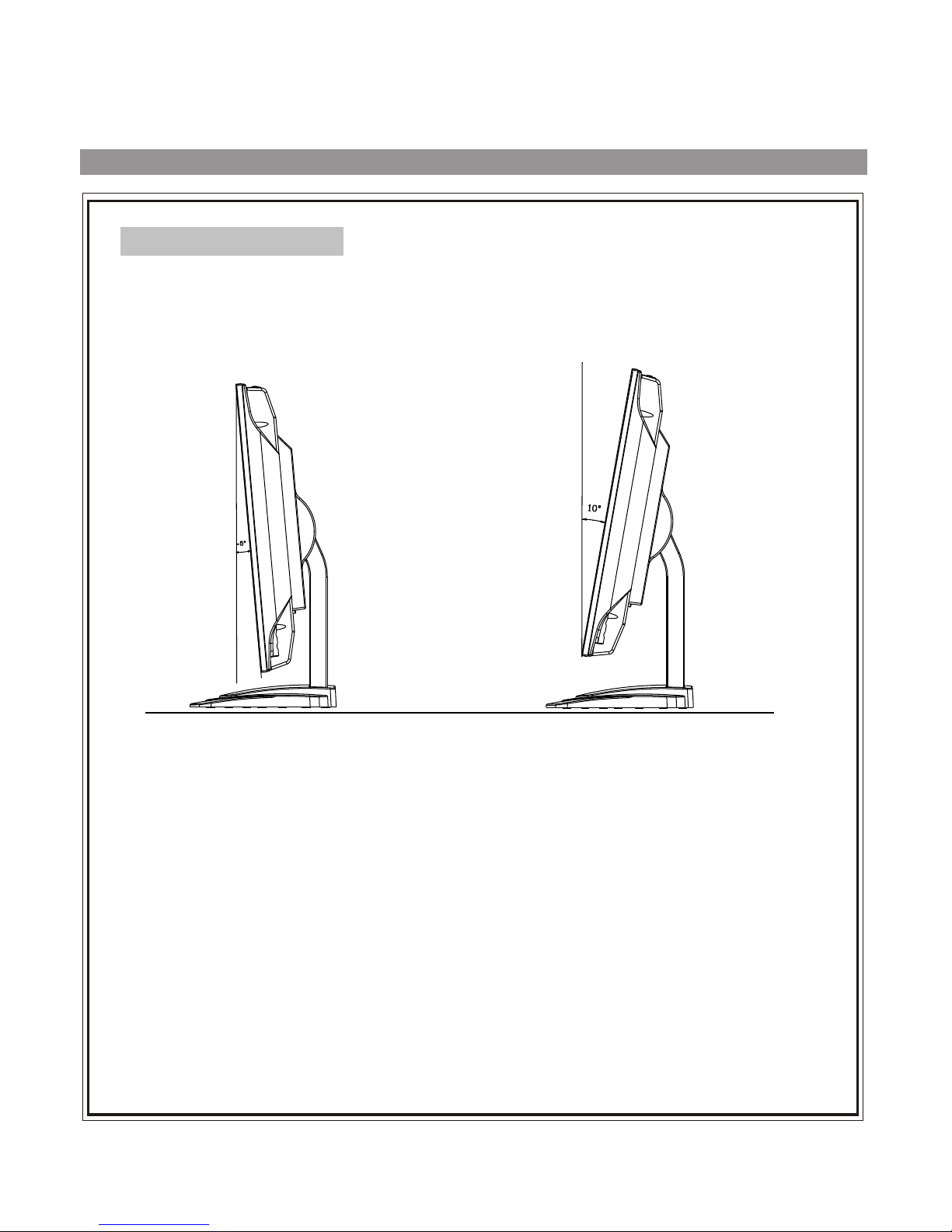

Elevation adjustment
You can adjust the angle of the LCD TV as follows.
oo
The elevation can be adjusted from -5 to +10 .
18
Installation(continued)

PICTURE SETTING
SETUP
CHANNEL SETTING
SOUND
Brightness
Color sys
Language
OSD position
OSD background
Auto search
Source
Current Prog
Skip
AUTO
Eng
Upper Left
Opaque
12
ON
Contrast
Color
Sharpness
Tint
Bass
Treble
Balance
50
25
50
25
50
25
50
50
Press MENU button to call up menu, press MENU button
repeatedly to select different menu pages. In MENU
operations, the CH5/6buttons are used to select item
upwards or downwards; the VOL+/- buttons are used to
Menu Introduction
<LEFT> or <RIGHT> key to change
To adjust the picture's contrast.
To adjust the picture's color saturation.
To adjust the picture's brightness.
To adjust the Bass.
To adjust the Treble.
To adjust the Balance.
To select color system.(It is unaccessible in TV mode)
To select OSD menu language.
To select OSD menu position.
To set OSD background texture.
To start auto search of valid channels.
To adjust the picture's sharpness.
To adjust the picture's skin color.
To add or skip current channel.
To turn on or turn off auto fine tune.
To select antenna input or cable input
To display current channel number.
Menu overview in TV mode
PICTURE setting menu
SOUND menu
<LEFT> or <RIGHT> key to change
MTS MONO
To select STEREO, SAP or MONO (TV mode only).
SETUP menu
<LEFT> or <RIGHT> key to change
CHANNEL SETTING menu
Auto fine tune
Antenna
OFF
<LEFT> or <RIGHT> key to change
19

CCD Mode setting
CCD Background
Video Rating Settings
CCD and Vchip settings menu (in TV mode)
CCD and Vchip SETTINGS
Off
Transparent
_ _ _ _
Press to switch between Caption, text and TV
modes for Closed-Captioned programs.
To select background for CCD display.
<LEFT> or <RIGHT> key to change Input a password to enter into Vchip menu.
Input the password
MPAA Rating Sys ...
Vchip menu
<LEFT> or <RIGHT> change, <Menu> return
RATING SETTING
TV Block Settings ...
Change Password ...
<UP/DOWN>move, <LEFT/RIGHT>change
MOVIE RATING
Rating A/B
MPAA G
MPAA PG
MPAA PG-13
MPAA R
MPAA NC-17
MPAA X
A
A
A
A
A
A
<LEFT/RIGHT>move, <UP/DOWN>change, <Menu>return
TV RATING
Rating A/B FV V S L D
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
A
B
A
A
A
A
A A A A
A A A A
A A A
<LEFT/RIGHT> move, <Menu> return, <Enter> execute
CHANGE PASSWORD
New Password: _ _ _ _
New Password Validate: _ _ _ _
Ok Cancel
20
Menu Introduction(continued)
