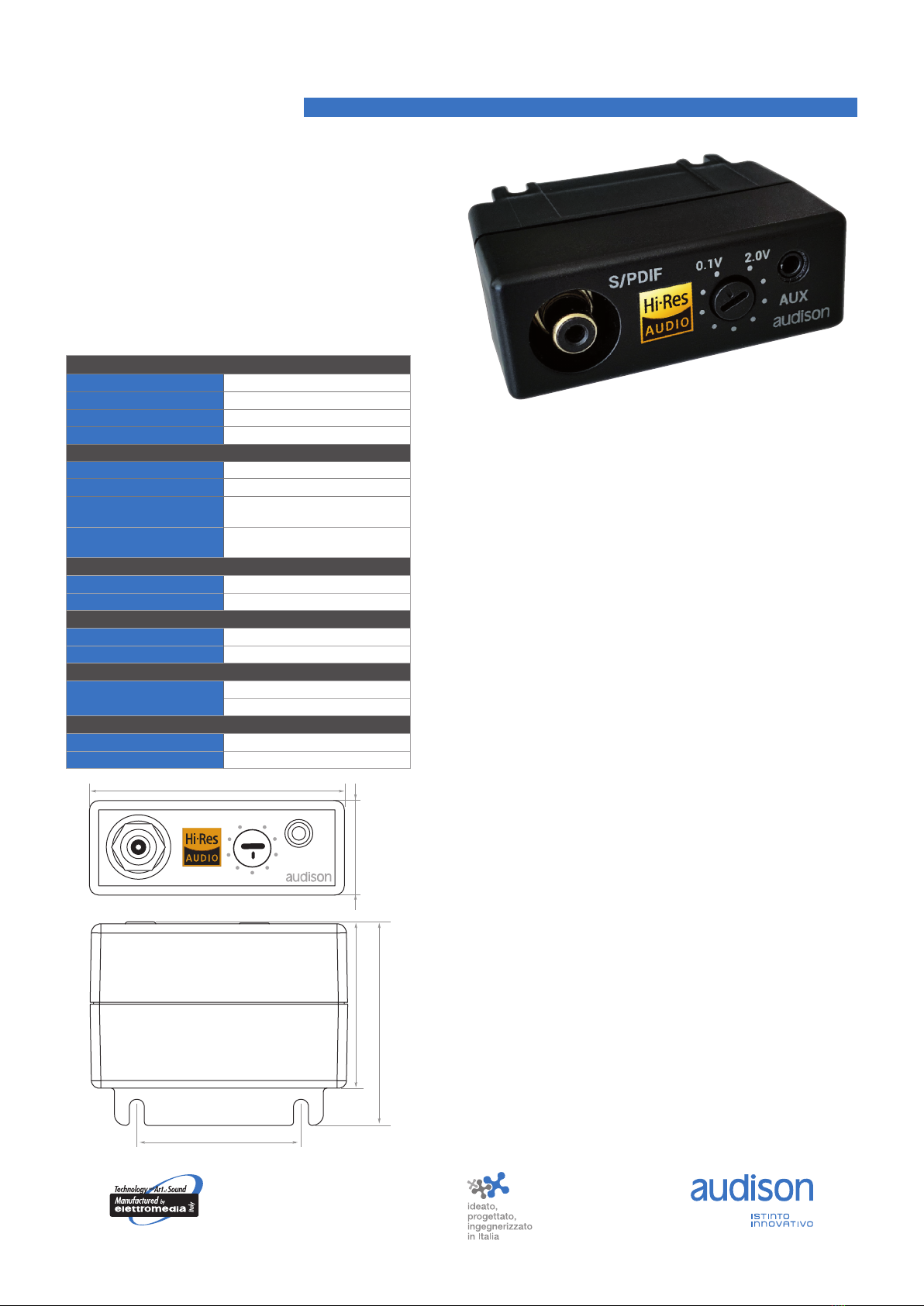

Audison C2O User manual

ACCESSORIES Coaxial to Optical converter
MANUALE D’USO /USER’S MANUAL C2O
audison.com
All specications subject to change without notice
USE
The C2O interface converts the signals coming from the coaxial digital
input and from the analog AUX-IN into a TOSLINK optical digital output
signal (up to 24 bit/192kHz).
The conversion allows the integration of the new Hi-Res portable
devices equipped with coaxial digital output (75Ω) and smartphones
with analog output on 3.5 mm mini Jack (also 4 poles) with Audison
processors featuring an optical digital input compatible with the
resolution of the signal sent to the C20.
Thanks to its extreme compactness, the C20 can be installed in a
hidden position on the dashboard, drastically reducing the length
of the cabling between the portable player and the receiving device
nullifying in this way any issues with interfacing.
FEATURES
The coaxial digital input is provided with an isolation transformer
that improves the balance between the transmitter and the
receiver circuit, reducing noise due to EMI electromagnetic
interference, which is particularly insidious inside the passenger
compartment.
The AUX-IN input is equipped with a pre-amplier with adjustable
gain of 0.1V ÷ 2V for an optimal coupling with each device before
the Analog-Digital conversion is performed by a high quality
converter at a resolution of 24 bit/48 kHz.
For maximum ease of use in cars, the C2O independently selects
the input with priority assigned to the AUX-IN. With the default
setting, after 6 seconds of no analog signal, the C2O moves to the
coaxial digital input. An internal switch allows for the time before
the switch to be set to 9 or 12 seconds.
POWER SUPPLY
Voltage: 6 ÷ 30 VDC
Idling current: 70 mA @ 12V
Remote IN voltage: 3 VDC (0.5 mA)
+ 12 Remote IN voltage: 6 VDC (80 mA)
SIGNAL STAGE
Distortion THD (analog input): 0,002 %
Bandwidth (analog input): 5 ÷ 24 kHz
S/N ratio @ A weighted
(analog input): 105 dB
Input sensitivity
(analog input): 0.1 ÷ 2 VRMS
INPUTS
Analog Pre-IN: 3.5mm jack stereo 3/4 pole
Digital S/PDIF: Electrical coax (24 bit 192 kHz)
INPUT MANAGEMENT
Signal priority: Analog
Digital IN delay switch: 6 - 9 - 12 sec. (default 6 sec.)
OUTPUT
Optical digital: From analog input: 24 bit 48 kHz
From digital input: 24 bit 192 kHz
SIZE
W x H x D mm / In. 69 x 26 x 54,5 / 2.71 x 1. 02 x 2.14
Weight kg / lbs: 0,048 / 0.106
26mm / 1.02in.
69mm / 2.71in.
69mm / 2.71in.
45mm / 1.77in.
44,5mm / 1.75In.
AUX
S/PDIF 0.1V 2.0V
C2O
COAX TO OPTICAL

ACCESSORIES Coaxial to Optical converter MANUALE D’USO /USER’S MANUAL C2O
audison.com
All specications subject to change without notice
rev. 1a
AUX
S/PDIF 0.1V 2.0V
OPTICAL OUT
ON
+
-
Rem
+ R
4 PIN
CONNECTOR
3 PIN
CONNECTOR
ANALOG OUT
Not Supplied
Not Supplied
Not Supplied
S/PDIF OUT
75 Ohm Coax Cable
TOSLINK OPTICAL CABLE MAX 4.5 m / 177.16 In.
Left Right Ground
Left Right Ground
0.1V 2.0V
0.1 V 2.0 V
LEVELS
ANALOG INPUT POWER SUPPLY / TURN ON
DIGITAL INPUT ACTIVATION DELAY
(with analog input no signal)
INPUT PRIORITY
01
2
3
4
5
67
USB
PRESETS OPTICAL IN
SUB OUTFUSE 2x30A CTRL SPEAKER IN PRE IN
DRC
UPGRADE
OFF ON
SPEAKER OUT
POWER - 12V
orange black red blue External Device
Remote OUT
REMOTE
+ 12 V REM
+ 12V
GND
GND GND
GND
orange black red blue
REMOTE
+ 12 V REM
+ 12V
GND
+ 12V
External Device
Remote OUT 100mA min.
AUX
S/PDIF 0.1V 2.0V
OPTICAL OUT
ON
+
-
Rem
+ R
AUX
S/PDIF 0.1V 2.0V
OPTICAL OUT
ON
+
-
Rem
+ R
1 2
COAX S/PDIF 24 bit 192 kHz max
OPTICAL S/PDIF 24 bit 192 kHz max
ANALOG INPUT
OPTICAL S/PDIF OUT 24 bit 48 kHz
OPTICAL S/PDIF OUT
24 bit 192 kHz Max
DIGITAL COAX INPUT 24 bit 192 kHz MaxDIGITAL COAX INPUT
POWER OFF
POWER ON
C2O
ON
rev.B
1 2
ON
1 2
ON
1 2
ON
1 2
6 sec. 9 sec. 12 sec.
TURN ON BY REMOTE WIRE TURN ON BY +12V REM WIRE
