AURES ELIOS III G User manual

Version 1.0 May 2013
ELIOS III G
User Manual

Copyright 2013
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change
without notice.
We make no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel®
Corporation. Microsoft® and Windows® are registered trademarks of
Microsoft Corporation.
Other trademarks mentioned herein are the property of their
respective owners.

ii
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical Power Supply, turn
off the power switch and remove the power cord plug from the wall
socket. The wall socket must be easily accessible and in close
proximity to the machine.
2. Read these instructions carefully. Save these instructions for future
reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
CE MARK
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
FCC
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation

iii
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources,
L.P.S) related legislation, peripherals shall be 4.7.3.2 "Materials for fire
enclosure" compliant.
4.7.3.2 Materials for fire enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding
18kg.the material of a FIRE ENCLOSURE, in the thinnest significant
wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass
the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg
and for all STATIONARY EQUIPMENT, the material of a FIRE
ENCLOSURE, in the thinnest significant wall thickness used, shall
be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1
LEGISLATION AND WEEE SYMBOL
2012/19/EU Waste Electrical and Electronic Equipment Directive on the
treatment, collection, recycling and disposal of electric and electronic
devices and their components.

iv
The crossed dustbin symbol on the device means that it should not be
disposed of with other household wastes at the end of its working life.
Instead, the device should be taken to the waste collection centers for
activation of the treatment, collection, recycling and disposal
procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for
disposal.

v
Revision History
Version Date Description
1.0 May 2013 Initial release

vi
Table of Contents
1 Packing Checklist .........................................1
1-1 Standard Items.................................................................. 1
1-2 Optional Items ................................................................... 2
2 System View...................................................3
2-1 Front View & Rear view ..................................................... 3
2-2 Side View............................................................................ 4
2-3 Bottom View....................................................................... 4
2-4 Rear I/O View..................................................................... 5
2-5 Dimension.......................................................................... 5
3 System Assembly & Disassembly.................7
3-1 Remove the Stand............................................................. 7
3-2 Remove the Motherboard................................................. 8
3-3 Remove the LCD Rear Cover............................................. 9
3-4 Replace the Touch Board................................................10
3-5 Replace the Touch Screen .............................................. 10
3-6 Replace the LCD Panel ...................................................11
4 Peripherals Installation.............................. 12
4-1 HDD (Hard Drive Disk) Installation.................................12
4-2 MSR and 2-in-1 MSR Installation...................................13
4-3 Addimat Key Kit Installation ...........................................14
4-4 VFD Installation ...............................................................16
4-5 Cash Drawer Installation................................................. 17
5 Specification............................................... 19
6 Configuration ...............................................21
6-1 C56 Motherboard............................................................ 21
6-2 Connectors & Functions..................................................22
6-3 Jumper Settings...............................................................23
7 Appendix...................................................... 25

1
1 Packing Checklist
1-1 Standard Items
a. System b. power adapter
c. power cord d. RJ45 to DB9 cable x 4

2

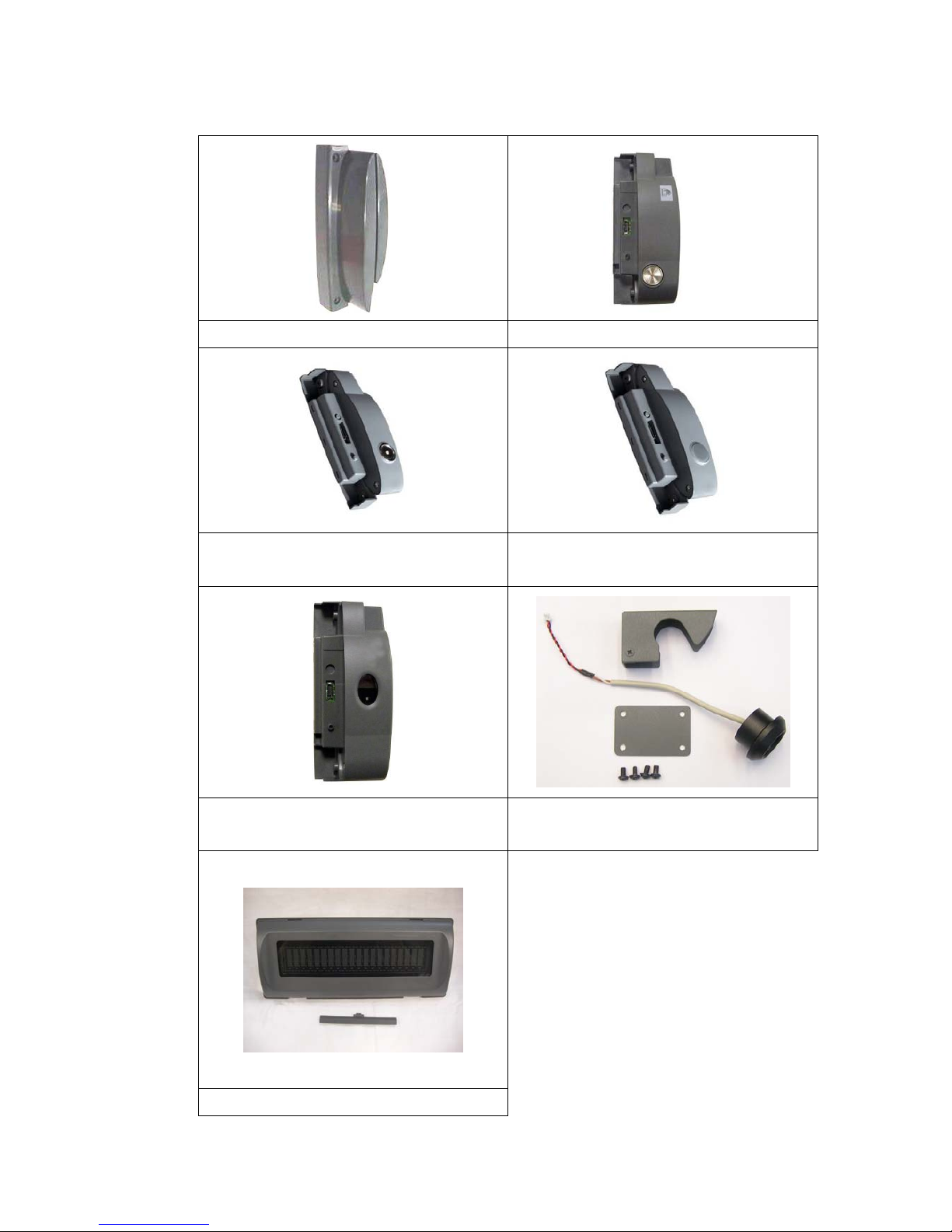

1-2 Optional Items
a. Magnetic Card Reader b. iButton Dallas Key Reader
c. Magnetic Card + iButton Dallas key
Reader
d. RFID Reader
e. Magnetic Card Reader + Biometric
Reader (fingerprint)
f. Addimat key reader
g. VFD

3
2 System View

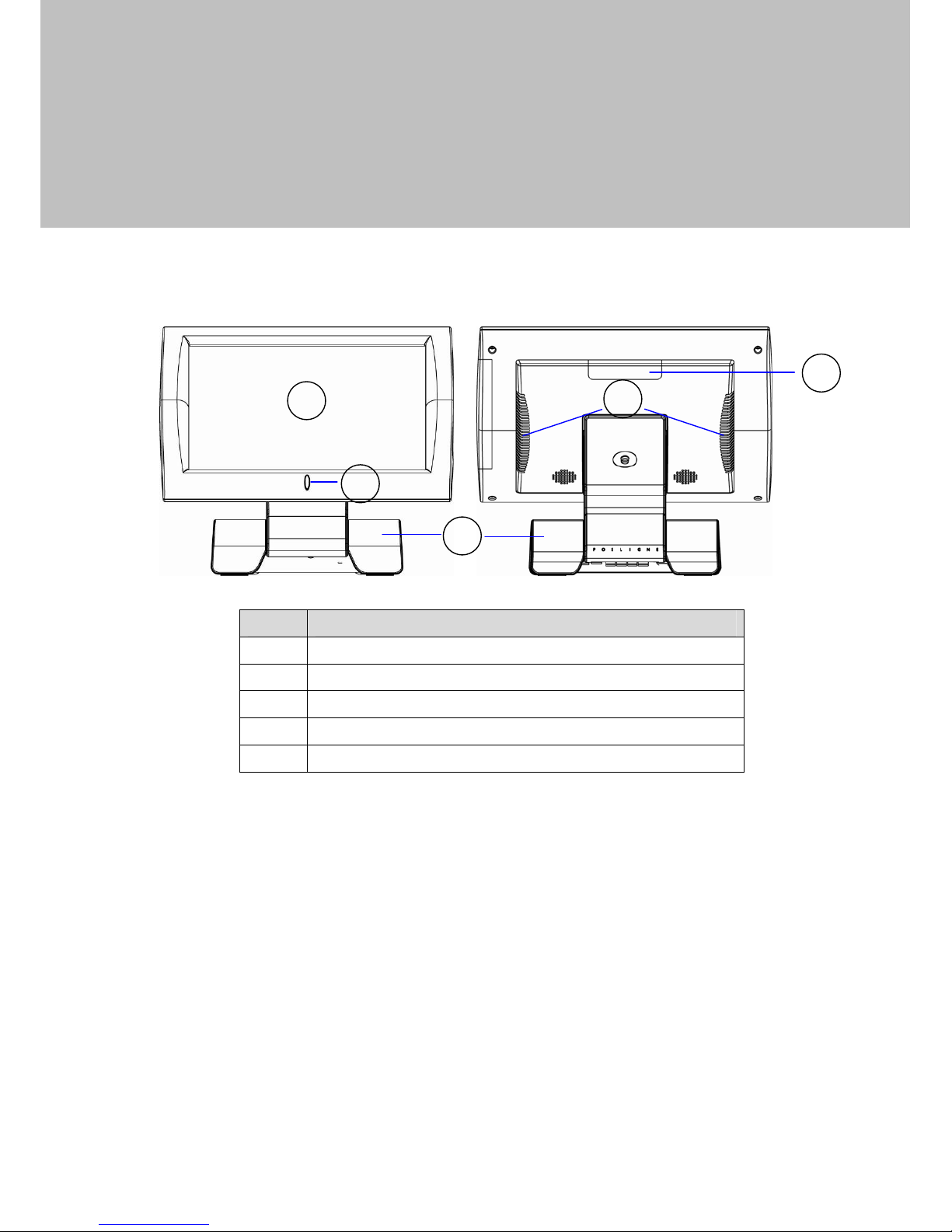

2-1 Front View & Rear view
No. Description
1 Touch Screen
2 VFD dummy cover
3 Ventilation
4 LED Light
5 Stand
1
2
4
3
5

4

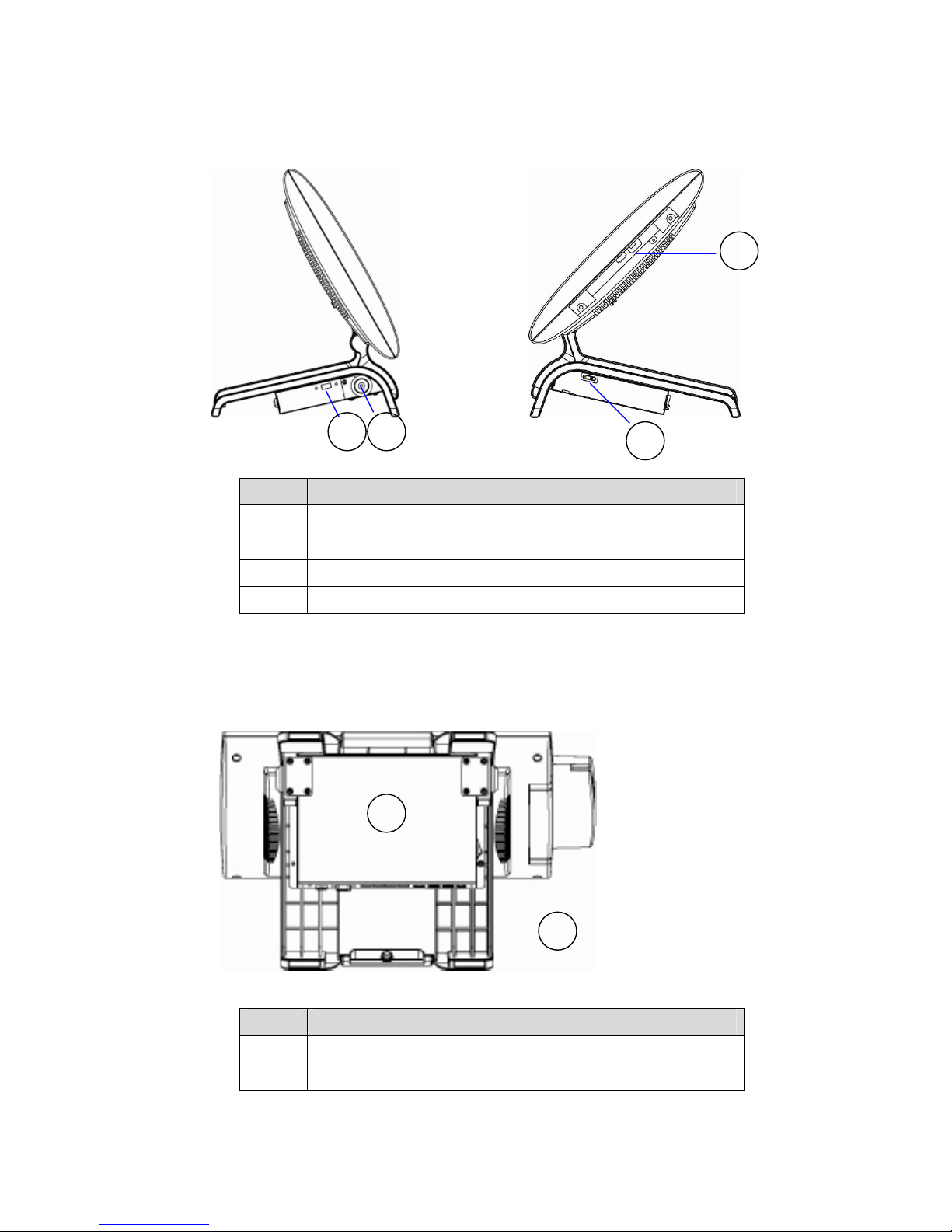

2-2 Side View
No. Description
5 USB Connector
6 Addimat Key Kit
7 MSR Installation Slot (Remove cover to install)
8 Power Button
2-3 Bottom View
No. Description
9 System Box (easy access to the Motherboard)
10 Thumb Screw of the System Box
9
5 6 8
7
10

5

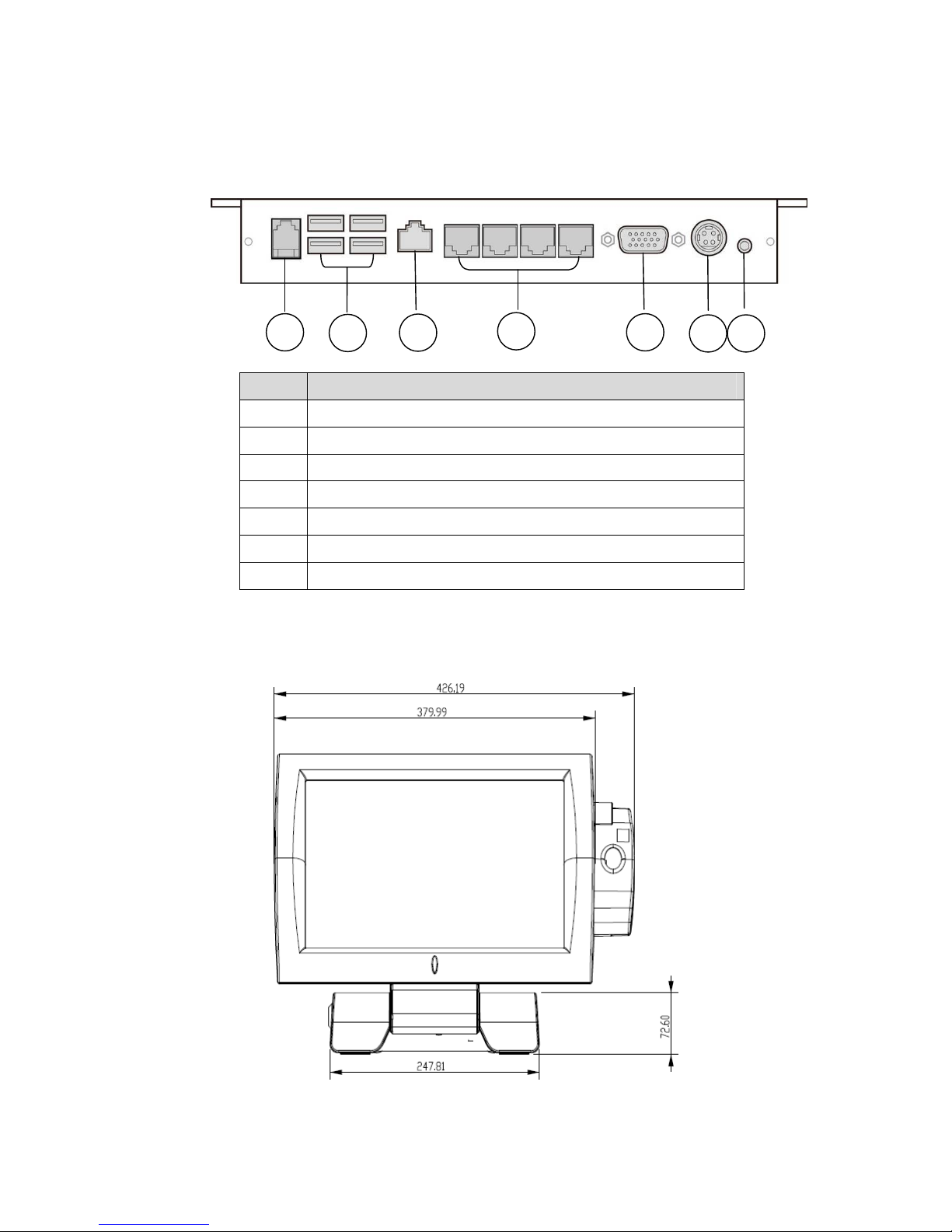

2-4 Rear I/O View
No. Description
1 Cash drawer
2 USB (x4)
3 LAN (10 / 100/1000)
4 Serial COM (x4)
5 2nd VGA
6 DC Jack
7 Power button

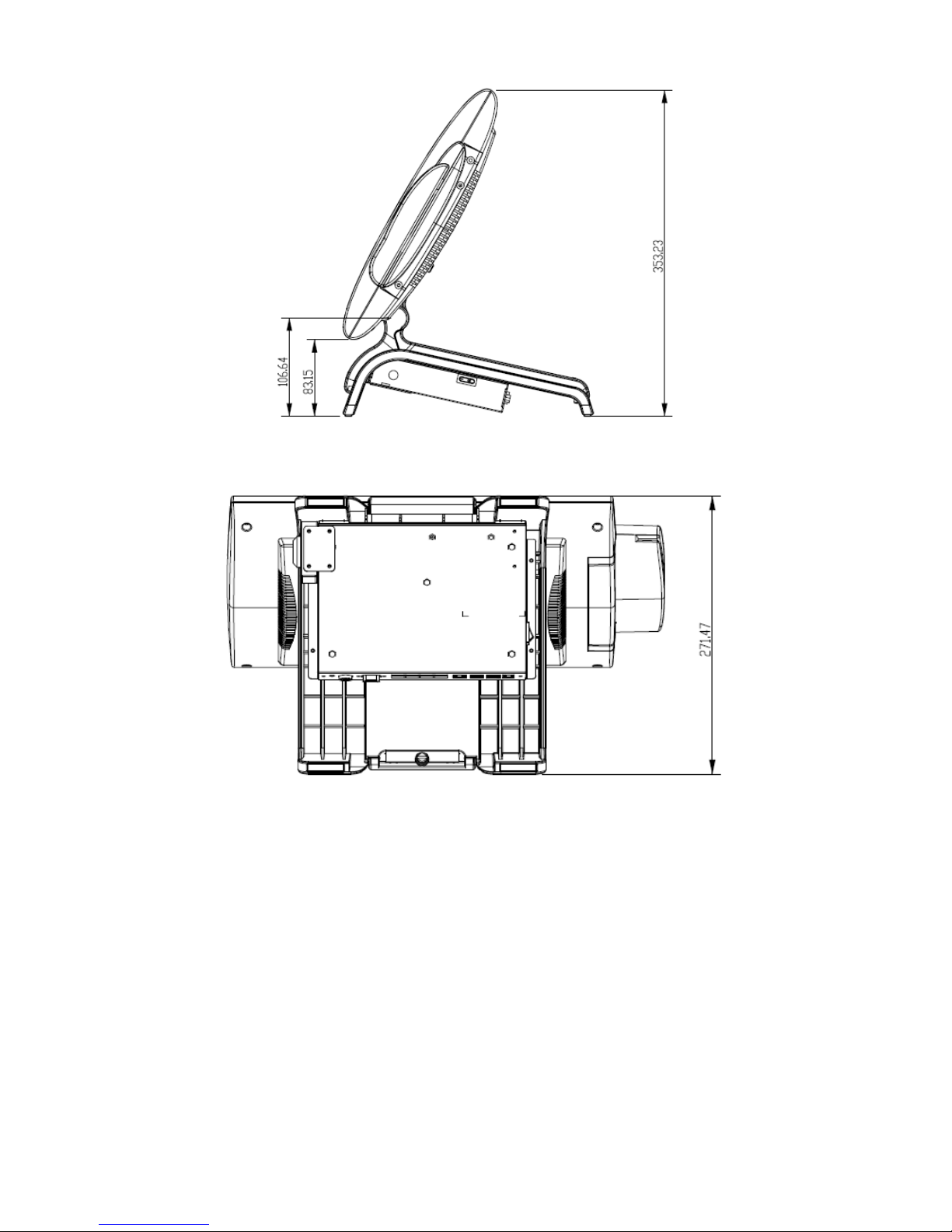

2-5 Dimension
1 2 3
4
5
6 7

6

7
3 System Assembly & Disassembly
3-1 Remove the Stand
1. Place the system face down. Make sure not to scratch the screen.
2. Remove the screw (x1) to release the plastic cover.
3. Disconnect the cable (x1) as shown.
4. Loosen the thumb screw (x1) fastening the metal bracket and the LCD rear cover.
5. Lift up the display module and separate it from the stand.

8
3-2 Remove the Motherboard

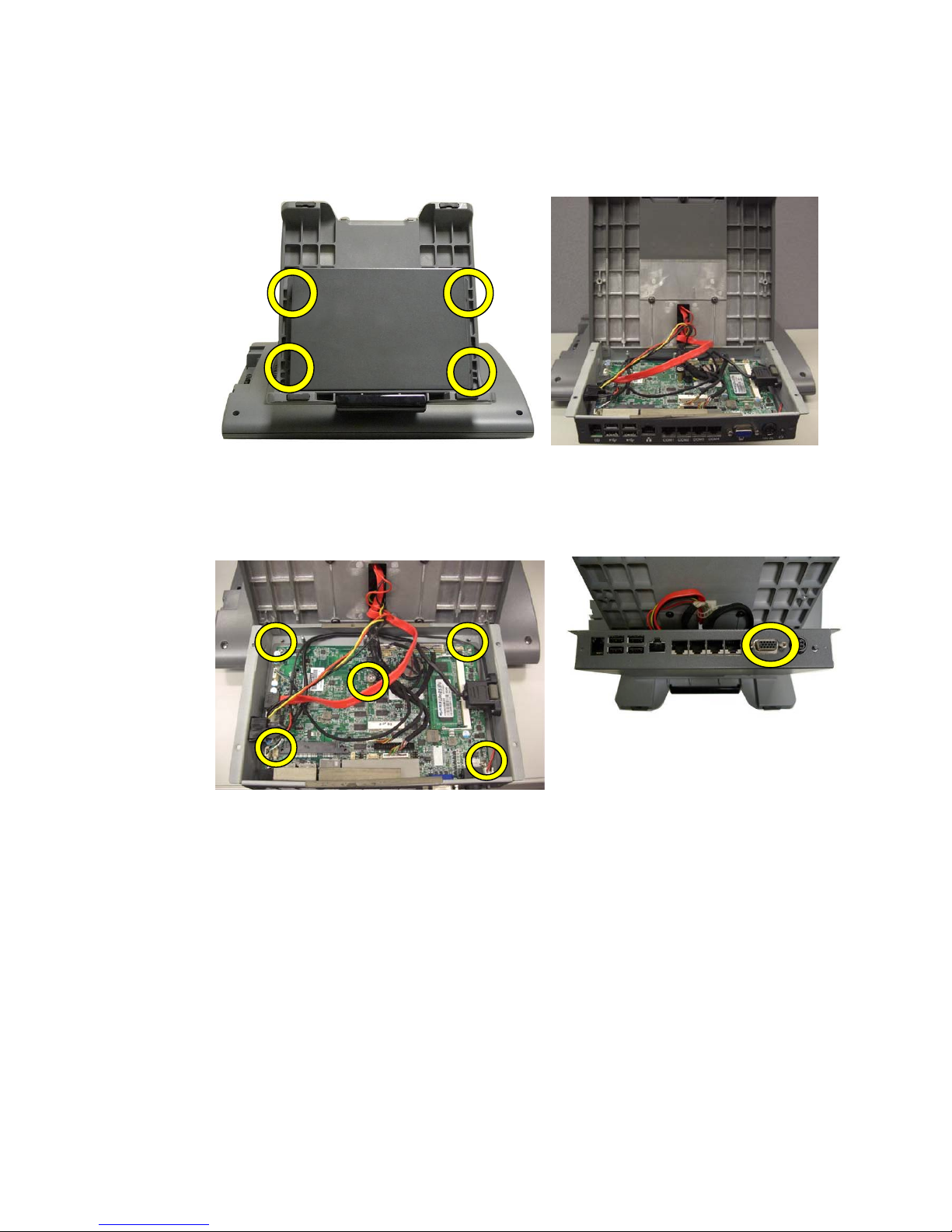

To access the motherboard, you need to open the system box which is located in the
bottom of the system.
1. Remove the screws (x4) that fix the system box to the stand.
2. Gently flip down the system box due to various connectors connecting to the
motherboard.
3. Disconnect all the connectors.
4. Remove the screws (x5) on the motherboard.
5. Remove the hex screws (x2) on the I/O Panel.

9
3-3 Remove the LCD Rear Cover
To remove the LCD rear cover in order to access the touch board. Please remove the
stand first as steps descried in Chapter 3-1.
1. To open the rear cover of the LCD, please remove the screws (x10) as shown in
the picture.
2. Remove the screws (x2) to open the MSR dummy cover and remove another
screw (x1) of the rear cover.

10
3-4 Replace the Touch Board
1. Remove the stand (Chapter 3-1).
2. Remove the rear cover (Chapter 3-3).
3. Disconnect the cables (x6).
4. Remove the screws (x3).
3-5 Replace the Touch Screen
1. Remove the stand (Chapter 3-1).
2. Remove the rear cover (Chapter 3-3).
3. Remove the screws (x7) and disconnect the touch cable (x1).
4. Gently separate the touch screen from the LCD panel.

11

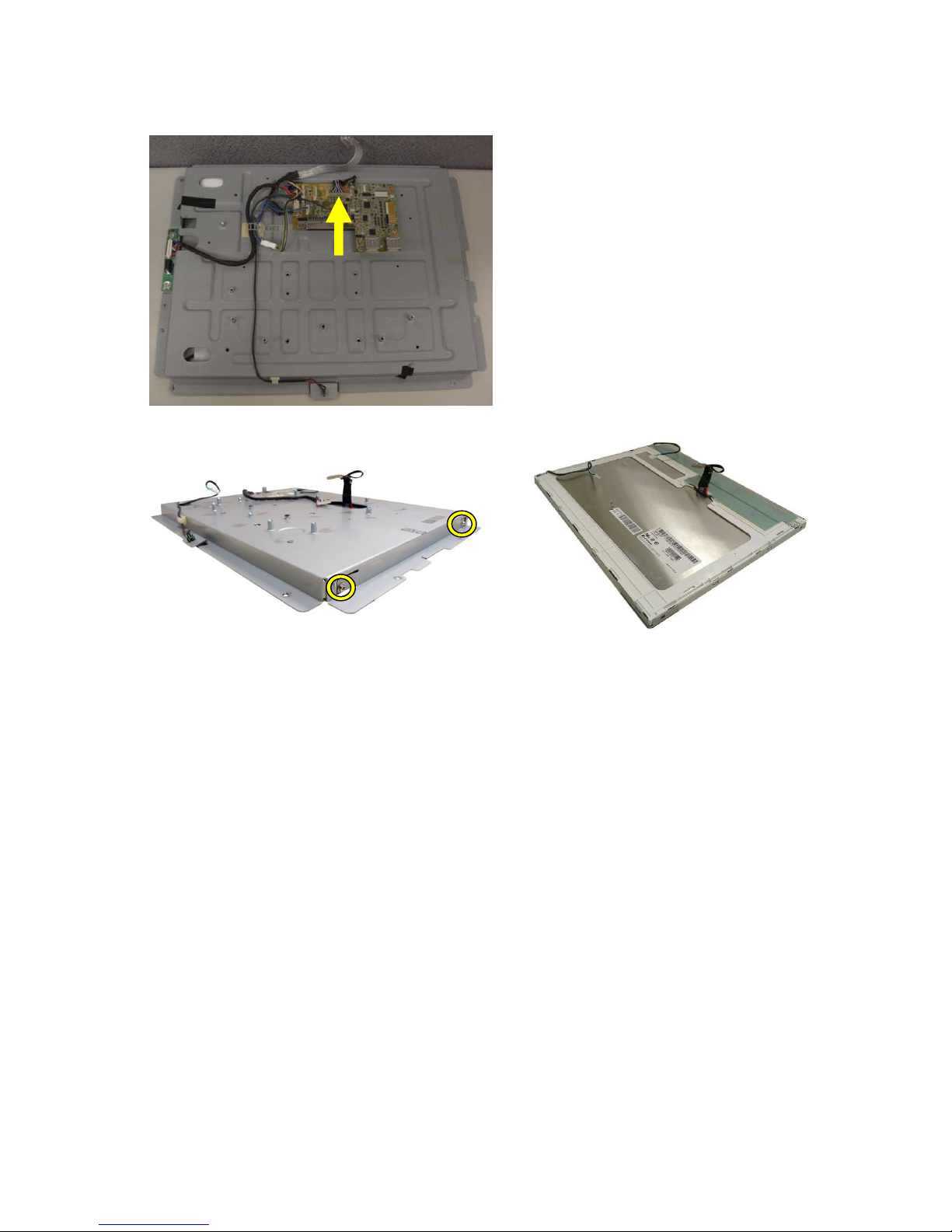

3-6 Replace the LCD Panel
1. Remove the stand (Chapter 3-1).
2. Remove the rear cover (Chapter 3-3).
3. Remove the touch screen (Chapter 3-6).
4. Disconnect the cable (x1).
5. Remove the screws (x4) at both sides of the sheet metal LCD bracket and
separate it from the LCD panel.

12
4 Peripherals Installation
4-1 HDD (Hard Drive Disk) Installation
1. Loosen the thumb screws (x2) on the rear side and bottom side of the system
to release the HDD cover.
2. Slide out the top part and the bottom part of the HDD cover and disconnect
the HDD cable (x1) to take out the HDD.

13
4-2 MSR and 2-in-1 MSR Installation
The installation procedure for the MSR module is also valid for RFID Reader, iButton
Dallas Key Reader, 2-in-1 MSR + iButton Dallas Key Reader, Fingerprint Reader and
2-in-1 MSR + Fingerprint Reader modules.
1. Remove the screws (x2) to open the MSR dummy cover.
2. Align the MSR module connector and mechanism parts to the system.
3. Fasten the screws (x2) to secure MSR module to the system.
