AURES JAZZ-BASE151 User manual

USER'S MANUAL
JAZZ-BASE151 l ART-0414X
MZ935PU044001-BLACK / MZ935PU044002-WHITE
Rev.A
FCC Notice
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Caution:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user authority to operate the equipment.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used
Batteries According to the Instructions.
CE Notice
This device complies with 2014/30/EU “EMC Directive “ and 2014/35/EU “Low
Voltage Directive” issued by the Commission of the European Community.
WEEE Notice
The WEEE mark applies only to countries within the European Union (EU) and
Norway. This appliance is labeled in accordance with European Directive
2002/96/EC concerning waste electrical and electronic equipment (WEEE).
The Directive determines the framework for the return and recycling of used
appliances as applicable throughout the European Union.
This label is applied to various products to indicate that the product is not
to be thrown away, but rather reclaimed upon end of life per this Directive.
Safety
IMPORTANT SAFETY INSTRUCTIONS
To disconnect the machine from the electrical Power Supply, turn off the
power switch and remove the power cable plug from the wall socket.

The wall socket must be easily accessible and in close proximity to the
machine.
Read these instructions carefully. Save these instructions for future
reference.
Follow all warnings and instructions marked on the product.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product. Slots and openings in the
cabinet and the back or bottom are provided for ventilation; to ensure
reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar
surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.
This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate this product
where persons will walk on the cord. Never push objects of any kind into
this product through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the product.
Warning - If using Class I adapter, power cord shall be connected to a
socket-outlet with earthing connection.

1
Table of Contents
Package Overview ................................................................................................2
Product Overview..................................................................................................2
Specification..........................................................................................................3
How to install the CPU box....................................................................................6
How to Install Cables.............................................................................................7
Product Dimensions..............................................................................................8
Appendix A: Driver Install......................................................................................8

2

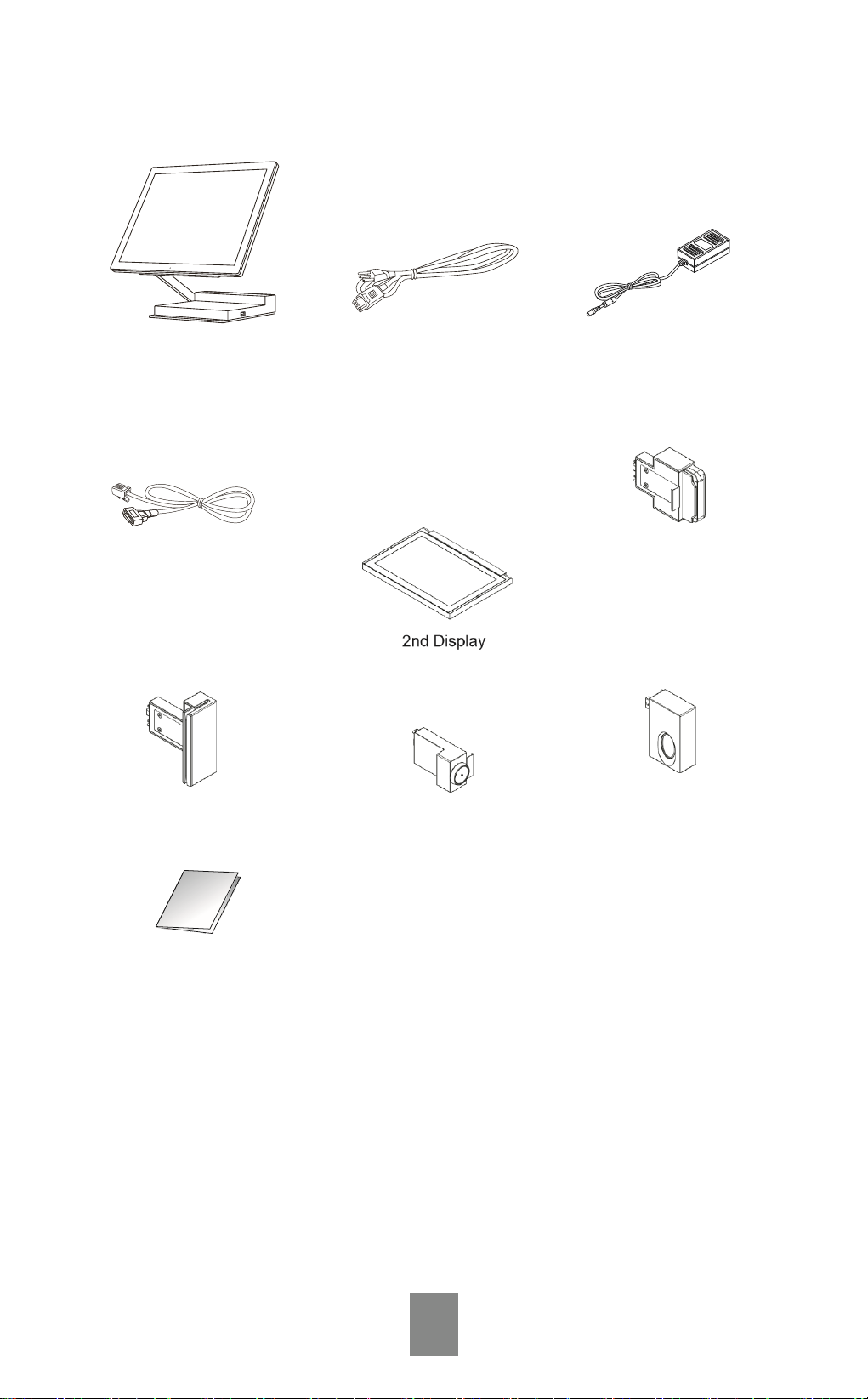

Package Overview
JAZZ-BASE151 Power Cord DC Power Supply
(MZ935PU044001-BLACK/
MZ935PU044002-WHITE)
RJ-50
to DB-
9M
Cable
x 2 EMV Reader
(Optional) (Optional)
MSR iButton Reader FPR
(Optional) (Optional) (Optional)
User Manual
Product Overview
JAZZ-BASE151(MZ935PU044001-BLACK/MZ935PU044002-WHITE) is an
15 inch touch display module designed for point of sale applications.
• Front View

3
• Bottom View
Specification
Model Name
JAZZ-BASE151 (MZ935PU044001-
BLACK/MZ935PU044002-WHITE)
CPU support
Intel®
BayTrail
Processor
J1900 (2M
Cache, up to
2.42 GHz)
Intel® Core™
Skylake i3-6100U
Processor
(3M Cache,
2.30 GHz)
Intel® Core™
Kabylake i5-7300U
Processor (3M
Cache, up to 3.50
GHz)
System Memory
1 x SO-DIMM
DDR3L
Max 8GB
DDR4
Max 16GB
BIOS
AMI uEFI BIOS
Phoenix uEFI BIOS
LCD Panel
LCD Size
15" (AUO G150XTN03.8)
Brightness
400 cd/m²
Maximal
resolution
1024 x 768

4
Aspect Ratio
4:3
Backlight Type
LED
LED Life Time
70,000 Hours (min.)
Touch Sensor
P-CAP Touch
Touch Screen
10 points
Controller IC
EETI 3188
Interface
USB
Storage
SSD
M.2 2280
Monitor System
Power button
1 x with Power indicator (Blue color when power ON)
USB
4 x Type-C female
*From CPU BOX by one (DP + USB3.0)
*Accessory device Left said by one (USB2.0 only,
5V/0.5A)
*Accessory device Right said by one (USB2.0 only,
5V/0.5A)
*2nd Display up said by one (USB2.0 only, 5V/1.5A)
1 x Type-A female
*USB2.0 only(5V/0.5A)
Speaker
Output Mono 2W
IO BOX
DC-IN jack
1 x 2.5Фjack connector for 19VDC input
USB
6 x Type-a USB3.0
Serial / COM
2 x RJ50 connector with RJ50 to DB9 cable for RS-232
port
(Provide power)
LAN
1 x RJ45 port for Gigabit Ethernet, support Wake on LAN
Display Port
2 x Type-C female (Monitor by one, CPU Box by one)
Power
Power Adapter
External 19V / 3.42A 65Watt Adapter
Certifications
EMI
FCC Class A / CE
Environment
Operating
Temperature
0-40°C
Storage
Temperature
-20°C-60°C
Humidity
5%-80% non-condensing
Dimension
(W x D x H)
LCD 0 degree :
517.44 x 54.08 x 313.31mm
Weight
(N.W./G.W.)
5.4kg / 7.3kg

5
OS support
Windows® 7 Professional for Embedded Systems,
Windows® Embedded POSReady 7, Windows® 10
* This specification is subject to change without prior notice.

6
How to install the CPU BOX
1. Lay the LCD flat on an even surface.
2. Move the stand into position as seen in the step 2 diagram.
3. Remove the MB cover as seen in the step 3 diagram.
4. Insert the CPU BOX to the appropriate as seen in the step 4 diagram.
5. To connect the USB cable to CPU BOX as seen in the step 5 diagram.
6. Re-attach the arm cover as seen in the step 6 diagram.

7
How to Install the cables
1. Lay the LCD flat on an even surface.
2. Push out the 4 screws to remove the stand cover as seen in the step 1
diagram.
3. Connect the USB and power cable to the appropriate connectors as seen
in the step 2 diagram.
4. Re-attach the stand cover and tight 4 screws as seen in the step 3 diagram.
5. Keep the cables in order by using the cable mount as seen in the step 4
diagram.
I/O connection

8

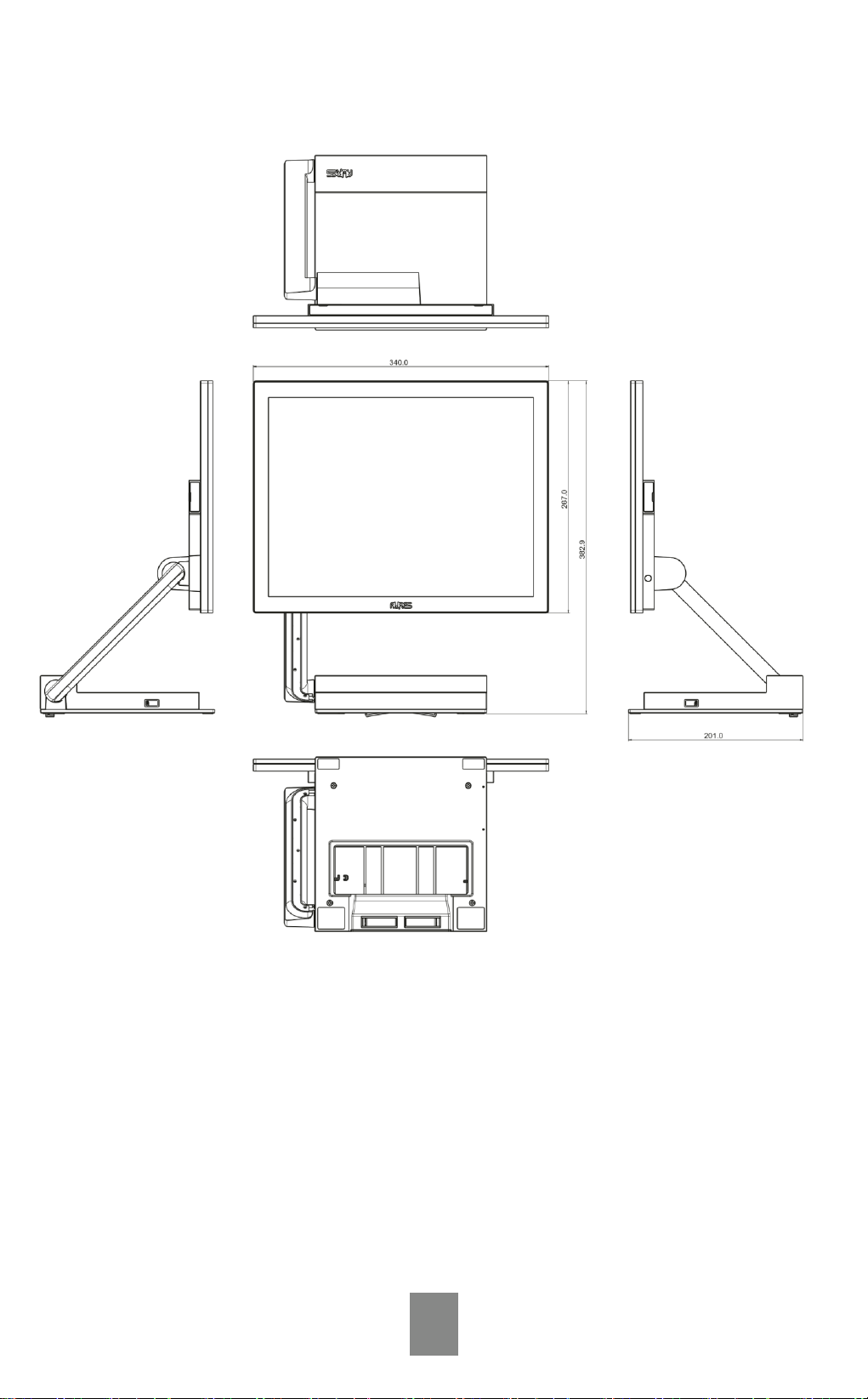

Product Dimensions
Appendix A: Driver Installation
To download the most recent drivers and utilities, and obtain advice
regarding the installation of your equipment, please visit the
AURES Technical Support Website www.aures-support.fr (French)
www.aures-support.fr/EN (English) www.aures-support.fr/DE
(German)
