AURES HUB-RETAIL-KL18.1 User manual

HUB-RETAIL-KL18.1
PoweredUSB Hub with extended I/O for
AURES YUNO and Wincor iPOS
Specifications
Model
HUB-RETAIL-KL18.1
Front Side
LED
Green when 180W power supply is connected
24V DC Input
4-pin 24V DC input with lock connector x 1
24V DC Output
3-pin with lock connector for thermal printer x 1
24V PoweredUSB port
Max. 2A / port x 1
12V PoweredUSB port
Max. 1.25A / port x 3
DB9 port
RS232 COM A / COM B / COM C / COM D
LAN port
10/100/1000 Base-T x 1
USB port
USB 2.0 x 6
Cash Drawer port
24 / 12 V Cash Drawer x 1
Rear Side
24V DC Output
2-pin 24V DC Jack with screw connector for Wincor iPOS x 1
19V DC Output
4-pin 19V DC output with lock connector for YUNO POS x 1
Cash Drawer Voltage Setting
3-pin pin-header x 2
COM Voltage Setting
4-pin pin-header x 4
USB IN port
USB port connect to POS system
LAN IN port
LAN port connect to POS system
Cable Clamp
Cable management for USB cable
Others
Power Supply
100 ~ 240 V AC-in, 180 Watt 24V 7.5A DC-out adapter x 1
3-in-1 Cable to POS System
Power cable (2-pin to 4-pin) x 1
USB cable x 1
LAN cable x 1
Color
Black Mat
Material
SPCC
Certification
CE and LVD
Dimension ( W x D x H )
256 x 63 x 43 mm (10,1 x 2,5 x 1,7 inches)
Weight
0.7 kg
Environmental
Operating Temperature
-20 ~ 60°C (-4 ~ 140°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Relative Humidity
95% at 40°C (104°F), non-condensing
*All trademarks and copyrights are the property of their respective owners.
**Content is subject to change without prior notice.

SAFETY INSTRUCTIONS
To disconnect the product from the
electrical Power Supply, remove the
power cable plug from the wall socket.
The wall socket must be easily
accessible and in close proximity to the
product.
Read these instructions carefully. Save
these instructions for future reference.
Follow all warnings and instructions
marked on the product.
Do not use this product near water.
Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
Only use power supply unit and cables
released by AURES.
Do not allow anything to rest on the
power cord. Do not locate this product
where persons will walk on the cord.
Never spill liquid of any kind on the
product.

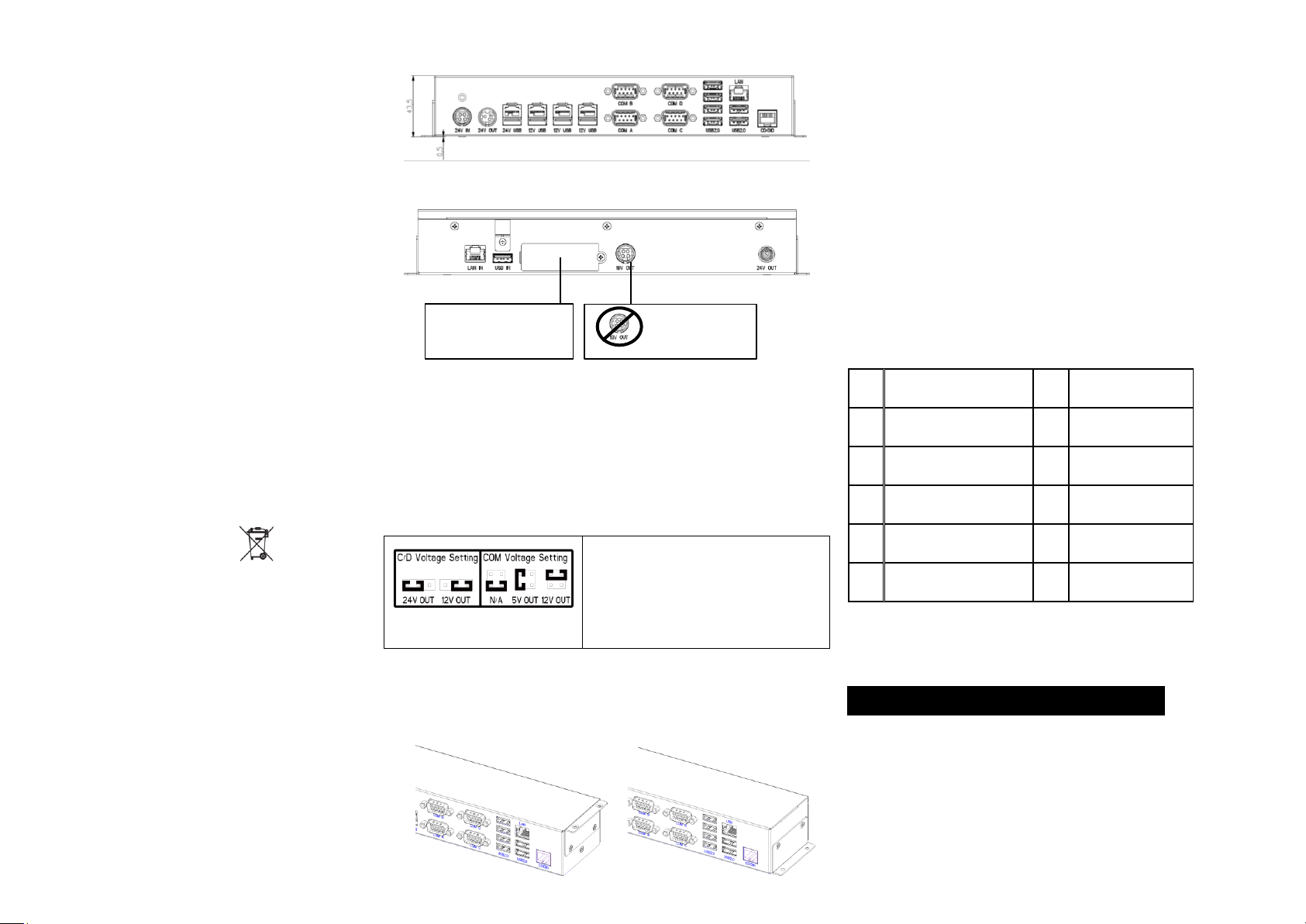

Front Side
HUB-RETAIL-KL18.1 is an innovative
PoweredUSB Hub with extended I/O for
YUNO POS and Wincor iPOS, which allows
you to enjoy versatile POS peripherals.
Features :
- Empower AURES YUNO and Wincor iPOS
via foolproof design 3-in-1 cable (Power, LAN
and USB) with PoweredUSB feature
- Power ON with connected POS
- Built-in microcontroller to provide standard
COM port access
- Built-in cable lock/clamp to avoid cable
loosen
- Flexible mounting bracket to ease fixation
Serial Port Pin and Signal Assignments :
Pin
Signal Name
Pin
Signal Name
1
Data Carrier Detect
6
Data Set Ready
2
Received Data
7
Request to Send
3
Transmitted Data
8
Clear to Send
4
Data Terminal Ready
9
Ring Indicator*
5
Signal Ground
*Ring(Default) / +5V /+12V selected by jumper
Technical Support
The AURES Group thanks you for your loyalty.
To download our most recent drivers and utilities
and obtain advice regarding the installation of
y o u r e q u i p m e n t , p l e a s e v i s i t t h e A U R E S
T e c h n i c a l S u p p o r t W e b s i t e :
www.aures-support.fr/UK
Rear Side
Voltage Settings of Cash
Drawer and COM ports are
behind the service door
CAUTION : DO NOT
connect the 180W
power plug here
WEEE Notice
The WEEE mark applies only to
countries within the European
Union (EU) and Norway.
This appliance is labeled in accordance
with European Directive 2002/96/EC
concerning waste electrical and
electronic equipment (WEEE). The
Directive determines the framework for
the return and recycling of used
appliances as applicable throughout the
European Union. This label is applied to
various products to indicate that the
product is not to be thrown away, but
rather reclaimed upon end of life per
this Directive.
Configure the voltage settings of Cash Drawer and
each COM port if necessary
Default setting :
Cash Drawer at 24V
COM port at N/A
CAUTION : Turn the machine off
before configuring the voltage
setting
How to mount?
Mount either at top or bottom with four included M3
screws.
