Operating Instructions
Ceraphant PTC31B, PTP31B,
PTP33B
IO-Link
Process pressure measurement
Pressure switch for safe measurement and monitoring of
absolute and gauge pressure
BA01911P/00/EN/01.18
71422361
2018-12-20

Ceraphant PTC31B, PTP31B, PTP33B IO-Link
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555
• Make sure the document is stored in a safe place such that it is always available when
working on or with the device.
• To avoid danger to individuals or the facility, read the "Basic safety instructions" section
carefully, as well as all other safety instructions in the document that are specific to
working procedures.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser distributor will supply you with current information and updates to
these Operating Instructions.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 5
1.1 Document function ..................... 5
1.2 Symbols used .......................... 5
1.3 Documentation ........................ 6
1.4 Terms and abbreviations ................. 7
1.5 Turn down calculation ................... 8
1.6 Registered trademarks ................... 8
2 Basic safety instructions ............ 9
2.1 Requirements concerning the staff .......... 9
2.2 Designated use ........................ 9
2.3 Workplace safety ...................... 10
2.4 Operational safety ..................... 10
2.5 Product safety ........................ 10
3 Product description ................ 11
3.1 Product design ........................ 11
3.2 Function ............................ 11
4 Incoming acceptance and product
identification ..................... 13
4.1 Incoming acceptance ................... 13
4.2 Product identification ................... 14
4.3 Storage and transport .................. 14
5 Installation ....................... 16
5.1 Mounting dimensions .................. 16
5.2 Installation conditions .................. 16
5.3 Influence of the installation position ........ 16
5.4 Mounting location ..................... 17
5.5 Mounting instructions for oxygen
applications .......................... 19
5.6 Post-installation check .................. 19
6 Electrical connection .............. 20
6.1 Connecting the measuring unit ............ 20
6.2 Switching capacity ..................... 22
6.3 Connection data ....................... 22
6.4 Post-connection check .................. 23
7 Operation options ................. 24
7.1 Operation with an operating menu ......... 24
7.2 Operation with local display .............. 25
7.3 General value adjustment and rejection of
illegal entries ......................... 26
7.4 Navigation and selection from list ......... 26
7.5 Locking and unlocking operation .......... 28
7.6 Navigation examples ................... 30
7.7 Status LEDs .......................... 30
7.8 Resetting to factory settings (reset) ........ 30
8 System integration ................ 31
8.1 Process data ......................... 31
8.2 Reading out and writing device data (ISDU –
Indexed Service Data Unit) ............... 32
8.3 Overview of diagnostic events ............. 34
9 Commissioning .................... 35
9.1 Function check ....................... 35
9.2 Commissioning with an operating menu ..... 35
9.3 Configuring pressure measurement ........ 36
9.4 Performing position adjustment ........... 38
9.5 Configuring process monitoring ........... 40
9.6 Current output ........................ 40
9.7 Application examples ................... 43
10 Diagnostics and troubleshooting ... 44
10.1 Troubleshooting ...................... 44
10.2 Diagnostic events ...................... 45
10.3 Behavior of the device in the event of a fault .. 47
10.4 Signal on alarm 4 to 20 mA .............. 47
10.5 Behavior of the device in the event of a
voltage drop ......................... 48
10.6 Behavior of the device in the event of an
incorrect entry ....................... 48
10.7 Resetting to factory settings (reset) ........ 48
11 Maintenance ...................... 48
11.1 Exterior cleaning ...................... 49
12 Repairs ........................... 50
12.1 General notes ........................ 50
12.2 Return .............................. 50
12.3 Disposal ............................ 50
13 Overview of the onsite display
operating menu ................... 51
14 Overview of the IO-Link operating
menu ............................. 54
15 Description of device parameters ... 56
15.1 Observation ......................... 74
16 Accessories ....................... 75
16.1 Weld-in adapter ...................... 75
16.2 Process adapter M24 ................... 75
16.3 M12 plug connectors ................... 76

Table of contents Ceraphant PTC31B, PTP31B, PTP33B IO-Link
4 Endress+Hauser
17 Technical data .................... 77
17.1 Input ............................... 77
17.2 Output ............................. 80
17.3 Performance characteristics of ceramic
process isolating diaphragm .............. 83
17.4 Performance characteristics of metal process
isolating diaphragm .................... 85
17.5 Environment ......................... 87
17.6 Process ............................. 88
Index .................................. 90

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Document information
Endress+Hauser 5
1 Document information
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Symbols used
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTICE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning Symbol Meaning
Protective ground connection
A terminal which must be connected
to ground prior to establishing any
other connections.
Ground connection
A grounded terminal which, as far as
the operator is concerned, is
grounded via a grounding system.
1.2.3 Tool symbols
Symbol Meaning
A0011222
Open-ended wrench
1.2.4 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.

Document information Ceraphant PTC31B, PTP31B, PTP33B IO-Link
6 Endress+Hauser
Symbol Meaning
Reference to documentation
A
Reference to page
Reference to graphic
,… ,
1. 2. 3.
Series of steps
Result of a step
Visual inspection
1.2.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
1. 2. 3.
Series of steps
A, B, C, ... Views
1.3 Documentation
The document types listed are available:
In the Download Area of the Endress+Hauser Internet site: www.endress.com →
Download
1.3.1 Technical Information (TI): planning aid for your device
PTC31B: TI01130P
PTP31B: TI01130P
PTP33B: TI01246P
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.
1.3.2 Brief Operating Instructions (KA): getting the 1st measured
value quickly
Devices with IO-Link: KA01404P
These instructions contain all the essential information from incoming acceptance to
initial commissioning.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Document information
Endress+Hauser 7
1.4 Terms and abbreviations
URL OPLMWP
LRL
0
p
LRV URV
1
2
3
4
A0029505
Item Term/
abbreviation
Explanation
1 OPL The OPL (over pressure limit = sensor overload limit) for the measuring device
depends on the lowest-rated element, with regard to pressure, of the selected
components, i.e. the process connection has to be taken into consideration in
addition to the measuring cell. Also observe pressure-temperature dependency. For
the relevant standards and additional notes, see the "Pressure specifications" section
→  89 .
The OPL may only be applied for a limited period of time.
2 MWP The MWP (maximum working pressure) for the sensors depends on the lowest-
rated element, with regard to pressure, of the selected components, i.e. the process
connection has to be taken into consideration in addition to the measuring cell.
Also observe pressure-temperature dependency. For the relevant standards and
additional notes, see the "Pressure specifications" section →  89 .
The MWP may be applied at the device for an unlimited period.
The MWP can also be found on the nameplate.
3 Maximum sensor
measuring range
Span between LRL and URL
This sensor measuring range is equivalent to the maximum calibratable/adjustable
span.
4 Calibrated/adjusted
span
Span between LRV and URV
Factory setting: 0 to URL
Other calibrated spans can be ordered as customized spans.
p - Pressure
- LRL Lower range limit
- URL Upper range limit
- LRV Lower range value
- URV Upper range value
- TD (turn down) Turn down
Example - see the following section.

Document information Ceraphant PTC31B, PTP31B, PTP33B IO-Link
8 Endress+Hauser
1.5 Turn down calculation
LRV URLURV LRL
1 = 2 3
A0029545
1 Calibrated/adjusted span
2 Zero point-based span
3 URL sensor
Example
• Sensor:10 bar (150 psi)
• Upper range value (URL) = 10 bar (150 psi)
Turn down (TD):
• Calibrated/adjusted span: 0 to 5 bar (0 to 75 psi)
• Lower range value (LRV) = 0 bar (0 psi)
• Upper range value (URV) = 5 bar (75 psi)
TD = URL
|URV - LRV|
TD = 10 bar (150 psi) = 2
|5 bar (75 psi) - 0 bar (0 psi)|
In this example, the TD is 2:1.
This span is based on the zero point.
1.6 Registered trademarks
is a registered trademark of the IO-Link company group.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Basic safety instructions
Endress+Hauser 9
2 Basic safety instructions
2.1 Requirements concerning the staff
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists: must have a relevant qualification for this specific
function and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the
instructions in the Operating Instructions and supplementary documentation as well as
in the certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the
facility's owner-operator
‣Following the instructions in these Operating Instructions
2.2 Designated use
2.2.1 Application and media
The Ceraphant is a pressure switch for measuring and monitoring absolute and gauge
pressure in industrial systems. The process-wetted materials of the measuring device must
have an adequate level of resistance to the media.
The measuring device may be used for the following measurements (process variables)
• in compliance with the limit values specified under "Technical data"
• in compliance with the conditions that are listed in this manual.
Measured process variable
Gauge pressure or absolute pressure
Calculated process variable
Pressure
2.2.2 Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance
in verifying the corrosion resistance of process-wetted materials, but does not accept
any warranty or liability.
2.2.3 Residual risks
When in operation, the housing may reach a temperature close to the process
temperature.
Danger of burns from contact with surfaces!
‣For elevated process temperatures, ensure protection against contact to prevent burns.

Basic safety instructions Ceraphant PTC31B, PTP31B, PTP33B IO-Link
10 Endress+Hauser
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
‣Switch off the supply voltage before connecting the device.
2.4 Operational safety
Risk of injury!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with Endress+Hauser.
Hazardous area
To eliminate the risk of danger to persons or the facility when the device is used in the
approval-related area (e.g. pressure equipment safety):
‣Check the nameplate to verify if the device ordered can be put to its intended use in the
approval-related area.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Product description
Endress+Hauser 11
3 Product description
3.1 Product design

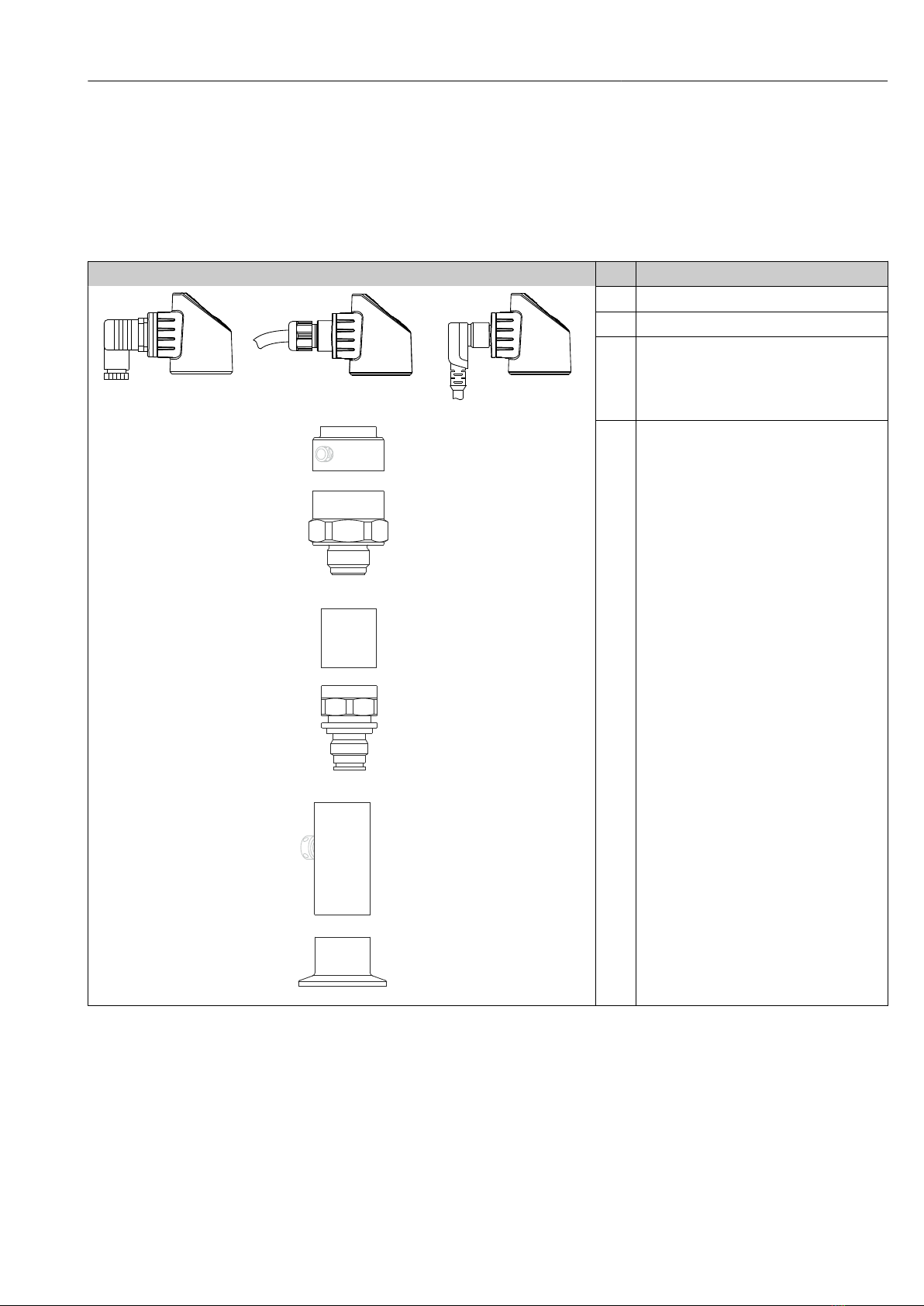

Overview Item Description
A
A0022015
B
A0037236
C
A0037238
A Valve plug
B Cable
C M12 plug
Housing cap made of plastic
D
E
A0027226
D
E
A0027215
D
E
A0027227
D
E
Housing
Process connection (sample illustration)
3.2 Function
3.2.1 Calculating the pressure
Devices with ceramic process isolating diaphragm (Ceraphire®)
The ceramic sensor is an oil-free sensor, i.e. the process pressure acts directly on the
robust ceramic process isolating diaphragm and causes it to deflect. A pressure-dependent

Product description Ceraphant PTC31B, PTP31B, PTP33B IO-Link
12 Endress+Hauser
change in capacitance is measured at the electrodes of the ceramic substrate and the
process isolating diaphragm. The measuring range is determined by the thickness of the
ceramic process isolating diaphragm.
Devices with metallic process isolating diaphragm
The process pressure deflects the metal process isolating diaphragm of the sensor and a fill
fluid transfers the pressure to a Wheatstone bridge (semiconductor technology). The
pressure-dependent change in the bridge output voltage is measured and evaluated.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Incoming acceptance and product identification
Endress+Hauser 13
4 Incoming acceptance and product
identification

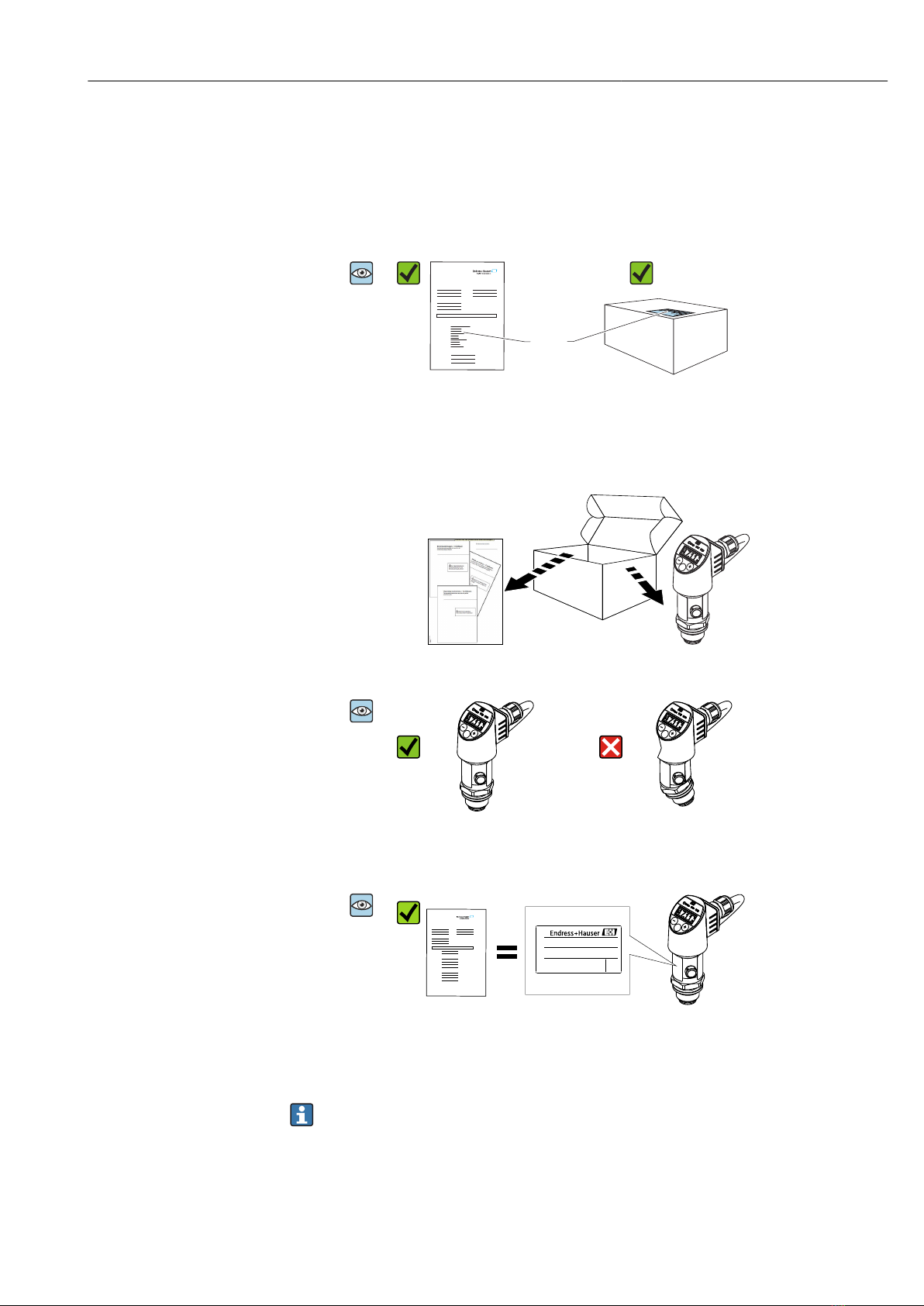

4.1 Incoming acceptance
A0028673
DELIVERY NOTE
1 = 2
A0016870
Is the order code on the delivery note (1) identical to the order code on
the product sticker (2)?
A0022099
A0028673
E
E
A0022101
Are the goods undamaged?
A0028673
DELIVERY NOTE
E
A0022104
Do the data on the nameplate correspond to the order specifications and
the delivery note?
If one of these conditions does not apply, please contact your
Endress+Hauser sales office.

Incoming acceptance and product identification Ceraphant PTC31B, PTP31B, PTP33B IO-Link
14 Endress+Hauser
4.2 Product identification
The following options are available for the identification of the measuring device:
• Nameplate specifications
• Order code with a breakdown of the device features on the delivery note
• Enter the serial numbers from the nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All the information about the measuring device is
displayed.
For an overview of the technical documentation provided, enter the serial number from
the nameplates in W@M Device Viewer (www.endress.com/deviceviewer)
4.2.1 Manufacturer address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg, Germany
Address of the manufacturing plant: See nameplate.
4.2.2 Nameplate
Ser. no.:
Ord. cd.:
Ext. ord. cd.:
D-79689 Maulburg
Made in Germany,
Ceraphant
5
1
2
3
4
Date:
TAG:
A0030101
1 Manufacturer's address
2 Device name
3 Order number
4 Serial number
5 Extended order number
4.3 Storage and transport
4.3.1 Storage conditions
Use original packaging.
Store the measuring device in clean and dry conditions and protect from damage caused by
shocks (EN 837-2).
Storage temperature range
–40 to +85 °C (–40 to +185 °F)

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Incoming acceptance and product identification
Endress+Hauser 15
4.3.2 Transporting the product to the measuring point
LWARNING
Incorrect transport!
Housing and diaphragm may become damaged, and there is a risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or by
the process connection.

Installation Ceraphant PTC31B, PTP31B, PTP33B IO-Link
16 Endress+Hauser
5 Installation
5.1 Mounting dimensions
For dimensions, see the "Mechanical construction" section in the Technical Information.
5.2 Installation conditions
• Moisture must not penetrate the housing when mounting the device, establishing the
electrical connection and during operation.
• Do not clean or touch process isolating diaphragms with hard and/or pointed objects.
• Do not remove process isolating diaphragm protection until shortly before installation.
• Always tighten the cable entry firmly.
• Point the cable and connector downwards where possible to prevent moisture from
entering (e.g. rain or condensation water).
• Protect housing against impact.
• For devices with gauge pressure sensor, the following applies:
NOTICE
If a heated device is cooled in the course of a cleaning process (by cold water, for
example), a vacuum develops for a short time causing moisture to penetrate the
sensor via the pressure compensation element (1).
Device could be destroyed!
‣In the event of this happening, mount the device in such a way that the pressure
compensation element (1) is pointing downwards at an angle or to the side, if possible.
1
1
1
1
A0022252
5.3 Influence of the installation position
Any orientation is possible. However, the orientation may cause a zero point shift i.e. the
measured value does not show zero when the vessel is empty or partially full.
C
AB
A0024708

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Installation
Endress+Hauser 17
Type Process isolating
diaphragm axis is
horizontal (A)
Process isolating diaphragm
pointing upwards (B)
Process isolating diaphragm
pointing downwards (C)
PTP31B
PTP33B
Calibration position, no
effect
Up to +4 mbar (+0.058 psi) Up to –4 mbar (–0.058 psi)
PTC31B
< 1 bar (15 psi)
Calibration position, no
effect
Up to
+0.3 mbar (+0.0044 psi)
Up to
–0.3 mbar (–0.0044 psi)
PTC31B
≥1 bar (15 psi)
Calibration position, no
effect
Up to +3 mbar (+0.0435 psi) Up to –3 mbar (–0.0435 psi)
A position-dependent zero shift can be corrected on the device .
5.4 Mounting location
5.4.1 Pressure measurement

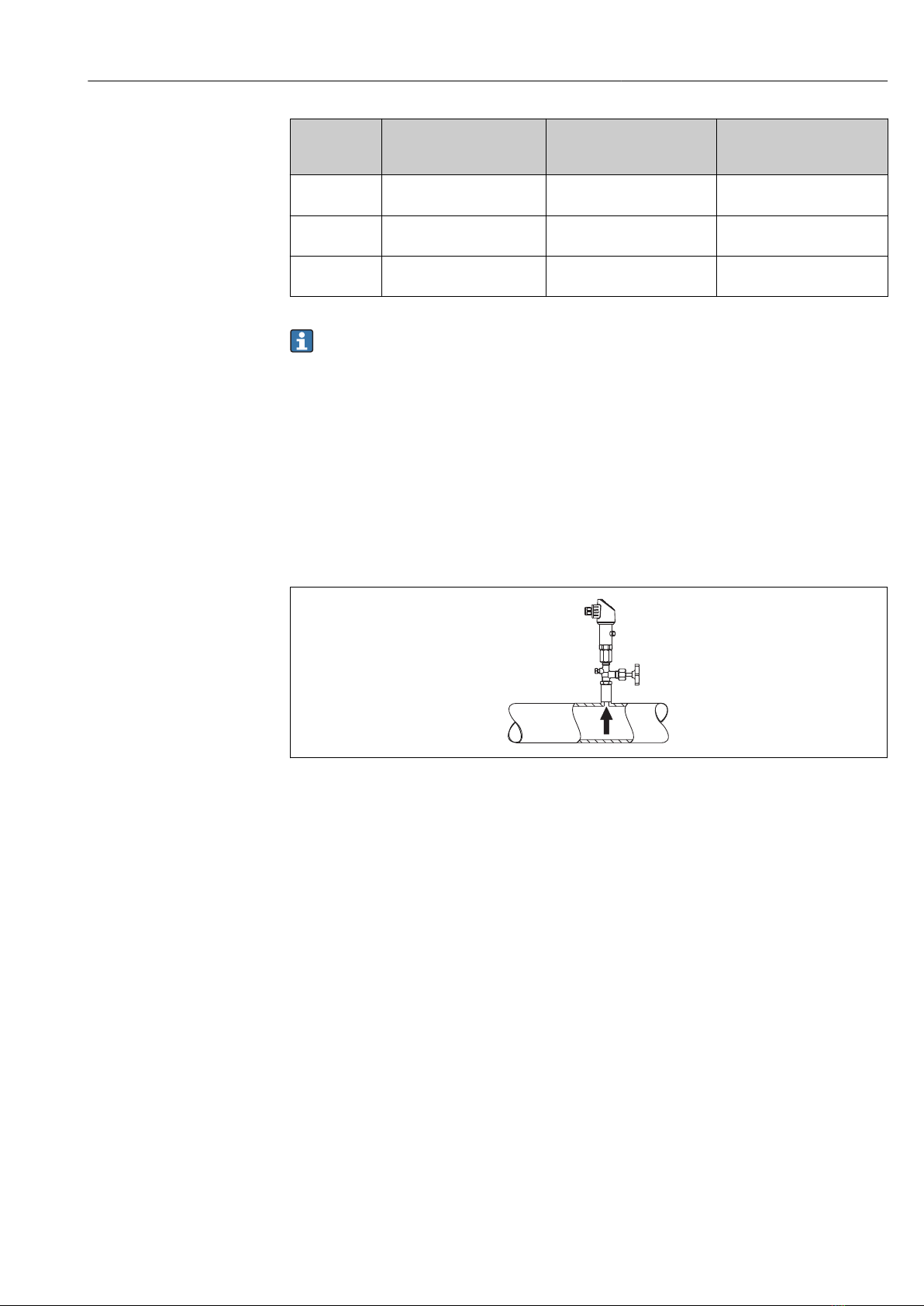

Pressure measurement in gases
Mount the device with shutoff device above the tapping point so that any condensate can
flow into the process.
1
2
A0025920
1 Device
2 Shutoff device

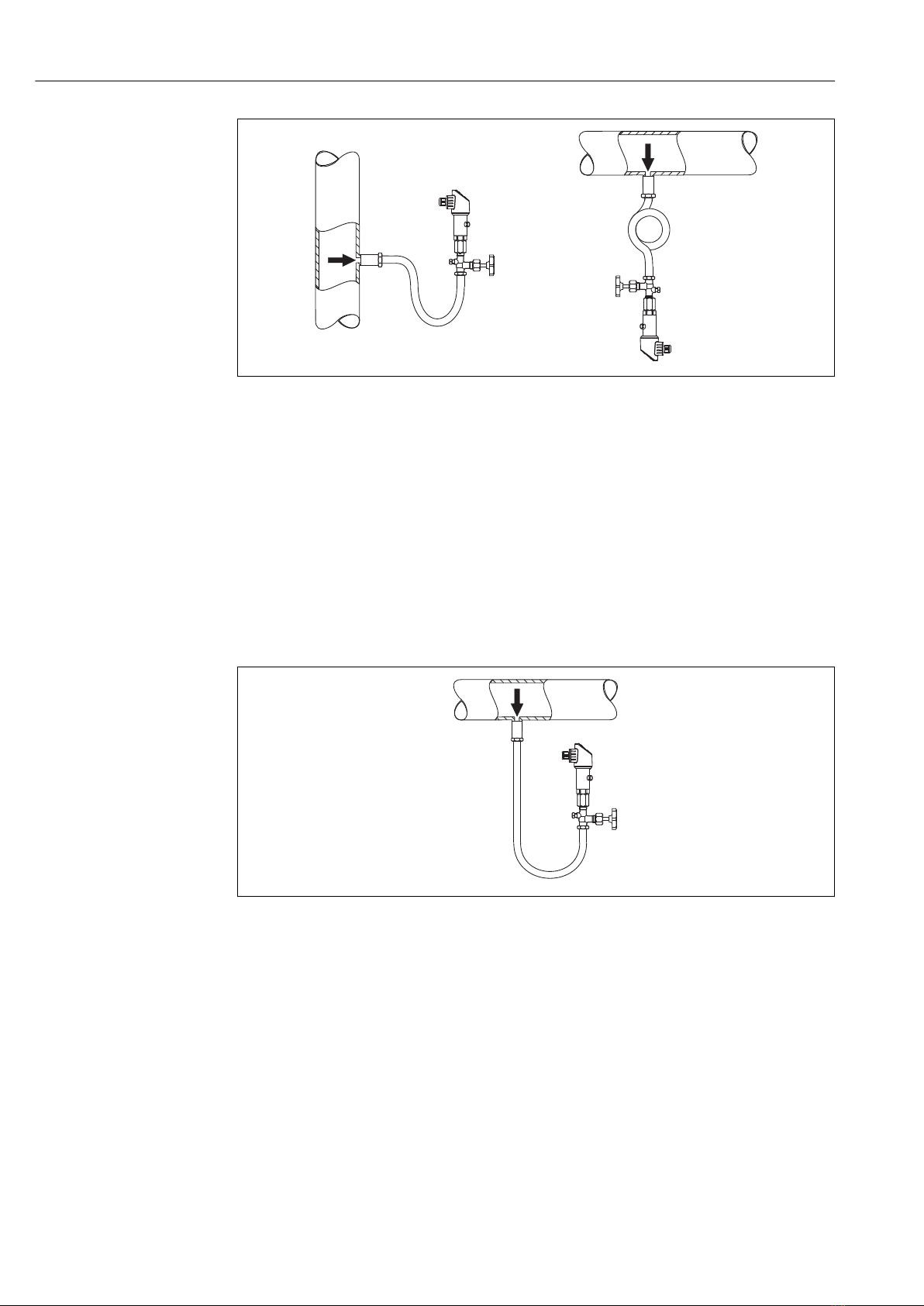

Pressure measurement in vapors
For pressure measurement in vapors, use a siphon. The siphon reduces the temperature to
almost ambient temperature. Preferably mount the device with the shutoff device and
siphon below the tapping point.
Advantage:
• defined water column causes only minor/negligible measuring errors and
• only minor/negligible heat effects on the device.
Mounting above the tapping point is also permitted.
Note the max. permitted ambient temperature of the transmitter!
Take the influence of the hydrostatic water column into consideration.

Installation Ceraphant PTC31B, PTP31B, PTP33B IO-Link
18 Endress+Hauser
1
1
2
2
3
4
A0025921
1 Device
2 Shutoff device
3 Siphon
4 Siphon
Pressure measurement in liquids
Mount the device with a shutoff device and siphon below or at the same height as the
tapping point.
Advantage:
• defined water column causes only minor/negligible measuring errors and
• air bubbles can be released to the process.
Take the influence of the hydrostatic water column into consideration.
1
2
3
A0025922
1 Device
2 Shutoff device
3 Siphon
5.4.2 Level measurement
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
– In the filling curtain
– In the tank outlet
– in the suction area of a pump
– Or at a point in the tank which could be affected by pressure pulses from the agitator.
• A functional test can be carried out more easily if you mount the device downstream
from a shutoff device.

Ceraphant PTC31B, PTP31B, PTP33B IO-Link Installation
Endress+Hauser 19
A0025923
5.5 Mounting instructions for oxygen applications
Oxygen and other gases can react explosively to oils, grease and plastics, such that, among
other things, the following precautions must be taken:
• All components of the system, such as measuring devices, must be cleaned in accordance
with the BAM requirements.
• Dependent on the materials used, a certain maximum temperature and a maximum
pressure for oxygen applications must not be exceeded.
• The following table lists devices (devices only, not accessories or enclosed accessories),
which are suitable for gaseous oxygen applications.
Device pmax for oxygen applications Tmax for oxygen applications Option 1)
PTC31B 40 bar (600 psi) –10 to +60 °C (+14 to +140 °F) HB
1) Product Configurator, order code for "Service"
5.6 Post-installation check
 Is the device undamaged (visual inspection)?

Does the device comply with the measuring point specifications?
For example:
• Process temperature
• Process pressure
• Ambient temperature range
• Measuring range
 Are the measuring point identification and labeling correct (visual inspection)?
 Is the device adequately protected against precipitation and direct sunlight?
 Are the securing screws tightened securely?
 Is the pressure compensation element pointing downwards at an angle or to the side?
 To prevent moisture from penetrating, ensure that the connecting cables/plugs are pointing downwards.

Electrical connection Ceraphant PTC31B, PTP31B, PTP33B IO-Link
20 Endress+Hauser
6 Electrical connection
6.1 Connecting the measuring unit
6.1.1 Terminal assignment
LWARNING
Risk of injury from the uncontrolled activation of processes!
‣Switch off the supply voltage before connecting the device.
‣Make sure that downstream processes are not started unintentionally.
LWARNING
Electrical safety is compromised by an incorrect connection!
‣In accordance with IEC/EN61010 a separate circuit breaker must be provided for the
device .
‣The device must be operated with a 630 mA fine-wire fuse (slow-blow).
‣Protective circuits against reverse polarity are integrated.
NOTICE
Damage to analog input of PLC resulting from incorrect connection
‣Do not connect the active PNP switch output of the device to the 4 to 20 mA input of a
PLC.
Connect the device in the following order:
1. Check that the supply voltage corresponds to the supply voltage indicated on the
nameplate.
2. Connect the device in accordance with the following diagram.
Switch on supply voltage.
1 x PNP switch output R1 (not with IO-Link functionality)
M12 plug Valve plug Cable
L–
L+
0.63A
21
34R1
A0029268
R1
"
L–
L+
1
2
3
4
0.63A
A0023271
L–
L+
1
2a
3
4
2b
R1
"
(a)
0.63A
A0022801
1 brown = L+
2a black = switch output 1
2b white = not in use
3 blue = L-
4 green/yellow = ground
(a) reference air hose
