AUSTRACK CAMPERS SIMPSON X User manual

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Table of contents
Table of contents ............................................2
Store Locator...................................................3
Head Office .................................................3
Caboolture Showroom................................3
Rocklea Showroom .....................................3
Newcastle Showroom.................................3
Melbourne Showroom................................3
Perth Showroom.........................................3
Re-sellers and suppliers ..................................4
Rising Sun Townsville –Re-seller................4
Precision Motors Armidale –Re-seller .......4
Redarc .........................................................4
Projecta.......................................................4
Truma hot water systems ...........................4
Country Comfort hot water systems ..........4
Dometic Air Conditioners............................4
Cruisemaster...............................................4
Ark...............................................................4
Warranty T&C’s...............................................5
General Safety Introduction............................7
Load Distribution.............................................8

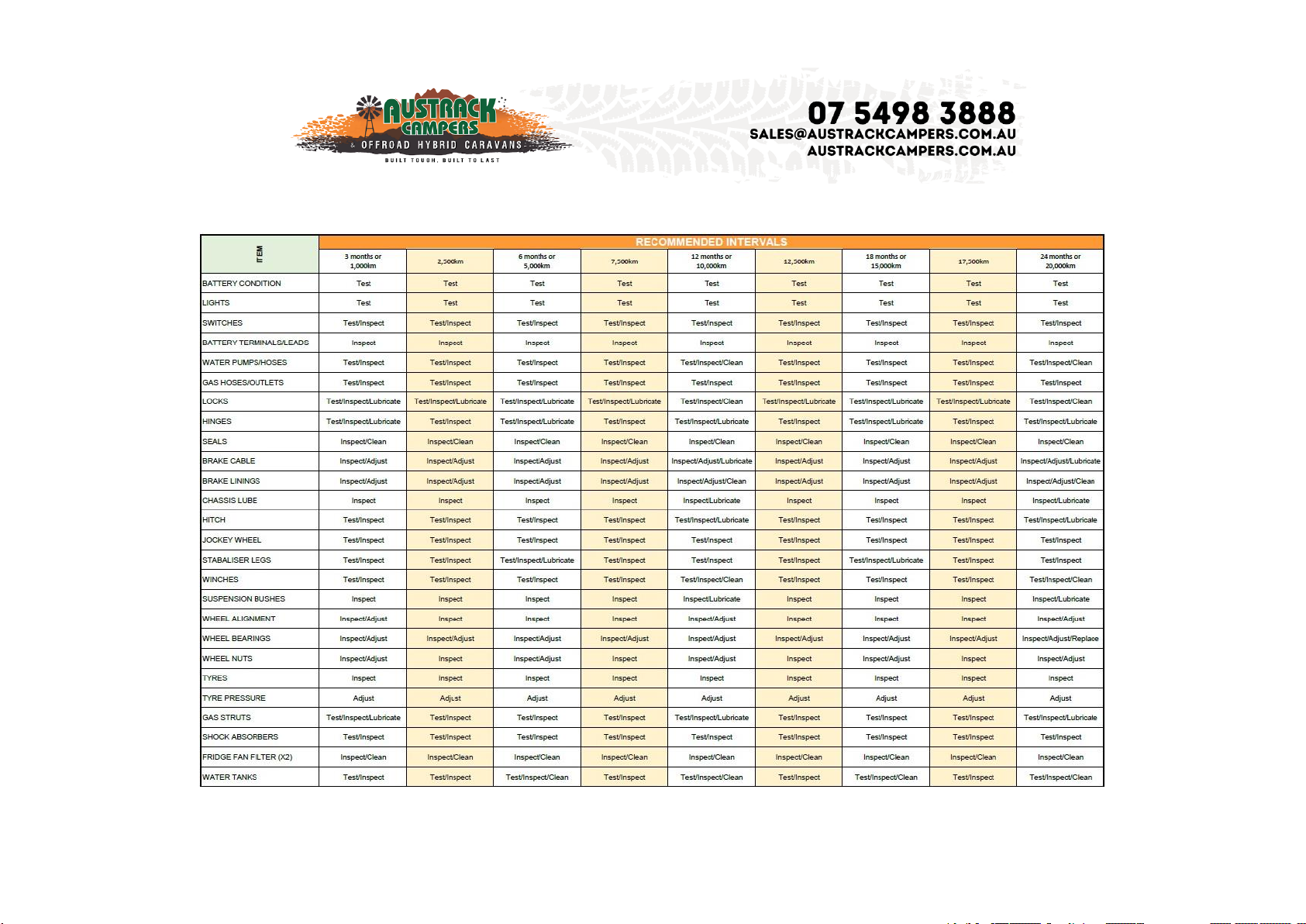

Maintenance schedule....................................9
Specifications ................................................10
Electrical System ...........................................11
Batteries....................................................11
Battery charger.........................................11
Solar..........................................................11
Mains Power.............................................11
Control Panel ............................................12
Water system................................................13
Water Pump..............................................13
Country Comfort Hot Water System ........14
Preparing the hot water system for use...14
Operating the hot water system...............16
Operating the hot water system...............17
Braking Systems............................................19
Electric Brakes...........................................19
Trailer Plug Wiring ....................................19
Anderson Plug...........................................19
Handbrake ................................................20
Setting up campsite ......................................21
Stabiliser Legs ...........................................21
Jockey wheel.............................................21
Gas System....................................................22
Camper & Canvas Care .................................23
Seasoning the canvas................................23
Setting up the tent....................................23
External Kitchen............................................24
Condensation / mould..................................25
Troubleshooting............................................26

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Store Locator
Head Office
07 5498 3888
[e-mail]
Mon –Fri 9am-5pm
Scan for Map
Caboolture Showroom
73 Lear Jet Drive Caboolture, QLD 4510
07 5408 7111
[e-mail]
Mon –Fri 9am-5pm
Sat 9am-3pm
Rocklea Showroom
7 Collinsvale Street Rocklea, QLD 4106
07 3112 7868
[e-mail]
Mon –Fri 9am-5pm
Sat 9am-1pm
Newcastle Showroom
4/2364 Pacific Highway Heatherbrae, NSW 2324
02 4006 6833
[e-mail]
Mon –Fri 9am-5pm
Sat 9am-4pm
Melbourne Showroom
1644 Hume Highway Campbellfield, VIC 3061
03 9357 5081
[e-mail]
Mon –Fri 9am-5pm
Sat 9am-3pm
Perth Showroom
634 Casella Place Kewdale, WA 6105
08 6252 7007
[e-mail]
Mon –Fri 9am-5pm
Sat 9am-3pm

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Re-sellers and suppliers
Rising Sun Townsville –Re-seller
35 Bowen Road Rosslea, QLD 4812
07 4779 0211
Precision Motors Armidale –Re-seller
101/107 Barney Street Armidale, NSW
02 36772 5866
Redarc
www.redarc.com.au
Technical support 1300 733 272
Projecta
www.projecta.com.au
Technical support 1800 422 422
Truma hot water systems
https://www.leisure-tec.com.au/services/
Technical support 1300 072 018
Country Comfort hot water systems
https://countrycomfortwaterheater.com.au/
Technical support 0438 242 813 or 0412 111 656
Dometic Air Conditioners
https://www.dometic.com/en-au/support/service-locator
Technical support 1800 21 21 21
Cruisemaster
https://cruisemaster.com.au/
Customer Service & Support 1300 35 45 65
Ark
https://www.arkcorp.com.au/
Customer Service & Support 02 9678 9036

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Warranty T&C’s
The following relates to warranties offered by Austrack Campers. Please read this information
carefully, and should you have any questions, please contact Austrack Campers Head Office on (07)
5498 3888 Option 2 or email [e-mail].
By purchasing an item from Austrack Campers, you hereby agree to all terms and conditions of
warranty as set forth by Austrack Campers.
1. CLAIMS VALIDITY
1.0 Warranties are only valid to the original purchaser of the item.
1.1 Warranties are valid from the original date of purchase only.
1.2 Warranties apply only to items sold as “new”.
1.3 Warranties do not extend to items deemed to be “factory seconds”, “ex-demo” or “damaged”.
Unless specifically stated otherwise by Austrack Campers in writing, warranties will only apply to items
as expressed in clause 1.0, 1.1 and 1.2.
1.4 Warranties do not apply to items sold via auction
1.5 Warranties are not transferable under any circumstances.
1.6 Should an item be sold by the original purchaser to a third party, all warranties immediately
become null and void. The original purchaser shall make no claims or be eligible for any claims on
behalf of the new owner.
1.7 Warranties do not extend to any products purchased from Austrack Campers that are used in hire
schemes or as rentals.
1.8 Austrack Campers will not cover damage caused as a result of unauthorised modifications, misuse,
abuse, incorrect assembly, improper and irregular maintenance, or accident or collision.
1.9 Any warranty repairs performed via an authorised warranty claim approved by Austrack Campers
must be performed by Austrack Campers, or by an authorised representative of Austrack Campers. In
certain circumstances Austrack Campers may authorise repairs by other repairers on a case-by-case
basis. Authorisation for these repairs will only be with the express written permission of Austrack
Campers.
1.10 Any affiliates, representatives, associates, agents, suppliers, resellers or similar of Austrack
Campers do not have the authority to authorise or deny warranty claims on behalf of Austrack
Campers. Austrack Campers Head Office are the only ones who are able to authorise warranty claims.
1.11 Austrack Campers are not liable, (in part or whole) for any warranties, either express or implied,
made by agents or resellers on behalf of Austrack Campers without the knowledge or express written
permission of Austrack Campers. Any such unauthorised claims shall be the responsibility of the agent
or reseller only.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
2. HYBRIDS & CAMPER TRAILERS
2.0 Unless stated otherwise, hybrid campers & camper trailers are covered by a 12-month limited
manufacturer’s warranty from the original date of purchase. Furthermore, also from the original date
of purchase, Austrack Campers’ hybrid campers & camper trailers are covered by a 5-year structural
warranty that covers the draw bar and chassis only from fatigue.
2.1 All of our goods come with guarantees that cannot be excluded under the Australian Consumer
Law.
2.2 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
2.3 Items no covered under warranty include:
•Rust
•Wheels and Tyres
•Paint
•Travel Covers and Straps
•General consumables (e.g., bearings, light bulbs etc)
•Zips and mesh or screens are not covered.
2.4 In addition to Austrack Campers’ warranty, the customers may also be covered by other rights and
remedies of Consumer Law in relation to the goods and/or services to which this warranty relates.
3. FACTORY SECONDS, EX-DEMONSTRATION AND DAMAGED GOODS
3.0 Occasionally, Austrack Campers may offer items for sale deemed to be “factory seconds”, “ex-
demonstration”, or “damaged”. Such items are sold on an “as is” basis.
3.1 No warranties, refunds, credits, exchanges or similar associated apply to “factory seconds”, “ex-
demonstration”, or “damaged” items. Upon selling these items, Austrack Campers will attempt to
provide all relevant information with regards to the item, including faults, defects, or similar. Note,
there may be instances where minor defects or imperfections have been overlooked. Understand this
is unintentional and in no way alters the nature of the sale.
3.2 “Ex-demonstration”, “factory seconds” or “damaged”, due to their nature, it is reasonable to
expect that some imperfections or flaws may exist including where not initially apparent. By
purchasing a “factory seconds”, “ex-demonstration”, or “damaged”, you agree to this statement in
full and accept that there are no warranties implied or expressed.
4. HOW TO LODGE A CLAIM
4.0 All warranty claims MUST BE LODGED via our website using our online Warranty Claim Form.
5. MAKE CONTACT
5.0 For questions relating to warranties, please contact us on [phone] Option 2
or [e-mail].

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
General Safety Introduction
WARNING–Before using this product you should read this manual and
those manuals supplied by component manufacturers applicable to this
product.
This manual is supplied as a reference to required maintenance of your new Austrack Campers offroad
camper.
Failure to use and maintain the product in accordance with what is outlined in this manual may affect
your warranty.
Incorrect and/or insufficient maintenance may cause product failure resulting in property loss,
damage or injury or death.
Maintenance intervals are critical for normal use; extreme use may require shorter or additional
maintenance intervals. See Maintenance Schedule for more details.
This manual content does not imply, express or other any warranty, the owner should read the
Warranty T&C’s included in this manual.
Before using this product, you need to be certain that your tow vehicle is suitably rated and equipped
to tow the product safely and legally.
The trailer and vehicle pairing must we within the safe “Maximum Towing Capacity”, “Ball Weight
Capacity” and “Gross Combination Mass” as stated by the vehicle manufacturer.
Austrack Campers reserves the right to modify an advertised component (e.g., air conditioning unit,
stove, inverter) with an item of similar value and quality, due to supply and availability. In order to
fulfill orders, all Austrack Campers are subject to change at Austrack's discretion.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Load Distribution
When heading away on your next big adventure it is important to load your camper correctly to
distribute weight evenly and achieve a suitable ball weight load and prevent loading in a manner that
can cause a caravan to sway and/or roll excessively left and right. The optimum ball weight on a
caravan is between 8% and 12% of the total camper weight.
WARNING: BALL LOADING (DOWNWARD LOAD ON TOW HITCH) MUST NOT EXCEED 350KG
OR THE MAXIMUM ALLOWABLE LOAD BY THE VEHICLE MANUFACTURER OR TOW BAR RATING,
WHICH EVER IS THE LOWEST.
Exceeding these limits may result in an accident, causing property damage and/or serious injury or
death.
• Always load both sides of the camper evenly
• Load heavy items low and directly over the axle.
• Secure all items to prevent damage to the camper during travel.
• Consider water tank levels and how they may affect the balance front and back and the percentage
of ball weight.
• Heavy cooking equipment should be stored in lower cupboards.
• Tinned and bottled food for cooking etc. should be stored in the pantry drawer.
• Never load in a manner that causes the ball weight to exceed the limit of the tow vehicle.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Maintenance schedule

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Specifications
Finish
Baked enamel metallic finish with polished stainless steel trim.
Drawbar & Chassis
Fully Welded hot dipped galvanised full RHS box drawbar and chassis 100 x 50
x 4.0mm
Hitch
ARK XO Series 3.5t Off-road Coupling. ADR approved rated safety chains.
Brakes
6 stud 4x4 hubs, heavy duty parallel bearings and 12 inch heavy duty electric
brakes with mechanical handbrake.
Suspension
Heavy duty independent coil spring suspension with twin shock absorbers per
independent arm.
Jockey Wheel
Ark XO 500 Series extra heavy duty swing away dual wheel jockey wheel.
Electrical Connection
7 pin round or 7 pin flat trailer plug, to suit your vehicle & 50 amp Anderson
Plug wired to batteries.
Electrical System
2 x 120 Ah AGM batteries with 12v accessory & USB sockets. Projecta 12V 25A
battery charger. Digital display voltmeter, ampmeter. LED brake and indicator
lights, LED number plate & clearance lights, reflectors. Water level gauges.
Stone Guard
Full Modern aluminium checkerplate stone guard with embossed mud flaps.
Gas & Fuel
1 x 9 kg gas bottle holder. Space for 2 x 20L Jerry cans.
Storage
Multiple storage compartments with slide out drawers, fridge slide (1100 x
490 x 550mm).
Gas Lines
Fully plumbed gas and gas complied.
Wheels & Tyres
3 x Brand new alloy wheels with chrome wheel nuts & 3 x Brand new tyres
265/75x16. Rear mounted spare wheel & Lockable built in storage box. Front
& rear heavy duty drop down stabiliser legs & winder.
Water Storage
100L Foodgrade stainless steel water tank with aluminium tank guard & 12v
pump plumbed to kitchen.
Kitchen
Slide out stainless steel kitchen with drawers, electric pump, tap, large sink &
AGA approved multi burner stove. Dimensions: 1000(w)x400(d)x300(h) (mm).
Measurements
4100mm x 1800mm x x2200mm
Tare weight (incl tent)
Approx. 900 kg
Registered
1480 kg trailer
Ball Weight
Approx. 110 kg

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Electrical System
Batteries
The Simpson Camper trailer is fitted with 2 x 120 Ah AGM batteries. These batteries are designed to
be maintained at voltages between 12.0 V and 14.4 V. Should the batteries become discharged below
12.0 V, they will begin to degrade. The longer they are left discharged or the more times they are
discharged below this point, the less likely they will be to hold charge.
Battery charger
The Simpson comes fitted with the Projecta 25 A battery charger. This is solely a 240 V charger, it will
only work when the camper is plugged into shore power. It will comes preset, there is no need to
change the settings in the charger.
The Projecta charger has a built in recondition mode, which is recommended to run if the batteries
get below 12.0 V. This will balance the charge across the battery cells and help return the battery to
full health. It will not be able to give full health the deeply damaged batteries.
For all charger instructions, please see the manual in your camper or here
https://www.projecta.com.au/products/IC25/intellicharge-25a-bat-chgr
Solar
The Simpson comes with a 200 A free standing solar panel. This is designed to plug into the Anderson
plug on the drawbar. It has a built-in solar regulator and is plug and play.
There is a circuit breaker for the Anderson connection on the control panel. If the solar panel does not
recognise or charge the batteries, check this breaker to ensure that it has not tripped.
Mains Power
The Simpson comes standard with a 15 A input on the side of the camper to allow mains power to be
connected directly to the electrical system. This 15 A input has a larger earth connection than a
standard home plug and requires the use of a specialised 15 A extension lead which will have the
larger earth pin on both ends. If connecting the van to mains power point where a 15 A power point
is not available, you must use a 10 A -15 A adaptor with safety switch. These are available from most
camping or hardware stores.
The RCD safety switch for the 240 V circuits is located on the outside end of the main bed.
240 V mains power is lethal, failing to use an adaptor can result in serious injury or death.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Control Panel
INSERT PHOTO OF HARDFLOOR CONTROL PANEL

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Water system
The Simpson is fitted with 1 x 100L Foodgrade stainless steel water tank. The tank has a bung and tap
on the bottom for easy draining and rinsing.
The water tank filler is closer to the rear of the trailer. The filler is equipped with a breather hole which
will allow the air to escape the tank while the water is going in. If this hole is blocked, water will not
be able to enter the tank. The tank is full when water comes out of the breather hole.
The camper does not have a grey water tank fitted, please follow all instructions from Caravan Park
management/National Parks officers regarding the management of grey water.
Water Pump
The water pump will need to be switched on using the push button on the control panel. It may make
a noise when initially turned on with all taps closed to pressurise the system, but this should shut off
quickly. If the pump continues to run with all taps closed, this can indicate a leak and requires
investigation and rectification.
The water pump will automatically turn on when a tap is opened and will shut off shortly after the tap
is closed. It may turn on and off quickly a few times to fully pressurise the system, this is totally normal.
If the water pump is cycling on and off and the system has been thoroughly inspected for leaks with
nothing found, please contact the service department for more instructions.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Country Comfort Hot Water System
The Simpson camper comes with the Country Comfort portable LPG hot water system as a standard
inclusion. This is designed to work with the gas and water fittings on the drawbar of the camper to
provide a hot shower for use in the ensuite.
The Country Comfort hot water system is activated by water pressure, without water pressure it will
not operate. You need to ensure that the water tank being drawn from is full enough to provide a
consistent flow of water to the hot water system.
Full user manual and instructions can be found in the box or here,
https://countrycomfortwaterheater.com.au/collections/shower-packages/products/country-
comfort-portable-lpg-water-heater
Inside the hot water system box you will find hoses and fittings to connect the hot water system to
the water connection on your drawbar. There will not be a gas hose inside the box, the hose required
to connect the hot water system is in the draw under the stovetop of your slide out kitchen.
All adjustments and maintenance must only be carried out by an authorised person. The
installation of all gas and combustions appliances MUST comply with the standards in force.
Carbon Monoxide warning - This appliance is designed for outdoor use only and must be used
in well ventilated areas. Use in enclosed areas, including inside the camper annex, may result in injury
or death.
Accessible parts of the Country Comfort hot water system may be very hot, keep young children
away.
Preparing the hot water system for use
1.Remove the heater along with all the components from the box and place them on a table in front
of you. Notice that there is a gas input, hot water output, cold water Input as well as a battery box.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
2. Insert two ‘D’ batteries into the ‘battery box’ and close the battery box lid. Note: The orientation of
the battery terminals. Positive down at the back. Negative down at the front.
For garden hose water supply use, install a male garden hose attachment to allow for a ‘snap on’
connection (not supplied) to a garden hose. First, install a reducer fitting to increase the ‘water
input’ size from ½” to ¾” to suit the ‘quick fitting’ attachment. Male quick fitting hose adaptor
(supplied)
3. Wrap the ‘water input’ thread with two rotations of Teflon tape before installing the reducer
fitting. Tighten the adaptor, taking care not to over tighten as this could break or crack the inlet pipe.
Finally, connect the male garden hose attachment.
4. Shower hose and rose: Check that the seal is secure in both ends of the flexible shower hose.
Attach the shower rose to the flexible shower hose using the conical end fitting. Hand force only. Do
not over tighten.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Operating the hot water system
1. Hang the appliance on a suitable vertical surface by the top hanger attached to the back cover
of the heater.
2. The ‘gas inlet’ will be used to connect to the gas hose regulator.
3. Attach the flexible gas hose and regulator to the ‘gas inlet’. Slowly using two (2) spanners,
tighten this connection, taking care not to over tighten as doing so may damage the pipe.
DO NOT OVERTIGHTEN.
The hot water system is ready to connect to the water hoses.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
4. Attach to other end of the flexible shower hose to the “water OUT connection (middle
connection) on the water heater. Do not over tighten. Note that you can also apply Teflon
tape to this threaded connection to avoid leaks.
5. Connect the bayonet end of the gas hose to the bayonet fitting on the drawbar and turn on
the gas bottle.
Operating the hot water system
1. It is preferable to set the BURNER control to LOW
2. IMPORTANT: It is important that when starting the appliance that the gas regulator is set to
the ‘min’ position.
3. IMPORTANT: It is important that when starting the appliance that the water regulator is set
to the ‘min’ position.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
4. Switch LPG Water Heater ON using the rocker switch located at the bottom on the LPG
Portable Water Heater. Do this by having the red dot pushed in.
5. Ensure that the button on the shower rose is in the “Off” position.
6. Open the valve for your input water source. This can come from your 12v pump or mains
supply. When ready push the button “On” your shower rose. Water should start to flow
through the shower unit.
7. Note: You should hear a series of clicks and then the burner should ignite. The burner flame
can be seen operating through the ‘viewing window’ located at the front of the appliance.
8. Adjust the temperature of the water flowing from the showerhead by turning the ‘gas
regulator’ and ‘water regulator’ knobs.
Note: For higher temperatures, increase the gas regulator control and decrease the water regulator
control. Switching the BURNER control from LOW to HIGH will increase the temperature further.
A temperature in excess of 50° C will activate the Over Temperature Safety Sensor and will
shut down the burners. To relight the burners, you will need to turn the water flow OFF and then
back ON.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Braking Systems
Electric Brakes
The Simpson comes fitted with electric brakes which require a brake controller installed into the
towing vehicle that can be controlled from the driver’s seat. There are many systems available which
can either be permanently installed into the tow vehicle or Bluetooth units that are mounted to the
trailer and have a remote to control from the driver’s position. You must have a brake controller
installed in the vehicle or a Bluetooth unit on the day of handover otherwise the camper will not be
released to you.
Electric trailer brakes are designed to assist your vehicle brakes to stop in a safe and effective manner.
It is important that both your vehicle and the trailer are serviced regularly. The trailer brakes will have
a run-in period that will vary trailer to trailer, but it is important to have the trailer brakes inspected
and adjusted by a qualified professional in line with the maintenance schedule.
Trailer Plug Wiring
The Simpson comes fitted standard with a 7-pin flat trailer plug.
If a different plug configuration has been requested, please reach out to your local showroom or the
service department to obtain a copy of the wiring diagram.
Anderson Plug
The Simpson is fitted with an Anderson connection at the drawbar. This is wired directly to the
batteries through a circuit breaker inside the water tank change over compartment. This is designed
to run all regulated sources of charging to the batteries and can also be utilised as a power output if
required.
To adequately charge from your vehicle, you will need to have a DC-DC charger installed into your
vehicle. Without this, you will receive some charge, but it will rarely be enough to charge the batteries
to capacity.

Head Office –07 5498 388 Brisbane North –07 5408 7111 Brisbane South –07 3112 7868
Newcastle NSW –02 4006 6833 Campbellfield VIC –03 9357 5081 Kewdale WA –08 6252 7007
Precision Motors Armidale NSW –02 6772 5866 Rising Sun Townsville –07 4779 0211
Handbrake
The handbrake is operated mechanically by means of a cable. The cable attaches to the backing plate
and when the handbrake is applied the cable creates a force on the primary and secondary brake shoe.
This causes them to spread until they make contact with the brake drum surface.
The cable adjuster needs to provide enough tension that the handbrake is 1/3 raised when the camper
is unloaded. Once the camper is loaded, test and adjust if necessary. Insufficiently adjusted handbrake
will still allow the camper to move when the handbrake is fully raised.
It is very important to always use wheel chocks and levelling ramps, do not rely solely on the
handbrake even if on a level surface.
