AUSTRALIAN MONITOR LET'S SPLIT (M) User manual

INSTALLATION AND OPERATION MANUAL
AUDIO CONTRACTOR
TOOLS
LET’S SPLIT (L) •LET’S SPLIT (M)
GET DOWN •GET UP
DROP ME •MULTI CAN
JUICED UP •BUZZ OFF
PRE ME •MIXED UP
THE INJECTOR •GET OUT
ZONED OUT

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and
that no object filled with liquid such as vases shall be placed on the
apparatus.
16. Plug this apparatus to the proper wall outlet and make the plug to be
disconnected readily operable.
17. Mains plug is used as disconnected device and it should remain readily
operable during intended use. In order to disconnect the apparatus from
the mains completely, the mains plug should be disconnected from the
mains socket outlet completely.
18. WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
19. An appliance with a protective earth terminal should be connected to a
mains outlet with a protective earth connection.
20. The apparatus should be disconnected from the mains completely before
speaker wiring. The speaker output should be proper protected from
direct contact and pay attention to speaker connections, terminals and
speaker wiring during normal operation.
1. LISEZ ces instructions.
2. Tenez ces instructions.
3. Notez tous les avertissements.
4. Suivez toutes les avertissements.
5. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.).
6. Nettoyez seulement avec une étoffe sèche.
7. Ne bloquez aucuns troux de ventilation. Installez en accord avec les
instructions du manufacturier.
8. N’installez près aucunes sources de chaleur comme radiateurs, registres
de chaleur, fours ou les autres équipements (y compris amplificateurs) qui
produisent la chaleur.
9. Ne défaites pas le but de sécurité de la fiche polarisée ou base-type. Une
fiche polarisée a deux tranchants avec un plus large que l’autre. Une fiche
de base type a deux a deux tranchants et une troisième pointe de base,
le tranchant large ou la troisième pointe est fourni pour votre sécurité. Si
la fiche donnée ne conforme pas votre prise de contact, consultez un
électricien pour remplacement de la prise de contact obsolète.
10. Protegez le cordon de secteur contre être marchée dessus ou pincez en
particulier aux fiches, aux douilles de convenance, et au point où ils
sortent de l’appareil.
11. Seulement utilisez attachements/accessoires spécifiés par le manufacturier.
12. Utilisez seulement avec un chariot, un stand, un trépied, un support ou
une table indiquée par le manufacturier, ou vendue avec l’appareil. Quand
un chariot est utilisé, faites attention en déplaçant la combinaison
d’appareil/chariot pour éviter de se déséquilibrer.
13. Arrachez la fiche du dispositif durant éclair et orage ou quand pas utilisé
pour longues périodes de temps.
14. Référez au personnel qualifié de service pour toutes
réparations. La réparation est donnée quand le système
a été endommagé à n’importe façon, par exemple un fil
ou une fiche endommagé(e) de la source d’alimentation.
Avoir été exposé à pluie ou humidité, n’opère pas
normalement, ou avoir été tombé.
15. L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures
et aucun objet ne contenant de liquide, tel qu’un vase, ne doit être placé
sur l’objet.
16. Branchez l’appareil à une source appropriée et faire que la prise à
débrancher soit facilement accessible.
17. La prise du secteur ne doit pas être obstruée ou doit être facilement
accessible pendant son utilisation. Pour être complètement déconnecté
de l’alimentation d’entrée, la prise doit être débranchée du secteur.
18. AVERTISSEMENT: Pour éviter le risque d’incendie ou de chocs électriques,
ne pas exposer cet appareil à la pluie ou à l’humidité.
19. Un appareil avec la borne de terre de protection doit être connecté au
secteur avec la connexiion de terre de protection.
20. Assurez-vous que l’appareil est hors tension avant de connecter les hauts
parleurs. Verifiez que la sortie des enceintes soit protégées contre un
contact physique. Respecter les polarités des terminaux ainsi que le
câblage des enceintes pendant le fonctionnement afin d’assurer une
utilisation sécurisee.
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION
PAGE 2 AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL

PAGE 3AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
AUDIO CONTRACTOR TOOLS
Since their introduction the contractor tool range has proved
immensely popular with AV installers all around the world.
The entire range of audio contractor tools has been redesigned &
expanded to provide even more useful solutions for audio contractors
the world over.
NOW RACKMOUNTABLE (Up to three audio contractor tools per
1RU shelf)
AUS, EUR, USA
REV B: SEP 2014
INTRODUCTION 3
LET’S SPLIT (L) & LET’S SPLIT (M) 4
GET DOWN AND GET UP 5
DROP ME AND MULTI CAN 6
JUICED UP AND BUZZ OFF 7
PRE ME 8
MIXED UP AND THE INJECTOR 9
GET OUT AND ZONED OUT 10
SPECIFICATIONS 11
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT & FULLY INSERT.
CAUTION
THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY.
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING:
TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING
TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
For European Union countries: This symbol on
the product or its packaging indicates that this
product must not be disposed of with other waste.
Instead, it is your responsibility to dispose of your
waste equipment by handing it over to a designated
collection point for the recycling of waste electrical
and electronic equipment.
Please contact your local authority for further details
of your nearest designated collection point.
Rating plate and caution marking are marked on the back enclosure of the apparatus
INTRODUCTION AND CONTENTS

PAGE 4 AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL

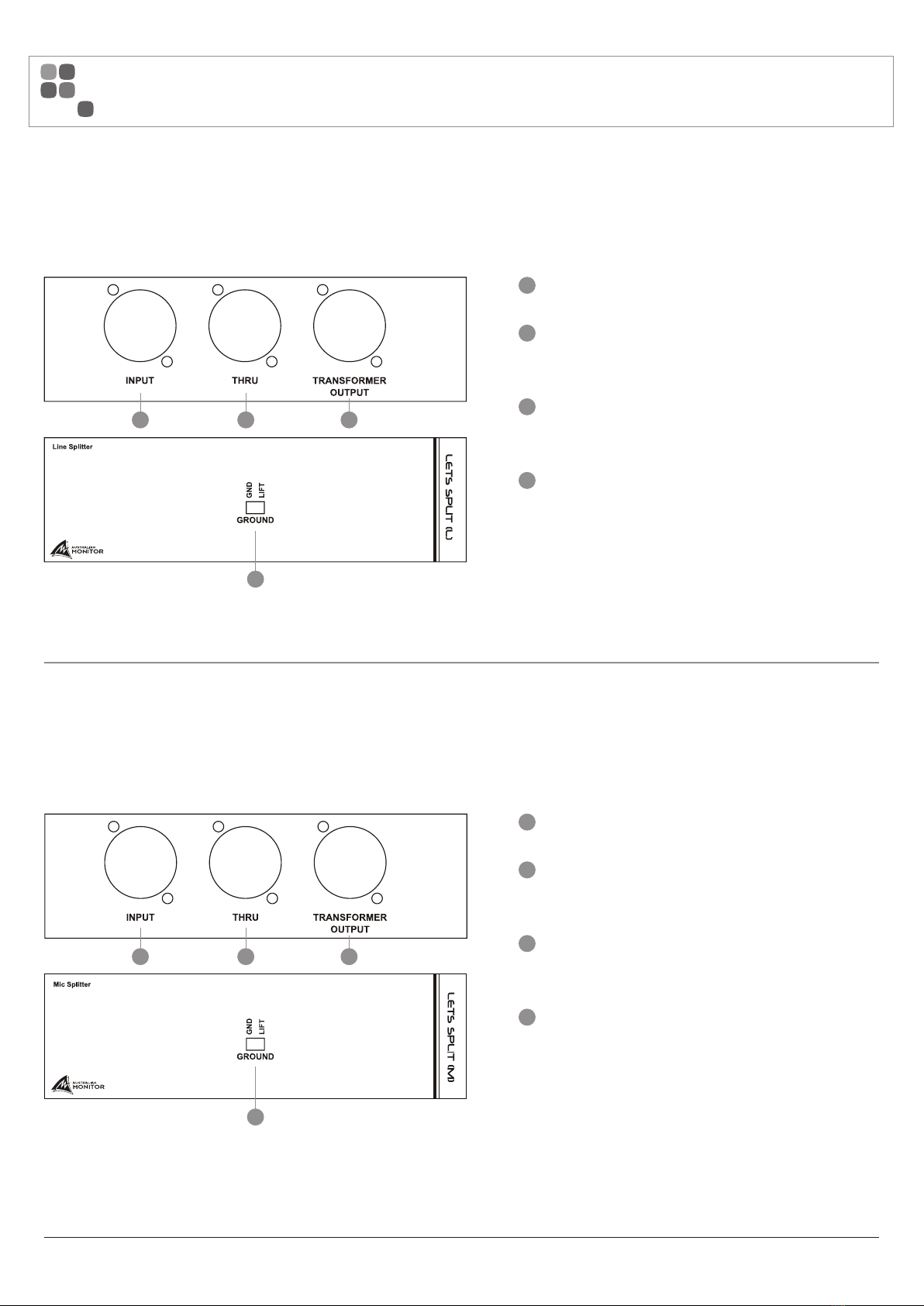

1BALANCED XLR INPUT CONNECTOR
2BALANCED XLR THRU OUTPUT CONNECTOR
Parallel to input
3BALANCED XLR OUTPUT CONNECTOR
Transformer isolated
4GROUND LIFT SWITCH
Pin1 lift on transformer isolated XLR output Set to “GND” to connect
pin 1 of output XLR connector to pin 1 of input XLR connectors.
Set to “Lift” to disconnect pin1 output XLR connector
LINE SPLITTER
The LETS SPLIT (L) is a balanced line level splitter with a balanced XLR line level input which provides both a transformer balanced XLR output & a thru (direct) XLR
output of the input signal. The LETS SPLIT (L) also provides a ground lift switch to eliminate ground loop hum.
LINE SPLITTER
The LETS SPLIT (M) is a balanced microphone level splitter with a balanced XLR microphone level input which provides both a transformer balanced XLR output & a thru
(direct) XLR output of the input signal. The LETS SPLIT (M) also provides a ground lift switch to eliminate ground loop hum.
1BALANCED XLR INPUT CONNECTOR
2BALANCED XLR THRU OUTPUT CONNECTOR
Parallel to input
3BALANCED XLR OUTPUT CONNECTOR
Transformer isolated
4GROUND LIFT SWITCH
Pin1 lift on transformer isolated XLR output Set to “GND” to connect
pin 1 of output XLR connector to pin 1 of input XLR connectors.
Set to “Lift” to disconnect pin1 output XLR connector
1
1
2
2
3
3
4
4
LET’S SPLIT (L) & LET’S SPLIT (M)
REAR PANEL
FRONT PANEL
REAR PANEL
FRONT PANEL

PAGE 5AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
1STEREO BALANCED LINE LEVEL
XLR input connectors
2STEREO UNBALANCED LINE LEVEL
RCA output connectorst
3POWER INPUT CONNECTOR
DC Centre +ve
4POWER LED INDICATOR
Illuminated = On
5LEVEL CONTROL
Adjusts the level of the audio signal on the stereo unbalanced RCA
output connectors
STEREO CONVERTER
The GET DOWN stereo converter converts a professional line level balanced audio signal to an unbalanced domestic level signal. Inputs are balanced XLRs & outputs are
stereo RCA connectors. The GET DOWN also features a front panel level control for achieving the optimal output level.
STEREO CONVERTER
The GET UP stereo converter converts an unbalanced domestic level signal to a professional line level balanced audio signal. Inputs are stereo RCA connectors &
outputs are balanced XLR’s. The GET UP also features a front panel level control for achieving the optimal output level.
1STEREO UNBALANCED LINE LEVEL
RCA input connectors
2STEREO BALANCED LINE LEVEL
XLR output connectors
3POWER INPUT CONNECTOR
15VDC Centre +ve
4POWER LED INDICATOR
Illuminated = On
5LEVEL CONTROL
Adjusts the level of the audio signal on the stereo
balanced XLR output connectors
1
1
2
2
3
3
4 5
4 5
GET DOWN AND GET UP
REAR PANEL
REAR PANEL
FRONT PANEL
FRONT PANEL

PAGE 6 AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
1100V SPEAKER LINE INPUT
WECO connector with parallel output
2LEVEL CONTROL
Adjusts the level of the audio signal on the XLR output connector
3BALANCED LINE LEVEL XLR OUTPUT
CONNECTOR
100 VOLT LINE CONVERTER
The DROP ME allows you to convert a 100 volt line amplifier speaker output signal to a balanced line level signal. The 100 volt line signal input is via phoenix connector
& the output is balanced XLR. The DROP ME also features a rear panel level control for achieving the optimal output level
4 CHANNEL HEADPHONE AMPLIFIER
The MULTI CAN is a compact yet high quality 4 channel headphone amplifier, featuring 6.35mm TRS, dual RCA & dual XLR stereo inputs & 6.35mm TRS headphone
outputs. The MULTI CAN also offers individual output level controls per channel.
1STEREO LINE LEVEL INPUT CONNECTORS
In parallel (6.35mm TRS stereo jack, stereo RCA
connectors, stereo XLR connectors) All four headphone amplifiers share
the same common stereo input
2POWER INPUT CONNECTOR
15VDC Centre +ve
3FOUR LEVEL CONTROLS
Adjusts the level of the audio signal of the headphone jack directly below
4FOUR STEREO HEADPHONE CONNECTORS
6.35mm stereo sockets
1 2 3
2
DROP ME AND MULTI CAN
1
4
3
REAR PANEL
FRONT PANEL
REAR PANEL
FRONT PANEL

PAGE 7AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
1BALANCED XLR INPUT CONNECTOR
1 per channel
2BALANCED XLR OUTPUT CONNECTOR
1 per channel
3POWER INPUT CONNECTOR
15VDC Centre +ve
4POWER SOURCE SELECTION SWITCH.
Set to “Batt” to run off 2x 9V internal batteries (15VDC phantom power
output). Set to “PPack” to run off an external 15VDC (centre +ve) plug
pack (42VDC phantom power output). Set to “PPack” when not in use to
prolong internal battery life.
5POWER LED INDICATOR
Illuminated = On
DUAL PHANTOM POWER SUPPLY
The JUICED UP is a 2 channel phantom power supply that features balanced XLR inputs & outputs per channel. The JUICED UP can operate via the supplied external
power supply or via two on board 9 volt batteries, selectable via a rear panel slider switch. The Juiced up will supply 15VDC phantom power via battery power & 42VDC
off external power supply
DUAL CHANNEL HUM ELIMINATOR
The BUZZ OFF is a two channel hum eliminator featuring both balanced XLR inputs & outputs & unbalanced RCA inputs & outputs per channel.
The BUZZ OFF is ideal or getting rid of hum & extraneous noise from long cable runs.
1BALANCED XLR INPUT CONNECTOR
1 per channel
2BALANCED XLR TRANSFORMER ISOLATED
OUTPUT CONNECTOR
1 per channel
3UNBALANCED RCA INPUT CONNECTOR
In parallel to XLR input connector, 1 per channel
4UNBALANCED RCA TRANSFORMER ISOLATED
OUTPUT CONNECTOR
In parallel to XLR output connector, 1 per channel
1 1
1 2 1 2
22 2 4 3
5
JUICED UP AND BUZZ OFF
3
4
REAR PANEL
FRONT PANEL
REAR PANEL
FRONT PANEL

PAGE 8 AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL

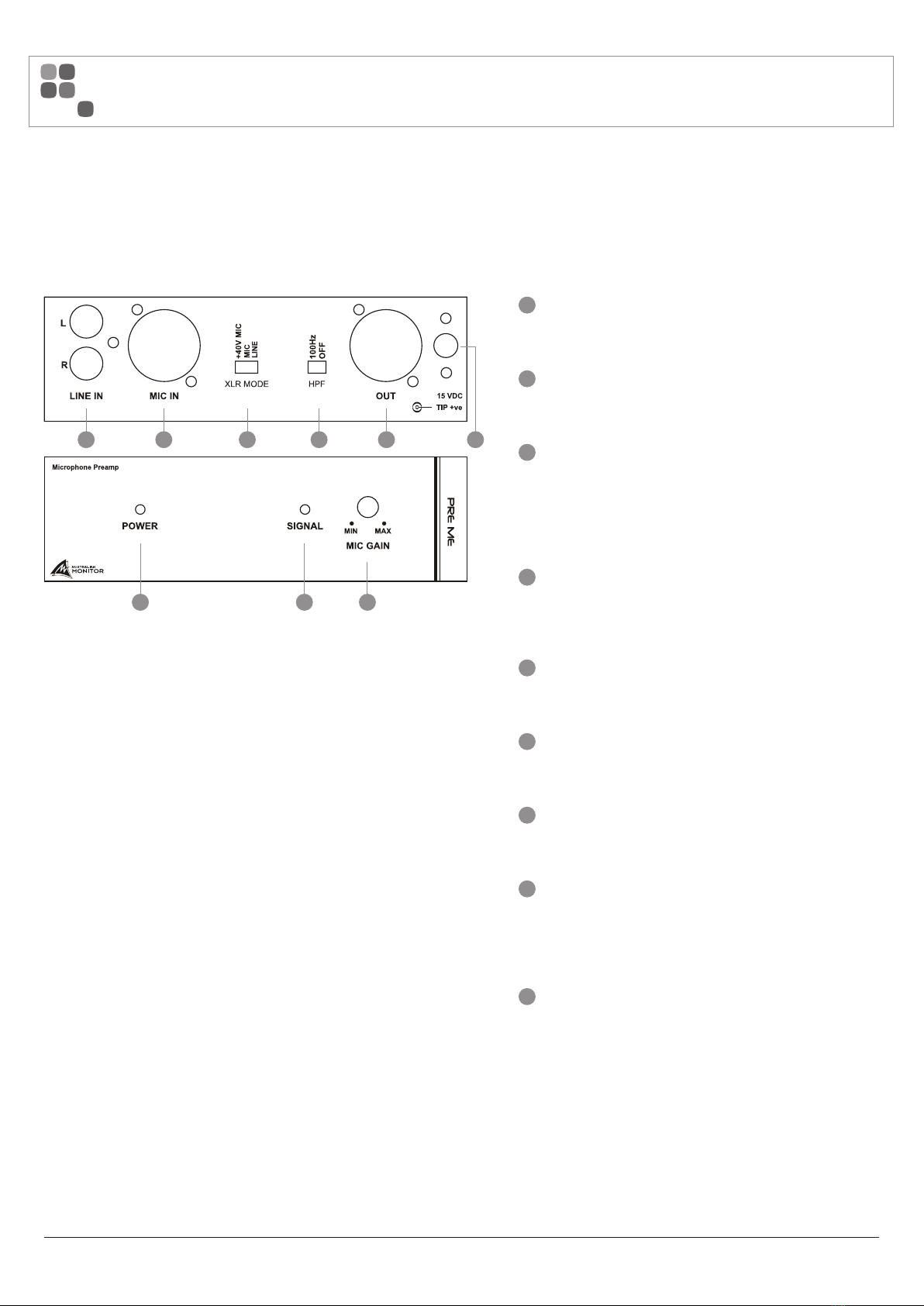

PRE ME
1STEREO UNBALANCED LINE LEVEL
RCA input connectors (mono summed)
2BALANCED MICROPHONE/LINE LEVEL
XLR input connector
3XLR INPUT CONNECTOR MODE SWITCH.
Set to “+40V MIC” to set the XLR input connector sensitivity to
microphone level with phantom power enabled. Set to “MIC” to
set the XLR input connector sensitivity to microphone level. Set
to “LINE” to set the XLR input connector sensitivity to line level
4HIGH PASS FILTER SWITCH.
Set to “100Hz” to enable the 100Hz high pass filter on all inputs.
Set to “Off” to disable the high pass filter on all inputs
5BALANCED LINE LEVEL
XLR output connector
6POWER INPUT CONNECTOR
15VDC Centre +ve
7POWER LED INDICATOR
Illuminated = On
8SIGNAL PRESENCE LED.
Illuminates green to indicate audio signal present on the output
XLR connector. Illuminates red to indicate audio signal clipping
(illuminates -6dB before clipping occurs)
9LEVEL CONTROL
Adjusts the level of the audio signal on the XLR output connector
MICROPHONE PRE AMPLIFIER
The PRE ME is a compact yet highly featured microphone pre amplifier. The PRE ME features dual RCA line input & a balanced XLR input switchable between
microphone & line level. The PRE ME also offers +40VDC phantom power, switchable High pass filter (rolling off at dB per octave at 100 Hz & balanced XLR output.
A front panel gain control & dual colour signal present LED are also offered for ease of setup & operation
1
7 8 9
2 3 4 5 6
REAR PANEL
FRONT PANEL

PAGE 9AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
MIXED UP AND THE INJECTOR
1BALANCED MICROPHONE LEVEL XLR INPUT
CONNECTORS
2 off
2UNBALANCED LINE LEVEL STEREO RCA INPUT
CONNECTORS
2 off, mono summed
3BALANCED MICROPHONE LEVEL XLR OUTPUT
CONNECTOR
4FOUR LEVEL CONTROLS
Adjusts the level of the audio signal of the respective source in the
output mix
4 CHANNEL PASSIVE MIXER
The MIXED UP is a passive 4 channel mixer which features 2 balanced XLR microphone inputs & 2 dual RCA line inputs & a single microphone level balanced XLR
output. The MIXED UP also offers individual front panel level controls per input.
PASSIVE DI
The THE INJECTOR is a passive direct injection box which offers a 6.35mm input, 6.35mm thru output (direct) & a balanced XLR output.
The INJECTOR also features ground lift switching for elimination of hum & a three stage pad offering up to 40dB of attenuation.
1UNBALANCED LINE LEVEL
6.35mm jack socket input connector
2UNBALANCED LINE LEVEL
6.35mm jack socket output connector (in parallel with jack input
connector)
3BALANCED LINE LEVEL XLR OUTPUT
CONNECTOR
4GROUND LIFT SWITCH
Pin1 lift on transformer isolated XLR output. Set to “GND” to connect pin
1 of output XLR connector to pin 1 of input XLR connectors. Set to “Lift”
to disconnect pin1 output XLR connector
5PAD SWITCH
Set to “0dB’ to allow the audio signal to not be attenuated. Set to
“-20dB” to reduce the signal level on the XLR output connector by 20dB.
Set to “-40dB” to reduce the signal level on the XLR output connector
by 40dB
1
1 2 3
2 2 31
4 5
4
REAR PANEL
FRONT PANEL
REAR PANEL
FRONT PANEL

PAGE 10 AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL

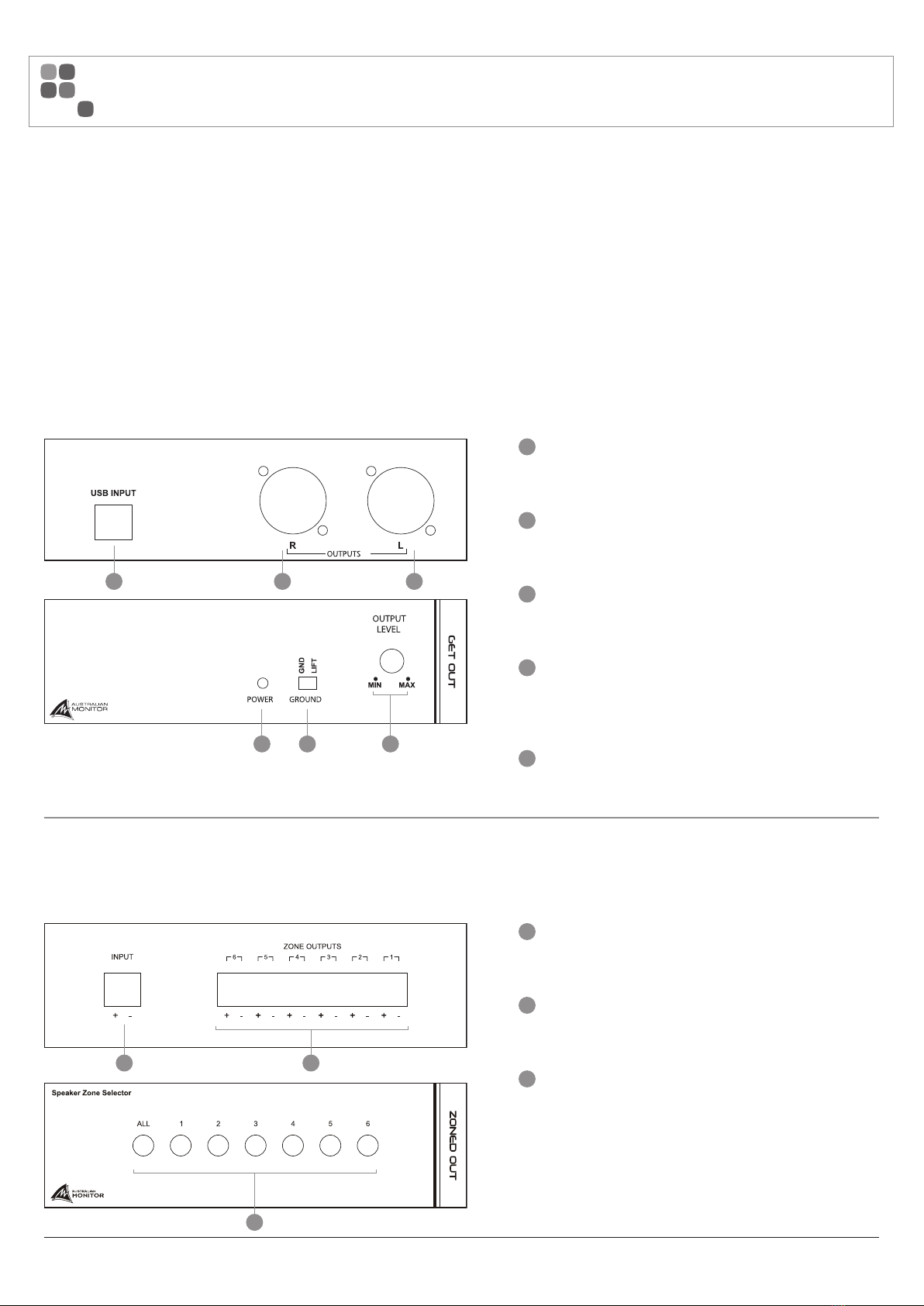

GET OUT AND ZONED OUT
1USB INPUT
Type B USB connector
2STEREO BALANCED LINE LEVEL
Male XLR output connectors
3POWER LED INDICATOR
Illuminates when connected to a PC
4GROUND LIFT SWITCH
Pin 1 ground lift on the transformer isolated XLR outputs. Set to “GND” to
connect the signal ground. Set to “LIFT” to disconnect the signal ground
5OUTPUT LEVEL CONTROL
Adjusts the audio output level on the XLR outputs
1100V LINE INPUT
Connect your amplifier to this constant voltage input connector
2100V LINE OUTPUTS
Connect your speakers to the constant voltage output connectors
3ZONE SELECTOR PUSH BUTTONS
Use the push buttons to select which zone the audio input is transmitted to
USB TO STEREO CONVERTER
The GET OUT is a USB Audio Interface with transformer balanced stereo outputs to avoid hum, noise and earth loops.
The computer connection is via a USB “Type B” connector located on the rear panel and the supplied USB cable. The GET OUT is powered by the USB computer
connection. A pair of male XLR connectors provide line level balanced outputs.
The GET OUT also features a front panel ground lift switch and a level control for achieving the optimal output level.
The GET OUT functions with Windows XP, Windows 7 and Mac OSX operating systems without the need to install drivers. Simply plug and play!
The GET OUT operates as an external sound device for your laptop or PC. The device name is “USB Audio Device” (Windows) or “USB Audio CODEC” (OSX)
Following connection to a computer, Windows will set the mixer volume to 50%. We recommend you adjust this control to 100% in the interest of delivering optimal
signal levels with minimal noise. Simply open the Windows Control Panel, select Sounds and Audio Devices, then select the “USB Audio Device” and set the Volume
slider to maximum.
6 ZONE OUTPUT SWITCHER
The ZONED OUT is a simple way to have up to 6 zone output zone switching in your installation. Simply wire the Zoned out to the constant voltage output of your AMC+
or amp and you have the ability to switch up to 6 speaker zones on or off.
1
3 4
2 2
5
3
21
REAR PANEL
FRONT PANEL
REAR PANEL
FRONT PANEL

PAGE 11AUDIO CONTRACTOR TOOLS INSTALLATION AND OPERATION MANUAL
SPECIFICATIONS
WEIGHT 0.5kg Maximun
SHIPPING DIMENSIONS 246mm x 126mm x 62mm
(9.7” x 5” x 2.4”)
SHIPPING WEIGHT 0.8kg Maximum
LETS SPLIT(L)
Frequency Response 10Hz - 60kHz
THD <0.005%
Output impedance 110 Ohms
Max Input at 1kHz >+30dBu
Max Input at 50Hz >+4dBu
GET DOWN
Frequency Response 10Hz - 100kHz
THD <0.005%
Noise + Hum <-85dBu
Max Input +22dBu
Stereo seperation -68dB
GET UP
Frequency Response 35Hz - 80kHz
THD <0.02%
Noise + Hum <-74dBu
Max Input +30dBu
Stereo seperation -52dB
DROP ME
Frequency Response 10Hz - 60kHz
THD <0.005%
MULTI CAN
Frequency Response 10Hz - 29kHz
THD <0.03%
Output impedance 50 Ohms
Max Output Power 7.5mW
Noise + Hum -91dBu
Stereo seperation -63dB
JUICED UP
Frequency Response 50Hz - 77kHz
THD <0.07%
PRE ME
Frequency Response 80Hz - 30kHz
THD <0.3%
Noise + Hum <-86dBu
Mic Max Input -10dBu
Line Max Input +16dBu
RCA Max Input +24dBu
Phantom Power 40V
Mic Gain +39dB
Line Gain +12dB
RCA Gain +4.5dB
Max Out +8dBu
Output Impedance 200 Ohms
Mic Input impedance 1k5 Ohms
Line Input Impedance 27k5 Ohms
RCA Input Impedance 29k Ohms
HUM ELIMINATOR
Frequency Response 10Hz - 80kHz
THD <0.006%
Output impedance 750 Ohms
Max Input at 1kHz >+30dBu
Max Input at 50Hz >+20dBu
MIXED UP
Frequency Response 10Hz - 60kHz
THD <0.005%
THE INJECTOR
Frequency Response 13Hz - 44kHz
THD <0.07% at +30dBu
Output impedance 250 Ohms
GET OUT
Frequency Response (-3dB) 20 Hz - 20 kHz
THD @ 0dBFS <0.02%
Output Impedance 600 Ohms
Maximum Output 0dBu
Noise + Hum <-90dBu
Stereo Separation -91dB
System Support
Windows 2000, XP, Vista, Windows 7
OS 9.1 or later, OSX 10.0 or later
Linux kernel 2.6.35 or later
Windows ME and 98SE with the original Windows install disks
ALL AUDIO CONTRACTOR TOOLS DIMENSIONS

ENGINEERED BY AUSTRALIAN MONITOR
Address: Level 7, 130 Pitt Street, Sydney NSW 2000 Australia.
Website: www.australianmonitor.com.au International enquiries email: [e-mail]
