AUTO-XS ZQ2001 User manual

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
02 Introduction
03 General Information and Safety Instructions
05 Parts List
06 Getting Started and Assembly
07 How to Operate
08 Other Useful Information
09 Warranty ard
Contents

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
ongratulations!
You have made an excellent choice with the purchase of the quality AUTO-XS® product.
By doing so you now have the assurance and peace of mind which comes from purchasing a
product that has been manufactured to the highest standards of performance and safety,
supported by the high quality standards of ALDI.
We want you to be completely satisfied with your purchase so this AUTO-XS® product is backed
by a comprehensive manufacturer’s 2 year warranty and an outstanding after sales service
through our dedicated Helpline.
We hope you will enjoy using your purchase for many years to come.
If you require technical support or in the unlikely event that your purchase is faulty please
telephone our Helpline for immediate assistance. Faulty product claims made within the 2 year
warranty period will be repaired or replaced free of charge provided that you have satisfactory
proof of purchase (keep your receipt safe!). This does not affect your statutory rights. However,
be aware that the warranty will become null and void if the product is found to have been
deliberately damaged, misused or disassembled.
2
1
Introduction
2

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
PLEASE READ AND SAVE ALL INSTR CTIONS TO ENS RE THE SAFE AND EFFECTIVE SE OF THE JACK STANDS.
•Read, understand and follow all the instructions before operating this device. Failure to heed all warnings could
result in severe personal or bystander injury, even death and/or property damage.
•DO NOT exceed rated capacity. Load should be evenly distributed over the 2 Jack Stands or the Jack Stands may
fail causing severe injury or death.
•Use only on a hard level surface.
•Place the load in the center of the saddle only.
•DO NOT drop the vehicle onto the Jack Stands, even if the load is less than the weight capacity limit. The force of
the weight dropping on the Jack Stands may cause the Jack Stands to fail.
•DO NOT move the release handle when the Jack Stands are supporting a vehicle.
•Use Jack Stands as a matched pair to support one end of a vehicle only.
•These Jack Stands are not to be used to simultaneously support both ends or one side of a vehicle.
•Lift only areas of vehicle as specified by the vehicle manufacturer.
•DO NOT get under or allow anyone under the vehicle until it has been supported by the Jack Stands.
•DO NOT alter or modify this product.
•Visual inspections should be made before each use of the Jack Stands by checking for abnormal conditions such
as cracked welds and damaged, loose, or missing parts.
•If the Jack Stands are accidentally subjected to an abnormal load or shock they must be taken out of service
immediately and be inspected by a qualified repair or service center. It is recommended that owners and/or
operators perform an annual inspection of the Jack Stands.
•WARNING: before using the Jack Stands you must check to make sure that the tab is bent in and the ratchet mast
cannot be pulled up and out of the base. This prevents accidental removal of the ratchet mast from the base.
SAVE THESE INSTR CTIONS!
General Information
General Information General Information
General Information
and
andand
and
Safety Instructions
Safety InstructionsSafety Instructions
Safety Instructions
3
3

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in serious
personal injury and/or property damage. The warnings, cautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be understood by the operator that
common sense and caution are a factor which cannot be built into this product, but must be supplied by the operator.
READ AND SAVE ALL INSTR CTIONS!
SAFETY WARNING
Although your Jack Stands are easy to operate, for your safety, the warnings below must be followed:
1. Always use Jack Stands on a hard level surface.
2. Keep children away from the vehicle while using Jack Stands.
3. enter the load on the saddle when in use.
4. DO NOT get under or allow anyone to get under the car until the Jack Stands are securely in place.
SAVE THESE INSTR CTIONS!
4

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
Main Parts
Main PartsMain Parts
Main Parts
Contents of Packaging
Contents of PackagingContents of Packaging
Contents of Packaging
•Base
•Ratchet Mast
•Instruction Manual
If any of the above items are missing, please contact our customer service department at 1-888-367-7373 or email
us at [e-mail] for replacements. Our business hours are Mon-Fri 9:00 AM - 4:00 PM ST.
1
Parts List
Parts ListParts List
Parts List
5
55
5
5

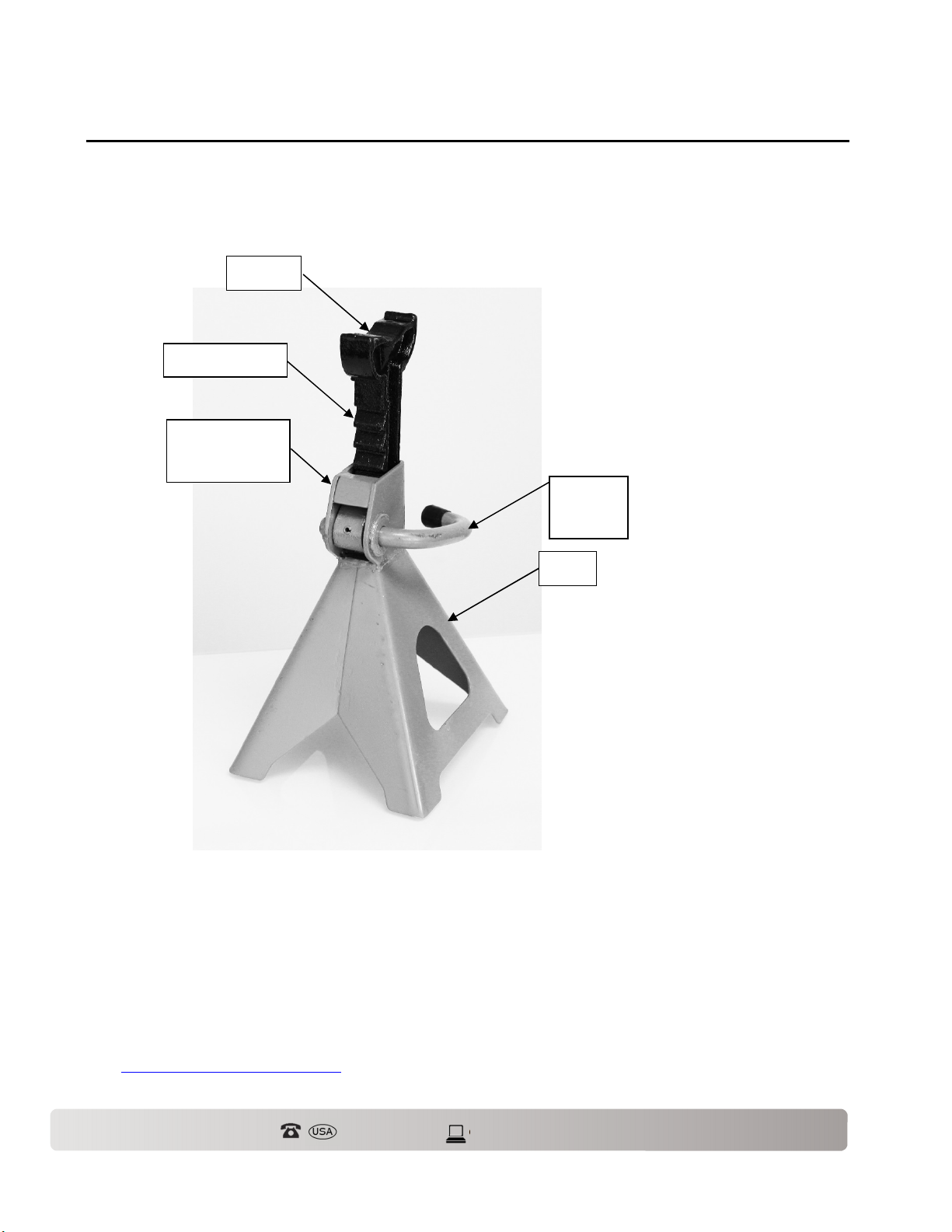

Ratchet Mast
Saddle
Tab (locking
mechanism)
Release
handle
Base

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
Before Each
Before EachBefore Each
Before Each Use
UseUse
Use
•Visual inspections should be made before each use of the Jack Stands by checking for abnormal conditions such
as cracked welds and damaged, loose, or missing parts.
•If the Jack Stands are accidentally subjected to an abnormal load or shock they must be taken out of service
immediately and be inspected by a qualified repair or service center. It is recommended that owners and/or
operators perform an annual inspection of the Jack Stands.
•WARNING: before using the Jack Stands you must check to make sure that the tab is bent in and the ratchet mast
cannot be pulled up and out of the base. This prevents accidental removal of the ratchet mast from the base.
ssembly
ssemblyssembly
ssembly
•Remove the parts from the box. The Jack Stands are completely assembled except for the ratchet mast.
•Place the ratchet mast into the base with the ratchets facing as shown below.
•Lift the release handle and insert the ratchet mast into the base.
•On the opposite side of the release handle is a tab. Using a small punch or hammer, bend the tab in enough to
keep the ratchet mast from coming out of the base. This prevents accidental removal of the ratchet mast from the
base.
1
Getting Started
Getting StartedGetting Started
Getting Started
and ssembly
and ssemblyand ssembly
and ssembly
6
66
6
Ratchets
Release
handle
Tab
6

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
How to Operate
How to Operate How to Operate
How to Operate
•Make sure the vehicle and Jack Stands are on a level stable surface.
•Lift the vehicle following the ar Jack instructions. Be sure to set the parking brake and block the unlifted tires.
•onsult the vehicle’s owner’s manual to determine the location of the support points and position the stands
beneath the ideal points. DO NOT CRAWL NDER THE VEHICLE TO POSITION THE STANDS.
•Raise the ratchet mast manually by pulling up on the mast to the highest position, making sure the ratchet
tooth is fully engaged by the locking mechanism.
•Make sure both Jack Stands are at an equal height.
•Slowly lower the vehicle onto the stands making sure the load is centered on the saddles. Make sure the load
and the Jack Stands are stable.
•When the stands are no longer needed, raise the vehicle using a ar Jack high enough to clear the Jack Stands.
•Remove the Jack Stands being careful not to crawl under the vehicle.
•Slowly lower the vehicle to the ground with the ar Jack.
•You may lower the ratchet masts by raising the release handle.
Because of potential hazards associated with this type of equipment, no alterations should be made to this
product.
Only the attachments provided with this product should be used. DO NOT substitute parts from another
product.
ANY JACK STAND THAT APPEARS TO BE DAMAGED IN ANY WAY, IS FO ND TO BE WORN, OR OPERATES
ABNORMALLY SHO LD BE IMMEDIATELY REMOVED FROM SERVICE.
7

AFTER SALES SUPPORT 1 888 367 7373 customer-service@wk-usa com 2-12-14 / ZQ2001
Technical Specifications
Technical SpecificationsTechnical Specifications
Technical Specifications
Rated apacity 2 Tons (4000 pounds)
Lowered Height 10-3/8 inches
Maximum Height 16-1/8 inches
Maintenance
Maintenance Maintenance
Maintenance
•heck for cracks or damage prior to each use. Discard if cracked or damaged.
•Periodically clean the bottom of the supports and the top of the posts of any dirt, grease, or debris.
•Periodically lubricate the release handle pivot points.
Service Center
Service Center Service Center
Service Center
If you have any questions in regards to the operation of these Jack Stands please contact our service
center at:
Wachsmuth & Krogmann, Inc.
Tel: [phone] Email: [e-mail]
(Business hours Mon - Fri 9:00 M - 4:00 PM CST)
Environmental Protection
Environmental Protection Environmental Protection
Environmental Protection
If the Jack Stands should no longer work at all, please make sure that they are disposed of in an
environmentally friendly way.
8
1
Other Useful Information
Other Useful InformationOther Useful Information
Other Useful Information
8
88
8

USA
AFTER SALES SUPPORT
[e-mail]1-888-367-7373
MODEL: ZQ2001, 02/2014, 44608
Your details:
Date of purchase*
* We recommend you keep the receipt with this warranty card
Name
Address
E mail
If you have a malfunction please contact our
Customer Service department and send this
completed warranty card with the receipt to:
Wachsmuth & Krogmann,lnc.
621 IL Route 83
Suite 202
Bensenvillie, IL 60106
[e-mail]
Description of malfunction:
Location of purchase
Phone lines available Monday thru Friday,
9am - 4pm CST
JACK STANDS
YEAR WARRANTY
