AUTOCHAIR Smart Lifter User manual
Smart Lifter
User Manual
LC Range
Smart Lifter – LC Range www.autochair.co.uk 2
Safety Guidelines
Copyright © 2017
Autochair Ltd.
1221100 Rev. C
Manufactured By:
Autochair Ltd.
Wood Street North
Meadow Lane Industrial Estate
Alfreton
Derbyshire
DE55 7JR
WARNING! These symbols denote a potentially dangerous situation. Failure
WRFDUU\RXWWKHVSHFL˩HGSURFHGXUHVPD\UHVXOWLQLQMXU\RU
damage to the device.
0$1'$725<7KHLQGLFDWHGDFWLRQVPXVWEHFDUULHGRXWDVVSHFL˩HG)DLOXUHWR
SHUIRUPWKHVSHFL˩HGDFWLRQVPD\UHVXOWLQLQMXU\RUGDPDJHWR
the device.
PROHIBITED! Do not carry out the indicated actions. They should not be
performed at any time, under any circumstances. Carrying out a
SURKLELWHGDFWLRQPD\UHVXOWLQLQMXU\RUGDPDJHWRWKHXQLW
The following symbols are used to identify warnings and important details throughout this
manual. Please read them and ensure you are aware of their meaning.
127(7KLVPDQXDOLVFRPSLOHGIURPWKHODWHVWVSHFL˩FDWLRQVDQGSURGXFWLQIRUPDWLRQDYDLODEOHDWWKH
time of publication. We reserve the right to make changes as they become necessary. Any changes
to our products may cause slight variations between the illustrations and explanations in this manual.
The latest/current version of this manual is available on our website.
3OHDVH˩OORXWWKHIROORZLQJGHWDLOVIRUTXLFNUHIHUHQFH
Autochair Dealer:
Address:
Phone Number: Purchase Date:
Serial Number:
Patent Pending
WARNING! The Smart Lifter is only intended to be installed by an Accredited
Autochair Dealer or an Autochair installer. Do not attempt to install the
Smart Lifter yourself.
Smart Lifter – LC Range www.autochair.co.uk 3
Contents
1. INTRODUCTION ..........................................................................................................4
2. SAFETY ..........................................................................................................................5
3. OPERATION ..................................................................................................................8
4. REMOVING & REPLACING ........................................................................................14
5. TROUBLESHOOTING & MAINTENANCE.................................................................16
6. WARRANTY ...................................................................................................................17
7. TECHNICAL ..................................................................................................................18
Smart Lifter – LC Range www.autochair.co.uk 4
1. Introduction
Congratulations on the purchase of your new Smart Lifter manufactured by Autochair Ltd
Please read through these instructions thoroughly before operating your Smart Lifter.
All models of this product are very powerful in both the UP (lifting) and DOWN (lowering) as well as the
IN (into vehicle) and OUT (out of vehicle) operation. Care should be taken that the boom and the mobility
product that is being lifted is free to move. These devices have the power to break trim and cause harm if not
operated correctly.
This Smart Lifter is designed to lift wheelchairs, electric wheelchairs and scooters into vehicles. They should
EH˩WWHGLQWRWKHYHKLFOHE\DFRPSHWHQW˩WWHUZKRZLOODOVRHQVXUHWKDWWKHFRUUHFWOLIWLQJEUDFNHWLV˩WWHGWR
VXLW\RXUPRELOLW\YHKLFOH7KH˩WWHUZLOODOVRGHPRQVWUDWHWKHRSHUDWLRQRI\RXU6PDUW/LIWHUDQGVKRZ\RXKRZ
the lifting brackets are connected.
Please note that your Smart Lifter comes complete with a warranty as detailed in your contract. This warranty
covers the replacement of any faulty parts and the labour for replacing those parts. The warranty does not
cover travel costs.
ONLINE AND PRIVATE PURCHASES
,I\RXSXUFKDVHG\RXUSURGXFWRQOLQHRUIURPDSUHYLRXVRZQHUDQGUHTXLUHDQ\LQIRUPDWLRQDERXWWKHVDIH
use and maintenance of your Smart Lifter, please visit our website at www.autochair.co.uk or contact your
Accredited Autochair Dealer.
END-USER’S AGREEMENT
By accepting delivery of this Smart Lifter, you agree that you will not modify, change or alter this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse,
RUQHJOHFWWRLQVWDOODQ\UHWUR˩WNLWVIURPWLPHWRWLPHSURYLGHGE\$XWRFKDLUWRHQKDQFHRUSUHVHUYHWKHVDIH
use of this product.
DELIVERY AND SHIPPING
Before using or operating your Smart Lifter, make sure your delivery is complete. Some components may be
individually packaged. If you do not receive a complete delivery or if any damage has occurred to the product
or packaging whilst in transit, please contact your Accredited Autochair Dealer. Upon delivery of your new
product your Accredited Autochair Dealer should provide a demonstration on the correct use of the Smart
Lifter.
FEEDBACK AND SUGGESTIONS
:HZDQWWRKHDU\RXUTXHVWLRQVFRPPHQWVDQGVXJJHVWLRQVDERXWWKLVPDQXDO:HZRXOGDOVROLNHWR
hear about the safety and reliability of your new Smart Lifter and about the service you received from your
Accredited Autochair Dealer.
Please notify us of any change of address, so we can keep you apprised of important information about
safety, new products, and new options that could improve your ability to use and enjoy your lift system. Please
feel free to contact us at the address below:
Manufactured By:
Autochair Ltd.
Wood Street North
Meadow Lane Industrial Estate
Alfreton
Derbyshire
DE55 7JR
0800 009 2326
01773 830444
www.autochair.co.uk
Smart Lifter – LC Range www.autochair.co.uk 5
2. Safety
Product Safety Symbols
Please study the symbols below to ensure you understand them completely. They are used on the
Smart Lifter and in the manual to identify warnings and mandatory or prohibited actions.
Disposal and recycling. Contact your Accredited Autochair Dealer
for information on proper disposal of your Smart Lifter and its
packaging.
Do not ride on the mobility product while operating the Smart
Lifter or when the vehicle is in motion.
Battery posts, terminals and related accessories contain lead
and lead compounds. Wear goggles and gloves when handling
batteries and wash hands after handling.
3LQFK&UXVKSRLQWVRQWKH6PDUW/LIWHU.HHSKDQGVDQG˩QJHUV
away from moving components and crush points when operating
the Smart Lifter.
Read and follow all directions in this manual.
The maximum lifting capacity of the Smart Lifter is dependent on
the version the customer has purchased. Check this by referring
to labels on the lift arm. The mobility device must not exceed this
weight.
MAX
--- kgs
Smart Lifter – LC Range www.autochair.co.uk 6
LIFTING CAPACITIES
This Smart Lifter is designed to lift a maximum weight dependent on the version that you have purchased.
Check this by referring to labels on the lift arm. Under no circumstances should the Smart Lifter exceed the
stated lifting capacity. Subjecting the Smart Lifter to the strain of lifting more than it is designed to may cause
it to fail, resulting in damage to the mobility product and/or injury to the operator. Refer to the mobility product
VSHFL˩FDWLRQVIRULQIRUPDWLRQRQWKHRYHUDOOZHLJKWRIWKHPRELOLW\SURGXFWEHIRUHOLIWLQJZLWKWKH6PDUW/LIWHU
PRE-USE INSPECTION
7KHUHVKRXOGEHQRVKDUSHGJHVRQWKH6PDUW/LIWHUWKH$)UDPHRUWKHOLIWLQJEUDFNHW,I\RX˩QGDQ\VKDUS
edges, please contact your Accredited Autochair Dealer and notify them. Make sure that you are completely
happy with the operation of your Smart Lifter before lifting your mobility device. Misuse or incorrect operation
of the Smart Lifter could result in injury. Inspect the lifting straps before every use for twisting, fraying or signs
of wear. If signs of wear become evident, have them replaced by your Accredited Autochair Dealer.
WHEELCHAIR LIFTING STRAP
The lifting strap can only be used on wheelchairs with a maximum weight of 50kg.
OPERATOR POSITIONING
.HHSKDQGVDQG˩QJHUVFOHDURIWKHOLIWDUPZKLOHWKHOLIWV\VWHPLVOLIWLQJORZHULQJRUORDGLQJLQRXWDPRELOLW\
product. The operator should stand a safe distance from the Smart Lifter when it is in operation to ensure that
their feet are never positioned under a raised mobility product.
VEHICLE POSITIONING
%HVXUH\RXUYHKLFOHLVSDUNHGRQ˪DWOHYHOJURXQGDQGWKHKDQGEUDNHLVHQJDJHGEHIRUHDWWHPSWLQJWROLIW
a mobility product. Before lowering ensure that the Smart Lifter is fully out of the vehicle, otherwise your
mobility device may come into contact with your vehicles bumper.
2. Safety
MANDATORY! $GGLQJDFFHVVRULHVRYHUVL]HGEDWWHULHVRUDGL˨HUHQWVHDWZLOO
increase the weight of your mobility device. Verify with your mobility
device supplier to ensure your mobility device does not exceed the
maximum lift capacity of the Smart Lifter.
WARNING! The Fitting Kit and Accessories for your vehicle may be rated at
a lower capacity than your Smart Lifter. Please check with your
Accredited Autochair Dealer to ensure the correct Safe Working Load
is maintained.
WARNING! A frayed or worn strap can snap, resulting in damage to the Smart
Lifter and mobility device and potentially injury to the operator.
MANDATORY! If your mobility device changes; contact your Accredited Autochair
'HDOHUWRFRQ˩UPVXLWDELOLW\ZLWK\RXUH[LVWLQJ6PDUW/LIWHUEHIRUHXVH
WARNING! Do not exceed the maximum stated lifting capacity.
Smart Lifter – LC Range www.autochair.co.uk 7
2. Safety
%HIRUHOLIWLQJWKHPRELOLW\SURGXFWIRUWKH˩UVWWLPHRSHUDWHWKH6PDUW/LIWHUZLWKRXWDORDGXQWLO\RX
are familiar with the controls and how the Smart Lifter operates.
Any adjustment to the Smart Lifter settings must only be carried out by an Accredited Autochair Dealer. Your
Smart Lifter should be serviced every year to ensure it is in good working order.
If in doubt about any aspect of your Smart Lifter, please contact your Accredited Autochair Dealer.
WARNING! Attempting to lift a mobility product when a vehicle is not on level
ground will cause the mobility product to swing toward or away from
WKHYHKLFOHPDNLQJLWGLI˩FXOWWRJHWWKHPRELOLW\SURGXFWLQWRWKH
vehicle.
WARNING! The Smart Lifter must never be operated by a child or any person not
deemed appropriate by the technician who installed it.
WARNING! 7KHVDIHW\5FOLSPXVWEH˩WWHGLQWRWKHWRSSLQLQWKH$)UDPHEHIRUH
operating.
WARNING! Note the position of all pinch point warning labels stating “Keep
Clear”. Never place your hands in these locations when the Smart
Lifter is in operation.
WARNING! The Smart Lifter must never be used to lift items other than the
mobility product it was originally installed and set-up to lift. If you
wish to lift additional mobility products, contact your Accredited
Autochair Dealer.
WARNING! Never use a Smart Lifter that has signs of damage or excessive wear.
WARNING! Misuse of the Smart Lifter may result in serious injury and damage to
the unit or vehicle.
Smart Lifter – LC Range www.autochair.co.uk 8
3. Operation - Loading
Power Button
Power status
indicator light
Power On
Power O˨
6. Press and hold the LEFT button to swing the
Smart Lifter outwards. Release the button when the
boom is at its outermost position.
5. Press and hold the RIGHT to swing the Smart
Lifter outwards. Release the button when the boom
is at its outermost position.
&RQ˩JXUHWKHPRELOLW\GHYLFHIRUOLIWLQJDV
recommended by the product demonstrator or
installer.
3. Locate and pick up the handset from its stored
position.
2. Press the power button to switch on the unit. This
will be indicated by a red light when switched on.
1. Locate the power control box. This will normally be
mounted on the A-Frame.
LOADING A MOBILITY DEVICE
Left Hand Installs Right Hand Installs
3. Operation - Loading
Smart Lifter – LC Range www.autochair.co.uk 8 Smart Lifter – LC Range www.autochair.co.uk 9
3. Operation - Loading
12. Press and hold the LEFT button to move the
mobility device inwards. Rotate the mobility device
as it moves inwards.
11. Release the up button once the mobility device is
DERYHWKHOXJJDJHDUHD˪RRU
9. Engage the keyhole plates/karabiner clips
securely to the lifting bracket. DO NOT attempt to lift
without all lifting straps securely connected.
10. Press and hold the up button to raise the mobility
device from the ground.
8. Press and hold the down button to lower the
boom.
7. Position the mobility device so that the lifting
points align with the spreader bar.
Left Hand Installs
Keyhole Plates
Karabiner Clips
Smart Lifter – LC Range www.autochair.co.uk 10
3. Operation - Loading
Power Button
Power status
indicator light
Power On
Power O˨

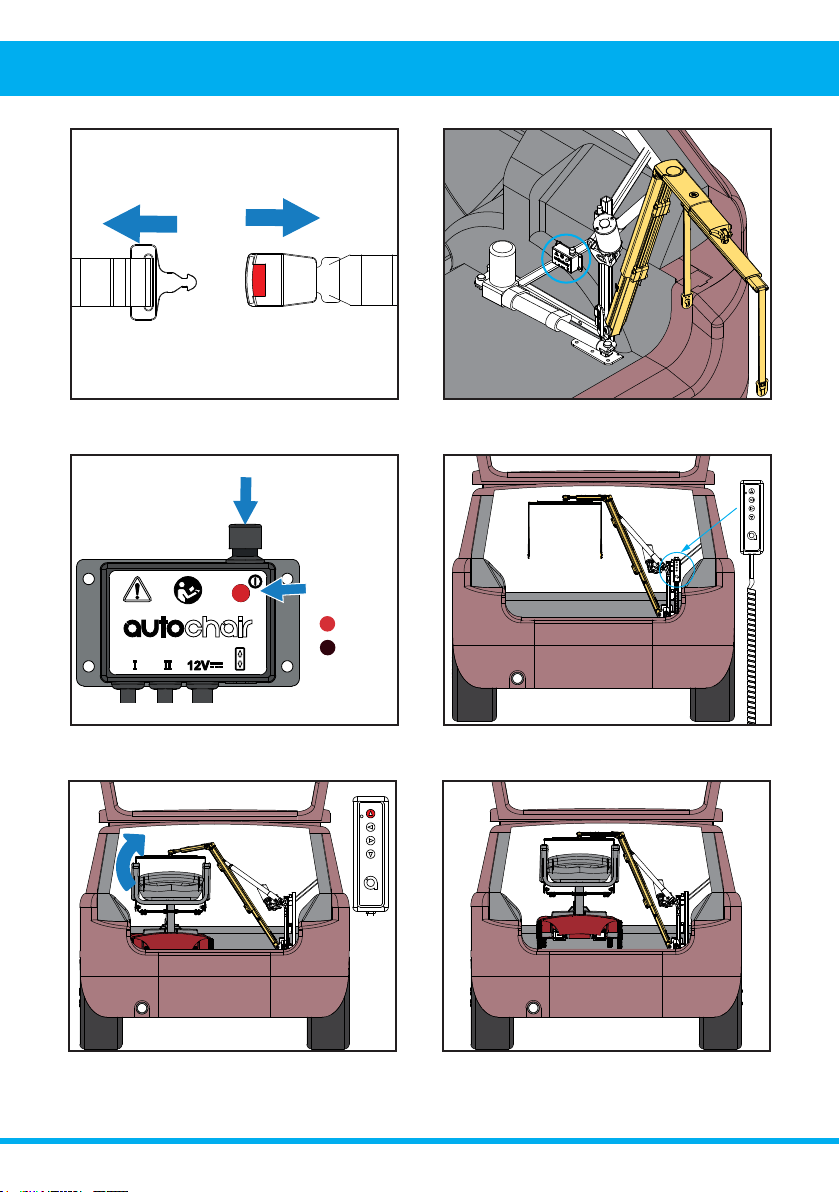

14. Guide the scooter into the boot, ensuring there
LVDGHTXDWHFOHDUDQFHIRUWKHERRPDQGPRELOLW\
device to swing into position.
13. Press and hold the RIGHT button to move the
mobility device inwards. Rotate the mobility device
as it moves inwards.
15. Press and hold the down button until the scooter
LV˩UPO\SODFHGRQWRWKH˪RRURIWKHYHKLFOHDQGWKH
straps become loose enough to detach.*
,I˩WWHG\RXVKRXOGHQJDJHWKHUHVWUDLQWV\VWHP
now.**
*Do not continue to hold the down button once the
scooter is grounded. Do not attempt to manoeuvre
the mobility device once it is grounded.
**Autochair strongly recommend the mobility
HTXLSPHQWLVUHVWUDLQHGZKLOVWWUDYHOLQJ)DLOXUH
WRUHVWUDLQ\RXUPRELOLW\HTXLSPHQWFRXOGUHVXOWLQ
injury and damage to the vehicle passengers.
***Never leave the system switched on when not
in use.
17. Return the handset to its stored position,
ensuring the cable is clear of trapping points. Press
WKHSRZHUEXWWRQWRVZLWFKWKHXQLWR˨
WARNING!
Please read and understand
the following guidelines.
Right Hand Installs
3. Operation - Unloading
Smart Lifter – LC Range www.autochair.co.uk 10 Smart Lifter – LC Range www.autochair.co.uk 11
3. Operation - Unloading
Power Button
Power status
indicator light
Power On
Power O˨
5. Press and hold the up button to raise the mobility
GHYLFHIURPWKHYHKLFOH˪RRU
6. Release the up button once the mobility device
has reached its uppermost position.
4. Locate and pick up the handset from its stored
position.
3. Press the power button to switch on the unit. This
will be indicated by a red light when switched on.
2. Locate the power control box. It is usually
mounted to the side trim of the boot compartment.
,I\RXKDYHDUHVWUDLQWV\VWHP˩WWHGWKLVVKRXOG
˩UVWEHGLVHQJDJHG
UNLOADING A MOBILITY DEVICE
Smart Lifter – LC Range www.autochair.co.uk 12
3. Operation - Unloading
11. Release the key hole plates/karabiner clips from
the lifting bracket.
12. Ensure the mobility device is free from the Smart
Lifter. Press the up button to raise the boom fully
upwards.
10. Release the down button once the mobility
device is grounded and there is some slack in the
lifting straps.
9. Press and hold the down button to lower the
mobility device.
8. Press and hold the LEFT to swing the Smart Lifter
outwards.
7. Press and hold the RIGHT to swing the Smart
Lifter outwards.
Left Hand Installs Right Hand Installs
Keyhole Plates
Karabiner Clips
3. Operation - Unloading
Smart Lifter – LC Range www.autochair.co.uk 12 Smart Lifter – LC Range www.autochair.co.uk 13
3. Operation - Unloading
15. Return the handset to its stored position,
ensuring the cable is clear of trapping points or
hazards.
14. Press and hold the RIGHT to move the hoist
inwards. Ensure the boom is fully rotated into the
vehicle as this could result in damage to the vehicle.
13. Press and hold the LEFT button to move the Smart
Lifter inwards. Ensure the boom is fully rotated into the
vehicle as this could result in damage to the vehicle.
Power Button
Power status
indicator light
Power On
Power O˨
3UHVVWKHSRZHUEXWWRQWRVZLWFKR˨WKHXQLW7KH
light should no longer be illuminated indicating the
XQLWLVVZLWFKHGR˨(QVXUHWKLVOLJKWLVVZLWFKHGR˨
Left Hand Installs Right Hand Installs
CLICK
1. Press to unclip and
release the buckles.
2. Feed the strap under the
wheel chair and push both
buckles together.
3. Ensure that they click
into place
4. Pull strap down to
tighten.
MAX
50 kgs
WHEELCHAIR LIFTING STRAP OPERATION
Smart Lifter – LC Range www.autochair.co.uk 14
4. Removing & Replacing
6. Slide the Smart Lifter upwards to remove it from
the mounting lugs. TAKE CARE when lifting (8.5kg
weight). Store the Smart Lifter in a dry, safe place
when not in use.
5. Remove the actuator pin and rotate the actuator
away from the bottom.
4. Remove the Retaining Pin (R-Clip) from the top
pin.
3. Ensure the system power is OFF and unclip the
red and black connectors. DO NOT pull apart by the
wires. This will damage the connectors.
2. Remove the spreader bar from the boom.1. Rotate the spreader bar to disconnect the hook.
1
2
REMOVING
4. Removing & Replacing
Smart Lifter – LC Range www.autochair.co.uk 14 Smart Lifter – LC Range www.autochair.co.uk 15
4. Removing & Replacing
1
2

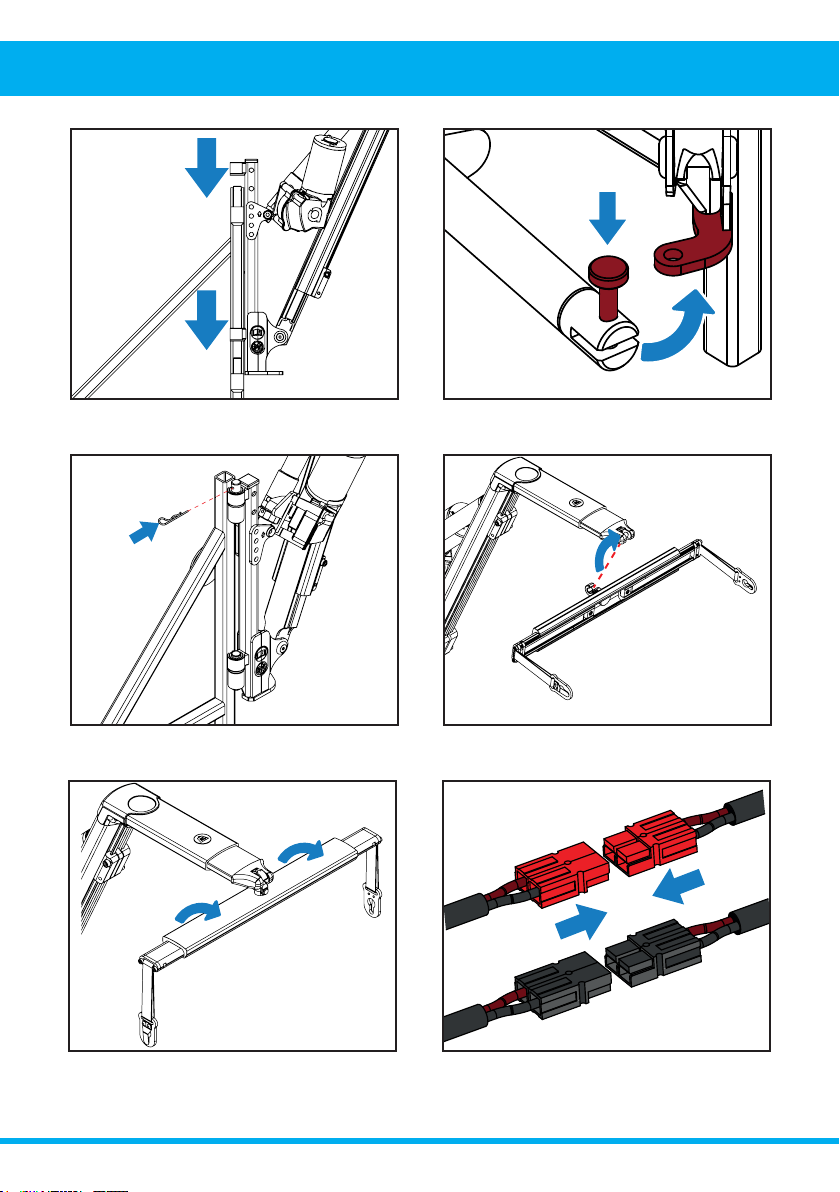

2. Rotate the Smart Lifter and align the bottom
mount with the actuator arm and engage the pin
through the hole.
1. Rest the upper mounting lug onto the longer
upper pin before aligning the lower pin. The Smart
Lifter should slide smoothly down into place.
3. IMPORTANT - Fully insert the Retaining Pin
(R-Clip) into the top pin.
4. Connect the spreader bar to the Smart Lifter.
6. Connect the red and black connectors.5. Rotate to lock the spreader bar in place.
REPLACING
Smart Lifter – LC Range www.autochair.co.uk 16
Problem Solution
No power to the unit • Make sure the Smart Lifter is switched on. Check the power light is on.
• 7XUQWKH6PDUW/LIWHUR˨DQGEDFNRQDJDLQDQGUHWU\
• Check the fuse. This is next to the car’s battery. A spare fuse is supplied.
• ,VWKHFDUEDWWHU\˪DW"7U\WRVWDUWWKHFDU
The handset doesn’t
work
• Make sure that the Smart Lifter is switched on.
• 7XUQWKH6PDUW/LIWHUR˨DQGRQDJDLQDQGUHWU\
• Check the fuse. This is next to the car’s battery. A spare fuse is supplied.
• ,VWKHFDUEDWWHU\˪DW"7U\WRVWDUWWKHFDU
• Inspect the handset for damage or loose connections.
• Inspect the cable for damage or wear.
Smart Lifter turns on
but won’t lift
• Inspect the actuator power supply. It may have become disconnected.
• Inspect the electrical plugs between ‘UP/DOWN actuator and power supply,
reconnect if they have come apart.
Smart Lifter stops
during lifting
• +DVWKHPRELOLW\GHYLFHEHFRPHFDXJKWRQWKHYHKLFOH"
• The Smart Lifter is protected by a fuse located near the vehicle battery. If a
load greater than the Smart Lifter’s capacity is lifted, the fuse could blow.
The Smart Lifter lifts
very slowly
• The mobility device weight may be close to the Smart Lifter’s weight
capacity.
• ,VWKHYHKLFOHɻVEDWWHU\FKDUJHG"/RZEDWWHU\ZLOOFDXVHVORZRSHUDWLRQ
,VVHUYLFLQJDYDLODEOH" • :HR˨HU\HDUO\VHUYLFLQJWRHQVXUH\RXU6PDUW/LIWHULVVDIHDQGUHOLDEOH
Please call your Accredited Autochair Dealer for further information.
What if we have an
DFFLGHQW"
• If you think that your Smart Lifter has been damaged in any way please call
your Accredited Autochair Dealer to arrange an inspection and safety test.
5. Troubleshooting & Maintenance
,I\RXFDQɻW˩QGDVROXWLRQWR\RXUSUREOHPEHIRUHRSHUDWLQJWKH6PDUW/LIWHUSOHDVHFRQWDFW\RXU$FFUHGLWHG
Autochair Dealer as soon as possible. Their details will be written on the inside cover and the back page of
this manual. If you do not have their contact details, get in touch with us and we’ll let you know who your
Accredited Dealer is and how to get in touch with them.
SMART LIFTER CARE AND MAINTENANCE
The following routine maintenance should be performed at the indicated intervals. Failure to perform the maintenance
SURFHGXUHVDWWKHUHTXLUHGLQWHUYDOVPD\YRLG\RXUSURGXFWZDUUDQW\
Perform prior to daily use:
• Inspect buckles, straps & fasteners for damage or excessive wear.
• Inspect Smart Lifter for damage or excessive wear.
• Check electrical wires and connections for signs of damage or wear.
Any parts found to be damage or showing excessive wear should be reported to your Accredited Autochair Dealer.
Perform at least every 6 months:
• ,QVSHFWDOOPRXQWLQJKDUGZDUHDQGOLIWSLYRWVIRUGHIHFWVDQGDVHFXUH˩W
Any parts found to be loose or defective should be reported to your Accredited Autochair Dealer.
Perform every 12 months:
• It is recommended that the Smart Lifter is serviced every year by Autochair or your Accredited Autochair Dealer.
Cleaning:
• ,IUHTXLUHGWKH6PDUW/LIWHUFDQEHFOHDQHGZLWKDGDPSFORWKDQGGHWHUJHQW(QVXUHWKHXQLWLVGLVFRQQHFWHGIURP
the power before cleaning.
Do not immerse in water, do not allow water to run into the electrical connectors or control box and allow to
dry before use.
Smart Lifter – LC Range www.autochair.co.uk 16 Smart Lifter – LC Range www.autochair.co.uk 17
5. Troubleshooting & Maintenance 6. Warranty
PRODUCT WARRANTY
The warranty period for the Smart Lifter is detailed in your contract.
This warranty will cover any defects of workmanship or function.
The warranty does not cover any incorrectly installed Smart Lifter’s or one with damaged
mechanical or electrical components due to incorrect use or damage.
7KHZDUUDQW\GRHVQRWFRYHUFRQVHTXHQWLDOORVVXQOHVVUHJLRQDOODZUHTXLUHVLW
The warranty is invalidated if the seal on either the actuator or control box is broken.
These contain no user replaceable components.
1RDOWHUDWLRQVKRXOGEHPDGHWRWKH6PDUW/LIWHUE\DQ\RQHRWKHUWKDQDTXDOL˩HGSHUVRQDVGH˩QHG
by an Accredited Autochair Dealer.
In the event of damage or defects in the actuator, the Smart Lifter should be returned to your
Accredited Autochair Dealer for evaluation.
1RZLUHVPXVWEHFXWDVWKH\DUH˩WWHGZLWKFRQQHFWRUVWKDWPXVWEHFRUUHFWO\UHPRYHGEHIRUHUHSDLU
,QWKHHYHQWRIDQ\PDOIXQFWLRQRIWKHHOHFWULFDOFLUFXLWER[RUKDQGVHWZKLFKUHTXLUHUHSODFHPHQW
please contact your Accredited Autochair Dealer.
Please keep a note of the following:
Serial Number:
Date Supplied:
Details of the Supplier:
Postcode:
Telephone:
A B C D E
Circle Pivot Post Position Used
80kg
Fitting Kit Rating:
Lifting Accessory Rating:
Set up details:
Mobility Device Weight:
A B C D E
100kg
Signature:
Name:
Smart Lifter – LC Range www.autochair.co.uk 18
7. Technical
4
26
5
5
3
1
7
11
10
9
8
6
5
3
5
2
4
11
1
9
7
10
8
1. BOOM
2. A-FRAME (RIGHT HAND)
3. IN/OUT ACTUATOR
4. IN/OUT ACTUATOR FIXING
PLATE (RIGHT HAND)
5. ACTUATOR PIN
6. RETAINING PIN (R-CLIP)
7. SPREADER BAR
8. PIVOT POST (RIGHT HAND)
9. UP/DOWN ACTUATOR (RIGHT
HAND)
10. SPREADER BAR STRAP
11. KEYHOLE PLATE
1. BOOM
2. A-FRAME (LEFT HAND)
3. IN/OUT ACTUATOR
4. IN/OUT ACTUATOR FIXING
PLATE (LEFT HAND)
5. ACTUATOR PIN
6. RETAINING PIN (R-CLIP)
7. SPREADER BAR
8. PIVOT POST (LEFT HAND)
9. UP/DOWN ACTUATOR (LEFT
HAND)
10. SPREADER BAR STRAP
11. KEYHOLE PLATE
Right Hand Install
Left Hand Install
Smart Lifter Model L-C80 L-C100
Maximum lifting capacity: 80kg 100kg
Smart Lifter – LC Range www.autochair.co.uk 19
7. Technical
12
13
14
12. CONTROL BOX
13. HANDSET
14. HANDSET CABLE
Wheelchair Lifting
Strap
4 Point Lift Attachment Key Hole
Plates
4 Point Lift Attachment Karabiner
WARNING! The actuator must be replaced before 6 years pass from date of
purchase.
2 Point Lift Attachment Karabiner 4 Point Lift Attachment with
Karabiner and Key Hole Plates
Spreader Bar Options
MAX
50 kgs
2 Point Lift Attachment Keyhole
Your Dealers Details:
0800 009 2326
www.autochair.co.uk
www.motobility.com.au
(08) 9242 7333
This manual suits for next models
2
Table of contents
