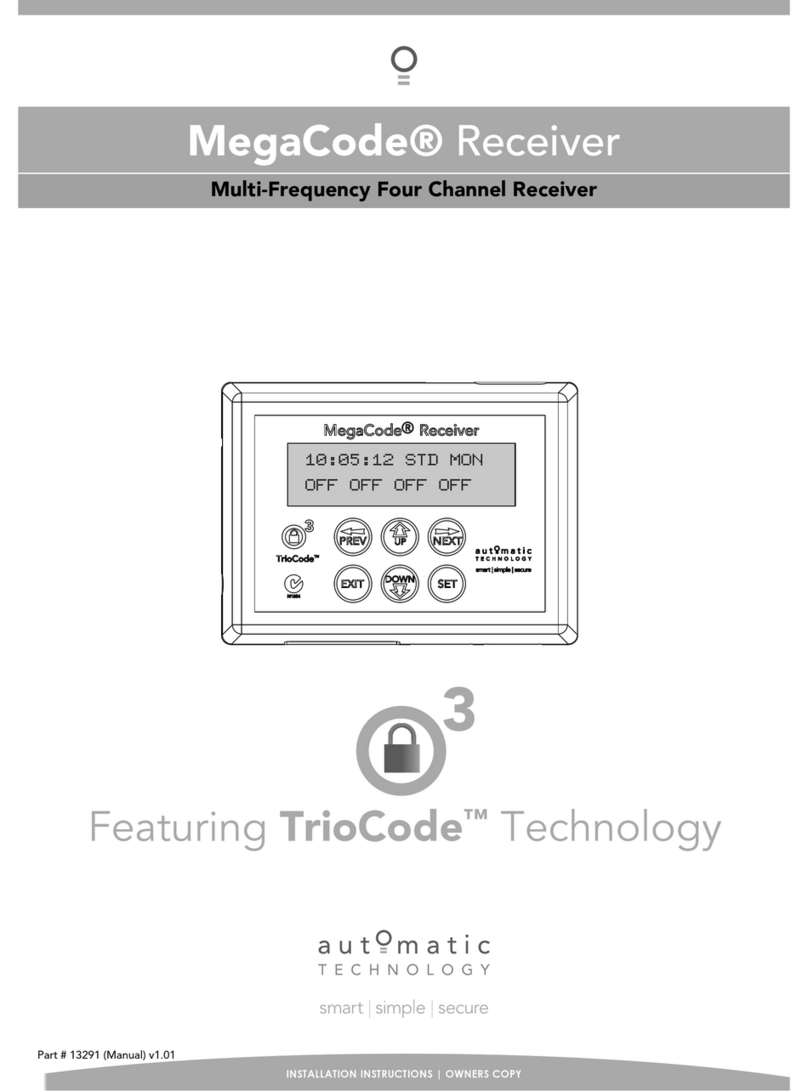

Automatic Technology Megacode Tricode 128 User manual

Megacode®Receiver
Multi-Frequency Four Channel Receiver
10:05:12 STD MON
OFF OFF OFF OFF
Doc # 160046_01
Part # 13367
Released 14/12/17

2MegaCode®Receiver Installation Instructions
WARNING: It is vital for the safety of persons to follow
all instructions. Failure to comply with the installation
instructions and the safety warnings may result in serious
personal injury and/or property damage. Please save these
instructions for future reference.
Automatic Technology Australia Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology Australia Pty Ltd Garage Door Opener. Automatic Technology Australia Pty Ltd hereby further
expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a
result whether directly or indirectly from failure to install the Automatic Technology Australia Pty Ltd Garage Door Opener
in accordance with these installation instructions.

Installation Instructions MegaCode®Receiver 3
Megacode®Receiver
Multi-Frequency Four Channel Receiver
Contents
1. Features 4
2. Operating Controls 6
3. Installation 7
4. Coding Transmitter 8
4.1 Coding Transmitter Button 8
4.2 Selecting Function Of The Button 8
4.3 Returning To Main Screen 8
5. Remotely Coding Transmitters 9
5.1 Selecting The Function To Be Coded 9
5.2 Activate Remote Code Set Mode 9
5.3 Removing the Battery From the Transmitter 9
6. Time Clock 10
6.1 Time Clock Operation 10
6.2 Time Clock Settings 10
6.3 Removing the Time Clock Battery From the Receiver 10
7. Specifications 11
8. Troubleshooting 11
9. Appendix 12
A - Receiver Menu Structure 12
B - Viewing and Editing Parameters 15
C - Diagnostic Tools 16
D - Memory Tools 17
E - Transmitter Editing 18
F - Transmitter Managment 19
10. Warranty and Exclusion of Liability 20

4MegaCode®Receiver Installation Instructions
Multiple Modes of Control
The solid state relay outputs of the MegaCode®Receiver can be controlled by
remote control transmitters, wired inputs and a programmable time clock. Each
output can be configures to be a steady state or flashing output.
TrioCode™ 128 Technology
Only transmitters with the TrioCode™ 128 Technology can operate with the
latest Openers, reducing the chance of intereference from other radio frequency
sources. Every time a TrioCode™ 128 transmitter is used a new security code is
randomly generated from over 100 billion possibilities. This greatly enhances the
security of the system and makes “code grabbing” a thing of the past. TrioCode™
128 transmitters have the ability to code into earlier model openers.
Programmable Time Clock
The Time Clock can be used to override transmitter and trigger input control at
various times of day on a weekly basis. An output can be forced on, forced off or
released for transmitter or trigger input control. The Time Clock has 32 programs
which select the output to be controlled and the time and days of the week it is to be
activated.
Console
Incorporated into the MegaCode®Receiver .is a simple to use console which consists of several
buttons and a display. With the addition of the console, facilities which were only available on
previous receivers using an additional hand held programmer are now available as standard via a
simple menu system. Features include editing transmitter storage and names, setting various parameters,
and performing system diagnostics.
Security Code Store
The MegaCode®Receiver uses state of the art technology in storing your selected transmitter security codes.
Up to 511 different transmitters can be stored in the memory with the facilities to assign an 11 character ID
label to each transmitter.
1. Features
Thank you for purchasing the Automatic Technology
MegaCode®Receiver. Designed by our renowned
engineers to suit garage doors and gate openers, the
MegaCode®Receiver will provide years of smart,
simple & secure convenience to your home.

Installation Instructions MegaCode®Receiver 5
Transmitter Management Flexibility
Whenever a large number of transmitters are used, managing those transmitters
effectively is of great importance. The MegaCode®Receiver provides many features
which enhance transmitter management. Transmitters can be listed by store
location, group number, serial number or I.D label. Tools are available which allow
transmitters to be Replaced, Deleted and Edited. A quick transmitter code set
feature is provided which allows the button functions of an existing transmitter to
be copied to all transmitters to be coded. This feature allows many transmitters to
be coded without the need for the installer to touch any console buttons during
the coding process.
Status Indication
The status of the receiver outputs and the last event are displayed whenever the
main screen is shown. Information provided includes; the status of each input,
the last transmitter or input that was activated, the last output affected, the time
remaining before an output time expires etc.
Password Protection
All operating parameters and transmitter storage can be protected from being changed
by unauthorised personnel by an optional password protection feature.
Vacation Mode
A handheld transmitter can be programmed to lock and unlock all other transmitters that have
been programmed into the openers’ memory. The vacation mode can be used when the door is left
idle for long periods of time.

6MegaCode®Receiver Installation Instructions
AC/DC Power Supply Input 12 to 24 AC/DC power
supply input terminal.
Output One (1) normally open contacts of the solid
state relay output can be controlled by remote control
transmitters, wired inputs and a programmable time clock.
Output Two (2) normally open contacts of the solid
state relay output can be controlled by remote control
transmitters, wired inputs and a programmable time clock.
Output Three (3) normally open contacts of the solid
state relay output can be controlled by remote control
transmitters, wired inputs and a programmable time clock.
Output Four (4) normally open contacts of the solid
state relay output can be controlled by remote control
transmitters, wired inputs and a programmable time clock.
13
01 02
03 04
05 06
07 08
09 10
11 12
27
14
15 16
17 18
19 20
21
2. Operating Controls
Fig 2.1
1816 171512 13 1411 2624 252320 21 2219
28
29
30
27
2423
25
22
26
28
29
30
0806 070502 03 0401 1009
Trigger Input One (1) the output one (1) can
also be controlled via trigger one (1) independently.
The trigger input can be programmed to activate its output similar
to a transmitter button.
Trigger Input Two (2) the output two (2) can
also be controlled via trigger two (2) independently.
The trigger input can be programmed to activate its output similar
to a transmitter button.
Trigger Input Three (3) the output three (3) can
also be controlled via trigger three (3) independently.
The trigger input can be programmed to activate its output similar
to a transmitter button.
Trigger Input Four (4) the output four (4) can
also be controlled via trigger four (4) independently.
The trigger input can be programmed to activate its output similar
to a transmitter button.
Disable Input One (1) activation of this input will disable
Output One (1)
Disable Input Two (2) activation of this input will disable
Output Two (2)
Disable Input Three (3) activation of this input will disable
Output Three (3)
Disable Input Four (4) activation of this input will disable
Output Four (4)
AC/DC Power Supply plug pack Input 12 to 24 AC/DC
power supply input
Antenna connector
Clock Battery
Prog Input is used to connect the Automatic Technology
Handheld Programmer for editing control and receiver functions,
accessing diagnostic tools, and activating special features and
operating modes.

Installation Instructions MegaCode®Receiver 7
26
3. Installation
3.1 Receiver Supply
The MegaCode®receiver is designed to be powered from
12V - 24VAC/DC. A suitable 12VDC plug pack also can be used to
power up the MegaCode®receiver.
3.2 Wiring Outputss
Each output is able to switch up to 40VDC @ 100mA. Each output
consists of a solid state relay with normally open (selectable to
N/C) contacts. No internal connections exist to the relay contacts
so it may be treated as a simple switch.
3.2 Wiring Inputs and Powering up the Receiver
Each input is operated by a simple switch contact.
WARNING! Do not apply any voltage to the inputs.
The Trigger inputs are dry contact inputs (selectable
to N/C) inputs.
a. Connect wiring using Fig. 2.1 as guide and apply power to
the receiver.
b. The receiver will go through a startup sequence displaying the
startup screen which indicates the receiver type and firmware
version (Fig. 3.1).
c. After a short delay the main screen will be displayed. This will
show the current time and day of the week on the top line
(Refer to section 6.2 to set the current date and time). The
bottom line will show the output status starting with Output 1
on the left through to Output 4 on the right (Fig. 3.2).
d. Make sure the time and day are set correctly.
Fig 3.1
MEGA CODE RM01
Firmware 1.10
00:00:80 STD ---
OFF OFF OFF OFF
Fig 3.2

8MegaCode®Receiver Installation Instructions
4. Coding Transmitter
The MegaCode®receiver can store up to five hundred and eleven
(511) transmitters in its memory. Each transmitter can be allocated
an alpha-numeric ID label up to eleven (11) characters in length
and each button can be assigned to any channel. The settings for a
transmitter are represented in (Fig. 4.1). It shows the transmitter’s
store number, ID label or serial number and the functions assigned
to each of its four buttons. To toggle between ID/SN display, press
UP/DOWN with the cursor on the ID/SN indicator.
Brand Of Transmitters
The first memory location sets the type of transmitters which can be
stored into the memory of the receiver. It either can be Automatic
Technology TrioCode™128 or B&D Tri-Tran+™ transmitters. For
example, if the first transmitter stored is TrioCode™128, then the
rest of the transmitters can only be the TrioCode™128 type and
mixing of TrioCode™128, Tri-Tran+™ is not possible. The deletion
of all stored transmitter codes from the receivers memory
will allow you to choose either TrioCode™128 or Tri-Tran+™
transmitters again.
4.1 Coding Transmitter Button
Navigating To Menu 1 “Code Transmitter”
a. Press NEXT to navigate to Menu 1 (Fig. 4.2).
b. Press SET to enter the code set procedure.
Storing Transmitter Code
a. The controller will prompt to press one of the transmitter’s
buttons.
b. Press and hold for approximately 2 seconds the transmitter
button you wish to use to operate the Door Opener (e.g. button
1) (Fig. 4.3) .
c. Press the hold for approximately 2 seconds the same transmitter
button again as prompted by the display (Fig. 4.4).
4.2 Selecting Function Of The Button
The controller will now show the transmitter’s record, with
a cursor on the field for the button being coded (Fig. 4.5).
Use OPEN/CLOSE to select the function for the button.
Available functions:
M_# (Mimic) P_# (Pulse)
PR# (Pulse/Reset) T_# (Toggle)
S_# (Set) R_# (Reset)
VAC (Vacation) --- (OFF)
NOTE: Where # is the output Number 1,2,3,4.
Press SET to save the settings or EXIT to abort without saving
(Fig. 4.6).
4.3 Returning To Main Screen
The “Code Transmitter” menu will now be shown. Press EXIT to
return to the MAIN SCREEN and test the transmitter.
Fig 4.1
I.D label/Serial number
Output 1 function
Store number
ID/SN display indicator
12 ID NAME/SN
M_1 T_4 PR_3 S_1
Output 2 function
Output 3 function
Output 4 function
MENU 1
Code Transmitter
PRESS
2 ID[ No Name ]
M_1 --- --- ---
PRESS
2 ID[ No Name ]
M_∆ --- --- ---
PRESS
Press Tx'er
Again!
PRESS
Press Tx'er
Button! LIST—›
PRESS
Fig 4.2
Fig 4.3
Fig 4.4
Fig 4.5
Fig 4.6

Installation Instructions MegaCode®Receiver 9
5.3 Removing the Battery From the Transmitter
(Battery Type: 3V Lithium Battery CR2032).
Use a non-metallic object (e.g. pen) to remove the battery. (Fig. 5.4). To
test the battery is working, press and hold a transmitter button;
(Fig. 5.5).
Light Status Battery Status
Solid OK
Flashing Requires replacement
No light Requires replacement
4. Coding Transmitter
Fig 4.1
Fig 4.2
Fig 4.3
Fig 4.4
Fig 4.5
Fig 4.6
5. Remotely Coding Transmitters
PRESS
If a TrioCode™128 transmitter is already coded into the MegaCode®
receiver, additional TrioCode™128 transmitters can be coded without
being in direct contact with the MegaCode®receiver.
NOTE: Only the function of the existing transmitter button can be
assigned to new transmitter. Please read instructions prior to proceeding
- there is a time-out facility for security reasons.
5.1 Selecting The Function To Be Coded
Using the existing transmitter, operate the MegaCode®receiver’s output
with the transmitter button which has the function to be coded (Fig. 5.1)
(e.g. Button 1 has been coded with the M_1 function assigned).
5.2 Activate Remote Code Set Mode
Using this method transmitters can be coded without access to the
opener’s control panel as long as a pre-coded transmitter is available.
a. Take any pre-coded transmitter. Press the button for the function to be
duplicated and release.
b. Using a small needle / pen, press and hold firmly for two seconds the
middle button, through the Coding Hole (Fig. 5.2).
c. Within ten (10) seconds take the additional transmitter you wish to
code. Hold the new transmitter’s button for two seconds, pause for
two seconds, hold again for two seconds and then release (Fig. 5.3).
d. Wait for ten (10) seconds and then press the new transmitter’s button
to test.
PRESS
Existing
transmitter
New
transmitter
Existing
transmitter
Fig 5.1
Fig 5.2
Fig 5.3
NOTE: When a transmitter is remotely coded, its ID label is set to that
of the existing transmitter. If the existing transmitter does not have an ID
label assigned, then the ID label of the new transmitter is set to: R/C Tx
###, where ### is the existing transmitters store number. This ensures that
the originator of any remotely coded transmitter can be identified.
REPLACE BATTERY WITH CR2032 ONLY
Fig 5.4
Fig 5.5
Use a pen
to push the
battery down
through the
side opening
to release
battery

10 MegaCode®Receiver Installation Instructions
6. Time Clock
The MegaCode®receiver provides a programmable Time Clock
which can be used to control its outputs on a timed basis at various
times of the week. This section details the Time Clock operation
and configuration.
6.1 Time Clock Operation
The Time Clock consists of a 7 day clock and storage for 32
programs . The clock is powered by its own battery and therefore
does not lose time when the MegaCode®receiver is turned off.
Each Time Clock program defines the time of the day and the days
of the week it is to run and the output function to be executed. Any
combination of the days of the week can be selected.
The output actions available are:
S_# Output# is SET on, Transmitter and wired
triggers are ignored.
R_# Output# is RESET off, Transmitter and wired
triggers are ignored.
RX# Output# is released for transmitter and wired
trigger access. The output state is not changed.
--- Not used
NOTE: The most recent program that applies to an output remains
active until a new program takes effect. The program is not just
executed at the programmed time but from the programmed
time until another program takes over. This also means that each
output’s state is correctly restored after power failure, Vacation
Mode and output disabling.
NOTE: If a Time Clock program does not have a day selected then
it can not executed. If a Time Clock program is taking control of
an output (function = S_# or R_#), then this status is displayed on
the MAIN SCREEN in the output field as #S or #R where # is the
program number.
6.2 Time Clock Settings
The Time Clock settings are accessed by selecting the Time Clock
menu (MENU 7). Press SET (Fig. 6.1) to enter the menu and then
PREV or NEXT to navigate through the options.
Menu 7.1 Set Time/date
This is where the current time, date and day are displayed and set
NOTE: The time is in a 24 hour format and the Day of the week is
not automatically set with the date. To change the settings simply
press UP or DOWN to display the cursor and then move to the
field to be changed using the NEXT / PREV buttons. Then press
UP/DOWN to change the setting and then the SET button to save
or EXIT button to cancel.
Menu 7.2 View Programs
Select this menu to display or edit the Time Clock programs. When
selected, program number 1 is displayed and the cursor is shown
on the program number field. The other fields shown include the
function, time and days of operation.
The example in Fig. 6.3 shows;
a. Output 1 will be SET on at 6pm on Mondays, Tuesdays,
Wednesdays, Thursdays and Fridays.
b. Use the UP / DOWN buttons to scroll though the other
programs.
c. To edit a program, simply press the NEXT / PREV buttons to
move the cursor onto the required field and press the UP/
DOWN button to change the value.
d. To save the program settings, press SET or to exit without
saving press EXIT.
Fig 6.1
Fig 6.3
Menu 7.3 Settings
Under this menu, four sub menus are available:
i. Run Programs. This parameter allows the User to halt both
run the timer programs. The programs of the timer can be
interrupted by selecting RUN PROGRAM off.
ii. Disable 4 Input. This input can be used as a daylight saving
time adjuster. When activated, it will add the amount of time
selected in Menu 7.3.4 (7.3.iv) to the Time Clock
iii. Disable 4 Input Contact. Disable four (4) input is configured
for N/O operation. This parameter allows its operation to be
changed to N/C.
iv. Daylight Saving Time Adjust. The amount of time to add to
the time clock at start of daylight saving period is selected
here. Options are OFF, 30, 60, 90 or 120 minutes.
P#01 S_1
18:00:00 MTWTF--
MENU 7
Time Clock
6.3 Removing the Time Clock Battery From the Receiver
(Battery Type: 3V Lithium Battery CR1220).
Use a non-metallic object (e.g. pen) to remove the battery. (Fig. 6.4).
REPLACE BATTERY WITH CR1220 ONLY
Use a pen
to push the
battery back
and then up to
release battery
Fig 6.4

Installation Instructions MegaCode®Receiver 11
Fig 6.1
Fig 6.3
Menu 7.3 Settings
Under this menu, four sub menus are available:
i. Run Programs. This parameter allows the User to halt both
run the timer programs. The programs of the timer can be
interrupted by selecting RUN PROGRAM off.
ii. Disable 4 Input. This input can be used as a daylight saving
time adjuster. When activated, it will add the amount of time
selected in Menu 7.3.4 (7.3.iv) to the Time Clock
iii. Disable 4 Input Contact. Disable four (4) input is configured
for N/O operation. This parameter allows its operation to be
changed to N/C.
iv. Daylight Saving Time Adjust. The amount of time to add to
the time clock at start of daylight saving period is selected
here. Options are OFF, 30, 60, 90 or 120 minutes.
Technical Specifications
Power supply 12 - 24V AC/DC
Number of Outputs Four (4)
Continuous Load Current per Output 100mA @ 40 VDC
Transmitter Type TrioCodeTM128 or Tri-Tran+TM type
Receiver code storage capacity 511 x 4 button Transmitter Codes
7. Specifications
Symptom Possible cause Remedy
Opener will not operate Wiring to Outputs / Inputs
incorrect.
The Disable input is activated
The opener is in “Vacation Mode”
Check wiring.
Deactivate the disable input
Turn off “Vacation Mode”(Appendix A Menu 6.8).
LCD not working Mains power not switch on. Switch on mains power..
Opener does not work from
transmitter
Transmitter code not stored in
receiver.
Code transmitter in to receciver.
(Section 4.1)
Transmitter does not contain
TrioCode™128 Technology
Check the transmitter. It should have grey buttons
and the model number should display V2. Contact
dealer for support if otherwise.
Flat battery in transmitter Replace battery (Section 5.3)
Programs not activating Time Clock Program not set.
Time Clock battery flat.
Check settings (Section 6.2) and adjust accordingly
Replace Time Clock battery (Section 6.3)
8. Troubleshooting
6.3 Removing the Time Clock Battery From the Receiver
(Battery Type: 3V Lithium Battery CR1220).
Use a non-metallic object (e.g. pen) to remove the battery. (Fig. 6.4).
Fig 6.4

12 MegaCode®Receiver Installation Instructions
Parameter Min Max Default Unit Menu Section
Menu 1 - Code Transmitter
STORING TRANSMITTERS 0.0 511 14.1
Menu 2 - Output One Setup
OUTPUT PULSE TIME: This parameter sets the duration of the output pulse
time. The output pulse time is used only for pulse functions.
0.1 99.9 1.0 Sec. 2.1 Appendix B
PULSE TIME UNITS: This parameter sets the units used for the ouput time
settings. The options are Sec, Min or Hrs.
Sec Hrs Sec Sec, Min,
Hrs
2.2 Appendix B
FLASH ON TIME: A flash on output is created by repeatedly turning the
output on and off. The Flash On time sets the duration of the on phase. For
a steady output state which does not flash, set the Flash on Time = 0.0s.
0.0 999.9 Off Sec 2.3 Appendix B
FLASH OFF TIME: A flash off output is created by repeatedly turning the
output on and off. The Flash Off time sets the duration of the off phase. The
Flash Off Time is not used for steady state outputs.
0.1 999.9 0.5 Sec 2.4 Appendix B
COMPLETE FLASH SEQUENCE: Turning this parameter on will allow the
flash cycle to complete if the output is turned off during the flash cycle.
Off On Off 2.5 Appendix B
OUTPUT ONE INVERTED: This parameter allows its operation to be
changed to N/C.
Off On Off 2.6 Appendix B
TRIGGER ONE INPUT: Output One can also be controlled via independent
Trigger One input. The trigger input can be programmed to activate its
output similar to a transmitter button.
Off On Off 2.7 Appendix B
TRIGGER ONE INPUT CONTACT: This parameter allows its operation to be
changed to N/C.
Off On Off 2.8 Appendix B
DISABLE ONE INPUT CONTACT: This input can be used to disable the
output in software regardless of the state of the transmitters, wired inputs or
time clock. The parameter allows it operation to be changed to N/C.
Off On Off 2.9 Appendix B
Menu 3 - Output Two Setup
OUTPUT PULSE TIME 0.1 99.9 1.0 Sec. 3.1 Appendix B
PULSE TIME UNITS: This parameter sets the units used for the ouput time
settings. The options are Sec, Min or Hrs.
Sec Hrs Sec Sec, Min,
Hrs
3.2 Appendix B
FLASH ON TIME: A flash on output is created by repeatedly turning the
output on and off. The Flash On time sets the duration of the on phase. For
a steady output state which does not flash, set the Flash on Time = 0.0s
0.0 999.9 Off Sec 3.3 Appendix B
FLASH OFF TIME: A flash off output is created by repeatedly turning the
output on and off. The Flash Off time sets the duration of the off phase. The
Flash Off Time is not used for steady state outputs.
0.1 999.9 0.5 Sec 3.4 Appendix B
COMPLETE FLASH SEQUENCE: Turning this parameter on will allow the
flash cycle to complete if the output is turned off during the flash cycle
Off On Off 3.5 Appendix B
OUTPUT TWO INVERTED: This parameter allows its operation to be
changed to N/C.
Off On Off 3.6 Appendix B
TRIGGER TWO INPUT: Output Two can also be controlled via independent
Trigger Two input. The trigger input can be programmed to activate its
output similar to a transmitter button.
Off On Off 3.7 Appendix B
TRIGGER TWO INPUT CONTACT: This parameter allows its operation to be
changed to N/C.
Off On Off 3.8 Appendix B
DISABLE TWO INPUT CONTACT: This input can be used to disable the
output in software regardless of the state of the transmitters, wired inputs or
time clock. The parameter allows it operation to be changed to N/C.
Off On Off 3.9 Appendix B
OPERATIONAL BUTTONS:
1. Press PREV/NEXT buttons move to Left/Right.
2. Press OPEN/CLOSE buttons to change setting.
3. Press SET button to save changes.
4. Press STOP to return to MENU without saving changes.
NOTE: The System will automatically return to the main screen after
30 secs if a menu screen is displayed and no buttons are pressed.
9. Appendix A - Receiver Menu Structure

Installation Instructions MegaCode®Receiver 13
Parameter Min Max Default Unit Menu Section
Menu 4 - Output Three Setup
OUTPUT PULSE TIME: This parameter sets the duration of the output pulse
time. The output pulse time is used only for pulse functions.
0.1 99.9 1.0 Sec. 4.1 Appendix B
PULSE TIME UNITS: This parameter sets the units used for the ouput time
settings. The options are Sec, Min or Hrs.
Sec Hrs Sec Sec, Min,
Hrs
4.2 Appendix B
FLASH ON TIME: A flash on output is created by repeatedly turning the
output on and off. The Flash On time sets the duration of the on phase. For
a steady output state which does not flash, set the Flash on Time = 0.0s.
0.0 999.9 Off Sec 4.3 Appendix B
FLASH OFF TIME: A flash off output is created by repeatedly turning the
output on and off. The Flash Off time sets the duration of the off phase. The
Flash Off Time is not used for steady state outputs.
0.1 999.9 0.5 Sec 4.4 Appendix B
COMPLETE FLASH SEQUENCE: Turning this parameter on will allow the
flash cycle to complete if the output is turned off during the flash cycle.
Off On Off 4.5 Appendix B
OUTPUT THREE INVERTED: This parameter allows its operation to be
changed to N/C.
Off On Off 4.6 Appendix B
TRIGGER THREE INPUT: Output Three can also be controlled via
independent Trigger Three input. The trigger input can be programmed to
activate its output similar to a transmitter button.
Off On Off 4.7 Appendix B
TRIGGER THREE INPUT CONTACT: This parameter allows its operation to
be changed to N/C.
Off On Off 4.8 Appendix B
DISABLE THREE INPUT CONTACT: This input can be used to disable the
output in software regardless of the state of the transmitters, wired inputs or
time clock. The parameter allows it operation to be changed to N/C.
Off On Off 4.9 Appendix B
Menu 5 - Output Four Setup
OUTPUT PULSE TIME: This parameter sets the duration of the output pulse
time. The output pulse time is used only for pulse functions.
0.1 99.9 1.0 Sec. 5.1 Appendix B
PULSE TIME UNITS: This parameter sets the units used for the ouput time
settings. The options are Sec, Min or Hrs.
Sec Hrs Sec Sec, Min,
Hrs
5.2 Appendix B
FLASH ON TIME: A flash on output is created by repeatedly turning the
output on and off. The Flash On time sets the duration of the on phase. For
a steady output state which does not flash, set the Flash on Time = 0.0s.
0.0 999.9 Off Sec 5.3 Appendix B
FLASH OFF TIME: A flash off output is created by repeatedly turning the
output on and off. The Flash Off time sets the duration of the off phase. The
Flash Off Time is not used for steady state outputs.
0.1 999.9 0.5 Sec 5.4 Appendix B
COMPLETE FLASH SEQUENCE: Turning this parameter on will allow the
flash cycle to complete if the output is turned off during the flash cycle.
Off On Off 5.5 Appendix B
OUTPUT ONE INVERTED: This parameter allows its operation to be
changed to N/C.
Off On Off 5.6 Appendix B
TRIGGER FOUR INPUT: Output Four can also be controlled via independent
Trigger Four input. The trigger input can be programmed to activate its
output similar to a transmitter button.
Off On Off 5.7 Appendix B
TRIGGER FOUR INPUT CONTACT: This parameter allows its operation to
be changed to N/C.
Off On Off 5.8 Appendix B
DISABLE FOUR INPUT CONTACT: This input can be used to disable the
output in software regardless of the state of the transmitters, wired inputs or
time clock. The parameter allows it operation to be changed to N/C.
Off On Off 5.9 Appendix B
Menu 6 - Operating Modes
DEFAULT TRANSMITTER BUTTON 1: This parameter is used to set the
default output function when coding button 1 of the transmitter.
6.1 Appendix B
DEFAULT TRANSMITTER BUTTON 2: This parameter is used to set the
default output function when coding button 1 of the transmitter.
6.2 Appendix B
Appendix A - Receiver Menu Structure

14 MegaCode®Receiver Installation Instructions
Parameter Min Max Default Unit Menu Section
DEFAULT TRANSMITTER BUTTON 3: This parameter is used to set the
default output function when coding button 1 of the transmitter.
6.3 Appendix B
DEFAULT TRANSMITTER BUTTON 4: This parameter is used to set the
default output function when coding button 1 of the transmitter.
6.4 Appendix B
REMOTE CODE: This Parameter can be used to diable the Remote
Coding feature for security or transmitter management reasons.
6.5 Appendix B
ACTIVITY REPORTS: This parameter sets the ID of the controller that is
sent with the activity report.
6.6 Appendix B
ACTIVITY REPORTS ID: This parameter sets the ID of the controller that
is sent with the activity report. Contact Automatic Technology for more
details.
6.7 Appendix B
VACATION MODE: Vacation mode can be turned on or off using this
parameter.
Off On Off 6.8 Appendix B
PASSWORD PROTECTION: The password feature enables all parameters
and configuration settings to be protected unless a password is entered.
When this feature is turned on, the user is requested to enter a password
to be used. The password protection feature has a timeout that expires
after 60 seconds of inactivity. Alternatively the User may log out manually
by pressing EXIT when the main screen is displayed.
6.9 Appendix B
TRANSMITTER # GROUPING: The transmitter store number dispaly
format can be changed to show a grouped format. When grouping is
selected, instead of displaying the store location as a number between 1
and 511, it is displayed as ##$ where ## is the group number and $ is a
character a,b,c,d,e,f,g or h which indicates the group member.
6.10 Appendix B
Menu 7 - Time Clock
SET TIME / DATE 7.1 6.2
VIEW / EDIT PROGRAMS 7.2 6.2
SETTINGS 7.3 6.2
Menu 8 - Diagnostics
TEST INPUTS - Controls input display status 8.1 Appendix C
TEST TRANSMITTERS (TX’ERS) 8.2 Appendix C
DISPLAY HISTORY 8.3 Appendix C
MEMORY USAGE 8.4 Appendix C
CONSOLE TEST 8.5 Appendix C
Menu 9 - Memory Tools
CLR CONTROL 9.1 Appendix D
CLR TRANSMITTERS (TX’ERS) 9.2 Appendix D
Appendix
A - Recevier Menu Structure

Installation Instructions MegaCode®Receiver 15
This section illustrates how to locate, view and adjust parameters.
Locating parameters
Refer to Appendix A for Consile Menu Structure. Locate the required
parameter and note the MENU number. The example used in
(Fig. B.1) displays “Output Pulse Time”
Changing Setting
a. Press NEXT/PREV to navigate to the required menu.
b. Press SET to show the sub-menu.
c. Press NEXT/PREV to go to the required sub-menu.
d. Press UP/DOWN to change parameter setting. Holding the
button down causes the parameter’s value to change rapidly.
The longer the button is held the faster the value changes.
e. Press SET to SAVE setting.
Reload Default Setting
a. Press NEXT/PREV buttons to display LOAD DEFAULT screen.
b. Press SET to load the default value.
Return To Menu
If the parameter’s value is not to be changed, press EXIT to return
to the submenu. Press EXIT again to return to the MAIN SCREEN.
Fig B.1
Fig B.2
B - Viewing and Editing Parameters
Appendix
1: Output Pulse
Time 1.0
1: Output Pulse
Time 1.0
Parameter name
Parameter
value
Displays next
parameter in list
Parameter number in list
Enter Edit
Mode
Displays previous
parameter in list
Returns back to menu Enter Edit Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays “Load
Default?” screen,
giving option of
loading default value Exits back to View Mode
with no changes made
Decrease
value
Displays “Load
Default?” screen,
giving option of
loading default
value
Cursor shown
Saves new
value and exits
back to View
Mode

16 MegaCode®Receiver Installation Instructions
The receiver provides several diagnostic tools from within the
Diagnostics Menu (Menu 8). This section details the function of
each tool and its use.
Navigating To Diagnostics Menu
a. Press PREV to navigate to Menu 8 (Fig. C.1).
b. Press SET to display the menu of available functions.
c. Press PREV or NEXT to cycle through diagnostic tools.
d. Press SET to select.
Menu 8.1 Test Inputs
This tool is used to view the state of the control inputs. When
selected, a screen is displayed (Fig. C.2)which indicates the state
of each input. If the name of the input is in upper case or number
in the bracket, then the input is active. Conversely if the input is in
lower case and [---] dash in the bracket, then the input is inactive.
For normal operation, all inputs should be inactive. When finished,
press EXIT.
Menu 8.2 Test Transmitters (Tx’ers)
This tool is used to test receiver/transmitter functionality. When
selected, a screen is displayed which prompts for a transmitter
button to be pressed (Fig. C.3) and whether ID or serial numbers
are to be displayed.
The opener will then beep each time a transmission is received. If
the transmitter button is stored in the controller memory and has
a function assigned to it, a second screen will be displayed that
shows the transmitter details along with the button pressed
(Fig. C.4). The example shows the case where transmitter number
14 is activated by button 4. Note ID is selected for display.
Menu 8.3 Display History
The opener keeps a record of the last 64 events that have taken
place. The events include the type of drive cycles executed,
obstruction detection, various faults, power failures etc. When this
tool is selected, the screen displays the last event that occurred
(Fig. C.5). Press NEXT or PREV to view each event. The “EVENT#”
field shows the sequence of the events, with (1) being the first and
(64) being the last. The example shows that the last event was a
close cycle which succeeded in closing the door. When finished
viewing the events, press EXIT.
Menu 8.4 Memory Usage
This tool displays the number of transmitter store locations used
and the number free (Fig. C.6).
Menu 8.5 Console Test
The tool allows to test the console buttons and the beeper.
Fig C.1
Fig C.2
Fig C.3
Fig C.4
Fig C.5
Fig C.6
C - Diagnostic Tools
Appendix
MENU 8
Diagnostics
PRESS
DISABLE: ....
TRIGGER: ...4
PRESS TX’ER!
<—/—> Shows ID/SN
3 IDAB SMITH
›ON OFF OFF OFF
PRESS
Used = 15
Free = 496
3 F= M_1
Event# 64

Installation Instructions MegaCode®Receiver 17
Fig C.1
Fig C.2
Fig C.3
Fig C.4
Fig C.5
Fig C.6
C - Diagnostic Tools
Menu 9.0 Memory Tools
The Memory Tools accessed from within Menu 9 (Fig E.8) are
used to clear the transmitters codes from the openers memory
and clear the controller’s memory. Once selected, the PREV or
NEXT buttons can be used to view the Memory Tool options. To
execute the displayed option, simply press SET.
Menu 9.1 Clear Control
This option will clear theMegaCode®receivers memory and reload
the factory set defaults for parameters.
Menu 9.2 Clear Transmitters (Tx’ers)
This option will clear the transmitter storage memory.
D - Memory Tools
Appendix
MENU 9
Memory Tools
Fig E.8

18 MegaCode®Receiver Installation Instructions
Navigating To “Edit Transmitter” Menu
a. Press NEXT to navigate to Menu 1 (Fig. E.1) .
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
a. Press NEXT or PREV to move the cursor to the left or right and between
the top and bottom lines to select the desired field.
b. Use UP and DOWN to change the displayed value. When the correct
setting has been made repeat step a to select the next field to edit. The
example (Fig. E.2) shows editing the function of transmitter number 510
assigned to the Output 1.
Available functions:
M_# (Mimic)
P_# (Pulse)
PR# (Pulse/Reset)
T_# (Toggle)
S_# (Set)
R_# (Reset)
VAC (Vacation)
−−− (OFF)
Where # is the output number M_1,M_2, M_3,M_4
Press SET to save the settings or EXIT to abort without saving.
Editing The Store Location
This feature is only available when coding the first button of a new transmitter.
c. Press NEXT or PREV to move the cursor over Store No. (Fig. E.3)
d. Press UP or DOWN to select new Store No.
e. Press SET to Confirm or NEXT/PREV to move to the next field.
This is useful when managing transmitters using a scheme which ties the
store location to the transmitter’s owner.
Selection Of ID or Serial Number Display
a. Press NEXT to navigate to the Menu 1 ”Code Transmitter”.
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
d. Press NEXT/PREV to move the cursor over the ID field.
e. Press NEXT to reveal the Serial Number (Fig. E.4).
The serial number display is provided for additional means of identification.
The transmitter in this example has serial number 12345.
Editing A Character Field
a. Press NEXT or PREV to move select character.
b. Press UP or DOWN to scroll through and select a new character.
c. Press NEXT or PREV to move to the next character.
d. Repeat step b.
e. Press SET to record changes.
The second line of the display shows a list of available characters with the
current value indicated at the cursor position (Fig. E.5).
Fig E.1
Fig E.2
Fig E.3
Fig E.4
Fig E.5
E - Transmitter Editing
Appendix
510 ID[ No Name]
M_∆ T_4 R_1 S_2
510 IDA
456789 ∆BCDEFGHI
PRESS
∆ ID[ No Name ]
M_1 --- --- ---
PRESS
MENU 1
Code Transmitter
PRESS
510 ID12345
M_∆ T_4 R_1 S_2

Installation Instructions MegaCode®Receiver 19
Navigating To “Edit Transmitter” Menu
a. Press NEXT to navigate to Menu 1 (Fig. E.1) .
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
a. Press NEXT or PREV to move the cursor to the left or right and between
the top and bottom lines to select the desired field.
b. Use UP and DOWN to change the displayed value. When the correct
setting has been made repeat step a to select the next field to edit. The
example (Fig. E.2) shows editing the function of transmitter number 510
assigned to the Output 1.
Available functions:
M_# (Mimic)
P_# (Pulse)
PR# (Pulse/Reset)
T_# (Toggle)
S_# (Set)
R_# (Reset)
VAC (Vacation)
−−− (OFF)
Where # is the output number M_1,M_2, M_3,M_4
Press SET to save the settings or EXIT to abort without saving.
Editing The Store Location
This feature is only available when coding the first button of a new transmitter.
c. Press NEXT or PREV to move the cursor over Store No. (Fig. E.3)
d. Press UP or DOWN to select new Store No.
e. Press SET to Confirm or NEXT/PREV to move to the next field.
This is useful when managing transmitters using a scheme which ties the
store location to the transmitter’s owner.
Selection Of ID or Serial Number Display
a. Press NEXT to navigate to the Menu 1 ”Code Transmitter”.
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
d. Press NEXT/PREV to move the cursor over the ID field.
e. Press NEXT to reveal the Serial Number (Fig. E.4).
The serial number display is provided for additional means of identification.
The transmitter in this example has serial number 12345.
Editing A Character Field
a. Press NEXT or PREV to move select character.
b. Press UP or DOWN to scroll through and select a new character.
c. Press NEXT or PREV to move to the next character.
d. Repeat step b.
e. Press SET to record changes.
The second line of the display shows a list of available characters with the
current value indicated at the cursor position (Fig. E.5).
E - Transmitter Editing
Transmitter Listing Facility
The MegaCode®provides a transmitter listing facility which enables
the User to find a transmitter location within memory. Once located
a stored transmitter can be replaced, deleted, edited, copied or, if
the location is empty, a new transmitter can be coded.
Method 1 - Go To The Start Of The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1 (Fig. F.1).
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter the transmitter list and edit mode.
Method 2 - Use The Transmitter To Go Direct To The List
Accessing The List Menu
a. Press NEXT to navigate to Menu 1 (Fig. F.1).
b. Press SET to enter the transmitter edit procedure.
c. Press the transmitter once (Fig. F.2).
d. Press NEXT to view the transmitter parameters (Fig. F.3).
This method is used for quick navigation if the transmitter is
available.
NOTE: “VIEW” will not be shown if the transmitter is not stored.
Once the list is displayed, it can be sorted by stored number, ID
Label or Serial Number. Use the NEXT or PREV buttons to select
the sorting method.
NOTE: When sorting by ID label or S/N, only stored transmitters
locations are displayed.
Navigating The List
a. Press the UP or DOWN buttons to navigate through the list
(Fig. F.4).
NOTE: Holding a button down will step through the list faster.
b. Press SET to display the menu of available functions.
Selecting An Operation
a. Press NEXT or PREV to cycle through the four menu options
(Fig F.5)
b. Press EXIT to return to the list. Press SET to execute the menu’s
operation.
Fig F.1
Fig F.2
Fig F.3
Fig F.4
Menu Option Operation
Code Operation (location empty) If the code operation is selected on an empty transmitter location, the BASIC CODE
TRANSMITTER PROCEDURE will be initiated with the transmitter being saved in the
selected location. This is useful when managing transmitters using a scheme which ties
the store location to the transmitter’s owner.
Code Operation (location used) If the code operation is selected for a location that already contains a transmitter,
then the BASIC CODE TRANSMITTER PROCEDURE will be initiated and the new
transmitter will replace the existing one. Note that the button functions and name of
the existing transmitter will be transferred to the new transmitter. This procedure is of
great convenience when replacing a lost transmitter.
Delete Operation The delete operation is used to remove a transmitter from memory along with the
name and button function settings.
Edit Operation The edit operation displays the transmitter record for editing purposes. See
TRANSMITTER EDIT PROCEDURE (Appendix E) for details.
Copy Operation The copy operation is used to code multiple transmitters with the same button function as
that of the selected transmitter. Once selected an abbreviated code set routine is initiated for
each transmitter to be coded. Coding is terminated by pressing the EXIT button.
Exiting The List To exit the transmitter list, simply press EXIT to return to the Code menu.
Fig F.5
F - Transmitter Managment
Appendix
MENU 1
Code Transmitter
PRESS
Press Tx'er
Again! VIEW—»
PRESS
Press Tx'er
Button! LIST—›
PRESS
31∆ ID T SMITH
P_1 --- R_1 T_2
PRESS
PRESS

20 MegaCode®Receiver Installation Instructions
10. Warranty and Exclusion of Liability
Automatic Technololgy (Australia) Pty Ltd ABN 11 007 125 368
6-8 Fiveways Boulevard
Keysborough, Victoria, 3173, Australia
P 1300 133 944 E [e-mail] www.automatictechnology.com.au
This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 368) (ATA),
6-8 Fiveways Boulevard, Keysborough 3173, 1300 769 850, [email protected].
PLEASE NOTE:
• This Warranty is in addition to any statutory, non-excludable guarantees or warranty rights and remedies under the law. See section 5 below.
• This warranty applies to the original purchaser only and may not be transferred.
• This Warranty is to be read in conjunction with the owner’s copy of the installation instruction manual.
• In this warranty, ‘ATA Representative’ means an entity authorized by ATA to service ATA products. Please check the ATA website for details.
NOTE: CONSUMABLES (eg Batteries in remote control transmitters and light bulbs
and fuses) are not covered by this warranty
1. MAKING A CLAIM
(a) The product parts in the above table should operate in accordance with
the product manual for the time period shown, provided you comply
with the manufacturer’s instructions concerning installation, operation,
maintenance and testing. Failure to do so may void all or part of this
warranty.
(b) If, during the relevant warranty period, a product part in the table above
appears to contain a defect, call the retailer from whom you purchased
the product, or ATA on 03 9791 0240, and they will instruct you what to
do next.
(c) You are responsible for the cost of making a claim under this Warranty.
Additional access expenses where the Product is not readily accessible
must be borne by you.
(d) If ATA or ATA’s Representative confirms the product is defective and
covered by this Warranty, ATA will repair or replace it (at ATA’s sole
option) at no cost to you. Goods presented for repair may be replaced or
repaired by refurbished goods or parts of the same type.
2. WARRANTY CONDITIONS
It is a condition of this warranty that:
(a) you provide a copy of the receipt of original purchase of the product, and
the serial number of the Product which can be found on the label adhered
to the Product.
(b) the Product has been serviced by ATA or an ATA Representative, within
12 months of installation (to allow for the door to settle) and at regular
intervals not exceeding 2 years.
It is a condition of the below warranties that the
manual operating (opening and closing) force of the
door by hand does not exceed 20kg.
MODEL WARRANTY DOOR (MAX)
SECTIONAL
GDO-9V2 7 yrs / 20,000 cycles 200kg
GDO-9V3 7 yrs / 20,000 cycles 175kg
GDO-11V3 5 yrs / 10,000 cycles 110kg
ROLLING
GDO-6V3 5 yrs / 10,000 cycles 110kg
GDO-6V4 7 yrs / 20,000 cycles 110kg
GDO-8V3 2 yrs / 5,000 cycles 100kg
GDO-10V3 2 yrs / 5,000 cycles 270kg
EXTRAS
TRACK ASSEMBLY
(includes all parts)
1 year
TRANSMITTERS &
ACCESSORIES
1 year
3. WARRANTY EXCLUSIONS
This warranty excludes defecrts or improper operation resulting
from:
(a) excessive wear and tear that may cause the product to fail;
(b) accidental, deliberate or negligent damage or damage cause by nsects,
dirt, plants or other objects;
(c) blown fuses, electrical surges, power surges or power spikes or faulty or
unsuitable electrical wiring of structures to which the product is affixed;
(d) theft, fire, flood, rain, water, lightning, storms or any other acts of God;
(e) salt or other corrosion due to environmental conditions,
(f) any installation, configuration or use of the product contrary to the
instructions supplied with the product;
(g) maximum continuous operating time exceeding 1 minute in10 minutes;
(h) the manual operating (opening and closing) force of the door by hand
exceeding 20kg;
(i) weight exceeding amounts listed in table above;
(j) the door used with the product not being in safe working order and
condition;
(k) any modification to the product or acts of any person in respect of the
product which are not authorized by ATA;
(l) installation of a residential garage door opener in a commercial or
industrial premises or in a dwelling other than a single-family dwelling; or
(m)radio or electrical interference or lack of availability of signal.
4. OTHER CONDITIONS
(a) This Warranty is not transferable.
(b) The warranty period stated in the table will not be extended for Products
or parts repaired or replaced during the relevant warranty period.
(c) Where the Product is sold by any person other than ATA, except for the
warranty set out above, such person has no authority from ATA to give
any warranty or guarantee on ATA’s behalf in addition to the warranty set
out above.
5. STATUTORY GUARANTEES OR WARRANTIES IN AUSTRALIA
If you are a consumer under the Australian Consumer Law, our goods come with
guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
This warranty certificate and other statements contained in this document or other
ATA documents given to you do not exclude, restrict or modify the application of all
or any of the provisions of the Australian Consumer Law.
Subject to your non-excludable rights under the Australian Consumer Law, ATA
expressly excludes any liability for consequential loss, incidental or indirect damages
(including but not limited to damages for loss of business profits, business interruption
and loss of business information) due to a defect of the Product. In particular, any loss
or damage caused to other equipment or accessories used with the product or any
loss resulting from a delay in repair is excluded to the extent permitted by law.
REGISTER ONLINE TODAY!
Register your Product to take advantage of convenient service and support at www.ata-aust.com.au/register
