Energy-Saving Surge Protector
User’s Guide 61-189
Please read this user’s guide before using your new surge
protector.

2
2
Package contents
Surge Protector User’s Guide Quick Start
Features
Many home theater and home office components
continue to use (waste) electricity even when “off”
or in “standby” mode. Plug these devices into the
SWITCHED outlets and they will automatically turn off
when the main component is turned off.
Guards your valuable equipment from sudden
electrical spikes and surges.
Filters electromagnetic and radio-frequency
interference.
Indicators alerts you when the AC line is no longer
protected after a power surge or spike.
1Plug into wall outlet
1. Switch RESET/OFF to OFF.
2. Plug the Surge Protector into a
three-prong standard wall outlet.
w Caution: Do not plug this surge
protector into a non-grounded outlet.
Doing so invalidates your Equipment
Guarantee and puts your equipment at risk.
2Connect equipment
Slide the Safety Covers aside and make the
following connections:
RESET/OFF
Safety Cover

3
3
MAIN Outlet: Plug in your main component (usually a
TV or computer).
SWITCHED Outlets: Plug in components that are only
used when the main component is turned on. To save
power, these will turn off automatically when the main
component is turned off or goes into sleep/standby mode.
ALWAYS ON Outlets: Plug in components that are
used even when the main component is turned off.
Typical Power Connections:
Home Theater Home Office
MAIN TV or Receiver Computer
SWITCHED
VCR, DVD player,
gaming system,
powered speakers
Printer, scanner,
monitor, amplified
speakers
ALWAYS
ON
DVR, satellite or
cable receiver,
Router, modem,
VOIP phone, shared
wireless printer
3Turn on
Switch RESET/OFF to RESET to turn on the surge protector.
GROUNDED WHEN LIT: Lights when connection to
the wall outlet is properly grounded.
PROTECTED WHEN LIT: Lights when the connected
devices are protected.
MAIN SWITCHED: Lights when the device plugged
into the MAIN outlet is turned on.
wCaution: If PROTECTED WHEN LIT or GROUNDED
WHEN LIT do not light, stop using the surge protector.

4
4
Typical Power Connections
PROTECTED WHEN LIT
GROUNDED WHEN LIT
MAIN SWITCHED
SWITCHED
Home Theater Home Office
VCR or DVD player Scanner
Gaming system
Printer
Powered speaker Monitor

5
5
MAIN
DVR Router or modem
Satellite or
cable receiver
VOIP phone
Home Theater Home Office
TV or receiver Computer
ALWAYS ON
Home Theater Home Office

6
6

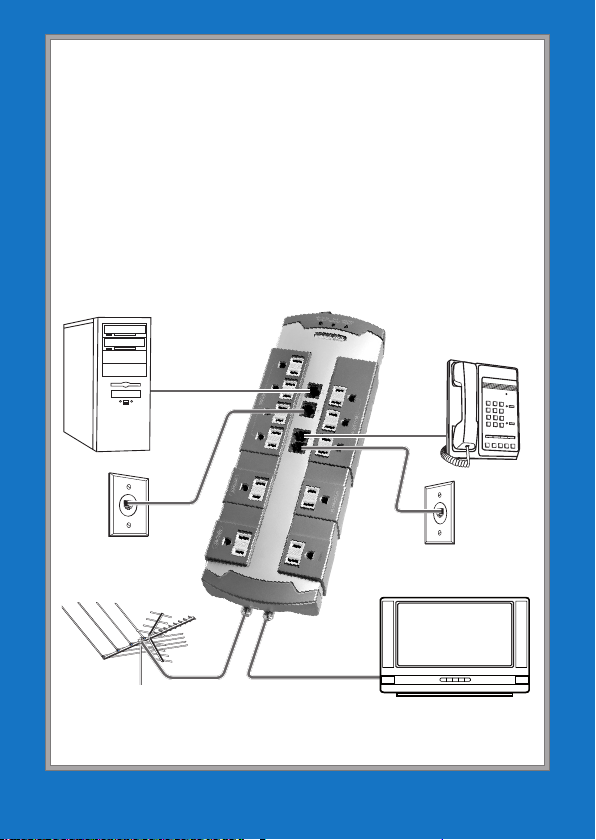

Communication connections
Networking IN/OUT: Using an Ethernet cable (not
supplied), connect your Ethernet jack to Networking IN
and connect Networking OUT to your computer.
Phone IN/OUT: Using modular telephone cords (not
supplied), connect your telephone wall jack to Phone
IN and connect Phone OUT to your fax, modem, or
telephone.
Coax IN/OUT: Using coaxial cables (not supplied),
connect your TV input (antenna, satellite, or cable) to
Coax IN and connect Coax OUT to your TV.
Coax IN Coax OUT
Networking IN
Networking
OUT
Phone IN
Phone OUT
23
1
456
7
*#
8
0
9
nNote: The Antenna/Cable connection on this unit
allows voltage to pass through.

7
7
Troubleshooting
If the RESET/ON switch turns off.
The 15A circuit breaker has tripped. Examine your
connected equipment and remove the device that is
overloading the circuit. Then switch RESET/OFF back
to RESET.
If the GROUNDED WHEN LIT indicator does not light
when you plug in the surge protector.
Move your surge protector to a different grounded,
three-prong AC outlet. If it still does not light, return
the product to the dealer for assistance. If the surge
protector proves to be working properly, your outlets
may not be properly grounded and need to be repaired
by a professional electrician.
If the GROUNDED WHEN LIT indicator turns off after a
period of use.
A portion of surge protection has been depleted.
Replace your surge protector.
If the PROTECTED WHEN LIT indicator does not light or
the alarm sounds.
The surge protector’s AC line is no longer protected
from surge; replace the surge protector. The surge
protector may have received a power surge or spike
beyond its specified limits that might overload the
protection circuitry and make it inactive. The surge
protector should have absorbed enough of the surge
to protect your connected equipment, but it will not
protect against future surges and spikes.
If the SWITCHED outlets don’t turn on or off when your
notebook computer or docking station is connected to the
MAIN outlet.

8
8
Some notebook computers and docking stations draw
too much power during battery charging to allow the
SWITCHED outlets to turn off.
Some notebook computers and docking stations do not
draw enough power to turn on the SWITCHED outlets.
Specifications
Line Voltage ...................................................................................120V
Line Current.....................................................................................15A
Frequency.................................................................................50/60Hz
Cord Length/Plug Type.................................8ft (2.4m), right angle plug
Circuit Breaker .................................................................................15A
Noise Frequency Range..........................................150 kHz – 100 MHz
Noise Attenuation Level.......................................................Up to 30dB
Maximum Surge Voltage .......................................................... .6,000V
Total Maximum Surge Current............................................... 135,000A
Total Maximum Energy Dissipation ............................................ 3,150J
Modes of Protection....... 3 (Hot-Neutral, Hot-Ground, Neutral-Ground)
Clamping Time .............................................................. <1 nanosecond
Clamping Voltage ...........................................................................400V
Additional Protection...........Coax (1 in, 1 out); Fax/Modem (1 in, 1 out)
Operating Temperature ..................................... 32 to 104°F (0 to 40°C)
UL Approvals ........................................................... UL1449 & UL1363
Voltage to pass through............................................................ Allowed
Specifications are subject to change and improvement without notice.
Actual product may vary from the images found in this document.
Important Safety Information
This product is intended for indoor use only.
This surge protector is not a lightning arrestor and might not
protect against lightning-induced voltage surges.
The total wattage of all connected devices must not exceed 1,875 watts.

9
9
Use the surge protector only with a three-prong standard AC plug.
The surge protector cannot provide protection without a grounded
AC source.
Telephone Wire Instructions
» Never install phone wiring during a lightning storm.
» Never install a telephone jack in wet locations unless the jack is
specifically designed for use in wet locations.
» Never touch un-insulated telephone wires or terminals unless
the telephone line has been disconnected at the network
interface.
Retain Instructions — Retain the safety and operating instructions
for future reference.
Damage — Turn off the breaker, then unplug the surge protector
from the wall outlet and replace it:
» If the plug is damaged.
» If liquid has been spilled or objects have fallen into the surge
protector, or the surge protector has been exposed to rain or
water.
» If the surge protector has been dropped or damaged in any way.
» If the PROTECTED WHEN LIT indicator fails to light.
wCaution: Do NOT install this device if there is not at least 10
meters (30 feet) or more of wire between the electrical outlet and
electrical service panel.
FCC Information
a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the
ACTA. On the bottom of this equipment is a label that contains, among other information, a
product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided
to the telephone company.
b) The registration jack USOC for the equipment is RJ11.
c) This equipment is designed to be connected to the telephone network or premises wiring using
a compatible modular jack which is Part 68 compliant. See installation instructions for details.
d) The REN is useful to determine the quantity of devices that may be connected to the telephone
line. Excessive RENs on the telephone line may result in the devices not ringing in response to a n
incoming call. In most, but not all areas, the sum of RENs of all devices should not exceed five (5).
To be certain of the number of devices that may be connected to a line, as determined by the total
RENs, contact the local telephone company.
e) If this Surge Protector causes harm to the telephone network, the telephone company will notify
you in advance that temporary discontinuance of service may be required. But if advance notice
isn’t practical, the telephone company will notify the customer will be notified as soon as possible.
You will be advised of your right to file a complaint with the FCC if you believe it is necessary.
f) Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect the operation of your equipment. If they do, you will be given advance
notice so as to give you an opportunity to maintain uninterrupted service.

10
10
g) If you experience trouble with this Surge Protector, please contact your service provider for
repair/warranty information. If your equipment is causing harm to the telephone network, the
telephone company may request that you disconnect the equipment until the problem is resolved.
h) No repair can be done to this equipment.
i) Connection to party line service is subject to state tariffs. Contact the state public utility
commission, public service commission or corporation commission for information.
j) If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this Surge Protector does not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
Limited Warranty and
Connected Equipment Guarantee
Ignition L.P. warrants this surge protector product (“Product”) against defects in materials and
workmanship under normal use by the original purchaser for five (5) years after the date of purchase
(the “Warranty Period”). IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse,
failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God
(such as floods) except as expressly stated herein; (b) improper or incorrectly performed repairs by
persons who are not an Ignition L.P. Authorized Service Facility; (c) consumables (such as fuses);
(d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f)
costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by
persons other than the original purchaser.
Connected Equipment Benefit: If the Product is properly installed and connected (as defined
below) to any electronic equipment (the “Connected Equipment”) and if the Connected
Equipment is damaged during the Warranty Period by a transient voltage surge/spike from the
AC power line, telephone line or coaxial line that enters the Connected Equipment through
the Product, then Ignition L.P. will reimburse the original purchaser of the Product the lesser
of: (a) the repair charges for the Connected Equipment; (b) the purchase price of replacement
equipment that is reasonably comparable (as determined by Ignition L.P. in its sole discretion)
to the Connected Equipment; or (c) the original purchase price of the Connected Equipment;
provided, however, that in no event will the Connected Equipment Benefit exceed a maximum of
two hundred and fifty thousand U.S. dollars ($250,000) (the “Equipment Limit”). The Connected
Equipment Benefit does not cover data loss and is subject to all of the limitations described in
the all capitalized paragraph below. In order to qualify for the Connected Equipment Benefit, the
Product must be returned to Ignition L.P. and inspection of the Product must show its stated
protection capacity was exhausted by a power surge.
“Properly installed and connected” means: (a) the Product must be plugged directly into a
properly wired and grounded AC outlet; (b) that no extension cords, adapters, other ground wires
or electrical connections may be used to connect the Product to AC power; (c) that no more than
one piece of Connected Equipment may be connected to any one outlet of the Product; (d) that
the wiring in the building must comply with all applicable codes (NEC, CSA, etc.); and (e) that all
wires (power, telephone and coaxial) leading into the Connected Equipment must pass through
the Product. To claim damage to Connected Equipment as a result of telephone line transients,
the Product must provide telephone line protection, and your telephone service equipment must
include a properly installed and operating “primary protection” device at the service entrance.
Primary protection devices are normally available from the telephone company and added during
telephone line installation. To claim damage to Connected Equipment as a result of coaxial line
transients, the Product must provide coaxial line protection.
To make a claim for surge-induced damage to Connected Equipment, you must:
1) Call Ignition L.P. at 1-866-829-2185 for a return authorization number during the Warranty
Period. Under no circumstances will a claim for surge-induced damage to Connected
Equipment be accepted without a return authorization number;

11
11
2) Have any surge-induced, damaged Connected Equipment repaired (or get an estimate for
repair) by a service center authorized by the manufacturer of the Connected Equipment unless
the service center determines that the Connected Equipment is not repairable or that the cost
of repair will be more than the purchase price of comparable replacement equipment. If the
Connected Equipment is not to be repaired, get a written quotation for the purchase price of
comparable replacement equipment. In no event will Ignition L.P. reimburse more than the
Equipment Limit. The repair bill or estimate from the authorized service center must indicate
that the damage to the Connected Equipment was surge-induced; and
3) Ship the original surge protector, postage prepaid to: Ignition L.P., 4241 12th AVENUE EAST
SUITE 400, SHAKOPEE, MN 55379. Include: (a) your name, address and daytime telephone
number; (b) the original or a photocopy of the sales receipt for the surge protector; (c) a brief
description of any problem with the surge protector; (d) a brief description of how the damage
to the Connected Equipment occurred; (e) the original authorized service center repair bill or
estimate documenting that the damage to the Connected Equipment was surge-induced; and
(f) if replacement equipment is to be purchased, the original or a photocopy of the quotation for
comparable replacement equipment and the authorized service center repair estimate must
contain a statement that the Connected Equipment is not repairable or that the cost of repair
will be more than the purchase price of comparable replacement equipment.
If Ignition L.P. determines that damage to Connected Equipment is covered, Ignition L.P. will
reimburse, up to the Equipment Limit amount defined above, to the original purchaser of the
surge protector Product the lower of the: (a) repair charges; (b) purchase price of comparable
replacement equipment; or (c) the original purchase price of the Connected Equipment.
How to Make a Warranty Claim: In the event of a covered Product defect during the Warranty
Period, Ignition L.P. will, at its option, unless otherwise provided by law: (a) correct the defect by
surge protector repair without charge for parts and labor; (b) replace the surge protector with the
same or a comparable product; or (c) refund the purchase price of the surge protector. To make
a warranty claim for a defect in the surge protector Product without a claim for surge-induced
damage to Connected Equipment, you must, during the Warranty Period, take the Product and the
sales receipt as proof of purchase date to the place of purchase.
All replaced parts, products, and Connected Equipment and products and Connected Equipment
on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and
products may be used in the performance of warranty service. Repaired or replaced parts in surge
protectors and replacement surge protectors are warranted for the remainder of the Warranty
Period.You will be charged for repair or replacement of the Product made after the expiration of
the Warranty Period.
IGNITION L.P. EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN
THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIESTHAT MAY BE IMPOSED BY LAW,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE,THE
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ONTHE
EXPIRATION OFTHE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY
TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT
TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR
PERFORMANCE OFTHE PRODUCT OR ARISING OUT OF ANY BREACH OFTHIS WARRANTY,
INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND
ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF IGNITION L.P. HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Some States do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which
vary from State to State.You may contact Ignition L.P. at: Ignition L.P., 3102 Maple Ave. Suite 450,
Dallas, TX 75201 06/09
For product support, call 1-866-315-0426

12
12
© 2010. Ignition L.P. All rights reserved.
Gigaware is a trademark used by Ignition L.P.
Package and user documentation are recyclable.
User documentation contains recycled material.
Printed
in China
03A10
61-189
Get more from your audio and video equipment. See what
you’ve been missing. With Auvio, you control the experience.
Auvio was established by a group of technophiles to provide
high quality audio and video products without the high sticker
price.The Auvio philosophy is for you to experience audio
and video as it was intended to be: pure and distortion free.
We know electronics can be intimidating. Auvio simplifies
your experience by providing the right products, with the
right specs, to work with your equipment.
Be confident about your purchase: your new Auvio product
incorporates the latest technology, is built to the highest
quality standards, and reduces environmental impact by
complying with RoHS environmental restrictions.
Protect the environment by recycling used electronics. Go to
E-CyclingCentral.com to find an electronic recycling center near you.
