Avallon AWC151DBLSS User manual

USER’S GUIDE
Installation, Operation, and Maintenance for your product.
Built-In Wine Refrigerator
Model –AWC151DBLSS
www.avallon.com
V2.0-09102019

ii
Important Safety Information
Improper handling can cause serious damage to the Avallon wine refrigerator and/or injury to the user. This
wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial
use. Any other use may invalidate the warranty. Please review the rating label located on the rear panel of
the unit for electrical and other technical data related to this unit. The unit must be used in a properly
grounded wall outlet. Please read and follow the safety information listed below to reduce the risk of fire,
electric shock, or injury.
ELECTRICAL SAFETY
•Do not exceed the power outlet ratings.
•It is recommended the wine refrigerator be connected on its own circuit.
•The unit must be installed in accordance with state and local electrical codes.
•A standard electrical supply (115 V, 60Hz), that is properly grounded in accordance with the National Electrical
Code and local codes and ordinances is required.
•Use outlets that cannot be turned off by a switch or pull chain.
•Always turn the unit off and unplug it from the outlet when cleaning.
•Unplug the unit if it is not going to be used for an extended period of time.
•Do not operate the unit with a power plug missing the ground plug, a damaged cord, or a loose socket.
•Be sure the wine refrigerator is properly grounded.
•Avoid installation in high humidity environments such as bathrooms and non-acclimatized basements. Excess
moisture may create condensation on the door and impact the performance of the refrigerator.
•Never plug or unplug the unit with wet hands.
•Do not bypass, cut, or remove the grounding plug.
•Do not use extension cords or power strips with this unit. You may need to contact your electrician if it is
necessary to use a longer cord or if you do not have a grounded outlet. Do not modify the power cord’s length
or share the outlet with other appliances.
•Do not start or stop the unit by switching the circuit’s power on and off.
•If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
•Never repair the unit while it is plugged in.
•Immediately unplug the unit if it makes strange sounds, emits smells, or smoke comes out of it, and contact
customer service.
•Do not remove any part of the casing unless instructed to do so by an authorized technician.
•You should never attempt to repair the unit yourself. Contact customer service for service options if the unit
needs service.

iii
Note: Flammable Refrigerant Used! When handling, moving, and using the refrigerator, make sure to
avoid either damaging the refrigerant tubing, or increasing the risk of a leak.
Disposal: This appliance may not be treated as regular household waste, it should be taken to the
appropriate waste collection.
point for recycling of electrical components. For information on local waste collection points, contact your
local waste
removal agency or government office.
GENERAL SAFETY
•To prevent injuries, use at least two people to move and install the beverage refrigerator.
•Install the beverage refrigerator in a well-ventilated area where the ambient temperature is above 50° F and
below 90° F.
•The temperature range for this refrigerator is optimized for beverage storage. Perishable food items may
require a different storage environment.
•Do not place hot or warm items into the refrigerator before they cool down to room temperature.
•This unit is designed to be installed indoors, and protected from rain, sleet, snow, and / or moisture.
•This unit is not intended to be used by children.
•Children should be supervised to ensure that they do not play with this product.
•Never allow children to crawl inside the refrigerator. If you are disposing of the unit, remove the door.
•Do not use this appliance near flammable gas or combustibles such as gasoline, benzene, or thinner.
•Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
•Do not place the unit near heat sources such as ovens, grills, or direct sunlight.
•Only use in an upright position on a flat, level surface and provide proper ventilation.
•Do not pinch or kink the power supply line between the unit and cabinet.
•Do not leave any cleaning solutions in the unit.
•Do not use solvent-based cleaning agents or abrasive solutions to clean the unit as they may damage the
interior and exterior.
•Do not place any other appliances on top of the unit.
•Do not turn the unit upside down, on its side, or at an angle off level.
•If your model of beverage refrigerator is equipped with a lock, keep the keys away from children.
•Do not move the unit without emptying the contents and securing the door in a closed position.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory, or
mental capabilities unless they are given supervision or instruction by a person responsible for their safety.
•This appliance is meant for use in the household or similar settings.
•Keep all ventilation openings clear of obstruction.
•Do not use mechanical devices or other means to accelerate the defrosting process.
•Do not damage the refrigerant circuit.
•Do not use other appliances inside the refrigerator unless recommended by the manufacturer.
•If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly
qualified individual.

iv
Table of Contents
Important Safety Information..................................................................................................................................................ii
Table of Contents....................................................................................................................................................................iv
Introduction ............................................................................................................................................................................ 1
Parts Identification.................................................................................................................................................................. 2
Full View.................................................................................................................................................................................. 2
Empty View ............................................................................................................................................................................. 2
Back View................................................................................................................................................................................ 3
Installing Your Wine Refrigerator ........................................................................................................................................... 4
TYPES OF INSTALLATION:........................................................................................................................................................ 4
Installation Clearance Requirements:..................................................................................................................................... 5
LEVELING:................................................................................................................................................................................ 5
RECOMMENDED GROUNDING METHOD:............................................................................................................................... 6
Installing Your Door Handle and Shelves ................................................................................................................................ 6
INSTALLING THE DOOR HANDLE:............................................................................................................................................ 6
INSTALLING THE SHELVES: ...................................................................................................................................................... 7
REMOVING THE SHELVES:....................................................................................................................................................... 7
Reversing Your Door Swing..................................................................................................................................................... 8
REVERSING THE DOOR:........................................................................................................................................................... 8
Operation................................................................................................................................................................................ 9
INSTALLATION CHECK-LIST BEFORE OPERATION:................................................................................................................... 9
USING YOUR CONTROL PANEL:............................................................................................................................................... 9
Internal Light......................................................................................................................................................................... 10
Defrosting ............................................................................................................................................................................. 11
Normal Sounds...................................................................................................................................................................... 12
Temperature Alarm............................................................................................................................................................... 12
Door Ajar Alarm .................................................................................................................................................................... 12
Cleaning and Maintenance ................................................................................................................................................... 13
INTERIOR CLEANING: ............................................................................................................................................................ 13
EXTERIOR CLEANING:............................................................................................................................................................ 13
Preparing Your Wine Refrigerator for Storage ..................................................................................................................... 13
Troubleshooting .................................................................................................................................................................... 14
Specifications ........................................................................................................................................................................ 16
Avallon Product Warranty .................................................................................................................................................... 17

v
First Time Operating Instructions:
Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep
track of all included parts and pieces before discarding packaging materials. It is advised that you keep
the original box and packaging materials in case you need to move or ship the appliance in the future.
Allow the unit to stand for at least 24 hours before you use it; this allows the cooling components time to
settle from transit. The instruction manual should be read before use.
This owner’s manual is provided for reference use only. Specifications may change without prior notice.
Refer to the product label on the back of your wine refrigerator for the latest technical information.

Introduction
Thank you for purchasing your Avallon wine refrigerator. Avallon is dedicated to developing products that
will enhance your lifestyle with superior quality and distinctive features. Please visit www.avallon.com for
more information on your product and other Avallon products.
This manual contains important information regarding the proper installation, use, and maintenance of your
wine refrigerator. Following this manual will ensure that your product will work at its peak performance and
efficiency.
Please save the original product packaging in case you need to safely transport your wine refrigerator.
For Your Records:
Please write down the model number and serial number below for future reference. Both numbers are
located on the rating label on the back of your unit and are needed to obtain warranty service. You may
also want to staple your receipt to this manual as it is the proof of your purchase, and is also needed for
service under your warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
• If you received a damaged product, immediately contact the retailer or dealer that sold you the
product.
•Read and follow this instruction manual carefully to help you install, use, and maintain your wine
refrigerator.
• Read the troubleshooting section of this manual as it will help you diagnose and solve common
issues.
•Visit us on the web at http://www.avallon.com to download product guides, additional
troubleshooting resources, and up-to-date information.
•If you need warranty service, our friendly customer service representatives are available via email at
[email protected].

2

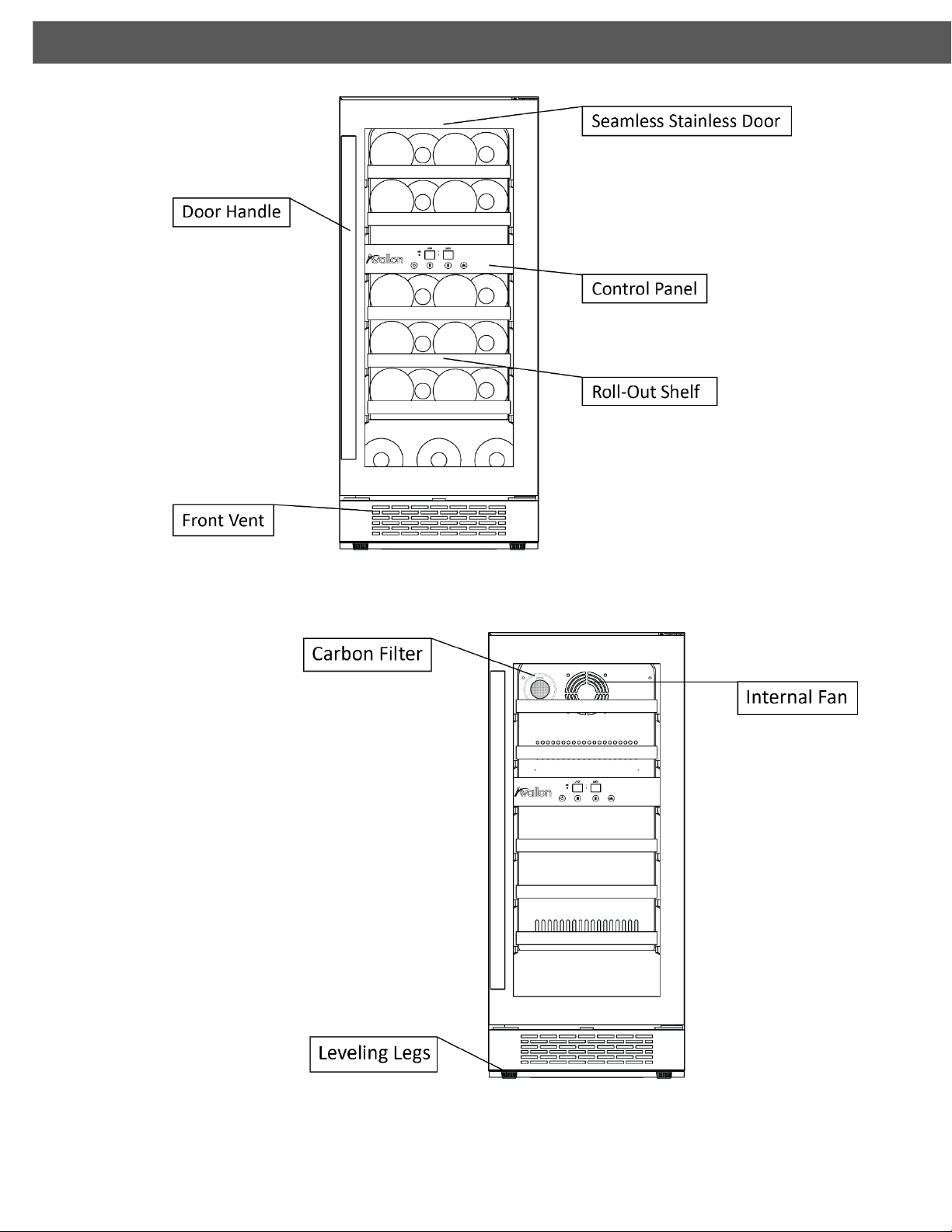

Parts Identification
Full View
Empty View

3
Back View
Carbon Filter
A built-in carbon filter protects your wines by acting as a natural barrier against harmful odors.
Internal Fan
This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature.
Note: The carbon filter should be replaced every 3-6 months depending on the unit’s exposure level to
odor. If the unit is placed in a kitchen, regular replacement every three (3) months is ideal.
Tip: Gather the model and serial number from the product label and write them down before installing the
wine refrigerator.

4
Installing Your Wine Refrigerator
The wine refrigerator should be installed in accordance with local electrical code requirements. It should
also be placed in a location that is strong enough to support its total weight, keeping in mind that it will
weigh substantially more when fully loaded than when empty.
Before you plug the wine refrigerator into a power supply, be sure to let it stand upright for at least 24
hours to allow the compressor’s oils to settle.
TYPES OF INSTALLATION:
This wine refrigerator has been designed for freestanding or built-in installation. In every case, there must
be adequate ventilation and access for service.
Freestanding Installation
A freestanding installation will allow you to install the wine refrigerator in almost any place you desire.
You must follow the stated instructions for electrical requirements and leveling the wine refrigerator.
Built-in Installation
A recessed installation will allow you to install the wine refrigerator under a counter or in a kitchen
cabinet provided the clearance space requirements around the wine refrigerator are followed. It is
necessary to allow adequate ventilation space around the unit (make sure there is at least some
ventilation room for the back of the unit). The following additional items must be observed:
1. Place the wine refrigerator in front of the installation location.
2. Adjust the feet and place the unit flat on the floor or on a platform depending on your installation
requirements.
3. If the electrical outlet for the wine refrigerator is behind the cabinet, plug in the wine refrigerator.
4. Push the wine refrigerator into position.
5.
Warning: Use two or more people to move and install the wine refrigerator. Failure to do so can result in
back or other injury. Carefully remove the packaging materials. Remove any shipping tape and glue from
your wine refrigerator before using. Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can damage the surface of your wine
refrigerator.
Important: Do not remove any safety, warning, or product information labels from your wine refrigerator.
Warning: DO NOT install the wine refrigerator behind a closed cabinet door.

5

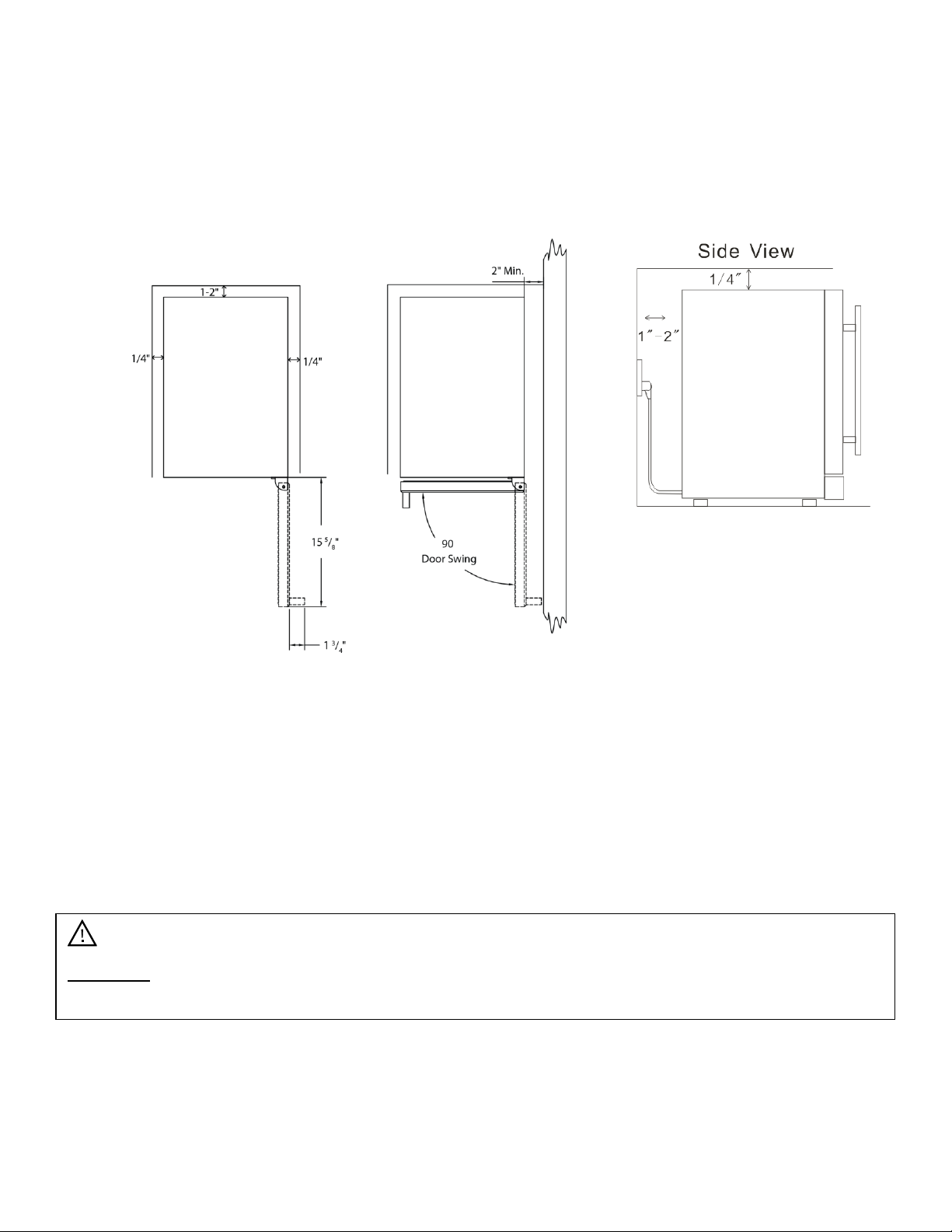

Installation Clearance Requirements:
When installing the wine refrigerator under a counter, follow the recommended spacing dimensions shown.
•To ensure proper service access and ventilation, allow between 1 - 2 inches of clearance at the back as
shown in the diagram.
•The installation should allow the unit to be pulled forward for servicing, if necessary.
•A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National
Electrical Code and local codes and ordinances, is required.
LEVELING:
The wine refrigerator should be installed on a firm and level surface that will be able to support the entire
weight of a fully loaded unit. It is important for the wine refrigerator to be leveled in order to work properly.
It can be raised or lowered by rotating the plastic sheaths around each of the feet on the bottom of the
machine. If you find that the surface is not level, rotate the feet until the wine refrigerator becomes level.
You may need to make several adjustments to level it. We recommend using a carpenter’s level to check the
machine. Turn the leveling feet clockwise to lower that side of the refrigerator. Turn the leveling feet
counterclockwise to raise that side of the refrigerator.
Important: Once you are ready to install the unit in a cabinet or directly on the floor, you must adjust the
feet to level the wine refrigerator.
