1. Foreword
Avant Tecno Oy would like to thank you for your purchase of this attachment for your Avant loader. It has
been designed and manufactured based on years of experience on product development and manufacturing.
By familiarizing yourself with this manual and following the instructions, you ascertain your safety and ensure
the reliable operation and long service life of the equipment. Read the instructions carefully before starting to
use the equipment or performing maintenance.
The purpose of this manual is to help you to:
operate the equipment in a safe and efficient manner
observe and prevent any hazardous situations
keep the equipment intact and ensure a long service life
With these instructions, even an inexperienced user can use the attachment and loader safely. The manual
includes important instructions for experienced AVANT operators as well. Ensure that all persons using the
loader have received proper guidance and familiarised themselves with the manual of the loader, each
attachment that are used, and all safety instructions before using the equipment. Using the equipment for
other purposes or use in any other way than described in this manual is prohibited. Keep this manual at hand
throughout the service life of the equipment. If you sell or transfer the equipment, be sure to hand over this
manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant
dealer or from the manufacturer.
In addition to the safety instructions included in this Operator's Manual, you must observe all occupational
safety regulations, local laws, and other regulations concerning the use of the equipment. Particularly the
regulations concerning the use of the equipment on public road areas must be observed. Contact your Avant
dealer for more information about local requirements before you operate the loader on road areas.
Contact your local AVANT dealer for any questions, service, spare parts or about any problems that may
occur with the operation of your machine.
This manual contains the original instructions in English. Due to continuous product development some of the
details shown in this manual may differ from your equipment. Pictures may also depict optional equipment or
features that are not currently available. We reserve the right to change the contents of the manual without
notification. Copyright © 2023 Avant Tecno Oy. All rights reserved.

5 (36)
.
Warning symbols used in this manual
The following warning symbols are used throughout this manual. They indicate factors that must be taken into
account to reduce the risk of personal injury or damage to property:
WARNING SAFETY ALERT SYMBOL
This symbol means: “Warning, be alert! Your safety is involved!”
Carefully read the message that follows, it warns of an immediate hazard
that could cause serious personal injury.
The safety alert symbol by itself and with related safety statement
indicates important safety messages throughout this Manual. It is used to
draw attention to instructions involving your personal safety or the safety
of others. When you see this symbol, be alert, your safety is involved,
carefully read the message that follows, and inform other operators.
DANGER
This signal word indicates a hazardous situation which, if not avoided, will cause
death or serious injury.
WARNING
This signal word indicates a potentially hazardous situation which, if not avoided,
could cause serious injury or death.
CAUTION
This signal word is used when minor injury could result if the instructions are not
followed properly.
This signal word indicates information about the correct operation and maintenance
of the equipment.
Failure to observe the instructions accompan
ying the symbol can lead to equipment
breakdown or other property damage.

6 (36)
2. Designed purpose of use
The AVANT Snow blower 1150/1500 is an attachment that is suitable for use with AVANT compact loaders
that are shown in Table 1. The Snow blower is intended to spread snow evenly to the sides of the area
instead of piling it up. The two-phase snow blower is suitable also for professional use, and it is equipped with
a powerful hydraulic system with two separate hydraulic motors for efficient operation even when handling wet
and heavy snow.
As standard, the snow blower chute can be turned electrically 270 degrees directly from the driver’s seat. The
wide adjustment range of the manual throwing height control makes it possible to control the ejection of snow
precisely as needed, either as to pile snow directly to the side of the drive path, or to spread evenly far away.
As an option, electric throwing height adjustment is also available, which can be operated only with the
optional Opticontrol® system of the loaders.
The Snow blower 1150/1500 is not designed for any other use than what is specified in this manual and must
not be used for any other purposes than what is intended for.
The attachment has been designed to require as little maintenance as possible. The operator can perform
regular maintenance tasks. All repair work can’t be performed by the operator, and demanding repair and
maintenance operations are to be left for professional technicians. All maintenance work must be done using
proper safety equipment. Spare parts must be identical with original specifications, which can be ensured by
using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer.
Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your
AVANT dealer if you have additional questions about the operation or maintenance of the equipment, or if you
require spare parts or maintenance services.
Table 1 - Snow blower 1150/1500 - Compatibility with Avant loaders
Model
220
225
225LPG
313S
320S
420
423
520
523
525LPG
528
530
R20
R28
630
R35
635
640
645i
650i
735
745
750
755i
760i
850
860i
e5
e6
A434731
(1150) ••••(•) •(•) (•) (•)
A428062
(1500) - - - - •/(•)* •••-
It is recommended to use the attachment only with loaders marked with •in Table 1. When using with models
marked with (•), full performance may not be achieved. Additional counterweights may also be required. For
compatibility with a model not shown in table, contact your Avant dealer.
*When using this attachment with a 600 series that has a <19 kW Stage V engine the performance of this
attachment may be limited because of lower hydraulic oil output flow of the loader. Overall performance
depends on operating conditions. Check with your dealer for more information.

7 (36)
3. Safety instructions for using the snow blower
Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly
powerful and improper or careless use or maintenance may cause serious personal injury or property
damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's
manuals of both the loader and the attachment before starting operation. Do not use the attachment if you
have not completely familiarised yourself with its operation and the related hazards.
DANGER
Misuse, careless use, or using an attachment that is in poor condition may
cause risk of serious injuries.
Familiarise yourself with the controls of the loader,
correct coupling procedure, and the correct way to operate the attachment at a safe
area. Study especially how to stop the equipment in a safe manner. Read all safety
precautions carefully.
Read all safety instructions carefully before handling the attachment
WARNING
When attaching an attachment to the loader, ensure that the locking pins of the
loader's quick attach plate are in the lower position and that they have locked
the attachment to the loader. Never lift or move an unlocked attachment.
This
attachment is designed to be used by one operator at a time. Do not let others
near the danger area of the equipment when it is in use.

Always transport the attachment as low as possible to keep the centre of gravity low,
and keep the telescopic boom retracted during driving.
Risk of impact from sudden stop - Do not drive at high speed unless you can
be sure that there are no obstacles at the working area.
The loader may stop
suddenly if the snow blower hits an obstacle. Remember that there may be hidden
obstructions or fragile surfaces under the snow. Always use seat belt and drive with
caution.

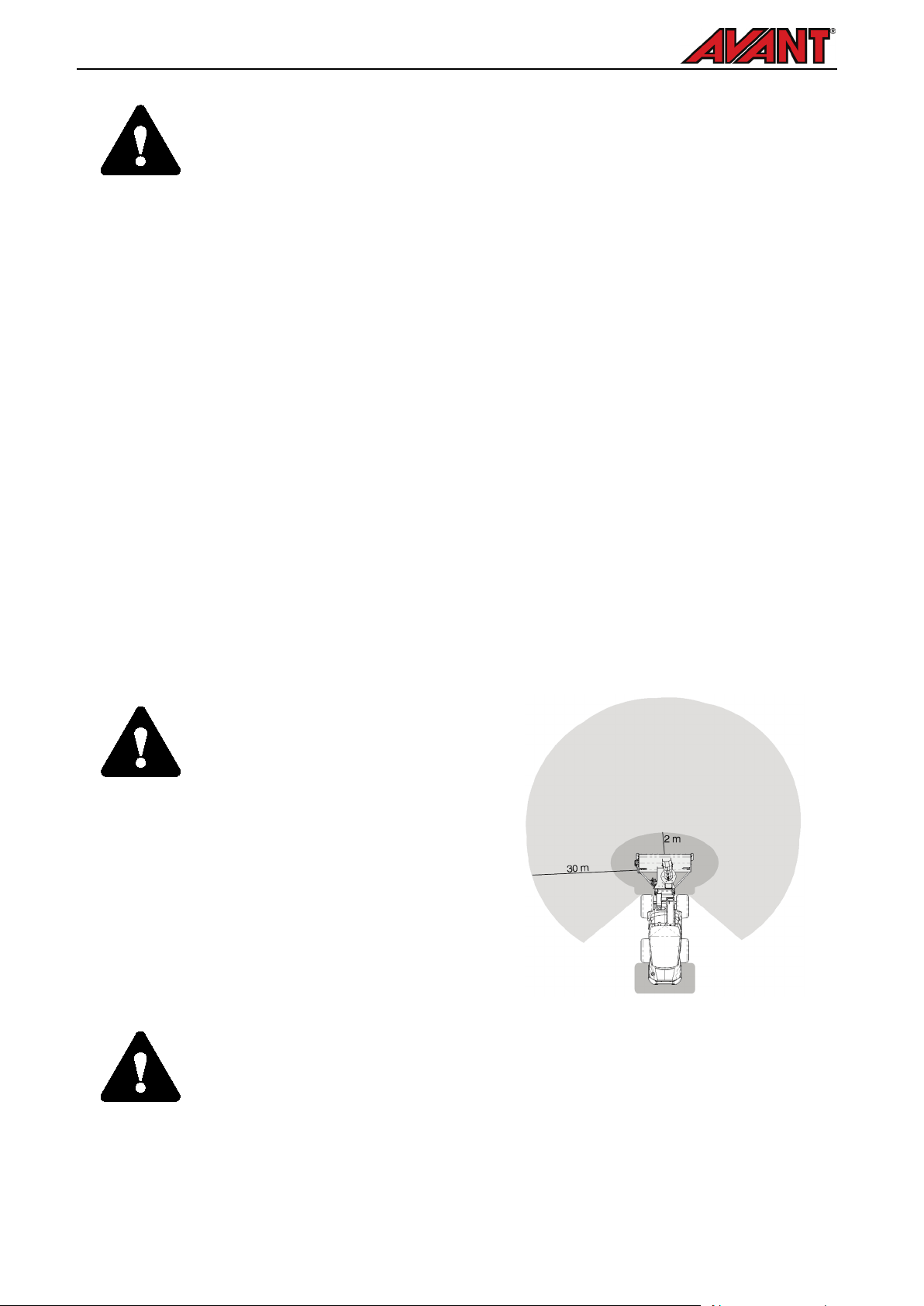

Risk of thrown objects - Keep a safety distance of at least 2 metres between a
snow blower that is running and any person in vicinity.
Keep in mind that the
snow blower will throw snow and any other objects entering the attachment at high
speed.
The snow blower can throw e.g. small stones even distances over 30
metres.
Stop the snow blower if there are persons or fragile objects at the direction
of the discharge chute of the snow blower.
Risk of thrown objects - Keep the discharge chute directed away from other
persons or fragile objects.
Make sure that the rotation of discharge chute works
smoothly, and that the discharge chute protector and throwing height
deflectors are
securely fastened. Lock the manual throwing height adjustment securely.
Risk of entanglement and severing near the snow blower - Follow safe
stopping procedure before leaving the driver's seat.
Never leave the driver’s seat
when the snow
blower is running or when the auxiliary hydraulics control lever of the
loader is locked on. Always keep hands and feet away from moving parts and use
additional tools to clear any blockage of the blower.
Operate only at well lit areas. Make sure that all lights of the loader are in good
condition, clean, and adjusted correctly. Extra work lights are recommended for the
loader when operating during dark. Mark any obstacle at the work area before
operating the snow blower to avoid collisions.

8 (36)
WARNING
Pay attention to the surroundings and any other persons and machines moving in the
vicinity. Pay attention to the contours of the terrain and other hazards, such as
branches and trees that can reach to the driver's area, loose rocks, and slippery
surfaces.
Make sure to use only an attachment that is in good condition. Perform daily
inspections and read the instructions regarding service and maintenance. Never
operate the attachment if the hydraulic systems of both the attachment and the
loader are not completel
y intact. Check the condition of the snow blower rotor
regularly.
Do not leave the driver’s seat when the loader boom is lifted. Going under a raised
attachment or loader boom is dangerous. Always remember that the boom may lower
due to loss of stabili
ty, mechanical fault, or if another person operates the controls of
the loader.
Make sure to use only an attachment that is in good condition. Do not modify the
attachment in any way that could affect its safety.
Shut down the loader and place the attachment to a safe position as shown in Safe
stopping procedure before any cleaning, maintenance, or adjustments.
Use the equipment only for its intended purpose. Other use may create unnecessary
safety risks, and the equipment may get damaged.
Make sure that the loader is equipped with necessary safety components, and that
they are in working condition. Seat belt must be used. If there are specific hazards
related to the operating area, use appropriate safety equipment.
Also read the safety instructions and correct use of the loader from the operator's
manual of the loader.
. ..
WARNING
Hazard of thrown objects - Keep
bystanders away
. Note that the snow
blower may throw sand or other objects
found in the operating area up to 30
metres away
at high speed. Always keep
a safety distance of at least 2 metres
between the snow blower and other
persons. Do not allow others at the danger
areas of the snow blower and stop the
attachment immediately, if there are
others in the direction of snow throwing.
WARNING
Beware of entanglement and crushing hazards especially when removing
blockages.
Near the snow blower the hazards of entanglement and severing are
present. The snow blower must be stopped following the safe stopping procedure bef
ore
going near it. Never put your hand inside the discharge chute or the auger; always use a
brush or other suitable medium. Removing the discharge chute guard is allowed only
when removing blockages. The guard must be securely locked in its place immediat
ely
after clearing the blockage.

9 (36)
DANGER
Risk of crushing -
Going under the loader boom or an
attachment can cause serious injury or death.
Never go
under the loader boom and prevent others from getting near
lifted boom or attachment. Going under a ra
ised attachment
or loader boom is dangerous, as the boom may lower due to
loss of stability, mechanical fault or when other person
operates the controls of the loader. Lower the attachment
firmly on the ground to a safe position before leaving the
driver’s seat.
Keep in mind that the loader boom can be lowered or tilted
even if the engine has been shut down (crushing hazard).
The loader is not intended to be left to keep a load elevated
for longer periods. Always lower the attachment to a safe
position before leaving the driver's seat.
3.1 Personal protective equipment
Remember to wear proper personal protective equipment:

The noise level at the driver's seat may exceed 85 dB(A) depending on loader
model and operating cycle. Extended exposure to loud n
oise can cause
hearing impairment. Wear hearing protection while working with the loader.
Wear protective gloves.
Wear safety boots whenever working with the loader.
Wear safety glasses e.g. when handling hydraulic components.
3.2 Safe shutdown procedure
Safe stopping of the attachment, before going near the attachment:
WARNING
Always stop the attachment following safe stopping procedure before leaving
the driver's seat.
Safe stopping procedure prevents all unintentional movements of
the a
ttachment. Note that the loader boom can move down even if the engine of the
loader is turned off. Safe stopping procedure:
Lower the boom and the attachment on the ground.
Shut down the loader engine and lock the parking brake.
Release residual pressure f
rom the hydraulic system; move all hydraulic control
levers to their extreme positions a couple of times.
Prevent starting of the machine, remove ignition key.

10 (36)
4. Technical specifications
Table 2 - Snow blower 1150/1500 - Specifications
Product number A434731 A428062
Working width 1150 mm 1500 mm
Total width: 1215 mm 1580 mm
Weight: 250 kg 296 kg
Electric discharge chute rotation: Standard equipment, 270º
Recommended input of hydraulic
energy: 60 l/min
Maximum input of hydraulic energy: 70 l/min 22,5 MPa (225 Bar)

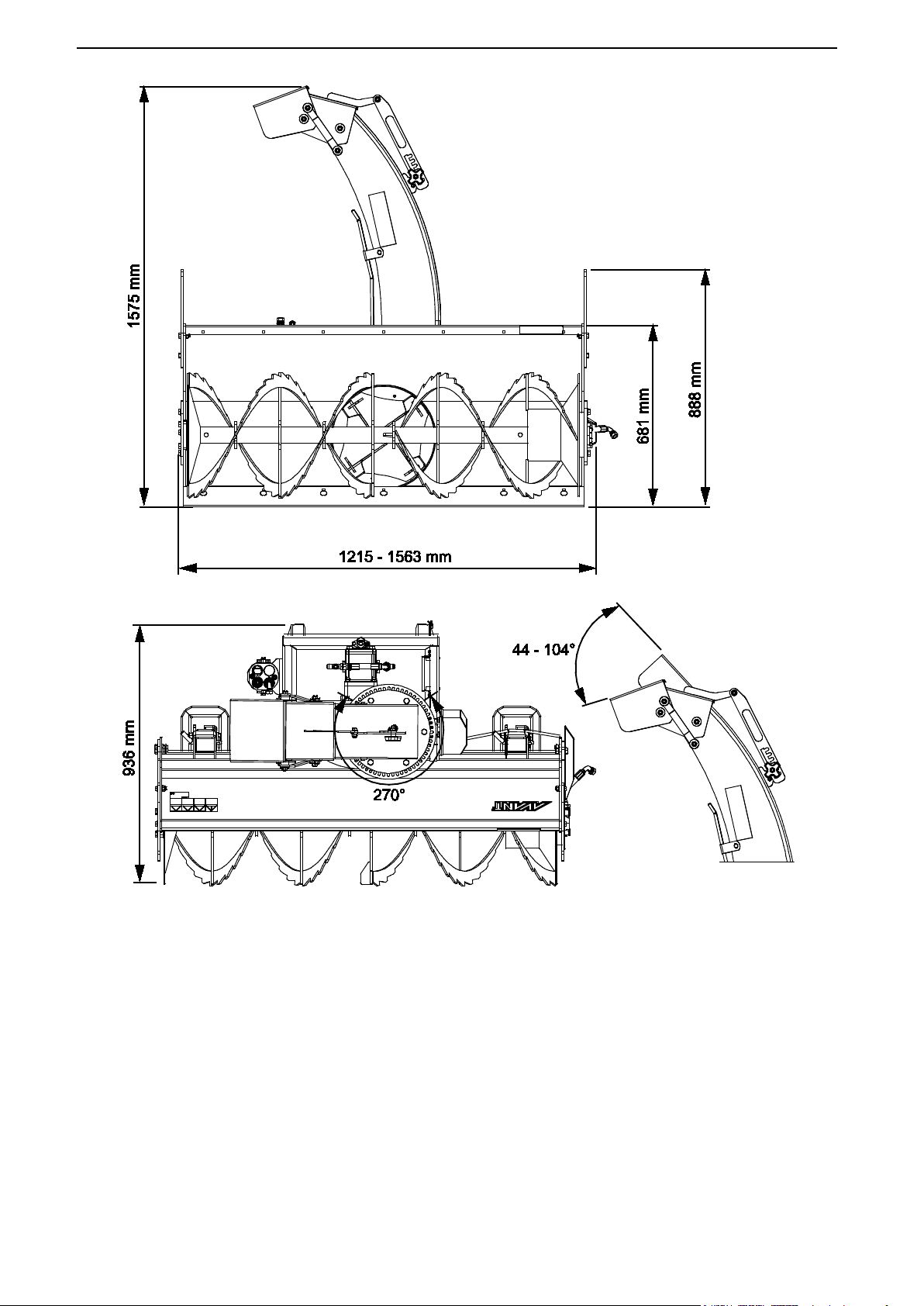

Other dimensions: See page 2
Compatible AVANT loader models: See table 1 on page 6
Options
Electric throwing height adjustment A430172
Frame extensions A425678
Working width with frame extensions 1350 mm 1700 mm
Opticontrol® Retrofit kit for Avant
loaders A437338 (Loaders with attachment control switch pack)

11 (36)
4.1 Safety labels and main components of the attachment
Listed below are the labels and markings on the attachment. They must be visible and readable on the
equipment. Replace any unclear or missing label. New labels are available via your retailer or contact
information provided on the cover.
WARNING
Make sure all warning decals are readable. The warning labels contain important
safety information and they help to identify and remember the hazards related to the
equipment. Replace damaged or missing warning labels with new ones.
Attachment identification plate A434313
/ A426665
A46771 A46772 A46799 A46804
To apply a new label: Clean the surface thoroughly to remove all grease. Allow it to dry completely. Peel off
the protective film of the label and press firmly to apply. Take care not to touch the glue of the label.
Table 3 - Decal locations and warning messages
Decal Warning message
1 A46771 Misuse hazard -
Read instructions before
use.
2 A46772 Crushing hazard -
Do not go under a
raised attachment; stay away from raised
equipment.
3
A46779
Beware of thrown objects; keep a safe
dist
ance from the equipment (2 m
minimum, up to 30 m).
4
A46804
Entanglement hazard, keep clear of
moving components. Stop the machine
before going near it.
5
A434313 /
A426665 Attachment identification plate

12 (36)
Table 4 - Snow blower 1150/1500 - Main components
1
Quick coupling plate with Avant quick coupling
brackets
2 Discharge rotor
3 Feed auger
4 Standing supports / Side skid
5 Gear rim for chute rotation
6 Throwing height adjustment (manual version visible)
7 Snow wall cutters
8 Hydraulic motor
9 Discharge chute guard
10 Clearing tool
11 Adjustable scraper edge
12 Chute rotating actuator
13 Multi connector holder

13 (36)
5. Assembling the attachment
Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is
mounted to the loader boom by using the quick coupling plate on the loader boom and the counterpart on the
attachment.
If the attachment is not locked to the loader, it may fall from the loader and cause a hazardous situation.
Never drive with the loader and never lift the loader boom if the attachment has not been fully locked. To
prevent hazardous situations, always follow the coupling procedure shown below. Also remember the safety
instructions shown in this manual.
WARNING
Crushing risk - Make sure that an unlocked attachment will not move or fall over.
Do not stay in the area between the attachment and the loader. Mount the attachment
only on level surface.
Never move or lift an attachment that has not been locked.
Avant quick coupling system:
Step 1:

Lift the locking pins of the quick coupling plate of the loader up, and turn them
backwards into the slot, so that they are locked in the upper position.
If your loader is equipped with a hydraulic attachment locking system
, see
additional instructions about the use of the locking system from the operator's
manual of the loader.

Make sure that the hydraulic hoses and the electric cables are positioned so
that they will not get in between the coupling plate of the loader and the
attachment, and that they will not get squeezed or chafed against sharp edges.
Step 2:
Turn the quick attach plate hydraulically to an obliquely forward position.

Drive the loader onto the attachment. If your loader is equipped with a
telescopic boom, you can utilise this.

Align the upper pins of the loader’s quick coupling plate so that they are under
the corresponding brackets of the attachment.
Step 3:
Lift the boom slightly –
pull the boom control lever backward to lift the
attachment just off the ground.

Turn the boom control lever left to turn the bottom section of the quick coupling
plate of the loader onto the attachment.
Lock the locking pins manually or lock the hydraulic locking.
Always check the locking of both locking pins.

14 (36)
WARNING
Risk of crushing - Avoid tipping over the attachment.
Excessive tilting or lifting of an
unlocked attachment increases the risk of tipping the attachment over. Do not use the
automatic locking of the locking pins when the attachment is lifted mor
e than one meter
from the ground. If the locking pins do not return to the normal position when tilting, do
not tilt or raise the attachment any more. Lower the attachment on the ground and
secure the locking manually.
WARNING
Risk of falling objects -
Prevent dropping of
attachment.
An attachment that has not been completely locked to the
loader may fall on the boom or towards the operator, or
fall under the loader during driving, causing loss of
control of the loader. Never move or lift an attachme
nt
that has not been locked. Before moving or lifting the
attachment, make sure that the locking pins are in the
lower position and come through the fasteners on the
attachment on both sides.
WARNING
Make sure the loader is compatible with the attachment.
Stability of the loader,
possible overload of the attachment, and compatibility of loader control systems must be
ensured in addition to mechanical compatibility of the attachment. If you use the
attachment with a loader that is not fit to be us
ed with the attachment model you have,
risks include tipping over, damage to attachment due to overload, and risks related to
uncontrolled motion of attachment and its parts. If your loader is not listed in Table 1 on
page , ask your Avant dealer before using this attachment.

15 (36)
5.1 Connecting and disconnecting hydraulic hoses
On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older
model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi
connector system, contact your Avant dealer or service point for instructions or installation services.
WARNING
Risk of movement of the attachment and ejection of hydraulic oil -
Never connect
or disconnect quick couplings
or other hydraulic components while the control
lever of the auxiliary hydraulics control lever is locked on or if the system is
pressurized.
Connecting or disconnecting the hydraulic couplings while the system is
pressurized may lead to unintended movements of the attachment, or ejection of high-
pressure fluid, which can cause serious injuries or burns. Follow safe stopping procedure
before disconnecting hydraulics.
Keep all fittings as clean as possible; use the protective caps on both the attachment and
the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never
leave the hoses hanging on the ground; place the couplings onto the holder on the
attachment.
Connecting the multiconnector system:
1.
Align the pins of the attachment connector with corresponding
holes of the loader connector. The multiconnector will not connect
if the attachment connector is upside down.
2.
Connect and lock the multiconnector by turning the lever towards
the loader.
The lever should move easily all the way to its locking position. If the lever does not slide smoothly, check the
alignment and position of the connector and clean the connectors. Also shut down the loader and release the
residual hydraulic pressure.
To disconnect the multiconnector system:
Before disconnecting put the attachment down on a solid and even
surface.
1. Switch off the auxiliary hydraulics of the loader.
2.
While pushing unlock button, turn the lever to disconnect the
connector.
3. After ending operation put the multicon
nector on its holder on the
attachment.
Disconnecting hydraulic hoses:
Before disconnecting the fittings, lower the attachment to safe position on solid and level surface. Turn the
control lever of the auxiliary hydraulics to its neutral position.
When uncoupling the attachment, always disconnect the hydraulic couplings before
unlocking the quick coupling plate, to prevent hose damage and any oil spills. Reinstall
the protective caps on the fittings to prevent impurities from entering the hydraulic
system.

16 (36)
Releasing residual hydraulic pressure:
In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the
hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the
residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the
engine is turned off. To make sure that there will not be residual pressure in the hydraulic system of the
attachment, shut down the loader engine and move the auxiliary hydraulics control lever of the loader back
and forth before disconnecting the couplings.
5.2 Electric connection
Electric functions of the attachment:
As standard, the snow blower is equipped with electrically controlled chute rotation. The chute rotation can be
controlled with the standard electric harness that is supplied with the snow blower.
Electrically controlled throwing height adjustment is available as an option.
To control all of the functions of the snow blower, the loader must be equipped with the Opticontrol®system
(optional equipment for loaders). With the Opticontrol®system all functions of the attachment can be controlled
with the buttons on the joystick of the loader.
The functionality of the Opticontrol®system is available for loaders that are equipped with attachment control
switch pack as a retrofit kit A437338. See separate instructions about retrofitting of the wire harness from the
instructions of the retrofit kit.
If the snow blower is equipped with electric throwing height adjustment, the Opticontrol®
system is also necessary (optional equipment for loaders).
. ..

17 (36)
5.2.1 To connect the electric harness of the attachment to the loader
Starting from year 2016, there is an integrated electric plug in the multiconnector of all attachments that have
electric functions. However, a separate electric harness is also supplied with the snow blower, to make it
possible to connect and use it with loaders that are not equipped with Opticontrol®system.
There are three ways to connect the electric connector, depending on the installed options of the loader:
1. If your loader is not equipped with the
Opticontrol®:
Use the separate cable kit with a switch that is
supplied with the attachment. Connect t
his cable to
the 12 V electric socket near the operator's seat of
the loader, and to the electric plug of the
attachment.
1.
Electric plug, connects to the 12 V electric
socket near the operator's seat of the loader.
More information about the power outlet of
the loader can be found in the operator’s
manual of the loader.
2. 2-way switch, returns to middle position
Select the location of the switch in the cab so
that it is easily accessible but will not be used
inadvertently.
This cable with a switch can be used
only to
control the rotation of the chute.
3.
Connect to the electric plug of the
attachment.
If the attachment is equipped with a electric
plug that is integrated to the multiconnector
of the attachment, disconnect the electric
cable from the multiconnector.
Cable harness A34804
2. If your loader is
equipped with the Opticontrol®, or

the Attachment control switch pack, and the
loader is manufactured in 2016 or later:
The electric socket is integrated in the
multiconnector. The electric harness of the
attachment is connected when the multiconnector
is coupled.
Clean both multiconnectors before connecting the
multiconnector.
The separate cable harness A34804 is not needed
in this case.
Opticontrol®, or Attachment control switch
pack, loader manufactured in 2016 or later

18 (36)
3. If your loader is

equipped with the Attachment control switch
pack, and the loader is manufactured before
2016:
There is an electric socket near the multiconnector
of the loader. Connect the electric plug of the
attachment to the socket of the loader.
The separate cable harness A34804 is not needed
when the loader is equipped with the Attachment
control switch pack.
Attachment control switch pack, loader
manufactured before 2016
. ..
Make sure that electric cables will not get stuck, squeezed, or stretched when the
equipment moves.
With the help of the attachment control switch pack available for the loader, the
attachment control switches are easily accessible at the end of the boom control lever.
More informat
ion about the power outlet of the loader can be found in the operator’s
manual of the loader.

19 (36)
6. Operating the attachment
Check the attachment and the operating environment once more before starting to work, and that all obstacles
have been removed from the operating area. Quick inspection of the equipment and the operating area before
use are parts of ensuring safety and the best performance of the equipment.
DANGER
Entanglement and cutting hazards -
Never put your
hands inside the discharge chute. Bew
are of cutting and
entanglement hazards near the snow blower, never leave the
driver’s seat if the attachment is switched on, or if it can start
unexpectedly. Always stop the snow blower and the loader
following the safe stopping procedure before going nea
r the
attachment. Always use suitable tool to clear blockages,
never put your hands inside the discharge chute or use
hands or feet to clear a blocked auger.
WARNING
Thrown objects - Keep bystanders away.
Keep in mind
that regardless of the protec
tive housing, the snow blower
may throw ice, sand, stones, pieces of wood or other material
up to even 30 metres away. Stop the attachment immediately
if other persons are closer than 2 metres from the snow
blower at any direction. Keep the chute directed
to safe
direction away from people and fragile surfaces.
WARNING
Beware of entanglement and crushing hazards especially
when removing blockages.
If a blockage is cleared without
first turning off the auxiliary hydraulics of the loader, the
auger
and the thrower rotor will start immediately and can
cause serious injuries. Always stop the attachment by turning
the auxiliary hydraulics control lever to its neutral position
before leaving the driver’s seat, shut down the loader engine,
and release the residual pressure of the hydraulic system.
WARNING
Risk of crushing -
Never allow anyone to get under a
lifted attachment or loader boom.
Keep in mind that the
loader boom can be lowered or tilted even if the engine has
been shut down (crushing
hazard). The loader is not intended
to be left to keep a load elevated for longer periods. Always
lower the attachment to a safe position before leaving the
driver's seat.
.

20 (36)
6.1 Safety distance
WARNING
Hazard of thrown objects - Keep bystanders away.
Note
that the attachment can throw stones, gravel, or other objects
found in the area at high speed. Always keep a safety
distance of at least 2 metres to other persons.
. ..
The minimum safety distance of the attachment is 2
metres from the
machine. Note that the snow blower
may throw sand or other objects found in the operating
area up to 30 metres away at high speed. Do not let
bystanders get any closer than 2 metres from the
attachment. Stop the attachment if others get within the
safety distance.
6.2 Checks before use
Read all instructions before use. Make sure you have the Operator's manual of the loader available.
Check the general condition of the attachment and the loader, and check for possible hydraulic oil
leaks. Do not use the attachment if there is a fault in the hydraulic system of the loader or the
attachment. Refer to Chapter 7 for maintenance instructions.
Check the condition of the auger and the throwing rotor, and that they can rotate freely. Check that
there is no string or other foreign material coiled around them.
Check that the discharge chute rotation works smoothly as intended, and that the rotation is not
blocked. Set the throwing height to correct setting and direct the chute to safe direction.
Check the setting of the side skids and edge plate. See Chapter 6.4.
Before starting work, remove larger obstacles from the working area that may damage the snow
blower. Remember correct working methods and avoid leaving the driver’s seat unnecessarily.
Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the
stability and handling of the loader.
Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to
enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to
reverse with the loader. Never assume that bystanders will remain where you last saw them;
especially children are often attracted to the moving equipment.
