Avante IMPERIO PRO Series User manual

2
©2023 ADJ PRODUCTS LLC all rights reserved. Information, speci󰤱cations, diagrams, images,
and instructions herein are subject to change without notice. ADJ logo and identifying product
names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and in- formation now allowed
by statutory or judicial law or hereinafter granted. Product names used in this document
may be trademarks or registered trademarks of their respective companies and are hereby
acknowledged. All non-ADJ brands and product names are trademarks or registered trademarks
of their respective companies.
ADJ PRODUCTS LLC and all a󰤳liated companies hereby disclaim any and all liabilities for
property, equipment, building, and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of any information contained within
this document, and/or as a result of the improper, unsafe, insu󰤳cient and negligent assembly,
installation, rigging, and operation of this product.
AVANTE World Headquarters USA
6122 S. Eastern Ave. | Los Angeles, CA 90040 USA
323-316-9722 | Fax: [phone] | www.avanteaudio.com | [e-mail]
AVANTE NETHERLANDS
Junostraat 2 | 6468 EW Kerkrade | Netherlands
[phone] | Fax: [phone] | [e-mail]
AVANTE MEXICO
Santa Ana 30 | Parque Industrial Lerma | Lerma Mexico 52000
+52 [phone] | [e-mail]
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the environment. Please turn o󰤰 all electrical
products when they are not in use. To avoid power consumption in idle mode, disconnect all
electrical equipment from power when not in use. Thank you!
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online. Please scan the QR Code with your mobile
device or visit www.elationlighting.com for the latest revision/update of this
manual, before installation and/or programming.
Date Document
Version Notes
08/01/22 1 Initial Release
03/03/23 1.1 Updated Dimensions, Speci󰤱cations

3
General Information 4
Limited Warranty (USA Only) 5
Safety Guidelines 6
Safety Guidelines (French) 8
Maintenance Guidelines & Fuse Replacement 10
Maintenance Guidelines & Fuse Replacement (French) 11
Overview 12
IMP205 Dimensions 12
Imperio Flybars 13
Connections & Controls 14
Con󰤱guration & DSP Presets 15
Installation 18
Imperio Frequency Charts 25
Speci󰤱cations 29
Components and Accessories 30
CONTENTS

4
GENERAL INFORMATION
INTRODUCTION
This speaker is designed for professional use only. Please read and understand all the instructions
and guidelines in this manual carefully and thoroughly before attempting to operate these
speakers. These instructions contain important information regarding safety, installation, and
use.
UNPACKING
Every speaker has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect speaker for damage and be sure all accessories
necessary to install and operate the speaker have arrived intact. In the event damage has been
found or parts are missing, please contact our customer support team for further instructions.
Please do not return this speaker to your dealer without 󰤱rst contacting customer support at
the number listed below. Please do not discard the shipping carton in the trash. Please recycle
whenever possible.
CUSTOMER SUPPORT
AVANTE provides a customer support line to provide set up help, answer any question should
you encounter problems during your set up or initial operation, and for any service related
issues. Please visit www.avanteaudio.com for up to date iinformation. You may also visit us on
the web at www.avanteaudio.com for any comments or suggestions.
AVANTE SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [e-mail]
AVANTE SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [e-mail]
WARRANTY REGISTRATION
Please register your product online: www.avanteaudio.com Online product registration is
required in order to activate the third year of the 3-year warranty. All returned service items,
whether under warranty or not, must be freight pre-paid and accompany a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package.
A brief description of the problem as well as the R.A. number must also be written down on
a piece of paper and included in the shipping container. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice and the unit must be registered online
at www.avanteaudio.com to receive year 3 of the 3-year warranty. Items returned without
a R.A. number clearly marked on the outside of the package will be refused and returned at
customer’s expense. You may obtain a R.A. number by contacting customer support.

5
LIMITED WARRANTY (USA ONLY)
1. ADJ Products, LLC hereby warrants, to the original purchaser, AVANTE products to be free
of manufacturing defects in material and workmanship for a prescribed period of up to
3-years (1,095 days) from the original purchase date. Product must be registered online
at www.avanteaudio.com in order to activate year 3 of the 3-year warranty period. This
warranty shall be valid only if the product is purchased within the United States of America,
including possessions and territories. It is the owner’s responsibility to establish the date
and place of purchase by acceptable evidence at the time service is sought.
2. For warranty service you must obtain a Return Authorization number (RA#) before sending
the product back; please contact ADJ Products, LLC Service Department at 800-322-6337.
Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-
paid. If the requested repairs or service (including parts replacement) are within the terms
of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated
point within the United States. If the entire instrument is sent, it must be shipped in its
original package. No accessories should be shipped with the product. If any accessories are
shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for loss of
or damage to any such accessories, or for the safe return thereof.
3. This warranty is void if the serial number has been altered or removed; if the product is
modi󰤱ed in any manner which ADJ Products, LLC concludes, after inspection, a󰤰ects the
reliability of the product; if the product has been repaired or serviced by anyone other than
the ADJ Products, LLC factory unless prior written authorization was issued to purchaser
by ADJ Products, LLC; if the product is damaged because it was not properly maintained as
set forth in the instruction manual.
4. This is not a service contract, and this warranty does not include maintenance, cleaning
or periodic checkup. During the period speci󰤱ed above, ADJ Products, LLC will replace
defective parts at its expense with new or refurbished parts, and will absorb all expenses
for warranty service and repair labor by reason of defects in material or workmanship.
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the
repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ
Products, LLC. All products covered by this warranty were manufactured after August 15,
2012, and bear identifying marks to that e󰤰ect.
5. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon
its products without any obligation to include these changes in any products theretofore
manufactured. No warranty, whether expressed or implied, is given or made with respect
to any accessory supplied with products described above. Except to the extent prohibited
by applicable law, all implied warranties made by ADJ Products, LLC in connection with this
product, including warranties of merchantability or 󰤱tness, are limited in duration to the
warranty period set forth above. And no warranties, whether expressed or implied, including
warranties of merchantability or 󰤱tness, shall apply to this product after said period has
expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as
is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable
for any loss or damage, direct or consequential, arising out of the use of, or inability to use,
this product. This warranty is the only written warranty applicable to ADJ Products, LLC
Products and supersedes all prior warranties and written descriptions of warranty terms
and conditions heretofore published.
6. Warranty Registration: Please register your product online: www.avanteaudio.com. Online
product registration is required in order to activate the third year of the 3-year warranty.
All returned service items, whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice and the unit must be registered online at www.avanteaudio.com to receive year 3 of
the 3-year warranty. Items returned without a R.A. number clearly marked on the outside
of the package will be refused and returned at customer’s expense. You may obtain a R.A.
number by contacting customer support.

6
SAFETY GUIDELINES
This speaker is a sophisticated piece of electronic equipment. To guarantee a smooth operation,
it is important to follow all instructions and guidelines in this manual. AVANTE is not responsible
for injury and/or damages resulting from the misuse of this speaker due to the disregard of the
information printed in this manual. Only quali󰤱ed and/or certi󰤱ed personnel should perform
the installation of this speaker and all included and/or optional rigging accessories. Only the
original included and/or optional rigging parts and accessories for this speaker should be used
for proper installation. Any modi󰤱cations to the speaker, included and/or optional rigging parts
and accessories will void the original manufactures warranty and increase the risk of damage
and/or personal injury.
PROTECTION CLASS 1 – SPEAKER MUST BE PROPERLY GROUNDED
TO REDUCE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS SPEAKER.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR
MANUFACTURES WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS SPEAKER AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURES WARRANTY AND ARE
NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS. NEVER OPEN THIS
SPEAKER WHILE IN USE! UNPLUG POWER BEFORE SERVICING SPEAKER!
KEEP FLAMMABLE MATERIALS AWAY FROM SPEAKER!
DRY LOCATIONS USE ONLY!
DO NOT EXPOSE SPEAKER TO RAIN AND/OR MOISTURE!
DO NOT SPILL WATER AND/OR LIQUIDS ON OR INTO THE SPEAKER!
This speaker is for PROFESSIONAL USE ONLY! Read all INSTRUCTIONS and follow all
WARNINGS!
DO NOT use speaker near wet and/or damp locations. Speaker must be kept away from direct
contact with liquids and must not be exposed to water/liquid dripping or splashing.
DO NOT attempt installation and/or operation without knowledge how to do so. Consult a
professional sound equipment installer for proper and safe speaker installation. ONLY the
original included, and/or optional rigging parts and accessories listed in this manual should be
used for proper installation and use.
DO NOT expose any part of the speaker to open 󰤲ame or smoke, or position speaker close to
any 󰤲ammable materials while operating. Be sure to install this speaker in an area that will
allow proper ventilation. Allow approximately 6 inches (152mm) behind the speaker cabinet
for proper cooling. The speaker contains an internal power ampli󰤱er that produces heat during
use. Keep speaker away from heat sources such as radiators, heat registers, stoves, or other
appliances (including ampli󰤱ers) that produce heat.
DO NOT operate speaker if power cord is frayed, crimped, damaged, and/or if any of the power
cord connectors are damaged and do not insert into the speaker securely with ease. NEVER
force a power cord connector into the speaker. If the power cord or any of its connectors are
damaged, replace it immediately with a new one of similar power rating.
DO NOT disassemble speaker, there are NO user serviceable parts inside. Refer all servicing
to quali󰤱ed service personnel. Servicing is required when the speaker has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled and/or objects have
fallen into the speaker, the speaker has been exposed to rain and/or moisture, does not operate
normally, or has been dropped.
DO NOT defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not 󰤱t into your outlet, consult an electrician for replacement of the obsolete outlet.

7
SAFETY GUIDELINES
POWER SOURCES: This product must be connected to a power supply only of the type described in
these operating instructions, or as marked on the unit. This product is Country Speci󰤱c.
PROTECTIVE EARTHING TERMINAL: The speaker should be connected to a mains socket outlet
with a protective earth-ground/earthing connection.
DISCONNECT DEVICE: The plug on the power cord is used as the disconnect device, and must
remain readily available and operable.
ONLY handle power cord by the plug end, never pull the plug out by tugging the wire portion of the
cord.
ALWAYS disconnect speaker from main power source before performing any servicing or cleaning
procedure.
DO NOT use solvents or glass cleaner to clean speaker. Clean only with a dry cloth.
CAUTION: To avoid physical damage, read the installation instructions carefully before installation.
CAUTION: Listening to speakers at high volume for extended time or within immediate proximity
may damage hearing.
CAUTION: Speakers should be installed/operated by quali󰤱ed and trained professionals ONLY.
CAUTION: Always mount speakers in a safe and stable manner.
CAUTION: Wear appropriate safety equipment during speaker installation.
CAUTION: Route power and audio cables so that they are NOT likely to be walked on or pinched.
CAUTION: Unplug the speaker during lightning storms and/or when unused for long periods of time
CAUTION: The maximum environmental operating temperature is 35℃ (95℉).
ONLY use the original packaging materials and/or case to transport the speaker in for service.
PLEASE recycle shipping boxes and packaging whenever possible.

8
LIGNES DIRECTRICES DE SÉCURITÉ
Ce haut-parleur est un équipement électronique sophistiqué. Pour garantir un bon fonctionnement, il est
important de suivre toutes les instructions et directives de ce manuel. AVANTE n’est pas responsable
des blessures et/ou des dommages résultant d’une mauvaise utilisation de ce haut-parleur en raison du
non-respect des informations imprimées dans ce manuel. Seul un personnel quali󰤱é et/ou certi󰤱é doit
e󰤰ectuer l’installation de ce haut-parleur et de tous les accessoires de montage inclus et/ou en option.
Seuls les pièces et accessoires d’origine inclus et/ou en option pour ce haut-parleur doivent être utilisés
pour une installation correcte. Toute modi󰤱cation apportée à l’enceinte, aux pièces et accessoires de
montage inclus et/ou en option annulera la garantie du fabricant d’origine et augmentera le risque de
dommages et/ou de blessures.
CLASSE DE PROTECTION 1 - LE HAUT-PARLEUR DOIT ÊTRE CORRECTEMENT MIS À LA TERRE.
POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE RETIREZ AUCUN COUVERCLE. IL N’Y A
AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR À L’INTÉRIEUR DE CET ENCEINTE. N’ESSAYEZ
AUCUNE RÉPARATION VOUS-MÊME; CELA ANNULERA LA GARANTIE DE VOTRE FABRICANT.
LES DOMMAGES RÉSULTANT DES MODIFICATIONS APPORTÉES À CETTE ENCEINTE ET/OU DU
NON-RESPECT DES CONSIGNES DE SÉCURITÉ ET DES DIRECTIVES DE CE MANUEL ANNULENT LA
GARANTIE DU FABRICANT ET NE SONT SOUMIS À AUCUNE RÉCLAMATION ET/OU RÉPARATION
AU TITRE DE LA GARANTIE. N’OUVREZ JAMAIS CETTE HAUT-PARLEUR LORSQU’ELLE EST
UTILISÉE ! DÉBRANCHEZ L’ALIMENTATION AVANT DE RÉPARER L’ENCEINTE ! GARDEZ LES
MATÉRIAUX INFLAMMABLES À L’ÉCART DU HAUT-PARLEUR!
UTILISATION EN ENDROITS SECS UNIQUEMENT!
NE PAS EXPOSER L’ENCEINTE A LA PLUIE ET/OU A L’HUMIDITE !
NE PAS RENVERSER D’EAU ET/OU DE LIQUIDES SUR OU DANS L’ENCEINTE!
Ce haut-parleur est destiné à un USAGE PROFESSIONNEL UNIQUEMENT! Lis tout DES INSTRUCTIONS
et suivez tout AVERTISSEMENTS!
NE PAS utilisez le haut-parleur à proximité d’endroits mouillés et/ou humides. Le haut-parleur doit être
tenu à l’écart de tout contact direct avec des liquides et ne doit pas être exposé à des gouttes ou des
éclaboussures d’eau/de liquide.
NE PAS tenter l’installation et/ou l’utilisation sans savoir comment procéder. Consultez un installateur
professionnel d’équipement de sonorisation pour une installation correcte et sûre des haut-parleurs.
SEULS les pièces et accessoires de gréement d’origine inclus et/ou en option répertoriés dans ce manuel
doivent être utilisés pour une installation et une utilisation correctes.
NE PAS exposer n’importe quelle partie de l’enceinte à une 󰤲amme nue ou à de la fumée, ou positionner
l’enceinte à proximité de matériaux in󰤲ammables pendant son fonctionnement. Assurez-vous d’installer
cette enceinte dans une zone permettant une ventilation adéquate. Laissez environ 6 pouces (152
mm) derrière l’enceinte pour un refroidissement correct. Le haut-parleur contient un ampli󰤱cateur de
puissance interne qui produit de la chaleur pendant l’utilisation. Éloignez l’enceinte des sources de
chaleur telles que les radiateurs, les registres de chaleur, les cuisinières ou d’autres appareils (y compris
les ampli󰤱cateurs) qui produisent de la chaleur.
NE PAS faites fonctionner l’enceinte si le cordon d’alimentation est e󰤳loché, pincé, endommagé et/ou
si l’un des connecteurs du cordon d’alimentation est endommagé et ne l’insérez pas correctement dans
l’enceinte. Ne forcez JAMAIS un connecteur de cordon d’alimentation dans le haut-parleur. Si le cordon
d’alimentation ou l’un de ses connecteurs est endommagé, remplacez-le immédiatement par un nouveau
de puissance nominale similaire.
NE PAS démonter le haut-parleur, il n’y a AUCUNE pièce réparable par l’utilisateur à l’intérieur. Con󰤱ez
toutes les réparations à un personnel de service quali󰤱é. Une réparation est nécessaire lorsque l’enceinte
a été endommagée de quelque manière que ce soit, par exemple si le cordon d’alimentation ou la 󰤱che est
endommagé, si du liquide a été renversé et/ou si des objets sont tombés dans l’enceinte, si l’enceinte a
été exposée à la pluie et/ou à l’humidité, ne fonctionne pas normalement ou est tombé.
NE PAS annuler l’objectif de sécurité de la 󰤱che polarisée ou de type mise à la terre. Une 󰤱che polarisée
a deux lames dont l’une est plus large que l’autre. Une 󰤱che de type mise à la terre a deux lames et une
troisième broche de mise à la terre. La lame large ou la troisième dent est prévue pour votre sécurité. Si
la 󰤱che fournie ne rentre pas dans votre prise, consultez un électricien pour remplacer la prise obsolète.

9
LIGNES DIRECTRICES DE SÉCURITÉ
SOURCES D’ÉNERGIE: Ce produit doit être connecté à une alimentation électrique uniquement
du type décrit dans ce mode d’emploi, ou tel qu’indiqué sur l’appareil. Ce produit est spéci󰤱que au
pays.
BORNE DE TERRE DE PROTECTION: Le haut-parleur doit être connecté à une prise de courant avec
une connexion terre/terre de protection.
DISPOSITIF DE DÉCONNEXION : La 󰤱che du cordon d’alimentation est utilisée comme dispositif de
déconnexion et doit rester facilement disponible et utilisable.
SEULEMENT Tenez le cordon d’alimentation par l’extrémité de la 󰤱che, ne débranchez jamais la
󰤱che en tirant sur la partie 󰤱laire du cordon.
TOUJOURS débranchez le haut-parleur de la source d’alimentation principale avant d’e󰤰ectuer
toute procédure d’entretien ou de nettoyage.
NE PAS utilisez des solvants ou un nettoyant pour vitres pour nettoyer le haut-parleur. Nettoyez
uniquement avec un chi󰤰on sec.
MISE EN GARDE: Pour éviter tout dommage physique, lisez attentivement les instructions
d’installation avant l’installation.
MISE EN GARDE: Écouter des haut-parleurs à un volume élevé pendant une période prolongée ou à
proximité immédiate peut endommager l’ouïe.
MISE EN GARDE: Les haut-parleurs doivent être installés/utilisés UNIQUEMENT par des
professionnels quali󰤱és et formés.
MISE EN GARDE: Montez toujours les enceintes de manière sûre et stable.
MISE EN GARDE: Portez un équipement de sécurité approprié lors de l’installation des enceintes.
MISE EN GARDE: Acheminez les câbles d’alimentation et audio de sorte qu’ils NE soient PAS
susceptibles d’être piétinés ou pincés.
MISE EN GARDE: Débranchez l’enceinte pendant les orages et/ou lorsqu’elle n’est pas utilisée
pendant de longues périodes
MISE EN GARDE: La température ambiante maximale de fonctionnement est de 35℃ (95℉).
SEULEMENT utilisez les matériaux d’emballage et/ou l’étui d’origine pour transporter l’enceinte en
vue de son entretien.
S’IL VOUS PLAÎT recyclez les cartons d’expédition et les emballages dans la mesure du possible.

10
MAINTENANCE GUIDELINES
Regular maintenance is necessary to optimize the potential functional lifespan of the speakers.
1. Read the installation and operation instructions for correct operation of the speakers.
2. Although the speakers are rugged and designed to withstand limited impact forces when
installed correctly, take care to avoid impact damage when handling or transporting
speakers, especially the speaker mesh screen.
3. The speakers should be serviced by a quali󰤱ed service technician when:
A. Objects have fallen, or liquid has been spilled into the speaker.
B. Been exposed to rain or water conditions.
C. Does not appear to operate normally or exhibits a marked change in performance.
D. Has fallen and/or been subjected to extreme handling.
4. Check each speaker for loose screws and/or other fasteners.
5. If the speaker installation is 󰤱xed or displayed for a lengthy time, regularly inspect all
rigging and installation equipment, and replace or repair it as necessary, and during long
periods of non-use, disconnect the main power to the unit.
6. If while conducting an electrical test a circuit shorts, a breaker-switch trips, wires burn,
and or any other abnormality appears, discontinue testing, and troubleshoot units to 󰤱nd
the problem before continuing with any testing or operation.
7. The speakers are designed for dry locations use only.
8. When not in use, store speakers in a dry, well ventilated storage location.
FUSE REPLACEMENT
1. Turn o󰤰 power
2. Unplug the power cable.
3. Unscrew fuse holder with 󰤲athead screwdriver.
4. Replace blown fuse iwth a new T4AL 250V fuse.
5. Reinstall fuse holder.
6. It is recommended that a spare fuse be readily available.
7. If refusing the fuse fails to work, contanct an ampli󰤱er repair professional.

11
DIRECTIVES D’ENTRETIEN
Un entretien régulier est nécessaire pour optimiser la durée de vie fonctionnelle potentielle
des enceintes.
1. Lisez les instructions d’installation et d’utilisation pour un fonctionnement correct des
enceintes.
2. Bien que les haut-parleurs soient robustes et conçus pour résister à des forces d’impact
limitées lorsqu’ils sont installés correctement, veillez à éviter tout dommage lors de la
manipulation ou du transport des haut-parleurs, en particulier le grillage des haut-parleurs.
3. Les haut-parleurs doivent être réparés par un technicien quali󰤱é lorsque :
A. Des objets sont tombés ou du liquide a été renversé dans le haut-parleur.
B. Été exposé à la pluie ou à l’eau.
C. Ne semble pas fonctionner normalement ou présente un changement marqué de
performance.
D. Est tombé et/ou a été soumis à des manipulations extrêmes.
4. Véri󰤱ez chaque haut-parleur pour des vis et/ou autres 󰤱xations desserrées.
5. Si l’installation du haut-parleur est 󰤱xe ou a󰤳chée pendant une longue période, inspectez
régulièrement tout le matériel de montage et d’installation, et remplacez-le ou réparez-le
si nécessaire, et pendant de longues périodes de non-utilisation, débranchez l’alimentation
principale de l’appareil.
6. Si, lors d’un test électrique, un court-circuit, un disjoncteur se déclenche, des 󰤱ls brûlent et/
ou toute autre anomalie apparaît, interrompez le test et dépannez les unités pour trouver le
problème avant de poursuivre tout test ou opération.
7. Les haut-parleurs sont conçus pour une utilisation dans des endroits secs uniquement.
8. When not in use, store speakers in a dry, well ventilated storage location.
REMPLACEMENT DE FUSIBLE
1. Éteignez l’alimentation.
2. Débranchez le câble d’alimentation.
3. Dévissez le porte-fusible avec un tournevis à tête plate.
4. Remplacez le fusible grillé par un nouveau fusible T4AL 250V.
5. Réinstallez le porte-fusible.
6. Il est recommandé qu’un fusible de rechange soit facilement disponible.
7. Si le refus du fusible ne fonctionne pas, contactez un professionnel de la réparation d’ampli󰤱cateurs..

12

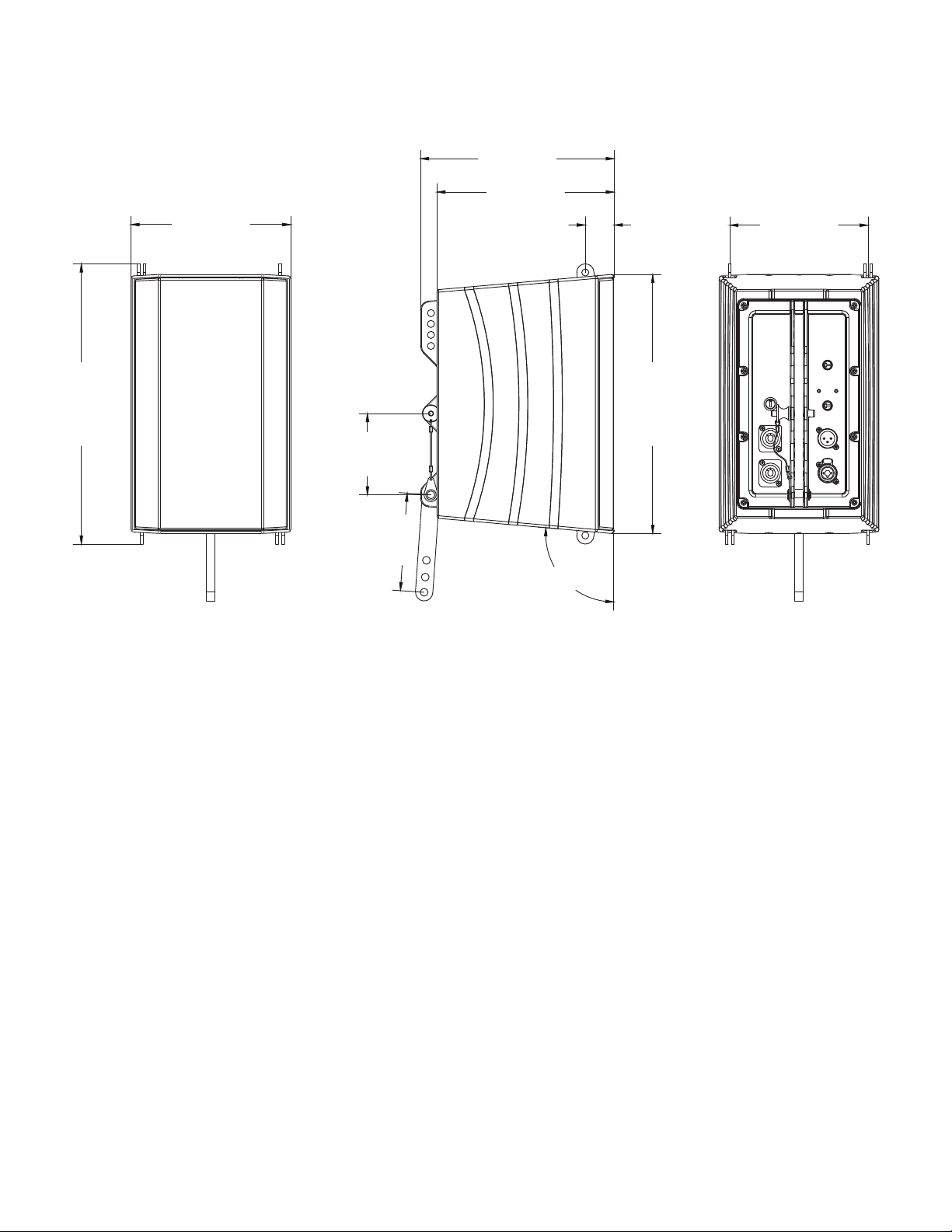

OVERVIEW - IMP205 DIMENSIONS
7.3in. [185mm]
12.8in. [324mm]
1.3in.
[34mm]
8.1in. [205mm]
8.8in. [224mm]
4.4in.
[113mm]
3.7in.
[94mm]
11.8in. [299mm]
95°in.
6.3in. [160mm]

13
OVERVIEW - IMPERIO FLYBARS
IMPERIO FLYBAR - SMALL
Sold Seperately
IMPERIO FLYBAR - LARGE
Sold Separetely

14

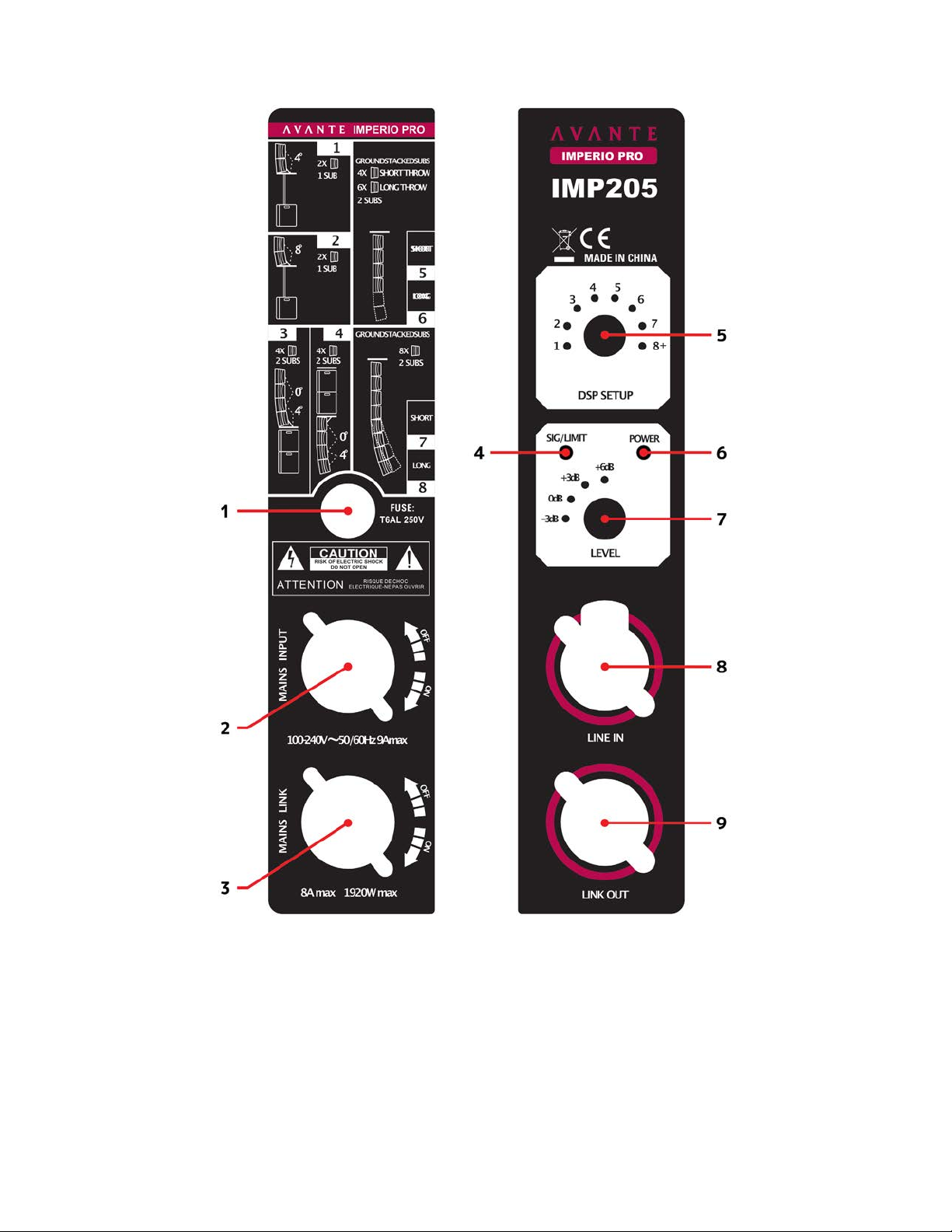

OVERVIEW – CONNECTIONS & CONTROLS
IMP205
1. FUSE: Slow-Blow 4.0 Amp 250V fuse (100-240V).
2. MAINS INPUT: Power input (+).
3. MAINS LINK: Power output (-). Output is connected in parallel with mains input (3) and can
be used to power additional IMP205 speakers.
4. SIG/LIMIT: Green indicates a signal ≥2 5dBu, and red indicates that the internal limiter
circuit has tripped, preventing ampli󰤱er distortion and speaker overloads.
5. DSP SETUP: 8-position rotary switch selects between 8 equalization curve and DSP presets.
6. POWER: Blue indicates main power.
7. LEVEL: Control internal speaker volume (from -3dB to +6dB).
8. LINE IN: 3Pin XLR input connector (balanced line-level audio input).
9. LINK OUT: 3pin XLR output connector (balanced line-level audio output).

15
CONFIGURATION & DSP PRESETS
The IMP205 speakers can be configured in various ways to optimize setup for crowd
size and venue, whether pole-mounted on a standard speaker stand (not included),
pole mounted on top of the sub, stacked on the sub, or flying attached to a rig.

16

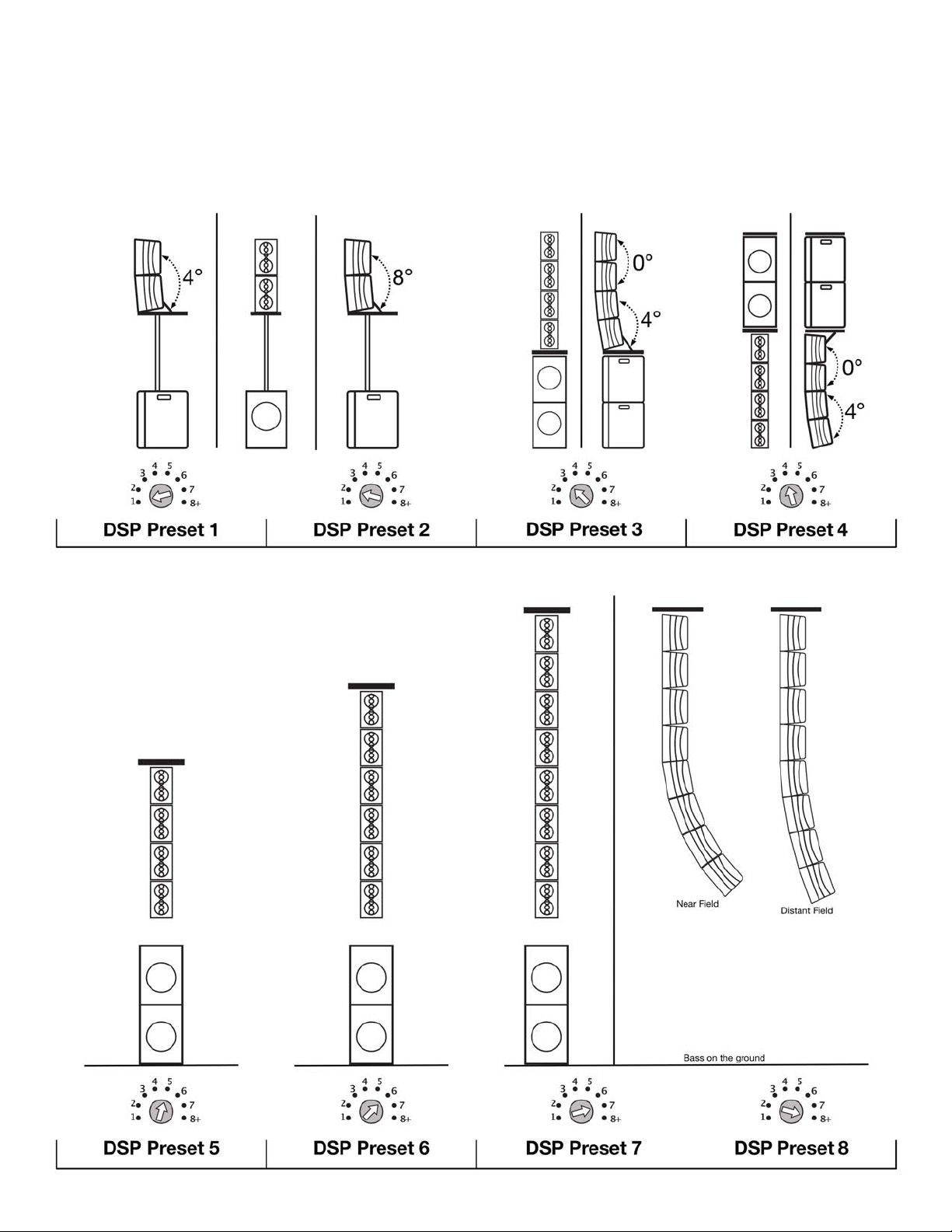

CONFIGURATION & DSP PRESETS 1, 2, 3, 4

17
CONFIGURATION & DSP PRESETS 5, 6, 7, 8

18

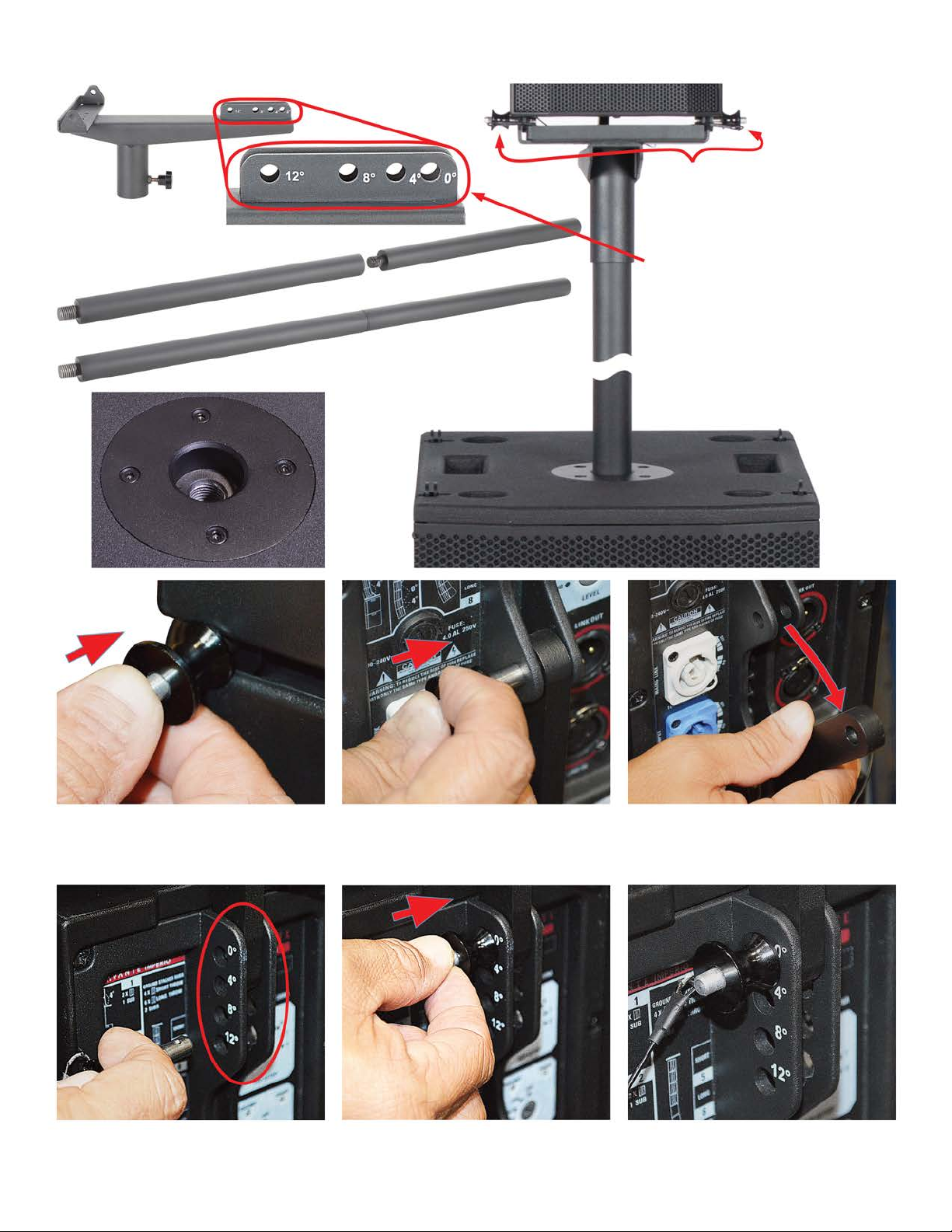

INSTALLATION – RIGGING AND SUSPENSION
DO NOT INSTALL SPEAKERS IF YOU ARE NOT QUALIFIED TO DO SO!
INSTALLATION BY QUALIFIED TECHNICIANS ONLY!
INSTALLATIONS SHOULD BE CHECKED BY A QUALIFIED PERSON ONCE A YEAR!
FLAMMABLE MATERIAL WARNING
Keep speaker a minimum of 5.0 feet (1.5m) away from 󰤲ammable materials and/or
pyrotechnics.
ELECTRICAL CONNECTIONS
A quali󰤱ed electrician should complete all electrical connections and/or installations.
A MAXIMUM OF 12 IPERIO PRO speakers may be suspended from a SMALL FLYBAR.
A MAXIMUM OF 2 IMP205 Sub speakers may be suspended from a LARGE FLYBAR,
plus A MAXIMUM OF 4 IMP205 speakers may be suspended from a LARGE FLYBAR
attached to the bottom of the above mentioned 2 suspended sub speakers.
USE CAUTION WHEN POWER LINKING MULTIPLE SPEAKERS AS THE POWER
CONSUMPTION OF OTHER SPEAKER MODELS MAY EXCEED THE MAX POWER OUTPUT
ON THIS SPEAKER. CHECK SILK SCREEN ON SPEAKER FOR MAX AMPS.
WARNING! The safety and suitability of any lifting equipment, installation location/
platform, anchoring/rigging/mounting method, hardware, and electrical installation is the sole
responsibility of the installer.
Install speaker(s), all speaker accessories, and all anchoring/rigging/mounting hardware
following all local, national, and country commercial, electrical, and construction codes and
regulations.
Consult a professional equipment installer to determine if the metal truss/structure or surface
is properly certi󰤱ed to safely support the combined weight of the speakers(s), clamps, cables,
and all rigging hardware and accessories before rigging/mounting a single speaker or multiple
interconnected speakers to any metal truss/structure.
Carefully consider item selection for rigging in unusual environmental conditions as rigging and
suspension equipment could be subject to wear, misuse, overloading, corrosion, deformation,
alteration, and other factors that may reduce their capacity rating.
Visually inspect metal truss/structure to ensure it does not 󰤲ex and/or become deformed due
to the weight of the speaker(s). Damage caused to speaker(s) through mechanical stress is not
covered by warranty.
Install speakers(s) in areas outside walking paths, seating areas, or away from areas were
unauthorized personnel might reach the speaker(s) by hand. Access under work area must be
blocked.

19
INSTALLATION – RIGGING AND SUSPENSION
OVERHEAD RIGGING
Overhead rigging requires extensive experience, including amongst others, calculating working load
limits, installation material being used, and periodic safety inspection of all installation material
and the speaker. If you lack these quali󰤱cations, do not attempt the installation yourself. Improper
installation can result in bodily injury and property damage. Regardless of local installation
conditions, the following guidelines apply to all overhead rigging installations:
NEVER stand directly below the speaker(s) when rigging, removing or servicing.
To limit swinging or tipping the load when lifting the sub speaker(s) and/or Imperio speaker(s)
into position when stacking, rigging, and/or suspending them using the available Imperio Flybar(s),
determine the center of gravity of the overall assembly, then rig or suspend the load through a
lifting point straight above the center of gravity. If using multiple rigging/anchor points and a
single lifting point, ensure that all suspension load angles used are symmetrical about the lifting
point with respect to the center of gravity so that load tensions are balanced between ropes, wires,
chains, or cables.
Structural members, such as a truss system, must always be used to attach or suspend loads from
a ceiling or to a wall. Never use a ceiling or wall surface itself to attach or suspend external loads,
the catastrophic failure of which can or likely will result in potential structural/property damage,
injury, or death.
Inspect/verify the structural integrity of the structural member used to suspend, hang, or support
external loads by looking for hidden structural weaknesses.
Avoid using threaded fasteners in wooden structural members for suspending overhead loads (nails,
screws, lag bolts, etc.). Threaded fasteners are inherently unreliable for suspending overhead loads,
due in part to possible hidden structural weaknesses in the wood (cracks, knots, etc.).
Suspension points provided by the installation owner or third-party may not be adequate to lift or
suspend the intended overhead loads.
You must consult an expert, such as a structural engineer or rigging specialist, if there is even the
slightest question or doubt about the structural integrity of any part of the installation.
Take all appropriate precautions and safety measures when placing equipment in potentially
dangerous locations, especially where public safety is a concern.

20
INSTALLATION – OVERVIEW
Secure front of IMP205
speaker to Imperio Sub
Adapter using Linkpin 1
locking pins.
Adjust the throw angle by
attaching the integrated
adjustable mounting bracket
from speaker to desired
throw angle mounting hole
on the Imperio Sub Adapter,
and secure with Linkpin 2
locking pins.
Secure front of top IMP205
speaker to top of bottom IMP205
speaker using Linkpin 1.
Pull Linkpin 2 from integrated
adjustable mounting bracket of
the top IMP205 speaker.
Swing integrated adjustable
mounting bracket down.
Adjust throw angle by attaching integrated adjustable mounting bracket from IMP205 speaker,
swinging it down to desired throw angle mounting hole on bottom IMP205 speaker or Flybar,
secure with Linkpin 2.
