Avanti X-FIT 2P User manual

USER’S MANUAL
X-FIT 2P
MOTORIZED TREADMILL
MODEL NUMBER: X-FIT 2P
USER WEIGHT LIMITATION: 136kgs. (300lbs.)
SERIAL NUMBER (found on frame):

X-FIT 2P TREADMILL
2
PRECAUTIONS
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.
Use the treadmill only as described in this manual.
Place on a level surface, with 2 meters (6 feet) of clearance behind it. Do not place the treadmill on any surface that
blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
When choosing a location for the treadmill make sure that the location and position permit access to a plug.
Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or
near water.
Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
Keep children under the age of 12 and pets away from the treadmill at all times.
The treadmill should not be used by persons weighing more than 136kg (300lbs.).
Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the
treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
Always straddle the belt and allow it to start moving before stepping onto the belt.
Always examine your treadmill before using to ensure all parts are in working order.
Allow the belt to fully stop before dismounting.
Never insert any object or body parts into any opening.
Follow the safety information in regards to plugging in your treadmill.
Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by
an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.
Never leave the treadmill unattended while it is running.

X-FIT 2P TREADMILL
3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN
ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE
PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector
with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less
and an electrical rating 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

X-FIT 2P TREADMILL
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call the manufacturer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 136kgs (300lbs.) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown
here. This product is not intended to support users whose weight exceeds this limit.
Reset Button:
The treadmill will shut off automatically if it encounters a surge in power. A reset button is located on the lower front of the
motor covering, as shown in the drawing below. If the treadmill should shut down you should first turn the power on/off switch
to the “off” position, then press the reset button. The treadmill will now work properly.

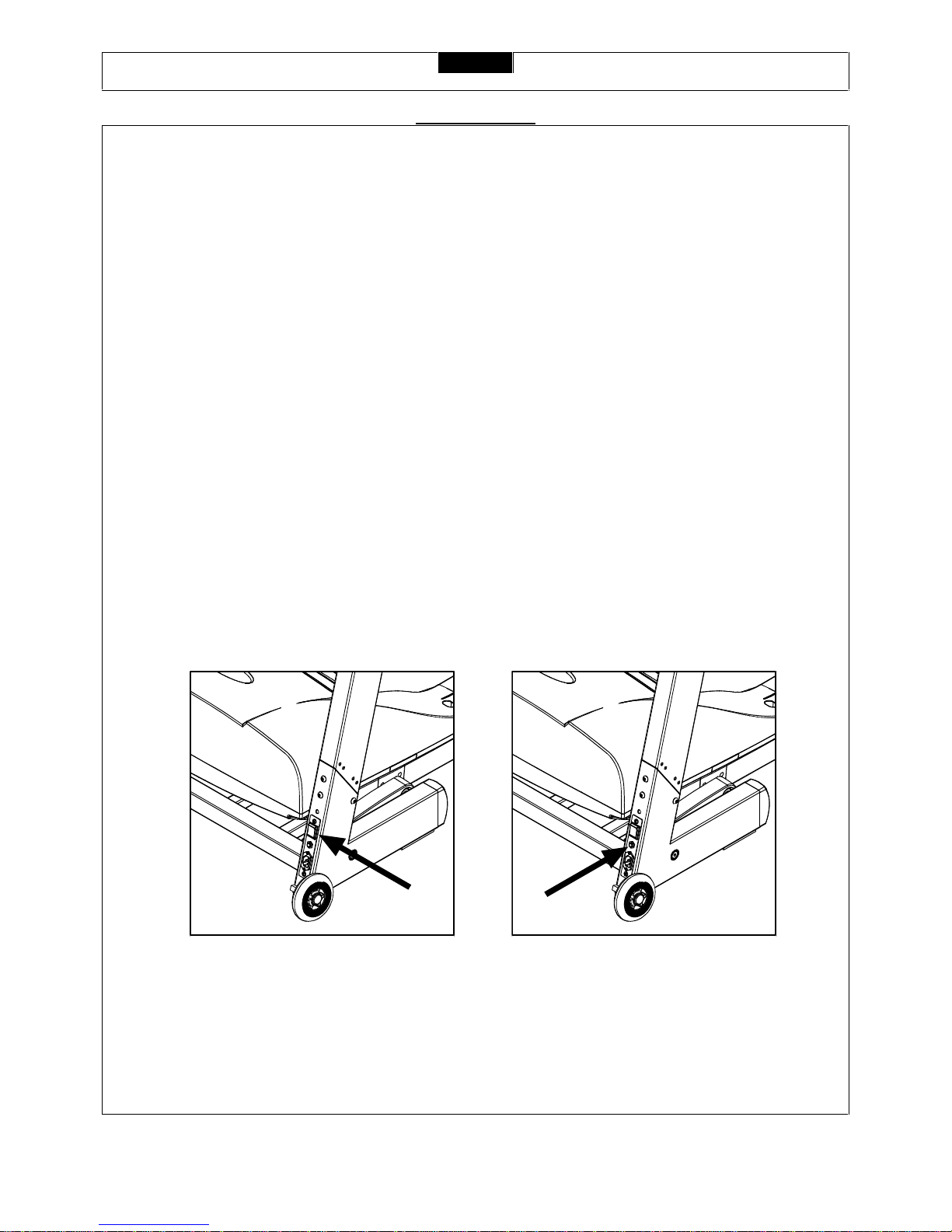

The Power on/off switch is located at the top of
the power plate.
The Reset button is located at the middle
of the power plate.

X-FIT 2P TREADMILL
5
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO.
DESCRIPTION
QTY.
9
M6 x 20mm Screw
2
17
M8 x 19 Handlebar Fixing
Bolt
4
21
Plastic Bracket
2
22
M6 x 15mm Screw
2
23
M8 x 15mm Bolt
4
109
M8 x 78mm Bolt
2
110
Metal Cap
2
112
#8 x 19mm Drill Head
Screw
4
113
#8 x 19 Screw
4
A
Wrench
1
B
Phillips Head Wrench
1
C
Allen Head Wrench
1
MILLIMETERS

X-FIT 2P TREADMILL
6
PARTS LIST
No.
Description
Qty.
Order No.
No.
Description
Qty.
Order No.
1
Computer Screw
4
XFIT2P-01
31
Spring
1
XFIT2P -31
2
Console
1
XFIT2P -02
32
Base Frame End Cap
2
XFIT2P -32
3
Top Console Housing
1
XFIT2P -03
33
Level Adjust
2
XFIT2P -33
4
Bottom Console Housing
1
XFIT2P -04
34
Base Frame
1
XFIT2P -34
5
Wire Protection Ring
1
XFIT2P -05
35
Rear Moving Wheel
2
XFIT2P -35
6
Safety Key
1
XFIT2P -06
36
Cushion
4
XFIT2P -36
7
M4 x 12mm Screw
7
XFIT2P -07
37
Cap
1
XFIT2P -37
8
Console Support Tube
1
XFIT2P -08
38
3/8” x 30mm Bolt
1
XFIT2P -38
9
M6 x 15mm Screw
2
XFIT2P -09
39
Bushing
1
XFIT2P -39
10
Handlebar Front End Cap
2
XFIT2P -10
40
Wheel
1
XFIT2P -40
11
Motion Control Sensor
2
XFIT2P -11
41
Deck Frame Support
1
XFIT2P -41
12
Hand Pulse Sensor
2
XFIT2P -12
42
Shock
1
XFIT2P -42
13
M8 x 50 Allen Head Bolt
4
XFIT2P -13
43
C Clip
2
XFIT2P -43
14
Handlebar - Left
1
XFIT2P -14
44
4.5 x 12mm Washer
8
XFIT2P -44
15
Handlebar - Right
1
XFIT2P -15
45
M8 x 15mm Screw
25
XFIT2P -45
16
M8 x 76mm Allen Head Bolt
2
XFIT2P -16
46
M10 Nylon Nut
6
XFIT2P -46
17
M8 x 19 Handlebar Fixing Bolt
4
XFIT2P -17
47
Bushing
6
XFIT2P -47
18
M5 x 10mm Allen Head Bolt
1
XFIT2P -18
48
Wheel Shaft
2
XFIT2P -48
19
Left Upright
1
XFIT2P -19
49
M8 Nylon Nut
5
XFIT2P -49
20
Right Upright
1
XFIT2P -20
50
M10 x 60mm Bolt
2
XFIT2P -50
21
Plastic Cover
2
XFIT2P -21
51
Caster Wheel - Front
2
XFIT2P -51
22
M6 x 15mm Screw
2
XFIT2P -22
52
Caster Bracket
2
XFIT2P -52
23
M8 x 15mm Bolt
8
XFIT2P -23
53
Console Support Fixing
Screw
1
XFIT2P -53
24
M5 x 8mm Bolt
2
XFIT2P -24
54
Motor Hood Insert
1
XFIT2P -54
25
Switch Plate
1
XFIT2P -25
55
Motor Hood
1
XFIT2P -55
26
M14 x 90mm Bolt
2
XFIT2P -26
56
M8 x 50mm Screw
2
XFIT2P -56
27
Elevation Support Tube Cover
- Right
1
XFIT2P -27
57
6.5 x 13mm Washer
5
XFIT2P -57
28
M5 x 10mm Screw
1
XFIT2P -28
58
Side Rail
2
XFIT2P -58
29
6.5 x 13mm Washer
1
XFIT2P -29
59
Deck End Cap - Left
1
XFIT2P -59
30
Fold Up Lock
1
XFIT2P -30
60
Deck End Cap - Right
1
XFIT2P -60

X-FIT 2P TREADMILL
7
PARTS LIST
No.
Description
Qty.
Order No.
No.
Description
Qty.
Order No.
61
Running Belt
1
XFIT2P -61
91
Bushing
2
XFIT2P –91
62
Rail Guide
8
XFIT2P -62
92
Plastic Clamp - Top
2
XFIT2P –92
63
M8 x 25mm Screw
8
XFIT2P -63
93
Plastic Clamp - Bottom
1
XFIT2P –93
64
Running Deck
1
XFIT2P -64
94
Bracket
2
XFIT2P –94
65
Washer
2
XFIT2P -65
95
M10 x 90mm Screw
1
XFIT2P –95
66
Rubber Cushion
1
XFIT2P -66
96
Spring Washer
8
XFIT2P –96
67
M8 x 135mm Bolt
1
XFIT2P -67
97
Rear Roller
1
XFIT2P –97
68
Motor Bracket
1
XFIT2P -68
98
Rear Roller Shaft
1
XFIT2P –98
69
M8 x 15mm Screw
2
XFIT2P-69
99
M8 Nut
5
XFIT2P –99
70
Spring Washer
2
XFIT2P -70
100
M8 x 19mm Allen Head
Bolt
4
XFIT2P –100
71
8 x 16mm Washer
1
XFIT2P-71
101
Deck Wheel
2
XFIT2P –101
72
M10 x 136mm Hex Bolt
1
XFIT2P -72
102
M8 x 43mm Bolt
2
XFIT2P –102
73
Driving Motor
1
XFIT2P -73
103
Motor Belly Pan
1
XFIT2P –103
74
Motor Drive Belt
1
XFIT2P -74
104
M8 x 35mm Screw
2
XFIT2P –104
75
Elevation Motor
1
XFIT2P -75
105
Elevation Support Tube
Cover - Left
1
XFIT2P –105
76
Clip
2
XFIT2P -76
106
Deck Frame
1
XFIT2P –106
77
M5 x 12mm Screw
2
XFIT2P -77
107
Cap
2
XFIT2P –107
78
M10 x 63mm Bolt
1
XFIT2P –78
108
Rubber Cushion
2
XFIT2P –108
79
Motor Control Board
1
XFIT2P –79
109
M8 x 78mm Bolt
2
XFIT2P –109
80
Transformer Board
1
XFIT2P –80
110
Metal Cap
2
XFIT2P –110
81
M10 x 35mm Screw
9
XFIT2P –81
111
Cross Brace
1
XFIT2P –111
82
Elevation Support
1
XFIT2P –82
112
#8 x 19mm Drill Head
Screw
4
XFIT2P –112
83
Micro Switch
1
XFIT2P –83
113
#8 x 19 Screw
4
XFIT2P –113
84
Frame Cover - Left
1
XFIT2P –84
114
Handlebar Rear End Cap –
Left #1
1
XFIT2P –114
85
M6 x 70mm Screw
3
XFIT2P –85
115
Handlebar Rear End Cap –
Left #2
1
XFIT2P –115
86
Deck Cushion
8
XFIT2P –86
116
Handlebar Rear End Cap –
Right #2
1
XFIT2P –116
87
Front Roller with Flywheel
1
XFIT2P –87
117
Handlebar Rear End Cap –
Right #1
1
XFIT2P –117
88
Front Roller Shaft
1
XFIT2P –88
89
Fame Cover - Right
1
XFIT2P –89
90
10mm Shaft
1
XFIT2P -90

X-FIT 2P TREADMILL
8
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTOR

X-FIT 2P TREADMILL
9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

X-FIT 2P TREADMILL
10
ASSEMBLY
STEP 1:
Remove your treadmill from the carton as shown in FIG 1.
Rotate the Left and Right Uprights (19 and 20) into position and secure using four M8 x 15mm Bolts (23).
FIG. 1

X-FIT 2P TREADMILL
11
ASSEMBLY

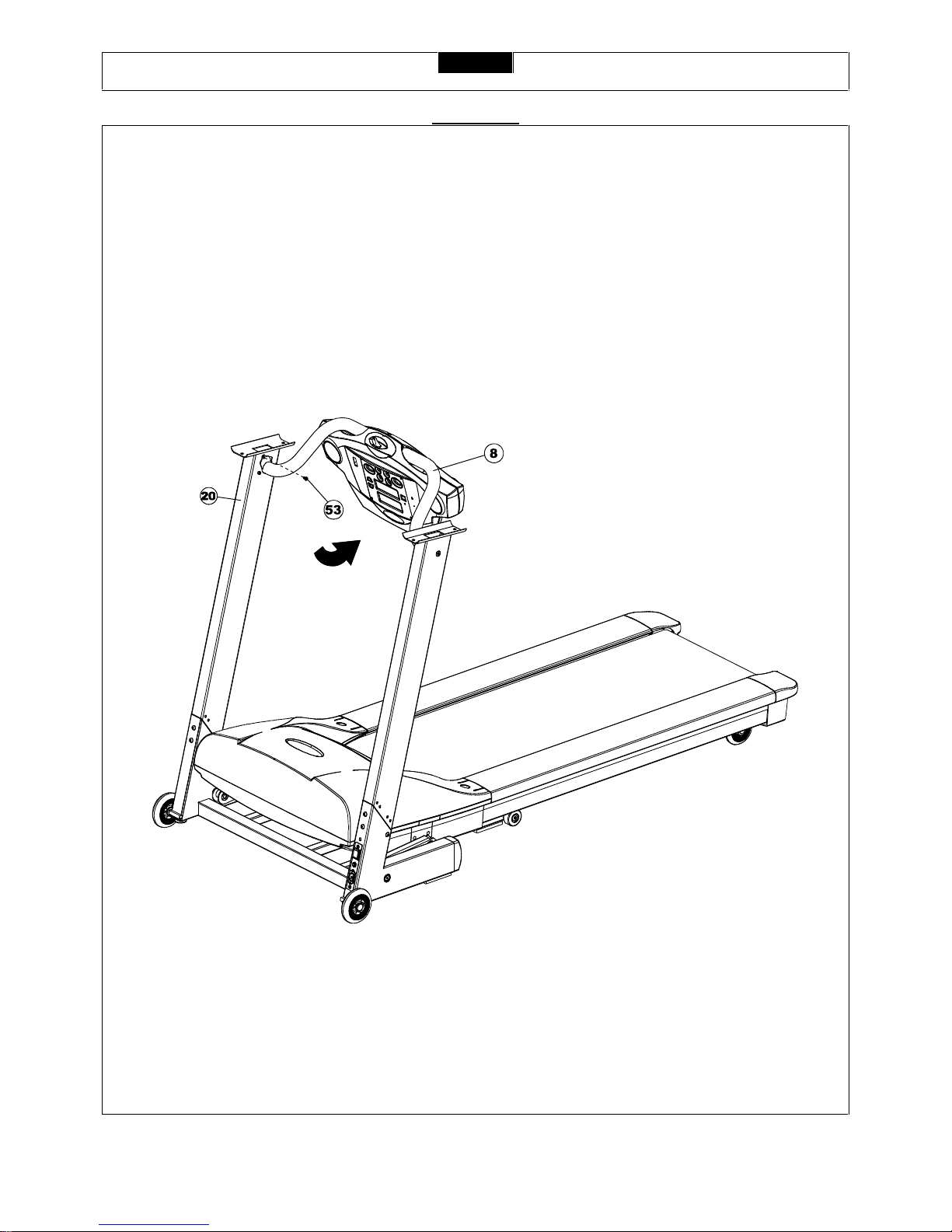

STEP 2:
Remove the Console Support Fixing Screw (53) from the Right Upright (20). Rotate the Console Support Tube (8) up into
position and secure using the Console Support Fixing Screw (53).

X-FIT 2P TREADMILL
12
ASSEMBLY

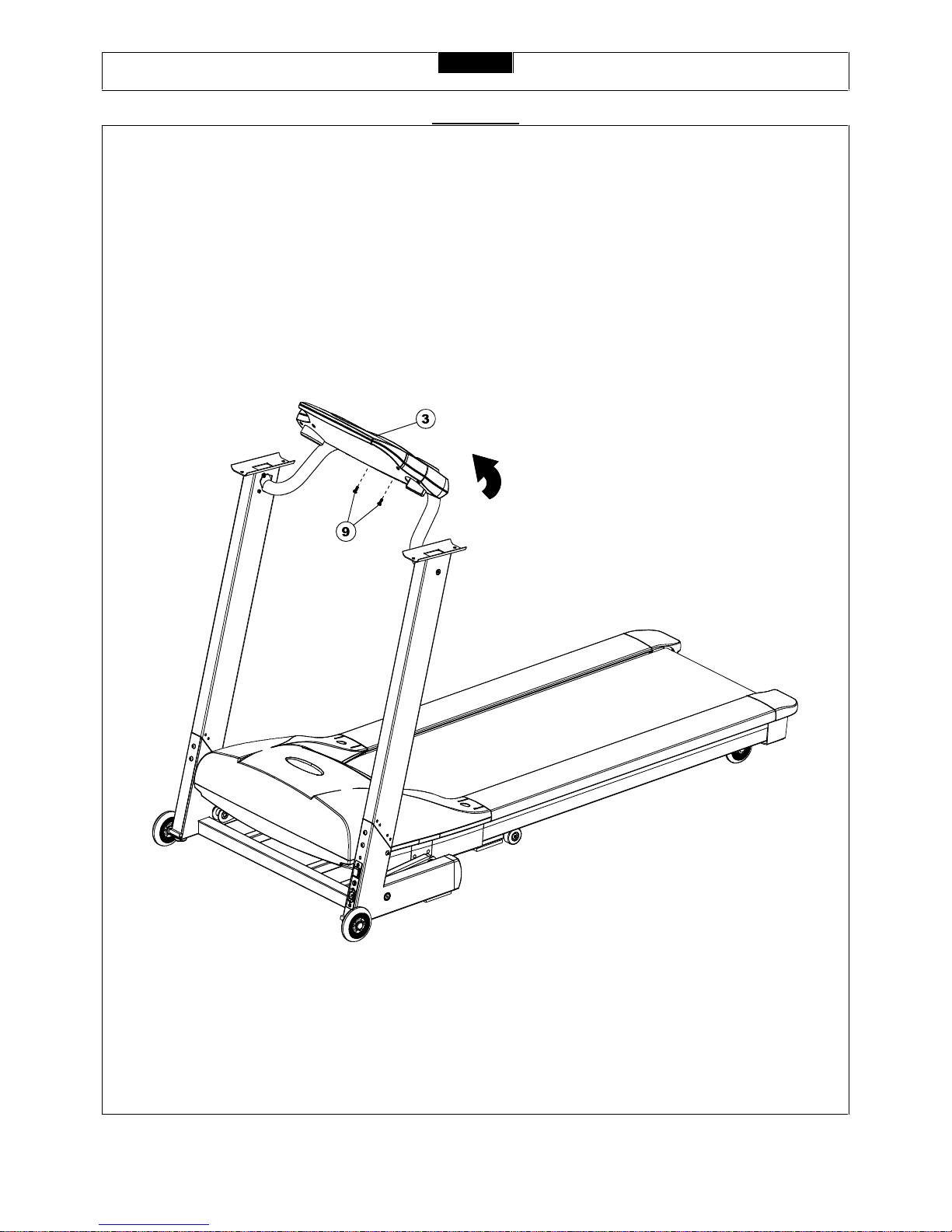

STEP 3:
Rotate the Top Console Housing (3) up into position and secure using two M6 x 15mm Screws (9).

X-FIT 2P TREADMILL
13
ASSEMBLY

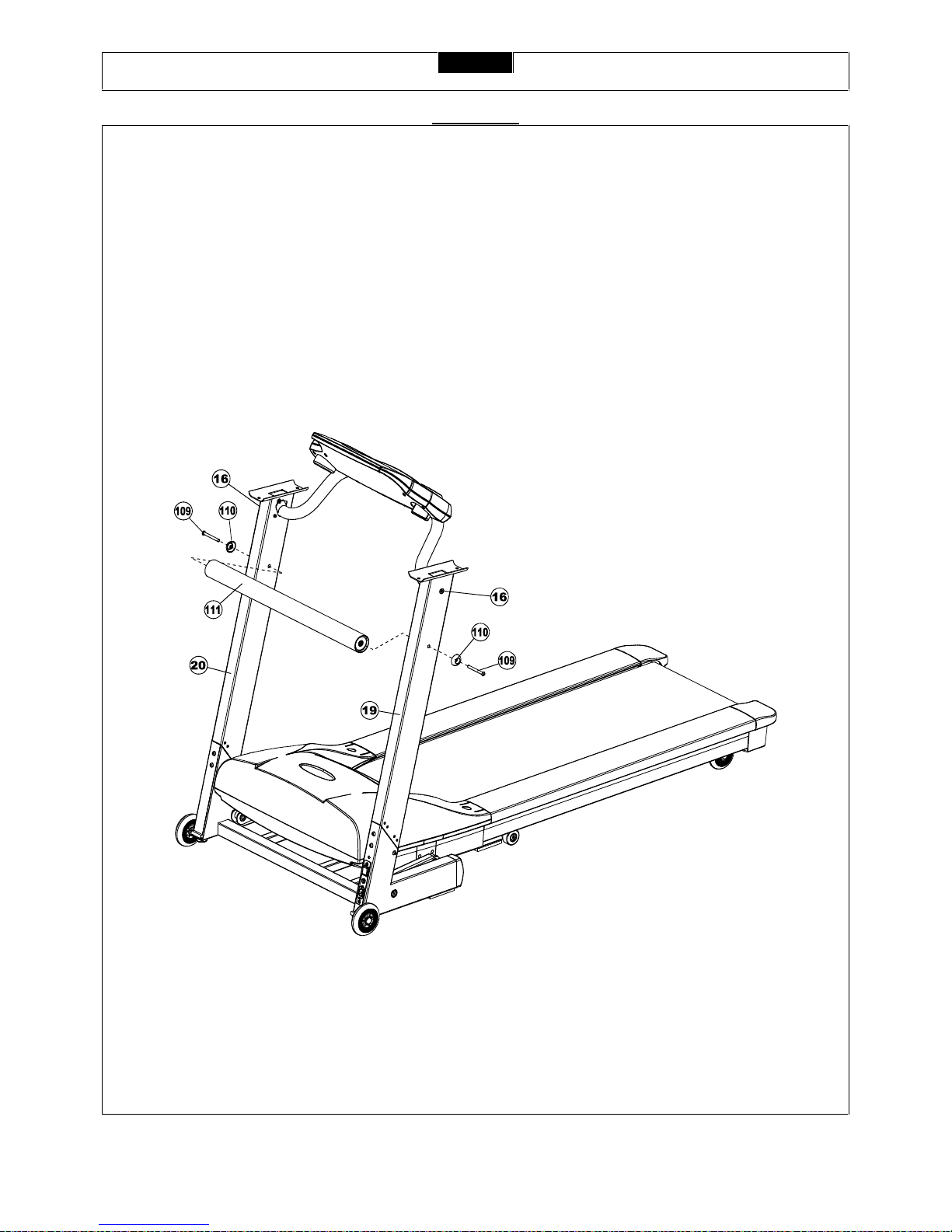

STEP 4:
Attach the Cross Brace (111) to the Left Upright (19) and Right Upright (20) and secure using two Metal Caps (110) and M8 x
78mm Bolts (109).
Locate the M8 x 76mm Allen Head Bolts (16) on the outsides of the Left and Right Uprights (19 and 20). Fully tighten both
M8 x 76mm Allen Head Bolts (16) at this time.

X-FIT 2P TREADMILL
14
ASSEMBLY

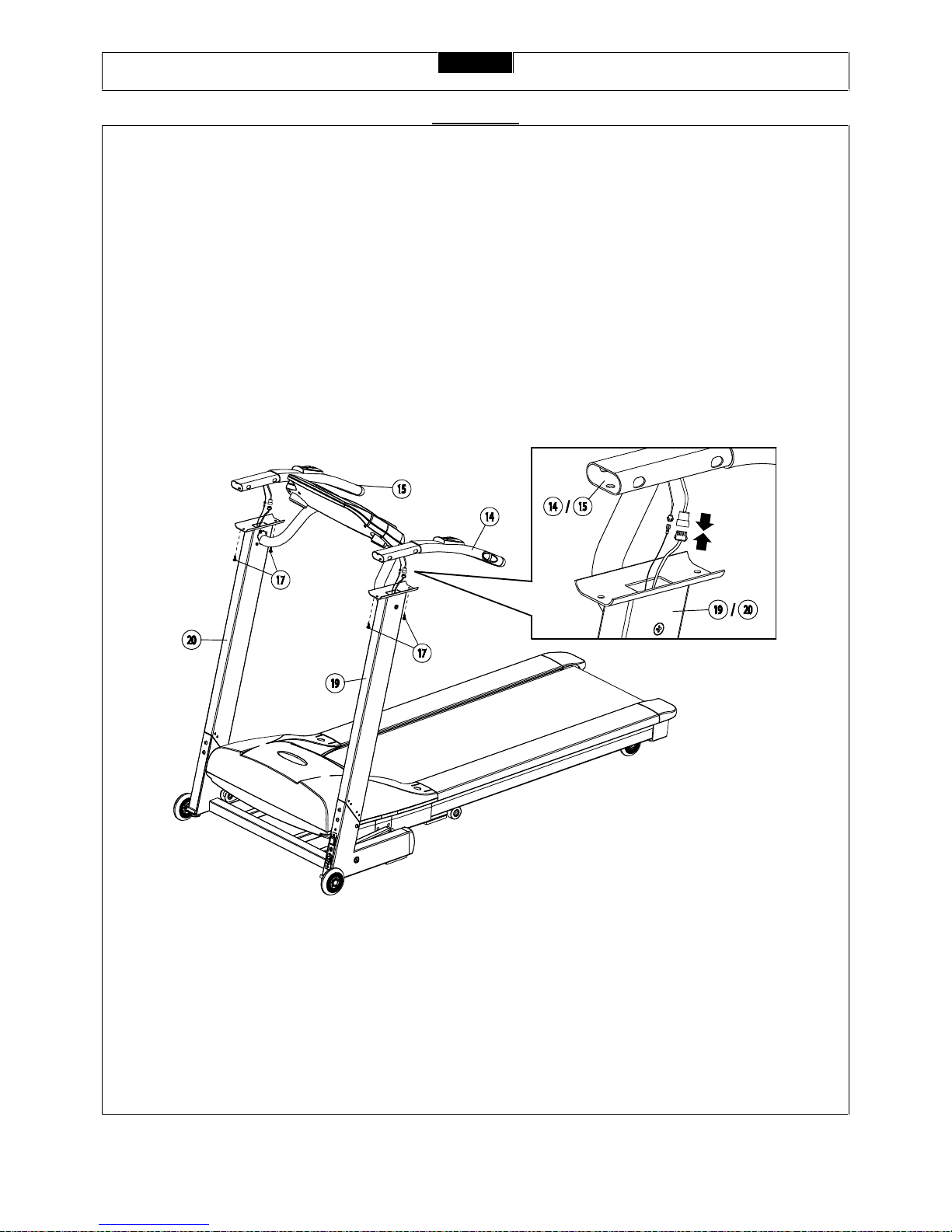

STEP 5:
Connect the wires from the Handlebar - Left (14) to the Left Upright (19). Attach the Handlebar - Left (14) to the Left Upright
(19) using two M8 x 19 Handlebar Fixing Bolts (17).
NOTE: Make sure all wires are recessed inside the Left Upright (19), do not trap or pinch any of the wires.
Repeat this procedure to attach the Handlebar - Right (15) to the Right Upright (20).

X-FIT 2P TREADMILL
15
ASSEMBLY

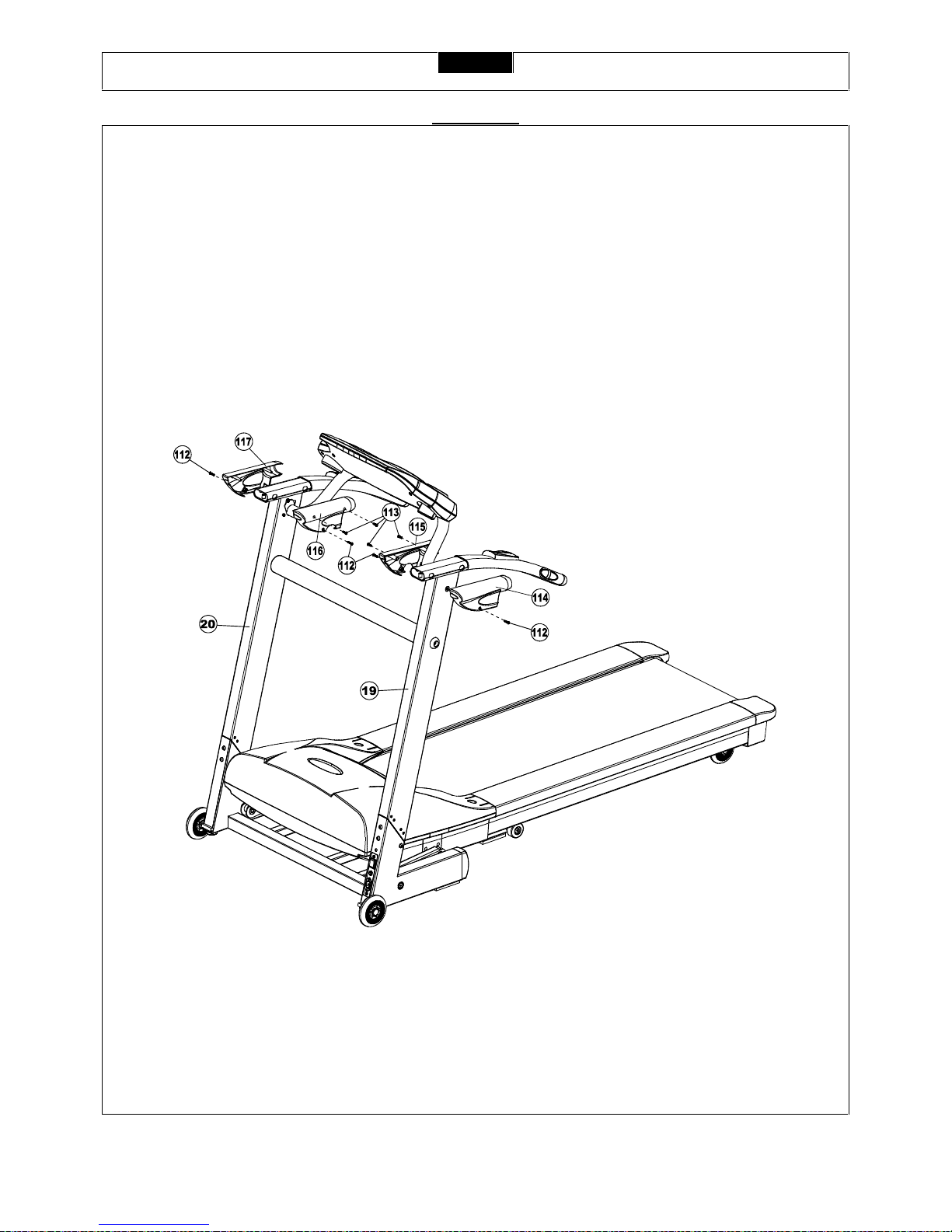

STEP 6:
Attach the Handlebar Rear End Cap – Left #1 (114) and Handlebar Rear End Cap – Left #2 (115) to the Left Upright (19)
using two #8 x 19mm Drill Head Screws (112) and #8 x 19 Screws (113).
Repeat this procedure to attach the Handlebar Rear End Cap – Right #2 (116) and Handlebar Rear End Cap – Right #1
(117) to the Right Upright (20).

X-FIT 2P TREADMILL
16
ASSEMBLY
STEP 7:
Attach one Plastic Cover (21) to the Left Upright (19) and Right Upright (20) using one M6 x 15mm Screw (22) for each.

X-FIT 2P TREADMILL
17
FOLDING INSTRUCTIONS
FOLLOW THESE INSTRUCTIONS TO FOLD UP YOUR X-FIT 2P TREADMILL:
Your treadmill can be folded up for space saving storage space. Simply lift the deck up from the rear of the treadmill and fold
up until it locks in place. TO PREVENT INJURY BE SURE YOU HAVE A FIRM HOLD WHEN RAISING THE DECK. You
will hear a “click” sound as the lock engages.
1. Stand behind the treadmill and lift the deck up.
2. Raise the deck up until the lock engages.

X-FIT 2P TREADMILL
18
UNFOLDING INSTRUCTIONS
FOLLOW THESE INSTRUCTIONS TO UNFOLD YOUR X-FIT 2P TREADMILL:

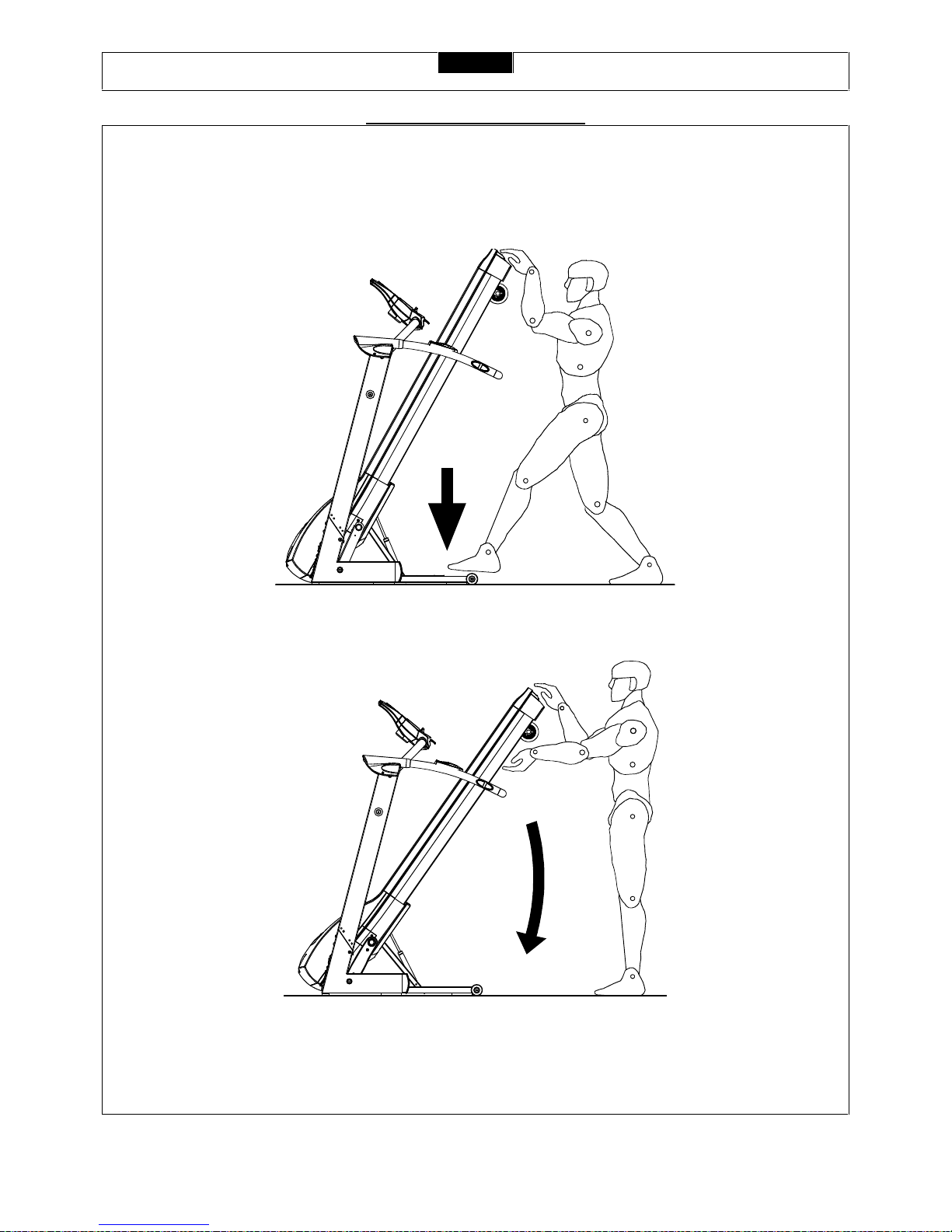

To unfold the treadmill for use begin by standing behind and supporting the deck with your hands. Next release the lock with
your foot by stepping on the release lever. TO PREVENT INJURY BE SURE YOU HAVE A FIRM HOLD ON THE DECK
BEFORE RELEASING THE LOCK. Slowly lower the deck until it rests securely on the ground.
1. Support the deck and release the lock with your foot.
2. Slowly lower the deck until it rests securely on the ground.

X-FIT 2P TREADMILL
19
TRANSPORT INSTRUCTIONS

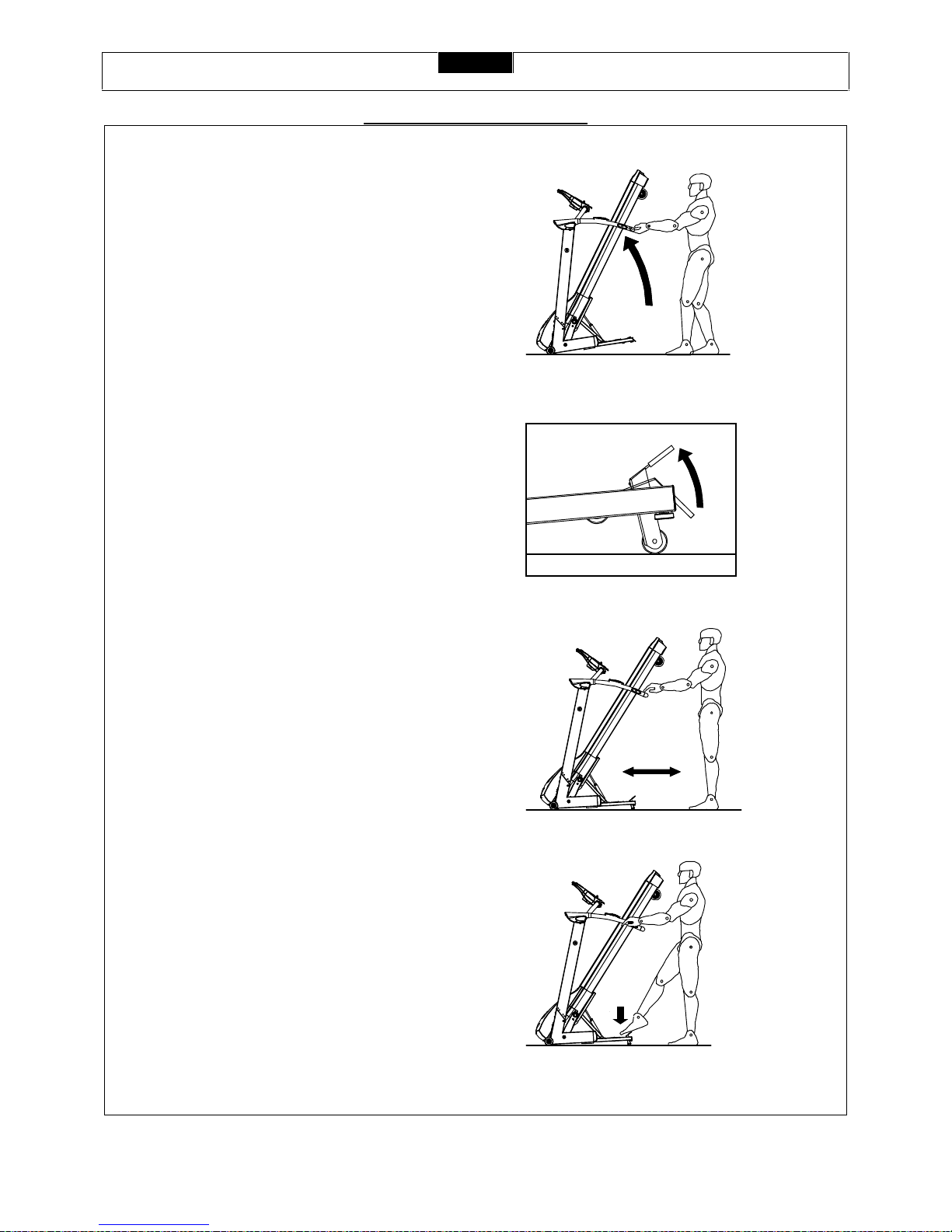

How to transport the treadmill:
1. Start by first folding up the running deck as described on
the FOLDING INSTRUCTIONS page in this manual.
Stand behind the treadmill and tilt it forward onto the front
transport wheels.
1. Fold up the deck and tilt forward onto front
transport wheels.
2. Before attempting to move the treadmill be sure the rear
transport wheel has been flipped down as shown.
2. Flip the rear transport wheel down.
3. With the rear transport wheel flipped down, roll the
treadmill to a desired location.
3. Roll the treadmill to a desired position.
4. After the treadmill has been moved, flip the rear
transport wheel back up by stepping down on the pedal.
Unfold the deck by following the procedure as described
on the UNFOLDING INSTRUCTIONS page in this
manual.
4. Release the rear transport wheel before unfolding
the treadmill.

X-FIT 2P TREADMILL
20
MAINTENANCE
HOW TO MAINTAIN THE X-FIT 2P TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance
could cause damage or shorten the life of your treadmill and exceed any LIMITED WARRANTY coverage.
Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids
away and keep it out of direct sunlight.
Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been
adjusted properly at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt
to shift off center resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage. To adjust
the belt back to it’s proper position please follow the directions below:
Walking belt has shifted to the left: First unplug the power cord from the surge protector. Using the hex key
provided, turn the left rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
Walking belt has shifted to the right: First unplug the power cord from the surge protector. Using the hex key
provided, turn the right rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.
Walking belt is slipping: First unplug the power cord from the surge protector. Using the hex key provided, turn
both the left and right rear roller adjustment bolts the same distance, usually a 1/4 turn in the clockwise direction.
Plug the power cord back into the surge protector and run the treadmill at 2.5 mph. You should now walk on the belt
to determine if the belt is still slipping. Repeat the above procedure until the walking belt is not slipping. The
tension should be just tight enough not to slip.
WARNING! Do not over tighten rollers! This will cause premature roller bearing failure!
Right and left tension bolts are located at the rear of the treadmill.
