Avanti W797 User manual

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Model Numbers/ No. de Modelos: W797 / W798SS
PORTABLE WASHER
LAVADORA PORTATIL
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en lapágina23.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
withoutnotice.
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604-Miami, Florida 33152
www.avantiproducts.com

2
REGISTRATION INFORMATION
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100
days of purchase and receive these important benefits to the following address:
Avanti Products, A Division of the Mackle Co., Inc.
P.O. Box 520604 -Miami, Florida 33152 USA
?Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to help you
refer to this information in the event of an insurance claim such as fire or theft.
?Promote better products:
We value your input. Your responses will help us develop products designed to best meet your future
needs.
-------------------------------------------------(detachhere)----------------------------------------------------------------
Avanti Registration Card
__________________________________ ________________________________________
Name Model # Serial #
__________________________________ ________________________________________
Address Date Purchased Store/Dealer Name
__________________________________ ________________________________________
City State Zip Occupation
__________________________________ As Your Primary Residence, Do You:
Area Code Phone Number ?Own ?Rent
Did You Purchase An Additional Warranty: Your Age:
?Extended ?None ?under 18 ?18-25 ?26-30
Reason For Choosing This Avanti Product: ?31-35 ?36-50 ?over 50
Please indicate the most important factors Marital Status:
that influenced your decision topurchase ?Married ?Single
this product. Is This Product Used In The:
?Price ?Home ?Business
?Product Features How Did You Learn About This Product:
?Avanti Reputation ?Advertising
?Product Quality ?In Store Demo ?Personal Demo
?Salesperson Recommendation ?Other_________________________________
?Friend/Relative Recommendation Comments______________________________
?Warranty _______________________________________
?Other_______________________ _______________________________________

3

4
HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain
your new portable washer properly.
Keep it handy to answer your questions.
If you don't understand something or you need
more assistance, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as
your sales slip) with this guide to establish the
warranty period.
Write down the model and serial numbers.
You'll find them on a plate located on the rear
outside wall of the portable washer.
Please write these numbers here:
____________________________________
Date of Purchase
____________________________________
Model Number
____________________________________
SerialNumber
Use these numbers in any correspondence or
service calls concerning your portable washer.
If you received a damaged portable washer,
immediately contact the dealer (or builder) that
sold you the portable washer.
Save time and money. Before you call for
service, check the Troubleshooting Guide. It
lists causes of minor operating problems that
you can correct yourself.
IF YOU NEED SERVICE
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are some
steps to follow for further assistance.
FIRST, contact the people who serviced your
portable washer. Explain why you are not
pleased. In most cases, this will solve the
problem.
NEXT, if you are still not pleased, write all the
details, including your telephone number, and
send it to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172 USA

5
TABLE OF CONTENTS
REGISTRATION INFORMATION 2
HELP US HELP YOU… 4
PARTS & FEATURES 6
IMPORTANT SAFETY INSTRUCTIONS 7
INSTALLATION INSTRUCTIONS 7
BEFORE USING YOUR PORTABLE WASHER 7
SELECTING A LOCATION 8
ADJUST THE ADJUSTABLE FOOT 8
INSTALLING THE NOISEPROOF PLATE 8
CONNECTING THE WATERSUPPLY HOSE 9
WATER CONNECTION 10
DISMANTLING THE INLET HOSE 10
POSITIONING THE DRAIN HOSE 10
ELECTRICAL CONNECTION11
CONTROL PANEL 11
OPERATING YOUR PORTABLE WASHER 12
PREPARATION 12
BEFORE WASHING 12
OPERATION INSTRUCTIONS 13
AUTOMATIC WASH PROGRAMS 13
MANUAL FUNCTIONS 15
FUNCTIONS 15
DELAY START SETTING 16
CHILDREN-PROOF SETTINGS 16
CARE AND MAINTENANCE 16
CLEANING YOUR PORTABLE WASHER 16
TROUBLESHOOTING GUIDE18
SERVICE FOR YOUR PORTABLE WASHER 19
YOUR AVANTI PRODUCTSWARRANTY 20
WIRING DIAGRAM 21
INSTRUCCIONES EN ESPAÑOL 22~30

6
PARTS & FEATURES
ACCESSORIES
INLET HOSE
2 PIECES
NOISE PROOF PLATE
1 PIECE
FAUCET ADAPTER
2 PIECES
CASTER
4 PIECES
1. DETERGENT CASE
2. SOFTENER DISPENSER
3. INNER TUB
4. CONTROL PANEL
5. BASE
6. NOISE PROOF PLATE
7. INLET HOSE (2 PCS)
8. LINT FILTER
9. PULSATOR
10. POWER SUPPLY CORD
11. DRAINHOSE(1 PC)
12. LEVEL ADJUSTABLE KNOB
13. ADJUSTABLE FOOT
1
2
3
4
5
6
7
9
10
11
12
13
8

7
IMPORTANT SAFETY INSTRUCTIONS
?WARNING?
To reduce the risk of fire, electrical shock, or
injury when using your portable washer,follow
these basic precautions:
?Read all instructions before using the portable washer.
?Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off
vapors that could ignite or explode.
?Do not add gasoline,dry-cleaning solvents, or other flammable or explosive substances to the
wash water. These substances give off vapours that could ignite or explode.
?Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using a washing machine, turn on all hot-water faucets and let
water flow from each forseveral minutes. This will release any accumulated hydrogen gas. As the
gas is flammable,do not smoke or use an open flame during this time.
?DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances
are still dangerous . . . even if they will “just sit in the garage a few days.”
?Before you throw away your old portable washer: Take off the lid.
?Never allow children to operate, play with, or crawl inside the portable washer. Close supervision
of children is necessary when the washer is used near children.
?Do not reach into the washer if the agitator or inner tub ismoving.
?Do not tamper with controls.
?Do not repair or replace any part of the washer or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions.
?Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or
explosion.
?Do not place the washer in steamy rooms or where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation causing an electrical shock hazard.
?Do not store, use gasoline, or any other flammable vapors and liquids in the vicinity of this or any
other portable washer. The fumes can create a fire hazard or explosion.
?If the power cord is damaged, it must bereplaced by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
-Savetheseinstructions-
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR PORTABLE WASHER
?Remove the exterior and interior packing.
?You will need the following tools:
?Wrench
?Pliers
?Screwdriver
?Check to be sure you have all of the following parts:
?2 Inlet Hoses
?2 Faucet Adapters
?1 Noise Proof Plate With Screws
?4 Casters
?Remove shipping brace. Note-It should be saved and used (to prevent damage to washer
components) whenever washer is moved or transported to a new location.
?Clean the interior surface with lukewarm water using a soft cloth.
?Allow 2 inches of space between the back and sides of the appliance.
WRENCH
PLIERS
SCREWDRIVER

8
?Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.
?Don’t use excessively hot water (50°C or more). Plastic parts may be deformed or damaged.
Also, clothing may be deformed or bleached.
?Before washing, check all pockets. If nails or pins remain in pockets, they may damage the
washer or clothes.
?Never splash water on the control panel.
?Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Avanti Products service center.
SELECTING A LOCATION
Before you install the portable washer, select a location with the following
characteristics:
?A hard level surface (if the surface is uneven, see Adjusting The Adjustable
Foot).
?Away from direct sunlight. Direct sunlight may affect the acrylic coating,
plastic and electrical components.
?Adequate ventilation.
?Away from sources of heat such as coal or gas. Make sure that the
washing machine does not stand on its power cord. Ventilation openings
must not be obstructed by carpeting when the portable washer is installed
on a carpeted floor.
ADJUSTING THE ADJUSTABLE FOOT
If the floor is uneven adjust the adjustable foot (do not insert pieces of wood,
or any other objects under the feet).
Loosen the adjustable foot by turning the level adjustable knob with your
hand until it is at the desired height.
Tighten the adjustable foot by turning the level adjustable knob in the
reverse direction.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak surface, noise or vibration
occurs (Allowable is 1°).
For portable applications, the washing machine comes equipped with four
north/south casters that can easily be installed to assist in the movement of
the machine to and from the sink. Lay the unit on its back. Install the casters
into the bottom of the base as indicated.
Return the machine to the upright position. When the machine is positioned
for operation set the height of the adjustment foot slightly higher than the
front caster to prevent movement of the machine during wash and spin
operation.
NOTE: Not all movement will be totally eliminated, this is normal.
LOOSEN TIGHTEN
LEVEL
ADJUSTABLEKNOB
CORRECT
INCORRECT
INCORRECT
Fixed foot
Caster
Caster
Fixed foot
Adjustable foot
Caster
Caster
Fixed foot
ADJUSTABLEFOOT
Net weigh
9
3
9
m
m
5
4
4
m
m
5
3
8
m
m

9
INSTALLING THE NOISE PROOF PLATE
Take the noise proof
plate out of the
package .
The opening of the
noise proof plate is
at the bottom of
the machine.
Insert the noise proof
plate into the washing
machine base.
Lay down the machine
and secure the noise proof
plate by fastening the two
set screws.

10

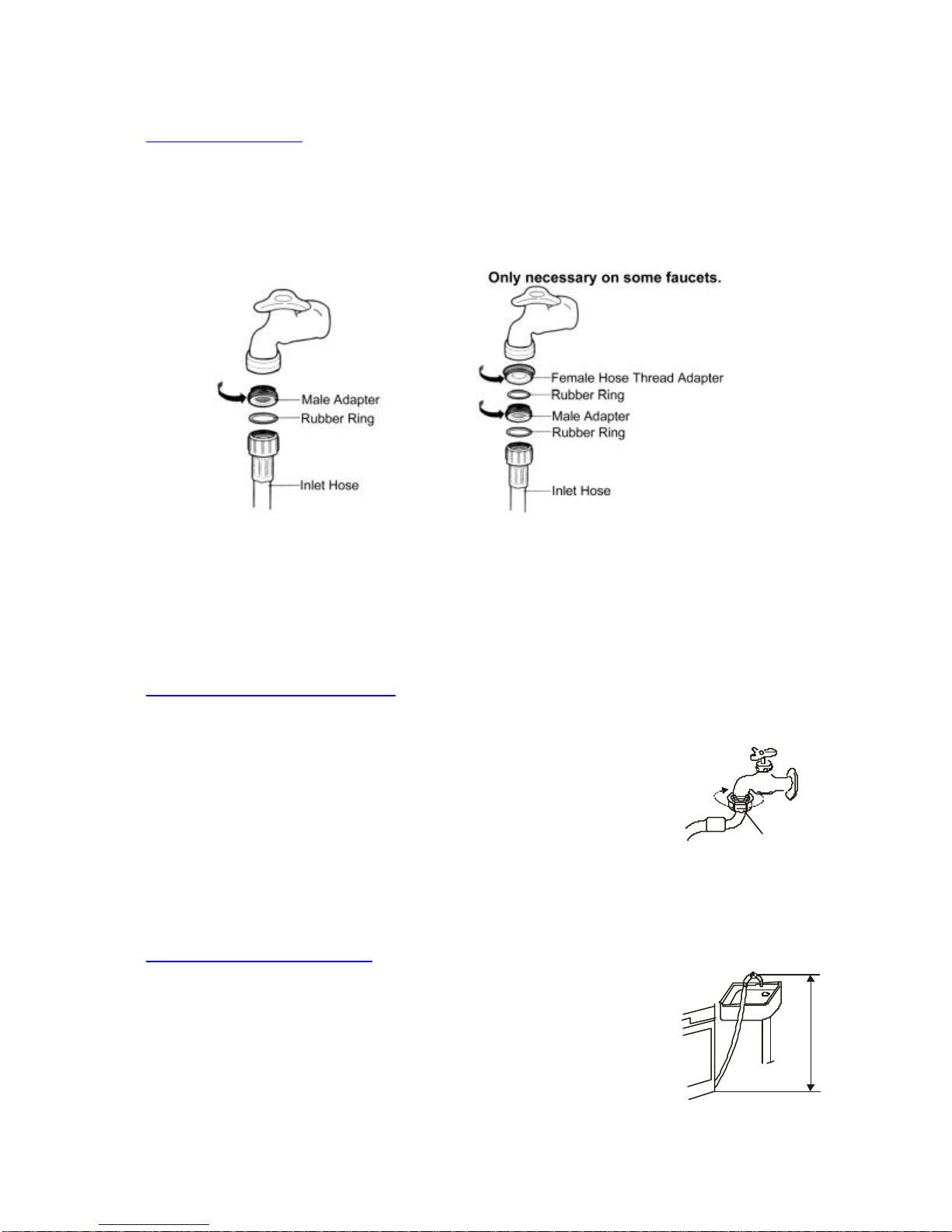

CONNECTING THE WATER SUPPLY HOSE
The water supply hose must be connected to the washing machine at one end and to the water faucet
at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to
move the water faucet, replace the hose with a longer, high-pressure hose.
Select appropriate faucet as shown in the figures below. If none of these faucets are available, use
the faucet adapter provided.
The end of faucet spout should be longer than 10mm (0.4”), or the connector cannot be fixed properly.
Water leakage could develop.
1. Connect the water inlet hose to the
faucet by turning the connecting nut.
2. Then connect the other end of water
inlet hose to the cold connector in
water mixing valve by turning the
connecting nut.
Rubber ring seal
Be sure a rubber ring is inside the connecting nut.
WATER
INLET HOSE
CONNECTING
NUT
COLD WATER
CONNECTOR
LID OF
HOT WATER
CONNECTOR
CONNECTING
NUT
If you have both cold and hot water supplied, connect the inlet hoses by matching cold to cold and hot
to hot.
1. Connect the water inlet hoses to the faucets
by turning the connecting nuts.
2. Unscrew the lid of hot water connector
in water mixing valve, and then connect
the other end of water inlet hoses to the
connectors in water mixing valve by
turning the connecting nuts.
WATER INLET HOSE
WATER
INLET HOSE
CONNECTING
NUT
COLD WATER
CONNECTOR
HOT WATER
CONNECTOR
CONNECTING
NUT
CONNECTING
NUT
Be sure the rubber rings are inside the connecting nuts.

11
WATER CONNECTION
For normal kitchen-sink tap only use the inlet hose with cold water inlet.
Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly.
Make sure to insert the rubber ring enclosed. Then connect tightly to your sink.
Note: Some faucets may require you to also use the female hose thread adapter between the male
adapter and your sink faucet as shown below. Make sure the rubber ring is inserted and
connect to your sink.
If water leaks from faucet connection or washer connection, turn off water and
tighten fully using a wrench. Be careful not to over tighten and damage water
connection. Turn on water supply and make sure no leaks are present.
DISCONNECTING THE INLET HOSE
Dismantling the hose directly may cause water to splash due to the possible high water pressure in
the hose, even after the faucet has been turned off. Please take off the hose as per following steps,
even if the faucet is closed:
?Turn off the faucet.
?Turn on the power and let the machine run for about 5 seconds then turn
it off.
?Remove the connecting nuts from the faucet and washing machine.
Note: If the washing machine is frequently used, it is not necessary to dismantle
the inlet hose to avoid possible damage to the screws.
POSITIONING THE DRAIN HOSE
Connect the drain hose to the water outlet of the washing machine then fasten it
with a pinchcork. Since only up drainage is available, drain hose can be hung in
the basin or bathtub.
NOTE: The highest point of the drain hose must be in the height of 0.7-1.2m
above floor level, otherwise, the washer cannot work normally.
CONNECTING
NUT
0
.
7
-
1
.
2
m

12
ELECTRICAL CONNECTION
This portable washer should be properly grounded for your safety. The power cord of this portable
washer is equipped with a three-prong plug which mates with standard three prong wall outlets to
minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong
from the power cord supplied.
This portable washer requires a standard 110-120 Volts~A.C./60Hz
electrical outlet with three-prong ground.
The cord should be secured behind the portable washerandnotleft
exposed or dangling to prevent accidental injury.
Never unplug the portable washer by pulling the power cord. Always
grip the plug firmly and pull straight out from the receptacle.
Do not use an extension cord with this appliance. If the power cord is
too short, have a qualified electrician or service technician install an
outlet near the appliance.
CONTROL PANEL
1. Water Temperature Indicator
2. Water Level Indicator
3. Wash Time Indicator
4. Rinse Time Indicator
5. Spin Time Indicator
6. LED Display
7. Children-proof Indicator
8. Function Indicator
9. Power Button
10. START/HOLD Button
11. Function Selection Button
12. Preset Button
13. Spin Time Selection Button
14. Rinse Time Selection Button
15. Wash Time Selection Button
16. Water Level Selection Button
17. Water Temperature Selection Button
?
Warning
?
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized Avanti Products service center.
STANDARD 120
VOLTS, 60 HERTZ,
3-WIRE SOCKET
GROUND
1
2
0
1
2
V.A.C.
±
0
V.A.C.
1
1
5
1
2
V.A.C.
±
L1
NEUTRAL
SIDE
ROUND
GROUNDING
PRONG

13
OPERATING YOUR PORTABLE WASHER
PREPARATION
1. Connect the water inlet hose
to the water faucet. Don’t
switch on the power if the
water pressure is lower than
0.05MPa and higher than
0.5MPa.
2. Open the water faucet.
3. Insert the plug into the
socket. For safety the plug
should have ground
connection.
4. Insert the end of drain hose
into the hook shelf, and hang
the drain hose over a drain
outlet.
5. Put the wash load into the
tub evenly.
6. Add the suitable quantity
detergent into the detergent
case.
7. Close the lid. Otherwise the
washer will not operate.
BEFORE WASHING
Prepare the wash load. Mix large and small articles in a load to get the best washing results.
Drop articles loosely into the inner tub. Do notpack articles in or wrap them. Articles should move
freely through the wash water for best cleaning results. Articles should rollover, sink and then
reappear.
When washing very large articles, do not fill inner tub as full as with other loads. The water level in
your washer should fit the size of your wash load. Small load will use lower water levels. There must
be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner
tub can result in poor washing and rinsing. Overloading may also cause wrinkling and tearing of
articles.
WATER LEVEL
WATER LEVEL
Right
Wrong
2.
Turn on the water faucet.
0
.
7
m
1
.
2
m
~
drain outlet.
6) Add the suitable
quantity detergent

14
OPERATION INSTRUCTIONS
PRESS DOWN POWER BUTTON.
PRESS DOWN WATER LEVEL BUTTON.
Choose appropriate water level according to wash load quantity.
WATER TEMPERATURE CHOICE.
Press down the water temperature selection button, you can choose to inlet cold water or hot water.
When the cold-water indicator and the hot-water indicator turn on simultaneously, which means you
chose the warm water.
NOTE: The washer will provide a cold rinse in all TEMPERATURE settings.
IMPORTANT:A single cold hose system does not allow the washing machine to automatically
(select) regulate incoming water temperatures to match those listed on the controlpanel such as
WARM or HOT.
PRESS DOWN WASH TIME SELECTION BUTTON.
Press down wash time selection button to select the wash time. You can also press the button to
select soak.
NOTE: When all indicators are OFF, the wash cycle is finished.
PRESS DOWN RINSE TIMES SELECT BUTTON.
Press this button to select the times of rinse. When SPRAY RINSE is selected, the washing machine
will spray water to rinse firstly during rinse course.
NOTE: When all indicators are OFF, the rinse cycle is finished.
PRESS DOWN SPIN TIME SELECT BUTTON.
Press this button to select the time of spin.
NOTE: When all indicators are OFF, the spin cycle is finished.
IMPORTANT NOTE: You can select different WASH, RINSE and SPIN combinations according to
your needs.
PRESS DOWN PRESET BUTTON.
Press this button for delay start setting and children-proof setting.
PRESS DOWN FUNCTIONS SELECTION BUTTON.
Choose the desired function and then the corresponding indicator blink.
PRESS DOWN START/HOLD BUTTON ONCE AND THE MACHINE WILL BEGIN OPERATION.
Please press this button to stop the normal operation, if it continues to work, press it again.
Water level can be reset during the normal operation. If the higher water level is selected, the machine
will operate after refilling the water level selected.
AUTOMATIC WASH PROGRAMS
NORMAL –For normal laundry
?Press down the power button.
?The NORMAL indicator will be ON. (NORMAL is the default program)
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting. (The default water level
isHIGH)
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.

15
SOAK–For dirty laundry
?Press down the power button.
?Press the functions button to select the SOAK function until the SOAK indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
SPEEDY–For light dirty laundry
?Press down the power button.
?Press the functions button to select the SPEEDY function until the SPEEDY indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting. Press the START/HOLD
to start the course. And the LED display will show the remaining time of the entire course.
JEANS –For massive laundry
?Press down the power button.
?Press the functions button to select the JEANS function until the JEANS indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
GENTLE–For elaborate laundry
?Press down the power button.
?Press the functions button to select the GENTLE function until the GENTLE indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
BLANKET –For big laundry
?Press down the power button.
?Press the functions button to select the BLANKET function until the BLANKET indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
DELICATES –For small laundry
?Press down the power button.
?Press the functions button to select the DELICATES function until the DELICATES indicator is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting. (The default water level
isLOW-LEV2)
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
SPRAY RINSE –For children laundry
?Press down the power button.
?Press the functions button to select the SPRAY RINSE function until the SPRAY RINSE indicator
is ON.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.

16
MANUAL FUNCTIONS
WASH ONLY
?Press down the power button.
?Press the functions button to select the appropriate program.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the wash button to select the wash time.
?Press the rinse button until all rinse indicators are OFF.
?Press the spin button until all spin indicators are OFF.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
WASH AND RINSE
?Press down the power button.
?Press the functions button to select the appropriate program.
?Press the water supply button to select the water temperature.
?Press the water level button to select the appropriate water level setting.
?Press the wash button to select the wash time.
?Press the rinse button to select the rinse times.
?Press the spin button until all spin indicators are OFF.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
RINSE AND SPIN
?Press down the power button.
?Press the water level button to select the appropriate water level setting.
?Press the wash button until all wash indicators are OFF.
?Press the rinse button to select the rinse times.
?Press the spin buttonto select the spin time.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
SPIN ONLY
?Press down the power button.
?Press the wash button until all wash indicators are OFF.
?Press the rinse button until all rinse indicators are OFF.
?Press the spin button to select the spin time.
?Press the START/HOLD to start the course. And the LED display will show the remaining time of
the entire course.
FUNCTIONS
Each wash set is programmed in the computer; see the details in the wash program chart.
Press down each button within 5 minutes since the program will reset the process group. Then press
FUNCTION SOAK
WASH RINSE SPIN TOTAL TIME
(Approx.)
NORMAL 12 Min. 2 Cycles 5 Min. 46 Min.
SOAK 18 Min. 12 Min. 2 Cycles 5 Min. 66 Min.
SPEEDY 6 Min. Spray Rinse + 1 Cycle 3 Min. 33 Min.
JEANS 12 Min. Spray Rinse + 2 Cycles 5 Min. 52 Min.
GENTLE 12 Min. 2 Cycles 3 Min. 44 Min.
BLANKET 12 Min. Spray Rinse + 2 Cycles 5 Min. 58 Min.
DELICATES 6 Min. 2 Cycles 3 Min. 38 Min.
SPRAY RINSE 12 Min. Spray Rinse + 2 Cycles 5 Min. 58 Min.

17
Unplug the power cord.
Remove the inlet hose and clean
the filter with a brush.
Clean the surface of
the washing machine
with a soft cloth
regularly.
Clean the inner tub
regularly, especially after
washing starched or
bleachedlaundry.
downSTART/HOLD button to re-start the washing machine. If not, the washing machine will shut
downautomatically.
Close the lid, or the washing machine will not operate.
In case the unbalance of load triggers the safety switch when spinning, the washing machine will
automatically refill water to adjust the balance.
Note:
?Clothes easily discolored should be washed separately so as to prevent inter-dyeing.
?If you want to change a selected program, please press the START/HOLD button first, then press
the Program button before pushing START/HOLD button.
?When Rinse & Drain program is ON, do not use detergent.
?If you want to drain water during washing, press the START/HOLD button, then select Rinse and
Drain program. Press START/HOLD button again to restart.
DELAY START SETTING
Select this course when you have to go out or do something else.
?Press down the power button.
?Load the washing machine and select the appropriate wash program.
?Press PRESET button continuously to select the delay start time. (From 1 hour to 24 hours)
?Close the lid completely.
?Press START/HOLD button to start the course.
CHILDREN-PROOF SETTING
Select the function, the program will hold the washing machine and give out alert voice once the lid is
opened when washing. And the washing machine will automatically drain water and give alarm if the
lid is not closed in 10 seconds. In case a child falls into the washing machine when he plays around,
he will be in safe status.
?Press down the power button.
?Select the appropriate program and press START/HOLD button to start the washing machine.
?The washing machine buzzer will give out music and the digital indicator show . This time you
must decide whether to select the function or not.
?Press the PRESET button to select the function and the dot indicator will be ON. If no, don’t do
anything.
NOTE: If you open the lid while the machine in running, all operations will be stopped within 7
seconds.
To resume operation, close the lid.
CARE AND MAINTENANCE
CLEANING YOUR PORTABLE WASHER
?Clean the surface of your portable washer regularly with soft fabric.
?Clean the inner tub regularly, especially immediately after starch or bleach operation.
?Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging.

18
Pull upward to remove the
lint filter.
Clean and rinse it thoroughly.
?Clean the lint filter.
?Vacation time

19
PROBLEMS WITH YOUR PORTABLE WASHER?
You can solve many common portable washer problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Washer does not operate. Not plugged in.
The circuit breaker tripped or a blown fuse.
The lidis not closed.
Make sure the water source is turned on.
No water or insufficient water supply. The water source faucet is not turned on.
The water source hose is frozen.
The water intake hose is bent.
The filter on the water intake hose is clogged.
The washing machine does not drain. The drain hose is squashed or bent.
The water hose mesh filter is clogged.
Washing machine vibrates or is too noisy. Check to assure that the washer is level.
The washing machine is touching another object.
The laundry load is not balanced.
Washing machine does not spin. The lid is not closed.
The washer is not on a level surface.

20
SERVICE FOR YOUR PORTABLE WASHER
We are proud of our customer service organization and the network of professional service
technicians that provide service on your Avanti portable washers. With the purchase of your Avanti
portable washer, you can be confident that if you ever need additional information or assistance, the
Avanti Products Customer Service Team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029 Whatever your questions are about our products, help is available.
Part Orders
800-220-5570 You may order parts and accessories that will be delivered directly to your home by personal
check, money order, Master Card, or Visa.
In-Home Repair Service
800-220-5570 An Avanti Products authorized service center will provide expert repair service, scheduled at a time
that is convenient for you. Our trained servicers
know your portable washer inside and out.
