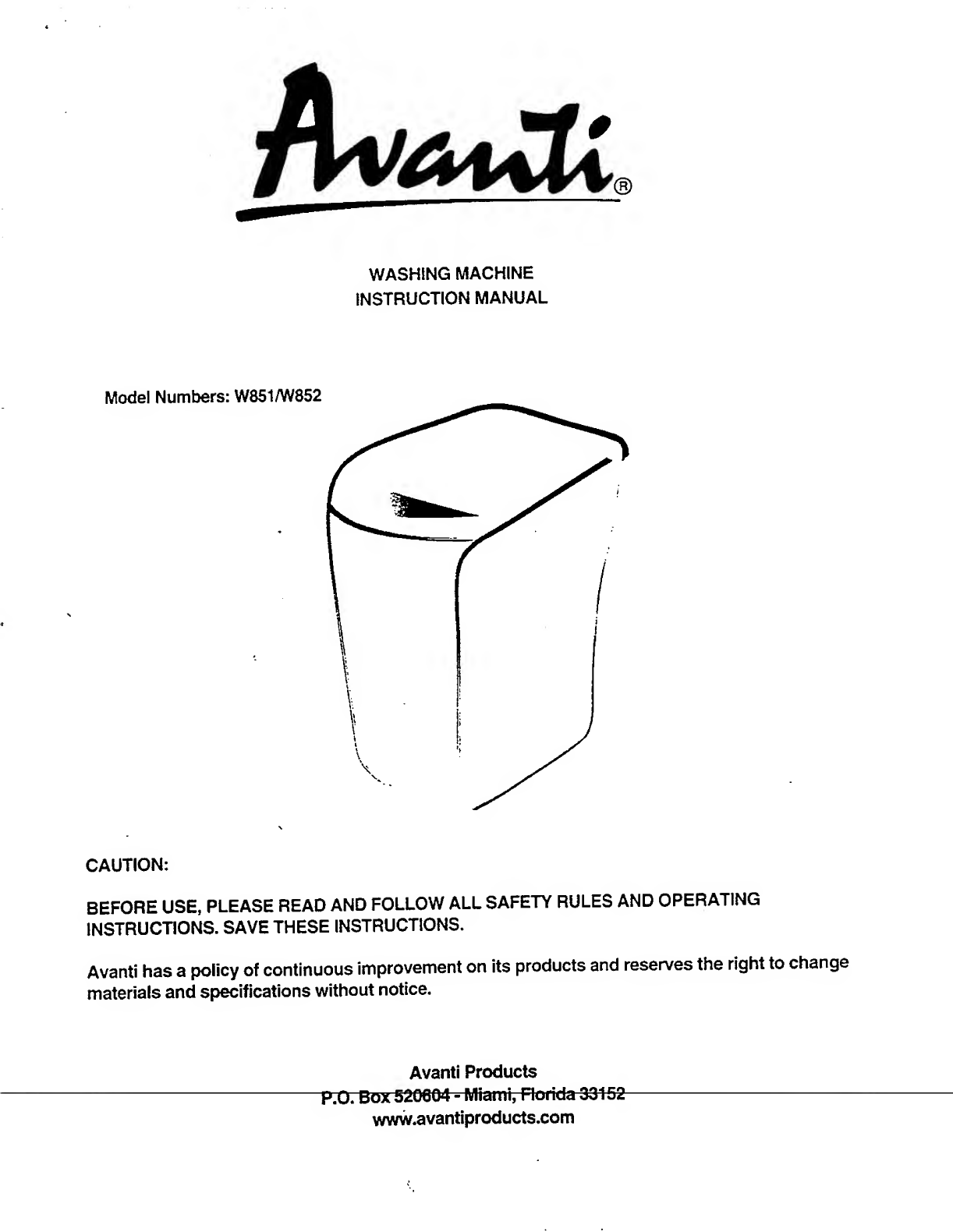

Avanti W851 User manual

WASHING MACHINE
INSTRUCTION MANUAL
Model Numbers: W851/W852
CAUTION:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
Avanti has a policy of continuous improvement on its products and reserves the right to change
materials and specifications without notice.
Avanti Products
P .O. B ox 520604 - Mia m i, Rorida 33152
www.avantiproducts.com

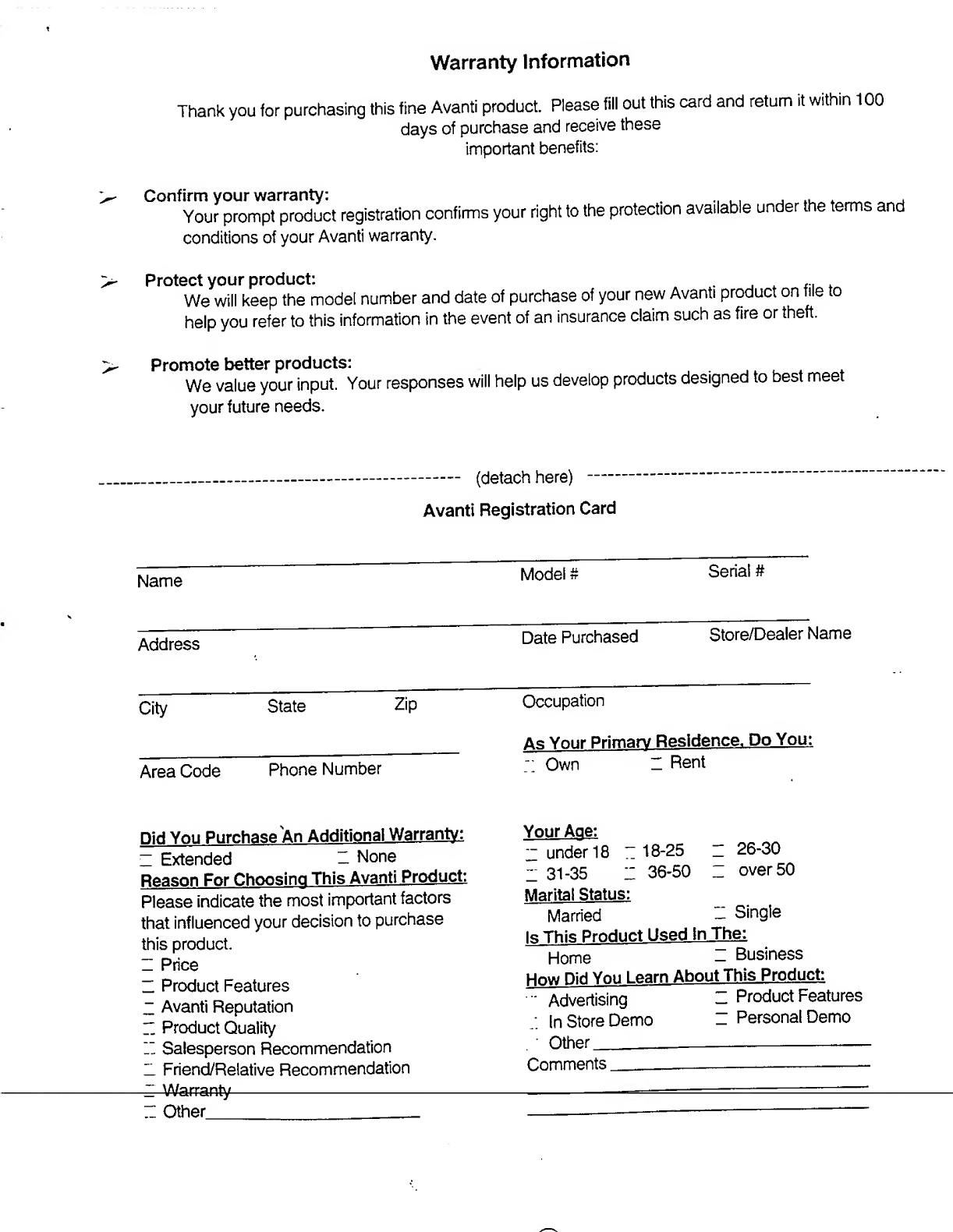

Warranty Information
Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100
days of purchase and receive these
important benefits:
Confirm your warranty: .u . __ ^
Your prompt product registration confirms your right to the protection available under the terms and
conditions of your Avanti warranty.
Protect your product:
We will keep the model number and date of purchase of your new Avanti product on file to
help you refer to this information in the event of an insurance claim such as fire or theft.
Promote better products: . .. w *
We value your input. Your responses will help us develop products designed to best meet
your future needs.
- (detach here) -
Avanti Registration Card
Name
Model #
Serial #
Address
Date Purchased
Store/Dealer Name
City State Zip Occupation
Area Code Phone Number
As Your Primary Residence, Do You:
:: Own “ Rent
Did You Purchase An Additional Warranty:
= Extended - None
Reason For Choosing This Avanti Product:
Please indicate the most important factors
that influenced your decision to purchase
this product.
Z Price
Z Product Features
Z Avanti Reputation
Z Product Quality
Z Salesperson Recommendation
Z Friend/Relative Recommendation
Z Warranty -
Z Other_
Your Age:
“ under 18 Z 18-25 Z 26-30
Z 31-35 Z 36-50 Z over 50
Marital Status:
Married - Single
Is This Product Used in The:
Home - Business
How Did You Learn About This Product:
■ Advertising Z Product Features
In Store Demo Z Personal Demo
Other_____
Comments______

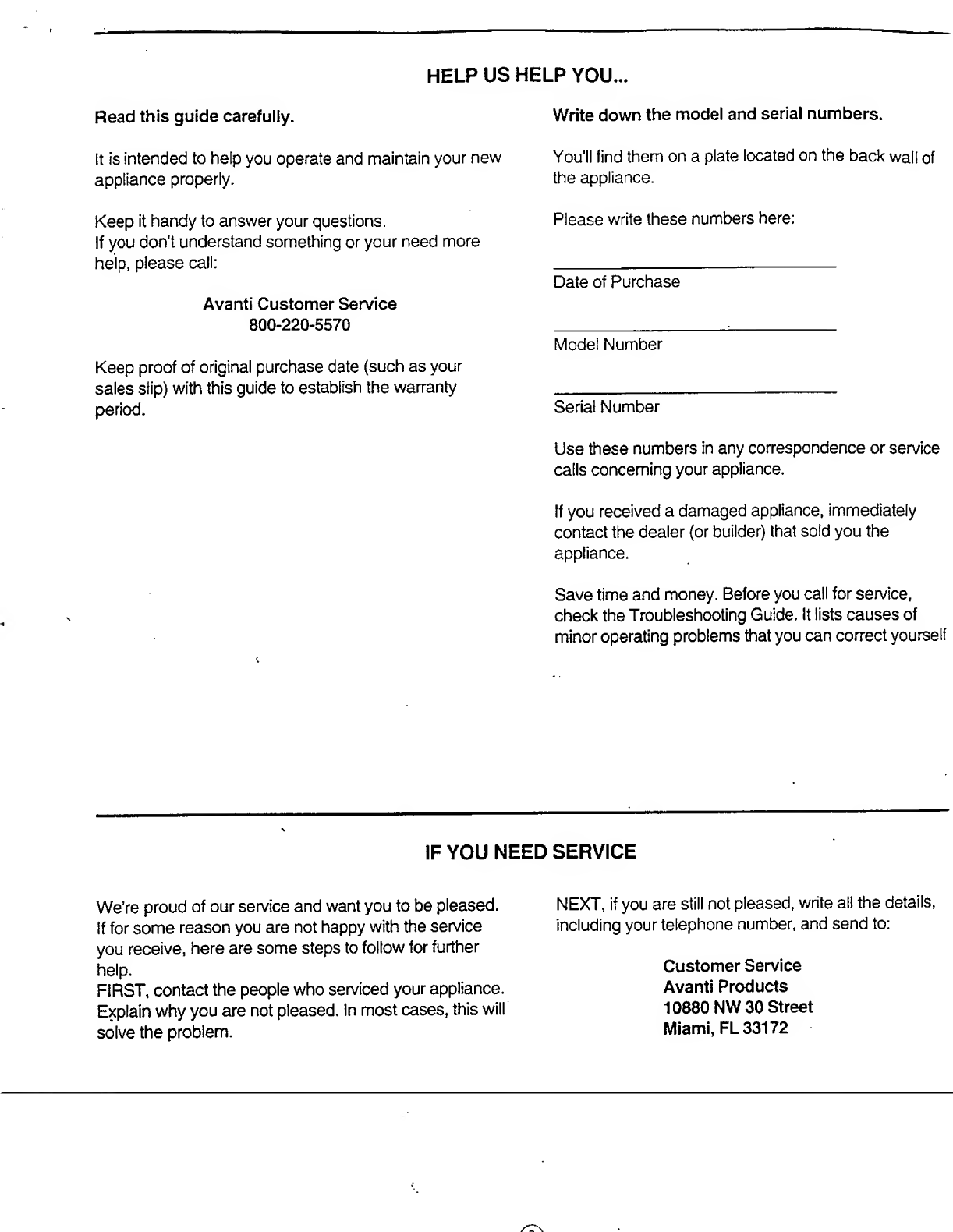

HELP US HELP YOU...
Read this guide carefully.
It is intended to help you operate and maintain your new
appliance properly.
Keep it handy to answer your questions.
If you don't understand something or your need more
help, please call:
Avanti Customer Service
800-220-5570
Keep proof of original purchase date (such as your
sales slip) with this guide to establish the warranty
period.
Write down the model and serial numbers.
You'll find them on a plate located on the back wail of
the appliance.
Please write these numbers here:
Date of Purchase
Model Number
Serial Number
Use these numbers in any correspondence or service
calls concerning your appliance.
If you received a damaged appliance, immediately
contact the dealer (or builder) that sold you the
appliance.
Save time and money. Before you call for service,
check the Troubleshooting Guide. It lists causes of
minor operating problems that you can correct yourself
IF YOU NEED SERVICE
We're proud of our service and want you to be pleased.
If for some reason you are not happy with the service
you receive, here are some steps to follow for further
help.
FIRST, contact the people who sen/iced your appliance.
Explain why you are not pleased. In most cases, this will
solve the problem.
NEXT, if you are still not pleased, write all the details,
including your telephone number, and send to:
Customer Service
Avanti Products
10880 NW 30 Street
Miami, FL 33172

WATER
SUPPLY
HOSE
(COLD)

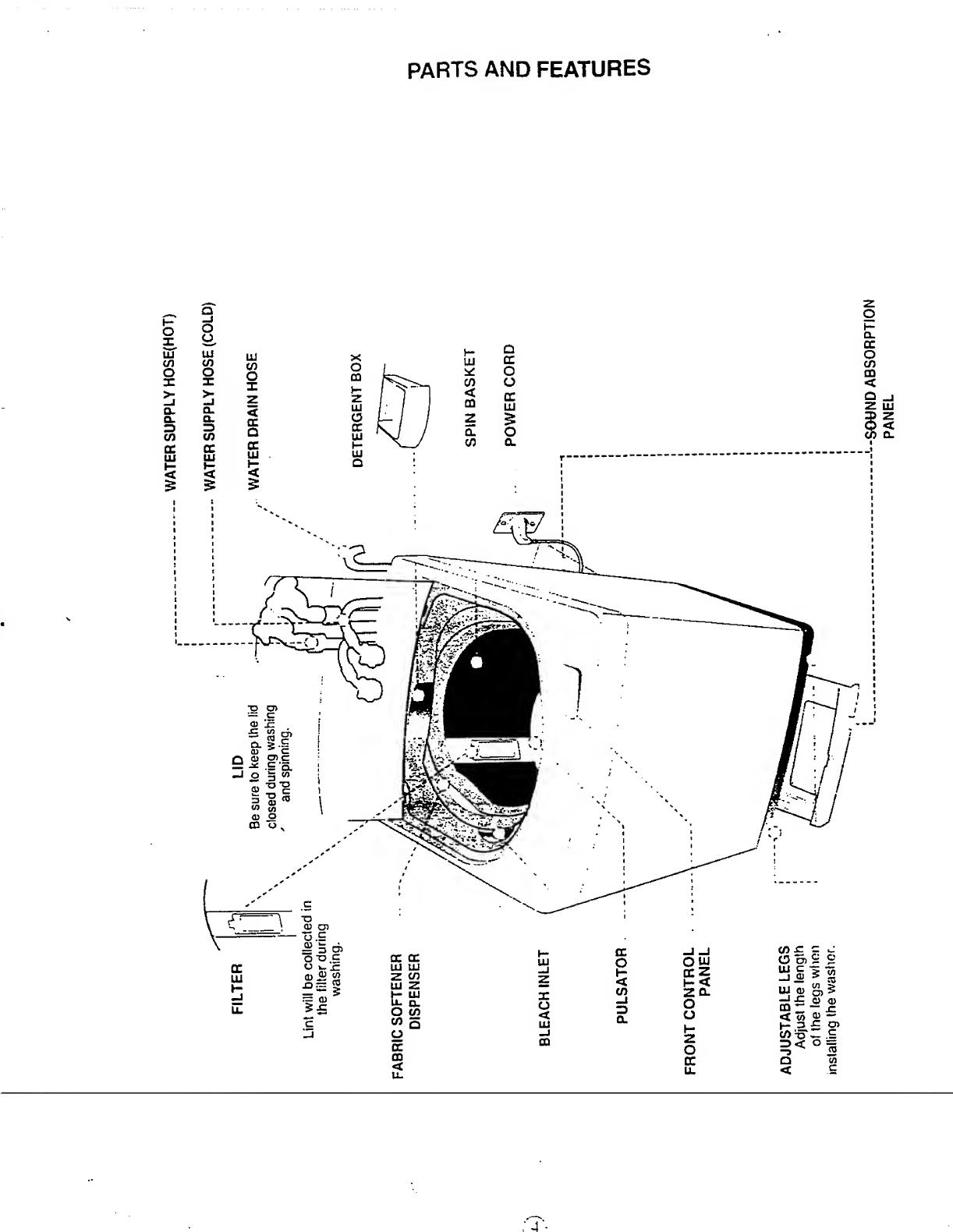

PARTS AND FEATURES
•T-
SOUND
ABSORPTION
PANEL

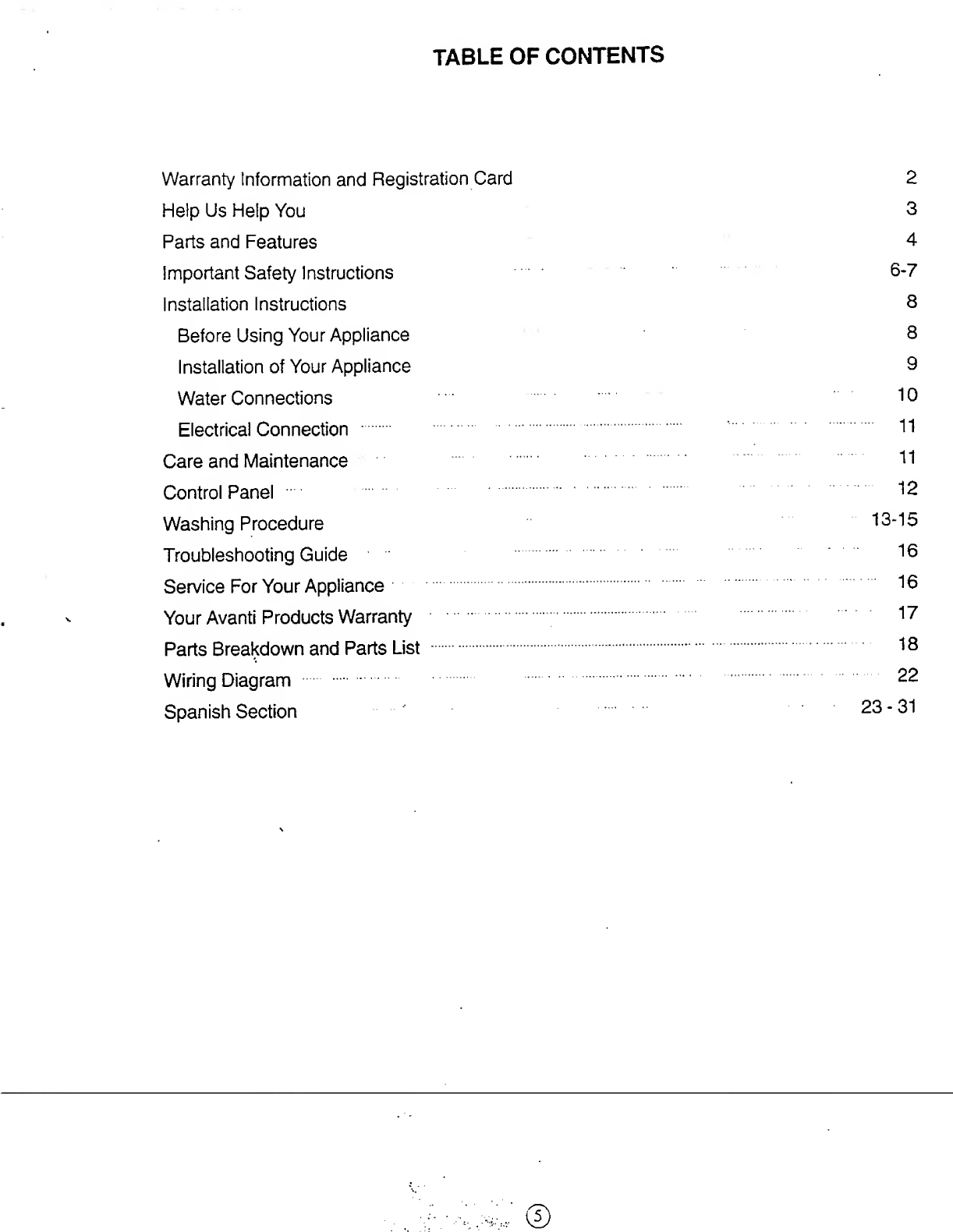

TABLE OF CONTENTS
Warranty Information and Registration Card 2
Help Us Help You 3
Parts and Features 4
Important Safety Instructions 6-7
Installation Instructions 8
Before Using Your Appliance 8
Installation of Your Appliance 9
Water Connections 10
Electrical Connection . ‘I'l
Care and Maintenance
Control Panel 12
Washing Procedure 13-15
Troubleshooting Guide 16
Service For Your Appliance. 16
Your Avanti Products Warranty . 17”
Parts Breakdown and Parts List . 16
Wiring Diagram . 22
Spanish Section 23-31

Important Safety Instructions
WARNING M
To reduce the risk of fire, electrical shock, or injury when
using your appliance, follow these basic precautions:
Read all instructions before using the appliance.
Do not wash articles that have been previously cleaned in. washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances
as they give off vapors that could ignite or explode.
Under certain conditions, hydrogen gas may be produced in a hot water system that has
not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using a washing machine, turn on all
hot water faucets and let the water flow from each for several minutes. This will
release ahy accumulated hydrogen gas. As the gas is flammable, do not smoke or use an
Open flame during this time.
Before the appliance is removed from service or discarded, remove the door.
Do not tamper with controls.
Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instruction.
DANGER or WARNING : Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous... even if they will "just sit in the garage a few days. -
Before you throw away your old appliance: Take off the door so that children may not
easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion. . . , ^ ■
Do not place the washer in steamy rooms or where the washer is directly exposed to ram.
Moisture may destroy the electrical insulation causing an electrical shock hazard.
During spinning, don’t put your hand in the spin basket; Because the spin basket is rotating at
high speed, rotating parts may injure your hand.
WARNING ^

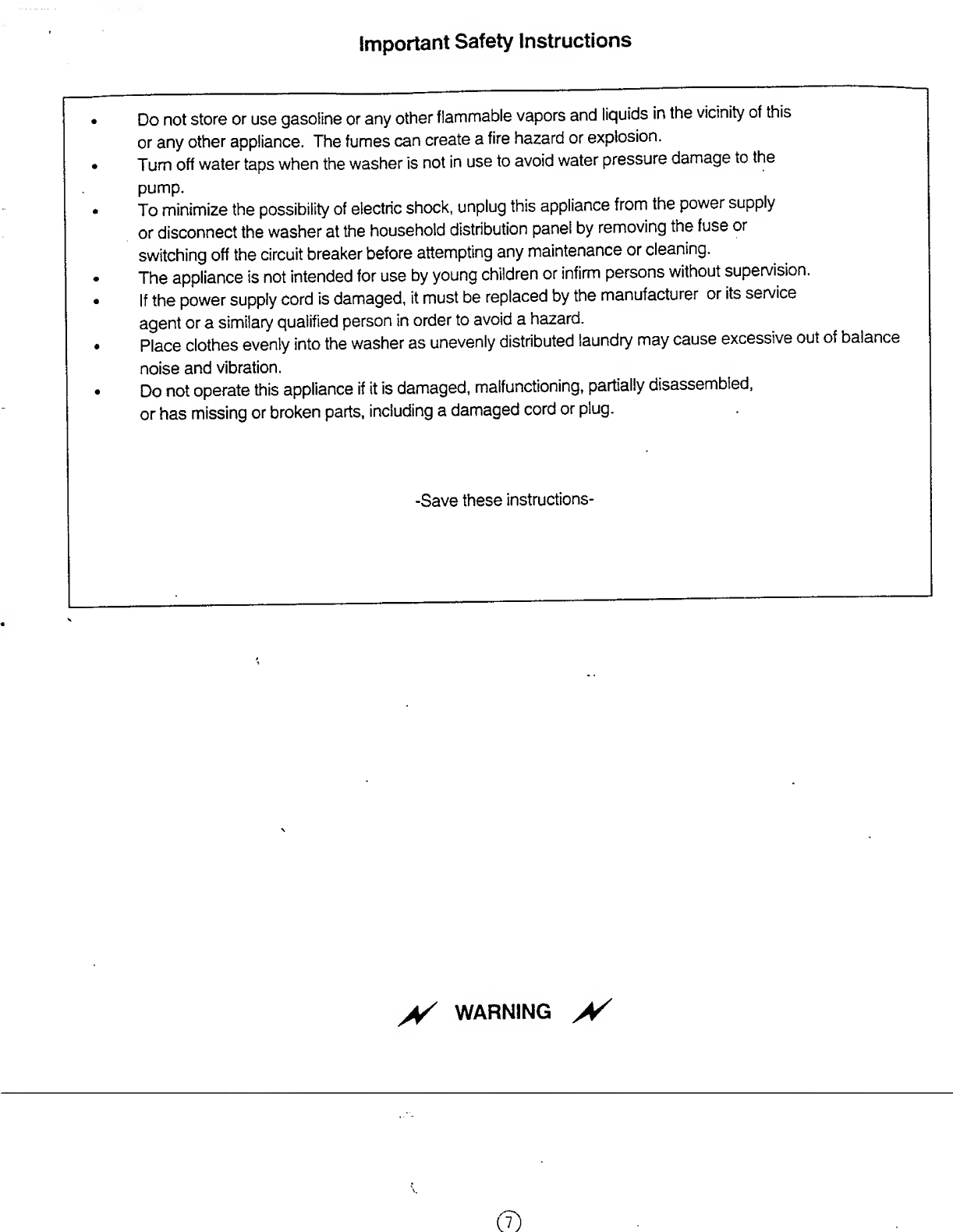

Important Safety Instructions
Do not store or use gasoline or any other flamnnable vapors and liquids in the vicinity of this
or any other appliance. The fumes can create a fire hazard or explosion.
Turn off water taps when the washer is not in use to avoid water pressure damage to the
pump.
To minimize the possibility of electric shock, unplug this appliance from the power supply
or disconnect the washer at the household distribution panel by removing the fuse or
switching off the circuit breaker before attempting any maintenance or cleaning.
The appliance is not intended for use by young children or infirm persons without supervision.
If the power supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similary qualified person in order to avoid a hazard.
Place clothes evenly into the washer as unevenly distributed laundry may cause excessive out of balance
noise and vibration.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a damaged cord or plug.
-Save these instructions-
// WARNING ^

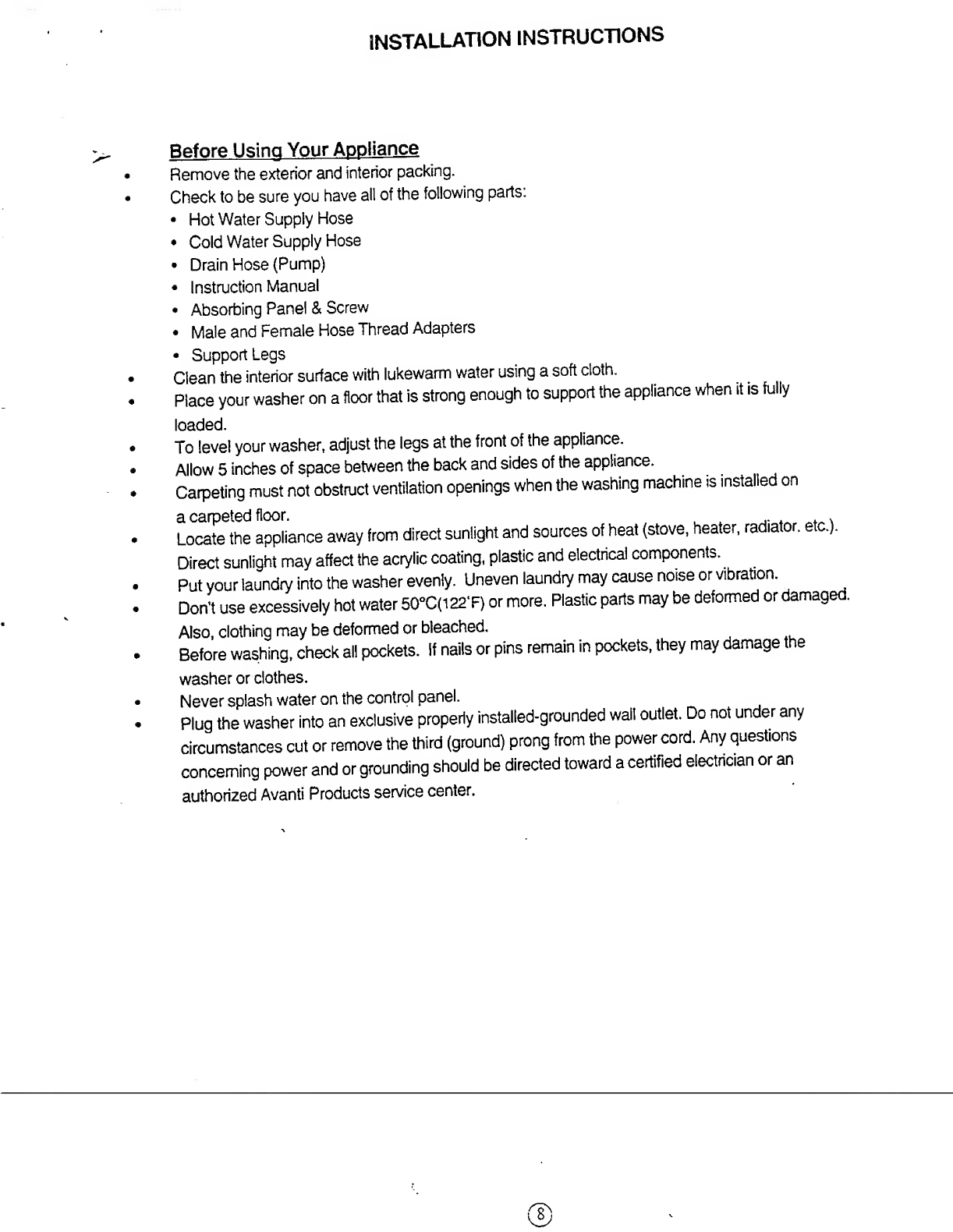

INSTALLATION INSTRUCTIONS
Before Using Your Appliance
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
• Hot Water Supply Hose
• Cold Water Supply Hose
• Drain Hose (Pump)
• Instruction Manual
• Absorbing Panel & Screw
• Male and Female Hose Thread Adapters
• Support Legs
Clean the interior surface with lukewarm water using a soft cloth. . . r „
Place your washer on a floor that is strong enough to support the appliance when it is fully
loaded.
To level your washer, adjust the lags at the front of the appliance.
Allow 5 inches of space between the back and sides of the appliance.
Carpeting must not obstruct ventilation openings when the washing machine is installed on
a carpeted floor, * + \
Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating, plastic and electrical components.
Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.
Don’t use excessively hot water 50°C(122T) or more. Plastic parts may be deformed or damaged.
Also, clothing may be deformed or bleached.
Before washing, check all pockets. If nails or pins remain in pockets, they may damage the
washer or clothes.
Never splash water on the control panel.
Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and or grounding should be directed toward a certified electncian or an
authorized Avanti Products service center.

INSTALLATION INSTRUCTIONS
Acfiftmblinq The Sound Absorbing m |, into the five slots provided (as
OT.O
Screw
• Place the machine more than lOcm away from the wail.
WATER
Adjust the front legs for levelling.
Loosen Wk. Lock
Note : The protective rubber support inserts may leave markon
To prevent possible markings place a small piece of do ,
under the rear legs when the machine is in use.
o Support Leg
> r.nnnectina T he Drain Hose
•Take out the cap-hose and connect the outlet hose. -
cap-hose
outlet-hose
•Be sure to join tightly the drain hose outlet
on the back of the machine.
•Install the drain hose 28-32 inches above the ground.
CAUTON : -Sy SSCSS ;•

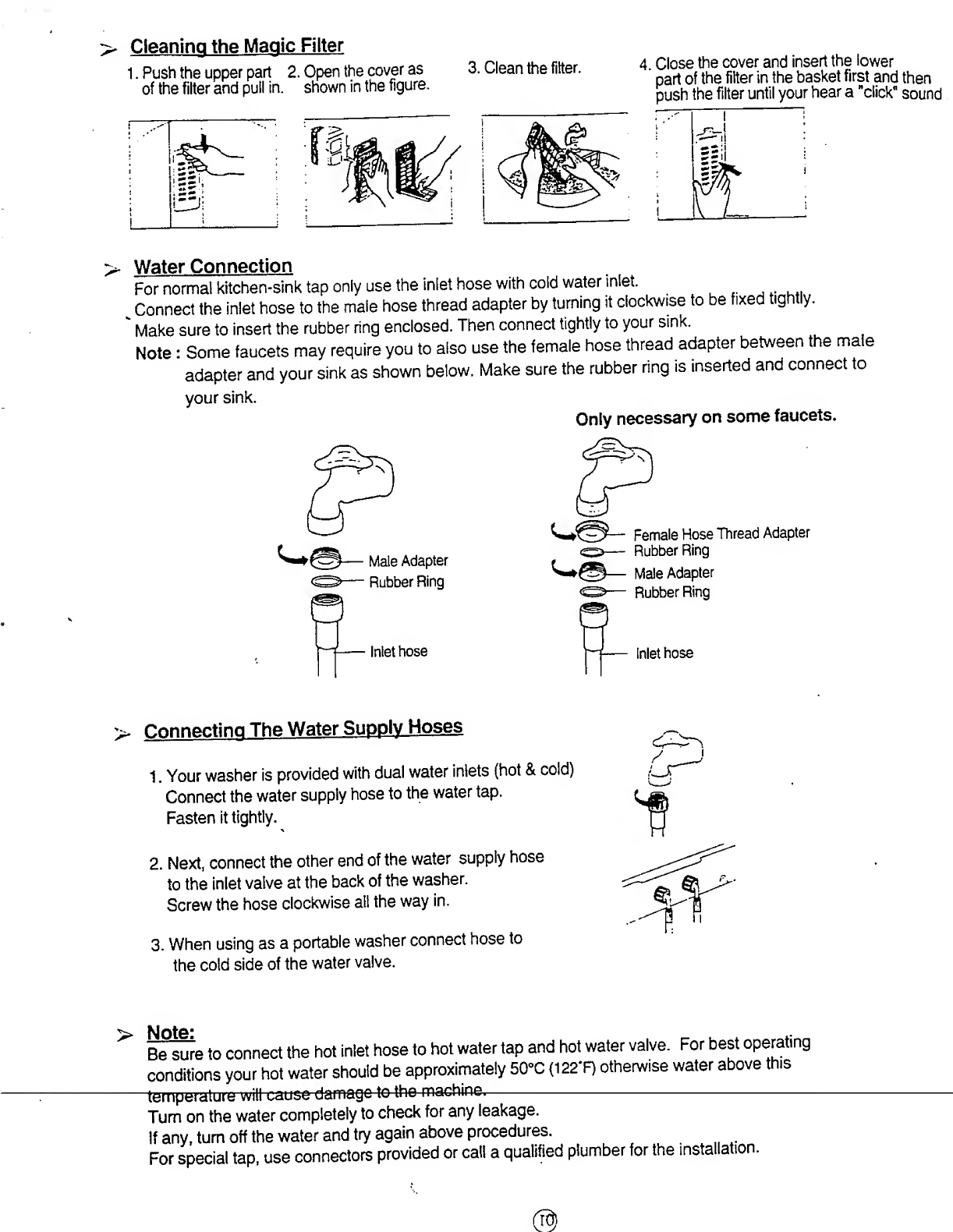

> Cleaning the Magic Filter
1. Push the upper part 2. Open the cover as
of the filter and pull in. shown in the figure.
3. Clean the fitter.
4. Close the cover and insert the lower
part of the filter in the basket first and then
push the filter until your hear a "click" sound
> Water Connection
For normal kitchen-sink tap only use the inlet hose with cold water inlet. . i- ^ k+i
Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly.
" Make sure to insert the rubber ring enclosed. Then connect tightly to your sink.
Note : Some faucets may require you to also use the female hose thread adapter between the male
adapter and your sink as shown below. Make sure the rubber ring is inserted and connect to
your sink.
Only necessary on some faucets.
Male Adapter
Rubber Ring
Inlet hose
Female Hose Thread Adapter
®— Rubber Ring
Male Adapter
Rubber Ring
Inlet hose
> Connecting The Water Supply Ho ses
1. Your washer is provided with dual water inlets (hot & cold)
Connect the water supply hose to the water tap.
Fasten It tightly.
2. Next, connect the other end of the water supply hose
to the inlet valve at the back of the washer.
Screw the hose clockwise all the way in.
3. When using as a portable washer connect hose to
the cold side of the water valve.
N0t6‘ •_
B^e to connect the hot inlet hose to hot water tap and hot water valve. For best operating
conditions your hot water should be approximately SO^C (122-F) otherwise water above this
temperalure w i ll cause damage to th e machine . -
Turn on the water completely to check for any leakage.
If any, turn off the water and try again above procedures.
For special tap, use connectors provided or call a qualified plumber for the installa ion.

> Electrical Connection
// Warning M
improper use of the grounded plug can result in the risk of electrical shock. If the power cord ,s
damaged, have it replaced by an authorized Avanti Products service center. _
Do not under any circumstances cut or remove the third ground prong from the power cord supplied.
Use of extension cords is not recommended.
11 e;/i 9 n-\/nlt 60Hz electrical outlet with three-prong ground.
CARE AND MAINTENANCE
wSh« S’l* a and MW soaa stiutiav W« «*>» ■ !«<»« »« 2
FEATURES
the clear window.
Rnnmaranq pulsator „„.„„,hm.,nhfahriosetficientlv while providing both the powerful
SXrcieSeS:Srs%^
tear on clothes.

CONTROL PANEL
7
1) Power Button
Press this button once to operate. Press once again to turn the washer oft.
2 )
Start/Hold Button . ^ ■
Use to pause and restart the operation. To change the washing procedure during operation
press this button to stop, and once again to restart after changing the procedure.
3) Course Select Button
With every press of this button, the washing course changes,
Fuzzy Heavy Speedy Wool -*- Fuzzy
4) Function Select Button
With every press of this button, the washing course changes,
Wash+Rinse+Spin-Soak+Wash+Rinse+Spin-Wash-Rinse Spin - Wash+Rinse
Rinse+Spin Wash+Rinse+Spin
5) Water Level Select Button
According to the washload, select the water level.
Med High Extra Low Low
6) Water Supply Select Button
As you press this button, the type of water is selected as follows.
Cold Cold+Hot Hot - Cold
When using as a portable washer use cold water setting only.
7) D elay Start Button
Press this button when delay start washing is needed.
8) R e m aining Time Indicator Light ^ u i
The indicator light shows the remaining time (in Minutes) of each wash cycle.
_ At t h e end nf thp cycle, the power automatically switches off. _
9) F unction indicator Light
The function in use indicator shows the current function as a flashing symbol.
The light goes out at the end of the function.

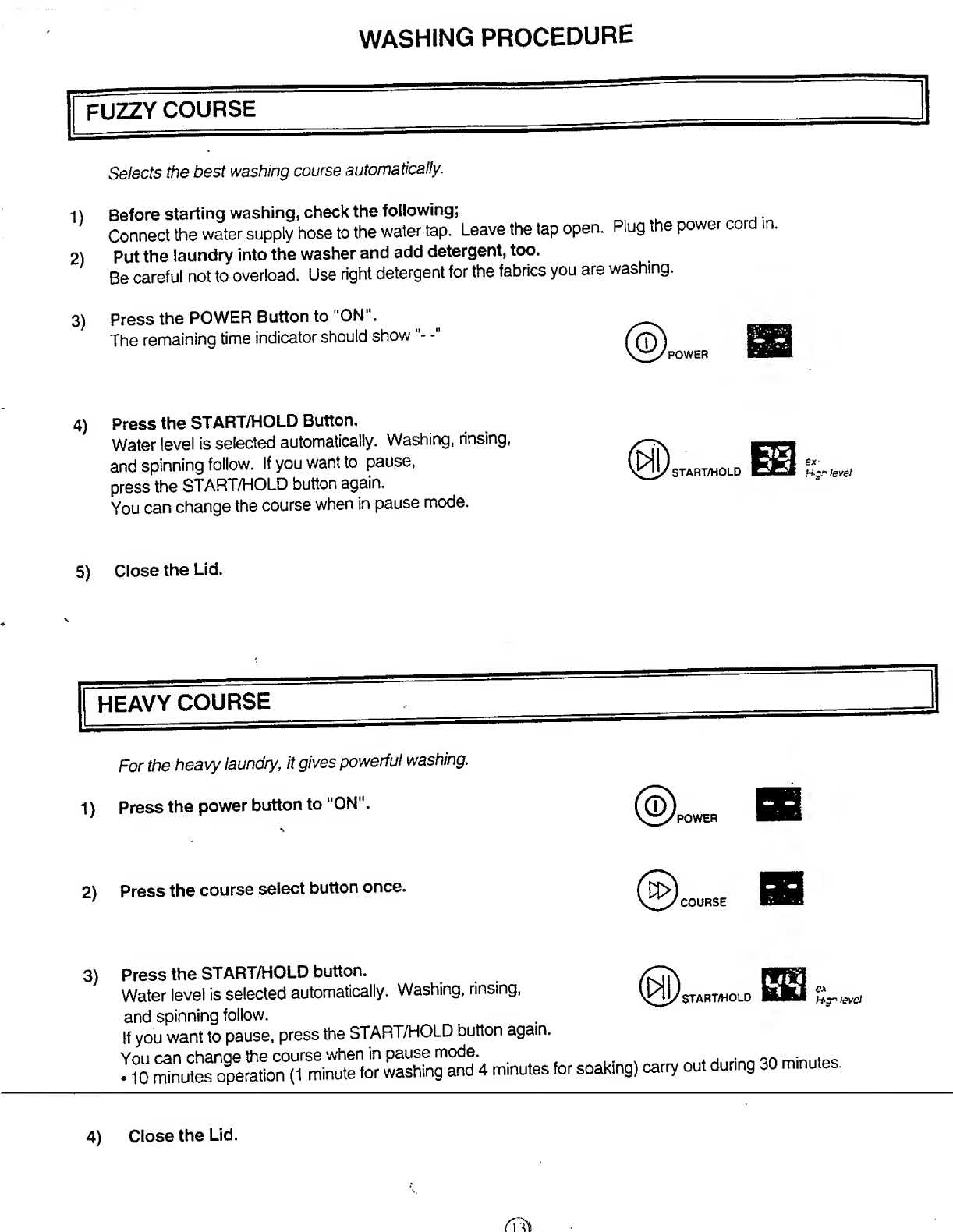

WASHING PROCEDURE
FUZZY COURSE
Selects the best washing course automatically.
1 )
2 )
Before starting washing, check the following; ,
Connect the water supply hose to the water tap. Leave the tap open. Plug the power cord in.
Put the laundry into the washer and add detergent, too.
Be careful not to overload. Use right detergent for the fabrics you are washing.
3) Press the POWER Button to "ON".
The remaining time indicator should show
4) Press the START/HOLD Button,
Water level is selected automatically. Washing, rinsing,
and spinning follow. If you want to pause,
press the START/HOLD button again.
You can change the course when in pause mode.
START/HOLD
BX
Hgr level
5) Close the Lid.
HEAVY COURSE
For the heavy laundry, it gives powerful washing.
1) Press the power button to "ON".
2 ) Press the course select button once.
3)
Press the START/HOLD button.
Water level is selected automatically. Washing, rinsing,
START/HOLD
H'g^ level
and spinning follow.
If you want to pause, press the START/HOLD button again.
no ^nutes operatonTl^ and 4 minutes for soaking) carry out during 30 minutes.
4) Close the Lid.

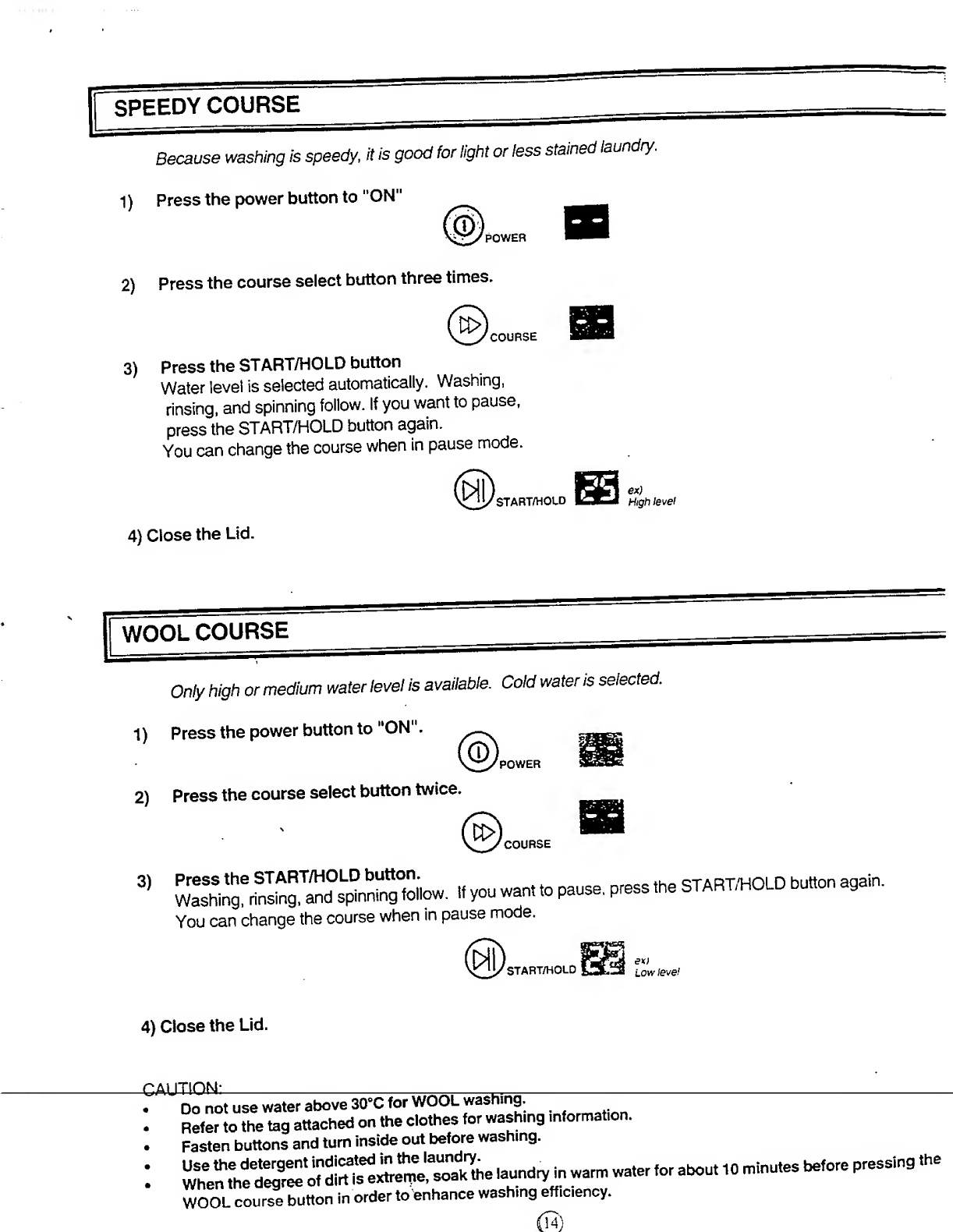

SPEEDY COURSE
Because washing is speedy, it is good for light or less stained laundry.
1) Press the power button to "ON"
POWER
2) Press the course select button three times.
COURSE
3) Press the START/HOLD button
Water level is selected automatically. Washing,
rinsing, and spinning follow. If you want to pause,
press the START/HOLD button again.
You can change the course when in pause mode.
START/HOLD
4) Close the Lid.
ex)
High level
WOOL COURSE
Only high or medium water level is available. Cold water is selected.
1) Press the power button to “ON".
2) Press the course select button twice.
COURSE
3) Press the START/HOLD button.
't y°u want to pause, press the START/HOLD button aga.n.
You can change the course when in pause mode.
START/HOLD
ex;
Low level
4) Close the Lid.
Do not use water above 30°C for WOOL washing. .
Refer to the tag attached on the clothes for washing information.
Fasten buttons and turn inside out before washing.
WOOL course button in order to enhance washing efficiency.

delay sta r t course _
Select this course when you have to go out or do something else.
1 Press the Power button to "ON".
3. Press the START/HOLD button and put the proper
amount of deterQent into the detergent box.
POWER
2. Press the DELAY START button once.
You may change the delay start time with use of the
DELAY START button. (From 3 hours to IShours)
4. Close the lid.
The washing starts at the time you selected.
MANUAL FUNCTIONS
SOAK AND WASH AND RINSE AND SPIN
Press the POWER button. Press the FUNCTION SELECT
button once. Press the START/HOLD button once. Washing
goes on for 69 minutes.
The laundry is soaked in water so that the dirt can be
eliminated completely.
When the FUNCTION button is pressed during operation the
rinse times can be changed to between 1 and 5 times in
duration.
WASH ONLY
Press the POWER button: Press the FUNCTION SELECT
button twice. Press the START/HOLD button once. Washing
goes on for 18 minutes.
When the FUNCTION button is pressed during washing, the
washtime can be changed to between 3 and 25 minutes in
duration.
RINSE ONLY
Press the FUNCTION button Jhree times. Press the
START/HOLD button once. Rinsing goes on for 5 minutes.
When the FUNCTION button is pressed during rinsing, the
rinse times can be changed to between 1 and 5 times in
duration.
SPIN ONLY
Press the FUNCTION button four times. Press the
START/HOLD button once. Spin-drying goes on for 11
minutes. When the FUNCTION button is pressed during
spinning, the spin time can be changed to from 1 to 7
minutes.
WASH AND RINSE
Press the FUNCTION button five times. Press U^e-
START/HOLD button once. Washing and rinsing go on for
28 minutes. When the FUNCTION button is pressed during
operation the rinse times can be changed to between 1 and
5 times in duration.
five times

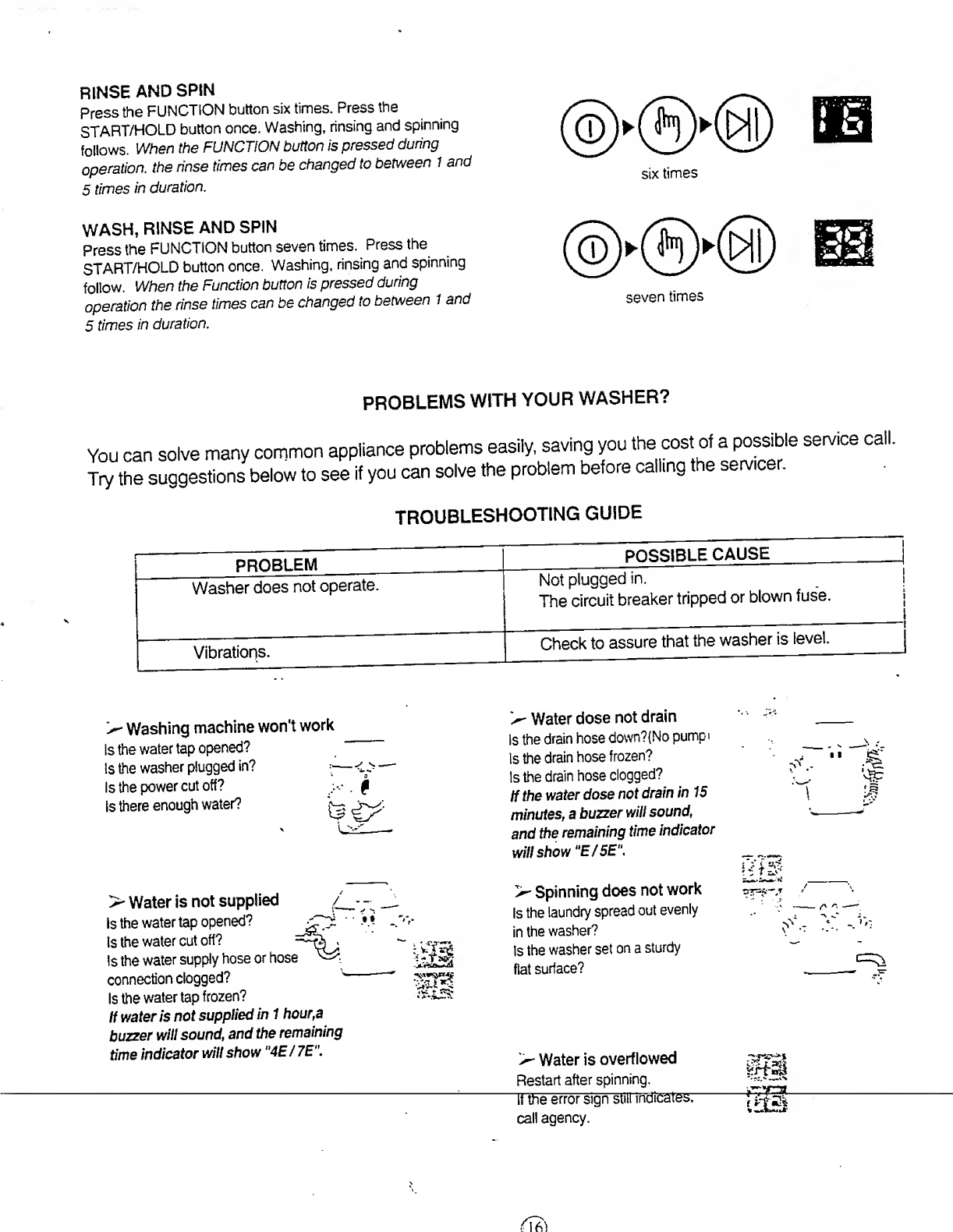

RINSE AND SPIN
Press the FUNCTION button six times. Press the
START/HOLD button once. Washing, rinsing and spinning
follows. When the FUNCTION button is pressed during
operation, the rinse times can be changed to between 1 and
5 times in duration.
WASH, RINSE AND SPIN
Press the FUNCTION button seven times. Press the
START/HOLD button once. Washing, rinsing and spinning
follow. When the Function button is pressed during
operation the rinse times can be changed to between 1 and
5 times in duration.
PROBLEMS WITH YOUR WASHER?
You can solve many common appliance problems easily, saving you the cost of a possible service call.
Try the suggestions below to see if you can solve the problem before calling the servicer.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE j
Washer does not operate.
Not plugged in. I
The circuit breaker tripped or blown fuse. |
I
_ —I
Vibrations.
Check to assure that the washer is level.
> Washing machine won't work
Is the water tap Opened?
Is the washer plugged in? > -
Is the power cut off? . f
Is there enough water? ^
> Water is not supplied
Is the water tap opened? •
Is the water cut off?
is the water supply hose or hose
connection clogged?
Is the water tap frozen?
ff water is not supplied in 1 hour,a
buzzer will sound, and the remaining
time indicator will show “4E / 7E".
f •
> Water dose not drain
Is the drain hose down?{No pumpi
Is the drain hose frozen?
Is the drain hose clogged?
ff the water dose not drain in 15
minutes, a buzzer will sound,
and the remaining time indicator
will show “E/5E'\
>- Spinning does not work
Is the laundry spread out evenly
in the washer?
Is the washer set on a sturdy
flat surface?
> Water is overflowed
Restart after spinning.
It the error sign still indicates,
call agency.

Staple your sales receipt here. Proof of original |
purchase date is needed to obtain service under
warranty.
^AT IS COVERED
LIMITED ONE-YEAR
WARRANTY
For one year from the date of purchase by the
original owner. Avanti Products will, at its option,
repair or replace any part of the appliance that
proves to be defective in material or workmanship
under norma! use. During this period Avanti
Products will provide all parts and labor necessary
to correct such defects free of charge, so long as
the appliance has been installed and operated in
accordance with the written instructions in this
manual, in rental or commercial use, the warranty
period is 90 days.
LIMITED 5 YEAR WARRANTY ON
PLASTIC TUB
After one year and until five years from date of
purchase, Avanti will furnish a replacement plastic
tub. which is defective in material or workmanship.
You will be charged for labor.
LIMITED 7 YEAR WARRANTY ON
STAINLESS STEEL TUB
After one year and until seven years from date of
purchase, Avanti will furnish a replacement
stainless steel tub. which is defective in material or
workmanship. You will be charged for labor.
WHAT IS NOT COVERED
Incidental or consequential damages.
Parts and labor costs for the following will not be
considered as warranty:
Plastic cabinet liners.
Repairs performed by unauthorized servicers.
Service calls that do not involve defects in
material or workmanship such as customer
education, or improper installation.
Service calls that are related to external problems,
such as abuse, misuse, inadequate electrical power,
accidents, fire, floods, or acts of God.
Replacement of house fuses or resetting circuit
breakers.
Failure of the product if it is used for other than its
intended purpose.
This warranty does not apply outside the Continental
U.S.A.
SERVICE FOR YOUR WASHER
We are proud of our customer se^ice organization and the network of professional ^e-vice tecteians that
orovide Lrvice on your Avanti appliances. With the purchase of your Avanti washer you can have the
ronfidence that if yL eve'r need additional information or assistance, the Avanti Products Customer Setvic
team will be here for you. Just call us toll-free.
AVANTI PRODUCTS CUSTOMER SERVICES
Product Information
800-323-5029
Part Orders
800-220-5570
In-Home Repair Service
800-220-5570
Whatever your questions are about our products, help is available.
You may order parts and accessories that will be
delivered directly to your home.
You may order these items by personal check,
money order, Master Card, or Visa.
An Avanti Products authorized service center will provide expert
repair service, scheduled at a time that is convenient for you.
Our trained servicers know your washer inside and out.

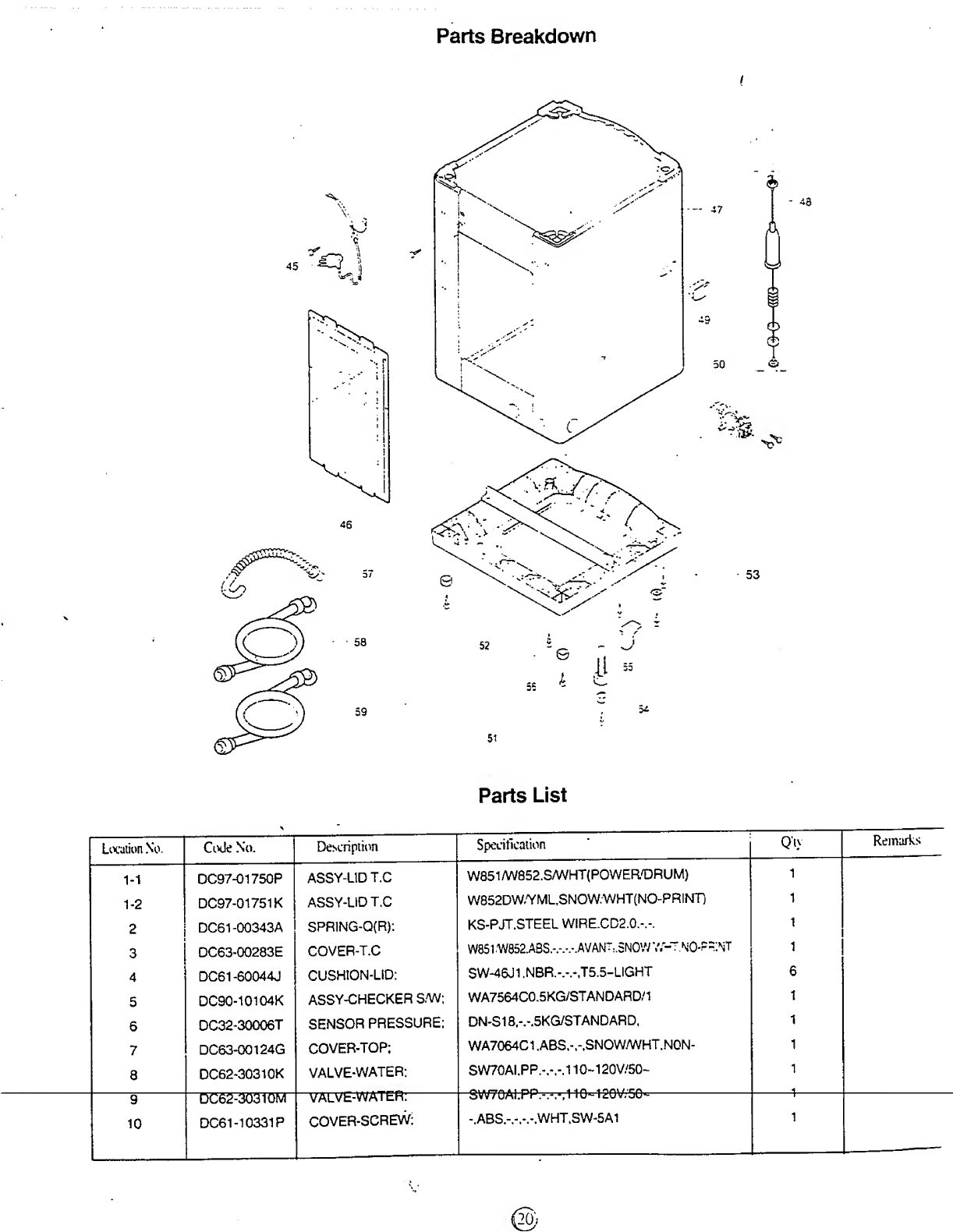

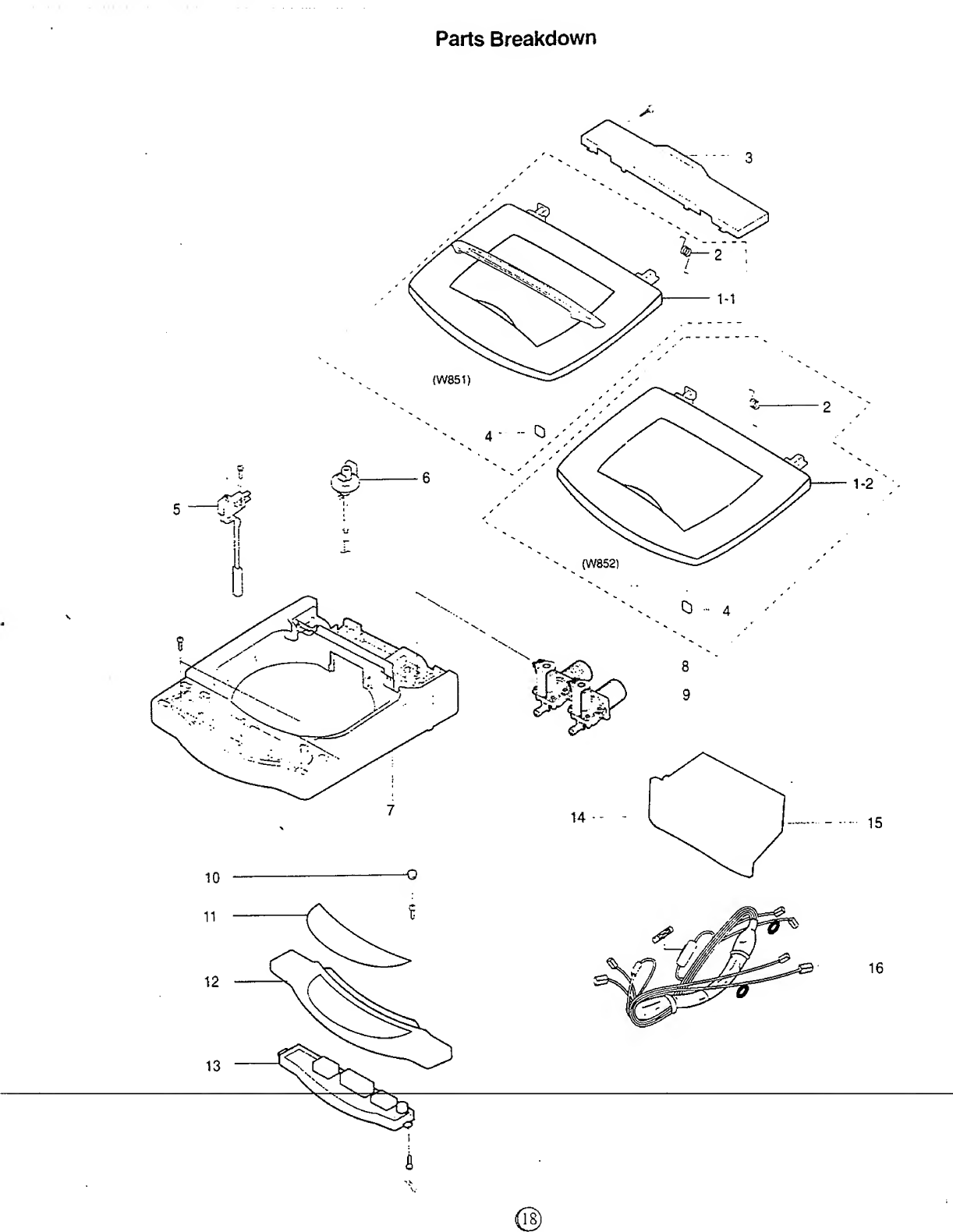

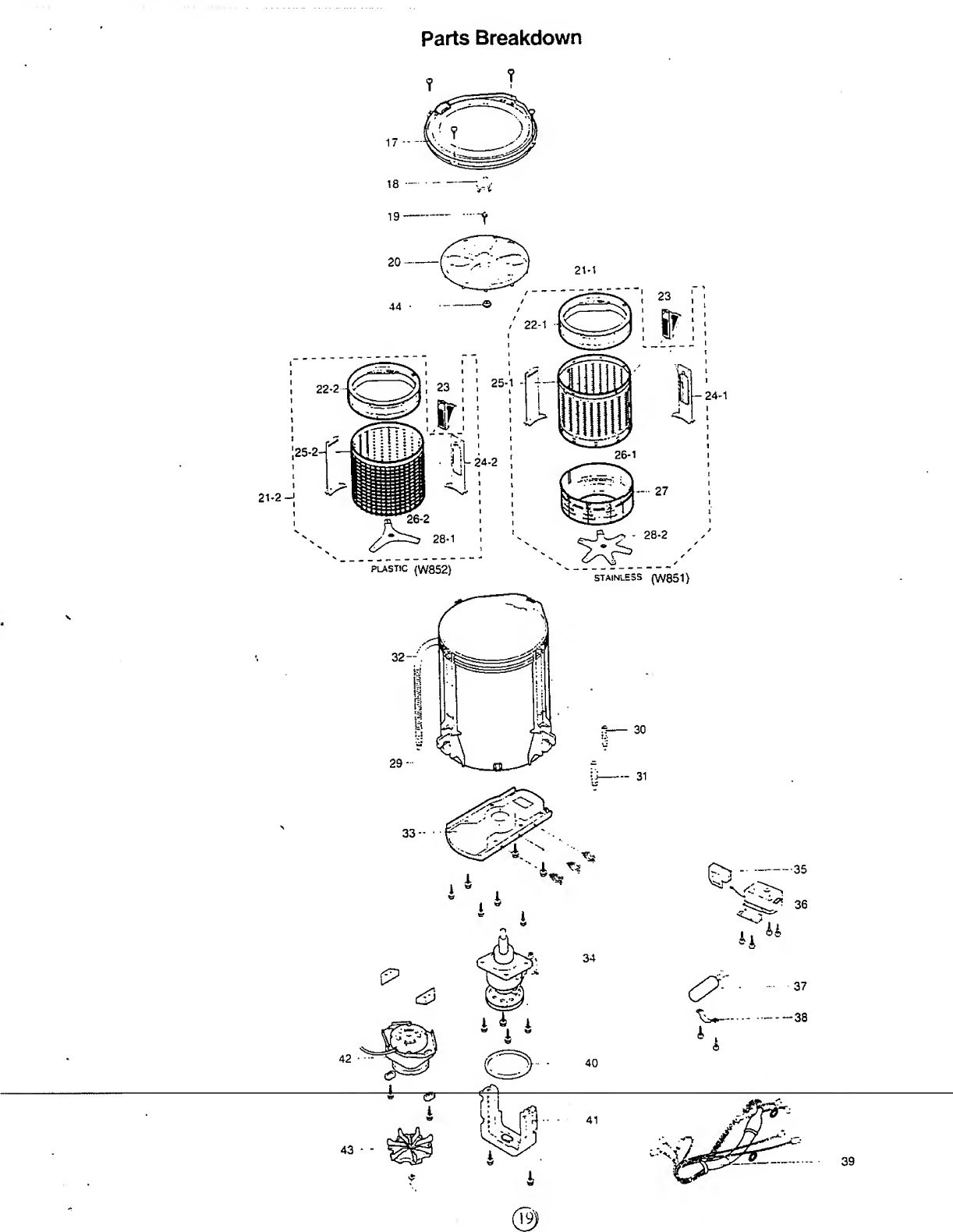

1
( 18 )

Livaiion No.
CivJe No.
1-1
DC97-01750P
1-2
DC97-01751K
2
DC61-00343A
3
DC63-00283E
4
DC61-60044J
5
DC90-10104K
6
DC32-30006T
7
DC63-00124G
8
DC62-30310K
9
10
DC61-10331P
Description
ASSY-LID T.C
ASSY-LID T.C
SPR1NG-Q{R);
COVER-T.C
CUSHION-LIO:
ASSY-CHECKER SW:
SENSOR PRESSURE:
COVER-TOP;
VALVE-WATER;
Specitlcaiion
W851/W852.S/WHT(P0WERCIRUM)
W852DW,YML,SNOW.WHT(NO-PRINT)
KS-PJT.STEEL WIRE.CD2.0.-.-.
W851 'W052.ABS.-.-.-.-.AVANT:,SNOW ■ ,v-“,nO'P=;nt
SW-46J1 .NBR.-.-.-.T5.5-LIGHT
WA7564C0.5KG/STANDARD/1
DN-S18.-,-.5KG/STANDARD,
WA7064C1.ABS.-.-.SNOW.AA/HT..N0N-
SW70AI.PP.-,-.-.110-120V'50-
-.ABS.-,-.-.-.WHT.SW-5A1
