Avaya HC020 User manual

Avaya HC050 Camera
Quick Setup Guide
Package Content:
Congratulations on purchasing your PTZ
HC050 Camera for the Avaya Scopia®
XT Series. This brings a high quality
full HD video source to your endpoint,
with HD 1080p 30 frames per second
(fps), including 12x Optical Zoom,
16x Digital zoom (total 192x), and an
optimal horizontal field of view for video
conferencing rooms.
• Avaya HC050 Camera
• 3m USB cable
• HC050 Wall Mount
• AC power adapter
• Remote Control
• Remote control Batteries

Setting Up this Device
1. Use HC050 Camera as
main camera
2. Use HC050 Camera as USB
camera for your Equinox client
Step 1 Step 1
XT5000 Series Codec Unit XT7000 Series Codec Unit
Step 2 Step 2
Step 3 Step 3

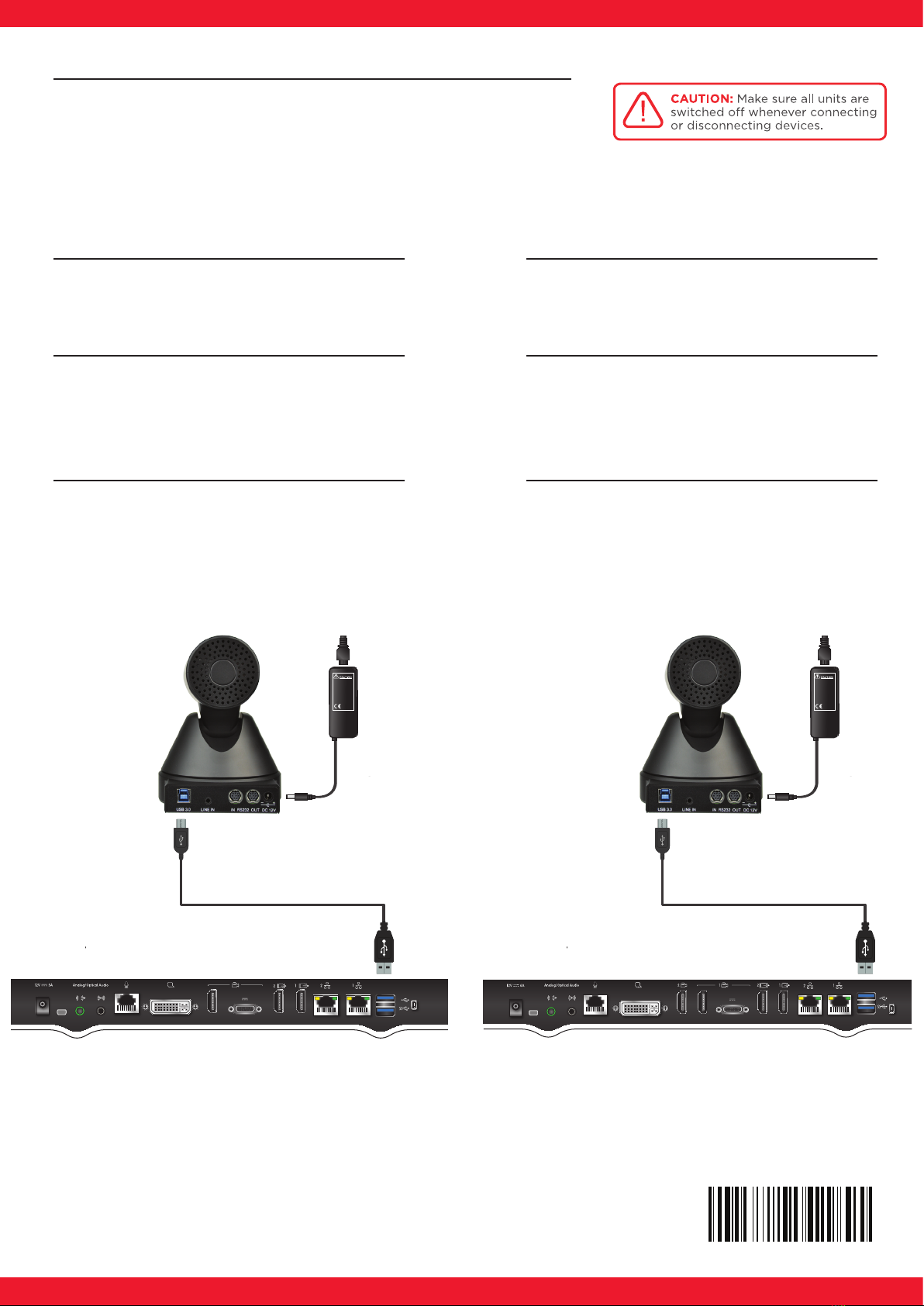

Avaya HC050 Camera can be use as first or additional camera on XT4300,
XT5000, and XT7100. Please follow the below instructions to connect and
use HC050 Camera.
Insert the USB connector to its socket at rear of
the camera.
Connect the HC050 Camera to your laptop.
Attach the USB connector to the USB upper
socket at the rear of the XT Series endpoint
(XT4300, XT5000 or XT7100).
Launch the Equinox client and select the
device (Avaya HC050) from the Settings > User
Preferences page of your Equinox Client.
If using HC020 as first camera, you should enable
it as Default Camera in:
Configure > Advanced > I/O connections
> Cameras > General > Default Camera: USB
Under this configuration, HC050 camera can be
controlled using the provided remote control.
