Avaya 5900 Series User manual

Release 7.0
NN47211-301
Issue 01.04
November 2014
Installation Job Aid (English) for Avaya Ethernet Routing Switch
5900 Series (NN47211-301, ver 01.04)
How to get help
To access the complete range of services and support that Avaya provides, go to www.avaya.com.
You can also go to www.avaya.com/support to access the following pages:
• technical documentation
• product training
• technical support
If you purchased a service contract for your Avaya product from a distributor or authorized reseller
and you need assistance, contact the technical support staff for that distributor or reseller.
Notices
Notice paragraphs alert you about issues that require your attention. The following paragraphs
describe the types of notices used in this guide.
Note:
Notes provide tips and useful information regarding the installation and operation of Avaya
products.
Electrostatic alert:
ESD
ESD notices provide information about how to avoid discharge of static electricity and
subsequent damage to Avaya products.
Caution:
Caution notices provide information about how to avoid possible service disruption or damage to
Avaya products.
© 2014 Avaya Inc. Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 1

Warning:
Warning notices provide information about how to avoid personal injury when working with
Avaya products.
Voltage:
Danger — High Voltage notices provide information about how to avoid a situation or condition
that can cause serious personal injury or death from high voltage or electric shock.
Danger:
Danger notices provide information about how to avoid a situation or condition that can cause
serious personal injury or death.
Safety messages
Safety messages are an important part of the technical documentation. The messages alert you to
hazards to personnel and equipment and provide guidance for the safe operation of your equipment.
Failure to comply with the safety messages could result in equipment damage and personal injury.
Following are the most common types of safety messages.
Warning:
Installation must be performed by qualified service personnel only. Read and follow all warning
notices and instructions marked on the product or included in the documentation.
Voltage:
This equipment relies on the building's installation for overcurrent protection. Ensure that a fuse
or circuit breaker no larger than 120 VAC/20 A or 240 VAC/16 A is used on the phase
conductors.
Caution:
This device is a Class A product. In a domestic environment, this device can cause radio
interference, in which case the user may be required to take appropriate measures.
Caution:
When mounting this device in a rack, do not stack units directly on top of one another in the
rack. Each unit must be secured to the rack with appropriate mounting brackets. Mounting
brackets are not designed to support multiple units.
Voltage:
Use only power cords that have a grounding path. Without a proper ground, a person who
touches the switch is in danger of receiving an electrical shock. Lack of a grounding path to the
switch can result in excessive emissions.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 2

Voltage:
The ERS 5952GTS-PWR+ can draw up to 1900 Watts of power when two power supply units
are installed and all 802.3at ports are operating at maximum power. In installations operating at
120 VAC, do not operate more than two power supplies from a single 120 VAC/20A circuit.
Warning:
Disconnecting the power cord is the only way to turn off power to this device. Always connect
the power cord in a location that can be reached quickly and safely in case of an emergency.
Warning:
Fiber optic equipment can emit laser or infrared light that can injure your eyes. Never look into
an optical fiber or connector port. Always assume that fiber optic cables are connected to a light
source.
Caution:
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according
to the instructions.
Installation preparation
Before you begin
Ensure the area where you install and use the Avaya ERS 5900 Series switch meets the following
environmental requirements:
• Ambient temperature between 32° and 106° F (0° and 50° C)
• Relative humidity between 10% and 90% noncondensing
• No nearby heat sources such as hot air vents or direct sunlight
• No nearby sources of severe electromagnetic noise
• No excessive dust
• Adequate power source within six feet; one circuit required for each power supply (see table,
AC and DC power specifications)
• At least 2 inches (5.08 cm) on each side of the switch unit for ventilation
• Adequate space at the front and rear of the switch for access to cables
If you are installing a single Avaya Ethernet Routing Switch on a table or shelf, ensure the surface
can support at least 21 to 33 pounds (9.5 to 15 kilograms).
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 3

Installing the fan trays and power supply
Your switch supports a combination of field-replaceable power supplies and cooling fan trays. Two
fan trays are included with your switch. You must install the two fan trays and at least one power
supply before using the switch. The switch supports an optional second power supply for
redundancy and load sharing.
To install the fan trays and power supplies to your switch, use the following procedure.
Important:
Supported cooling airflow directions are: front to back or back to front. The airflow direction of
fan trays and power supplies are labelled and fixed. Ensure the fan trays and power supplies
have the same direction of airflow.
The fan trays and power supplies do not support the ability to change their airflow direction. The
first power supply determines the airflow direction.
In a single power supply installation, keep the blanking plate installed over the unused power
supply slot for proper cooling. Avaya recommends you use PS 1 (the left most power supply slot
when viewed from the front) in a single power supply installation.
Before you begin
Verify that the fan trays and power supply are compatible—ensure that the airflow direction for all
fans and power supplies match.
Procedure
1. Insert each fan tray into a rear fan tray slot.
2. Verify that each fan tray is fully seated in the slot and secure each fan tray with two thumb
screws.
3. Insert each power supply into a rear power supply slot.
If a blanking plate covers the required power-supply slot, remove the plate before inserting
the power supply.
4. Verify that each power supply is fully seated in the slot and securely clipped in place.
Example
The following figure shows how to properly insert the cooling fan trays and power supplies into your
switch.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 4

Figure 1: Installing the fan trays and power supplies
Next steps
After you install the two fan trays and at least one power supply, you can install and connect power
to the switch.
Installing the switch in an equipment rack
Avaya recommends you install the switch in an equipment rack.
Before you begin
Tool requirements
• Phillips screwdriver to attach brackets to the switch and the switch to the rack
Rack requirements
• Space of 2.8 inches (7.1 cm) for each switch is available in an E1A or 1EC standard 19 inch
(48.2 cm) equipment rack and T1A 23 inch (58.5 cm) equipment rack.
• Appropriate rack space is available to accommodate 1U switch height (44 mm).
• Rack is bolted to the floor and braced if necessary.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 5

• Rack is grounded to the same grounding electrode used by the power service in the area. The
ground path must be permanent and must not exceed 1 Ohm of resistance from the rack to the
grounding electrode.
Note:
Avaya does not supply the bolts used to secure the switch to the rack. Ensure you obtain the
appropriate bolts to secure the switch to your specific rack before you begin.
Procedure
1. Ensure power is disconnected from the switch.
2. Attach a bracket to each side of the switch with the included screws.
You have different options for front and rear mounting positions. Attach the brackets in the
best position for your specific equipment rack.
Figure 2: Front-mounted rack bracket installation
Figure 3: Rear-mounted rack bracket installation
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 6

3. Slide the switch into the rack.
4. Insert and tighten the rack mount screws.
Figure 4: Front-mounted rack installation
Figure 5: Rear-mounted rack bracket installation
For four-post equipment rack installations, an optional four-post rack mounting kit (sold
separately) is available that includes adjustable rear brackets. For more information, see
Installing Avaya Ethernet Routing Switch 5900 Series, NN47211-300.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 7

Figure 6: Rack mount attachment screws
Figure 7: Optional four-post rack mount brackets
5. Slide the switch into the rack.
6. Fasten the switch to the equipment rack with rack mount screws.
For four-post equipment rack installations, fasten the switch to the equipment rack with rack
mount screws on all four corners.
7. Verify that the switch is securely fastened to the rack.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 8

You can proceed with the installation by connecting power and network connections to the
switch.
AC power specifications
The following table describes the AC power specifications for the Ethernet Routing Switch 5900
Series.
Model
Power supply
configuration
Power supply Input power
(margined by 10%)
Power consumption
(Thermal rating)
Rated Line
voltage
Watts
(Total)
Amps Watts BTUs/hr
ERS 5952GTS-
PWR+
Dual supply
(1000 W/PSU)
1000
W/PSU
100–120
VAC
1910 9.6 to
8.0*
470 1603.7
Single supply
(1000 W)
1075 10.8 to
9.0
275 938.3
Dual supply
(1400 W/PSU)
1400
W/PSU
200–240
VAC
1830 9.2 to
7.6*
390 1330.7
Single supply
(1400 W)
1540 15.4 to
12.8
340 1160.1
ERS 5928GTS-
PWR+
Dual supply
(1000 W/PSU)
1000
W/PSU
100–120
VAC
960 4.8 to
4.0*
240 818.9
Single supply
(1000 W)
950 9.5 to
7.9
230 784.8
Dual supply
(1400 W/PSU)
1400
W/PSU
200–240
VAC
955 4.8 to
4.0*
235 801.9
Single supply
(1400 W)
935 9.4 to
7.8
215 733.6
ERS 5952GTS Dual supply (450
W/PSU)
450
W/PSU
100–120
VAC
125 0.6 to
0.5*
125 426.5
Single supply
(450 W)
95 1.0 to
0.8
95 324.2
Dual supply (450
W/PSU)
450
W/PSU
200–240
VAC
130 0.7 to
0.5*
130 443.6
Single supply
(450 W)
95 1.0 to
0.8
95 324.2
ERS 5928GTS Dual supply (450
W/PSU)
450
W/PSU
100–120
VAC
100 0.5 to
0.4*
100 341.2
Single supply
(450 W)
85 0.9 to
0.7
85 290.0
Dual supply (450
W/PSU)
450
W/PSU
200–240
VAC
105 0.5 to
0.4*
105 358.3
Single supply
(450 W)
90 0.9 to
0.8
90 307.1
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 9

Model
Power supply
configuration
Power supply Input power
(margined by 10%)
Power consumption
(Thermal rating)
Rated Line
voltage
Watts
(Total)
Amps Watts BTUs/hr
* per power supply

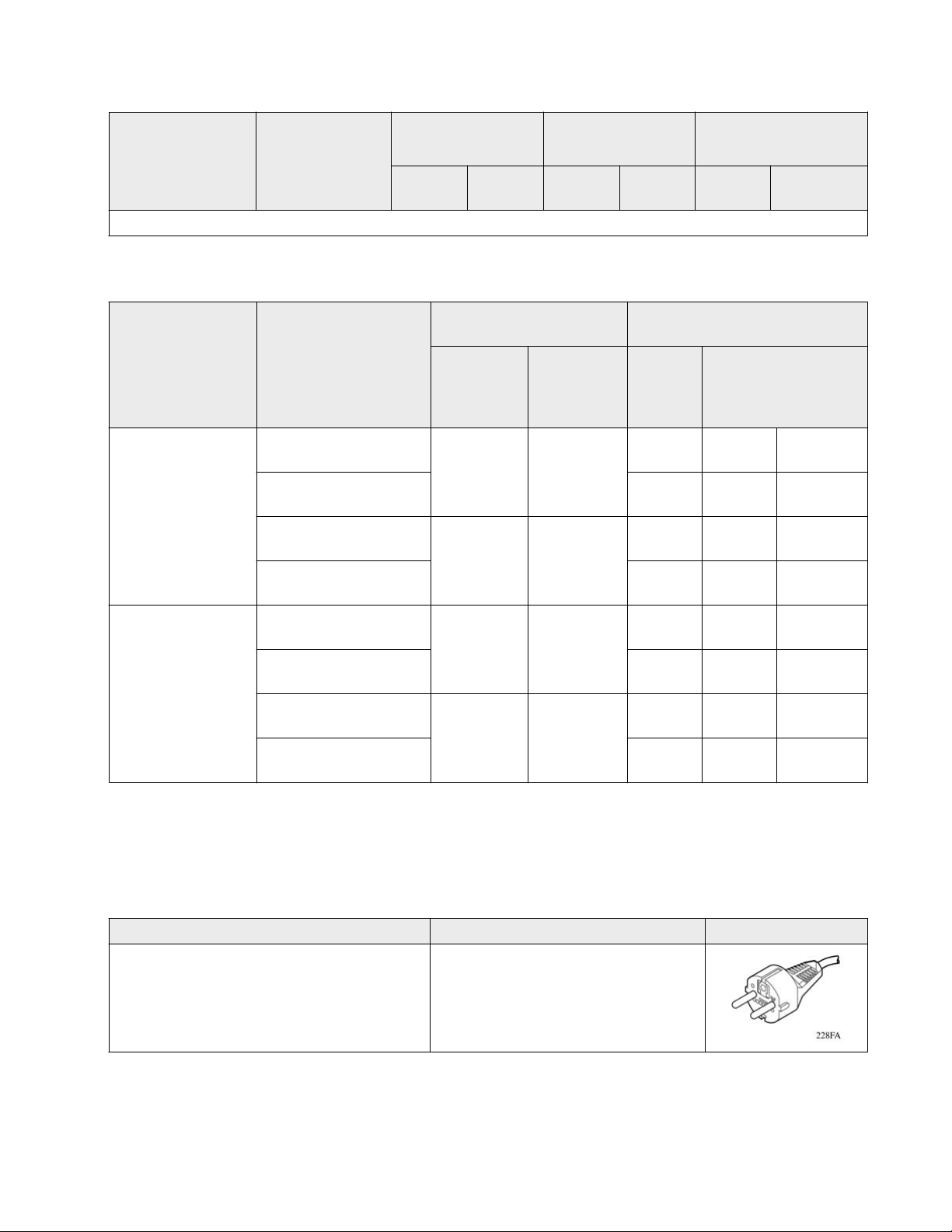

The following table describes the Power over Ethernet (PoE+) specifications for the Ethernet
Routing Switch 5900 Series.
Model
Power supply
configuration
Power supply Power over Ethernet (PoE+)
power output
Rated Line
voltage
Max
Power
per Port
(Watts)
Max power output
Sum of all Ports
(Watts)
ERS 5952GTS-
PWR+
Dual supply (1000 W/
PSU)
1000
W/PSU
100–120
VAC
30 1440 48 ports @
30 W
Single supply (1000 W) 30 800 26 ports @
30 W
Dual supply (1400 W/
PSU)
1400
W/PSU
200–240
VAC
30 1440 48 ports @
30 W
Single supply (1400 W) 30 1200 40 ports @
30 W
ERS 5928GTS-
PWR+
Dual supply (1000 W/
PSU)
1000
W/PSU
100–120
VAC
30 720 24 ports @
30 W
Single supply (1000 W) 30 720 24 ports @
30 W
Dual supply (1400 W/
PSU)
1400
W/PSU
200–240
VAC
30 720 24 ports @
30 W
Single supply (1400 W) 30 720 24 ports @
30 W
AC power cord specifications
The following section outlines the AC power cord specifications for various countries. Ensure that
you use the correct cord for your location.
Table 1: International power cord specifications
Country / Plug Specification Specifications Typical Plug
Continental Europe:
• CEE7 standard VII male plug
• Harmonized cord (HAR marking on the
outside of the cord jacket to comply with
• 220 or 230 VAC
• 50 Hz
• Single Phase
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 10

Country / Plug Specification Specifications Typical Plug
the CENELEC Harmonized Document
HD-21)
United States of America / Canada / Japan:
• NEMA5-15P male plug
• UL-recognized (UL stamped on cord
jacket)
• CSA-certified (CSA label secured to the
cord)
• 100 or 120 VAC
• 50 - 60 Hz
• Single Phase
United Kingdom:
• BS1363 male plug with fuse
• Harmonized cord
• 240 VAC
• 50 Hz
• Single Phase
Australia:
• AS3112-1981 male plug
• 240 VAC
• 50 Hz
• Single Phase
Connecting AC power
The Ethernet Routing Switch 5900 Series does not have a power switch. When you connect the AC
power cord to a suitable AC power outlet, the switch powers up immediately.
Connect the AC power cord to the back of the switch, and then connect the cord to a power outlet.
Ensure that you use the correct power cord for the switch and power supply.
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 11

Figure 8: Connecting the AC power cord to the Ethernet Routing Switch 5900 Series
November 2014 Installation Job Aid (English) for Avaya ERS 5900 Series (NN47211-301, ver 01.04) 12
