Avaya Cajun P333T User manual

Avaya P333T
Quick Start Guide
Unpack
Rack mount (optional)
Connect the cables
Configure
Run Web-based
Manager (optional)
Power up
1
2
3
4
5
6

Unpack
Check the package contents for the following:
!If any items are missing or damaged, contact your supplier.
Equipment
• One Avaya P333T Layer 2 Workgroup Switch
• One AC power cable
• One RJ-45 to DB-9 serial adapter cable
• Four rubber feet
• Four screws with washers for rack mounting
!Ethernet connection cables are not supplied
Documentation
• Avaya P333T Quick Start Guide (this document)
• Avaya P330 Release Notes
• Avaya P330 Documentation and Utilities CD (see detail below)
• Avaya Communication Warranty and License Agreement
Avaya P330 Documentation and Utilities CD
The CD contains the latest User's Guides for the Avaya P330 stackable switches and files for
use with the Embedded Web Manager.
User's Guides
You can view and print these Guides using Adobe® Acrobat® Reader.
Auxiliary Files for use with the Embedded Web Manager
Please refer to the documentation for information on how to use these files.
• Java plug-in
• Help files
Adobe Acrobat Reader
This application allows you to view and print the User's Guides on this CD.
1

Rack mount (optional)
1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes.
2. Position the unit in the rack.
3. Secure the unit to the rack, taking care not to overtighten the screws.
4. Snap closed the hinged ends of the front panel.
!You can now safely connect the cables to the unit.
2
WARNING: Disconnect all cables from the unit before proceeding with the rack
installation.
P333T
EXPANSION
SLOT
51
59
FDX
15
56
64
53
61
52
60
54
62
FIV
55
63
COLLNK
58
66
57
65
Tx Rx
1
13
23
14
8
20
5
LAG
17
HspdFC
4
16
6
18
7
19
10
22
SYS
9
21
OPR PWR
23
11 12
24
13 14 15 16 17
1LAG 234 5
CONSOLE
2118 19 20 2322 24
9
6LAG 78 1110 LAG 12
P333T
EXPANSION
SLOT
51
59
FDX
15
56
64
53
61
52
60
54
62
FIV
55
63
COLLNK
58
66
57
65
Tx Rx
1
13
23
14
8
20
5
LAG
17
HspdFC
4
16
6
18
7
19
10
22
SYS
9
21
OPR PWR
23
11 12
24
13 14 15 16 17
1LAG 234 5
CONSOLE
2118 19 20 2322 24
9
6LAG 78 1110 LAG 12
Closed hinged end
Open hinged end
Screw
holes

Power up
Avaya P330 AC Version
1. Insert the power cord into the power connector (BUPS or Power Supply) on the rear of the
unit.
2. Insert the other end of the power cord into the electricity supply or the BUPS connector.
!The unit powers up and performs a self test procedure. The LEDs flash at regular
intervals after the self-test procedure is completed successfully.
Avaya P330 DC Version
WARNING: Before performing any of the following procedures, ensure that DC
power is OFF.
CAUTION: This product is intended for installation in restricted access areas and is
approved for use with 18 AWG copper conductors only. The installation must comply
with all applicable codes.
1. Connect the power cable to the switch at the input terminal block on the rear of the unit.
!The terminals are marked “+”, “-“ and the IEC 5019a Ground symbol.
!The size of the three screws in the terminal block is M3.5.
!The pitch between each screw is 9.5mm.
2. Attach the appropriate lugs at the wire end of the power supply cord.
3. Wire the DC power supply to the terminal block.
!The unit powers up and performs a self test procedure. The LEDs flash at regular
intervals after the self-test procedure is completed successfully.
WARNING: The proper wiring sequence is:
• ground to ground
• positive to positive
• negative to negative
Always connect the ground wire first and disconnect it last.
3

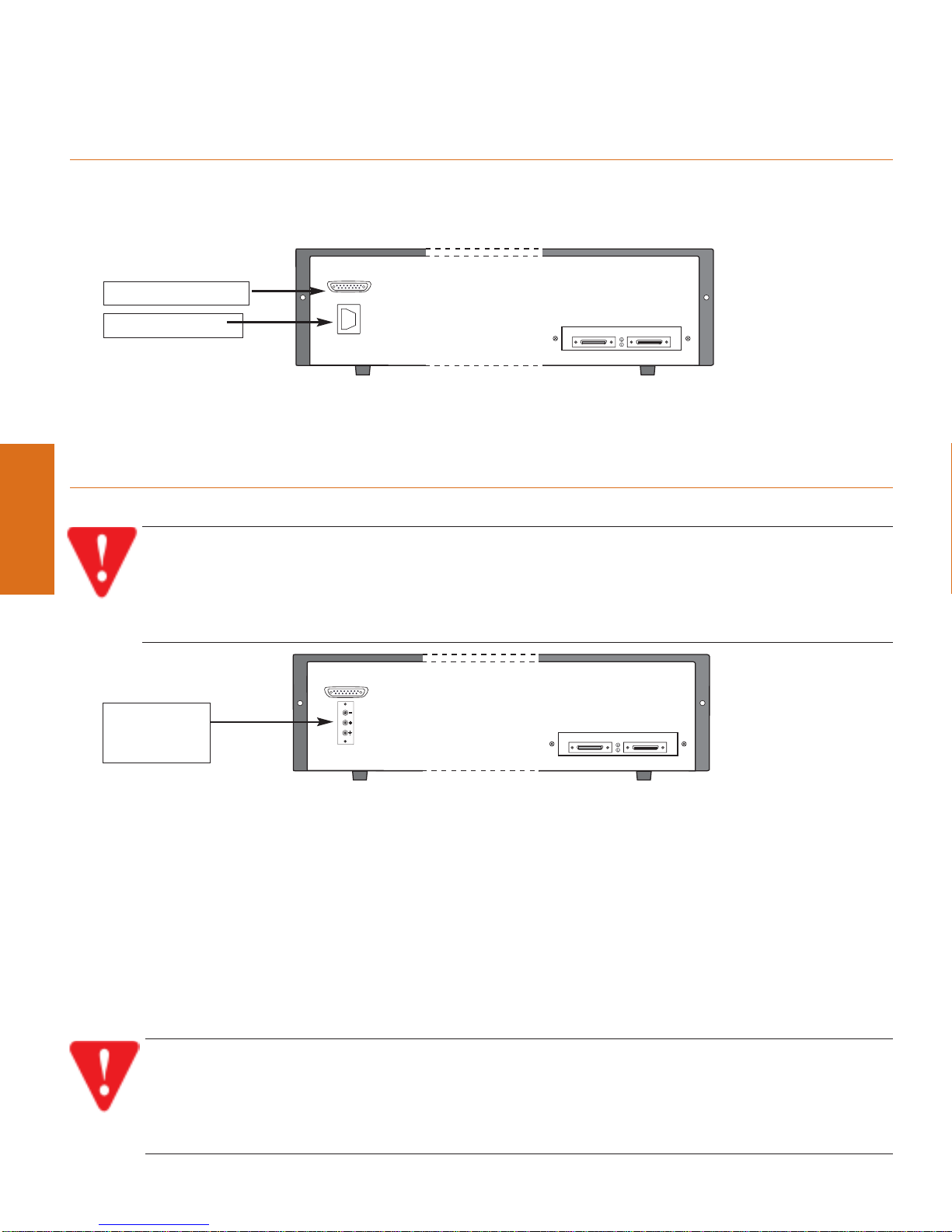

BUPS connector
AC connector
DC terminal
block

4
FIV – Force Initial Version (see Avaya P330
User’s Guide)
LNK – When ON, link is OK
COL – When ON, indicates a collision on the
port in HDX mode
Tx, Rx – Shows traffic activity for
transmitted and received packets
FDX – Shows Full/Half Duplex mode
FC – When ON, Flow Control is enabled for
a port in FDX mode
Hspd – Shows speed of port (10 Mbps or
100/1000 Mbps)
LAG – When ON, the port is included in a
Link Aggregation Group (LAG).
ROUT – Shows switch’s mode of operation
SYS – Shows whether this module is the
Avaya P330 Stack Master agent
OPR – Shows CPU boot status
PWR – Shows when power is on
Connect the cables
Connect PCs, servers, routers, workstations, and hubs
1. Connect the Ethernet connection cable (not supplied) to a 10/100 Mbps port on the front
panel of the Avaya P330.
!You should use standard RJ-45 connections. You must use CAT-5 cable for 100 Mbps
operation.
2. Connect the other end of the cable to the Ethernet port of the PC, server, router, worksta-
tion, switch or hub.
!Use a cross cable when connecting the Avaya P330 to a switch or hub.
3. Check that the appropriate link (LNK) LEDs light up.
Connect the console cable
1. Configure the serial port settings of the PC or terminal as follows: Baud Rate – 9600, Parity
– no, Data bits – 8, Stop bits – 1, Flow control – no.
2. Connect the supplied special RJ-45 connector to the port marked “Console” on the front
panel of the Avaya P330.
3. Connect the other end of the cable to a terminal or PC with terminal emulation software
installed.
Avaya P333T LEDs Port LEDs
Left/Right &
Reset Switches Function LEDsFIV switch

5
Basic configuration
To connect a PC terminal or VT-100 terminal to the Avaya P330
1. If you are using a PC, initiate a VT-100 terminal emulation session using an application
such as Windows® HyperTerminal.
2. Press Enter.
3. Type the User name root when prompted and press Enter.
4. Type the default password root when prompted and press Enter.
!The P330-N(super)# prompt appears.
!Nis the number of the switch in the stack.
Assigning the Stack IP Address
!Commands are shown as follows: set interface inband;
parameters which you need to enter are shown in
<> as follows: <vlan>
1. Type set interface inband <vlan> <ip_address> <netmask> replacing
<vlan>, <ip_address> and <netmask> with the VLAN, IP address and net mask of
the stack and press Enter.
2. At the P330-N(super)# prompt, type reset and press Enter to reset the stack.
3. After the Reset, perform login again as described above.
!The P330-N(super)# prompt appears.
4. Type set ip route
<destination> <gateway> , replacing <destination> and
<gateway> with the destination and gateway IP addresses.
5. Press Enter to save the destination and gateway IP addresses.

Configuration Parameter Default Setting
Port Speed and Duplex Mode • 10/100-TX ports: Auto-negotiation
• 100Base-FX ports: 100 Mbps full duplex
• 1000Base-X ports: 1000 Mbps full duplex
Flow Control • 10/100 and 100 Mbps: Disabled
• 1000 Mbps: Disabled (no pause)
Backpressure • 10/100: Enabled (when in half duplex mode)
• 100Base-FX & 1000 Mbps: Not applicable
Auto-negotiation • 10/100-TX ports: Enabled
• 100Base-FX ports: Not applicable
• 1000Base-X ports: Enabled
Administration State Enabled
Port VLAN ID 1
Tagging Mode Clear
Port Priority Regular
Setting the Parameters
If you wish to change the default parameters shown and configure the mandatory
parameters, we recommend that you use the Command Line Interface (CLI).
!For further information, please refer to Chapter 6 of the Avaya P330 User’s Guide.
Configuration Parameter Default Setting
Avaya P330 IP Address 149.49.32.134
BootP Mode Never
Default Gateway 0.0.0.0
Management PC SLIP IP Address 192.168.10.2
VLAN Management ID 1
Spanning Tree Enabled
TFTP Mode Limited
TFTP Server 0.0.0.0
TFTP File Name viisa
Default Switch Parameters
5
Default Port Parameters

Run the Web-Based Manager (optional)
!To configure the Avaya P330 you can use the P330 Web-based Manager in addition to
using the CLI.
System Requirements
Minimum hardware and Operating System requirements are:
• Pentium® II 400 Mhz-based computer with 128 Mb of RAM
• Screen resolution of 1024 x 768 pixels
• Microsoft® Internet Explorer® 5 or Netscape Navigator® 4.x
• Windows® 95, NT® 4.0 (server/workstation) or Windows 2000 (server/workstation)
• Sun Microsystems Java™ plug-in version 1.2.2 (supplied)
Running the Embedded Manager
!Assign an IP address to the P330 before starting this procedure.
1. Open your browser.
2. Enter the URL of the switch in the form http://aaa.bbb.ccc.ddd
!aaa.bbb.ccc.ddd is the IP address of the switch.
!You are prompted to log into the switch.
!The user name is “root”.
The default password for read-write access is “root”.
!The Web management passwords are the same as those of the CLI. If you have created
additional CLI user names or changed the default passwords then you can use those
passwords for Web management as well.

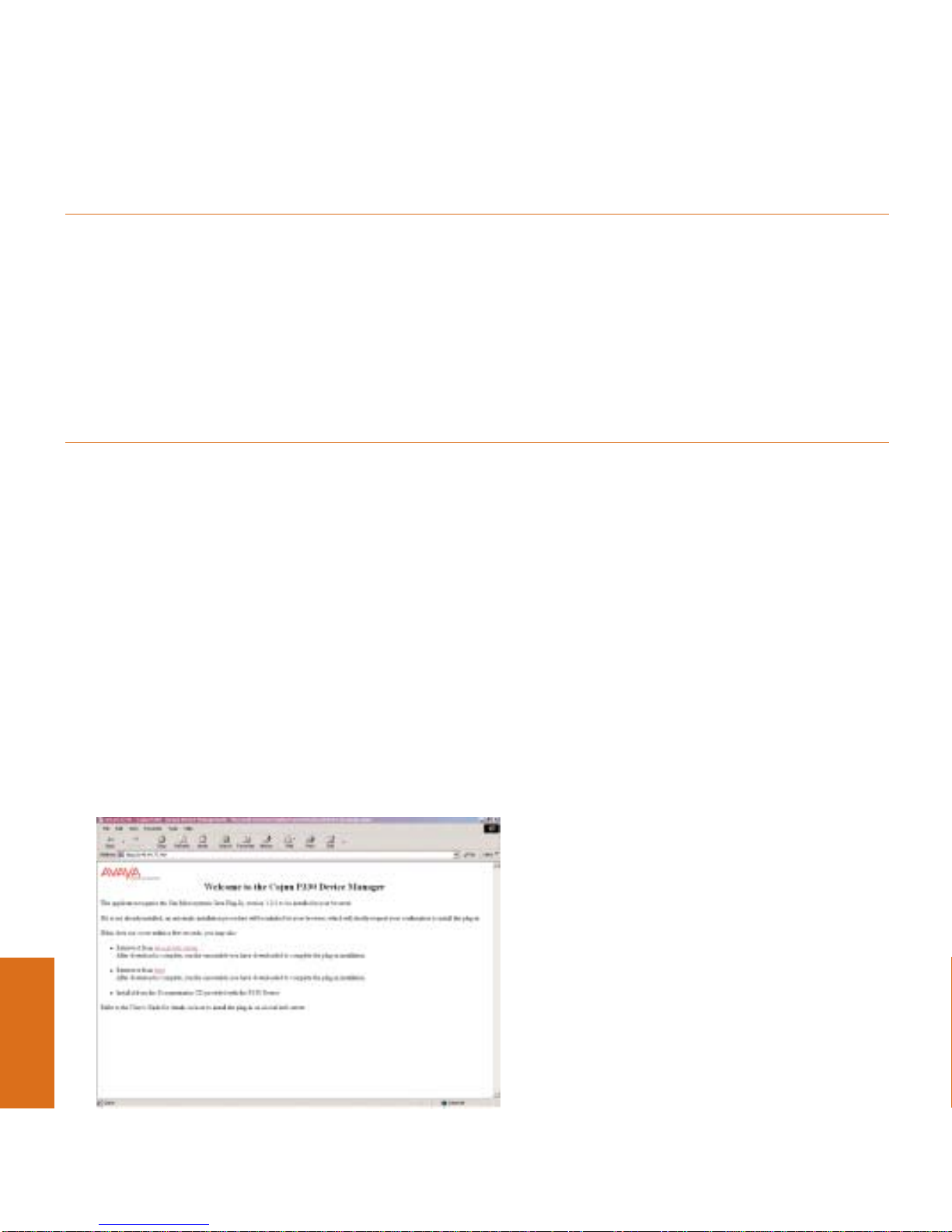

!The welcome page is displayed:
6

!If the network manager has configured the system the plug-in should be installed auto-
matically.
If the plug-in is not installed automatically, there are three ways to install the plug-in
manually:
• Either install the plug-in from the CD as follows:
1. Close all unnecessary applications on your PC.
2.Insert the “Avaya P330 Documentation and Utilities” CD in the CD drive.
3.Click Start on the Task bar.
4.Select Run.
5.Type x:\emweb-aux-files\plugin_1_2_2.exe (where x: is the CD drive letter)
6.Follow the on-screen instructions.
• Or install the plug-in from the Avaya site by clicking on the link on the welcome page.
• Or, if the network manager has placed the files on the local site, install the plug-in from
there by clicking the link on the welcome page.

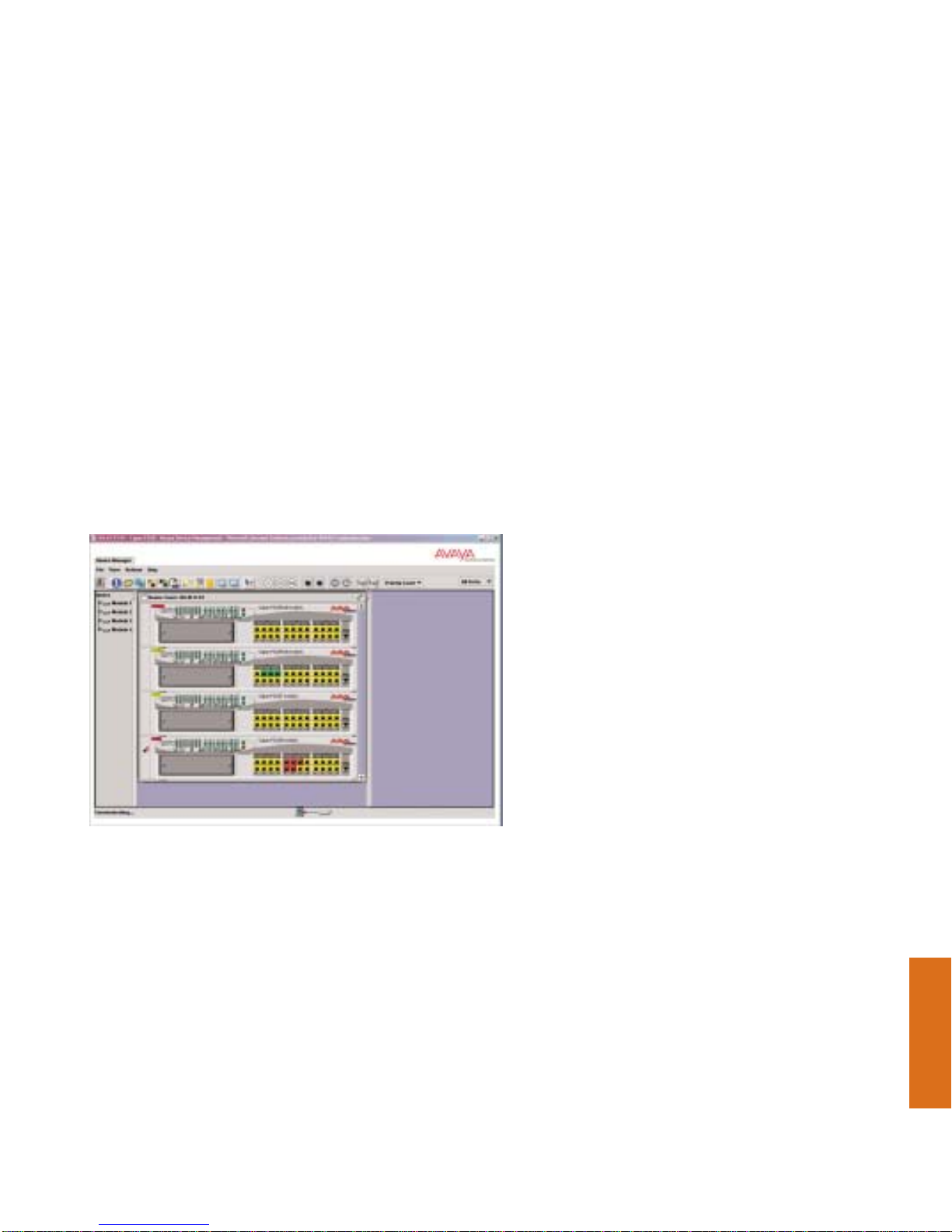

!If you have the Java plug-in already installed or once you have successfully installed the
plug-in as described above, the Web-based manager opens in your browser.
6

Documentation and Online Help
Refer to the Avaya P330 Documentation and Utilities CD for full instructions.

Notes

Contact Information
To contact Avaya technical support:
From the United States:
Please call 1-800-237-0016, press 0, then press 73300.
From outside the United States:
EMEA (Europe, Middle East and Africa). Email: [email protected]
AP (Asia Pacific). Email: [email protected]
CALA (Caribbean and Latin America). Email: [email protected]
Hot Line: [phone]
Fax: [phone]
!For updated information, visit www.avayanetwork.com, and click “Global Support
Organization (GSO)”.
aavvaayyaa..ccoomm
All trademarks, registered trademarks, service names, product and/or brand names are the sole property of their respective owners.
Copyright © 2001 Avaya Inc. All rights reserved.
Catalog No. 223555 Rev. B. October 2001
Country Local Dial-In Number
Albania [phone]
Austria [phone]
Azerbadjan [phone]
Bahrain +800 610
Belgium [phone]
Belorussia [phone]
Bosnia Herzegovina [phone]
Bulgaria [phone]
Croatia [phone]
Cyprus [phone]
Czech Rep. [phone]
Denmark [phone]
Egypt [phone]
Estonia [phone]
Finland [phone]
France [phone]
Germany [phone]
Ghana [phone]
Gibraltar [phone]
Greece +00800 3122 1288
Hungary +06800 13839
Iceland +0800 8125
Country Local Dial-In Number
Ireland [phone]
Israel [phone]
Italy [phone]
Jordan [phone]
Kazakhstan [phone]
Kenya [phone]
Kuwait [phone]
Latvia [phone]
Lebanon [phone]
Lithuania [phone]
Luxemburg [phone]
Macedonia [phone]
Malta [phone]
Mauritius [phone]
Morocco [phone]
Netherlands [phone]
Nigeria [phone]
Norway [phone]
Oman [phone]
Pakistan [phone]
Poland +0800 311 1273
Country Local Dial-In Number
Qatar [phone]
Portugal [phone]
Romania [phone]
Russia [phone]
Saudi Arabia [phone]
Slovakia [phone]
Slovenia [phone]
South Africa +0800 995 059
Spain [phone]
Sweden [phone]
Switzerland [phone]
Tanzania [phone]
Tunisia [phone]
Turkey [phone]
Uganda [phone]
Ukraine [phone]
UAE [phone]
UK [phone]
Uzbekistan [phone]
Yemen [phone]
Yugoslavia [phone]
Zimbabwe [phone]
Country Local Dial-In Number
Australia [phone]
Hong Kong [phone]
Indonesia [phone]
Japan +0 120 766 227
Country Local Dial-In Number
Korea +0 80 766 2580
Malaysia [phone]
New Zealand +00 800 9828 9828
Country Local Dial-In Number
Philippines [phone]
Singapore [phone]
Taiwan +0 80 025 227
