Avayon DXP-1000 G2 User manual

DVD/DivX PLAYER
Model: DXP-1000 G2
INSTRUCTION MANUAL
DivX / MPEG4 / DVD / MP3 / WMA / CD / Photo CD
Please read this manual before installation and use.

2

Table of Contents

TABLE OF CONTENTS.................................................................................................. 3
WARNINGS..................................................................................................................... 5
IMPORTANT - READ THIS!............................................................................................ 5
GENERAL INFORMATION............................................................................................. 6
1. DIVXCERTIFICATION ................................................................................................................6
2. NERO DIGITAL™STANDARD CERTIFICATION ...............................................................................6
3. DISC AND FORMAT COMPATIBILITY .............................................................................................6
4. DISC INFORMATION ...................................................................................................................7
5. FEATURES OF A DVD DISC........................................................................................................7
6. FIRMWARE UPDATES................................................................................................................. 8
7. CARE OF DISCS ........................................................................................................................8
PREPARING FOR INSTALLATION ............................................................................... 9
1. UNPACK THE PLAYER ................................................................................................................9
2. LOAD BATTERIES INTO THE REMOTE CONTROL ............................................................................9
PANEL DESCRIPTION................................................................................................. 10
1. FRONT PANEL ........................................................................................................................10
2. REAR PANEL ..........................................................................................................................10

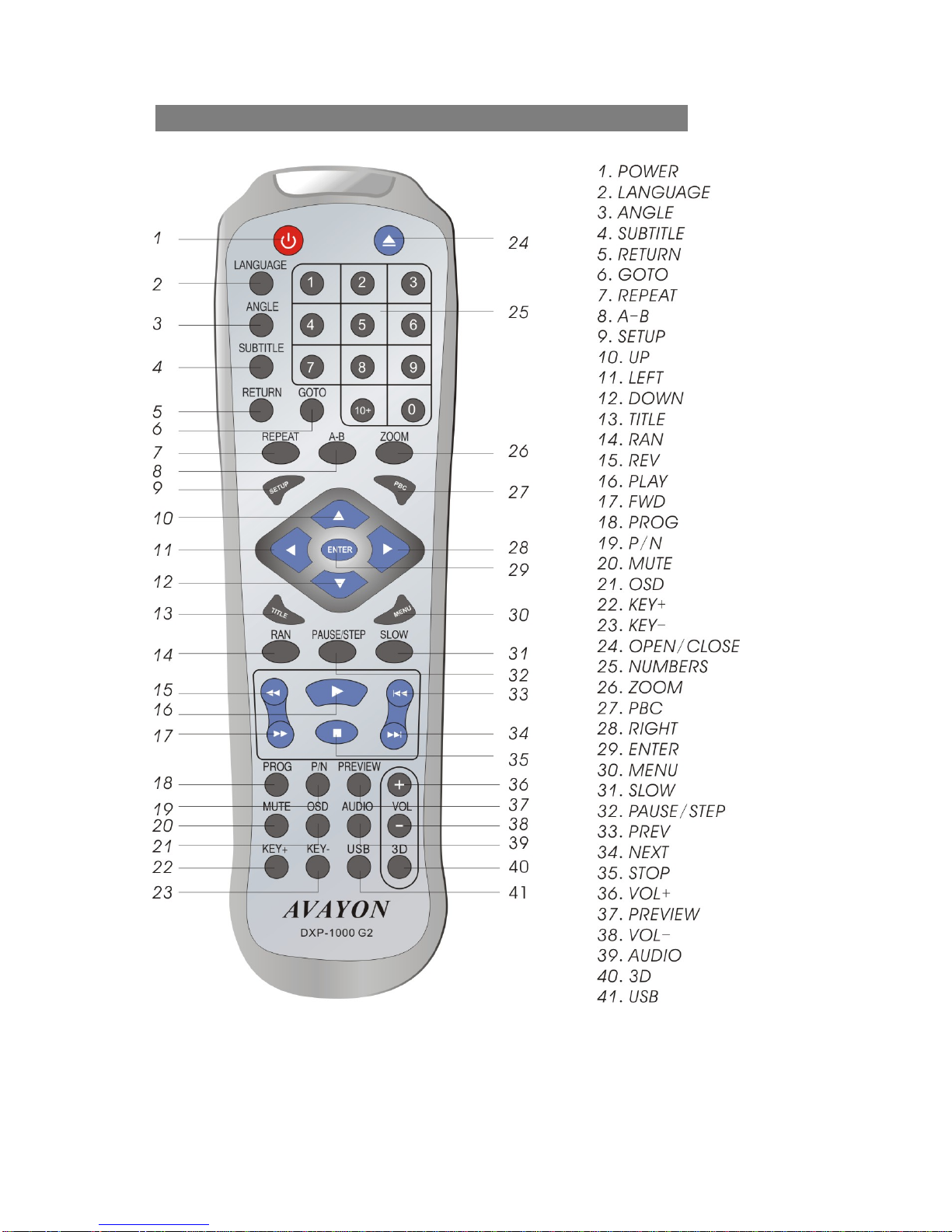

3. REMOTE CONTROL .................................................................................................................11
SYSTEM CONNECTIONS............................................................................................. 12

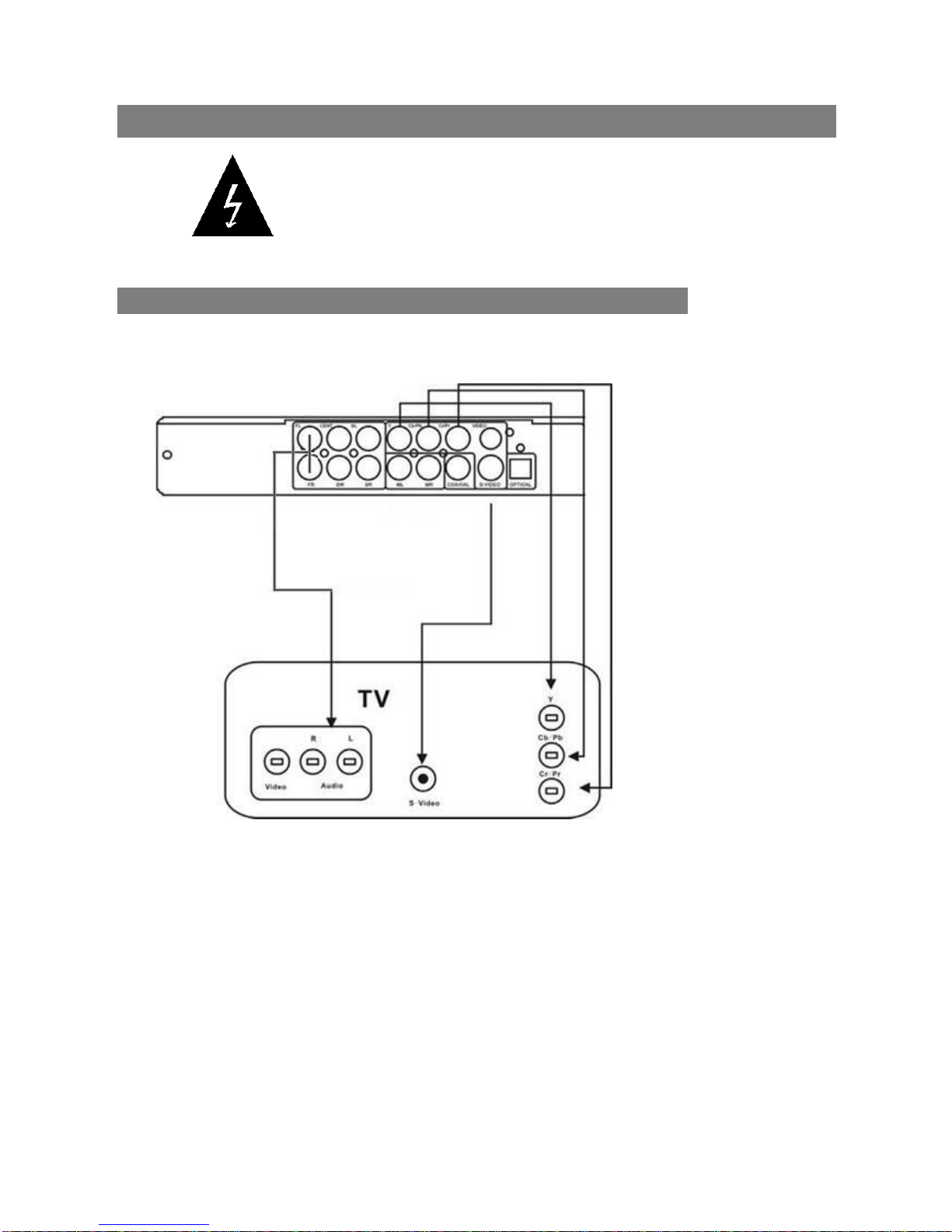

1. CONNECTING TO A TV SET ......................................................................................................12
2. CONNECTING TO A STEREO AMPLIFIER...................................................................................... 13

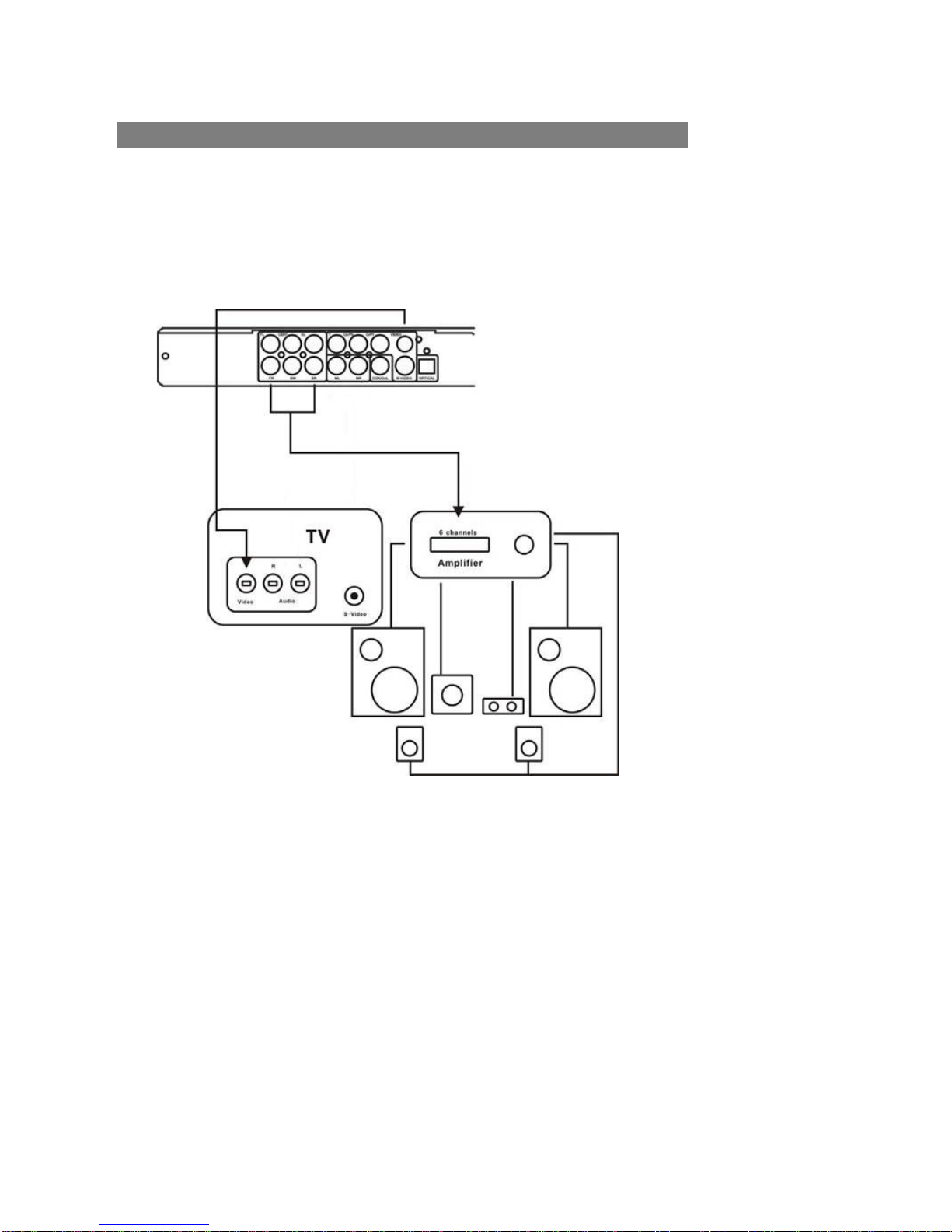

3. CONNECTING TO A 5.1 CHANNEL AMPLIFIER ..............................................................................14
4. CONNECTING TO AN AC3 OR DTS DECODING AMPLIFIER ...........................................................15
USING YOUR DXP-1000 G2....................................................................................... 16
1. HOW TO PLAY A DISC..............................................................................................................16
2. HOW TO USE THE MEMORY CARD READER AND USB PORT........................................................16
3. VIDEO SETUP .........................................................................................................................17

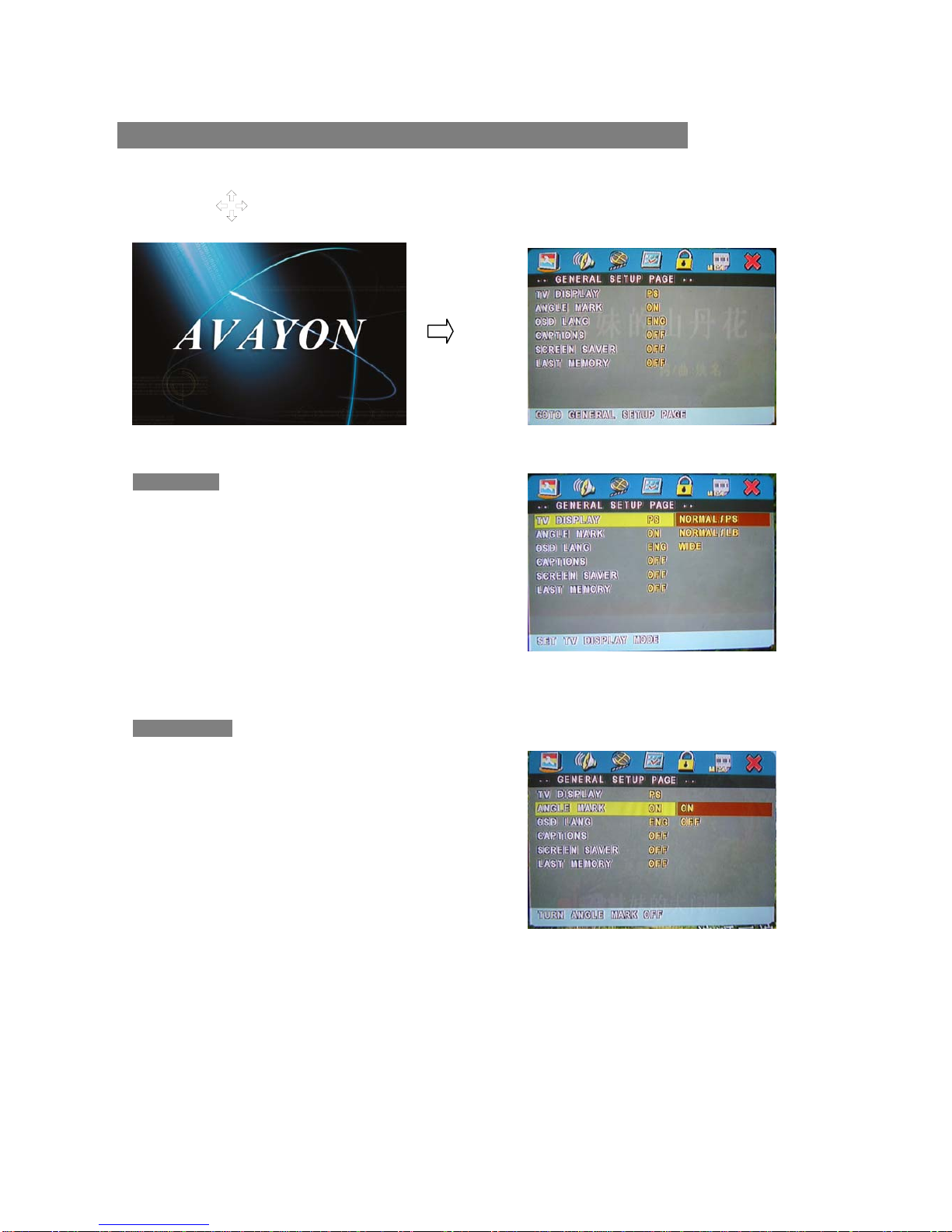

4. GENERAL SETUP PAGE ............................................................................................................18
TV DISPLAY.........................................................................................................................18
ANGLE MARK......................................................................................................................18
OSD LANG (ON SCREEN DISPLAY LANGUAGE) .............................................................19
CAPTIONS ...........................................................................................................................19
SCREEN SAVER (SCREEN SAVER) .................................................................................. 19
LAST MEMORY ...................................................................................................................19
5. AUDIO SETUP PAGE.................................................................................................................20
SPEAKER SETUP................................................................................................................20
DOWNMIX............................................................................................................................20
CENTER...............................................................................................................................20
SPDIF SETUP......................................................................................................................21
DOLBY DIGITAL SETUP .....................................................................................................21
DUAL MONO........................................................................................................................21
DYNAMIC.............................................................................................................................21
CHANNEL DELAY................................................................................................................22
EQUALIZER .........................................................................................................................22
3D PROCESSING................................................................................................................22
HDCD ...................................................................................................................................23
6. VIDEO SETUP PAGE.................................................................................................................23
TV MODE .............................................................................................................................23
QUALITY ..............................................................................................................................24
DivX VOD .............................................................................................................................24
7. PREFERENCE PAGE .................................................................................................................25
TV TYPE ..............................................................................................................................25
PBC ......................................................................................................................................25
LANGUAGE SELECTION ....................................................................................................26
PARENTAL CONTROL ........................................................................................................ 26
3

8. PASSWORD SETUP PAGE .........................................................................................................27
9. MPEG4 SUBTITLE SETUP PAGE ...............................................................................................28
EXIT .....................................................................................................................................29
BASIC OPERATION ..................................................................................................... 30
FUNCTION KEYS.......................................................................................................... 31
PLAYBACK CONTROL (only for VCD playback)......................................................................31
CONFIRM AN ENTRY..............................................................................................................31
CURSOR ..................................................................................................................................31
RETURN TO THE MAIN MENU WHILE PLAYING VCD ..........................................................31
PROGRAM NUMBER ACCESS ...............................................................................................31
GOTO SEARCH .......................................................................................................................32
REPEAT PLAYBACK................................................................................................................32
CHAPTER / TITLE (TRACK / DISC)......................................................................................... 32
REPEAT SECTION A ÆB .......................................................................................................33
PROGRAM SETTING...............................................................................................................33
DISC MAIN MENU....................................................................................................................33
TURN OFF THE VOLUME ....................................................................................................... 34
ZOOM PICTURE ......................................................................................................................34
SLOW MOTION........................................................................................................................34
TO PLAY THE DISC IN STEP MODE ......................................................................................34
GO TO DVD DISC TITLE MENU (DVD DISC ONLY)...............................................................34
SUB TITLE LANGUAGE...........................................................................................................34
VIEW ANGLE ...........................................................................................................................34
DVD AUDIO TRACK.................................................................................................................34
CHOOSE TO PLAY FILES IN USB DEVICES..........................................................................35
GO TO SETUP MENU..............................................................................................................35
AUDIO VOLUME ......................................................................................................................35
TROUBLESHOOTING AND CUSTOMER SUPPORT ................................................. 36
SPECIFICATIONS......................................................................................................... 38
AVAYON TECHNOLOGIES DVD PLAYER ONE-YEAR LIMITED WARRANTY........ 39
4

WARNINGS
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
LAYER TO RAIN OR MOISTURE!P
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of fire and
electric shock, do not remove the cover of
the player. Refer servicing of the player to a
qualified service technician only!
This lightning flash arrow symbol in a triangle is intended to alert users to
the presence of non-insulated high voltage within the player’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock
to a person.
The exclamation point symbol in a triangle is intended to alert users to
the presence of important operating and maintenance instructions in the
literature accompanying the player.
The marking of products using lasers is shown at the rear panel of the
player and means the player has been classified as a Class 1 laser
product utilizing laser beams that are of a weaker class. There is no
danger of hazardous radiation outside the player.
CLASS 1
LASER
PRODUCT
REFER ALL SERVICING TO A QUALIFIED SERVICE TECHNICIAN ONLY!
IMPORTANT - READ THIS!
Read through this instruction manual before installing and using the player.
Do not touch the power plug with wet hands.
When disconnecting the power cord from the power outlet, hold the plug. Do not pull the
power cord.
Before moving the player, remove the disc from the player’s tray.
Do not open the cover or touch any of the components inside the player.
Do not install or operate the player under direct exposure to sunlight, or near objects that radiate
heat. Doing so may lead to overheating and damage the player.
Do not install or operate the player in overly moist or humid environments. Doing so may
adversely affect the laser head.
Install the player on flat surface with good air circulation. Do not cover the ventilation holes
on the case. Doing so may cause the player to overheat and malfunction.
Wipe the panel and case with a soft dry cloth only. Do not apply any kind of thinner, alcohol,
or sprays, as they will damage the finish.
5

GENERAL INFORMATION
1. DivX Certification
By displaying the DivX® logo, we are demonstrating that AVAYON products have been tested and
certified by DivXNetworks, the creators of DivX® video technology, and are capable of playing all
versions of DivX® video content. DivX® Certified ensures that the DivX® content you attain and create
can be played on your AVAYON DivX® Certified product.
Supports DivX V3.11, V4.x, V5.x and later files (without QPEL and GMC).
2. Nero Digital Standard Certification
The Nero Digital™ Standard Certified logo ensures consumers that the Nero Digital™ Standard content
they create or download will play on the specified consumer electronics product. Nero Digital™
Standard is a revolutionary audio and video format based on MPEG-4 standard which reduces video to
a fraction of their original size making it easier to share with family and friends while providing the
highest quality playback on certified home electronics.
3. Disc and Format Compatibility
This player can play the following types of discs and formats:
DVD single-sided/single-layer or single-sided/double-layer
DVD-R / DVD-RW
DVD+R / DVD+RW / DVD+R DL
DivX® version 3.11, 4.xx, or 5.xx
XviD
CD-DA
MP3
CD-R
CD-RW
Photo CD (JPEG)
WMA
Nero Digital™ Standard
6

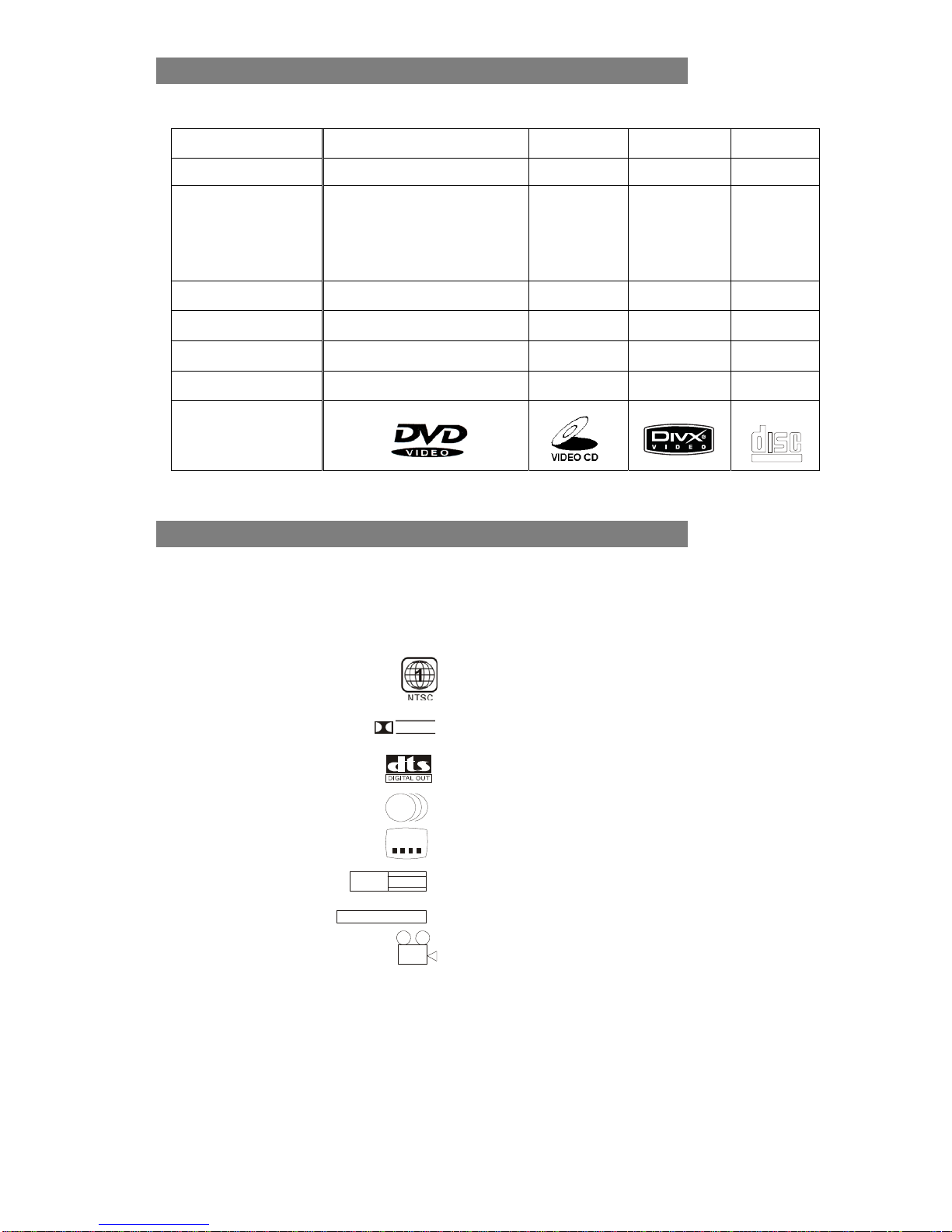

4. Disc Information
Disc type DVD VCD DIVX CD
Recording method Digital / MPEG II Digital / MPEG I MPEG 4 Digital
Capacity
single-sided/single-layer
4.7GB = 2 hr
single-sided/double-layer
8.5GB = 4 hr
650MB
650MB
74min
Disc size 12cm / 8cm 12cm 12cm / 8cm
Horizontal resolution 500 lines up 240 lines up -
Subtitles 32 - - -
Sound tracks 8 2 - -
Symbol
COMPACT
DIGITAL AUDIO
5. Features of a DVD Disc
Each DVD disc contains different combinations of features depending on the design and production of the disc.
The following symbols represent some DVD features:
Regional Code / Video Output System
DOLB
Y
D I G I T I A L
Dolby Digital Surround
DTS Digital OUT
2
Number of audio tracks
2
Number of subtitles
Screen modes
16 : 9
L B
Child lock
R E S T R I C T E D
2
Number of angles
7

6. Firmware Updates
There are several reasons why the firmware on the DXP-1000 G2 might require updating:
•To make an improvement to the player such as a new feature or function.
•To maintain compatibility with any future changes to the DivX or other disc formats.
•To address any incompatibilities or inconsistencies between various discs available in today’s
market.
As these improvements are made, a firmware update may be required. Go to www.avayon.com for
firmware updates.
The unit can be updated by either of two methods:
•Download the updated firmware and record it to a CD. Then read the CD with the DXP-1000 G2.
Complete the update by following the instructions on the TV screen.
•Download the updated firmware to a USB memory stick or MP3 player. Then connect the USB
memory stick or MP3 player to the DXP-1000 G2 via the USB port. Complete the update by
following the instructions on the TV screen.
NOTE: Be sure the DXP-1000 G2 remains powered on during the updating process, or the DVD
player will be damaged and cannot be used again.
NOTE: Some features of this player are related to the DVD disc’s software. Some
features of this player cannot be performed if the disc does not support those features, or
the required special settings. Check the features of the disc before playing it, or follow the
instructions on the on-screen menu for the disc.
7. Care of Discs
Video discs contain high-density compressed data that need proper handling.
Hold the disc with fingers and thumb, holding the hole at center and the edge. Do not touch the disc
surface!
Do not bend or press the disc.
Do not expose the disc to direct sunlight or any heat source.
Store discs vertically in a cabinet, and under dry conditions.
Clean the disc with a soft dry cloth only. Wipe the surface gently from the center to the edge. Do not
apply thinner, alcohol, or sprays when cleaning.
8

PREPARING FOR INSTALLATION
Your Avayon DXP-1000 G2 comes carefully packaged from the factory with all the accessories you need to
start enjoying high quality video entertainment right away.
1. Unpack the Player
The standard package contains the following items:
DXP-1000 G2 DVD player
Infrared remote controller
AV cables
Two AAA batteries
Instruction manual
Warranty Registration Card
2. Load Batteries into the Remote Control
To load batteries into the supplied remote control, do the following:
Remove the battery compartment cover.
Load two AAA batteries into the battery compartment.
Make sure that the batteries have been inserted with the correct polarities matching the symbols +, - as
indicated inside the battery compartment.
When replacing batteries, always replace both batteries. Do not mix new and used batteries, or the
operating lifetime of the remote may be shortened.
Do not dispose of batteries in normal rubbish. Be environmentally friendly and dispose of batteries
according to your local government regulations.
Remove the batteries if you do not intend to use the remote for a prolonged period of time.
9

PANEL DESCRIPTION
Familiarize yourself with the front panel and rear panel connections and controls before attempting to connect the
DXP-1000 G2 to your audio/video system.
1. Front Panel
NOTE: There are three types of memory cards supported by the DXP-1000 G2 card reader: SD,
MMC, and MS. Please be sure to properly orient the card before gently inserting it into the card
reader. The USB port can be used to connect either a USB memory stick, or an MP3 player.
NOTE: The DXP-1000 G2 can play MP3, WMA, and JPEG files only through its USB and
memory card reader. It cannot play video files through those ports.
2. Rear Panel
10
