AVE TPMS User manual

Installation and Operation Manual
操作說明書

1
TABLE OF CONTENTS 目錄
1. AVE 胎壓偵測系統 (TPMS) ………..……………………..…………… 2
2. 注意事項 …………………………………………………………………… 2
3. 可預防的事項 …………………………………………………………… 3
4. 規格 …………………………………………………………………… 3
5. 零件 …………………………………………………………………… 4
6. 系統裝配步驟 …………………………………………………………… 5
7. 輪胎感測發射器設置 …………………………………………………… 6
8. 顯示器介紹 …………………………………………………………… 7
9. AVE TPMS 操作…………………………………………………… 10
操作方法 …………………………………………………………… 10
功能模式 …………………………………………………………… 10
單位模式 Unit mode ………………………………………………… 11
胎壓設定方法 ……..………….…………………………....………… 12
輪胎設定方法 (換胎或感測發射器互換位置時) .…………………… 16
Tire Rotation or Sensor Replacement) …… 16
10. 警報反應 Reacting to Alerts …………………………………………… 18
11. AVE 胎壓監測系統選購配件 AVE TPMS Optional Accessories……… 22
12. 保固 Warranty …………………………………………………………… 23
13. 附錄 Appendixes ………………………………………………… 24

2
AVE 胎壓監測系統(AVE TPMS)
AVE Tire Pressure Monitoring System, AVE TPMS
謝謝您購買 Tire Pressure Monitoring System [Voice]。Tire Pressure Monitoring
System [Voice]是為了提供您在駕駛時有多一層的保護而設計。他會提前警示車子
輪胎狀況。安裝後，可以即時監控輪胎的壓力及溫度。若偵測到不正常的胎壓及溫
度時，會立刻送出警示聲及閃燈告知駕駛者。即時的處理問題旣可避免交通意外的
發生亦可確保駕駛及乘客的安全。
Thank you for purchasing Tire Pressure Monitoring System [Voice]. Tire Pressure
Monitoring System [Voice] was design to ensure extra protection to you when driving.
Our TPMS serves as an early warning system for your vehicle. Once installed, Tire
Pressure Monitoring System [Voice] will monitor your vehicle tires pressure and
temperature in real time. If it detected any irregularities with the tires’ pressure and
temperature, it will send out signal to notify the driver. Prompt actions needs to be taken
to avoid accidents and ensure safety to the driver and his passenger.
注意事項 Notice
FCC 注意事項 FCC Notice
此裝置已經遵守美國 FCC 法規第 15 條標準要求。操作使用時仍需注意下列注意事
項。
•該產品可能因為其他的干擾而導致系統無法動作。
•該系統不正常的操作可能進而導致系統失效。
此設備已經經過測試並遵守數位 Class B 的限制，根據 FCC 第15 條規定，這些規
定是設計提供合理的保護以防止干擾訊號。這種設備將會產生無線射頻訊號，如果
未依照安裝及正確使用會導致產生一些訊號源干擾無線通訊。然而，縱使正確安裝
也無法完全確保外界不會有干擾源產生。
如果該產品會干擾到收音機或無線電視的收訊時，可以由使用者自行決定是否關閉
該產品。使用者也可以自行調整正確頻率解決問題，可能方法如下:
•重新調整天線

3
•增加設備與該系統的距離
•變更接收器的位置與連接方式
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that
may cause undesired operations.
This equipment has been tested and found to comply with the limits for Class B device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference. This equipment generates, uses, and can radiate
radio frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the factoring measures.
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment an receiver
•Connect the equipment into outlet on a circuit different from that to which the
receiver is connected
警告 Caution
任何的自行修改或變更系統本體將無法保障操作者的權益。必須遵從 FCC RF 列出
的規定,此設備的天線不能和其它的天線或發射器設置在相同的地方或連接。
Any changes or modifications in construction of this device which are not expressly
approved by the manufacturer could void the user’s authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, this device and its
antenna must not be co-located or operating to conjunction with any other antenna or
transmitter.

4
預防 Precaution
•胎壓偵測系統是為了偵測輪胎的狀態，及當不正常的情況發生時可以及時警
示駕駛者而設計
TPMS system is designed to monitor tires condition and alert the user if there is any
irregularities are detected. It is the user’s responsibilities to react promptly and
discretion to alerts.
•補胎時所使用化學接著劑或是輪胎不正常充氣，可能會造成感測器功能的損
害
Use of chemical sealants for temporary resealing or re-inflation in tire assembly
may affect or even damage the sensors function.
•為了您切身的安全，請在安裝前閱讀此一說明書
For your own safety，please read manual before proceeding to installation and
setup.
•請專業人士安裝,不可自行安裝
Please seek qualified personnel for proper tire sensors installation.
•TPMS 胎壓偵測系統安裝後，仍需要準備備胎
Balancing tire is necessary after TPMS is installed.
•請使用所提供的汽車點煙器電源線
Use only power cord cigarette adapter supplied by AVE Technology.
•請勿將所提供的 USB 接線使用在其它的 USB 上， 會損害你的 USB 裝置，
它不是一般市售的 USB 線，並不相容於其它 USB 裝置
Do not attempt to use AVE Technology power cord into other USB device. It is NOT
USB compatible and may damage your USB device.
•若使用者自行使用 USB 線在非 TPMS 上而造成任何損害時，則無法提供保
固
AVE TECHNOLOGY shall not be held responsible for the damage cause on the
USB device due to this incompatibility and also from user’s action.
•當拔出電源線時，請不要拉扯電線，它會造成電線損壞
When unplug the power cord, do not pull from the cord. It may damage the cord.
•若電源線於保固期間損壞時請聯絡當地的販賣商
Contact your dealer for new power cord or exchange (if under warranty) if the power
cord is damaged.
•請勿自行拆解或修理此一產品
Never try to disassemble or repair the product by yourself.

5
AVE TPMS 規格
Specifications of AVE TPMS
感測器與發射器規格
Sensors and transmitter specification
•電池壽命 在正常使用下可使用 8年
Battery life Estimated 8 years (normal operating condition)
•電池電壓
Battery voltage 3.6 V
•儲藏溫度
Storage Temperature -55°C ~ 125°C
•操作溫度
Operating Temperature -40°C ~ 125°C
•溫度解析度
Temperature Resolution ±1°C
•壓力範圍
Pressure range 450kPa, 700kPa, 1400kPa
•壓力解析度
Pressure Resolution 1.38kPa, 2.35kPa, 5.50kPa
•操作濕度
Operating Humidity 100%
•操作頻率
Operating Frequency 315 MHz and 434 MHz

6
接收器規格
Receivers Specifications
•操作電壓
Operating Voltage 9V ~ 30V
•操作溫度
Operating Temperature-40°C ~ 85°C
•監控溫度
Monitored Temperature -40°C ~ 125°C
AVE 無線胎壓偵測系統配件表
AVE TPMS Components
項目
ITEM 配件 Accessory 數量 Quantity
A 輪胎感測發射器 Tire’s Sensor 4
B 顯示器 Display Unit 1
C 汽車點煙電源線
Power cord Cigarette adapter 1
D 標準氣嘴 Common valve 4
E 冷氣夾 Air conditioner adapter 2
F 使用說明書 User manual 1
G 顯示器黏著墊 Base Adhesive 1

7
AVE TPMS 包裝圖 Picture of AVE TPMS inside packaging

8
系統設定 System Setup
1. 汽車點煙電源線的 USB 接頭連接到顯示器
Connect cigarette lighter power cord (mini USB
end) to display unit.
2. 可安裝顯示器至任何想要放置的地方，
AVE TPMS 可以嵌入汽車儀表板或冷氣孔
Install the display unit into desired location. AVE
TPMS can be mounted on the dashboard or air-con
vent.
•安裝冷器孔夾至冷氣出風口
Install the air-con adapter for air-con vent mounting
•提供顯示器黏著墊可鑲在汽車儀表板上
Apply adhesive cushion to the base of Display Unit for
dashboard mounting.
3. 汽車點煙電源線另一端的點煙器連接到車
內的點煙器插座
Connect the other end (cigarette lighter
adapter) to vehicles cigarette lighter socket.
4. 顯示器已經安裝完成了， 安裝感測器及輪
胎充氣後，顯示器便可以開始接收從感測
器發出的訊號 AVE
TPMS display unit setup is complete.
AVE TPMS will start receiving signals from
tire sensors the moment tire sensor is installed
and tire is being inflated.
5. 請按照步驟安裝輪胎
備註: 在輪胎廠時不需重新設定輪胎的位置
務必依照感測器上的標籤來安裝輪胎
Please proceed to set up the tire.
Note: There is no need to set the tire position as it is pre-set in the

9
factory.
It is important to install the tire according to the position in
the sensors label.

10
輪胎感測器安裝方法
Tire Sensors Installation
步驟
Step 過程 Process 圖示 Photo
1
從車體拆下輪胎 Remove tire from the vehicle.
將輪胎放氣後，拆掉輪胎及鋁圈 eflate the tire and
disassemble the tire and rim.
如有需要，請尋找合格的技工幫助 Seek assistance from
qualified personnel if necessary.
2
每一個感測器都有標籤標示組裝的位置
Each sensor has a label attached showing its position to be
assemble;
i. Front Left 前左輪 ii. Front Right 前右輪
iii. Rear Left 後左輪 iv. Rear Right 後左輪
.

11
3
將感測器安裝到輪胎上 Install the sensor into the wheel.
確認輪胎是否有完全安裝到預設的輪胎 Identify if the tire’s
sensor is properly install into the intended tire.
備註: AVE TPMS 使用標準的氣嘴，它可以很方便的在任何
輪胎行更換
Note: AVE TPMS uses common valve on its product.
This common valve is available anywhere.
4
確認輪胎皮有完全的與氣嘴與鋁圈密封 Be sure the rubber
seal is properly positioned between rim and valve.
Tighten the valve using the socket wrench.
5
清潔輪胎的內部灰塵並將輪胎充氣
Clean the inside tire from dust and inflate the tire to proper
pressure.
6
備胎
Balance the tire.
請合格的技工安裝輪胎到合適的位置
Seeks assistance from qualified personnel is necessary.
Install the tire into the proper location.
7
按照相同的方法，安裝其它 3顆輪胎
Set up the other three tires in the same manner.

12
8
發動引擎
Turn on the ignition.
連接顯示器至汽車點煙電源線
Connect the display unit to vehicles cigarette lighter power.
AVE TPMS 稍候就可以從感測器偵測出訊號
AVE TPMS will take a moment to detect signals from tire
sensors.
假如 5秒後還未偵測到訊號，請重新設定顯示器(請參考安裝
方法)
If there is no signal after 5 minutes, please reset the display unit
system. (Please refer to Tire Setup Mode)
備註:在輪胎廠時不需重新設定輪胎的位置，按照感測器上的標籤來安裝輪
胎是很重要
Note: There is no need to setup up the tires location as it is being pre set
in the factory. This is only applicable if the tire installation is
according to the position on the sensors labels.

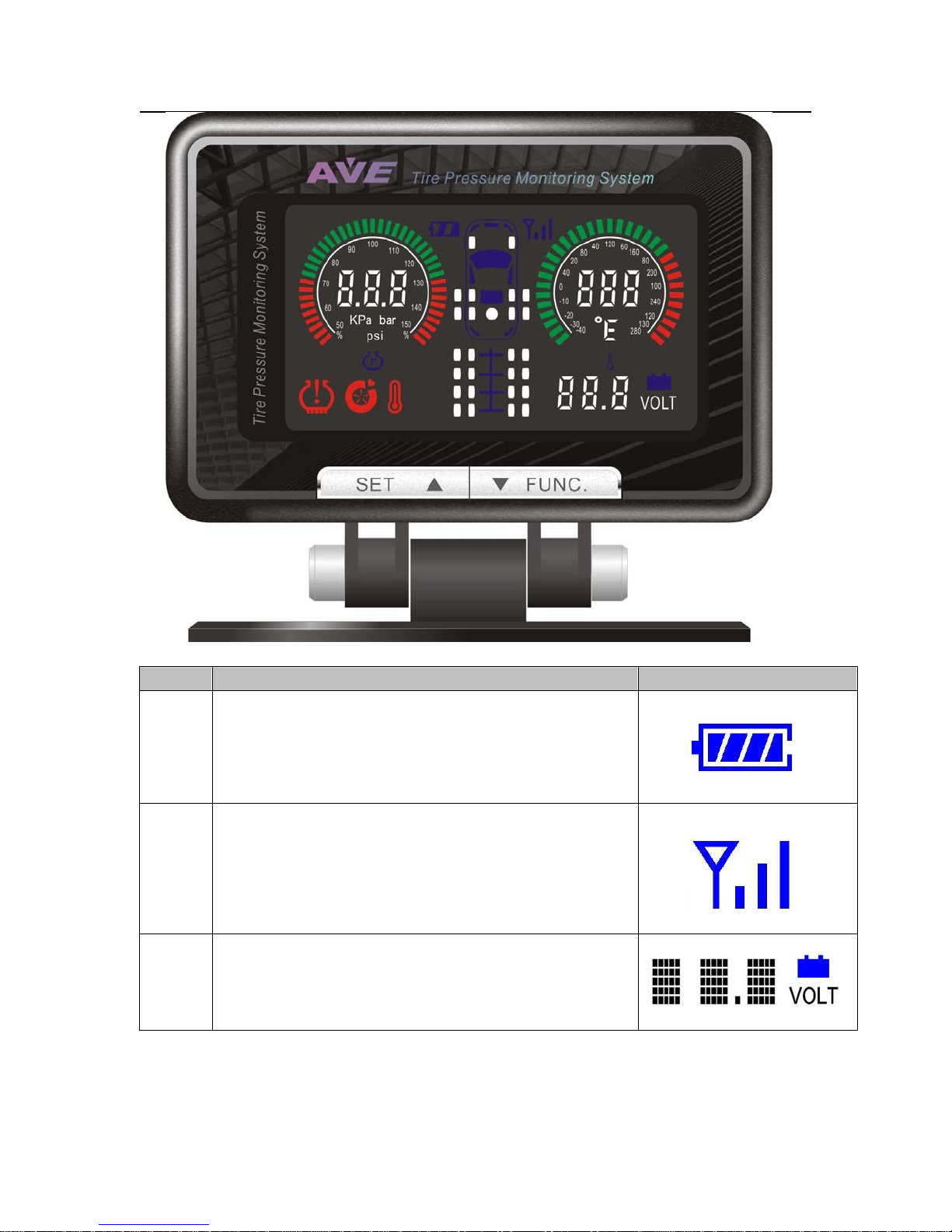

顯示器介紹 Display Unit Introduction

13
No. Description Photo
1
感測器電池圖示
Sensor battery icon
測量感測器電池容量
Measure the sensors battery level
2
訊號強弱圖示
Signals strength icon
測量輪胎感測器發出訊號接收強弱
Measures the strength of the signal received from the tires
sensor.
3
車用電池讀數 Vehicles battery readings
監控車用電池(操作模式下)Monitor user vehicles battery (in
operating mode)
Also serve as message area (in setup mode)

14
4
胎壓警示圖示 Pressure Warning icon
當偵測到胎壓不正常時，燈即亮 Will light when detected
pressure irregularities in tire
如: 漏氣或胎壓低於標準的 30%時
Ex. fast leak, tire below 30% of recommended pressure
5
胎壓不足圖示 Flat tire icon
當偵測出胎壓不足時，圖示燈亮 Will light when flat tire is
detected.
6
高溫圖示 High Temperature Icon
當輪胎內部溫度高於 85°C時，圖示燈亮 Will light when
temperature inside tire is above 85°C
7
輪胎的型式(轎車模式或卡車模式)
Customable vehicle type (car mode or truck mode)
有8種以上車種可供選擇
Up to 8 vehicle modes of vehicle type selection
可設定到 27 個輪胎
Programmable tires up to 27 wheels.
可選擇監控備胎
Optional monitoring for spare tire.
備註: 只適用於 AVE TPMS (卡車)
只適用於 AVE TPMS (汽車)，限安裝於 5輪車種
Note: Only applicable to AVE TPMS (truck version)
AVE TPMS (car version) limited to 5 wheels setup
8
胎壓計量表
Pressure Meter
可測量 3個不同壓力質(KPa, bar, psi)
Measures 3 different pressure unit (KPa, bar, psi)
以顏色來區分正常與警示的情形
Color difference to differentiate between normal and
warning condition
顯示器會顯示目前的壓力質
Display actual pressure value

15
9
溫度計量表
Temperature Meter
測量攝氏溫度(°C)及華氏溫度(°F)
Measures in degree Celsius (°C) or Fahrenheit (°F)
以顏色來區分常溫與高溫
Color difference to differentiate between normal and high
temperature
顯示器會顯示目前的溫度
Display actual temperature value
操作 AVE TPMS Operating AVE TPMS
操作模式 OPERATING MODE
AVE TPMS 顯示器每 10 秒會監控每個輪胎，輪流監
控每個輪胎。
AVE TPMS display unit will monitor each tire for 10
seconds before proceeding to next tire. It will monitor the
tire in a rotation manner.
有問題的輪胎每 15 秒鐘會監控一次。顯示器會一直
警示駕駛，直到解決問題為止。
Problematic tire will be monitored for 15 seconds before
proceeding to next tire. It will keep display its warning
code the moment it reaches it turn until the problem is
being taken care by user.
若有警示聲或警示訊號，請參考顯示器上所亮燈警示
的部份
For the alert / warnings code, please refer to Reacting to
Alerts section.
顯示器上被監控的輪胎圖示燈會亮起
The monitored tire will light and its information will be
displayed.
(如：壓力、溫度、電池容量、訊號強弱)
( i.e. pressure, temperature, batteries level and signal strength)

16
功能模式 FUNCTION MODE
按功能鍵進入功能模式
Press button once to enter FUNCTION
MODE.
顯示器會顯示 FUN
Message area display FUN.
按可以進入下一個選單
Press for next tire selection.
按 可以進入上一層選單
Press for previous tire selection.
不按任何按揵 20 秒就會自動退出
To quit, leave the display unit for 20 seconds.
備註: 只要靜止 20 秒，系統就會自動離開功能模式進入操作模式
Note: Any inactivity more than 20 seconds, system will quit
FUNCTION MODE and return to OPERATING MODE.

17
單位模式 UNIT MODE
按住 3 秒以進入單位模式
Press and hold button for 3 seconds to enter
UNIT MODE.
1) 顯示器顯示 ΔP
Message area display ΔP
2) psi 的圖示燈亮 (顯示預設的壓力單位或之前設定
的單位)
psi icon will light (default pressure unit or previously
setup unit).
3) 按 以改變壓力單位
Press to change pressure unit.
4) 再按 以選擇壓力單位
Continue to press for pressure unit
selection.
5) 按確認所選擇的壓力單位，並儲存
Press to confirm the selection. Pressure
unit saved.
備註 Note:
若要再重新設定壓力單位時，可省略步驟 (3) ， (4) ，
直接按照步驟
(5) 確認預設的單位，預設的單位是 psi
To bypass pressure unit change, skip step (3) & (4).
Go to step (5) to confirm the default unit settings.
Default pressure unit in psi.
靜止 20 秒後系統會自動退出壓力單位設定模式，所
有設定將不會被儲存，系統將會使用預設的壓力單位
To quit, leave the display unit for 20 seconds.
Changes will not be saved (before step 5) and the system
will use the default pressure unit.
6) 在步驟(5)後，顯示器就會顯示 ΔT
Immediately after step (5), message area will display
ΔT.
7) °C圖示燈量 (顯示預設的溫度單位或之前設定的
單位)
°C icon will light (default temperature unit or
previously setup unit).
8) 按以改變溫度單位
Press to change temperature unit.

18
9) 再按 以選擇溫度單位
Continue to press for temperature unit
selection.
10) 按確認所選擇的溫度單位，並儲存
Press to confirm the selection.
Temperature unit saved.
11) 單位模式己完全設定後，系統會自動回到操作模
式UNIT MODE setup complete. System will return
to OPERATING MODE.
注意 Note:
若要再重新設定溫度單位時，可省略步驟 (8) ， (9) ，
直接按照步驟
(10) 確認預設的單位，預設的單位是攝
氏
To bypass temperature unit change, skip step (8) & (9).
Go to step (10) to confirm the default unit settings.
Default temperature unit in Celsius.
靜止 20 秒後系統會自動退出溫度單位設定模式，所
有設定將不會被儲存，系統將會使用預設的溫度單位
To quit, leave the display unit for 20 seconds.
Any changes after step (5) will not be saved and the
system will use the default temperature unit.
靜止 20 秒後，系統會離開單位模式自動回到操作模
式
Any inactivity more than 20 seconds, the system will
quit UNIT MODE and return to OPERATING MODE
壓力設定模式 (車體為卡車時) PRESSURE SETUP MODE (for TRUCK version)
按鍵3秒鐘以進入設定模式
Press and hold button for 3 seconds to enter
SETUP MODE.
1) 顯示器顯示 M01
Message area display M01.
2) M01 訊號閃爍，車種也會顯示在顯示器上(顯示
預設車種)
M01 message will flash and vehicle mode will be
displayed. (Default vehicle type).
3) 按以改變車種
Press to change vehicle mode.
4) 再按 以選擇車種
Continue to press for vehicle mode

19
selection.
5) 按確認車種，並儲存
Press to confirm the selection. Vehicle
mode saved.
Note:
若要再重新設定車種時，可省略步驟 (3) ， (4) ，直接
按照步驟
(5) 確認預設的車種，預設的車種是 M01
To bypass vehicle mode change, skip step (3) & (4).
Go to step (5) to confirm the default vehicle mode.
Default vehicle mode is M01.
靜止 20 秒後系統會自動退出車種設定模式，所有設
定將不會被儲存，系統將會使用預設的車種
To quit, leave the display unit for 20 seconds.
Changes will not be saved (before step 5) and the system
will use the default vehicle mode.
在步驟(5)後，顯示器就會顯示預設的壓力質
pressure value.
6) Immediately after step (5), message area will display
default pressure value.
注意: 預設的壓力質是按照車種所選擇的
Note: Default pressure value depends on the vehicle mode selection.
7) 按確認預設的壓力質，跳過步驟
(8)~(14)，到步驟(15)
Press to accept default pressure value.
Skip step (8) to (14). Go to step (15).
8) 按以改變壓力質
Press to change pressure value.
9) 進入第３個壓力值－顯示器第３個壓力值會閃燈
Message Area will prompt for input ‗‗ will flash on
3rd digit message area.
10) 按確認第３個壓力質，跳過步驟
(11)~(12)
Press to accept the displayed value on
3rd digit. Step (11) to (12) will be skipped.
11) 要更改壓力質，按 。當每次按
時， 顯示器所顯示的數字便會增加
1，可以一直按到所需要的壓力質為止，它的範
圍在 0~9，9~0
To change the pressure value, press
button. The displayed number will increase by 1
every time button is pressed. Continue
pressing the button until your wanted value. The
number will be looping from 0 to 9 back to 0.
車種 Vehicle Mode 預設的壓力值
Default pressure
(psi)
M01 028
M02 035
M03 035
M04 038
M05 038
M06 038
M07 045
M08 045
壓力值設定正確時
Correctly Enter Pressure
