AVer C30u+ User manual

C30u+
User Manual

WARNING
AVERTISSEMENT
ALWAYS FOLLOW SAFETY PRECAUTIONS
RESPECTEZ TOUJOURS LES CONSIGNES DE SÉCURITÉ
Death or serious injury may occur when children climb on audio and/or video
equipment furniture. A remote control or toys placed on the furnishing may
encourage a child to climb on the furnishing and as a result the furnishing
may tip over on to the child.

Relocating audio and/or video equipment to furniture not specifically
designed to support audio and/or video equipment may result in death or
serious injury due to the furnishing collapsing or over turning onto a child.
Il y a un danger de blessures graves ou même de mort si un enfant grimpe
sur un meuble pour matériels audio ou vidéo. Une télécommande ou un
jouet laissés sur le meuble peuvent inciter l'enfant à y grimper, ce qui peut
provoquer le basculement du meuble sur l'enfant.

Le repositionnement de matériels audio ou vidéo sur un meuble non
spécialement conçu pour cela peut causer la mort ou des blessures graves
par effondrement ou renversement du meuble sur un enfant.

Pour réduire le risque de
décharge électrique, n’utilisez
le chariot QU’À L’INTÉRIEUR.
Only use the cart INDOORS
to reduce risk of electric shock.
ONLY ADULTS should
move the cart.
Le chariot ne doit être déplacé
QUE PAR DES ADULTES.
NEVER climb, sit
or stand on the cart.
Personne ne doit s'asseoir,
se tenir ou grimper sur
le chariot.

CAUTION

DO NOT
allow anyone to sit, stand or climb on the cart.
DO NOT lift the cart.
DO NOT block the ventilation holes used for air circulation.
DO NOT overload objects on the cart shelves. (work platform maximum
loading = 20kg / 44.09lbs; each shelf maximum loading = 15kg / 30.07lbs).
DO NOT put any devices over the maximum loading weight on top of the
cart.
When moving the cart, DO NOT put any devices (ex: TV, Monitor,
Documents camera…etc.) on top of cart.
DO NOT use a TV/monitor on top of the cart.
Disconnect the power from the outlet before moving the cart.
While moving the cart, make sure the power cord is secured and tightly
wrapped.
When moving carts over uneven flooring, please try to slightly lift and
stabilize the cart to avoid damage.
ATTENTION !

PERSONNE ne doit s'asseoir, se tenir ou grimper sur le chariot.
IL NE FAUT PAS soulever le chariot.
IL NE FAUT PAS obstruer les orifices de ventilation qui permettent à l'air de
circuler.
IL NE FAUT PAS
surcharger d'objets les étagères du chariot (charge
maximale de la plateforme de travail : 20 kg / 44,09lbs ; charge maximale
de chaque étagère : 15 kg / 30,07lbs).
IL NE FAUT PAS poser sur le haut du chariot des appareils dont le poids
dépasse la charge maximale.
Pour déplacer le chariot, IL NE FAUT poser aucun appareil (poste de TV,
moniteur, caméra pour documents, etc.) sur le haut dudit chariot.
N'utilisez aucun téléviseur ni moniteur sur le haut du chariot.
Avant de déplacer le chariot, débranchez la prise secteur.

Pendant le déplacement du chariot, veillez à ce que le cordon
d'alimentation soit correctement replié et fixé.
Lorsque vous déplacez des chariots sur un sol inégal, merci d'essayer de le
soulever légèrement et de le stabiliser pour éviter les dégâts.

FCC NOTICE (Class A)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Federal Communications Commission Statement
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operate din a commercial environment. This equipment generates,
uses, and can radiate radiofrequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and this device must accept
any interference received, including interference that may cause undesired
operation.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect
to the contents of this documentation, its quality, performance, merchantability, or
fitness for a particular purpose. Information presented in this documentation has
been carefully checked for reliability; however, no responsibility is assumed for
inaccuracies. The information contained in this documentation is subject to
change without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use this
product or documentation, even if advised of the possibility of such damages.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used
herein for description purpose only belong to each of their companies.
COPYRIGHT
©2021 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted

in any form or by any means without the prior written permission of AVer
Information Inc. is prohibited. All information or specifications are subject to
change without prior notice.
The mark of Crossed-out wheeled bin indicates that this product must
not be disposed of with your other household waste. Instead, you need
to dispose of the waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and electronic
equipment. For more information about where to drop off your waste
equipment for recycling, please contact your household waste disposal
service or the shop where you purchased the product.
Help
Global
Download Center: https://www.aver.com/download-center
Technical Support: https://www.aver.com/technical-support
USA
Download Center: https://www.averusa.com/education/support/
Technical Support: https://averusa.force.com/support/s/contactsupport
Europe
Download Center: https://www.avereurope.com/download-center
Technical Support: https://www.avereurope.com/technical-support
Contact Information
Global
AVer Information Inc.
https://www.aver.com
8F, No.157, Da-An Rd., Tucheng Dist., New Taipei City 23673, Taiwan
Tel: [phone]
USA
AVer Information Inc.
https://www.averusa.com
668 Mission Ct., Fremont, CA 94539, USA
Tel: [phone]
To l l -free: [phone]
Technical support: [e-mail]
European Headquarters
AVer Information Europe B.V.
https://www.avereurope.com
Westblaak 134, 3012 KM, Rotterdam, The Netherlands
Tel: [phone]
Technical support: [e-mail]

Contents
PACKAGE CONTENTS.......................................................................................... 1
DIMENSIONS ......................................................................................................... 1
DIAGRAM ............................................................................................................... 2
LED STATUS .......................................................................................................... 2
DOOR LOCK .......................................................................................................... 3
SECURE THE CART .............................................................................................. 4
CABLE MANAGEMENT ......................................................................................... 5
CHARGING CART.................................................................................................. 6
SPECIFICATIONS .................................................................................................. 7
SERVICE AND WARRANTY .................................................................................. 8
APPENDIX – EARTHING ....................................................................................... 9

1

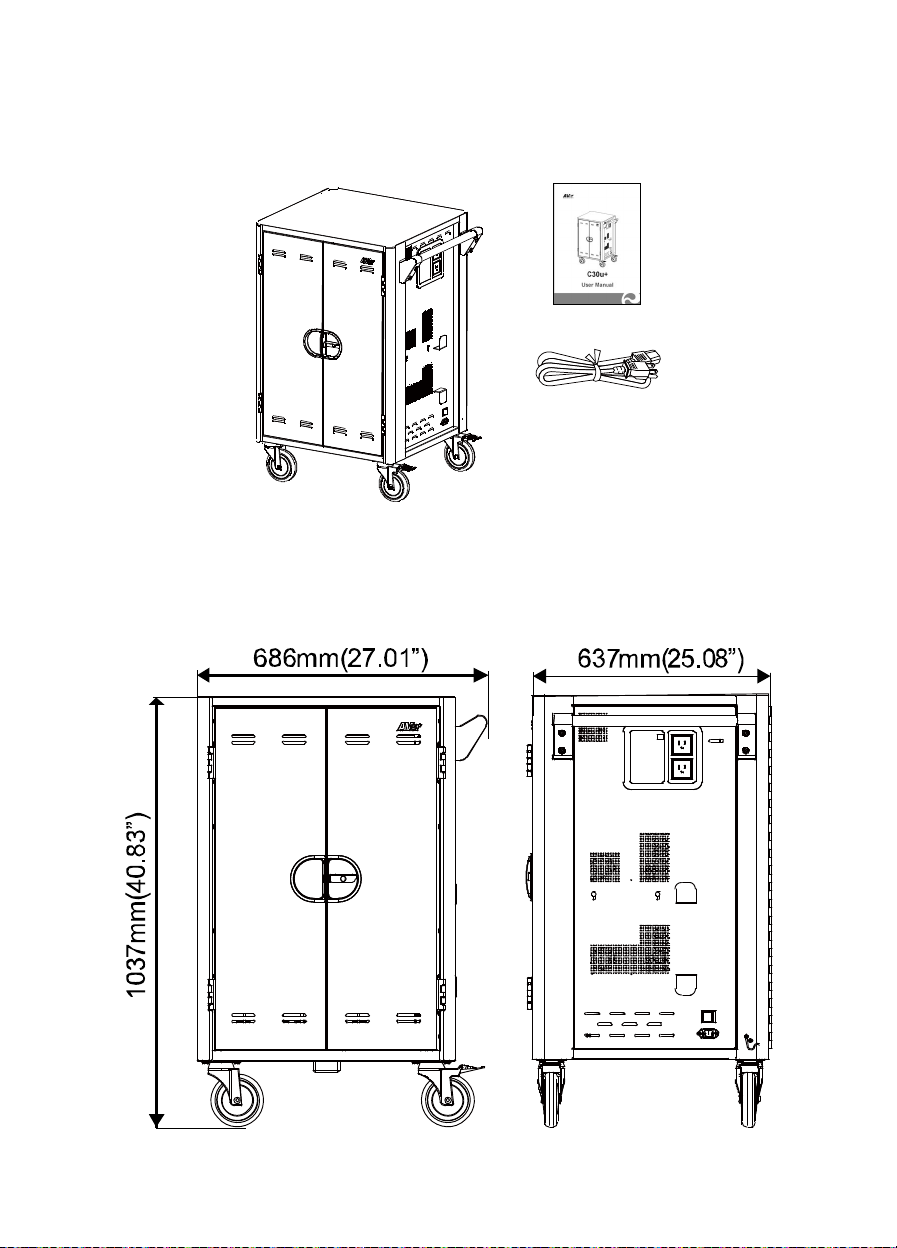

Package Contents
The following items are included in the package. Please check if each item is available before using.
C30u+ Cart
User Manual
Power cord
Dimensions

2
Diagram
Front Side Back
1. Work platform
2. Handle
3. Ventilation holes
4. Door lock
5. 5" caster
6. 5" lockable caster
7. Auxiliary outlets*
8. LED panel
9. Ventilation holes
10. Mounting points for Access
point holder(optional)**
11. Power cable wrap brackets
12. Power switch
13. Power inlet
14. Earthing screw
15. Ventilation holes
16. Door lock
17. Security hook
*Auxiliary outlet and power inlet type may vary as they are country dependent.
**Please make sure the Access point holder is balanced and installed securely to cart.
LED Status
USB Sync LED
Data Sync Port
LED Description
Device Status
(x30)
Red: Power is charging.
Off:No charging (=low current required or
fully charged)
Flashing green: Sync in progress.
USB Sync LED Blue: Data sync cable is connected.
[Note] After connecting to an external laptop via the data sync port, you
can simultaneously download application, video, music, and other files to
each iPad.

3
Door Lock
[Note] The shackle dimension of front and back doors are limited to Ø8mm (0.31”).
Front
Back
Open the door
Optional
[Note] When the door is closed, the latch will
automatically be secured shut.

4
Secure the Cart

5

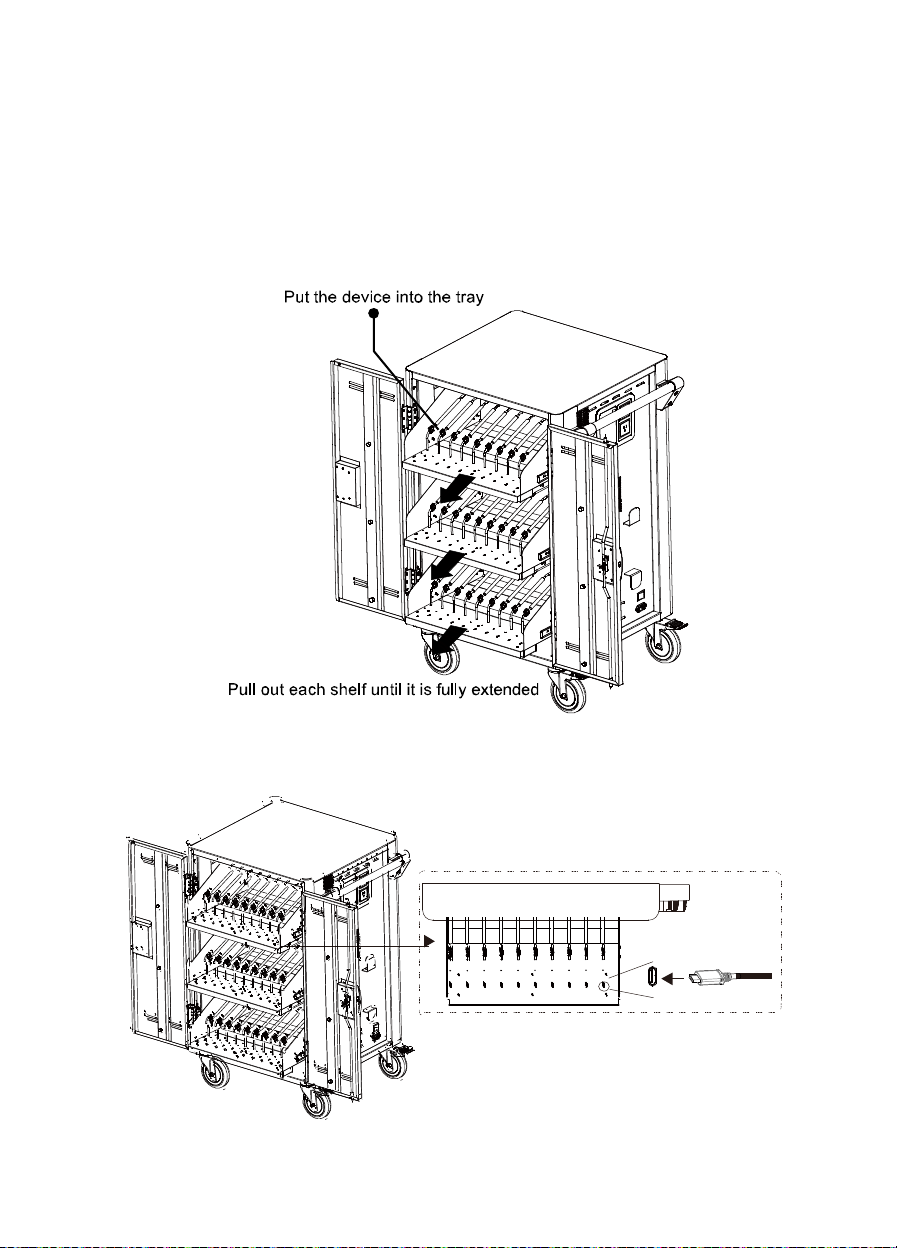

Cable Management
[Note]
It is recommended to use cable ties (optional) to secure and manage cables.
It is recommended to allocate 2 persons for efficient device cabling.
1. Pull out the shelf and put the devices into the tray.
2. Plug-in the USB-C cable of device to the USB-C port on the front of the cart.

6
3. Adjust the position of each cable holder as desired.
Charging Cart
Wall outlet
Connect power cord to
the cart and wall outlet
Set the power switch to “ON”
to begin charging
2
1

7
Specifications
Capacity 30
Device support All USB-C charged tablets
Slot Dimension (W x D x H) 34(W)*380(D)*220(H) mm
1.34”(W) x 14.96”(D) x 8.66”(H)
Auxiliary outlets 2
LED status indicators Yes
Charging type USB-C charging
Power specification
AC IN: 100-120V ~ 50/60Hz, 12A
220-240V ~ 50/60Hz, 8A
Output for 30 USB ports:
DC 5V, 3A
Outlet_2 ports in total
100-120V ~ 50/60Hz, 6A
220-240V ~ 50/60Hz, 3A
Syncing Yes
Security Front door: 3-point steel locking mechanism
Rear door: Slider latch (one point lock)
Casters Four 5'' swivel (two are lockable)
Sliding shelves Yes
Work Platform Loading 20kg (44.09lbs)
Shelf Loading(ea.) 15kg (30.07lbs)
Access point holder Loading 3kg
Working temp. 0 ~ 30°C
Working RH 10% ~ 90%
Storage temp. -40C ~ 60°C
Storage RH 5% ~ 95%
Warranty 10-year limited warranty for cart and tray
5-year limited warranty for electrical parts
Cart Dimensions(W x D x H)
686(W) x 637(D) x 1037(H)mm
27.01”(W) x 25.08”(D) x 40.83”(H)
(side handle is included)
Specifications are subject to change without prior notice.

8
Service and Warranty
All of our products come with a quality and safety assurance.
For customers located in North America, please visit the AVer USA support site for
comprehensive RMA, Warranty, and Service information:
http://averusa.com/classroom-technology/support/
For customers located outside North America, please visit AVer Global support
site: https://www.aver.com/technical-support.

9
Appendix – Earthing
[Caution]
High touch current, Connect to earth before connecting to supply.
(Yellow/Green wire min. 14AWG)
[Note]
Installation of the protective earthing connection of the socket-outlet by a skilled
person.
[Attention]
Contact à courant élevé,
Reliez l’appareil à la terre avant de la connexion à l’alimentation en courant.
(Câble jaune/vert min. 14AWG)
[Remarque]
L’installation du branchement de mise à la terre sécurisée d’une prise de courant
par un professionnel qualifié.

P/N: 300AA1C1-EJX
