AVERATEC N1200 Series User manual

N1200 Series User’s Guide
Space Saving Contemporary Design

i
Before You Start
Regulatory Information
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
u Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
u Consult the dealer or an experienced radio TV technician for help.
Note
• 
Thechangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's
authoritytooperatetheequipment.
•
ShieldinterfacecablesandACpowercord,ifanymustbeusedinordertocomplywiththeemissionlimits.

ii
Before You Start
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1
. This device may not cause harmful interference.
2
. This device must accept any interference received, including interference that may cause undesired operation.

ii
iii
Before You Start
Safety Guideline for Using Lithium Battery
(Danish) ADVARSEL! Lithiumbatteri --- Eksplosionsfare ved fejlagtig hådtering.
Udskiftning m kun ske med batteri af same fabrikat og type. Lev det brugte batteri tilbage til leverandøren.
(Deutsch) VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben
oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben
des Herstellers.
(English) CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used
batteries according to manufacturers instructions.
(Finnish) VAROITUS: Paristo voi räjätää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Häitä kätetty paristo valmistajan ohjeiden mukaisesti.
(French) ATTENTION: II y a danger dex;losion sil y a remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du meme type ou dun type éuivalent recommandé par le constructeur. Mettre au
rebut les batteries usages conformément aux instructions du fabricant.
(Norwegian) ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt same batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten.
Brukte batterier kasseres I henhold til fabrikantens instruksjoner.
(Swedish) VARNING: Explosionsfara vid felaktigt batteribyte. Anväd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera anvät batteri enligt fabrikantens instruction.

iv
Before You Start
Safety Instructions
1
. Read the safety instructions carefully and thoroughly.
2
. Save this User Guide for later use.
3
. Keep this equipment away from humidity and high temperature.
4
. Lay this equipment on a stable surface before setting it up.
5
. The openings on the enclosure are used for air convection and to prevent the equipment from overheating. Do not cover
the openings.
6
. Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100~240V before
connecting the equipment to the power inlet.
7
. Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord.
8
. Always unplug the power cord before inserting any add-on card or module.
9
. All cautions and warnings on the equipment should be noted.
10
. If any of the following situations arises, get the equipment checked by a service personnel:
u The power cord or plug is damaged.
u Liquid has penetrated into the equipment.
u The equipment has been exposed to moisture.
u The equipment has not worked well or you can not get it work according to the Users Manual.
u The equipment was dropped or damaged.
u The equipment has obvious signs of breakage.

v
Before You Start
11
. Never pour any liquid into the computer as this will damage the equipment or cause an electrical shock.
12
. Do not leave the equipment in an unconditioned environment with a storage temperature of 60°C (140°F) or above, as this
may damage the equipment.
13
. To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended
by the manufacturer only.
Ethernet Notice
This equipment is indoor use and all the communication wirings are limited to inside of the building.

v
vi
Before You Start
Information about ENERGY STAR
u The ENERGY STAR Computers Program was created by the EPA to promote energy efficiency and reduce air pollution through
more energy-efficient equipment in homes, offices, and factories.
u One way products achieve this is by reducing power consumption when not being used through the Microsoft Windows®
Power Management feature.
u The Power Management feature allows the computer to enter into a low-power or “sleep” mode after a period of user inactivity.
TriGem computers marked with the ENERGY STAR Logo are compliant with the applicable U.S. Environmental
Protection Agency ENERGY STAR specifications for computers. The EPA ENERGY STAR Logo does not imply
endorsement by the EPA. As an ENERGY STAR Partner, TriGem Computer (AVERATEC) has determined the products
marked with the ENERGY STAR Logo are ENERGY STAR qualified as per the applicable ENERGY STAR guidelines for
energy efficiency.
When used with an external ENERGY STAR compliant monitor, this feature will also support similar power management features of
the monitor. To take advantage of this energy savings:
The Power Management feature has been preset to power down the computer after 20 minutes of user inactivity.
The Power Management feature has been preset to power down the monitor after 10 minutes of user inactivity.
Power Management Status of Product
System Idle Mode
System Sleep Mode
System Off mode
About 13.5 W
0.5 W
0.4 W
Without WOL

vii
Before You Start
u Both the computer and monitor can be woken from "sleep" mode through user interaction with any of the computer's input
devices (ex: mouse, keyboard, etc).
u When configured with Wake On LAN (WOL) enabled, the computer can also be awoken by a network signal.
More information on the energy and financial savings potential of the Power Management Feature can be found at the EPA's
ENERGY STAR Power Management Web site: www.energystar.gov/powermanagement
More information on the ENERGY STAR program and its environmental benefits are available by visiting the EPA's ENERGY STAR Web
site address: www.energystar.gov

vii
viii
Before You Start

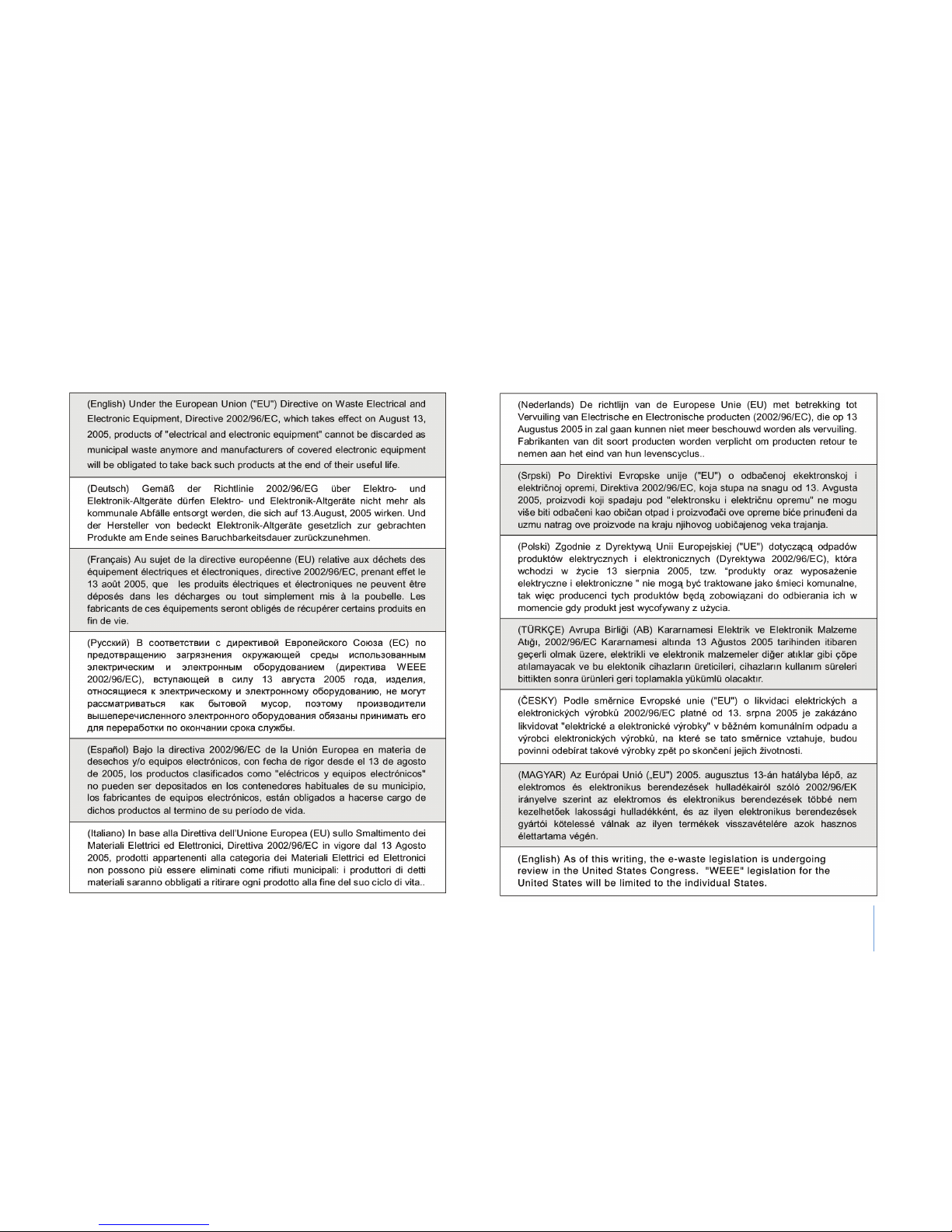

WEEE Statement

ix
Before You Start
Release History
Version
1.0
Revision Note
First Release
Date
12, 2009
Trademarks
All trademarks are the properties of their respective owners.
u Microsoft is a registered trademark of Microsoft Corporation.
Windows XP, Windows 7 are registered trademarks of Microsoft Corporation.

ix
x
Before You Start
Before You Read
The information in this user's guide is subject to change without notice.
TriGem Computer, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing, performance, or use of this material.
AVERATEC is a trademark or registered trademark of TriGem Computer, Inc. in the United States and/or other countries.
All other product and brand names are trademarks of their respective owners.
© 2009 TriGem Computer, Inc. All rights reserved.
Note Dependingonthemodel,yourcomputer'scomponentsmayvaryandlookslightlydifferentthanthosepictured.

xi
Before You Start
Table of Contents
Before You Start
Regulatory Information i
Safety Guideline for Using Lithium Battery iii
Safety Instructions iv
Ethernet Notice v
Information about ENERGY STAR vi
WEEE Statement viiI
Trademarks ix
Release History ix
Before You Read x
Chapter 1 Introduction
Unpacking 1-1
Introduction 1-2
Chapter 2 Getting Started
Connecting to a Power Source 2-1
Turning On Your Notebook Computer 2-2
Setting Up Windows 7 for the First Time 2-3
Operating on Battery Power 2-7
Charging the Battery Pack 2-8
Using Memory Card 2-9

xi
xii
Before You Start
Chapter 3 Using the Notebook Computer
Adjusting the LCD Screen Display 3-1
Using the Keyboard 3-3
Using the TouchPad 3-10
Power Saving Modes 3-15
Removing the Battery Pack 3-16
Using Windows 7 3-20
Using the Bluetooth Capabilities of Your Notebook PC 3-24
(On supported models only)
Chapter 4 Desktop Operation
Audio 4-1
Chapter 5 Internet Connection
Using a Wired LAN for Connection to the Internet 5-1
Using the wireless LAN 5-2
Chapter 6 Running BIOS Setup
Entering the BIOS Setup Screen 6-1
Leaving the BIOS Setup Screen 6-1
BIOS Action Keys 6-2
Modifying the BIOS Settings 6-3
Chapter 7 VGA Utilities
Display Devices 7-3
Display Settings 7-3
Color Correction 7-4
Hot Keys 7-4
Chapter 8 Expansion of the System
Replacing Memory Module 8-1
Chapter 9 Troubleshooting
Audio Problems 9-3
Hard Disk Problems 9-4
Display Problems 9-5
Keyboard and Mouse Problems 9-6
CMOS Battery Problem 9-7
Memory Problems 9-8
Performance Problems 9-9
USB2.0 Problems 9-8
Recovering Your Original Software 9-10
PC Card Problems 9-12
Chapter 10 Specication
Specifications 10-1

1
Chapter 1 Introduction
Introduction
Chapter
1

1-1
Chapter 1 Introduction
Unpacking
First, unpack the notebook from the shipping carton and check all items carefully. If any item is damaged or missing, please contact
your local dealer immediately. Keep the box and packing materials in case you need to ship the unit in for service in the future.
The package should contain the following items:
u Notebook Computer
u Quick Start Guide
u High-capacity Li-Polymer battery pack
u AC adapter and power cord
These accessories listed above may change without notice.

1-2
Chapter 1 Introduction
Introduction
Welcome to the Notebook PC
Congratulations on your purchase of the Notebook PC. Your Notebook features the latest advances in portable computing
technology. The Notebook's modular design provides maximum expandability without compromising portability.
Getting to Know Your Computer
Opening the LCD Panel
Warning Toavoiddamagetothedisplaypanel:
1.Donottoslamthedisplayuponclosing.
2.Donottoplaceanyobjectontopwhenitisclosedoropen.
3.Besurethesystemisturnedofforinsuspendmodebeforeyouclosethedisplaypanel.

1-3
Chapter 1 Introduction
With the LCD screen open, you will see several features important for operating your Notebook computer.
Front View
To open, lift the top cover (LCD Panel). The image of the top-open view and descriptions below will help you to get familiarized with
the main features of your notebook.
1
. Integrated webcam
2
. LCD display
3
. Integrated speakers
4
. Power button
5
. Keyboard
6
. Microphone
7
. Touchpad
8
. Microphone jack
9
. Headphone/Speaker jack
Warning Donotplaceanyheavyobjects
onthetopofnotebook.
Thismaydamagethedisplay.
1
2
3
4
12
11
7
6
5
10
8
9
12

1-4
Chapter 1 Introduction
10
. 4-in-1 card reader
11
. Touchpad left and right buttons
12
. LED Status Indicator
This LED lights when you press NumLock key. (Fn+Num LK)NumLock LED
Caps Lock LED
HDD LED
Battery LED
Power LED
Wireless LAN LED
LED Graphic Symbol Indication
This LED lights when you press the Caps Lock key.
White blinking light indicates hard drive activity.
Amber light indicates the battery is being charged.
No light indicates the battery is fully charged.
White light indicates the WLAN module is active. Pressing Wireless LAN on/off button will set this LED lights.
Persistent White light indicates the Power is ON.

1-5
Chapter 1 Introduction
Left Views
4 321 3
1
. Kensington lock
2
Power jack (DC-in)
3
. USB connector
4
. Ventilation grill
Right View
1
. Network connector (Ethernet LAN)
2
. VGA port
1 2
Note WhenusingaEthernetLAN,pleaseuseanEMIshieldedCabletominimizeinteferencewhentransmitting.

1-6
Chapter 1 Introduction
Bottom View
1
. Battery pack
2
. Battery lock switch
3
. Battery release latch
4
. Hard disk drive Door
5
. Ventilation grill
6
. Main memory & Wireless
LAN Door
2
3
1
6
5
4
