AVID LABS AVERE 3 Wash User manual

Unique lighting solutions.
488649

WARNING
(Must read below prior to use of this product)
• Use only in ponds and small decorative fountains where
persons will immerse no more than their hands and lower
arms while the product is energized (Bronze version only).
• DO NOT use in water intended for swimming, wading,
immersion, or bathing.
• All installer completed cable connections must be located
outside of pond or fountain.
• Low voltage circuit must be supplied by a power unit
marked as suitable for supplying submersible luminaires.
• Power unit must be supplied by a circuit protected
by a ground fault circuit interrupter (GFCI).

1
Unique lighting solutions.
Table 0f Contents
Introduction ��������������������������������������������������������������������������������������������������������������������������������������������������������������������2
Product Description ������������������������������������������������������������������������������������������������������������������������������������������������2
Safety Information����������������������������������������������������������������������������������������������������������������������������������������������3-8
General Advice��������������������������������������������������������������������������������������������������������������������������������������������������������������4
Protection from Eye Injury�����������������������������������������������������������������������������������������������������������������������������������4
Protection from Electric Shock������������������������������������������������������������������������������������������������������������������5-6
Protection from Fire�������������������������������������������������������������������������������������������������������������������������������������������������6
Protection from Injury And Damage �����������������������������������������������������������������������������������������������������������7
Environmental Advice����������������������������������������������������������������������������������������������������������������������������������������������7
Functional Advice������������������������������������������������������������������������������������������������������������������������������������������������������� 8
Technical Information������������������������������������������������������������������������������������������������������������������������������������������ 9
Secure Mounting��������������������������������������������������������������������������������������������������������������������������������������������� 10-12
AC Power Connection����������������������������������������������������������������������������������������������������������������������������������������� 13
Warranty ������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 13

2
Unique lighting solutions.
Introduction
Product Description
Congratulations on the purchase of your new AVERE®3 Wash-COB xture.
Our company’s name is especially apt. We truly are avid designers, engineers and
machinists – innovators constantly striving to create the best products possible
with the utmost appreciation for clean design and solid execution.
The AVERE®3 Wash-COB light is proudly built in the U.S.A. from machined
aircraft-grade aluminum. Simplicity of use, exibility, build quality and overall
functionality make us condent you made the right choice in lighting xtures.
Our lighting experts and engineers will consult with you on ways to use our
standard products or design custom solutions. Let our team help you create the
design you envisioned. Together we can make great things.
Joel Nichols, Owner/CEO
AVID Labs, LLC
The AVERE
®
3 Wash-COB is an IP68, UL Listed
LED xture designed for ease of use and future compatibility including front
board replacement. The xture is designed for outdoor and underwater use
(Bronze version only) in architainment, commercial, retail, residential and
architectural environments.

3
Unique lighting solutions.
Safety Information
The following symbols are used in this document:
WARNING! Read manual before installation, operation or servicing.
MISE EN GARDE ! Lire le manuel avant l’installation, de fonctionnement
ou de réparer.
WARNING! Safety hazard. Risk of injury or death.
MISE EN GARDE ! Danger pour la sécurité. Risque de blessure
ou de mort.
WARNING! Hazardous voltage. Risk of severe or fatal electric shock.
MISE EN GARDE ! Tension dangereuse. Risque d’électrocution grave,
voire mortelle.
WARNING! Shock hazard. Equipment must be properly grounded.
MISE EN GARDE ! Risque d’électrocution. Équipement doit être
correctement mise à la terre.
WARNING! Hot surface. Risk of skin burn or skin irritation.
MISE EN GARDE ! Surface chaude. Risque de brûlures ou d’irritation
de la peau.
WARNING! Fire hazard.
MISE EN GARDE ! Risque d’incendie.
WARNING! Light emission. Risk of eye injury.
MISE EN GARDE ! Émission de lumière. Risque de blessure
aux yeux.
WARNING! Seek Professional Electrical Guidance Prior to Installation
Refer to the Power Supply Unit (PSU) manufacturer’s guide for PSU locations,
connections, etc. The PSU must be located in a dry location and properly ground
in accordance with the manufacturers guidelines and local electrical code.

4
Unique lighting solutions.
Safety Information
GENERAL ADVICE
PROTECTION FROM EYE INJURY
1. Read this manual completely before using the product.
2. Keep this manual with your records for future reference.
3. Follow all instructions printed in this manual, otherwise warranty
may become void.
4. Follow all printed security advice on the device.
5. The manufacturer takes no responsibility for injury or damage
caused by not following the safety precautions and instructions
printed within this manual and on the device.
6. Handle the unit with care. Dropping or heavy vibration may damage
the unit mechanically and/or electrically.
1. Warning: Depending on the conguration of the device, this
device reaches the limits of IEC/EN62471 Group 3 depending
upon exposure and chip type.
Avertissement: Selon la conguration de l’appareil, cet appareil
atteint les limites de IEC/EN62471 groupe 3 en fonction de
l’exposition et le type de puce.
2. To avoid eye injury, do not look into or at the beam
Pour éviter les blessures aux yeux, ne regardez pas le faisceau.
3. Do not view the beam directly and limit exposure indirectly. Use
protective eyewear when possible due to the high luminous intensity.
Ne pas regarder le faisceau directement et indirectement limiter
l'exposition. Utilisez des lunettes de protection lorsque cela est
possible en raison de la forte intensité lumineuse.

5
Unique lighting solutions.
Safety Information
PROTECTION FROM ELECTRIC SHOCK
1. Use only in ponds and small decorative fountains where persons will
immerse no more than their hands and lower arms while the product
is energized. Bronze unit only.
Utilisez uniquement dans les étangs et les petites fontaines
décoratives où les personnes ne plongent pas plus que leurs
mains et leurs bas bras tandis que le produit est sous tension. Unité
de bronze seulement.
2. DO NOT use in water intended for swimming, wading, immersion,
or bathing. Bronze unit only.
NE PAS utiliser dans l'eau destinée à la baignade, à la pataugeoire,
à l'immersion ou au bain. Unité de bronze seulement.
3. All installer completed cable connections must be located
outside of pond or fountain. Bronze unit only.
Toutes les connexions de câbles achevées par l'installateur
doivent être situées à l'extérieur de l'étang ou de la fontaine. Unité
de bronze seulement.
4. Low voltage circuit must be supplied by a power unit marked
as suitable for supplying submersible luminaires. Bronze unit only.
Le circuit basse tension doit être alimenté par une unité
de puissance indiquée comme étant apte à alimenter des
luminaires submersibles. Unité de bronze seulement.
5. Power unit must be supplied by a circuit protected by a ground
fault circuit interrupter (GFCI).
L'unité d'alimentation doit être alimentée par un circuit protégé
par un interrupteur de défaut à la terre (GFCI)
6. Ensure only UL listed (In North America) constant voltage
supplies are used, the supply must output less than 30V DC.
Assurez-vous que seules les alimentations en tension constantes
de l'UL (en Amérique du Nord) sont utilisées, l'alimentation
doit produire moins de 30V cc.
7. Note: Aluminum unit is not suitable for underwater usage.

6
Unique lighting solutions.
Safety Information
PROTECTION FROM ELECTRIC SHOCK
8. When removing the DC power cord ensure the power is off,
wiring in to the NEMA box should be performed by a suitably
qualied professional.
Lorsque vous retirez le cordon d'alimentation CC, assurez-vous
que l'alimentation est coupée, le câblage dans la boîte NEMA
doit être effectué par un professionnel qualié.
9. Do not open the unit for service. The warranty will be void in any
case of unauthorized service by the user or other unauthorized
persons. UNIT IS NON-USER SERVICABLE.
N'ouvrez pas l'appareil pour réparation. La garantie sera annulée
en cas de service non autorisé de la part de l'utilisateur ou d'autres
personnes non autorisées. L'UNITÉ EST NON UTILISABLE.
PROTECTION FROM FIRE
1. When possible, avoid placing the unit near sources of heat.
Dans la mesure du possible, évitez de placer l'appareil à
proximité de sources de chaleur.
2. When possible maximize distance between this unit and other
devices or walls to allow for proper cooling.
Lorsque possible, maximiser la distance entre cette
unité et d'autres dispositifs ou murs pour permettre un
refroidissement approprié.
3. Allow sufcient air convection in the unit’s environment to
avoid overheating. Make sure air convection slots are not blocked.
Laisser la convection d’air sufsante dans l’environnement de
l’appareil pour éviter une surchauffe. Assurez-vous que les fentes
à convection air ne sont pas bloqués.
4. Keep the unit at least 30" (76cm) away from any
ammable materials.
Maintenez l’appareil au moins 30" (76cm) de tout
matériau inammable.

7
Unique lighting solutions.
Safety Information
PROTECTION FROM INJURY AND DAMAGE
1. Never use any accessories or modications not authorized
by the manufacturer of this unit.
Ne jamais utiliser des accessoires ou des modications
non autorisées par le fabricant de cet appareil.
2. Choose a location for operation where the unit is protected
from vibration and where a xed mounting position is provided.
In case of overhead mounting, follow applicable rigging rules and
regulations for rigging safety.
Choisissez un emplacement pour l’opération où l’appareil est
protégé des vibrations et où une position de montage xe est
fournie. En cas de surcharge-montage, suivez le gréement
applicable règles et règlements pour le gréement de sécurité.
3. All bolts should be checked for a tight t prior to use. In addition,
every 6 months the bolts should be inspected by a trained person.
Tous les boulons shoulderstand être vériés pour un ajustement
serré avant utilisation. En outre, tous les 6 mois, les boulons
doivent être inspectés par une personne qualiée.
4. This unit has no user serviceable parts. If service is required
return the unit to the manufacturer for service.
Cet appareil n’a aucune pièce réparable par l’utilisateur. Si le
service il faut retourner l’appareil à le fabricant pour le service.
ENVIRONMENTAL ADVICE
It is highly recommended that North American users follow
environmentally safe disposal/recycling practices. Components
in the unit comply with ROHS II requirements.

8
Unique lighting solutions.
Safety Information
FUNCTIONAL ADVICE
CONTROL
LED LIFETIME ADVICE
1. Do not hot switch connections, ensure power is off when
connecting supplies.
2. Check supply voltage. If unsure contact licensed electrician
and/or AVID Labs®
3. Product must be checked by a licensed electrician prior
to commission.
4. Where code requires, ducting may be ran to the rear of the unit.
The ducting should be installed by a licensed electrician.
LED lifetime is determined by the gradually declining brightness
of an LED over time where, the point of 70% brightness reduction
marks the dened end of its lifetime. The driving factor of this
effect is the heat that the chip inside the unit is exposed to. While
an LED may reach 100,000 hours under ideal circumstances, the
real-world lifetime may be 60,000 hours. This may be less if
the LED is exposed to excessive heat, which can be caused by
continuously running the LED inside this device at full power
and operating the unit in high environmental temperatures. If
improving the lifetime of the LED is a concern, keeping the
operating temperature lower is advised. This may include forced
air external cooling and/or the reduction of overall intensity.
2. RGBW - 7 Conductor cable,
Orange Power 24VDC +,
Blue Power 24DC-,
Green DMX +,
White DMX +,
Red DMX-,
Black DMX -,
Drain Wire DMX common.
Minimum voltage for the product is 24V.
Standard Fixed Color - the unit has a third line in allowing a
PWM signal to be send to the internal drive. This signal controls
the dimming of the driver. The driver will run at full power despite
voltage drops without a signal. Minimum voltage for the product
is 12V.
1.

9
Unique lighting solutions.
Technical Information
Mains Input DC 12-24V WHITE, 24V RGBW
Power Consumption 12.5W Max.
Submersion Depth 1.0m Max., (Bronze only)
Power Cord 6' – 120V SJEOW Outdoor Cable
Dimensions WxDxH 3.00" x 2.81" x 5.00" (76.2mm x 71.34mm x 127mm)
Mounting Hole 17⁄32" or Knuckle Mount (optional)
IP Rating IP68
UL Listed
U.S.A. and Canada
E488649
3.00"
3.65"
2.81"
5.00"

10
Unique lighting solutions.

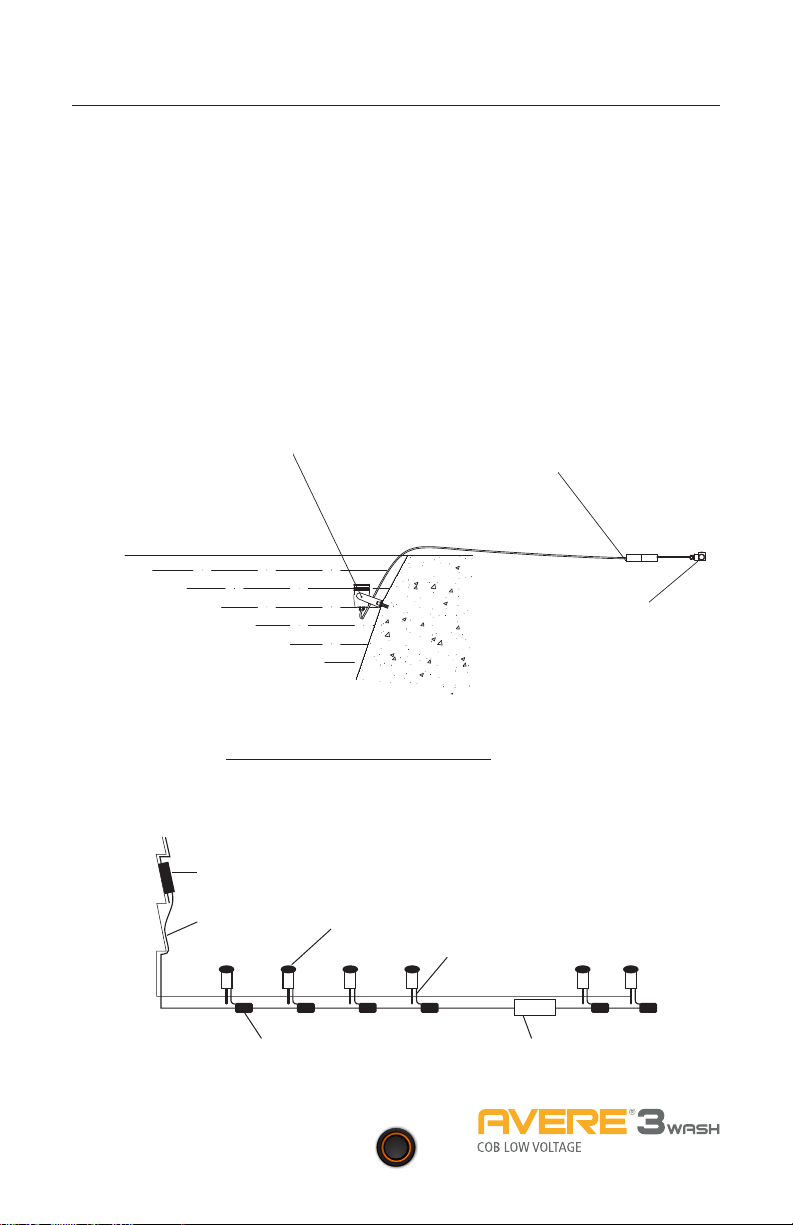

OPTIONAL IP68 QUICK CONNECTOR
NEMA RATED BOX FOR CONNECTING
INSTALLATION BY QUALIFIED ELECTRICAN
MAX DEPTH 3ft (1M)
WARNING - RISK OF ELECTRIC SHOCK
Use only in ponds and small decorative fountains where persons will immerse no more than
their hands and lower arms while the product is energized.
DO NOT use in water intended for swimming, wading, immersion, or bathing.
All installer completed cable connections must be located outside of pond or fountain.
FOR CHLORINATED PONDS USE STAINLESS STEEL VERSION OF FIXTURE ONLY
Secure Mounting
MOUNTING
The unit is mounted in one of 2 ways.
1. Yolk mount – Pass a 3⁄8" stainless steel threaded rod passed through the
bolt hole and secure using a nut and washer per the diagram below. The
threaded rod should have sufcient chemical and corrosion resistance for
the application.
2. Knuckle mount– For installations above water only. A knuckle mount with
ground spike can be used. Electrical connections are made in a suitable
NEMA box either buried or adjacent to the knuckle mount.
MAX DEPTH 3ft (1M)
WARNING – RISK OF ELECTRIC SHOCK
• Use only in ponds and small decorative fountains
where persons will immerse no more than their hands
and lower arms while the product is energized.
• DO NOT use in water intended for swimming, wading,
immersion, or bathing.
• All installer completed cable connections must be
located outside of pond or fountain.
• FOR CHLORINATED PONDS USE STAINLESS
STEEL VERSION OF FIXTURE ONLY.
NEMA Rated Box for Connecting
Installation by Qualied Electrician
Optional IP68 Quick Connector
Power Unit
Main Low Voltage
Cable/Cord Luminaire
Line-to-Luminaire
Connector (Luminaire Fitting)
Line-to-Line
Connector
Unit Low Voltage
Cable/Cord

11
Unique lighting solutions.
Secure Mounting
• The unit should be installed out of reach of people and outside of areas where
persons may walk by or be seated.
L’appareil doit être installé de rejoindre des gens et en dehors des zones
où les personnes peuvent marcher ou s’assis.
• Make sure that the installation area can hold a minimum point load of
5 times the unit’s weight or appropriate structural design has taken place
by a certied engineer.
Assurez-vous que la zone de montage peut supporter une charge minimale
de point de poids de 5 fois l'unité ou de la conception structurelle appropriée
a eu lieu par un ingénieur certié.
• When mounting the unit to truss, buildings or any structure, be sure to secure
using appropriately rated hardware and where applicable structural design
should be completed.
Lors du montage de l’unité à poutre en treillis, être sûr d'obtenir l'aide du
matériel de manière appropriée nominale.
• All bolts should be checked for a tight t prior to use. In addition, every
6 months the bolts should be inspected by a trained person.
Tous les boulons shoulderstand être vériés pour un ajustement serré avant
utilisation. En outre, tous les 6 mois, les boulons doivent être inspectés par
une personne qualiée.
HANGING/RIGGING, CEILING MOUNTED OPERATION
RISK OF INJURY: Mounting requires extensive experience, including,
among others, calculating working load limits, good knowledge of the
installation material being used, and periodic safety inspection of
all installation material and the unit. If you lack such qualications,
do not attempt the installation yourself. Improper installation can result in
injury. Be sure to complete all rigging and installation procedures before
applying power to the unit.
RISQUE DE BLESSURES: Le montage requiert une grande expérience, y compris,
entre autres, calcul des limites de charge de travail, la bonne connaissance du
matériel installation utilisé et inspection périodique sur la sécurité de tous les
matériels d’installation et de l’unité. Si vous n’avez pas ces qualications, ne
tentez pas l’installation vous-même. Une installation incorrecte peut causer
des blessures. N’oubliez pas de remplir toutes les procédures de montage et
d’installation avant la mise sous tension de l’appareil.

12
Unique lighting solutions.
Secure Mounting
• Never stand directly below the device when mounting, removing,
or servicing the xture.
Ne vous tenez pas directement sous l’appareil lors du montage, retrait ou
entretien de l’appareil.
• The installation should be inspected every 6 months or more frequently if
deemed necessary. Inspection should be performed by a skilled person to
ensure safety.
L’installation devrait être inspecté tous les 6 mois ou plus fréquemment s’il le
juge nécessaire. Inspection doit être effectuée par une personne compétente
pour assurer la sécurité.

13
Unique lighting solutions.
AC Power Connection
• Main power supply selected should have suitable grounding means
and be UL approved.
• Connections in to the Power supply must be made by a qualied electrician
who should as a minimum t a GFCI.
Output voltage must not exceed 30V and total power supplied to circuit must
be less than 300Watts, for cable max amperage see table below:
Wire Gauge (AWG) 18 16 14 12 10
SI equivalent, mm2
sectional area
0.82 1.3 2.1 3.3 5.3
Ampacity (amperes)
7 amps (10) 10 amps (13) 15 amps (18) 20 amps (25) 25 amps (30)
• Voltage drop will occur and must be considered in the design, please contact
AVID Labs®with design installation questions or for additional cable lengths.
• Connections must be made when mains power is disconnected.
• Connections should be made into a suitably rated NEMA box by a qualied
electrician. Connections to the box should be made outside of any water.
• The minimum cable length from the xture in to the box should be 2', the
maximum length is 6', where an AVID Labs®approved sealed connector is
placed in-line from the unit to NEMA box. The connector should be checked
to ensure it is properly connected. Any connections/disconnection must be
made outside of the water.
• All wiring must meet national and local electrical code.
ADDITIONAL LOW VOLTAGE CABLES
To order additional cable lengths contact AVID Labs®or visit AVIDLabs.com.
Please ensure your design has been checked by a qualied electrician prior
to installation.
Warranty
Items are covered for defects in materials and workmanship for ve years,
including repair parts and repair labor on defective item, from date of the
manufacturer invoice. The warranty covers freight for 30 days after initial purchase.
The manufacturer does not cover any other loss resulting from product failure.
Products being returned for warranty repair must display the original serial number.
Removal of the serial number voids the product’s limited warranty.
Low Voltage Connections

4121 Fourier Road • Fort Wayne, IN 46818
260.969.9225
AVIDLabs.com
© Copyright 2017 AVID Labs, LLC
2/17
488649
