Aviosys IP Power 9858 MT User manual

- 1 -
IP Power 9858 MT
User Manual
Warning: Any changes made to this equipment without permission may cause damages to the device!
Version: V1.00
( Firmware Version: 1.1.5 )
Date Released: DEC. 2019

- 2 -
IMPORTANT NOTICE
1. IP Power 9858MT was designed for indoor use, we carry no responsibility for possible
damages caused by outdoor use, especially in the rain.
2. Please use the power adapter provided by the dealer, we carry no responsibility for the
possible damage from using power adapters not provided by us .
4. Do not shake the IP Power 9858MT in any fashion
5. Please contact the dealer If IP Power 9858MT is not working properly.
Copyright © 2019 All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written consent of us.
All trademarks and products mentioned in this document are the properties of us.

- 3 -
Table of Content
1.INTRODUCTION...............................................................................................5
2.PRODUCT INFORMATION ..............................................................................6
2.1 Features :................................................................................................................................................. 6
2.2 Specification............................................................................................................................................ 7
2.3 Minimum System Requirements........................................................................................................... 7
2.4 Package Contents.................................................................................................................................... 8
2.5 Interface .................................................................................................................................................. 8
3.SETTING UP YOUR DEVICE.........................................................................10
3.1 Before Starting.......................................................................................................................................10
3.2 Hardware Connection...........................................................................................................................10
3.3 Software Installation.............................................................................................................................10
3.3.1 LAN connect by IP Search software “ IPEDIT “............................................................................11
3.3.2 Internet Setup...................................................................................................................................14
3.3.3 Using IP Service ..............................................................................................................................15
4.WEB INTERFACE ..........................................................................................17
4.1 Top Column ...........................................................................................................................................18
4.1.1 Device name ....................................................................................................................................18
4.1.3 Time :...............................................................................................................................................20
4.2 Power Control :......................................................................................................................................21
4.2.1 Control.............................................................................................................................................21
4.2.2 Schedule...........................................................................................................................................29
4.2.3 Ping..................................................................................................................................................31
4.3 Network :................................................................................................................................................35
4.4 Application Settings : ............................................................................................................................37
4.4.1 Email................................................................................................................................................37
4.4.2 DDNS .............................................................................................................................................42
4.4.3 Communication................................................................................................................................42
4.4.4. IP SERVICE...................................................................................................................................46
4.5 System Setting :......................................................................................................................................47
4.5.1 Management ....................................................................................................................................48
4.5.2 System Information .........................................................................................................................51
4.5.3 System Log......................................................................................................................................51

- 4 -
4.5.4 Firmware..........................................................................................................................................52
5.OTHER WAYS TO CONTROL........................................................................53
5.1 CGI HTTP Commands.......................................................................................................................53
5.2 Telnet Control........................................................................................................................................55
6.FAQ :...............................................................................................................56

- 5 -
1. Introduction
IP Power 9858MT is a new generation of the Power Distribution Unit (PDU) & Remote Power
Control (RPC) system. Its able to control in the network
With embedded web server and HTTPS protection , 9858MT supports higher grade security as
working on Internet. User can control power easily and more safely through the web browser in
most OS like Windows / iOS / Android system , like Internet Explorer (IE) , Firefox , Google
Chrome , Safari and so on .
9858MT allows user to remote control power up to 4 individual devices on/off / reboot via
network . As support SSL & SNMP, user can use public email like Gmail / Hotmail / Yahoo Mail
to get the email as the ON/OFF status change . User can also control by e-mail without
doing port forwarding / port mapping and search the other IP Device in webpage directly .
Besides control through web browser , there are specific APP for Android / iOS user to control
the outlet ON or OFF and quick search device in LAN / WAN of iOS / Android system .
No need PC system environment or emergency use for quick response in second.
Not only control manually, 9858MT supports Auto Ping , Time Scheduler which is more suitable
for factory / commercial / office / home automation . There is LOG information & send LOG to
assign IP (SYSLOG ) in webpage. User can BACKUP the setting and export the same setting
to multiple IP POWER to make the installation procedure more efficient .
9858MT has QR code of different network to log in fast and easy.
Apply Own Langrage display in webpage.
UPNP **
For system integrator developing , there are several popular tolls like , MQTT * , TelNet , SNMP
and HTTP / CGI Command ( SDK) for .
The various applications of the 9858MT includes:
Power Management, Server Management, Internet Controllable Timer,
System Integration, Remote Power Control in Remote locations ………….. etc.
User Friendly . Convenience & Powerful ,
* MQTT 1.3.1 Cloud IoT protocol - supports
Cloud IoT Server of Microsoft AZURE , Google Cloud IoT & Amazon AWS IoT
** UPNP -- No need to do “ port forwarding “ from router , simply enter webpage via Wan
( user’s router need to support UPNP )

- 6 -
2. Product information
2.1 Features :
1. 4 ports individual Remote power switch for power On, Off and Reboot.
2. Web Server built-in design, directly control by web browser in PC &
Smartphone ( WIN, Android & iOS) , like IE , Google Chrome , Safari.
3. Network connection : DHCP, Static IP & UPNP ( **)
4. Network Protocol -- HTTPS / HTTP, SNMP( MIB), NTP, DHCP, TCP/IP, SMTP,
UDP, DDNS.
5. Power Surge protection & FUSE embedded in
6. SYSLOG : Support Log function & send to assign IP address
7. Time Schedule - can pre-set a suitable time to turn power on / off automatically .
8. Auto Ping for network control & segment management automatically
9. Higher grade Component & Relay for better quality / performance / durability
10. Back Up for quick setup for multiple devices like Time Schedule, Network Setting.
11. Support public e-mail -- @gmail. , @yahoo , @hotmail. com ..........etc.
12. E-mail Control & Advice :
- Receive e-mail with IPs device boot up.
- POP3 Control–Controleach outlet ON/OFF through E-mail.
No Need to do Port Forwarding .
13. Green Power Module -- no load power consumption < 0.3W -- energy savings
14. Protection of " Inrush Current " & " Power Surge " .
15. App “IP Power “ –free download in Google play or App Store
- Controls the outlet power ON/OFF without doing Port Forwarding / Port
Mapping
- Quick search in LAN / WAN ( like IPEDIT & IP Service )
16. QR Code detection for easy & fast apply on
17. Arrange own langrage display in webpage
18. Second Developing tool ( SDK ) : CGI / HTTP command , SNMP( MIB) , Telnet ,
Modbus TCP/IP , BACnet/IP & MQTT ( ***)
** UPNP -- No need to do “ port forwarding “ from router , simply enter webpage via Wan
( user’s router need to support UPNP )
*** MQTT 1.3.1 Cloud IoT protocol - Cloud IoT Server of Microsoft AZURE , Google
Cloud IoT & Amazon AWS IoT .
19. Specific software developed by Aviosys and provided free of charge :
- SDK Available : HTTP Command ( Compatible with 9858DX)
- IP Power Center - control multiple Aviosys IP devices in same AP.
- CNT software ( Cross Network Technology )- allows user eliminate set up work
on any Router without port forwarding , simply Plug & Play .

- 7 -
2.2 Specification
⚫Power input : 100 - 240VAC , 50-60Hz ,
⚫Maximum loading of each output: 10A
⚫Maximum of Total loading : 10A / 240VAC , 15A / 100VAC
⚫Fuse protection : 10A / 250VAC ( with spare fuse in socket )
⚫Dimensions: 195 x 116 x 45 mm ( L x W x H )
⚫Weight: 1 kg
⚫Enclosure –Matel case in blue color
⚫Operation Temperature : - 15°C ~ 60°C or 5°F~ 140 °F
⚫INLET
Input plug
IEC 320 C14 . 50 - 60Hz
Voltage
100-240VAC Auto sensing
Maximum input current
10 Amp
Protection
Fuse 250VAC 10 Amp
( removable with spare one in socket )
⚫OUTLET
Output plug
IEC 320 C13 * 4 - individually switched
Maximum current per outlet
10 Amp
Total current
10 Amp
Overoad protection
Fuse 10ª/ 250VAC
⚫PHYSICAL & ENVIRONMENT
Dimention (WxDxH)
195 x 116 x 45 mm
Unit Weight
1 kg
Operating Temperature
- 15°C ~ 60°C or 5°F~ 140 °F
Regukatory Approvals
CE ( LVD )
Warranty
Standard 1 year
2.3 Minimum System Requirements
Web Browser of WINDOWS / iOS / Android : Google Chrome , Safari , IE and so on .
Network connection for Internet connection .
Internet HUB & Switch ( with RJ45 port)

- 8 -
2.4 Package Contents
2.5 Interface
Front View
From Left to right :
LED of Outlet Status
The outlet status #1 ~ #4 Indicator -
Green light ON as outlet ON. Light OFF as outlet OFF
Reset
To set back the setting to factory default , please keep
pressing the reset button with a sharpen pin and release
the pressing until device beeper alarm. It will need at least
10 seconds for the action keep pressing reset button.
Reboot
For device power reboot by one click. It will take 70
seconds for the system boot up.
Network
LAN 10/100 Mbps network

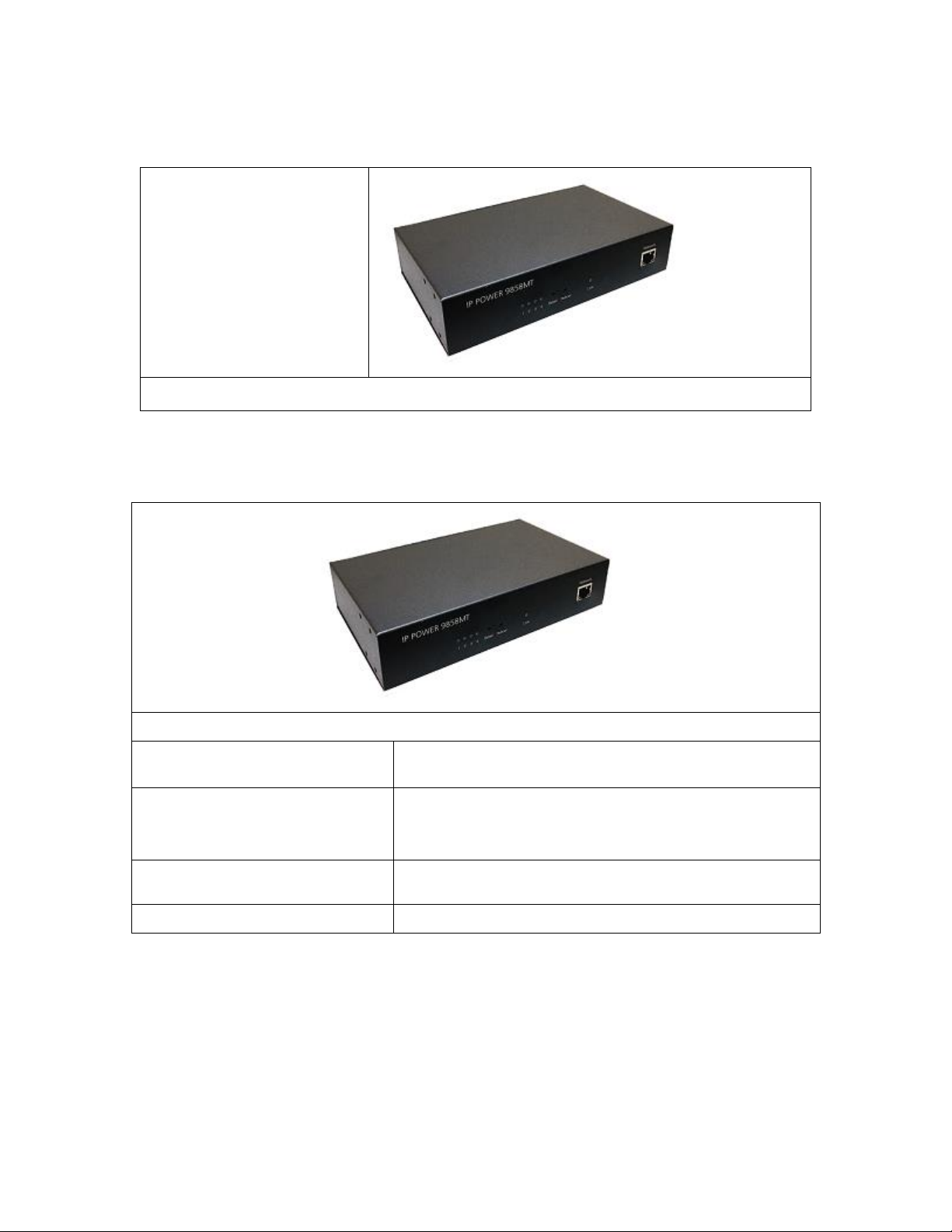

9858MT Unit x 1
Guide for online CD direction : include software QI and manual

- 9 -
Rear View
⚫9858MT-S :
⚫9858MT-T :
Interface from Left to right :
4 outlets
Connect up to 4 individual outlets to be controlled by the 9858MT. Ports
sequence as 4 / 3 / 2 / 1 .
⚫9858MT-S : IEC320 socket , 10A / 240VAC
⚫9858MT-T : NEMA socket , 15A / 100VAC
Power Input &
Fuse socket
In this socket, there are one power input and one fuse socket .
⚫Power input : 100-240VAC. 10A 240VAC or 15A 100VAC
⚫Fuse : To prevent electrical surges from damaging the unit. The
9858MT comes with two fuses in the socket ,one is usage and
another one is a spare for replacement .
TYPE：10A 250V ( 9858MT-S ) or 15A 250V ( 9858MT-T)
Power Switch
The Power switch turns on the input power. For device power reboot by
one click. It will take 70 seconds for the system boot up.
⚫Fuse replacement
1.) The fuse is located between the power switch and the power input plugs.
2.) Carefully remove the fuse holder with a flat screwdriver.
3.) The fuse can be purchased from electronic shops. Specification : 10A 250VAC

- 10 -
3. Setting up your device
3.1 Before Starting
*Before setting up the device make sure of the following:
1.) All the package contents are all included if anything is missing please contact the dealer
where the device was purchased from.
2.) Check the power input cable is working correctly.
3.) Check all cables to make sure there are no problems with it.
3.2 Hardware Connection
Please refer following procedure :
1.) Connect the Ethernet cable (RJ45) to the 9858MT to your local area network.
2.) Then connect the power cable into the power input port of the 9858MT.
3.) Connect the device that you would like to control to the output plug on the top of the 9858MT.
4.) Switching the power source to ON status , this switch is located at the rear of 9858MT.
5.) After power on for around 45 seconds , there is a short beep sound for 9858MT which
means the system reboot successfully
6. ) Go to page #14 for software installation guide –use IP EDIT to log in the webpage of
9858MT.
3.3 Software Installation

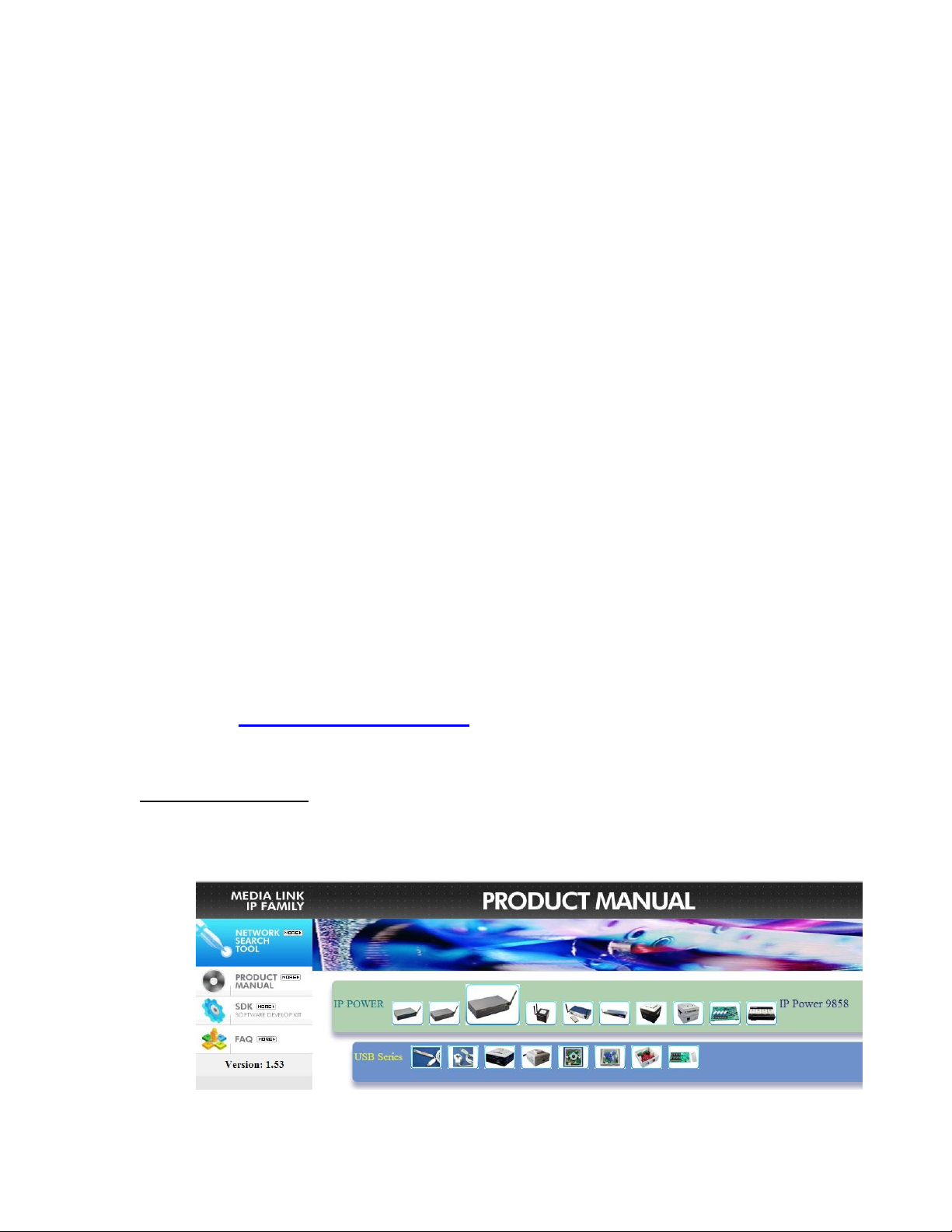

Please Go to www.aviosys.com/cd. The note with this online CD link comes with
the package .
IP Power Software:

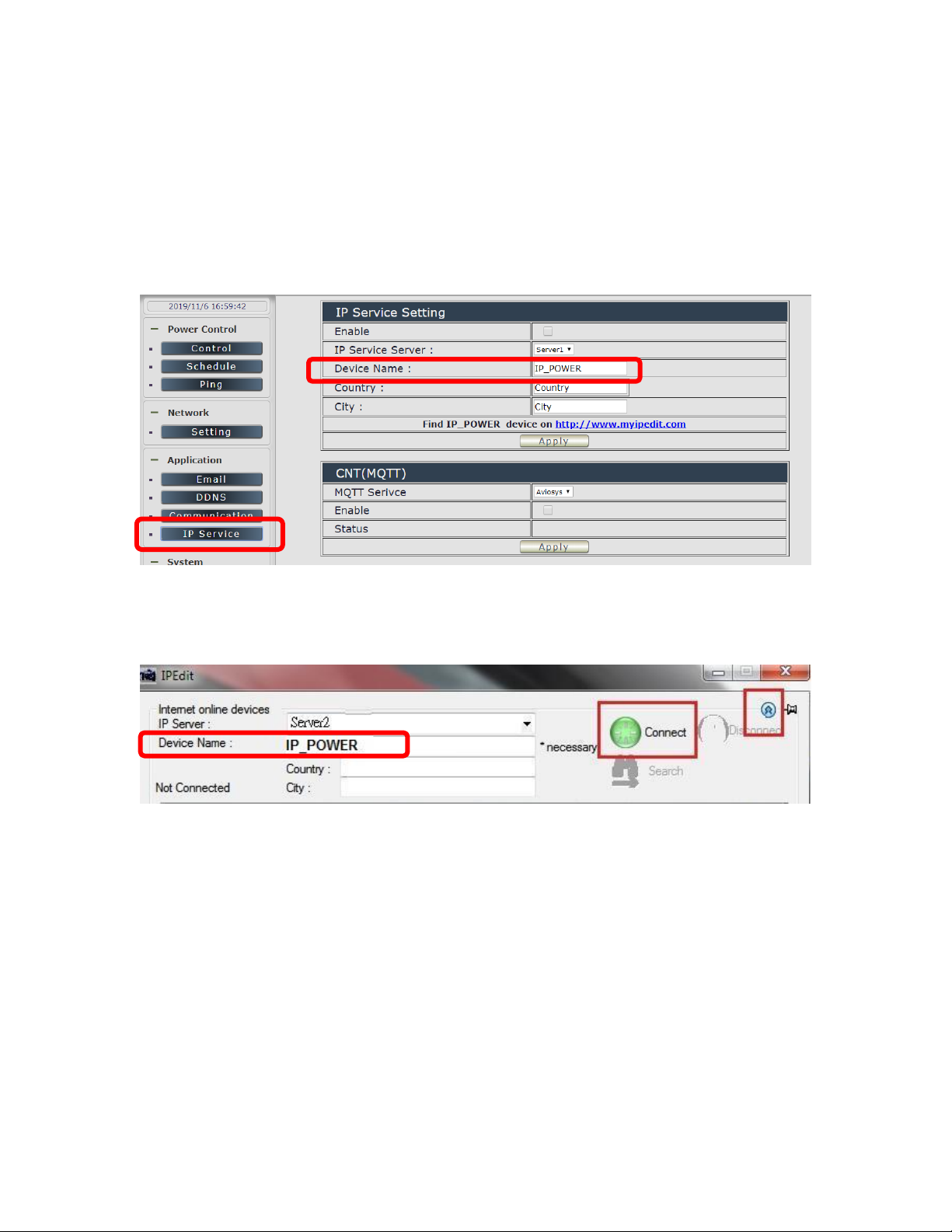

IP Edit ( Required)
IP Power Center *( For multiple IP Power devices control purpose )
