Avis IPL-L30 Series User manual
Copyright 2009 by AVIS All rights reserved. 7
Function Name & Description Of Product
LCD Display (DISPLAY)
To express all operation condition of the product.
Lamp Select & On/Off button (LAMP 1~4)
The button which selects the each lamp can do ON/OFF the lamp which corresponds.
When it press above 2 seconds, the corresponding lamp will be selected and it will be able to control
with UP/DOWN buttons.
Auto Display button (AUTO)
When you press the button, it will operate turning the lamp sequentially.
Auto Mode will able to designate A-mode or B-mode.
Lamp On/Off button (ON/OFF)
The button will be able to control ON/OFF the whole lamp operation condition.
Lamp Light Lux control button (UP / DOWN)
This button is brightness control and option key.
If you press the UP/DOWN button, there is a possibility the lamp more brightly/darkly.
View Area
The illuminant of the lamp is displayed part..
RS232C Port
It will be able to control the whole operation condition with PC which it connect the RS232 Cable.
Power Switch
It is the main power switch.
DC Power Input
DC 24V, 2.5A Adaptor
View Area
LCD Display
Power S/W
Lamp Select Button
Auto Display / Menu Button
Lamp Light Lux control Button
Lamp On/Off Button
RS232 Port
Adapter input Menu button
When you press the button, it will operate option mode.
Copyright 2009 by AVIS All rights reserved. 8
Menu button
If you press the button, it will be able to select the option mode.
1. Auto mode set
2. Fan control
3. User mode set
4. Exit
Auto mode operate two ways.

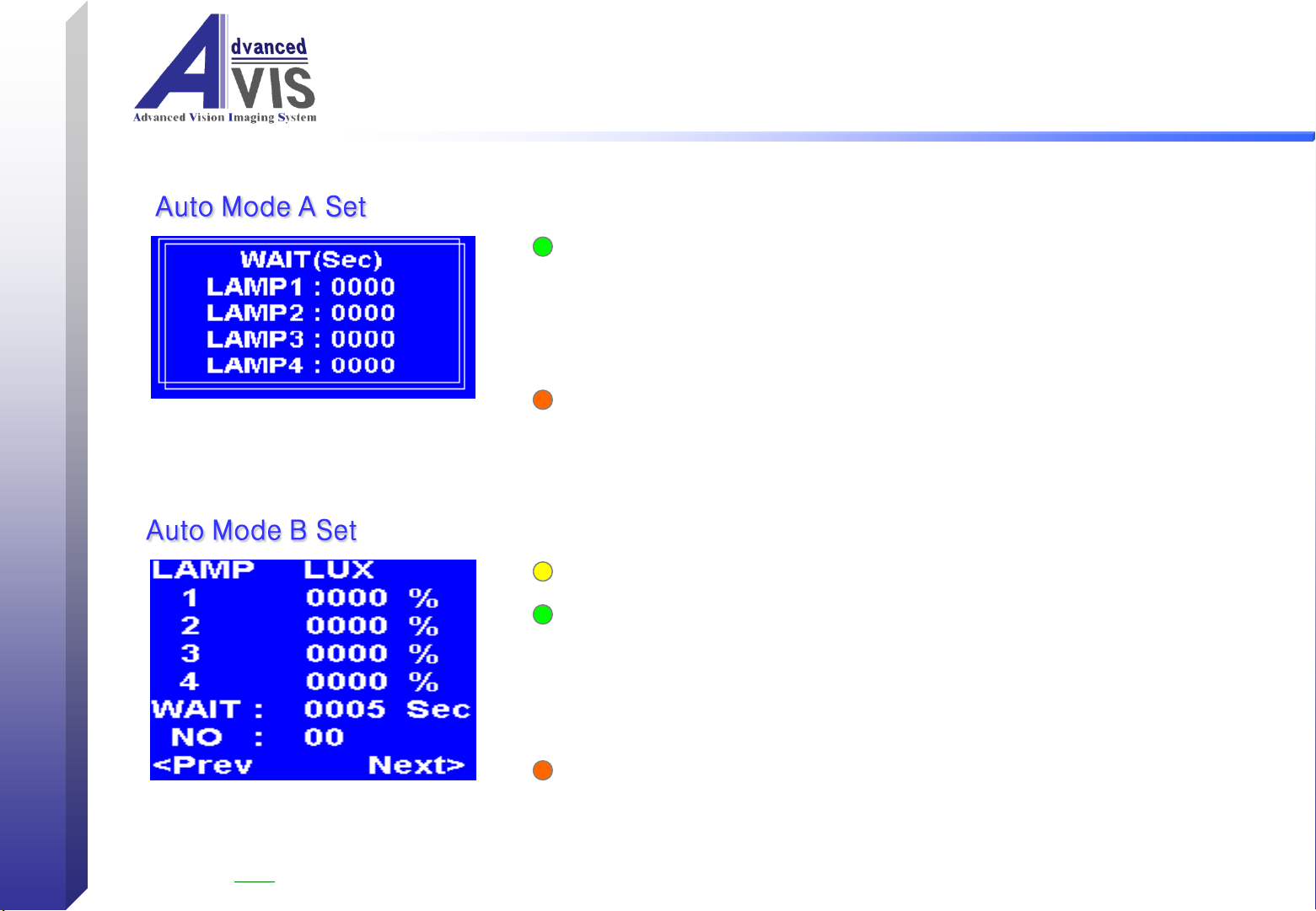

Auto mode A : Auto mode A operate the lamp turn ON and OFF as waiting time by turns.
Auto mode B : Auto mode B operate the lamp turn ON and OFF as setting level and waiting
time.( it will able to save 32 ways. )
Product Use Method
Copyright 2009 by AVIS All rights reserved. 9
Auto button select Prev or Next menu.
Select LAMP 1,2,3,4.
If you press LAMP4 twice, cursor move WAIT menu.
- UP / DOWN button
-Move cursor to left side when you press up button about 0.5second and then
press down button.
-Move cursor to right side when you press down button about 0.5second and
then press up button.
-If press menu button, display the save mode.
Select LAMP 1,2,3,4
Product Use Method
- UP / DOWN button
-Move cursor to left side when you press up button about 0.5second and then
press down button.
-Move cursor to right side when you press down button about 0.5second and
then press up button.

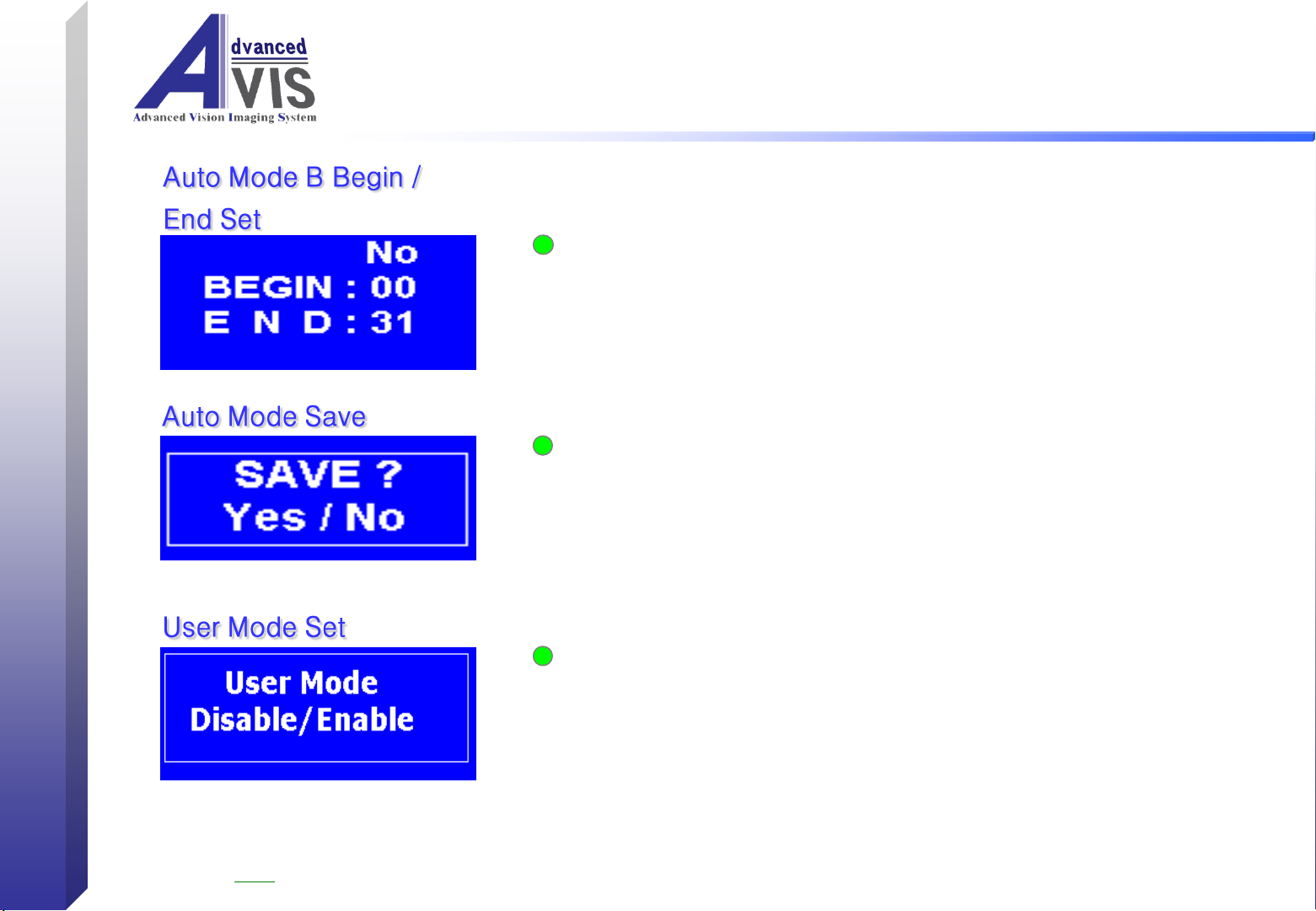

-If press menu button, display begin-end mode.
Copyright 2009 by AVIS All rights reserved. 10
Save AUTO MODE A or AUTO MODE B.
User mode set
Auto mode B operate setting point from begin No. to end No.
-Select Yes / No
-If you want to save, press menu button.
-User mode use that user specification save each lamp 1,2,3,4.
-Select Disable / Enable.
-If press menu button, save the mode.
Product Use Method
- UP / DOWN button
-Move cursor to left side when you press up button about 0.5second and then
press down button.
-Move cursor to right side when you press down button about 0.5second and
then press up button.
-If press menu button, display the save mode.
Copyright 2009 by AVIS All rights reserved. 11
User mode Display
-After user mode save, display LCD Display.
Select LAMP 1,2,3,4.
Save the user mode.
-Select Yes / No.
-If press menu button, save the mode.
Product Use Method
UP / DOWN button
-Move cursor to left side when you press up button about 0.5second and then
press down button.
-Move cursor to right side when you press down button about 0.5second and
then press up button.
-Each lamp selecting press lamp 1,2,3,4.
-Select Next or Prev when press AUTO button.
-If press menu button, display the next mode.
Copyright 2009 by AVIS All rights reserved. 12

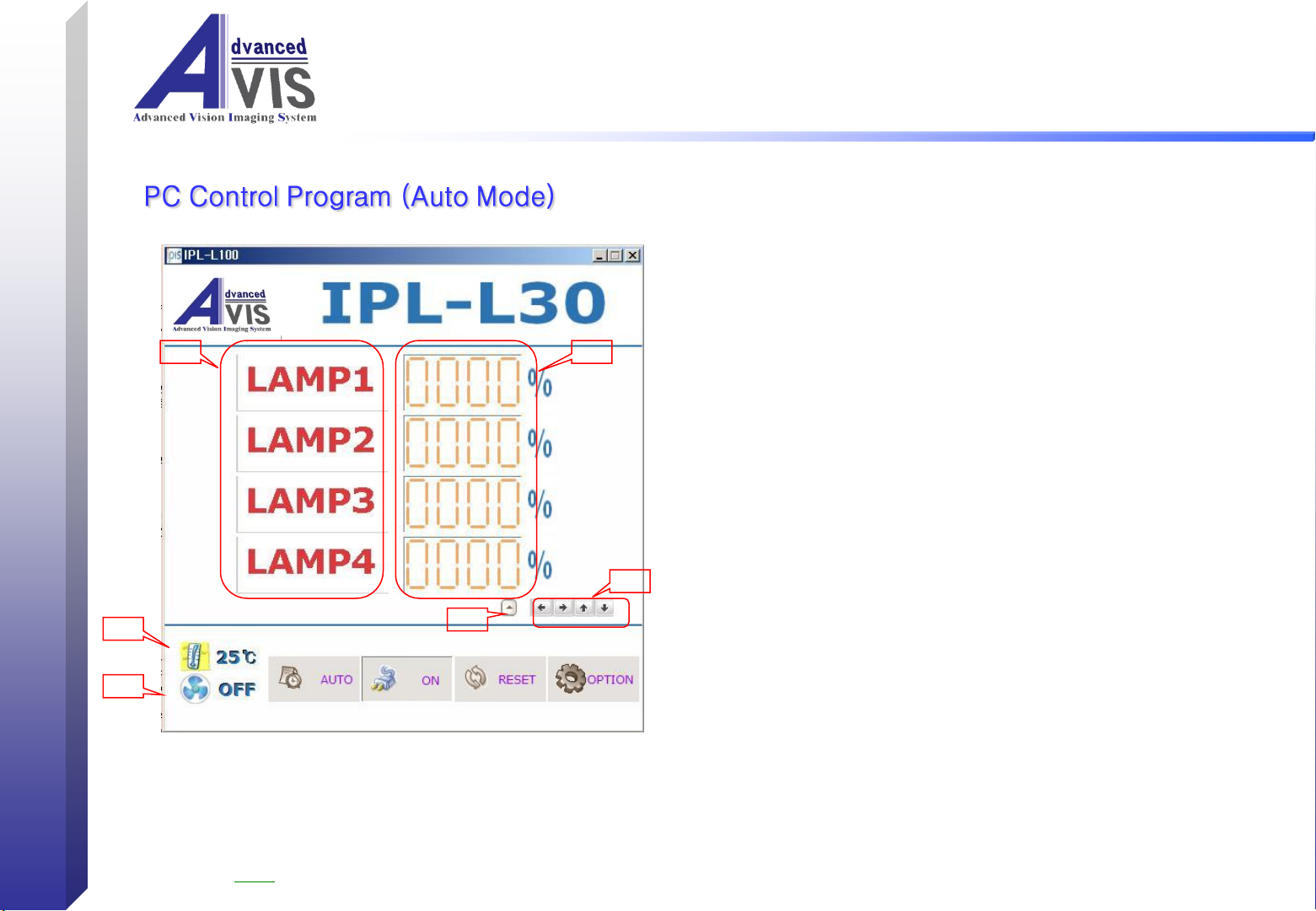

PC control program is able to control all of IPL-L30.
Function description
[1] Lamp is able to turn ON or OFF when click lamp1,2,3,4.
Shot key –No. key 1(LAMP1), 2(LAMP2), 3(LAMP3), 4(LAMP4).
[2] Display Lamp of Light Lux.
Click –Control Lamp of Light Lux
Double Click –Set the point directly.
[3] Cursor
[4] Move cursor, Light Lux UP/DOWN
Shot key –Move left or right.
Move up or down (Light Lux UP/DOWN)
[5] Present temperature.
[6] Fan operation condition.
Button
AUTO –AUTO MODE operation / stop
Shot key –Akey
ON - Turn all Lamp ON/OFF
Shot key –P key
RESET –System Reset
Shot key –R key
OPTION –Auto mode set
Fan operation set
Operation set
User mode set
Communication port set
System Setup
Firmware Upgrade
Shot key –Okey
Product Use Method
2
3
4
5
6
1
Copyright 2009 by AVIS All rights reserved. 13
Display setting point of IPL-L30, if start firstly.

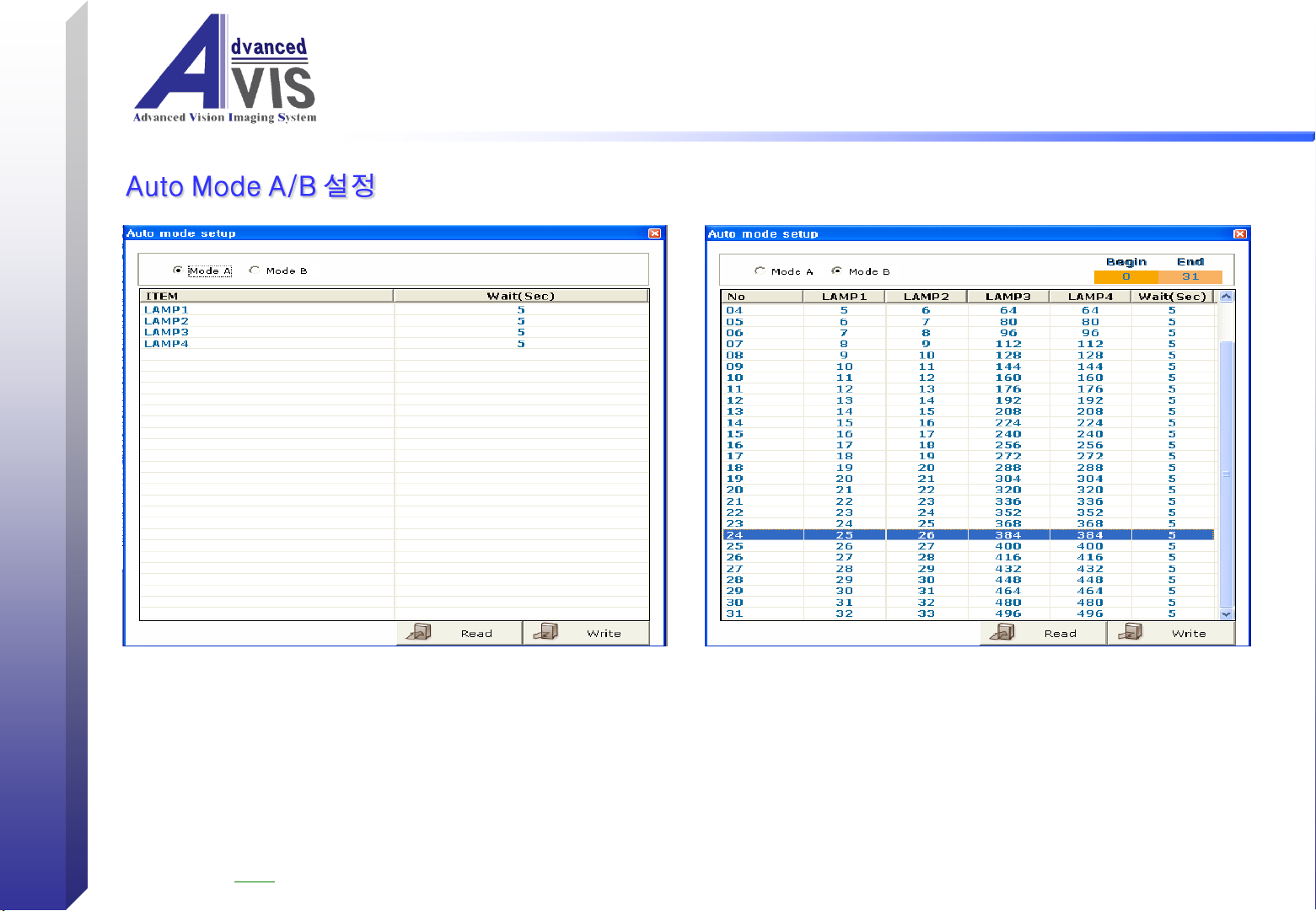

Click each cell, and set the wait time.
Button
Read - Read setting point of product.
Write - Save setting point to product.
Display setting point of IPL-L30, if start firstly.
Set Lamp of Light Lux, wait time, begin No. and end No.
Button
Read - Read setting point of product.
Write - Save setting point to product.
Product Use Method
Copyright 2009 by AVIS All rights reserved. 14
Display setting point, if start firstly.

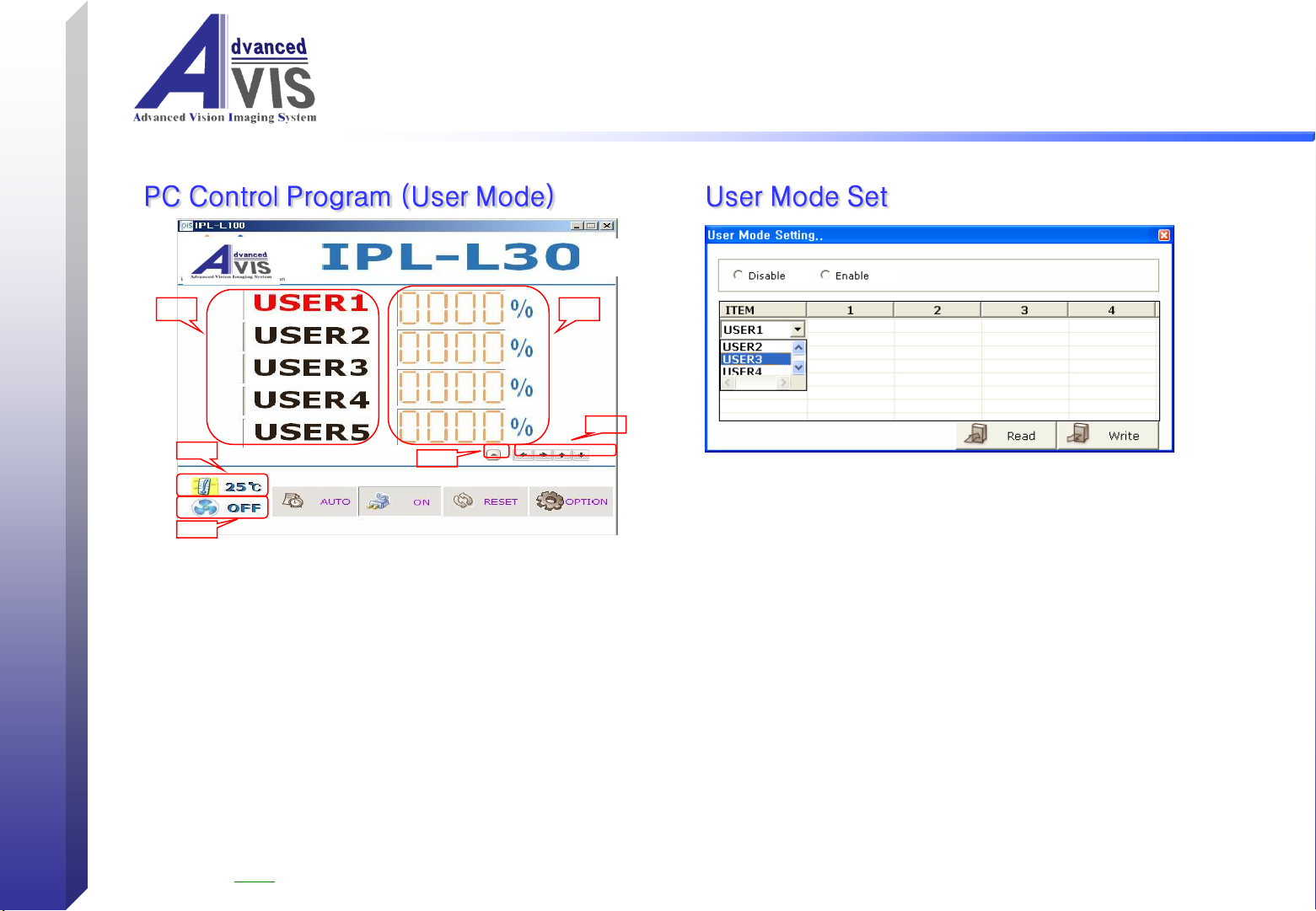

Click the enable so you can operate user mode.
Click each cell, set setting point.
Button
Read - Read setting point of product.
Write - Save setting point to product.
Product Use Method
PC control program is able to control all of IPL-L30.
Function description
[1] Lamp is able to turn ON or OFF when click lamp.
Shot key –No. key 1(LAMP1), 2(LAMP2), 3(LAMP3), 4(LAMP4).
[2] Display Lamp of Light Lux.
Click –Control Lamp of Light Lux
Double Click –Set the point directly.
[3] Cursor
[4] Move cursor, Light Lux UP/DOWN
Shot key –Move left or right.
Move up or down (Light Lux UP/DOWN)
[5] Present temperature.
[6] Fan operation condition.
1 2
3
4
5
6
Copyright 2009 by AVIS All rights reserved. 17
SPECIFICATION
MODEL IPL-L30W IPL-L30RGB
2chip White LED 2chip R/G/B LED
Lamp
View Area 160*120mm
Brightness Over 35,000Lux(Surface)
Uniformity Over 90%
Display 128*64 Dot Graphic LCD
Color Temperature under2300k ~ over20000k ( 5%) R/G/B
PC Interface RS232C
Power supply DC 24V / 2.5A
Power consumption (W) Max. 35W(at Total on)
Dimension
-10˚C ~ +50˚COperating Temperature
Over 15,000Lux(Surface)
Specification Of Product
179.5 * 160 * 45 (WHD, mm)
