Table of Contents OPERATING INSTRUCTIONS
Greetings
Properties
Important warnings
Warnings and instructions for installation
Mounting instructions RONDO
Mounting instructions PLANO
Mounting instructions QUADRO
Mounting instructions QUADRO L
Warnings for operation
Warranty and conditions
Final remarks

Dear customer,
We, the AVITANA®team , say: Thank you very much!
Thank you for following our ideology for more sustainability. Thank you for choosing to be
more environmentally aware. Thank you for choosing the AVITANA® brand product.
AVITANA®filters will free your indoor air from cooking odours through a physico-
chemical process. Dust particles, microorganisms (mould spores, dust mites, bacteria and
viruses), cigarette smoke and annoying odours are destroyed by an ionization process
in their molecular structure and decomposed into the basic elements CO 2 (carbon
dioxide), O (oxygen) and a low level of residual moisture. This happens without the use
ofchemical additives. Our process does not release any ozone to the outside and you will
already feel during commissioning that the air quality is improving. AVITANA®filters
are certified and oer you a future-oriented and pioneering technology of air purification.
That‘s what your AVITANA® stands for
3

4
AVITANA®Filters

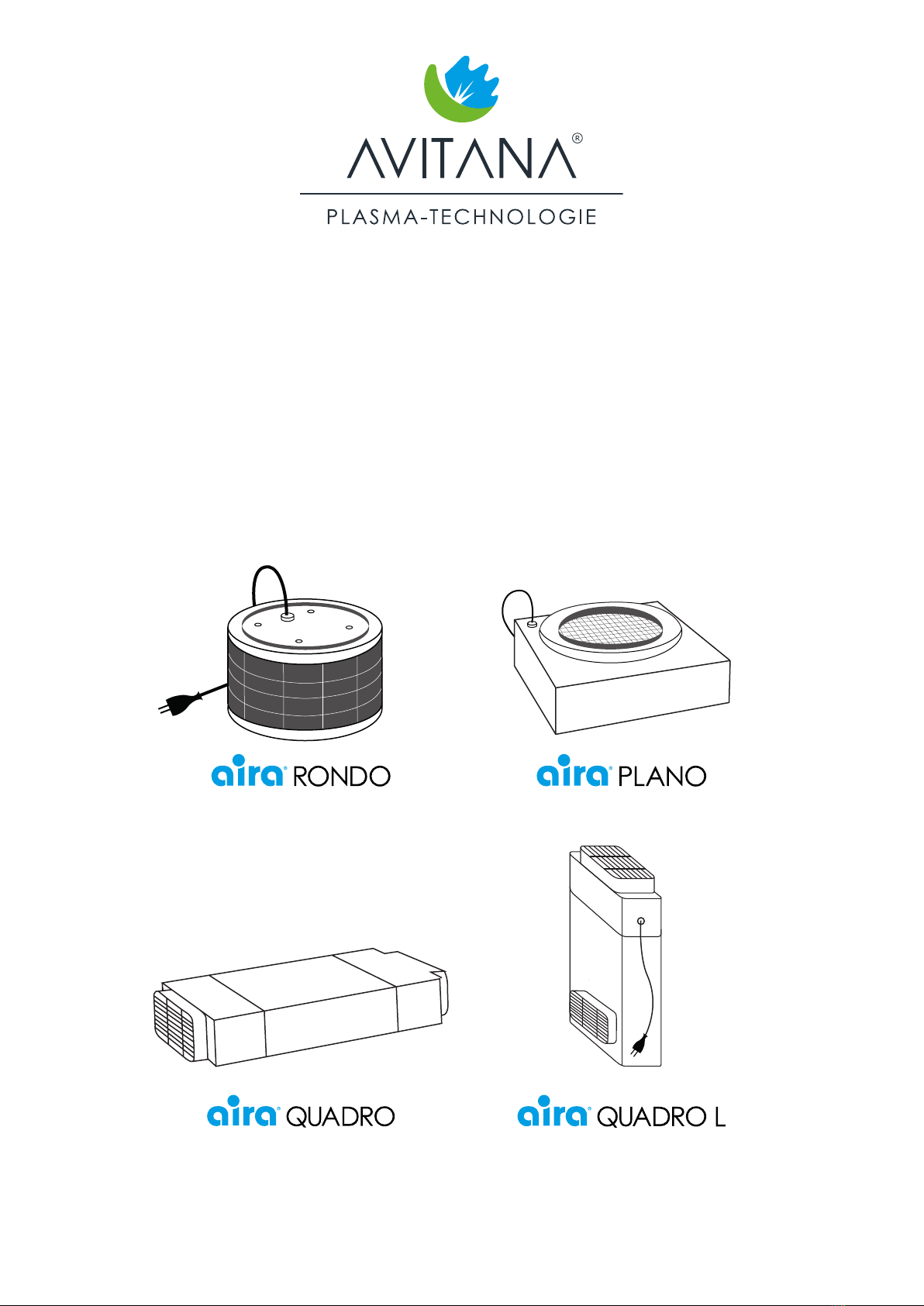

Three product groups: RONDO, PLANO and QUADRO
• The right plasma filter for every cooker hood
• Capacity levels from 350 to 1,200 cbm/h
• Customer-specific developments and special requests possible
User-friendly
• Easy and quick to install (plug and play)
• Can be retrofitted to existing cooker hoods
• Low weight and dimensions
• Works horizontally and vertically
• Extensive accessories for all RONDO and PLANO models
Improving the quality of housing and life
• Eliminates up to 99% of all odours
• Removal of viruses, pollen, bacteria and other allergenic substances,
including tobacco smoke
• No ozone release (confirmed by VDE and IUTA)
Energy eciency
• No maintenance necessary
• Low energy consumption
• Automatic switch on and o by extractor hood
• Self-cleaning system of the filter
Cost saving
• No change of filters necessary
• No exhaust air system to the outside necessary (exhaust air becomes
recirculated air)
• The filter will last the lifetime of the cooker hood
Tested safety
• VDE certificate for RONDO and QUADRO models (including ozone test)
• IUTA-certificate (Ozone Test Energy and Environmental Institute, Duisburg)
Quality
• Made in Germany
• 5 years warranty
• Highest quality filter material (the carbon particles of a filter would be rolled
out the surface of a soccer field)

• Only use AVITANA® filters with a commercially available extraction unit with
grease filters in combination with fire-retardant properties.
• There should always be good ventilation to ensure that there is sucient oxygen in the
room air. Commercial branded hoods also point this out!
• Please do not put any objects into the module! There is a risk of electric shock!
ALWAYS work on the module with the mains plug unplugged!
• Touching with wet hands or objects also implies a risk of electric shock.
Always work on the module with the mains plug unplugged!
• The blocking of the air inlet or outlet is to be avoided in any case. If necessary unplug
the mains plug!
• If the module shows damage, it must not be used!
• Persons with reduced physical, sensory or mental abilities or the lack of experience,
such as children from the age of 8 may use this module only under the supervision of a
competent person. Further warnings can be found in the following chapters.
• The module is not to be used as a toy for children!
• Cleaning or maintenance work must not be carried out by children without a
competent person!
• Please follow the installation instructions and warnings of your extractor hood.
• AVITANA® was designed exclusively for use in private households!
• As in the manual of your extractor hood, we would also like to point out that you
should never allow high flames to develop under the hood! Also do not flambé under
fume hoods, as both can lead to a fire hazard and cause considerable consequential
damage!
• Likewise, overheated oil poses a potential fire hazard. Never extinguish with water!
• Carbon monoxide or other chemical gases can not be removed with the AVITANA®
!
Important Warnings
5

• The AVITANA® filter module should only be connected with the cable connector
belonging to the unit! (Warranty)
• If the cable is damaged, the device must be returned to the dealer/manufacturer for
scrapping.
• Carefully open the packaging, remove the AVITANA® filter module and check the
packing unit for completeness!
Keep the packaging in a safe place until the functional test has been carried out to
ensure correct operation and, if necessary, use it for return shipments. Otherwise, please
dispose of in an environmentally friendly manner. Thank you!
• Please refer to the illustrated installation instructions below and follow them step-by-
step. Check the connection between the AVITANA® filter module and the motor
outlet for strength to prevent air leakage for the system to operate properly.
• Check whether the mains plug is freely accessible after installation of the module! The
integrated mains connection cable can not and must not be replaced.
• NOTE: Failure to install the AVITANA® filter in accordance with these instructions will
void the warranty on the AVITANA®filter with immediate eect!
• All AVITANA®filter modules listed in this manual are plug-in products. For details,
please refer to the installation instructions and the following pages.
• The mains supply should be provided by a nearby socket (210-250 V / 50 Hz).
• Potential small black spherical particles in the packaging may have originated from
the high-performance carbon filter and released during transport. These particles are
harmless and can be disposed of with household waste. Please do not use them for
consumption! The functionality of the AVITANA® filter will not be aected!
• The device may only be operated with the supplied supply cable.
Warnings and Instructions for Installation
6

AAVITANA® filter module
B2 O-rings
Ctriple plug adapter
Deccentric adapter
Ehose clamp
BOX CONTENT
The AVITANA®RONDO - filter is placed on the
cooker hood motor (Fig. E). With this AVITANA® filter sys-
tem you transform your cooker hood into an air purifi-
cation unit with an absorption of all odours, viruses and
bacteria up to 98%.
To install the filter, proceed as follows:
1. Remove the chimney shaft and disconnect the
hood from the mains.
Fig. E
A
B
C
D
E
Mounting Instructions RONDO
7
Dimensions Air output Connection
voltage
Connec-
ting dimen-
sion
Article No. Weight Packing
unit
RONDO 350/150 Ø 150x120mm 350m3/h 210 - 250 V ø 120mm 8113 0,6kg 1 piece
RONDO 550/150 Ø 150x180mm 550m3/h 210 - 250 V ø 120mm 8115 0,8kg 1 piece
RONDO 650/150 Ø 150x240mm 650m3/h 210 - 250 V ø 120mm 8116 1,0kg 1 piece
RONDO 400/180 Ø 180x150mm 400m3/h 210 - 250 V ø 120mm 8418 1,12kg 1 piece
RONDO 600/180 Ø 180x210mm 600m3/h 210 - 250 V ø 120mm 8618 1,56kg 1 piece
RONDO 800/180 Ø 180x270mm 800m3/h 210 - 250 V ø 120mm 8818 1,76kg 1 piece
RONDO 500/210 Ø 210x120mm 500m3/h 210 - 250 V ø 150mm 8521 1,22kg 1 piece
RONDO 800/210 Ø 210x210mm 800m3/h 210 - 250 V ø 150mm 8821 1,66kg 1 piece
RONDO 1000/210 Ø 210x270mm 1000m3/h 210 - 250 V ø 150mm 8121 2,0kg 1 piece

2. Remove the exhaust hose or carbon filter and, if
present, close the exhaust hole (a).
3. Place an O-ring (B) over the connecting piece
(b) and tighten the hose clamp.
(b)
(a)
Mounting Instructions RONDO
8
4. If the adapter (D) is used, place it on the connec-
ting piece (b) and slide the second O-ring (B) on top
over the adapter.
5. Place the filter (A) on the adapter (D) or directly
on the exhaust port (b) with the O-rings already
installed.
Only mount the adapter (D) if the
motor exhaust port (b) is too close to
the wall.

6. Connect the hood and filter plug with the triple
plug adapter (C).
7. Connect the triple plug adapter (C) to the socket.
(C)
8. Put the chimney shaft back on the hood. There must be sucient ventilation slots in the chim-
ney shaft from which the circulating air can escape:
Mounting Instructions RONDO
9

AAVITANA®filter module
B2 O-rings
Ctriple plug adapter
Deccentric adapter
Ehose clamp
BOX CONTENT
B
C
D
A
1. Place the filter (A) on the adapter (D) or directly on
the exhaust port (b) with the O-rings already installed
(B) and tighten the hose clamp(E).
2. Connect the hood and filter plug with the triple
plug adapter (C) and then connect it to the socket.
A more detailed guide can be found in the
mounting instructions RONDO.
E
Only mount the adapter (D) if
the motor exhaust port (b) is too
close to the wall.
(C)
(b)
Mounting Instructions PLANO
10
Dimensions Air output Connection
voltage
Connec-
ting dimen-
sion
Article No. Weight Packing
unit
PLANO 400/210 210x250x80mm 400m3/h 210 - 250 V ø 150mm 8940 2,2kg 1 piece
PLANO 500/210 250x250x80mm 500m3/h 210 - 250 V ø 150mm 8950 2,5kg 1 piece
PLANO 400/180 210x250x80mm 400m3/h 210 - 250 V ø 120mm 8948 2,2kg 1 piece
PLANO 500/180 250x250x80mm 500m3/h 210 - 250 V ø 120mm 8958 2,5kg 1 piece

OUTPUT / skirting

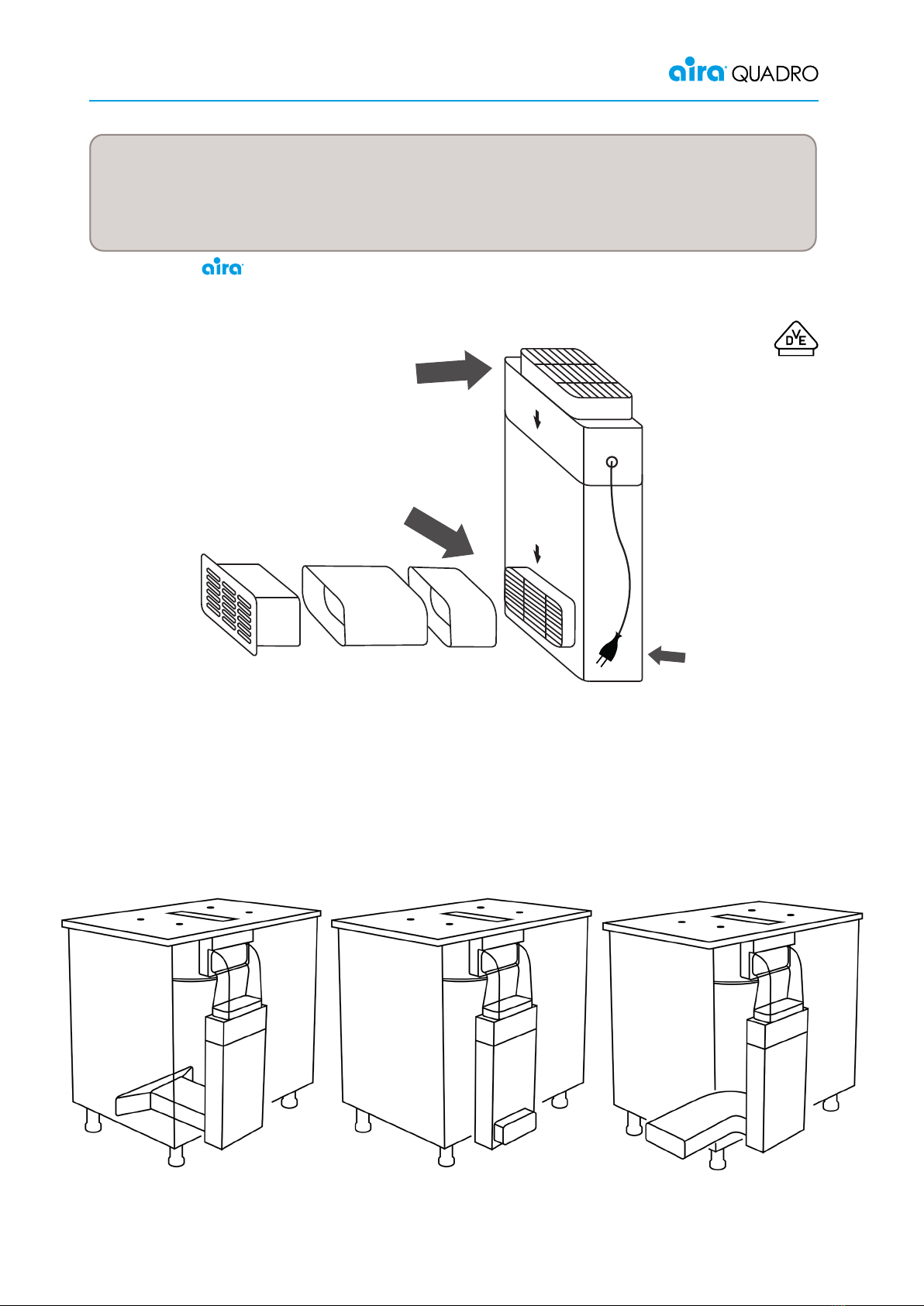

1. The AVITANA® QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.).
The only decisive factor is the correct positioning of the motor side and the resulting output.
Schuco plug
INPUT / motor side
Mounting Instructions QUADRO
11
Dimensions Air output Connection
voltage
Connec-
ting dimen-
sion
Article No. Weight Packing
unit
QUADRO 400 280x400x92mm 400m3/h 210 - 250 V 222x90mm 8740 3,0kg 1 piece
QUADRO 800 280x540x92mm 800m3/h 210 - 250 V 222x90mm 8780 6,0kg 1 piece
QUADRO 1200 280x640x92mm 1200m3/h 210 - 250 V 222x90mm 8712 6,5kg 1 piece
2. Depending on the components used,
the connections must be sealed.

OUTPUT / skirting board
2. Depending on the components used, the connections must be sealed.
Schuko plug
INPUT / motor side
Mounting Instructions QUADRO L
12
1. The AVITANA®QUADRO can be mounted in almost any position (transverse, vertical, upright, etc.).
The only decisive factor is the correct positioning of the motor side and the resulting output.
Dimensions Air output Connection
voltage
Connec-
ting dimen-
sion
Article No. Weight Packing
unit
QUADRO L 750 280x460x92mm 750m3/h 210 - 250 V 222x90mm 8775 5,7kg 1 piece
QUADRO L 950 280x560x92mm 950m3/h 210 - 250 V 222x90mm 8795 6,5kg 1 piece

For optimal room air cleaning, it is imperative for your extractor hood to be adequately
ventilated and adapted to the respective steam development:
• Start your extractor hood at level 1 or 2 10 minutes before cooking
• After completing the cooking process, the extractor hood must run for at least 10
minutes at level 1 or 2
• If the volume of the room exceeds 50m³ (width x length x height = room volume), the
follow-up time should be at least 15 minutes
• The distance between filter and equipment should be at least 10 mm.
• If grills or deep fryers are used, double the time required for post-ventilation.
CARE AND MAINTENANCE
If the AVITANA® filter module is installed according to the installation instructions, it
requires no maintenance. The AVITANA® filter module starts the automated cleaning
process as soon as it is in operation.
The AVITANA®filter module is maintenance-free. Make sure, however, that the fat
filter of your cooker hood is cleaned regularly and is free from grease.
The AVITANA® module acts as an air purifier even at low speed, clearing the air not only from
kitchen fumes and odours, but also all sorts of allergens, bacteria, pollen and viruses, ensuring healthy
indoor air!
Warnings for Operation
13

We at AVITANA®are extremely happy about your purchase of one of our high-tech modules
and are convinced that your living comfort will be enhanced by fresh and purified air.
We grant a 60-month warranty on our products, provided that they are installed correctly
and professionally. It is essential to observe the pre- and post-run times of the cooker hood
(see page 10 Warnings for operation).
If you still have reasons to complain, please contact your dealer, who will then contact us.
Together we will find a solution.
Warranty and Conditions
14

The operating instructions of the manufacturer must be read carefully before installation!
If there is no function, please check first:
a) whether the power supply is guaranteed (check socket / possibly connect another
device)
b) whether the appliance plug is faulty or firmly plugged into the socket.
The INSTALLATION OF AVITANA® - FILTERS
The AVITANA®filter is relatively easy to install. The installation of the AVITANA®filter is
intended as retrofitting or conversion of an already existing extractor hood unit or its use
in circulating air operation.
The step-by-step procedure is described in this installation description.
Please dispose of it in an environmentally friendly way. Thank you!
The AVITANA®filter module complies with the requirements of the EU regulations and
the WEEE (Waste Electrical and Electronic Equipment) Directives! All components of the
AVITANA®filter module are recyclable!
The packaging materials can be environmentally friendly recycled.
This installation instruction has been prepared by our technicians with all due care. No
legal claims can be derived from printing or spelling mistakes!
The manufacturer of the product(s) described herein, to which this declaration
refers, hereby declares under his sole responsibility that these product(s)
comply with the relevant, basic safety, health and protection requirements
of the existing EC Directives and that the corresponding test control, in
particular the CE Declaration of Conformity duly issued by the manufacturer
or his authorised representative, is available for inspection by the competent
authorities and can be requested via the equipment vendor.
Final Remarks
15

AVITANA GmbH, Berliner Straße 17, D-32052 Herford, Phone [phone],
[email protected], www.avitana.de
Technical data as of June 2018
