Avitec 110110 User manual

Read and understand this entire manual before assembling,
installing, operating, or servicing this product.
SAVE THIS MANUAL
Copyrightc2023by AVITEC. All rights reserved. No portion of this manual or any artwork contained
herein may be reproduced in any shape or form without the express written consent of AVITEC. Due to
continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and maintenance may not be included.
Instruction Manual
&
Parts List
Platform Type
2-Bike Rack
Model 110110
082021

IMPORTANT SAFETY
INFORMATION
This is a SAFETY ALERT symbol.
It is used to alert you to
potential personal
injury hazards. Obey all
safety messages that follow
this symbol to avoid possible injury or death.
DANGER indicates a
hazardous situation which, if not avoided,
will result in death or injury.
WARNING indicates a
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a
hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE indicates
important information which, if not followed,
may cause damage to equipment.
SAVE THIS MANUAL
Keep this manual for the safety warnings
and precautions. The manual o󰀨ers impor-
tant information on how to assemble, use
and maintain this product.
Write the product’s model number and
purchase date on the cover page of this
manual.
Keep this manual (and your purchase re-
ceipt) in a safe place.
UNPACKING
The shipment should be thoroughly inspected as
soon as it is received. The signed “bill of lad-
ing” is acknowledgement by the carrier of receipt
in good condition or shipment covered by our
invoice. For your own protection, if any of the
goods called for on the bill of lading are shorted
or damaged, do not accept them until the carrier
makes a notation on the freight bill of the shorted
or damaged goods.
Notify AVITEC immediately if any hidden loss
or damage is discovered after receipt.
WARNING concerning Risk of Eye
Injury. Wear ANSI approved eye
protection.
WARNING concerning Risk of
Hearing Loss. Wear hearing pro-
tection.
Denition of Symbols
IMPORTANT SAFETY
INSTRUCTIONS
1. Read and understand all
safety warnings and in-
structions. Failure to follow the warnings
and instructions may result in serious injury
or death. Save all warnings and instructions
for future reference.
2. Personal and Work Area Safety
A. Always wear ANSI approved
safety goggles.
B. Always wear hearing protec-
tection when working in
noisy environments. Prolonged exposure
to high intensity noise can cause hearing
loss.
C. Use safety equipment. Safe-
ty shoes, hard hat and work
gloves must be used for applicable condi-
tions.
Model 110110 Page 2
D. Dress appropriately. Never wear loose
tting clothing or jewelry when working.
Contain long hair, and keep hair, clothing
and gloves away from moving parts.
E. Use common sense when working.
Stay alert and concentrate when setting up
and using the Bike Rack. Never work while
under the inuence of alcohol, drugs or
medications.
DANGER
WARNING
CAUTION
NOTICE
INSTRUCTION
MANUAL

Model 110110 Page 3
Personal and Work Area Safety (continued)
F. While assembling and using the Bike
Rack keep work area clean and well light-
ed. Keep spectators and children out of
the work area.
3. Use of the Bike Rack
A. Model 50606 Bike Rack must be at-
tached to a 2” x 2” Class III or Class IV
hitch receiver.
The vehicle’s hitch receiver must be properly
installed by a qualied service technician
and be certied to support the weight of this
Bike Rack and its contents (Model 50606
maximum weight capacity of 2 bikes =
132 Lbs., 66 Lbs. per bike).
B. Do not modify the Bike Rack and do
not use this product for purposes that it
was not designed for.
C. Never exceed the maximum weight
capacity shown in 3A above.
D. Be aware of the danger of “dynamic
loading”. This situation arises when a load
is dropped onto the Bike Rack, resulting in a
short term excessive load. Dynamic loading
can result in damage and failure of the Bike
Rack and/or hitch receiver, and personal
injury to the person loading the Bike Rack.
E. Never load people or animals onto the
Bike Rack. Keep children and spectators
well clear when loading unloading and using
this product.
F. Adhere to all Department of Transpor-
tation (D.O.T.) requirements when using
this product. Always use the Bike Straps to
securely hold the bicycles in place.
G. For the vehicle that will support the Bike
Rack, read all pertinent vehicle instructions
and warnings provided in the owner’s manu-
al. Make sure the vehicle’s engine is OFF,
with parking brake set, before loading or
unloading the Bike Rack.
H. Note the position of the vehicle’s
exhaust pipes before setting up the Bike
Rack. Make sure exhaust pipes are not in
close proximity to the loaded bicycles. Flam-
mable goods loaded on the Bike Rack could
catch on re due to heat from exhaust. If
this risk exists on your vehicle, do not use
the Bike Rack.
I. WARNING! Avoid nger/hand injury
When attaching hitch
accessory to the vehicle’s
hitch receiver, NEVER
insert nger into hitch pin
holes in an attempt to align
accessory to hitch receiver;
serious injury to
ngers/hands could occur.
J. Do not use this Bike Rack on a trailer or
5th wheel R.V. Do not use with bicycles t-
ted with large accessories (such as a child
carrying seat). Do not exceed 55 MPH ve-
hicle speed when Bike Rack is attached.
K. Always check slide pins, cotter pins and
Lock Pin for tightness prior to each trip. Re-
place Bike Straps annually, or at rst sign of
wear.
L. Do not operate vehicle unless Bike Rack
is in the upright position. When not in use,
remove Bike Rack from the vehicle and store
indoors.
M. If your vehicle is equipped with an auto-
matic tailgate opening system, disable this
function when using the bike carrier, and
open the tailgate manually.
N. When loading the bikes, remove all loose
parts and accessories from bikes (toolbars,

Model 110110 Page 4
baby carriers, pumps, etc.)
O. Always position the biggest/heaviest bike
first and closest to the car, and then position
the smaller bike.
P. Make sure use the extra tie down straps
to attach the bikes to the bike rack before
each trip.
Q. Make sure there is a safe distance be-
tween the bikes and the ground, expecially
when entering a driveway.
R. Maintain labels and nameplates on the
Bike Rack. They contain important infor-
mation and must always remain readable.
Contact AVITEC for replacements.
Keep in mind that the warnings previous-
ly discussed cannot cover all possible
conditions or situations that could occur.
It is important that the person setting up
and using this product understand that
common sense and caution are factors
which cannot be built into this product,
and must be supplied by the person(s)
using this product.
Limited Warranty
AVITEC warrants to the original retail
purchaser that the product is free of defects
in material and workmanship at the time of
shipment. This Bike Rack is warranteed for
90 days from the date of purchase. This
warranty is expressly in lieu of all other war-
ranties, express or implied.
Proof of purchase is required for warranty
transactions; a copy of the original invoice
or sales receipt is required.

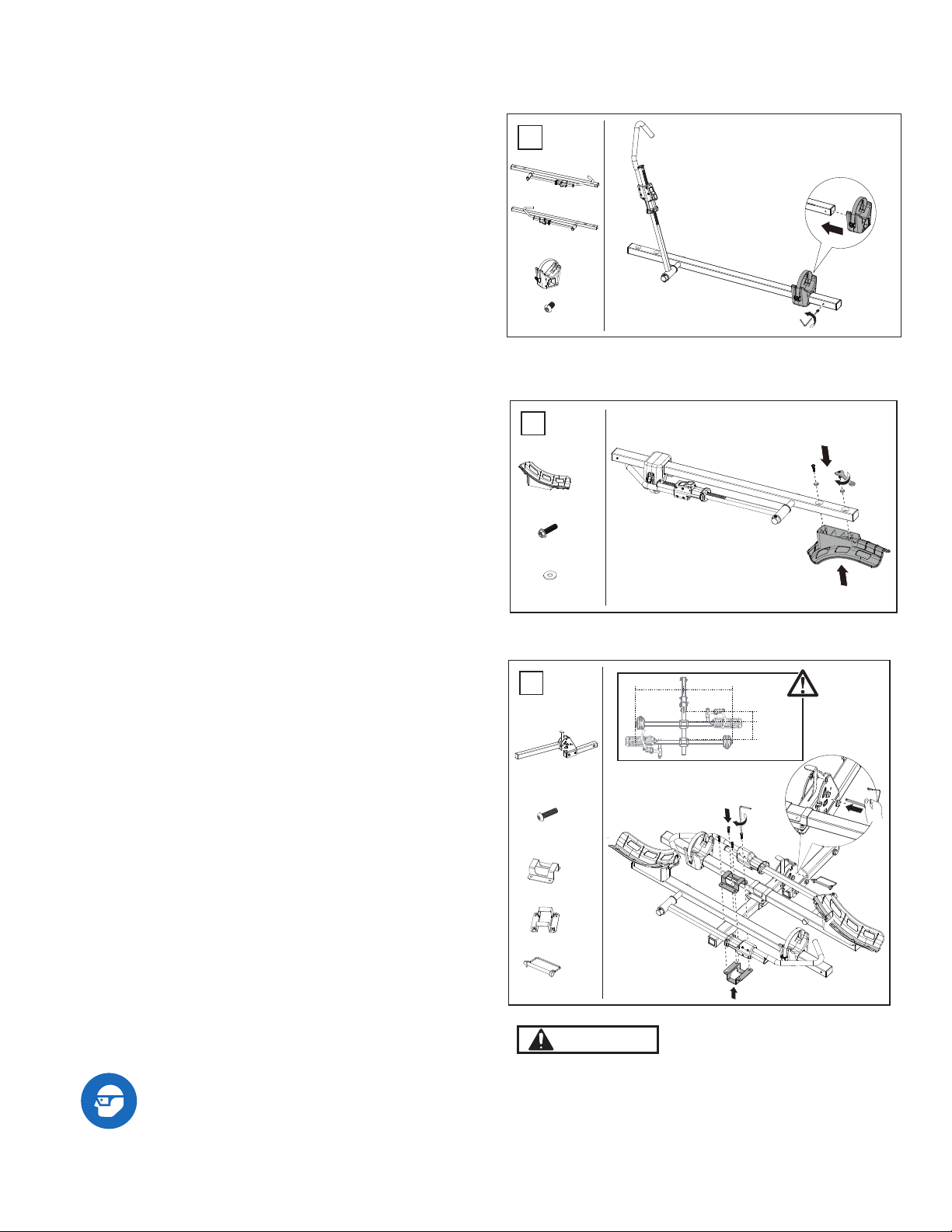

Assembling and Setting Up the Bike Rack
Always wear ANSI approved
safety goggles.
1. Install the Rear Wheel Cradle
2.Install the Front Wheel Cradle
3. Fasten Crossbars to the Main Frame
With assembly com-
plete, check for tightness of Bolts, Lock
Nuts, R-Pins, and Locking Knob, before at-
taching Bike Rack to vehicle’s hitch receiver.
INSTRUCTION
MANUAL
1
x1
x1
x2
x2
M6x12
2
8
x2
x4
x4
3
M8x30
x2
x1
x2
x8
x1
>18cm / 7 in
≈23cm / 9 in
1/2 L 1/2 L
DANGER
WARNING
CAUTION
NOTICE

Model 110110 Page 5
Using the Bike Rack
Make sure the vehicle
is in a safe place for loading bicycles. Make
sure the vehicle’s engine is OFF, with park-
ing brake set, before loading or unloading
the Bike Rack.
1. Attach the Bike Rack to the Hitch Receiv-
er.
2. Adjusting the Safety cradles.
3. Safe folding procedure.
Maintaining the Bike Rack
1. Frequently check the condition of the
Bike Rack and the vehicle’s hitch receiver.
Make sure all components are in good
condition. If the Bike Rack or hitch receiver
become damaged through accident, or if any
weld damage is noted, the product should be
replaced. 2. Check to make sure that all
hardware is tightly secured in place. Keep
the Bike Rack clean.
SPECIFICATIONS
Maximum Weight Capacity 132 Lbs.for two Bikes,
66 Lbs. per bike
For Use With 2” x 2” Class III and IV
Hitch Receivers
Application Holds up to 2 bicycles
Tire Diameter 16”-29”
Maximum Wheelbase 53”
Max. Tire Width 4.8”
DANGER
WARNING
CAUTION
NOTICE
CD
B
5cm / 2 in
G I J K
1x 1x 1x 1x
C
A
B
1
2
Carrier can fold when
not in use

Parts Diagram
Note: The Parts List and Assembly Diagram is provided as a reference tool only. Some parts are listed and shown
for illustration purposes only, and are not available as replacement parts. All repairs to this tool (including replacing
parts) should only be done by a qualied service technician.
Manufactured and Distributed by: Avitec Towing and Garage Equipment
Camarillo, CA 93012, U.S.A
www.avitecusa.com
Customer service hours 9:00 am-4:00 pm, Monday-Friday, PST.,
1-805-385-9888
Model 110110 Page 6
Parts List
NO. Parts Description Qty
A Main Frame with Hitch Bar 1
BCross Bar with Swing Arm &
Hook 2
C Front Wheel Cradle 2
D Rear Wheel Cradle 2
E Bracket-Lower Position 2
F Bracket-Upper Position 2
G R-Pin 1
H Washer 8 4
A B
1x
2x
C D
E F
x2
2x 2x
2x 2x
G H I J
1x 4x 1x 1x
K L M N
1x 1x 4x 2x
O
8x
1x
NO. Parts Description Qty
I Spring Washer 16 1
J Washer 16 1
K Hitch Bolt M16*95 1
L Latch Pin 1
M Screw M8*25 4
N Screw M6*12 2
O Screw M8*30 8
