Avlite AV-OL-ILAB-UM-R-D Supplement

Version 1.4
AV-OL-ILAB-UM-R-D
& AV-OL-FL810-UM-R-D
Universal AC Low Intensity Obstruction Light
Dual Fixture
Installation & Service Manual

Version No. Description Date Approved
1.0 Manual launch Feb 2013 S. Turner
1.1 Fail Over Wiring Diagram June 2015 W. Evans
1.2 Fail Over Wiring Diagram July 2015 W. Evans
1.3 Spec Sheet Update December 2016 W. Evans
1.4 Product Improvement June 2018 C. Bernardo

Latest products and information available at www.avlite.com
3
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Table of Contents
Introduction..........................................................................................Page 4
Technology...........................................................................................Page 4
AV-OL-ILAB-UM-R-D & AV-OL-ILAB-UM-R-D Models .......................Page 5
Safety Information...............................................................................Page 9
Unpacking, Mounting, Installation, Wiring & Setup .........................Page 9
Unpacking...................................................................................Page 9
Mounting.....................................................................................Page 9
Installation & Wiring....................................................................Page 9
Opening & Closing the Light Head ..........................Page 10
AV Power.................................................................Page 10
Operation & Setup ....................................................................Page 13
Intensity & Operation Mode Setting.........................Page 14
Alarm Relay Output .................................................Page 15
RS232 & RS422/485 Communications (Optional) ..Page 15
Optional GSM Monitoring & Control System..................................Page 17
Maintenance & Servicing..................................................................Page 18
Trouble Shooting...............................................................................Page 19
Appendix ............................................................................................Page 20

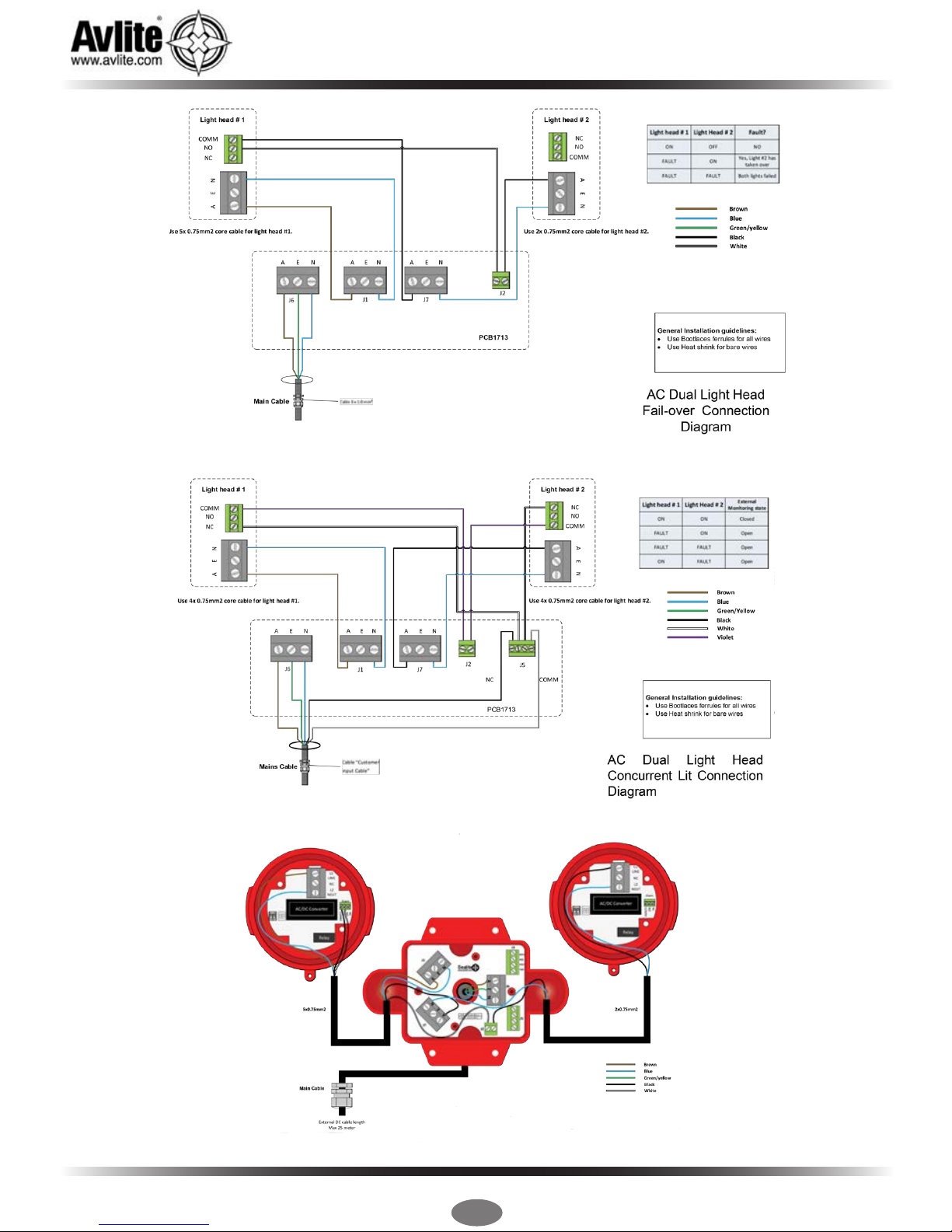

Wiring Diagram.........................................................................Page 20
Light Head Parts Diagram ........................................................Page 21
Main Enclosure Parts Diagram.................................................Page 22
Product Order Codes................................................................Page 23
 Certications&Compliance......................................................Page 24
Avlite Light Warranty.........................................................................Page 25

Latest products and information available at www.avlite.com
4
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Introduction
Congratulations! By choosing to purchase an Avlite light, you have become the owner of
one of the most advanced solar LED obstruction lights in the world.
Avlite Systems draws on more than 25 years experience in the design and manufacture of navigation aids,
and particular care has been taken to ensure your light gives years of trouble free service.
As a commitment to producing the highest quality products for our customers, Avlite has been independently
certiedascomplyingwiththerequirementsofISO9001:2015qualitymanagementsystem.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
light, and be able to maximise its operating function.
Please remember to complete the Avlite warranty registration card accompanying your light.
Technology
Avlite Systems is a world-class solar lighting systems manufacturer with a proven
reputation for rapid, innovative, and agile technology solutions designed specically for
defense, government, civil and humanitarian aid operations in the most remote, toughest
environments.
Electronics
Avlite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Avlite procurement staff ensuring that only
the highest quality components are used in our products.
LED Technology
All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Avlite products are of a consistent and superior quality.
Optical Performance
Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. The company has superior
in-house lens manufacturing capabilities to support outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Avlite’s range of innovative designs, with
other regional patents pending in Canada, United Kingdom and Europe.

Latest products and information available at www.avlite.com
5
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
AV-OL-ILAB-UM-R-D
& AV-OL-FL810-UM-R-D Models
This Avlite dual light xture is a steady burning, low intensity LED obstruction light
designed to comply with FAA L-810 and ICAO LIOL Type A & B requirements. The
model can be used for marking obstacles up to 45 metres above ground, such as
telecommunication towers, wind turbines, buildings and other tall structures.
Avlite’s LED obstruction lights offer an ultra bright, energy efcient and cost
effective lighting solution.
The dual light xture can be congured to different operational states. Both light
xtures may be set to operate steady-burning. Alternatively, the dual light xture
may consist of a main light and a standby light. If the main light should ever fail the
standby light will automatically switch on to ensure the obstacle is always clearly
marked.
The light xture incorporates internal diagnostic checking and an alarm contact for
remote monitoring. The alarm relay is energised in normal operation and is released
whenever the LED is not lit.

Latest products and information available at www.avlite.com
6
Universal AC Low Intensity Obstruction Light
Dual Light Fixture

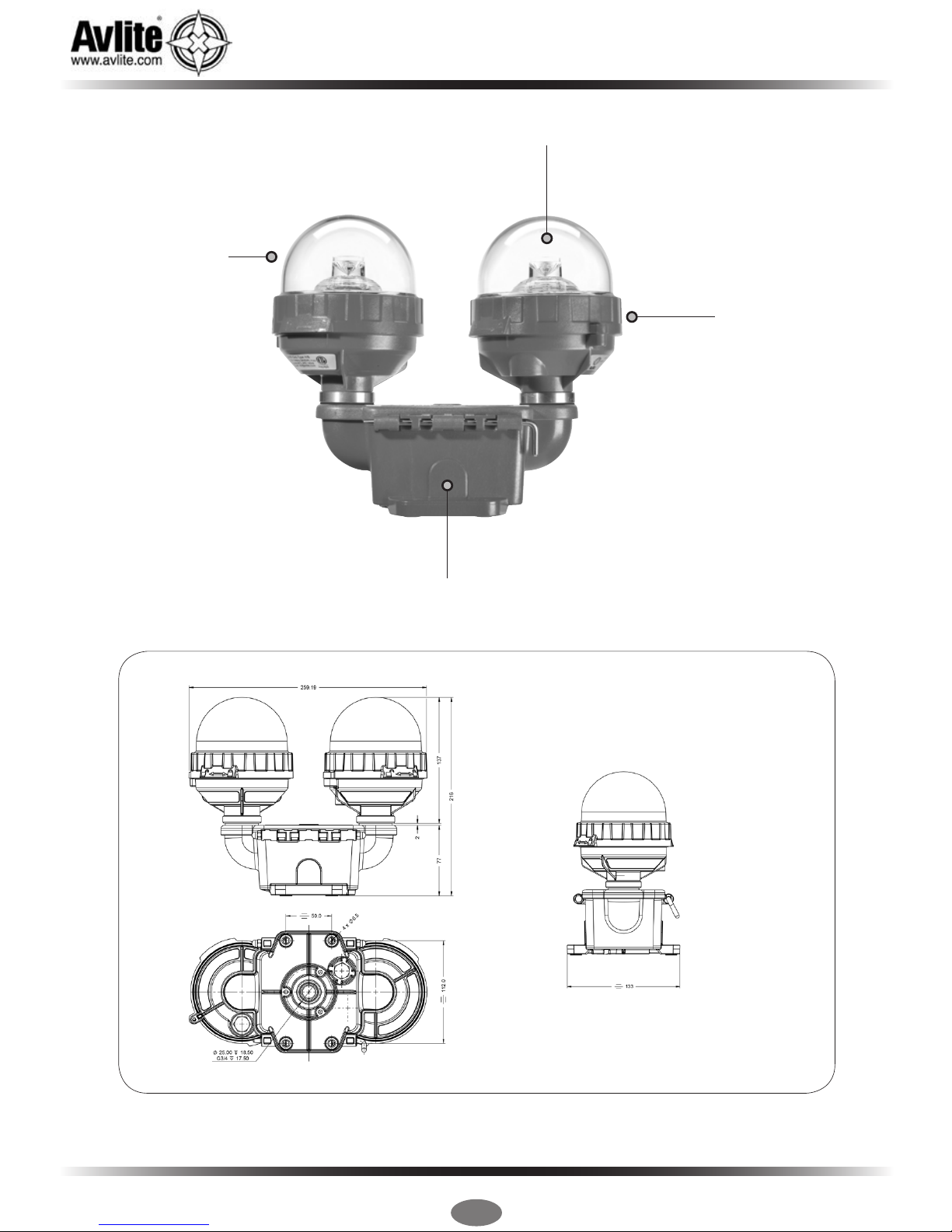

Single LED Optic
Tough UV-stabilised
LEXAN® polycarbonate
lens & light base
Robust Lexan
composite housing
Automatic night
operation

Latest products and information available at www.avlite.com
7
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
SPECIFICATIONS•* ICAO Type A & Type B LIOL Dual Fixture
110–240 VAC
Light Characteristics
Light Source As tested;AV-OL-ILAB-UM-R (Type A & Type B)
Available Colours Red as standard. Other colours available on request, including IR
Peak Intensity (cd)† Complies with ICAO LIOLA & LIOLB: 2013
Horizontal Output (degrees) 3600
Vertical Divergence (degrees) as per ICAO Type A/B specication
Reector Type Single LED Optic
Operation Mode Adjustment User-adjustable between 10cd & 32cd
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Failover Conguration @ 12V:
Power (W)‡
ICAO LIOL Type A @ 10cd Steady-on with relay energised: Pmax = 4.2
ICAO LIOL Type B @ 32cd Steady-on with relay energised: Pmax = 7 Smax = 19VA
Dual Lit Conguration @ 12V:
Power (W)‡
ICAO LIOL Type A @ 10cd Steady-on with relay energised: Pmax = 2.4
ICAO LIOL Type B @ 32cd Steady-on with relay energised: Pmax = 8 Smax = 21.3VA
Circuit Protection Integrated
Operating Voltage 110 – 240 VAC 50/60Hz
Temperature Range -40 to 80°C
Physical Characteristics
Body Material Reinforced Polycarbonate composite - UV stabilized
Lens Material LEXAN® Polycarbonate – UV stabilized
Lens Diameter (mm/inches) 100 / 37/8
Lens Design Single LED Optic
Mounting ICAO Model: ¾ inch pipe thread
Height (mm/inches) ICAO Model: 216 / 8 ½
Width (mm/inches) 259.2 / 10 ¼
Depth (mm/inches) 133 / 5¼
Mass (kg/lbs) 1.15 / 2.53
Product Life Expectancy 12 years plus
Environmental Factors
Humidity 0 to 100%, MIL-STD-810F
Icing 3.41kg per square cm / 48.5lbs per square inch
Wind Speed Up to 240kph / 150mph
Certications
CE EN61000-6-3:2007
EN61000-6-1:2007
FCC 47 CFR Part 15, subpart B
Quality Assurance ISO9001:2015
ICAO Low Intensity Obstruction Light Type A & B
Waterproof IP68
Intellectual Property
Trademarks AVLITE®is a registered trademark of Avlite Systems
Warranty * 5 year warranty
Options Available • Variety of solar/battery congurations
• GSM Cell-Phone Monitoring
• IR LED
• Dual visual/IR output
• Specications subject to change or variation without notice
* Subject to standard terms and conditions
† Intensity setting subject to solar availability
‡ When used in redundant failsafe mode

Latest products and information available at www.avlite.com
8
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
SPECIFICATIONS•* FAA L-810 LIOL Dual Fixture
110–240 VAC
Light Characteristics
Light Source As tested; FAA:AV-OL-FL810-12-R LED
Available colors Red as standard. Other colors available on request, including IR
Peak Intensity (cd)† Complies with FAA L-810 obstruction lights
Horizontal Output (degrees) 360
Vertical Divergence (degrees) as per FAA L-810 obstruction light specication
Reector Type Single LED Optic
Operation Mode Adjustment User-adjustable between dusk-till-dawn & 24 hour operation
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Failover Conguration @ 12V: Power (W)‡ FAA L-810 @ 32.5cd Steady-on with relay energized: Pmax = 5 Smax = 13.4VA
Dual Lit Conguration @ 12V: Power (W)‡ FAA L-810 @ 32.5cd Steady-on with relay energized: Pmax = 4 Smax = 10.6VA
Circuit Protection Integrated
Operating Voltage 110 – 240 VAC 50/60Hz
Temperature Range -40 to 80°C
Physical Characteristics
Body Material Reinforced Polycarbonate composite – UV stabilized
Lens Material LEXAN® Polycarbonate – UV stabilized
Lens Diameter (mm/inches) 100 / 37/8
Lens Design Single LED Optic
Mounting FAA Model: ¾ inch pipe thread
Height (mm/inches) FAA Model: 216 / 8½
Width (mm/inches) 259.2 / 10¼
Depth (mm/inches) 133 / 5¼
Mass (kg/lbs) 1.15 / 2.53
Product Life Expectancy 12 years plus
Environmental Factors
Humidity 0 to 100%, MIL-STD-810F
Icing 3.41kg per square cm / 48.5lbs per square inch
Wind Speed Up to 240kph / 150mph
Certications
CE EN61000-6-3:2007
EN61000-6-1:2007
FCC 47 CFR Part 15, subpart B
Quality Assurance ISO9001:2015
FAA, DGAC-Mexico L-810 Medium Intensity Obstruction Light (Qualied by Intertek)
Waterproof IP68
Intellectual Property
Trademarks AVLITE®is a registered trademark of Avlite Systems
Warranty * 5 year warranty
Options Available • Variety of solar/battery congurations
• Dual visual/IR output
• IR LED
• Specications subject to change or variation without notice
* Subject to standard terms and conditions
† Intensity setting subject to solar availability
‡ When used in redundant failsafe mode

Latest products and information available at www.avlite.com
9
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Safety Information
• Install the light in compliance with the effective local electrical code(s).
• Mains power should always be disconnected when work is being done in close proximity to
electricalttings,andelectricalworkshouldonlybedonebyalicensedandcertiedprofessional.
• Operate the light only within the indicated electrical ratings and product usage instructions.
• To ensure that the light and peripheral equipment function safely and correctly, use cable in
compliance with the effective local electrical code.
• Do not stare at the LED or shine the LED into your eyes or those of another person.
• Do dispose of the product according to the local laws and regulations for your region, for example,
at a recycling center that accepts electronic devices.
Unpacking, Mounting, Installation, Wiring & Setup
Unpackallhardwareandinspectfordamage.Ifthereisanydamage,pleasecontactyourAvliteOfce.
Retain original packing material for possible future use in shipping.
Unpacking
Mounting
Mount the Obstruction Light using its four mounting holes. Make sure the light is horizontally aligned to
guarantee the required beam pattern of the obstruction light.
Installation & Wiring
Beforeproceedingwithinstallationorservice,makesurethefollowingconditionsaremet:
• Ensure the tower or mast is grounded (No RF HAZARD)
• Check the mast lighting circuit is not faulty
• Ensure power lines are not ‘live’ (NO ELECTRICAL HAZARD)
• Avoid touching live circuits!
• Avoid touching any component or any part of the circuitry while the unit is operating. Do not change
components or make adjustments inside the unit with power on.
NOTE:
Theunitmustbeinstalledbyaqualiedandcertiedprofessional.
OPENING AND CLOSING THE LIGHT HEAD(S)
Remove the locking screw
In order to open the unit, the top half of the unit should be turned anti-clockwise with respect to the
bottom half. The top half will turn approximately 20mm over a positive “click” before separating from
the bottom half. Attention should be paid to the restriction caused by the internal cabling which is
secured by a cable gland.

Latest products and information available at www.avlite.com
10
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
AC POWER CONNECTION
1. Open the top lid by removing a locking pin and nut from one side of the lid. Wire the light and connect
theincomingpowercabletotheterminalblock.Refertogure2
2. Close the lid using the locking pin and nut. Make sure the white rubber o-ring stays in place during the
process
NOTE:
• Use the allocated terminal point on J6 for earth/ground point
• Make sure all wires are secured properly and screws at the switching power supply are tight
NOTE:
• The unit is designed to operate from a nominal AC voltage from 110V-240V.
• Use cable in compliance with the effective local electrical code. The cable outer diameter should be
between5mmand10mm.Avliterecommendsthefollowingnumberofcoresandsize[mm²]:2x0.75or2
x 1.0
• Colour coding may vary depending on country and local regulations.
OPENING AND CLOSING THE LIGHT HEAD(S)
Remove the locking screw
In order to open the unit, the top half of the unit should be turned anti-clockwise with respect to the
bottom half. The top half will turn approximately 20mm over a positive “click” before separating from
the bottom half. Attention should be paid to the restriction caused by the internal cabling which is
secured by a cable gland.
The unit is closed by reversing the above procedure, ensuring the black rubber O-ring remains in
place.
Locking Screw
Obstruction Light head
Undo the lock nut and locking
Pin to remove the lid
Figure 1.

Latest products and information available at www.avlite.com
11
Universal AC Low Intensity Obstruction Light
Dual Light Fixture

Latest products and information available at www.avlite.com
12
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Figure 2. DC Wiring Diagram

Latest products and information available at www.avlite.com
13
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
When powered up, the light will constantly check day/night status using its internal ambient light
sensor. The ambient light sensor averages its measurement for 30 seconds.
FAA: By default the lights turn ON when the ambient light decreases to not less than 35 foot-
candles (367.7 lux) and turn OFF when the ambient light decreases to not more than 60 foot-
candles (645.8 lux). These limits can be factory adjusted, if required.
ICAO: By default the lights turn ON when the ambient light decreases to not less than 35 foot-
candles (100 lux) and turn OFF when the ambient light decreases to not more than 60 foot-
candles (150 lux). These limits can be factory adjusted, if required.
If the light detects a LED failure the alarm relay can be used to provide a feedback to the user.
Operation & Setup

Latest products and information available at www.avlite.com
14
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
INTENSITY & OPERATION MODE SETTING
Light intensity & operation mode setting for ICAO compliant light xture
ThexturewillbesuppliedwiththeICAOcompliantoptic.
Theobstructionlightwillbepre-settotheintensitysettingspeciedbythecustomer(ICAOTypeAor
ICAO Type B) for a red steady burning Low Intensity Obstruction Light in dusk-till-dawn mode. The
intensity and operation mode is pre-set in the factory and does not need to be set by the user.
If the customer should need to change the intensity or operation mode settings of the ICAO compliant
model they can do this by changing the INTENSITY DIP switch. Please refer to table below for DIP switch
settings and Figure 3 for circuit board location.
Light intensity & operation mode setting for FAA compliant light xture
ThexturewillbesuppliedwiththeFAAcompliantoptic.
The FAA compliant model comes pre-set to the correct intensity for L-810 steady burning red obstruction
light in dusk-till-dawn mode. The intensity and operation mode is pre-set in the factory and does not need
to be set by the user.
If the customer should need to change the operation mode settings of the FAA compliant model they can
do this by changing the INTENSITY DIP switch. Please refer to table below for DIP switch settings and
Figure 3 for circuit board location.
NOTE:
The ICAO Model and FAA Model have their own unique optic. The ICAO model cannot be used for
FAA purposes and the FAA model cannot be used for ICAO purposes. The model required needs to be
speciedatthetimeoforder.
NOTE:
Theunitmustbeinstalledbyaqualiedelectrician.
NOTE:
24 hour mode allows remote control via external photocell, RF handheld or external control system.
Position 2 Position 1 Light Intensity
No function OFF FAA L-810 Low Intensity Obstruction Light, dusk-till-dawn mode
– DEFAULT
No function ON FAA L-810 Low Intensity Obstruction Light, 24 hour mode
Position 2 Position 1 Light Intensity
OFF OFF ICAO Low Intensity Obstruction Light Type A (10cd), dusk-till-dawn mode
– DEFAULT
OFF ON ICAO Low Intensity Obstruction Light Type A (10cd), 24 hour mode
ON OFF ICAO Low Intensity Obstruction Light Type B (32cd), dusk-till-dawn mode
ON ON ICAO Low Intensity Obstruction Light Type B (32cd), 24 hour mode

Latest products and information available at www.avlite.com
15
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
ALARM RELAY OUTPUT
In normal operation the relay is energised
• Terminal contacts COMM and NC of the relay are electrically closed
• Terminal contacts COMM and NO of the relay are electrically open
Whenever the LED is not lit due to a power failure and/or a LED failure the relay will not be energised.
• Terminal contacts COMM and NO of the relay are electrically closed
• Terminal contacts COMM and NC of the relay are electrically open
For location details of the terminals please refer to Figure 3.
Thealarmrelaycanbeconguredinthreedifferentways:
• Relay normal operation (default, as described above)
• Relay inverse operation (inverse functionality of the normal operation, used to conserve power)
• Relay disable (in case the relay is not required, used to conserve power)
NOTE:Thealarmrelayisintendedforlowvoltage(SELV)connectiononly.
RS232 & RS422/485 COMMUNICATION (OPTIONAL)
The Obstruction Light offers a RS232 and a R2422/485 interface.
RS232 Typical 3 pin TxD, RxD and GND arrangement
RS422/485 Typical 4 pin arrangement with Termination selection and Duplex/Halfduplex selection
For location details please refer to Figure 3.
Please contact AVLITE for further details.
Duplex
SW3
S1 S2
OFF OFF Simplex operation
ON ON Duplex operation
Termination
SW4
S1 S2
OFF OFF No termination
ON ON 120 Ohm termination

Latest products and information available at www.avlite.com
16
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Figure 3. Obstruction Light PCB with terminals and DIP switches
COMM
NO
NC
ALARM
SPST
ON
1 2
SW2
L1
LINE
L2
NEUT
NC
100-240
VAC
Intensity switch

Latest products and information available at www.avlite.com
17
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Optional GSM
Monitoring & Control System
TheAV-OLSeriesDualLightFixturemayalsobettedwithGSMCell-PhoneMonitoringandControl
– enabling users to access real-time diagnostics data and change light settings via cell-phone. The
systemcanalsobeconguredtosendoutalarmSMStextmessagestodesignatedcellulartelephone
numbers. Users can also have alarms and reports sent to designated email addresses.
Please contact Avlite for further information and instructions.

Latest products and information available at www.avlite.com
18
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Designed to be maintenance free the Obstruction Lights require minimal attention, though the
following maintenance and servicing information is provided to help ensure the life of your Avlite
product.
• Occasional cleaning of the dome lens may be required using a cloth and warm soapy water as
needed.
Maintenance & Servicing

Latest products and information available at www.avlite.com
19
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Problem Remedy
Light will not activate. • Ensure proper connectivity with power supply
• Ensure that the power supply has the right polarity and voltage range
• Cover the light sensor to force the light ON
Trouble Shooting

Latest products and information available at www.avlite.com
20
Universal AC Low Intensity Obstruction Light
Dual Light Fixture
Appendix
Wiring Diagram

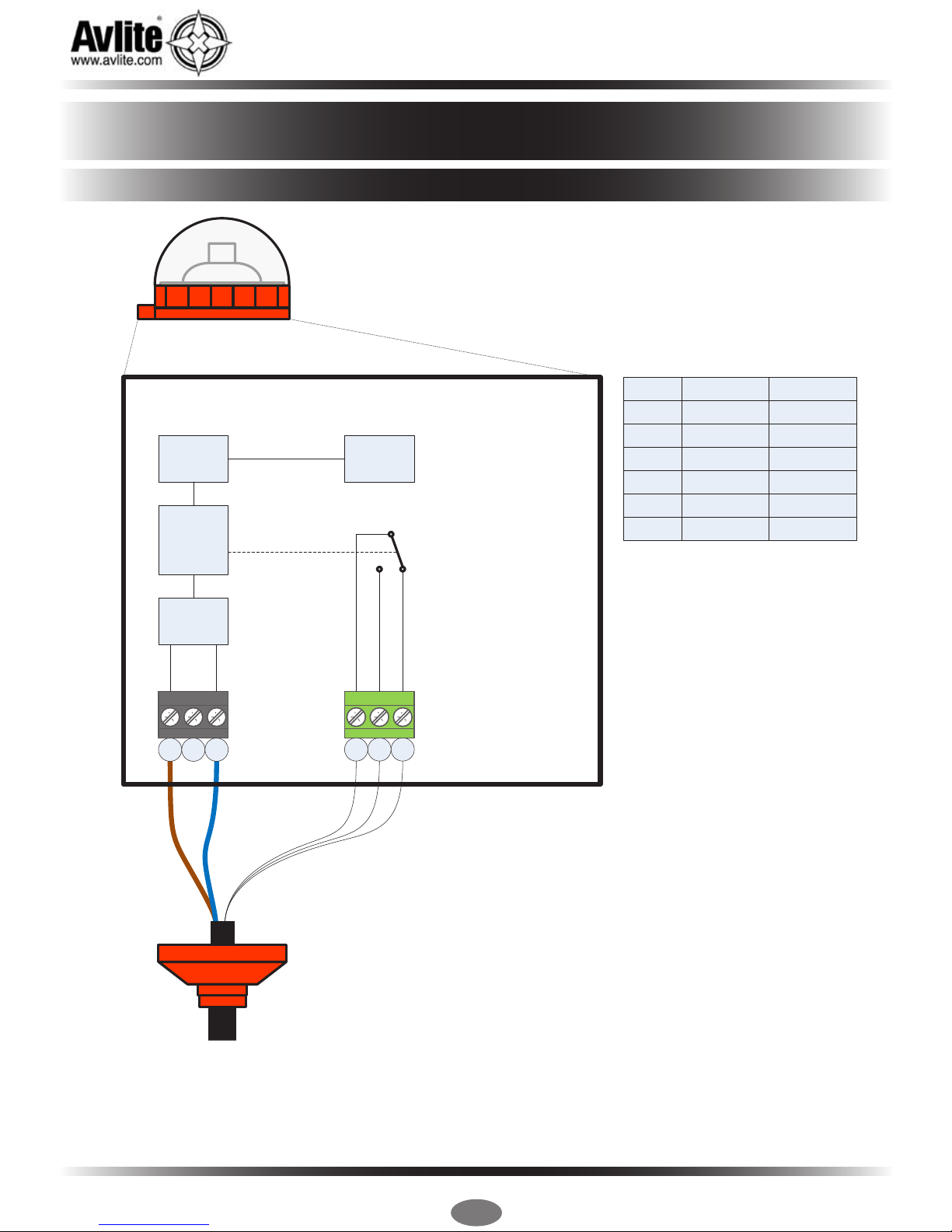

Figure 4. Light head wiring diagram
shown with optional serial communication
1 2
ALARMPOWER
4 5 6
3
J1 J2
LED
Obstruction Light Head (top)
AC/DC
LED driver
uP
NO.
4
5
6
CONNECTOR
ALARM
ALARM
ALARM
SIGNAL
COMM
NO
NC
1
2
110-240VAC
110-240VAC
L1 - LINE
NC
3 110-240VAC L2 - NEUT
Light in normal
operation
Figure 5. Light head parts diagram
