Avocor AVC-SB1
Soundbar with HDMI and Bluetooth aptX™
CONTENTS
IMPORTANT INFORMATION ___________________________3
WHAT’S IN THE BOX __________________________________5
KEY FEATURES _______________________________________6
INSTALLATION _______________________________________7
SETUP INSTRUCTIONS (Hookup guides) _______________10
CONTROLS & FUNCTIONS ___________________________12
REMOTE CONTROL _________________________________13
WARRANTY ________________________________________14
TROUBLE SHOOTING ________________________________15
SPECIFIATIONS _____________________________________16

44[Type here] [Type here] [Type here]
IMPORTANT INFORMATION
READ BEFORE OPERATING EQUIPMENT
Follow all the instructions carefully before using the Avocor AVC-SB1 soundbar and keep them
for future reference.
Do not use this Avocor AVC-SB1 soundbar near water.
Clean only with a dry soft cloth and unplug this soundbar from the wall outlet
Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
WARNINGS
To reduce the risk of fire or electrical shock, do not expose this soundbar to rain or
moisture. This soundbar must not be exposed to dripping and splashing and no object
filled with liquids such as a vase of flowers should be placed on the unit.
Opening or removing covers may expose you to dangerous voltages or other hazards.
Do not install near any heat sources such as radiators, stoves or other apparatus [including
amplifiers] that produce heat.
No naked flame sources such as candles should be placed on the soundbar.
To prevent risk of fire or electric shock, avoid over loading wall outlets,
This soundbar should only be connected to a mains socket outlet with a protective
earthing connection.
Unplug the soundbar from the mains supply during lightning storms or when unused for
long periods of time.
Take note of all warnings on the appliance, under no circumstances disassemble the unit
or remove covers to prevent the risk of fire or electrical shock.
Protect the power cord from being walked on or pinched, particularly at plugs and the
point where they exit from the soundbar.
Do not try to bypass the polarized or grounding type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
The system is designed to comply with the recommended safety standards for tilt and
stability. Do not apply excessive pulling force to the front, or top, of the cabinet which
could cause the soundbar to overturn resulting in soundbar damage and/or personal
injury.
Install in accordance with the instructions in this user guide. Follow instructions for wall, shelf
or ceiling mounting as recommended in this user guide.
CAUTION
Never remove the back covers of the soundbar as this can expose you to very high
voltages and other hazards. If the system does not operate properly, unplug the audio
system and call your authorised dealer for advice. Adjust only those controls that are
covered in the instructions.
Third parties: In the unlikely event that you pass this soundbar on to a third party, include
these operating instructions with the soundbar.
Do not attempt to service this soundbar yourself.
3

44[Type here] [Type here] [Type here]
POWER SOURCES
This audio system is designed to operate on 230 volts 50Hz, AC current. The main plug is
used as the disconnect device and should remain readily accessible. To prevent electric
shock, do not use the soundbar’s mains cable with an extension cord, receptacle, or other
outlet unless the blades and ground terminal can be fully inserted to prevent blade
exposure. Never connect the audio system to 60 Hz DC, or anything other than the
specified voltage .
ELECTRICAL INFORMATION
This system is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it
must be removed and replaced with an appropriate plug. If the plug becomes damaged
and/or needs to be replaced, please follow the wiring instructions below. The plug
removed must be disposed of immediately. It must not be plugged into a supply socket as
this will be an electrical hazard. If the fuse needs to be replaced it must be of the same
rating and ASTA approved to BS1362. If the plug is changed, a fuse of the appropriate
rating must be fitted in the plug, adapter or at the distribution board. If the fuse in a
moulded plug is replaced, the fuse cover must be refitted before the appliance can be
used.
DISPOSAL
In the EU, electronic devices cannot be disposed of with regular household waste. Please
use the return or collections systems of the retailer from whom you purchased the
soundbar. Please dispose of batteries in an environmentally friendly manner. Do not
dispose of batteries with regular household waste. Please use the return or collections
systems of the retailer from whom you purchased the soundbar.
WIRING INSTRUSTIONS
Follow the appropriate wiring instructions given below. In both cases ensure that the
outer sheath of the cable is firmly held by the cable clamp.
4

44[Type here] [Type here] [Type here]
WHAT’S IN THE BOX
AVOCOR AVC-SB1 SOUNDBAR
AVOCOR AVC-SB1 REMOTE CONTROL ACCESSORIES
Optical Cable
3.5mm Stereo Cable
Wall Fixings
Interactive Display Soundbar Mount
User Manual
UK Power Cable
90° HDMI adapter
5

44[Type here] [Type here] [Type here]
KEY FEATURES
The AVC-SB1 Soundbar is designed to provide a high quality alternative to the loudspeakers in
your Interactive display. To this end it has HDMI inputs, optical digital, analogue, and Bluetooth
aptX inputs. The Bluetooth input allows you to stream music content direct from your mobile,
laptop or tablet wirelessly, straight to the AVC-SB1 Soundbar. The AVC-SB1 Soundbar is designed
to mount either on a desktop or on a wall with the supplied wall mount fixings. It may also be
mounted on bespoke bracket assemblies supplied.
ADVANCED TECHNOLOGIES IN THE AVC-SB1 SOUNDBAR
Wider Sound Stage: The AVC-SB1 Soundbar features an acoustic design utilising 2x 2.5 inch bass
drivers, 2x 2.5 inch broadband drivers and 2x passive radiators. It provides 3x DSP presets of Hall,
Music and Speech, each tailored to provide what we believe to be the best possible
performance in each programme category.
The inputs available on the AVC-SB1 Soundbar should accommodate all interactive display
panels or whiteboards, currently available, with 2x HDMI inputs and 1x HDMI output (with ARC),
analogue (3.5mm stereo input), optical (Stereo) input and Bluetooth aptX (for wireless
connectivity).
6
60w Speaker Output
aptX™ Bluetooth
3x DSP presets - Hall, Music and Speech
2x HDMI inputs
HDMI (ARC) output
Optical & Analogue input

44[Type here] [Type here] [Type here]
INSTALLATION
WALL MOUNTING
DETERMINE HOW YOU WANT TO SET UP YOUR AVC-SB1 SOUNDBAR.
The AVC-SB1 Soundbar comes with wall fixings to be used with a wall mounted Interactive
Display. The inputs and power cord are designed to allow a flush mount.
FOLLOW THESE STEPS TO MOUNT THE AVC-SB1 SOUNDBAR ON A WALL:
1. Measure the width of the Interactive Display.
The AVC-SB1 Soundbar should be mounted
so it is centred. Divide the Interactive Display
width measurement by 2 - that will be the
centre line distance from the edges of the
Interactive Display.
2. If the AVC-SB1 Soundbar is to be mounted
below the Interactive Display, measure from
the Interactive Display edge to the centre
line distance on the open wall below the
Interactive Display. Mark the distance with a
pencil 38mm or more below the bottom of
the Interactive Display.
3. Make a pencil mark 230 mm on each side of
the centre line. Make sure the mark is the
same distance down from the Interactive
Display on each side.
4. Drill a hole in the wall at either of the two
pencil marks.
5. Hammer the 2 wall mount anchors into the
holes - the anchors should be flush with the
wall.
6. Now, using a Phillips screwdriver, screw the
wall screws into the anchors.
7. Tilting the bottom of the AVC-SB1
Soundbar slightly away from the wall,
guide the brackets into the matching holes
on the back of AVC-SB1. The AVC-SB1
Soundbar is now securely wall mounted.
NOTES
The supplied wall fixings can be used for typical drywall construction.
Mounting to wood, concrete, brick or other types of wall construction will require
different hardware. Avocor recommends seeking professional assistance for
such installations. The instructions on this page and the supplied wall mount kit
are only for the vertical wall mount. Professional assistance is required for other
mounting or installation orientations (e.g., horizontal, tilted).
7

44[Type here] [Type here] [Type here]
INSTALLATION
WALL MOUNTING

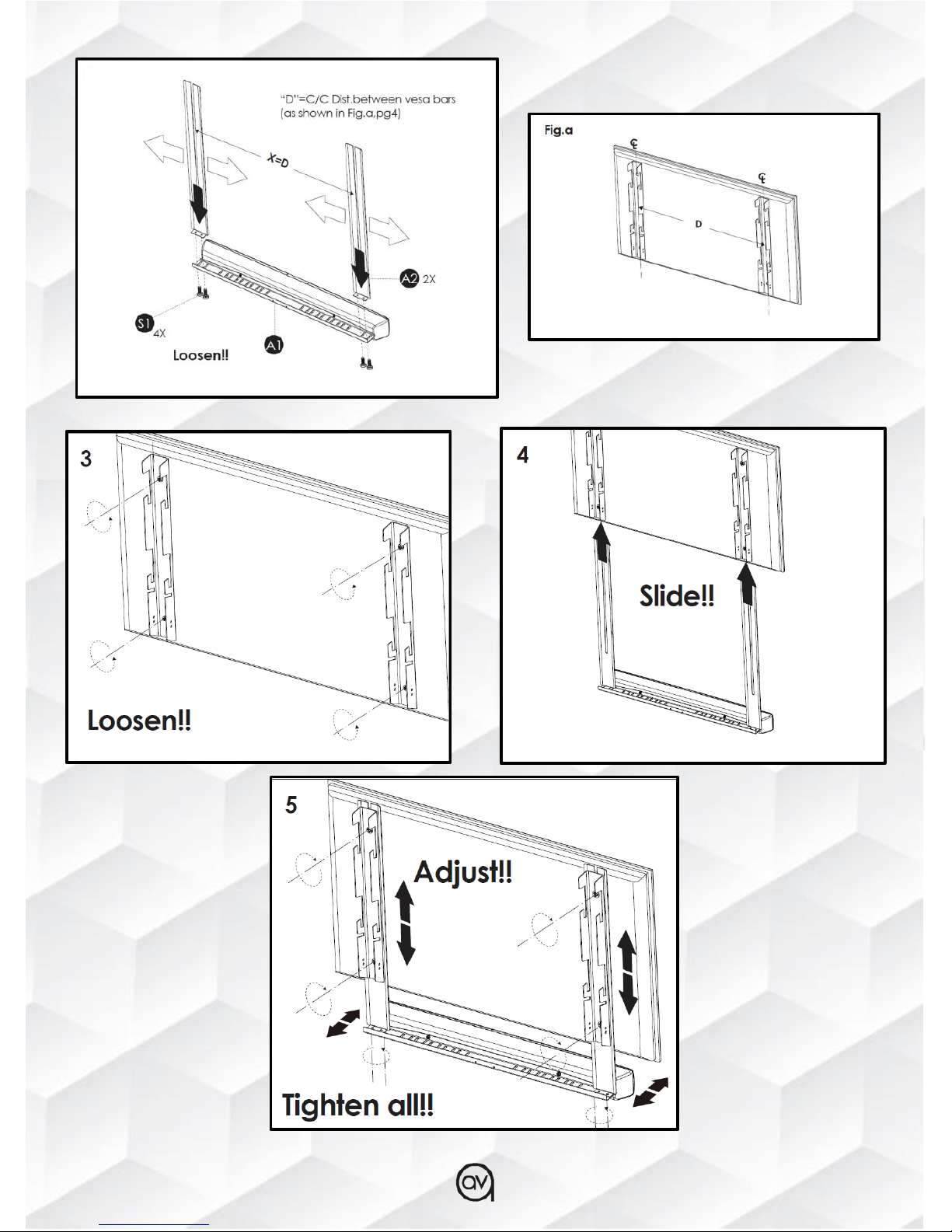

FOLLOW THESE STEPS TO MOUNT THE AVC-SB1 SOUNDBAR ON AN INTERACTIVE DISPLAY:
8

44[Type here] [Type here] [Type here]
2
9

44[Type here] [Type here] [Type here]
SETUP INSTRUCTIONS
INTERACTIVE DISPLAY TV/DVD/SET TOP BOX HOOKUP - CASE 1 HDMI ARC
HDMI with ARC - Use this output to connect your AVC-SB1 to your Interactive Display/TV. Please
note if your TV is not ARC (Audio Return Channel) enabled you will not be able to connect this
way - if this is the case, please refer to either case 2 or 3 below.
INTERACTIVE DISPLAY TV/DVD/SET TOP BOX - CASE 2 HDMI
HDMI Inputs 1 & 2 - Use these inputs to connect any HDMI enabled device - you will also have
to connect an HDMI lead via ARC to your Interactive TV as this will act as an output to stream
video to your Interactive Display.
10

44[Type here] [Type here] [Type here]
INTERACTIVE DISPLAY/TV OR OTHER DEVICE HOOKUP - CASE 3 OPTICAL
Optical Input –Use this input to connect an Interactive Display/TV (as above) or any other
device such as a DVD or CD player or games console.
INTERACTIVE DISPLAY/TV AUDIO HOOKUP - CASE 4 AUXILIARY
If your Interactive Display/TV has a headphone output, plug a 3.5 mm mini stereo cable into
the headphone output from your Interactive Display/TV and plug the other end to the Input 2
jack on the back of your AVC-SB1.
IMPORTANT SET UP NOTE
If you are using Hookup Case 3, you will need to change the output signal from
the source device - this will be accessed in the sources menu and will need to be
changed to either Stereo, 2.1 or PCM dependent on the terminology used in the
source device.
11

44[Type here] [Type here] [Type here]

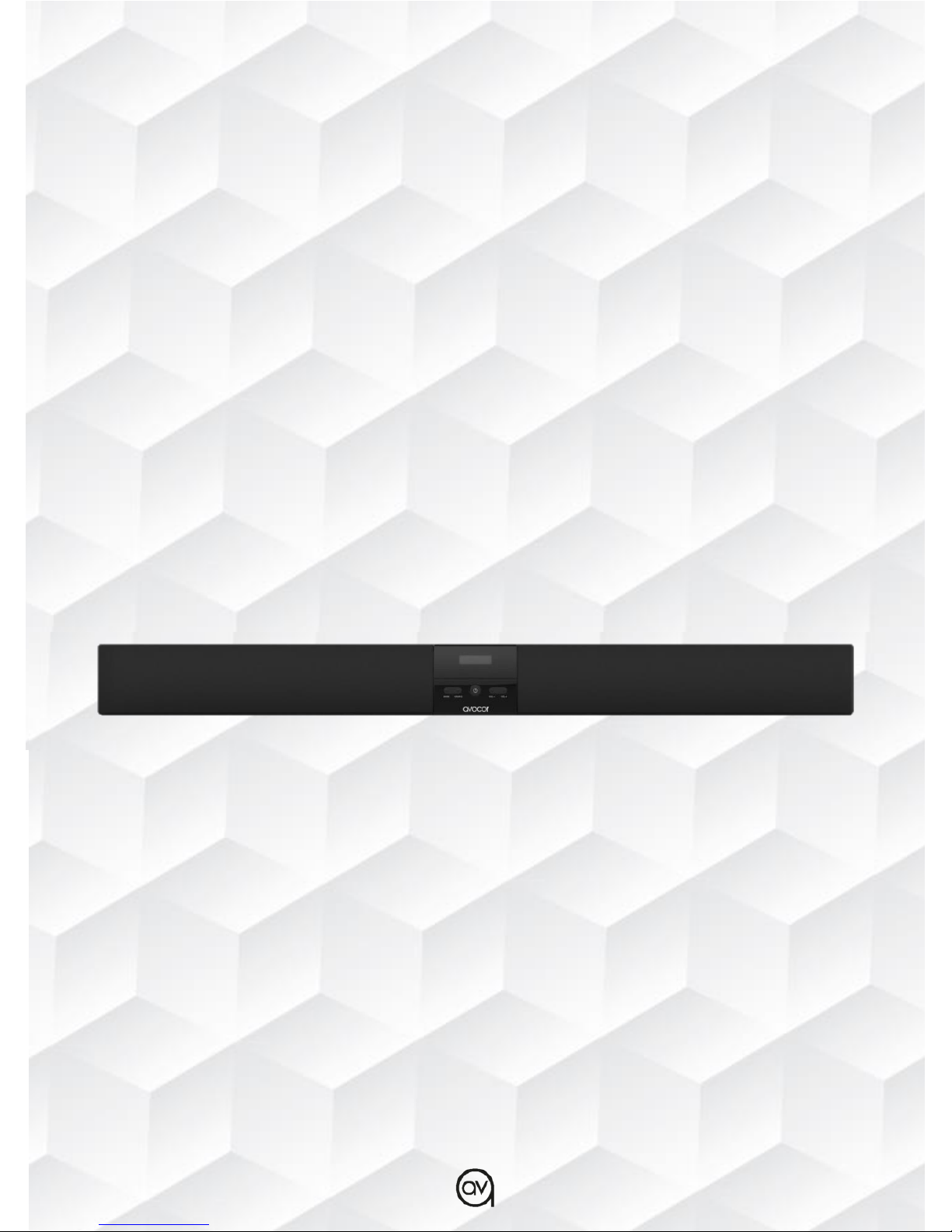

CONTROLS & FUNCTIONS
Front Panel Controls / LED Indicators
1. REMOTE CONTROL SENSOR AREA
Point your remote control at this area when you use the remote control.
2. MODE BUTTON
Press this button to select DSP mode for Hall, Music or Speech.
3. SOURCE BUTTON
Press this button to scroll through the inputs.
4. POWER BUTTON
Press this button to turn the AVC-SB1 Soundbar on; the Power indicator will turn off to indicate
the AVC-SB1 Soundbar is on. If the input becomes inactive the AVC-SB1 Soundbar will change
to standby mode to conserve power and this indicator will illuminate.
5. VOLUME + & - BUTTON
Adjust the main volume up and down respectively.
c0
1
2
12
3
4
5

44[Type here] [Type here] [Type here]
REMOTE CONTROL
POWER
Press this button to turn the
AVC-SB1 Soundbar on or
off.
VOLUME
Press the + or - button to
adjust the main volume up
or down respectively
MODE
This button is used to select
one of the three presets
DSP programmes, HALL,
MUSIC or SPEECH.
MUTE
Press this button when
you want to activate
the audio mute. Press it
again to deactivate
the mute function.
INPUT SELECTOR
Press this button to scroll
through the inputs
13

44[Type here] [Type here] [Type here]
WARRANTY
This Avocor AVC-SB1 soundbar had been designed and manufactured to the highest quality
standards; however, should you encounter any problems with this soundbar please contact
your local dealer.
This warranty is valid for the original owner for a period of one year from the date of purchase,
it is not transferable.
WHAT IS COVERED BY THE WARRANTY:
The warranty covers all production and material defects of the soundbar, except for the
specifics stated below.
WHAT IS NOT COVERED BY THE WARRANTY:
Damage caused by packing and transport.
Defects caused by accidents, misuse, normal wear and tear, mis-maintenance,
voltage variation and overloading.
Damage caused by incorrect installation or operation.
Damage caused by modification or repair by a non-authorized service centre and use
of non-original spare parts.
Other damage due to conditions beyond the supplier’s control such as fire, rain, war
and other force majeure events.
14

44[Type here] [Type here] [Type here]
TROUBLE SHOOTING
If you encounter problems when using the AVC-SB1 Soundbar, check the following points
before requesting a service call.
In order to keep the warranty valid, please DO NOT attempt to repair the system yourself.
NOTE: DUE TO EEC REGULATIONS THIS SOUNDBAR WILL SWITCH TO STANDBY MODE AS FOLLOWS
The AVC-SB1 switches to standby mode in the following situation:
The device is idle for 30mins when powered by AC supply;
The L/R Audio in or 3.5mm jack is disconnected or when there is no input signal or the input
signal is too low.
If using the 3.5mm jack input to AVC-SB1, we recommend to default the output volume at 75%
or above on the external devices to ensure that it does not automatically go into standby
mode.
1. NO POWER
-Make sure power cords are securely connected to the AC output.
-Make sure that there is power at the AC output.
-Press the power button on the remote control or the front of the AVC-SB1.
2. NO AUDIO
-Press the Volume + (Up) button on the remote control or the front of the AVC-SB1.
-Make sure that you selected correct input (Input 1, Input 2, or Input 3).
-Press MUTE on the remote to make sure the AVC-SB1 Soundbar is not muted.
-Make sure audio cables are securely connected at the terminals of the AVC-SB1 and
the external devices.
3. BUZZING OR HUMMING NOISE
-Make sure audio cables are securely connected at the terminals of the AVC-SB1
Soundbar and the external devices.
-Test on an alternate device or replace the audio cable.
-Test the device and cable on an alternate input on the AVC-SB1 Soundbar.
4. THE REMOTE CONTROL IS NOT FUNCTIONING
-Aim the remote control directly at the sensor on the front of the AVC-SB1 Soundbar.
-Reduce the distance between the remote control and the AVC-SB1 Soundbar.
-Make sure that the battery is inserted with its polarities (+/–signs) aligned as indicated.
-Replace the battery.
5. THE SOUNDBAR AND REMOTE ARE NOT RESPONSIVE
-Unplug the power cord from the AC output, and plug back in after a few seconds.
15

44[Type here] [Type here] [Type here]
AVOCOR AVC-SB1 SPECIFICATIONS
Input Sources
 Bluetooth
 Line In (3.5mm)
 Optical
 2x HDMI In, 1x HDMI Out (ARC)
Bluetooth
 A2DP audio using apt-x decoders
Line-In
3.5mm stereo audio In
500 mV RMS full scale input
Optical
SPDIF format
Toslink Compatible
Stereo only
Up to 96 KHz sample rate at up to 24 bit PCM data
HDMI
HDMI In x 2,
 HDMI Out (ARC) x 1
Amplifiers
 Class D power stages
 2x 15W capability@<10% THD+N
 2x 30W capability@<10% THD+N
Drivers
2 x 2.75 Inch Mid-High Ferrite Magnet Drivers
2 x 2.75 Inch Bass Ferrite Driver
2 x Passive Bass Radiators
Signal Processing
 NCPA 110P AE Engine DSP
 3x DSP presets - Hall, Music and Speech
AC Power
External 19V 3.42A (65W) 220/110 AC input
General
Operating Temperature: 5 °C ~ 40 °C
Power Requirements: AC 230-240V 50Hz
Power Consumption: 65W
Dimensions: 900 x 85 x 88mm (H x W x D)
Soundbar Mount Weight: 2.79Kg
Soundbar Weight: 3.9Kg
Shipping Weight: 7.5 Kg
Mounting Solution
 Soundbar wall mount kit
 Soundbar interactive flat panel mount kit
Avocor reserves the right to change specifications without notice.
Images and photos are for illustration only and actual soundbar may vary. E&OE.
16

44[Type here] [Type here] [Type here]
www.avocor.com 01276 804 654
